CSC 395 – Software Engineering

1. CSC 395 –Software Engineering Lecture 21: Overview of the Term & What Goes in a Data Dictionary

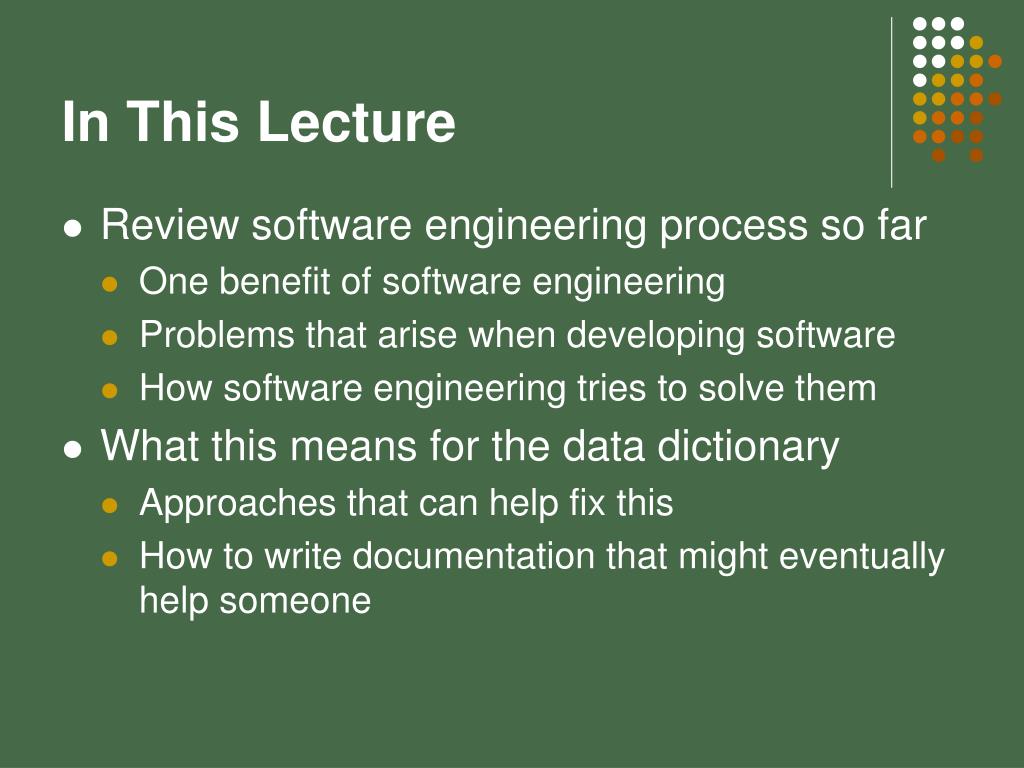

2. In This Lecture • Review software engineering process so far • One benefit of software engineering • Problems that arise when developing software • How software engineering tries to solve them • What this means for the data dictionary • Approaches that can help fix this • How to write documentation that might eventually help someone

3. Eliminating Bugs is (NP-)Hard • Halting problem states we cannot develop system that proves if a program halts • Also cannot prove program free from bugs • People seem to like software that works • Also demand program be reliable & not crash • This ignores several other basic problems • Maintaining software years beyond creation • Average programmer’s… unique social skills

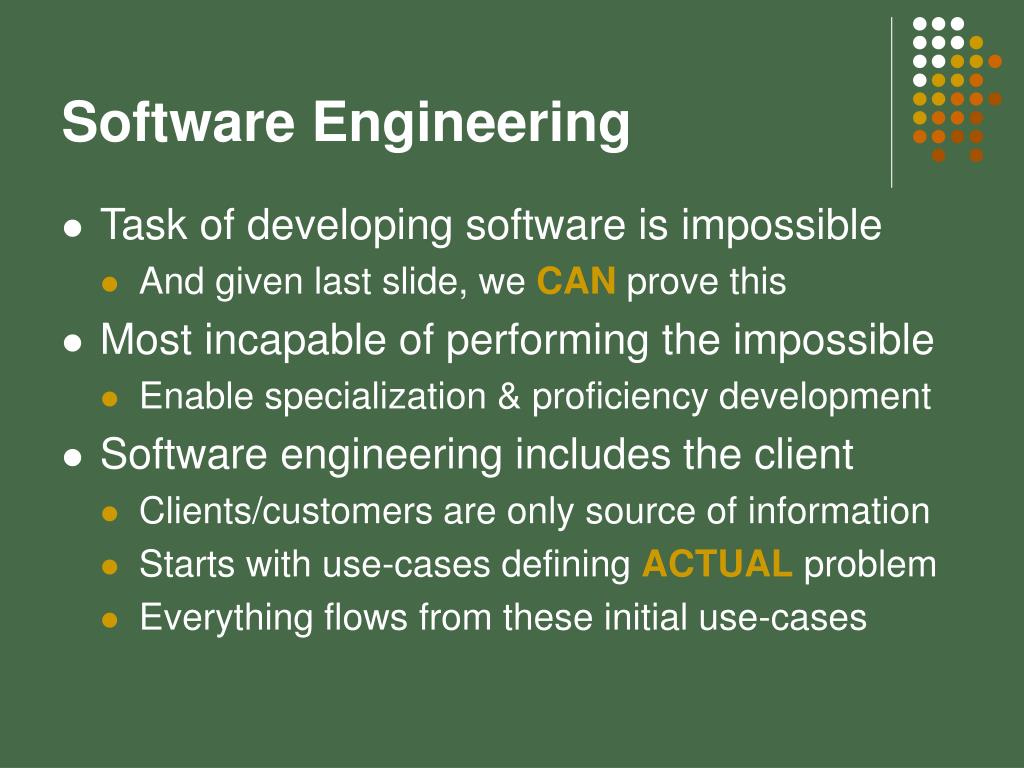

4. Software Engineering • Task of developing software is impossible • And given last slide, we CANprove this • Most incapable of performing the impossible • Enable specialization & proficiency development • Software engineering includes the client • Clients/customers are only source of information • Starts with use-cases defining ACTUAL problem • Everything flows from these initial use-cases

5. Faults != Good • (Software) Companies care about money • Not particularly interested in anything else • Will not discuss this point further(this is CSC395, not PHI395) • Companies act to improve their profitability • Faults take time to fix • Time == money • Bugs therefore take money to fix • Companies therefore care about faults

6. Good Software Lifecycles • Then performs actions developing solution • None of these actions performed alone • Interlocking methods check & recheck results • Each new action begins by reproving result • Uses this check to take next step forward • Periodically recheck all of the results • Prevents building castles on sand • Exposes bugs early

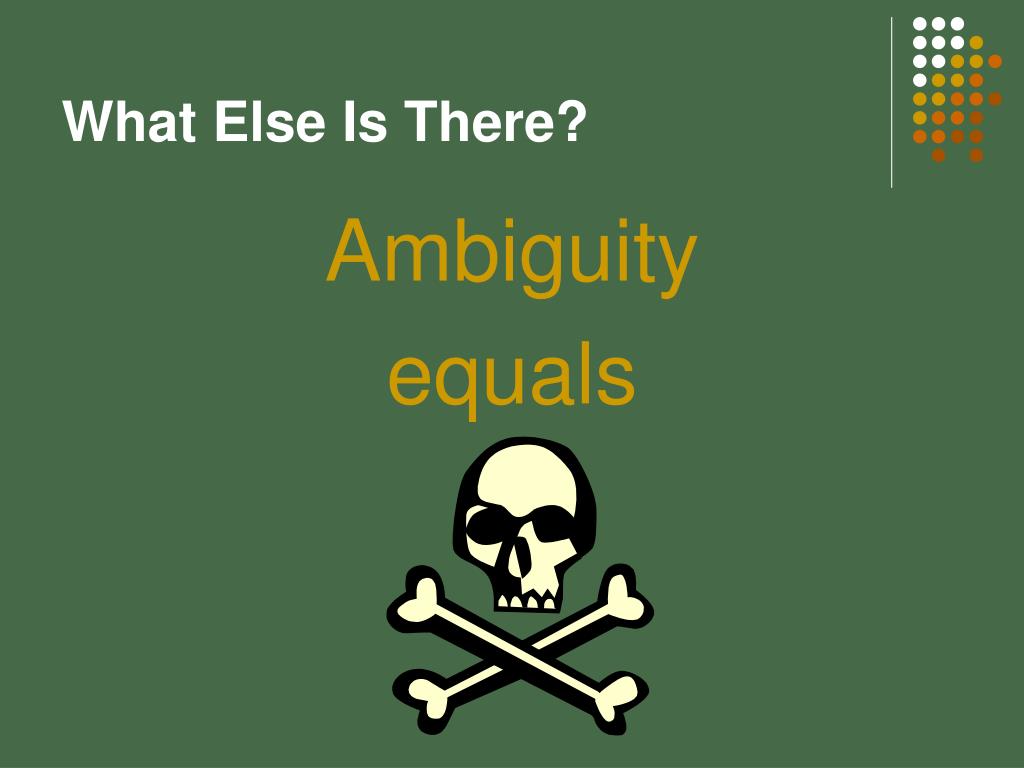

7. What Else Is There? Ambiguity equals

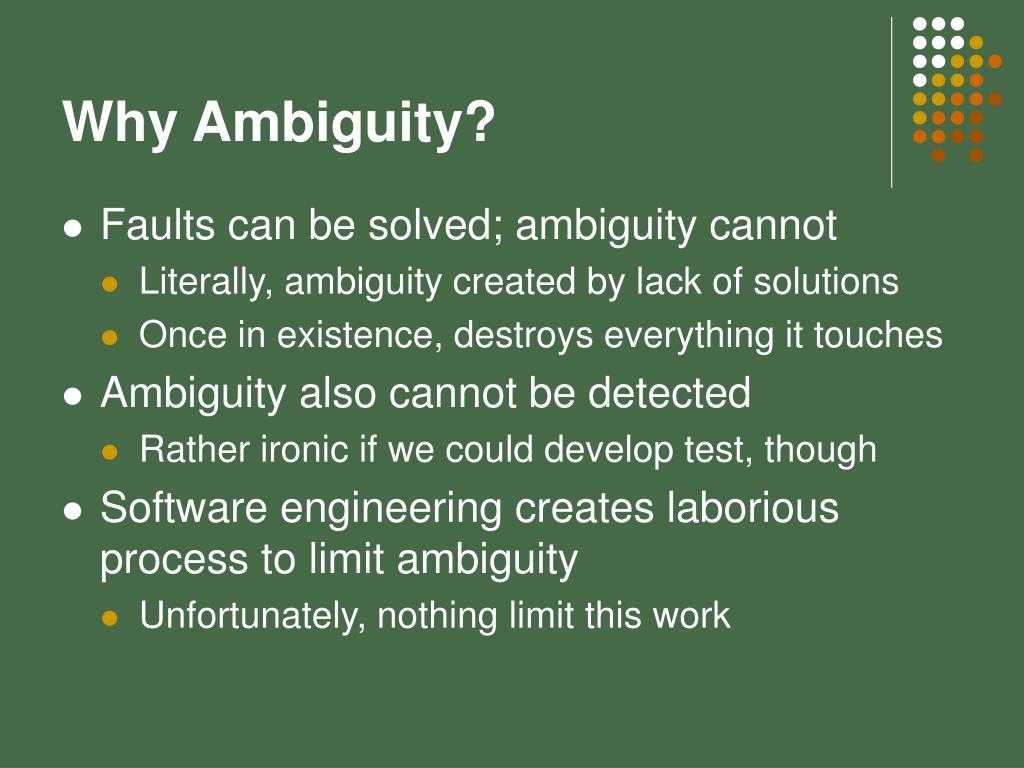

8. Why Ambiguity? • Faults can be solved; ambiguity cannot • Literally, ambiguity created by lack of solutions • Once in existence, destroys everything it touches • Ambiguity also cannot be detected • Rather ironic if we could develop test, though • Software engineering creates laborious process to limit ambiguity • Unfortunately, nothing limit this work

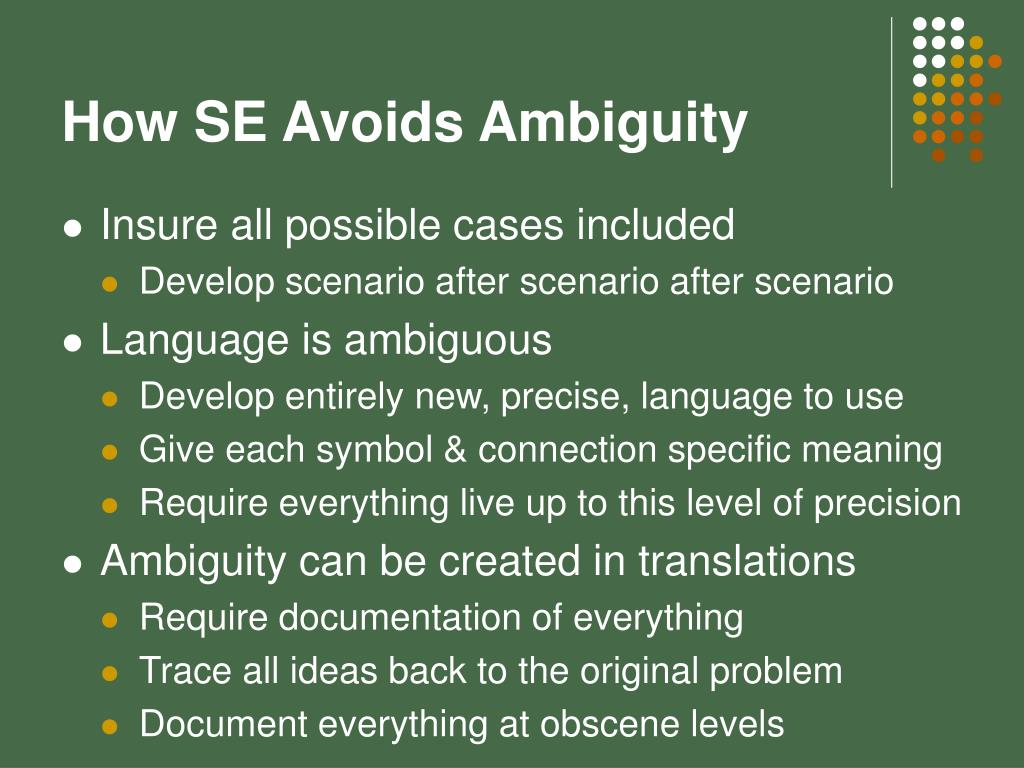

9. How SE Avoids Ambiguity • Insure all possible cases included • Develop scenario after scenario after scenario • Language is ambiguous • Develop entirely new, precise, language to use • Give each symbol & connection specific meaning • Require everything live up to this level of precision • Ambiguity can be created in translations • Require documentation of everything • Trace all ideas back to the original problem • Document everything at obscene levels

10. Data Dictionary • Bad idea • Work in English again! • Worse idea • Leave documentation in programmer’s hand • Ugly idea • Make documentation main decider of code reuse • Good idea • Make $%&# certain documentation is perfect • Develop precise ways of describing code

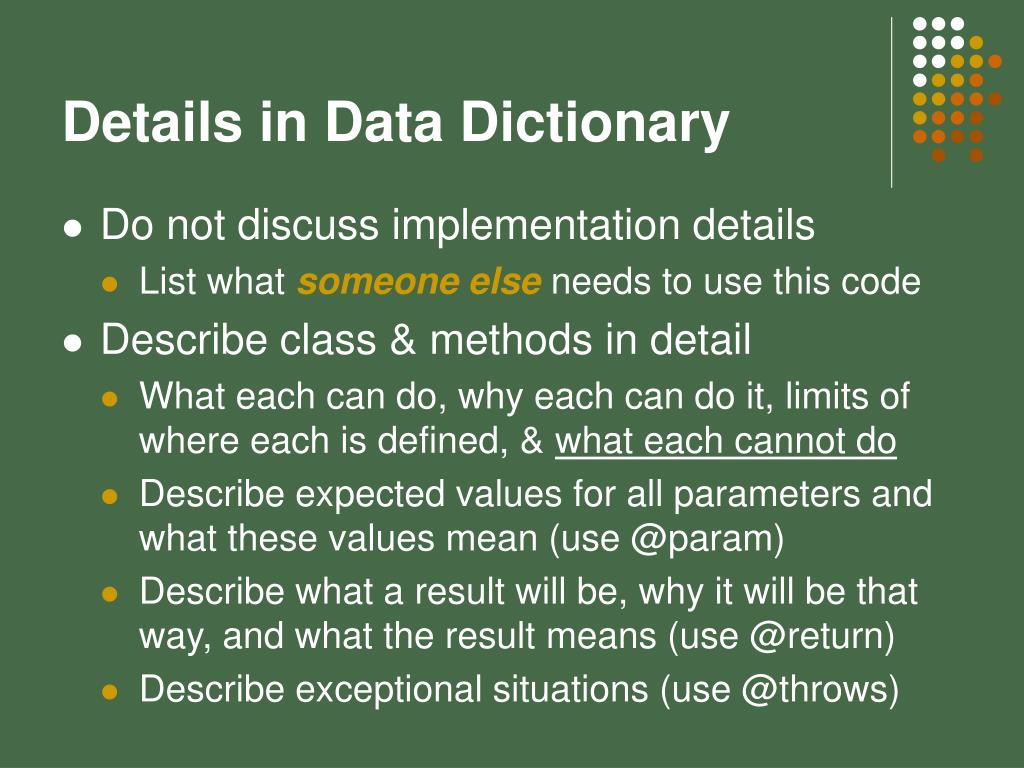

11. Details in Data Dictionary • Do not discuss implementation details • List what someone else needs to use this code • Describe class & methods in detail • What each can do, why each can do it, limits of where each is defined, & what each cannot do • Describe expected values for all parameters and what these values mean (use @param) • Describe what a result will be, why it will be that way, and what the result means (use @return) • Describe exceptional situations (use @throws)

12. Details in Data Dictionary • Document important maintenance information • Associations on which class or method relies: what is associated are, why association exists, and importance of association • @see class @see #method @see class#method • Each of the class’ attributes (fields), value it holds, what value means, limits for which value defined • Algorithms to be used in implementation • Data structures on which it relies • Documentation hidden after design phase • Move from javadoc to inside module

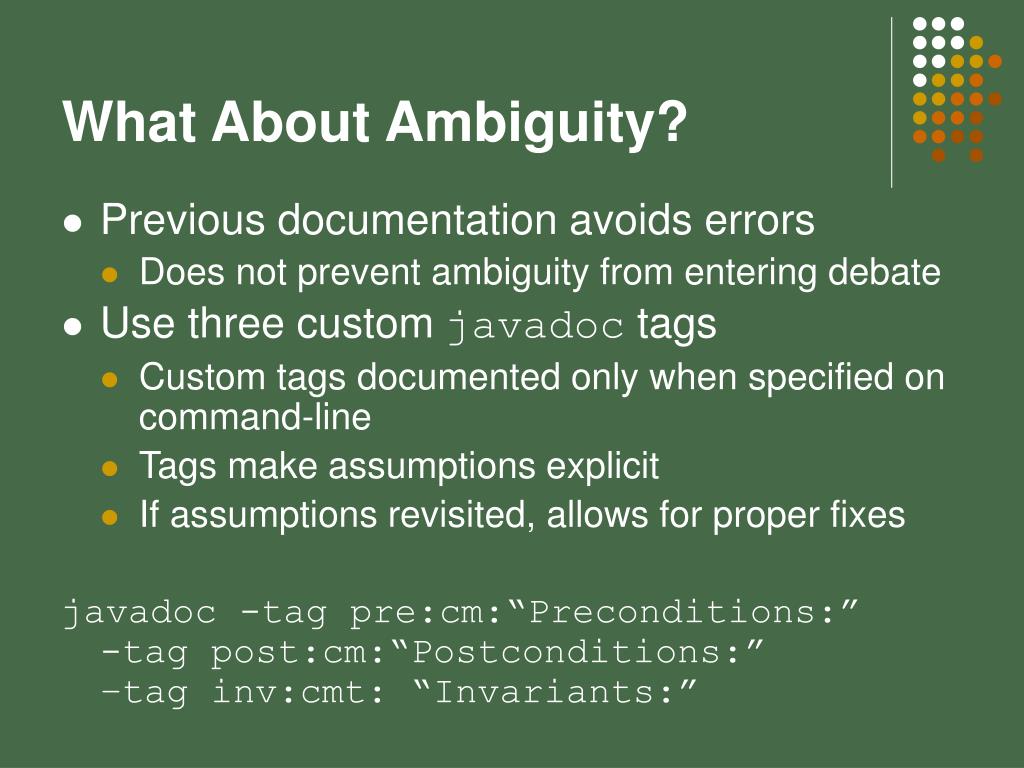

13. What About Ambiguity? • Previous documentation avoids errors • Does not prevent ambiguity from entering debate • Use three custom javadoc tags • Custom tags documented only when specified on command-line • Tags make assumptions explicit • If assumptions revisited, allows for proper fixes javadoc -tag pre:cm:“Preconditions:” -tag post:cm:“Postconditions:”–tag inv:cmt: “Invariants:”

14. Assumptions & Restrictions • Precondition must be true at method start • Calling method responsible for ensuring met • Method only defined for these situations • Postcondition true when method completes • Called method responsible for guaranteeing this • Should consider what will happen when precondition not met • Enables programming-by-contract • Lack of implementation details improves reuse

15. Pre & Post Silly Example /** * Compute & print out square root of a number. * * @param x Value whose square root we use * @pre x ≥ 0. System crashes when not met. * @post x1/2 printed out on System.err */public void printSquareRoot(int x) { System.err.println(“…”);}

16. Invariants • Invariants define properties met at all times • Field values that are somehow linked • Range over which field is defined • Assumptions about how fields, parameters, or other values used • Listed using @inv tag • Normally included as part of class definition • In limited situations, could also include in method

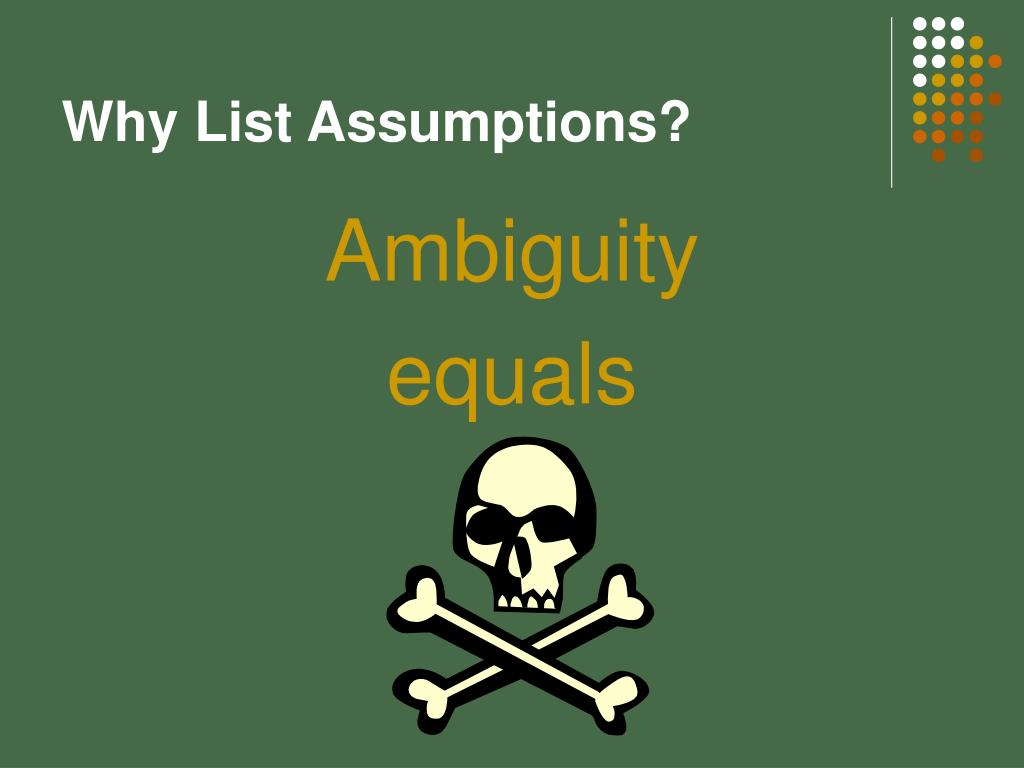

17. Why List Assumptions? Ambiguity equals

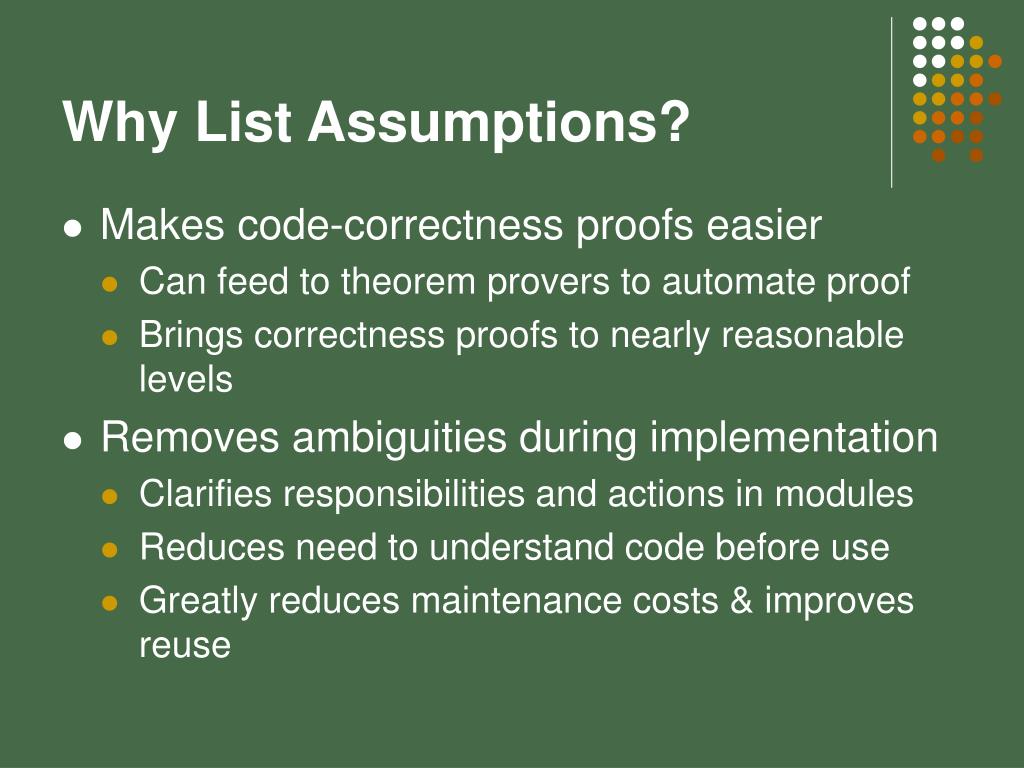

18. Why List Assumptions? • Makes code-correctness proofs easier • Can feed to theorem provers to automate proof • Brings correctness proofs to nearly reasonable levels • Removes ambiguities during implementation • Clarifies responsibilities and actions in modules • Reduces need to understand code before use • Greatly reduces maintenance costs & improves reuse
