  1. RTC-Web Framework Jonathan RosenbergChief Technology Strategist, Skype

  2. Base Case (Model 1) ApplicationProvider Proprietary Over HTTP/Websocket Proprietary Over HTTP/Websocket JS/HTMLApp JS/HTMLApp JS API Browser Browser Media + Media PathSignaling (ICE/STUN/TURN)

  3. Base Case (Model 2) ApplicationProvider StandardizedSignaling StandardizedSignaling JS/HTMLApp JS/HTMLApp JS API Browser Browser Media + Media PathSignaling (ICE/STUN/TURN)

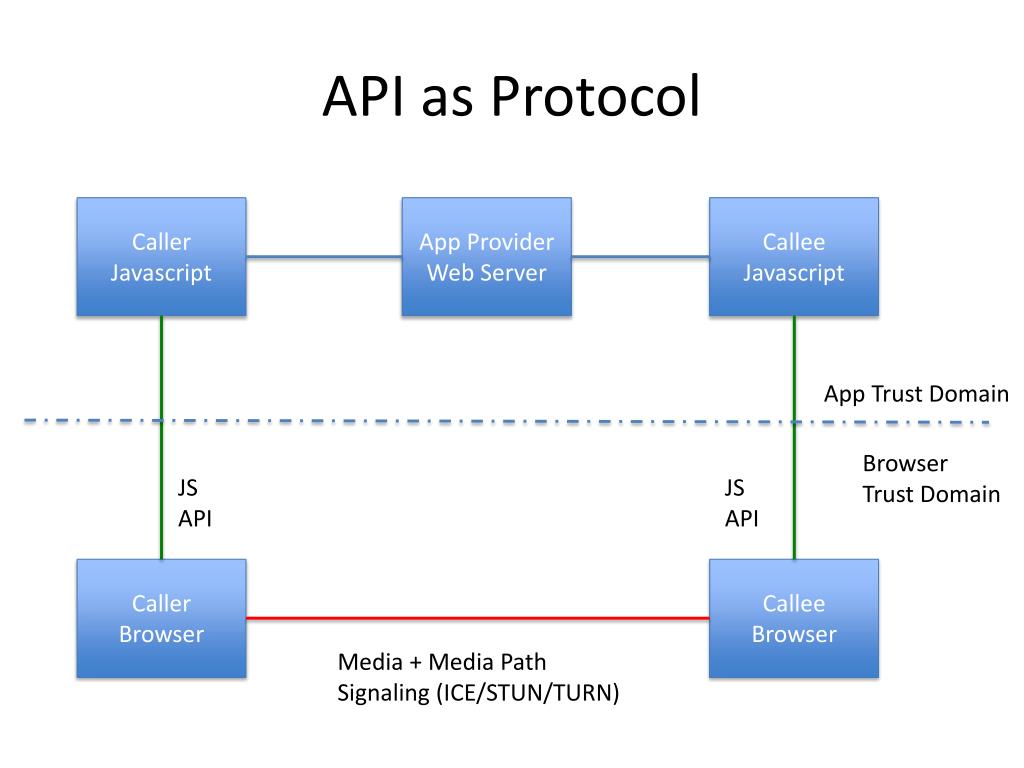

  4. API as Protocol CallerJavascript App Provider Web Server CalleeJavascript App Trust Domain Browser Trust Domain JS API JS API CallerBrowser CalleeBrowser Media + Media PathSignaling (ICE/STUN/TURN)

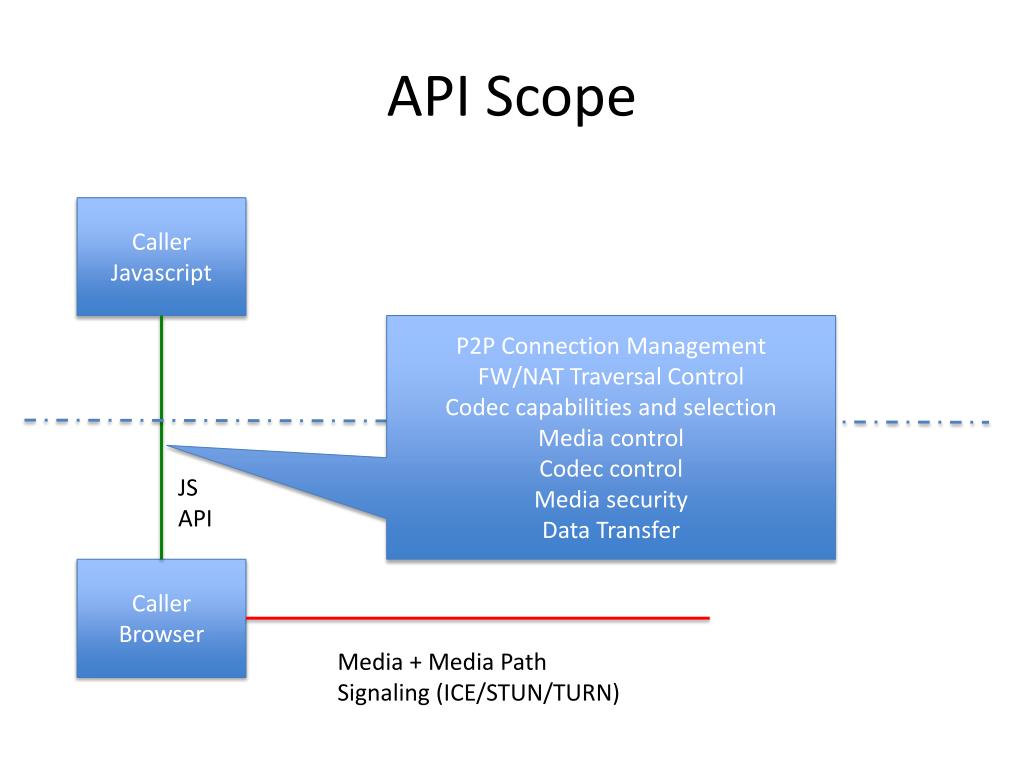

  5. API Scope CallerJavascript P2P Connection Management FW/NAT Traversal Control Codec capabilities and selection Media control Codec control Media security Data Transfer JS API CallerBrowser Media + Media PathSignaling (ICE/STUN/TURN)

  6. Security Problem 1: DDoS CallerJavascript App Provider Web Server MaliciousWebsite App Trust Domain Browser Trust Domain JS API CallerBrowser DDoSTarget Media + Media PathSignaling (ICE/STUN/TURN)

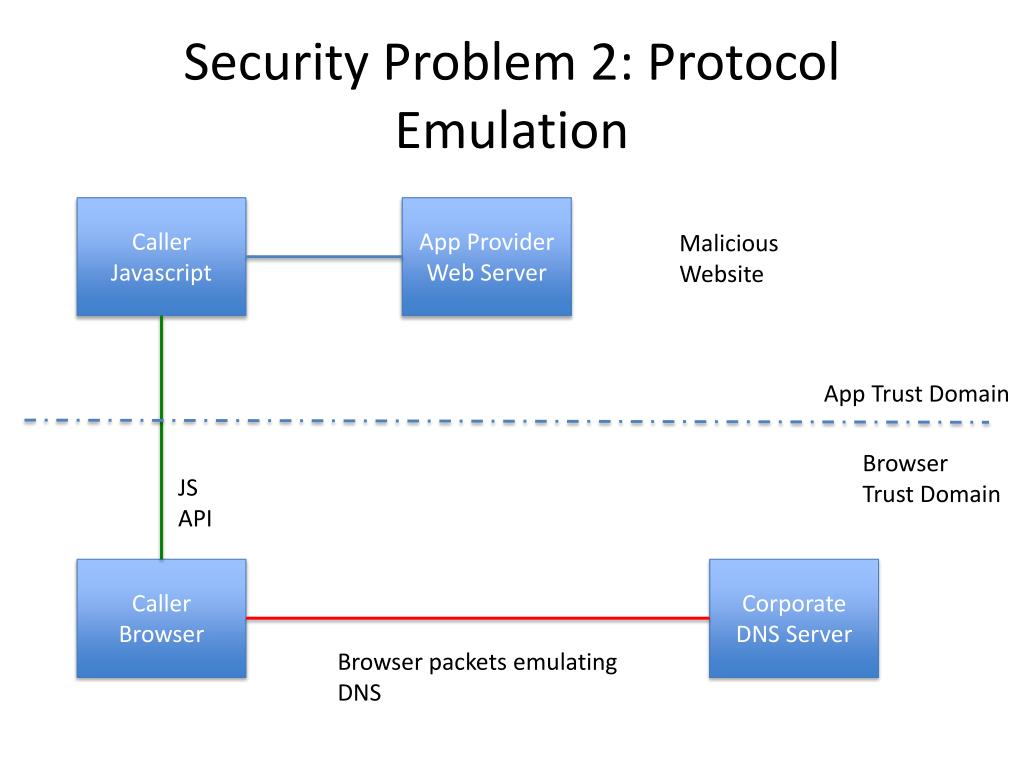

  7. Security Problem 2: Protocol Emulation CallerJavascript App Provider Web Server MaliciousWebsite App Trust Domain Browser Trust Domain JS API CallerBrowser CorporateDNS Server Browser packets emulatingDNS

  8. Provider Interop Case ApplicationProvider 1 ApplicationProvider 1 SIP JS/HTMLApp JS/HTMLApp JS API Browser Browser Media + Media PathSignaling (ICE/STUN/TURN)

  9. Existing Gear Case 1 ApplicationProvider 1 IP PBX SIP JS/HTMLApp SIP,MGCP, H323,Proprietary JS API Browser Media + Media PathSignaling (ICE/STUN/TURN)

  10. Existing Gear Case 2 ApplicationProvider 1 IP PBX SIP Media Gateway JS/HTMLApp SIP,MGCP, H323,Proprietary Browser Media + Media PathSignaling (ICE/STUN/TURN)
