  1. TableTop VEX Competition • This game is designed to be played on a tabletop. We post this game for your enjoyment. Change the rules as you see fit for your students and interests. Best Regards, Robotics Academy

  2. White team starts here! Orange team starts here! Two teams compete at the same time!

  3. 6 2 2 3 3 3 3 @16 The picture at the left shows half of the balls that sit on the foam board. We purchased our foam board at Kmart. It needed to be cut to size. The drawing below shows the locations of the balls. 48” 12

  4. Layout where the balls will sit. • Push the hole in with the round LEGO part • Set the ball in place

  5. Whitestarts here! Red starts here! Soccer goals. Two required - 12 inches high 8 inches wide made of 1 ¼ diameter PVC pipe. Sponge ball 3 each color Ping Pong balls 16 each color Center goal. One required - 12 inches high 8 inches wide made of 1 ¼ diameter PVC pipe

  6. Game parts • 1” PVC to make up the goals • 2. Ping Pong balls • 3. Foam balls or similar balls for the larger balls. We used large Ping Pong balls because Walmart did not have any foam balls left; you could also substitute with tennis balls.

  7. PING PONG BALL SCORING

  8. Whitestarts here! 1 Orange starts here! PING-PONG BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 1 point each ball • BEHIND OPPOSITE GOAL 2 points each ball • FAR GOAL 5 points each ball • CENTER GOAL 10 points each ball

  9. Whitestarts here! BALLS HAVE TO STAY BEHIND LINES TO SCORE 2 Orange starts here! PING-PONG BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 1 point each ball • BEHIND OPPOSITE GOAL 2 points each ball • FAR GOAL 5 points each ball • CENTER GOAL 10 points each ball

  10. Whitestarts here! 3 Orange starts here! PING-PONG BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 1 point each ball • BEHIND OPPOSITE GOAL 2 points each ball • FAR GOAL 5 points each ball • CENTER GOAL 10 points each ball

  11. Whitestarts here! 4 Orange starts here! PING-PONG BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 1 point each ball • BEHIND OPPOSITE GOAL 2 points each ball • FAR GOAL 5 points each ball • CENTER GOAL 10 points each ball

  12. SPONGE BALL SCORING

  13. Whitestarts here! 1 Orange starts here! SPONGE BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 3 point each ball • BEHIND OPPOSITE GOAL 6 points each ball • FAR GOAL 10 points each ball • CENTER GOAL 20 points each ball

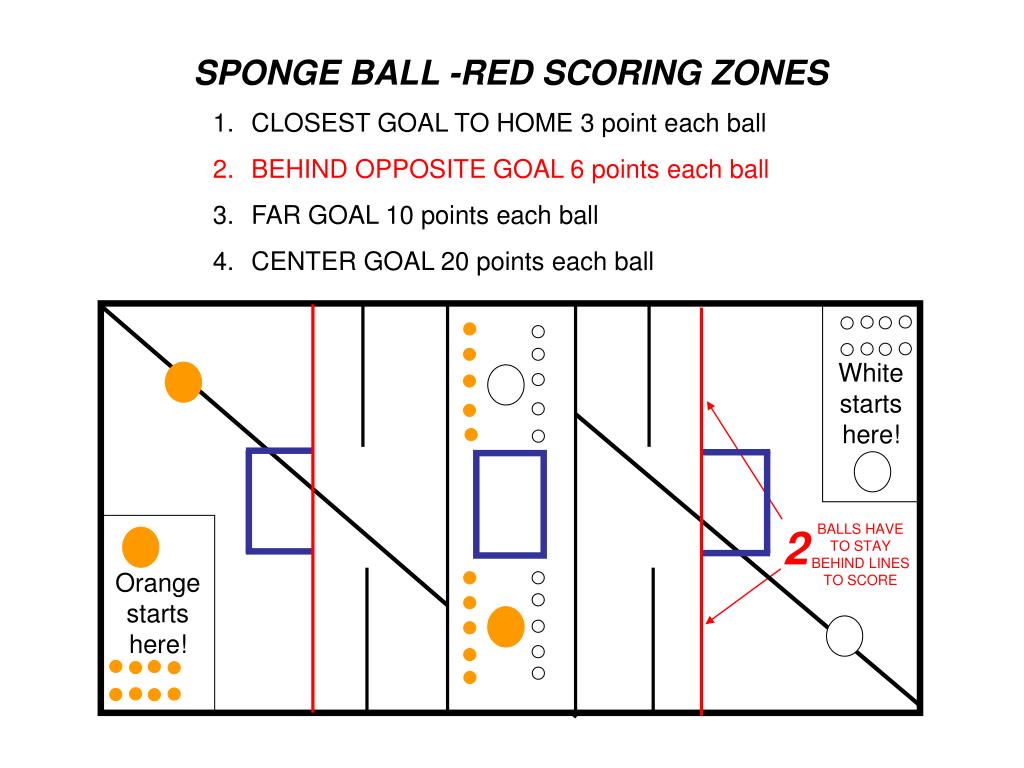

  14. Whitestarts here! BALLS HAVE TO STAY BEHIND LINES TO SCORE 2 Orange starts here! SPONGE BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 3 point each ball • BEHIND OPPOSITE GOAL 6 points each ball • FAR GOAL 10 points each ball • CENTER GOAL 20 points each ball

  15. Whitestarts here! 3 Orange starts here! SPONGE BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 3 point each ball • BEHIND OPPOSITE GOAL 6 points each ball • FAR GOAL 10 points each ball • CENTER GOAL 20 points each ball

  16. Whitestarts here! 4 Orange starts here! SPONGE BALL -RED SCORING ZONES • CLOSEST GOAL TO HOME 3 point each ball • BEHIND OPPOSITE GOAL 6 points each ball • FAR GOAL 10 points each ball • CENTER GOAL 20 points each ball

  17. 56 24 18 24 12 48 32 56 96 Black tape layout on top of 4*8 game table

  18. Goal of the game • Score more points than the other team. • Two parts to the game • Autonomous section – 15 seconds • Remote Control section – 2 minutes
