Memory Management II

1. Memory Management II CS 470 - Spring 2002

2. Overview • Logical Addressing and Virtual Memory • Logical to Linear Address Mapping • Linear to Physical Address Mapping • NT Virtual Address Descriptors • What is a VAD? • Virtual Memory Functions • Example: Displaying the VAD splay • Example: How does the stack work?

3. Logical to Physical Mapping Selector Segment Offset Logical Address 15 0 31 0 Segment Translation No PG? Control Register 0, bit 31 31 Yes 0 Dir Page Page Offset Linear Address Page Translation 0 31 Physical Address

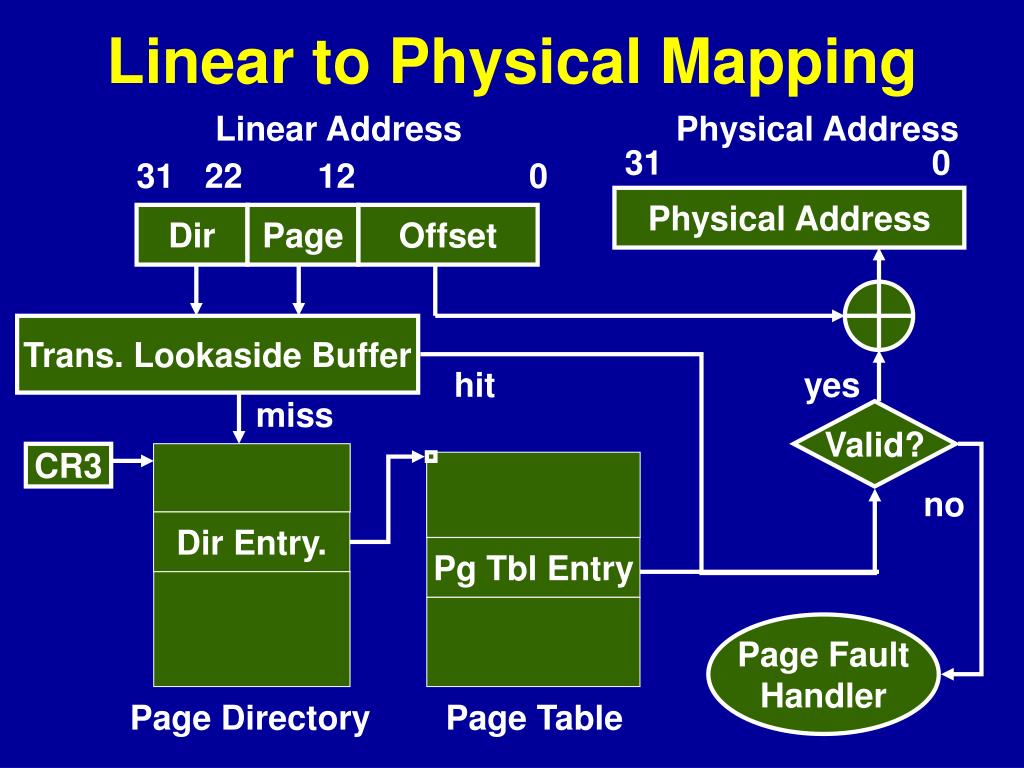

4. Linear to Physical Mapping Linear Address Physical Address 31 0 31 22 12 0 Physical Address Dir Page Offset Trans. Lookaside Buffer hit yes miss Valid? CR3 no Dir Entry. Pg Tbl Entry Page Fault Handler Page Directory Page Table

5. Page/Directory Table Entry 31 12 9 8 7 6 5 4 3 2 1 0 Page Frame Addr G L L D A C D W T U S R W V V Valid R/W Read / Write U/S User / Supervisor W/T Write through C/D Cache Disabled A Accessed D Dirty L Large page GL Global

6. VM Access Steps • Instruction references logical address • Hardware looks up page table entry • Valid PTE gives physical address • Invalid PTE causes address exception (page fault) • Handler copies page to memory from disk or net, updates PTE and restarts instruction. Now have valid PTE and so get physical address • Physical address used to access cache

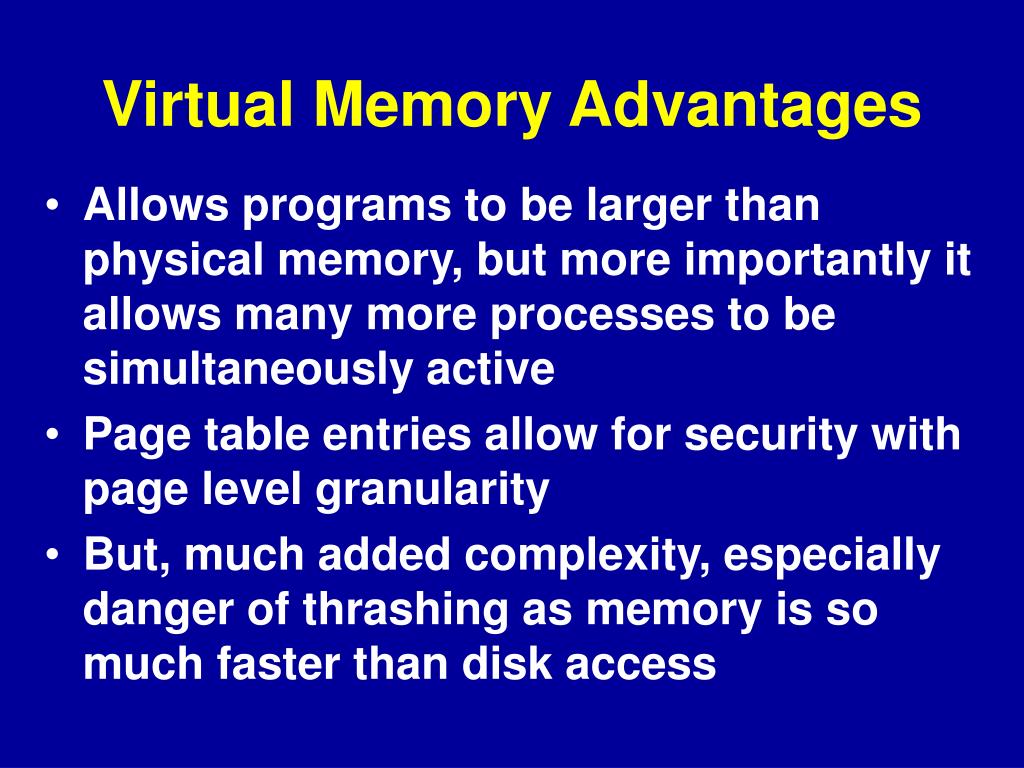

7. Virtual Memory Advantages • Allows programs to be larger than physical memory, but more importantly it allows many more processes to be simultaneously active • Page table entries allow for security with page level granularity • But, much added complexity, especially danger of thrashing as memory is so much faster than disk access

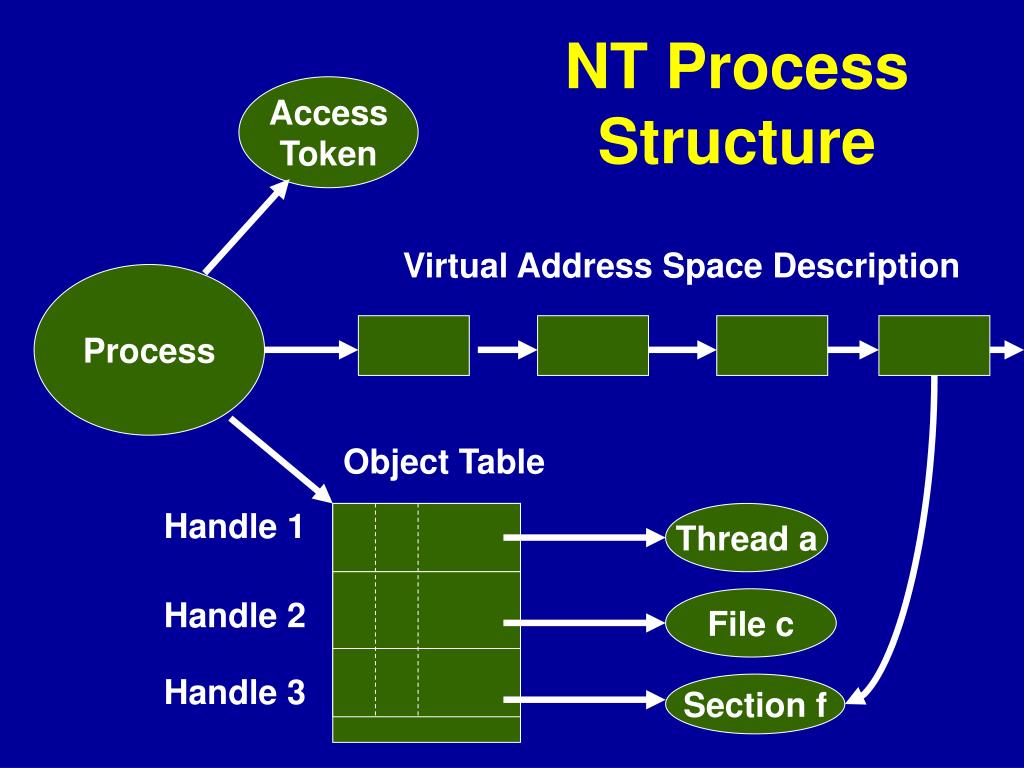

8. NT Process Structure Access Token Virtual Address Space Description Process Object Table Handle 1 Thread a Handle 2 File c Handle 3 Section f

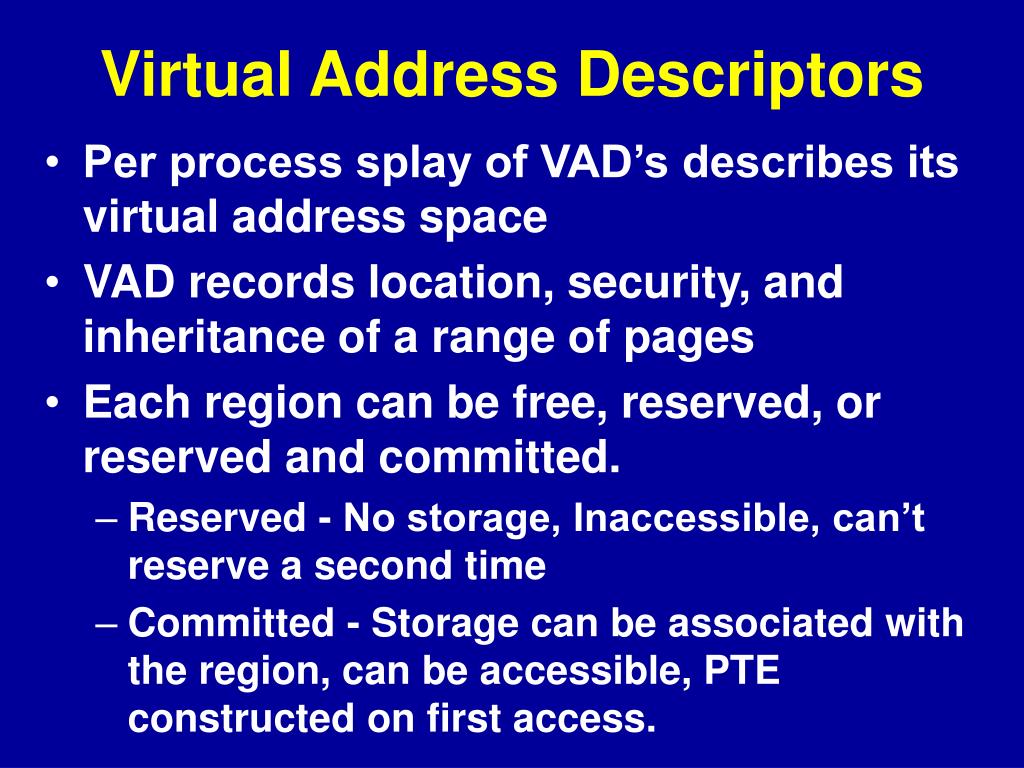

9. Virtual Address Descriptors • Per process splay of VAD’s describes its virtual address space • VAD records location, security, and inheritance of a range of pages • Each region can be free, reserved, or reserved and committed. • Reserved - No storage, Inaccessible, can’t reserve a second time • Committed - Storage can be associated with the region, can be accessible, PTE constructed on first access.

10. VAD Information • Starting and Ending address for VAD range; amount of committed memory • Pointers to other VAD structures in splay • Attributes • Is allocated memory committed? • Shared/private flag • Protection (cf next slide) • Copy-on-write enabled flag - For Posix fork() • Inherited by forked child? (for mapped views) • Mapped view of section object?

11. VAD Protection Bits • Combinations of the following: PAGE_NOACCESS, PAGE_READONLY, PAGE_READWRITE, PAGE_EXECUTE, PAGE_EXECUTE_READ, PAGE_EXECUTE_READWRITE, PAGE_GUARD, and PAGE_NOCACHE • Allocation types: MEM_RESERVE, MEM_COMMIT, MEM_TOP_DOWN

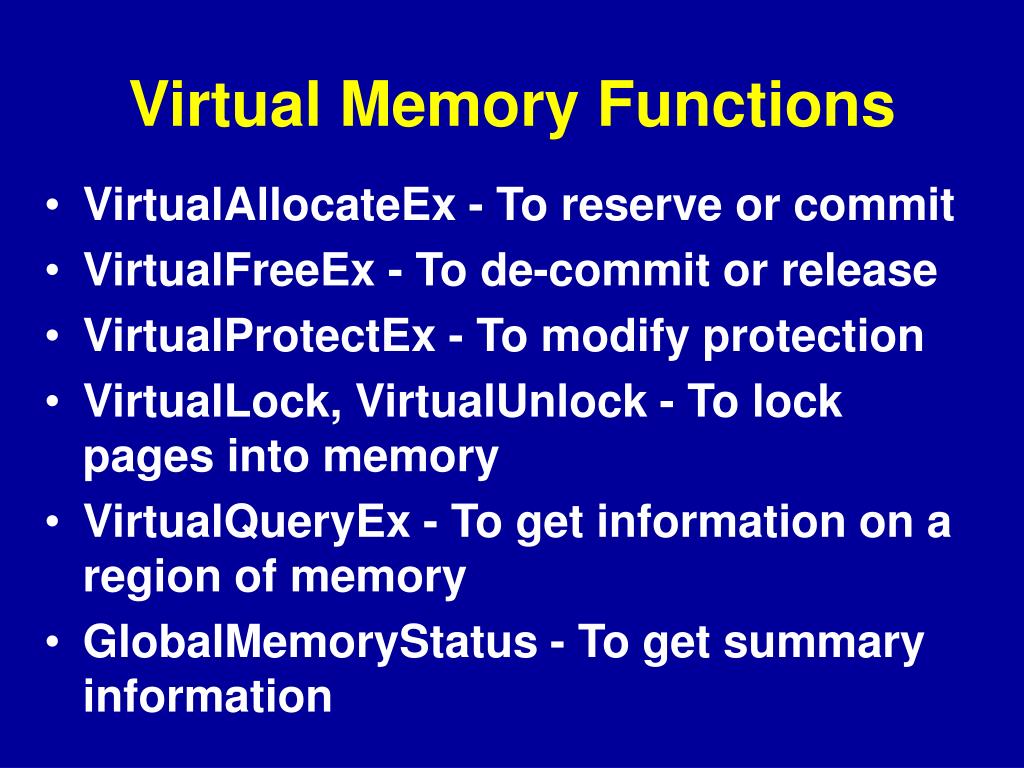

12. Virtual Memory Functions • VirtualAllocateEx - To reserve or commit • VirtualFreeEx - To de-commit or release • VirtualProtectEx - To modify protection • VirtualLock, VirtualUnlock - To lock pages into memory • VirtualQueryEx - To get information on a region of memory • GlobalMemoryStatus - To get summary information

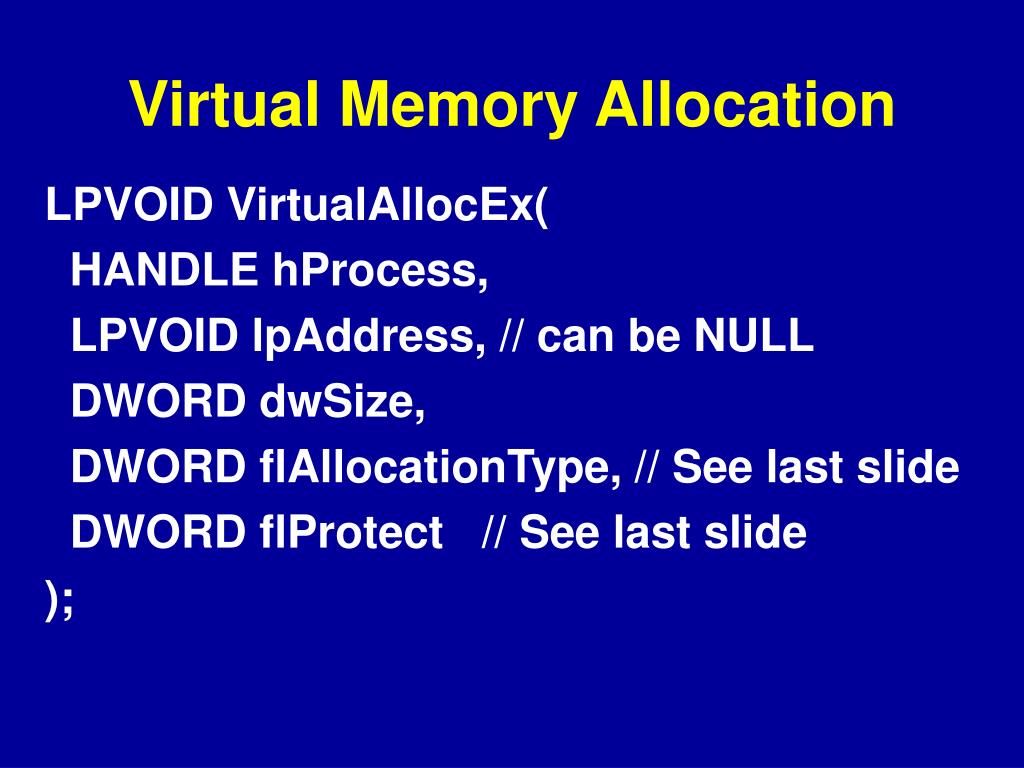

13. Virtual Memory Allocation LPVOID VirtualAllocEx( HANDLE hProcess, LPVOID lpAddress, // can be NULL DWORD dwSize, DWORD flAllocationType, // See last slide DWORD flProtect // See last slide );

14. Freeing Virtual Memory • BOOL VirtualFreeEx( HANDLE hProcess, LPVOID lpAddress, DWORD dwSize, DWORD dwFreeType ); • Types: MEM_DECOMMIT, MEM_RELEASE

15. Changing Protection • BOOL VirtualProtectEx( HANDLE hProcess, LPVOID lpAddress, DWORD dwSize, DWORD flNewProtect, PDWORD lpflOldProtect );

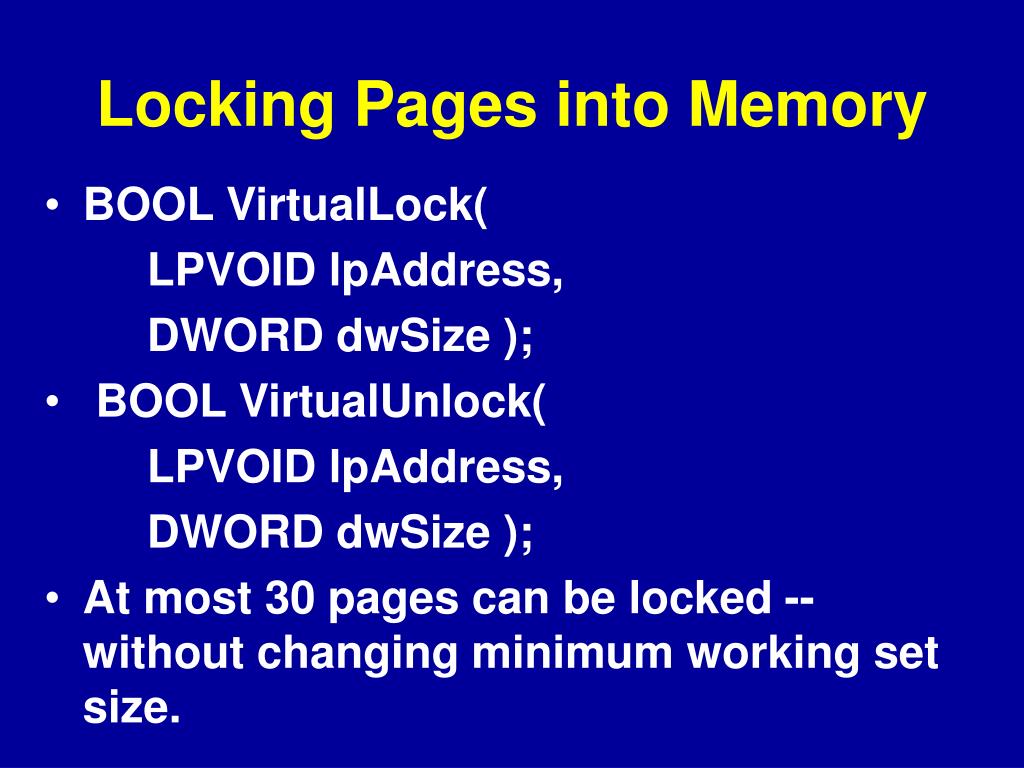

16. Locking Pages into Memory • BOOL VirtualLock( LPVOID lpAddress, DWORD dwSize ); • BOOL VirtualUnlock( LPVOID lpAddress, DWORD dwSize ); • At most 30 pages can be locked -- without changing minimum working set size.

17. VAD Status Functions • DWORD VirtualQueryEx( HANDLE hProcess, LPCVOID lpAddress, PMEMORY_BASIC_INFORMATION lpBuffer, // See next slide DWORD dwLength ); • VOID GlobalMemoryStatus( LPMEMORYSTATUS lpBuffer );

18. Memory Info Structure • typedef struct _MEMORY_BASIC_INFORMATION { PVOID BaseAddress; PVOID AllocationBase; DWORD AllocationProtect; DWORD RegionSize; DWORD State; DWORD Protect; DWORD Type; // e.g. MEM_PRIVATE } MEMORY_BASIC_INFORMATION;

19. Summary Info Struct typedef struct _MEMORYSTATUS { DWORD dwLength; // of this struct DWORD dwMemoryLoad; DWORD dwTotalPhys, dwAvailPhys; DWORD dwTotalPageFile; dwAvailPageFile; DWORD dwTotalVirtual, dwAvailVirtual; } MEMORYSTATUS;

20. Example: mem.c • Use VirtualQueryEx to print out vad info • DWORD ShowRegion( HANDLE hProcess, LPCVOID addr) { MEMORY_BASIC_INFORMATION mbi; if (!VirtualQueryEx(hProcess, addr, &mbi, sizeof(mbi))) { Gripe(); return -1; } else { print_out_mbi (&mbi); } }

21. PAGE_GUARD Protection • Visual C++ VirtualAlloc doc says -- Pages in the region become guard pages. Any attempt to read from or write to a guard page causes the operating system to raise a STATUS_GUARD_PAGE exception and turn off the guard page status. Guard pages thus act as a one-shot access alarm.

22. How does the stack work? #include <stdio.h> #include <windows.h> void main() { unsigned sptr; __asm { mov eax, esp mov sptr, eax } printf("esp: 0x%x\n", sptr); while (getchar()) { __asm { mov eax, esp sub eax, 4096 mov esp, eax mov sptr, eax mov eax, [esp] } printf("esp: 0x%x\n", sptr); } }

23. Jumping over the Guard Page • void main() { char a[4096]; } • The assembly language is: push ebp mov ebp, esp mov eax, 4096 call __chkstk mov esp, ebp pop ebp • See vc98\crt\src\intel\chkstk.asm in c:\program files\Microsoft Visual Studio
