  1. Coding Schemes for Crisscross Error PatternsSimon Plass, Gerd Richter, and A.J. Han Vinck

  2. What are Crisscross Errors? • Crisscross errors can occur in several applications of information transmission, e.g., magnetic tape recording, memory chip arrays or in environments with impulsive- or narrowband noise, where the information is stored or transmitted in (N x n) arrays.

  3. Motivation Are there coding scheme which are suited to these crisscross errors? • Rank-Codes • Permutation Codes

  4. Introduction of Rank-Codes Let us consider a vector with elements of the extension field GF(qN): Now, we can present the vector x as a matrix with entries of the finite field GF(q): Let us define the rank distance between two matrices A and B as:

  5. Introduction of Rank-Codes (cont’d) Example for the rank distance: Furthermore, Rank-Codes have an error correction capability t of where E is the error matrix.

  6. Example of Rank Error 1 = error • Rank array is 2. • rank error = 2 Rank of array is still 2.

  7. Construction of Rank-Codes A parity-check matrix H and its corresponding generator matrix G which define the Rank-Code are given by: The elements and must be linearly independent over

  8. Algebraic Decoding Syndrome calculation s=(c+e)HT=eHT  Key equation Use of efficient algorithm, e.g., Berlekamp-Massey algorithm, for solving the system of linear equations  Error polynomial Error value and error location computation by recursive calculation  Error vector e cdecode = r - e

  9. Key Equation of Rank-Codes Syndrome Sjcan be represented by an appropriate designed shift-register if is known Main problem: Solve the key equation for the unknown variables

  10. Berlekamp-Massey Algorithm for Rank-Codes Initialize the algorithm New theorem and proof Does current design of shift-register produce next syndrome? Yes No Modify shift-register Yes Has shift-register correct length? No Modify length All syndromes calculated? No Yes and finished

  11. Conclusions for Rank-Codes • Rank-Codes exploit the rank metric by decoding over the rank of the error matrix, and therefore, Rank-Codes can handle efficiently crisscross errors • The Berlekamp-Massey algorithm was introduced as an efficient decoding algorithm

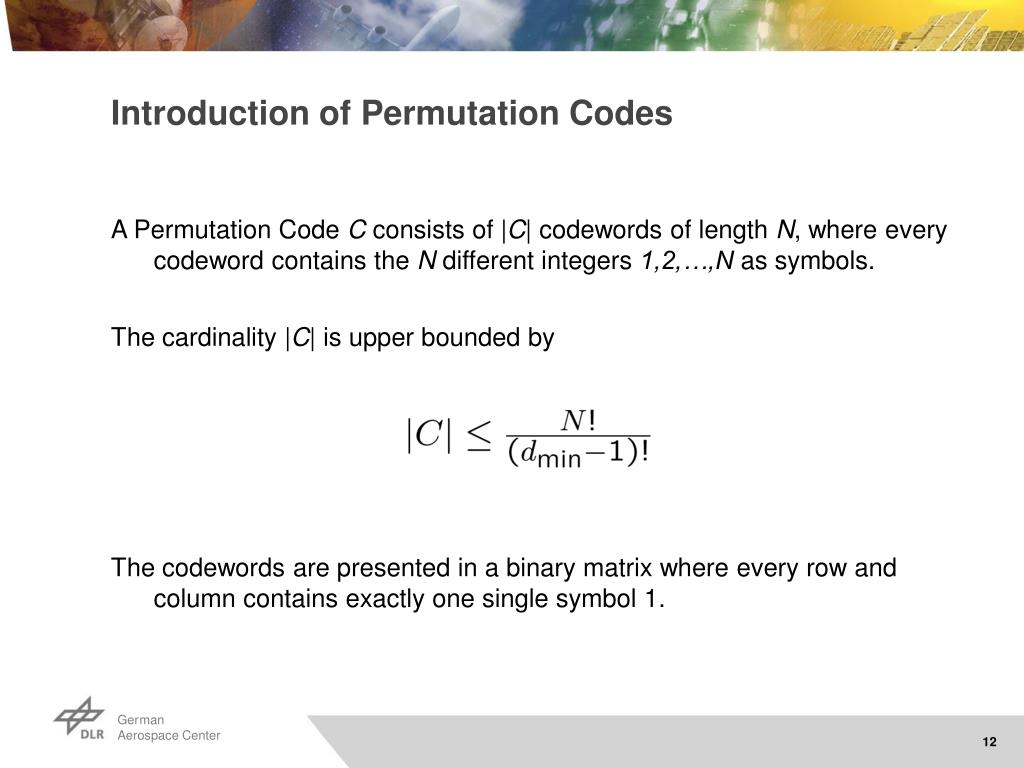

  12. Introduction of Permutation Codes A Permutation Code C consists of |C| codewords of length N, where every codeword contains the N different integers 1,2,…,N as symbols. The cardinality |C| is upper bounded by The codewords are presented in a binary matrix where every row and column contains exactly one single symbol 1.

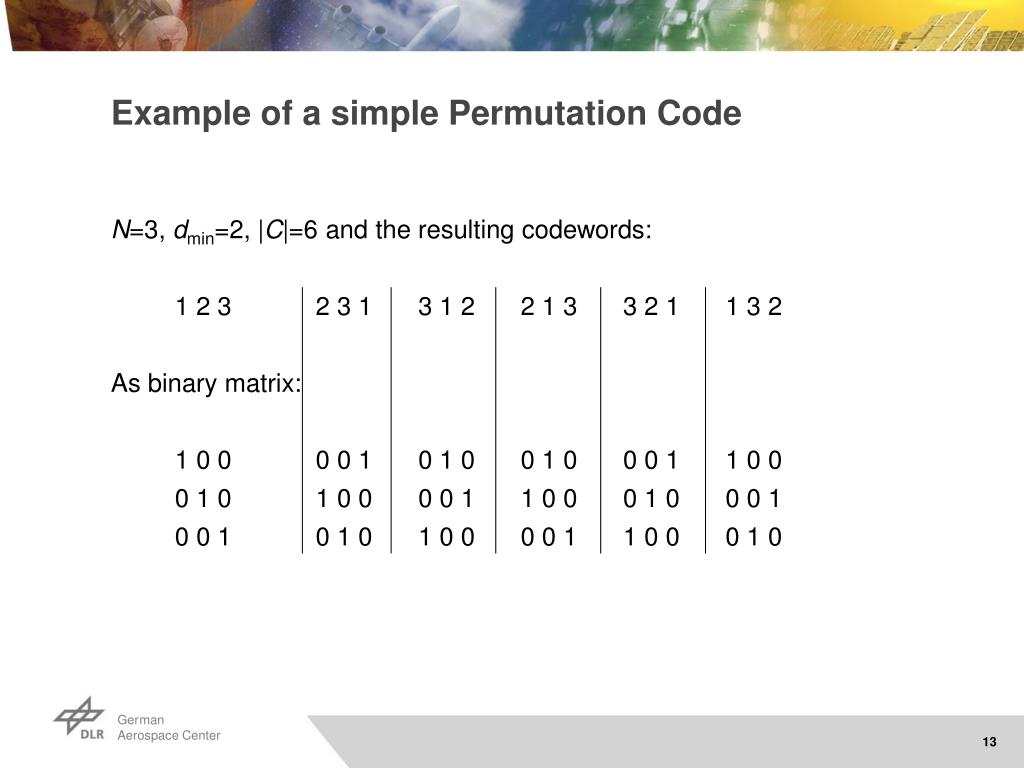

  13. Example of a simple Permutation Code N=3, dmin=2, |C|=6 and the resulting codewords: 1 2 3 2 3 1 3 1 2 2 1 3 3 2 1 1 3 2 As binary matrix: 1 0 0 0 0 1 0 1 0 0 1 0 0 0 1 1 0 0 0 1 0 1 0 0 0 0 1 1 0 0 0 1 0 0 0 1 0 0 1 0 1 0 1 0 0 0 0 1 1 0 0 0 1 0

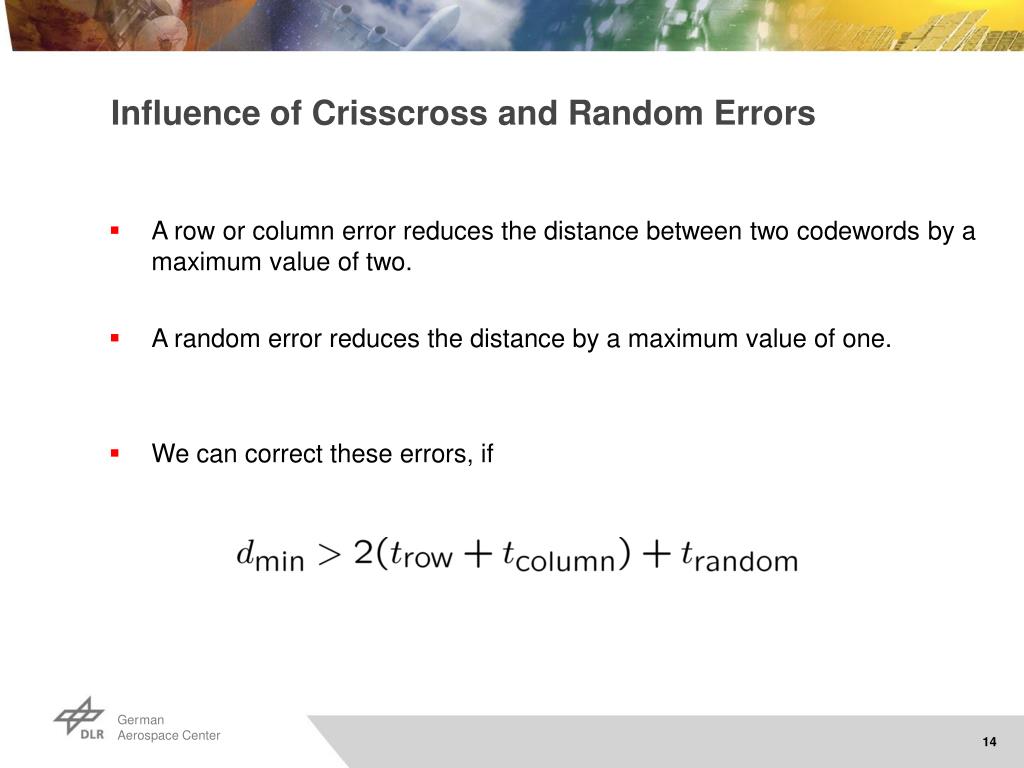

  14. Influence of Crisscross and Random Errors • A row or column error reduces the distance between two codewords by a maximum value of two. • A random error reduces the distance by a maximum value of one. • We can correct these errors, if

  15. time frequency Application to M-FSK Modulation • In M-FSK, symbols are modulated as one of M orthogonal sinusoidal waves • The setting of Permutation Codes can be mapped onto M-FSK modulation Example: M=N=4, |C|=4, C={1234}, {2143}, {3412}, {4321}; {2143}  {f2 f1 f4 f3}  f1 0 1 0 0 f2 1 0 0 0 f3 0 0 0 1 f4 0 0 1 0 time

  16. 1 0 0 00 1 0 00 0 1 0 0 0 0 1 1 0 1 00 1 0 00 0 1 0 0 0 0 1 1 0 0 00 0 0 00 0 1 0 0 0 0 1 No noise Background noise 1 1 1 10 1 0 00 0 1 0 0 0 0 1 1 0 0 10 1 0 10 0 1 10 0 0 1 1 0 0 00 0 0 00 0 1 0 0 0 0 1 impulsive fading narrowband Influence of Different Noise

  17. Conclusions • Introduction of codes, namely Rank-Codes and Permutation Codes, which can handle crisscross errors • Rank-Codes: • Rank-Codes exploit the rank metric by decoding over the rank of the error matrix, and therefore, Rank-Codes can handle efficiently crisscross errors • The Berlekamp-Massey algorithm was introduced as an efficient decoding algorithm • Permutation Codes: • Binary code for the crisscross error problem • Example of M-FSK modulation application is introduced

  18. Thank you!

  19. Error Pattern Example error single error RS codeword
