  1. Analysis and Classification of Botnet Command and Control Communications By Evan Painter Presented on May 4, 2012

  2. Outline • Scope • Background • C&C Analysis • Feature Extraction and Classification Engine • Classification Results • Conclusion

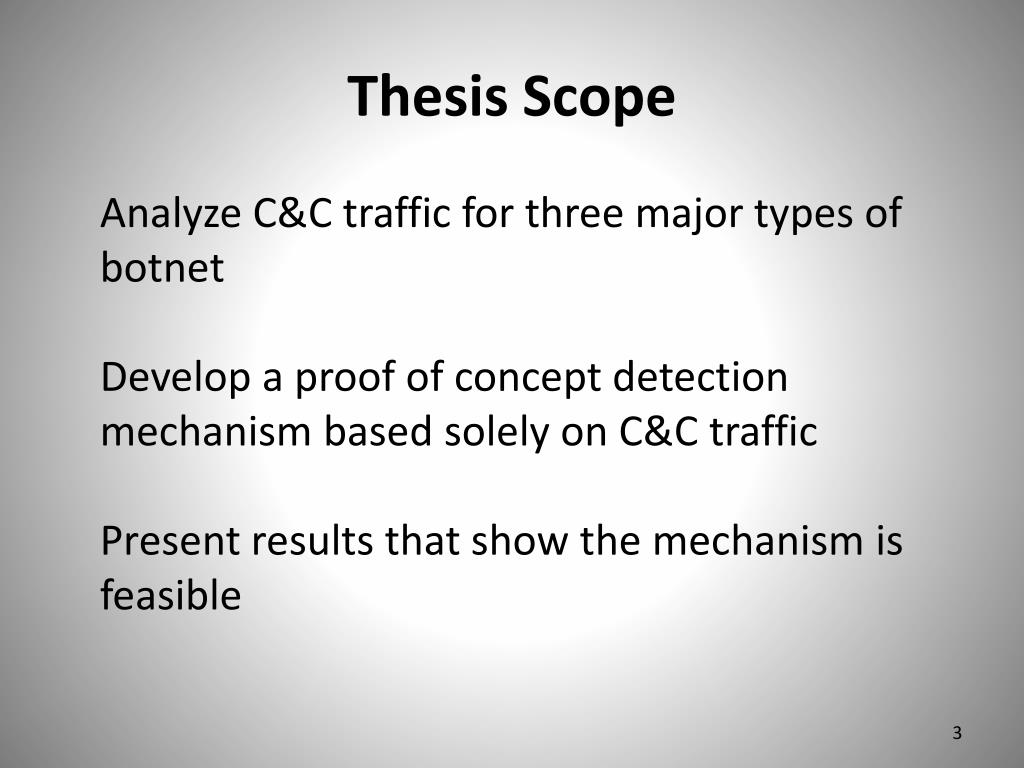

  3. Thesis Scope Analyze C&C traffic for three major types of botnetDevelop a proof of concept detection mechanism based solely on C&C trafficPresent results that show the mechanism is feasible

  4. ScopeBackgroundC&C AnalysisFeature Extraction and Classification EngineClassification ResultsConclusion

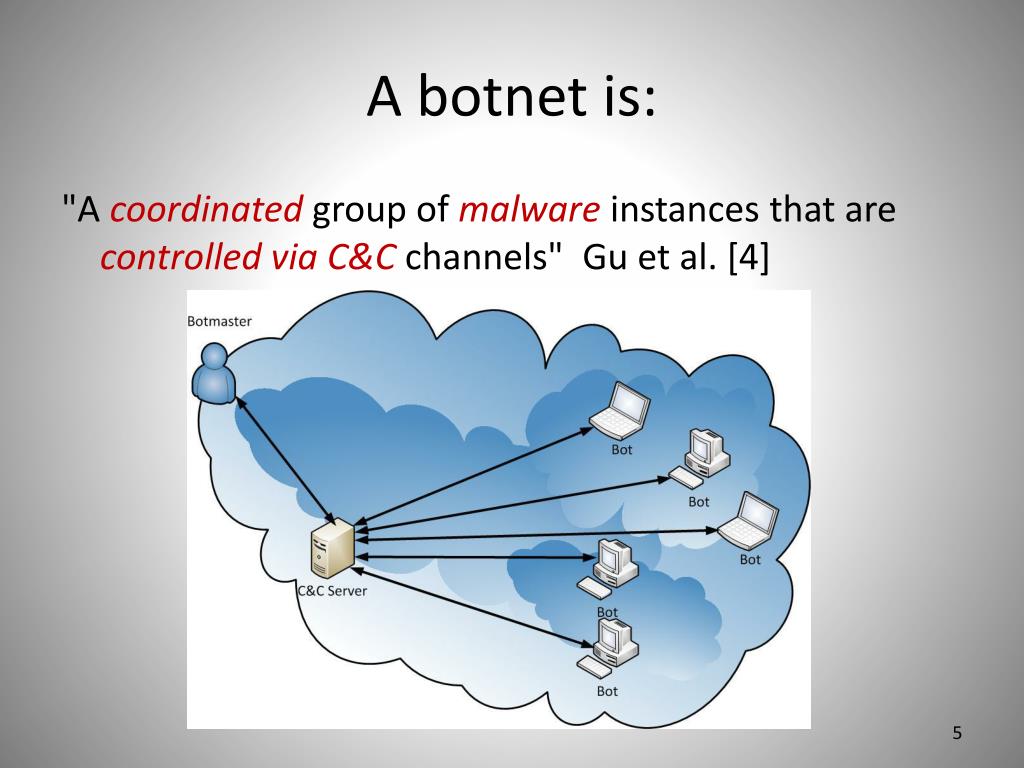

  5. A botnet is: "A coordinated group of malware instances that are controlledvia C&Cchannels" Gu et al. [4]

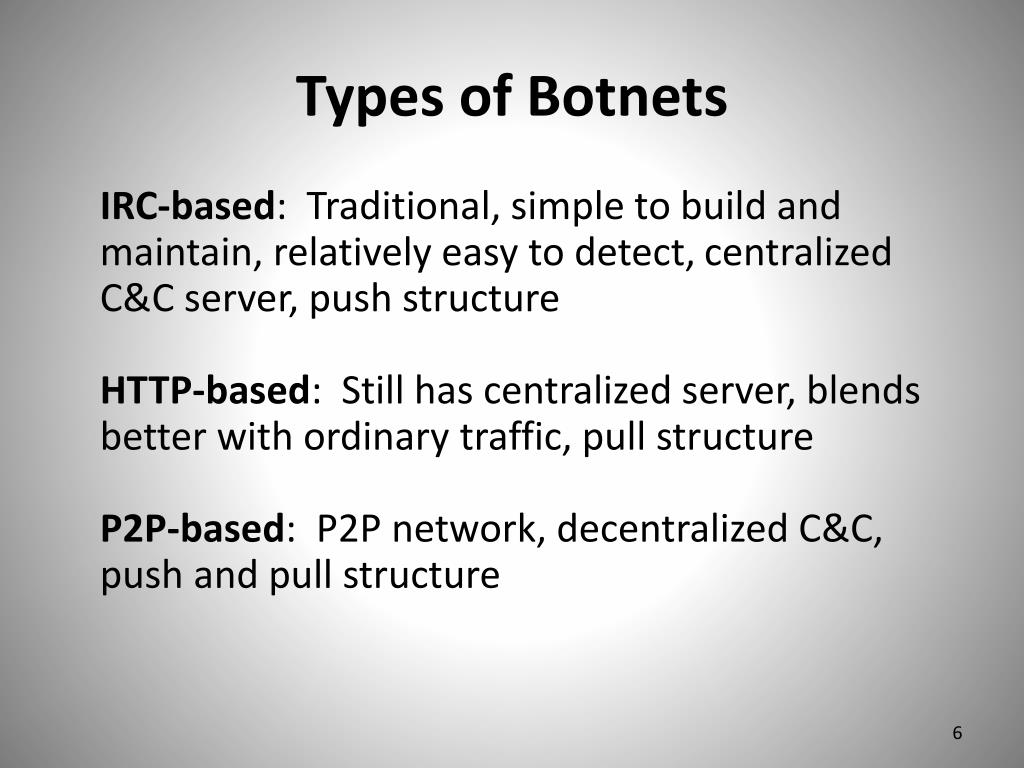

  6. Types of Botnets IRC-based:  Traditional, simple to build and maintain, relatively easy to detect, centralized C&C server, push structureHTTP-based:  Still has centralized server, blends better with ordinary traffic, pull structureP2P-based:  P2P network, decentralized C&C, push and pull structure

  7. Client/Server vs. P2P Structure

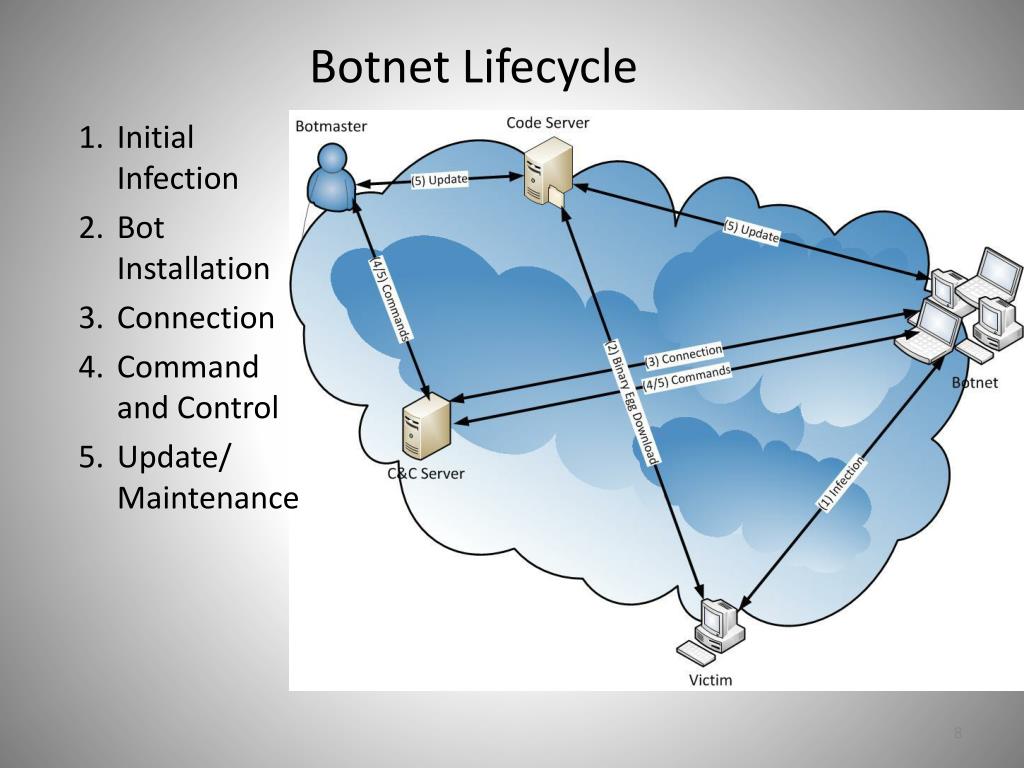

  8. Botnet Lifecycle Initial Infection Bot Installation Connection Command and Control Update/ Maintenance

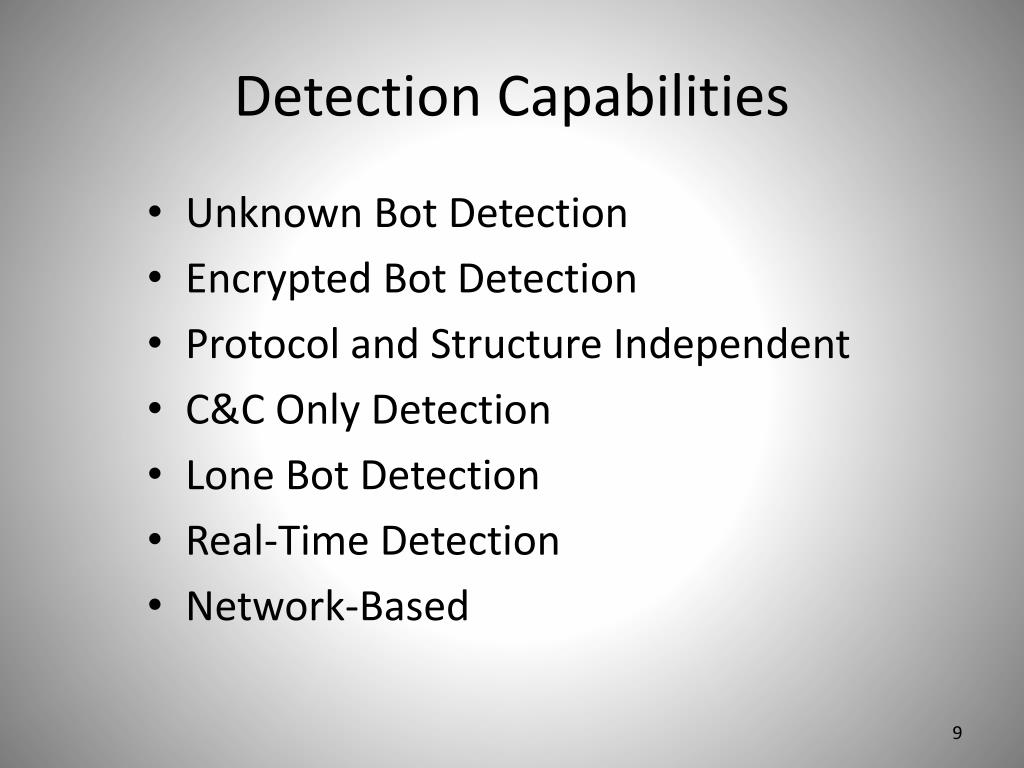

  9. Detection Capabilities • Unknown Bot Detection • Encrypted Bot Detection • Protocol and Structure Independent • C&C Only Detection • Lone Bot Detection • Real-Time Detection • Network-Based

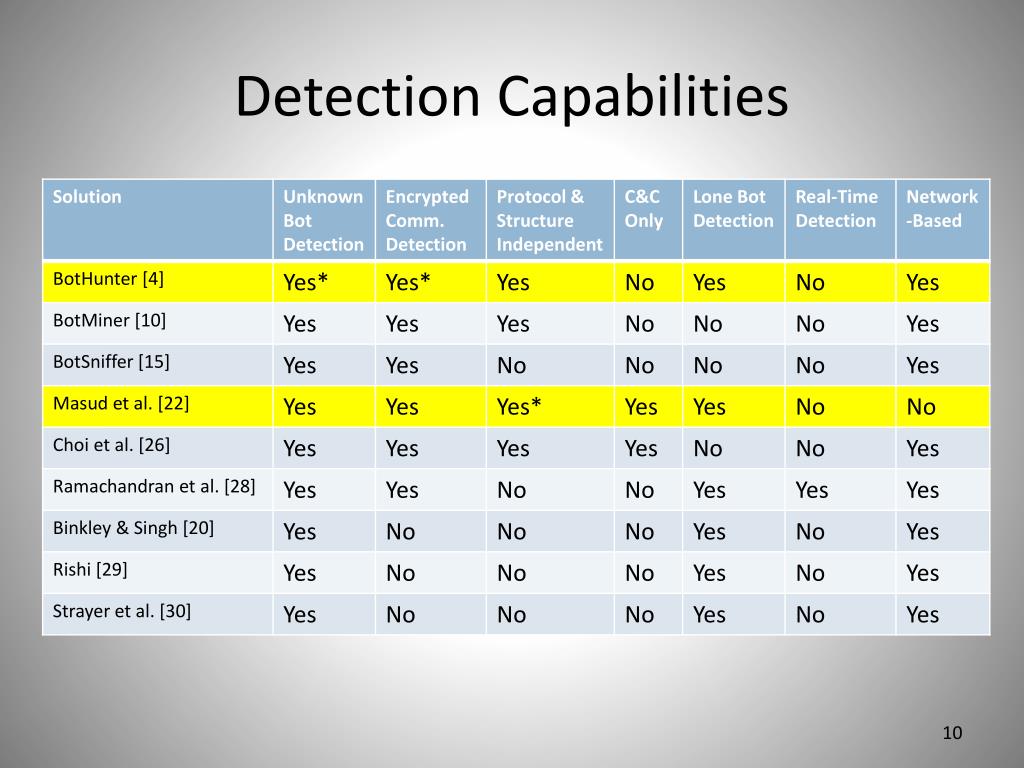

  10. Detection Capabilities

  11. Flow-Based Temporal Anomaly Detection [Masudet al.] • Protocol and feature independent – untested • Multiple log file correlation – requires host-based system • Inbound and outbound monitoring • Observable C&C features • Bot-response • Bot-other • Bot-app

  12. BotHunter [Gu et al.] • Built around the Snort IDS • Inbound and outbound monitoring • Dialog Correlation • Combines results of several sensors • Requires multiple alerts

  13. ScopeBackgroundC&C AnalysisFeature Extraction and Classification EngineClassification ResultsConclusion

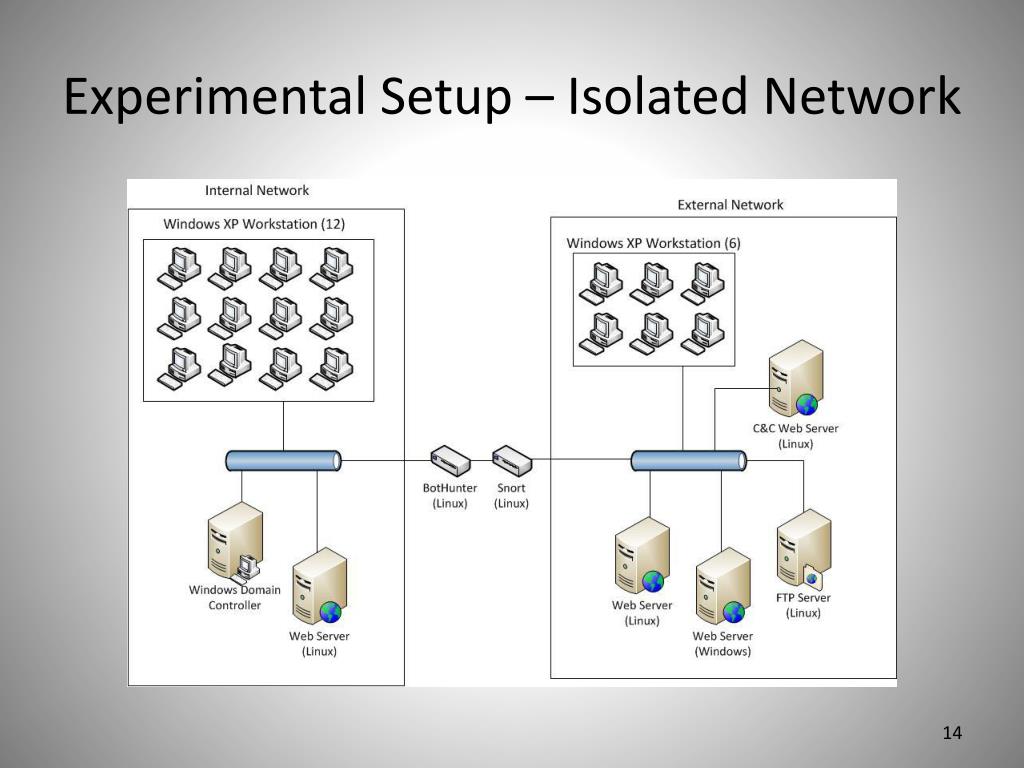

  14. Experimental Setup – Isolated Network

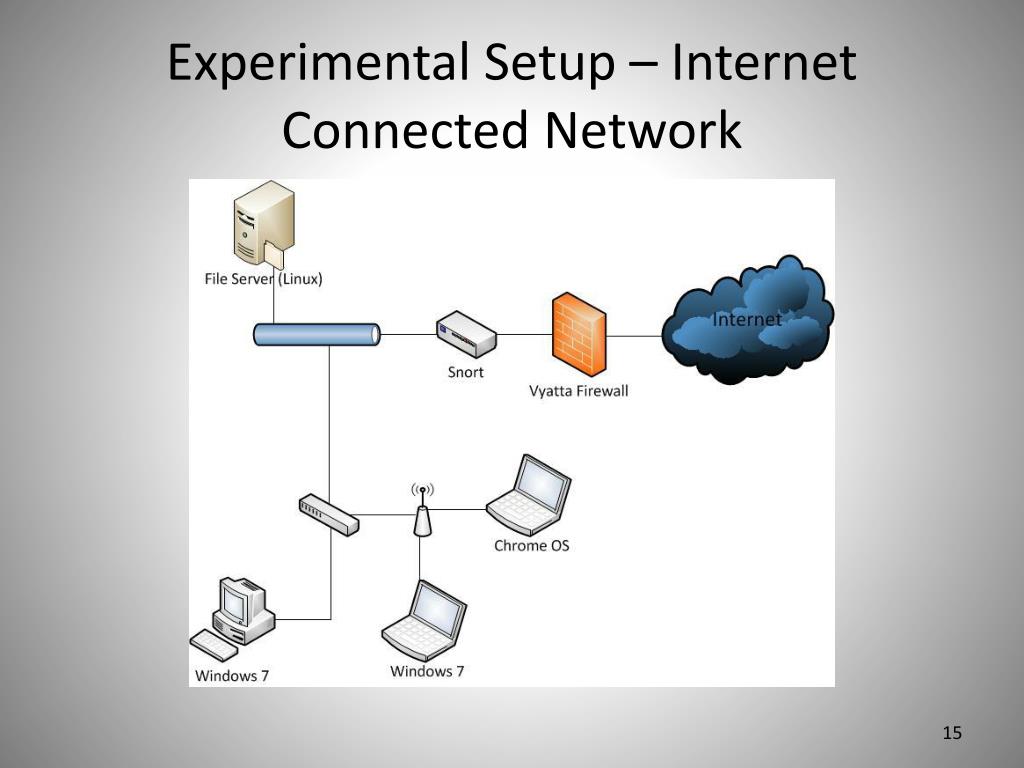

  15. Experimental Setup – Internet Connected Network

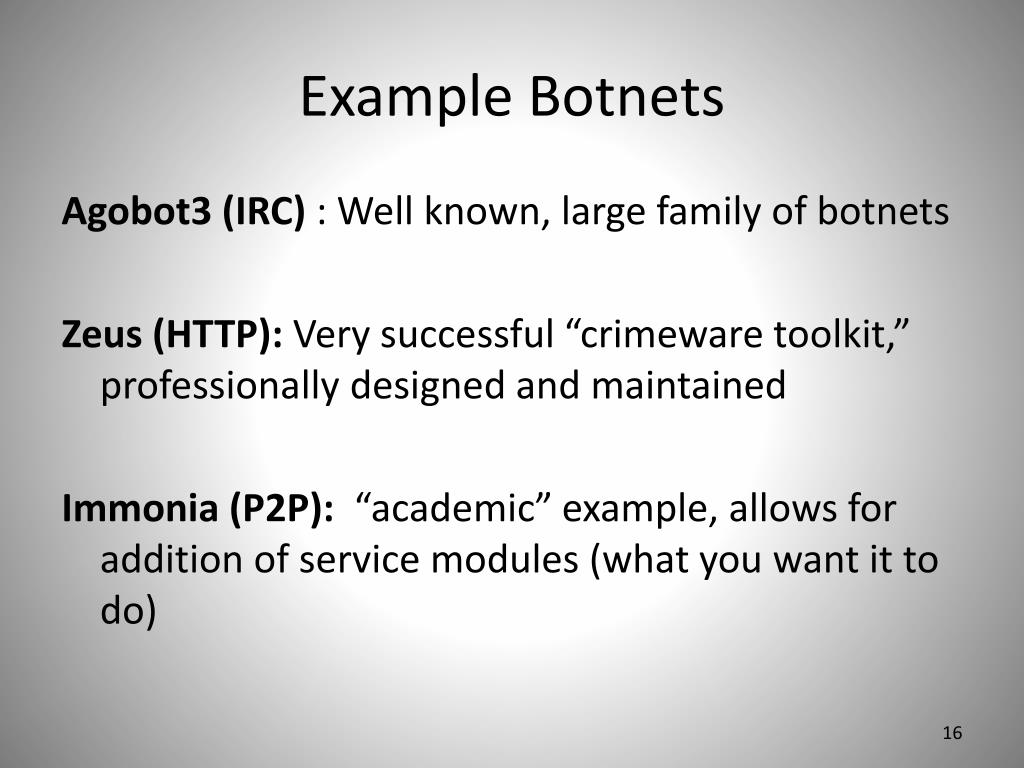

  16. Example Botnets Agobot3 (IRC) : Well known, large family of botnets Zeus (HTTP): Very successful “crimeware toolkit,” professionally designed and maintained Immonia (P2P): “academic” example, allows for addition of service modules (what you want it to do)

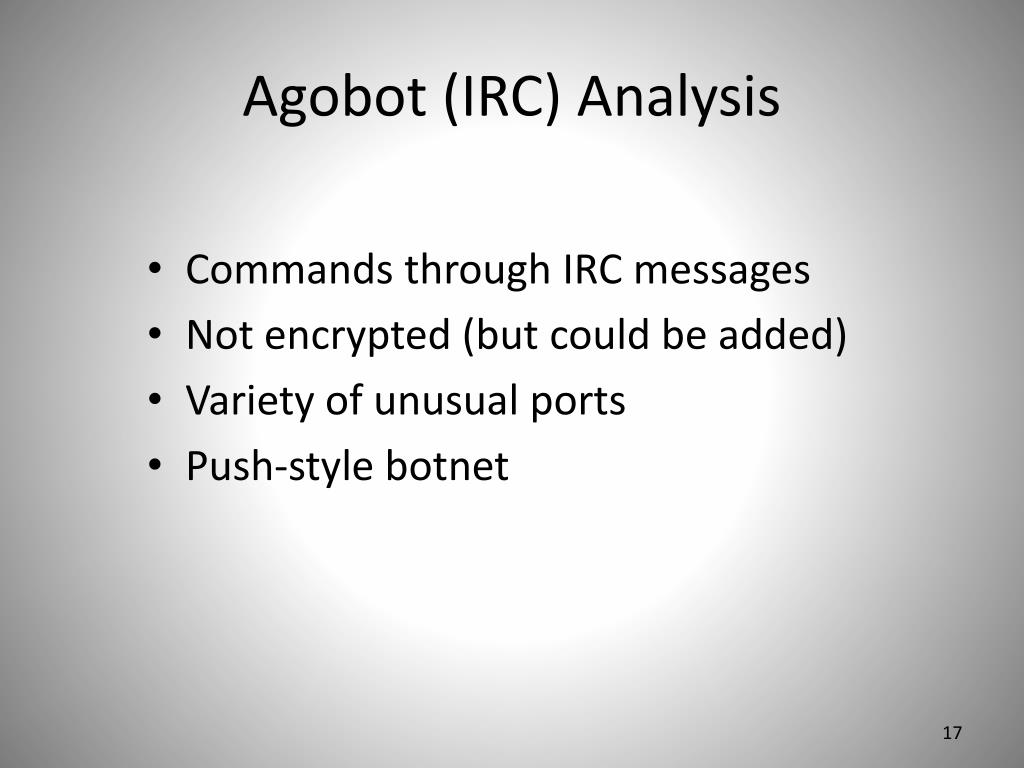

  17. Agobot (IRC) Analysis • Commands through IRC messages • Not encrypted (but could be added) • Variety of unusual ports • Push-style botnet

  18. Agobot Analysis • Ordinary IRC connection • Timing between commands and bot responses is fast • The timing of a command and a bot initiating a scan is slow

  19. Zeus (HTTP) Analysis • HTTP POST messages to retrieve commands • Encrypted payload data • Pull-style botnet • Bots act like a web browser connecting to a web server (the C&C server) • Length and timing of POST messages are very consistent • Responses are fast

  20. Zeus Communication • All Zeus Communication uses HTTP POST messages

  21. Zeus Periodic Comm. • About every 20.46 minutes a series of POSTs are made

  22. Immonia (P2P) Analysis • Acquires peerlist by IRC • All C&C messages have TCP PSH flag set • Response times are within 200 ms • Service execution time is slow • Outgoing packets aren’t seen for 15-30 seconds • Periodic peerlist updates are not consistent

  23. Immonia Service Execution • This packet sequence is used for the servexec command

  24. ScopeBackgroundC&C AnalysisFeature Extraction and Classification EngineClassification ResultsConclusion

  25. C&C Only Detection • All Botnets must have C&C communication • Relying on propagation activity makes detection of bots that are carried on mobile devices and removable media harder to detect • Scale-based solutions have to wait until a bot spreads, they cannot detect just one

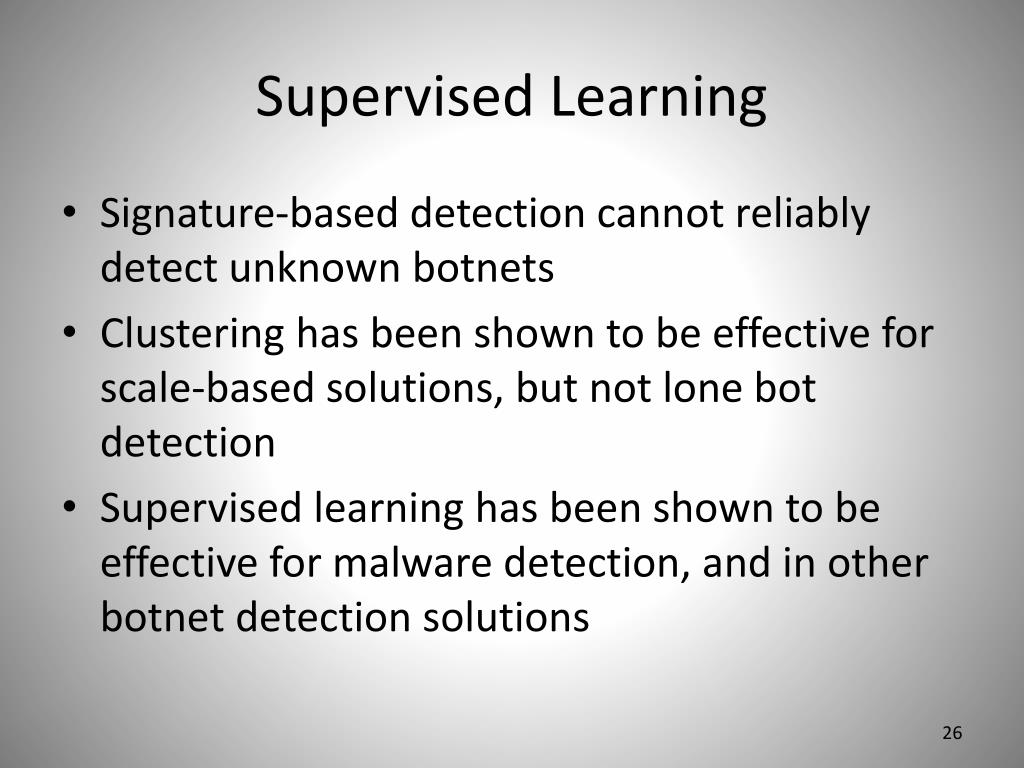

  26. Supervised Learning • Signature-based detection cannot reliably detect unknown botnets • Clustering has been shown to be effective for scale-based solutions, but not lone bot detection • Supervised learning has been shown to be effective for malware detection, and in other botnet detection solutions

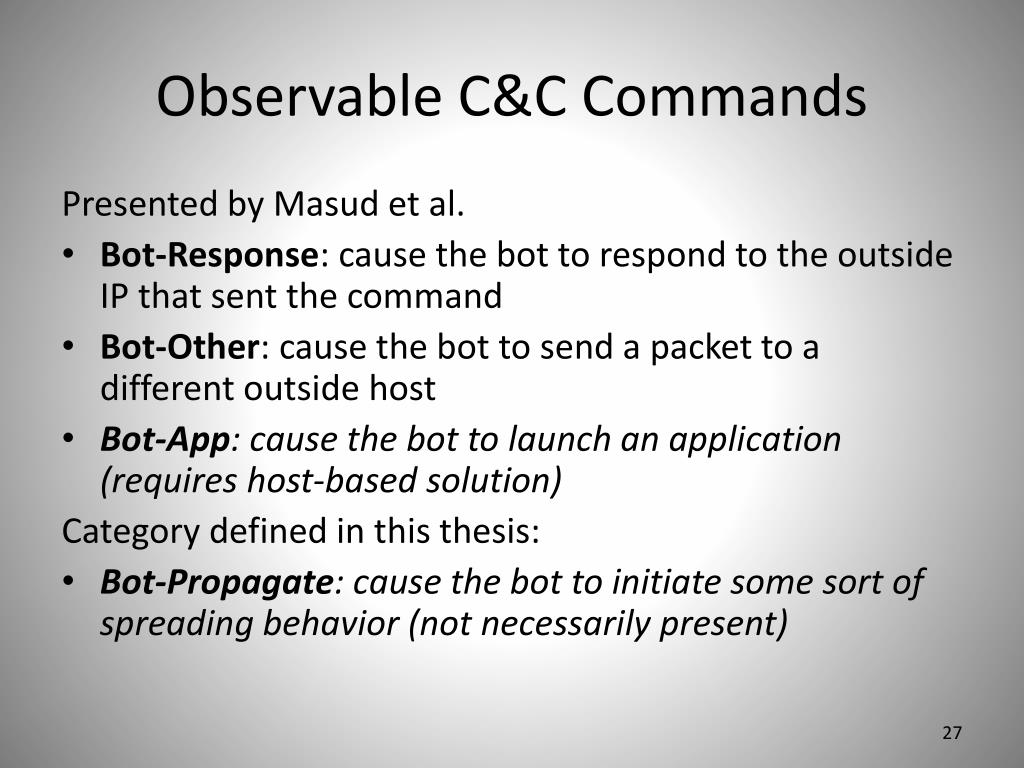

  27. Observable C&C Commands Presented by Masud et al. • Bot-Response: cause the bot to respond to the outside IP that sent the command • Bot-Other: cause the bot to send a packet to a different outside host • Bot-App: cause the bot to launch an application (requires host-based solution) Category defined in this thesis: • Bot-Propagate: cause the bot to initiate some sort of spreading behavior (not necessarily present)

  28. Packet-Level Features • Bot-response (BR) • BR-time • BR-size • Bot-other (BO) • BO-time • Packet length • Packet arrival time • TCP Window • Push Flag

  29. Flow-Level Features Average and Variance of: • packet length • BR-size • BR-time • BO-time • Inter-arrival time Percentage of packets in the flow that are: • BR packets • BO packets • TCP PSH packets And: • Bits per second • Packets per second

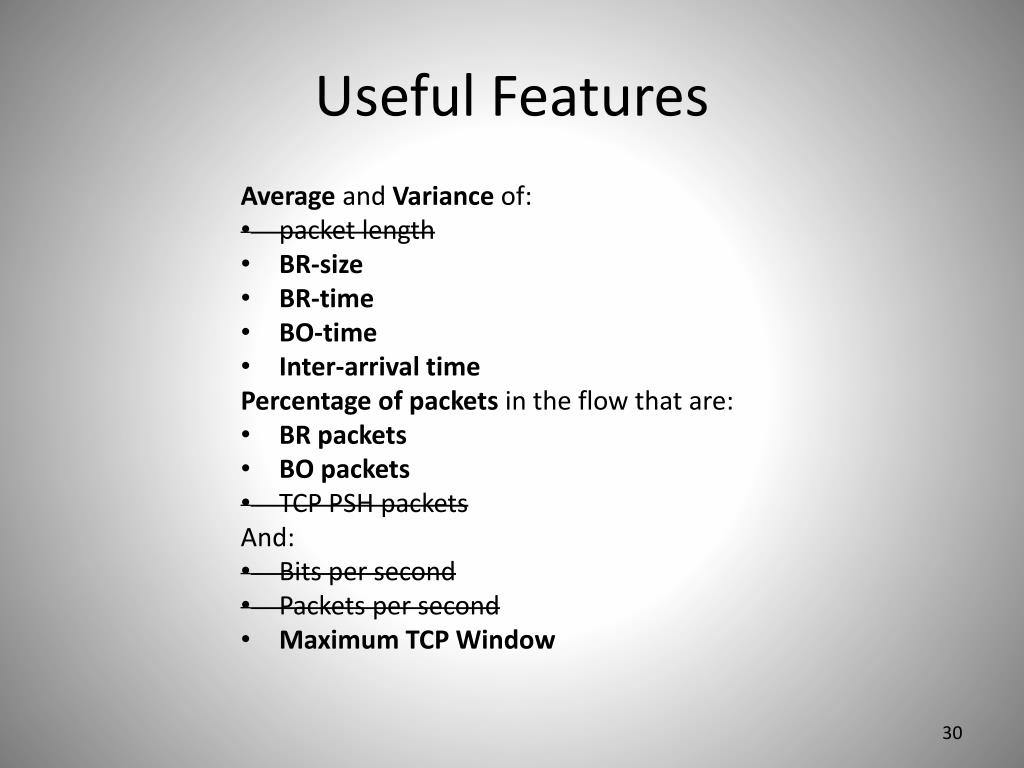

  30. Useful Features Average and Variance of: • packet length • BR-size • BR-time • BO-time • Inter-arrival time Percentage of packets in the flow that are: • BR packets • BO packets • TCP PSH packets And: • Bits per second • Packets per second • Maximum TCP Window

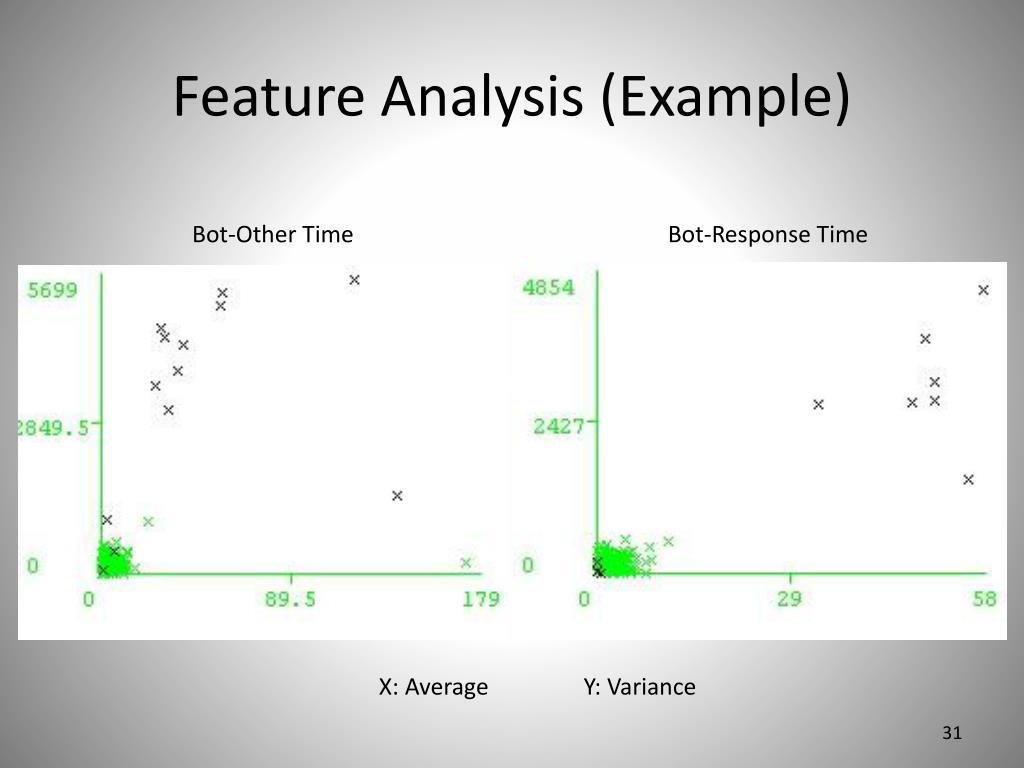

  31. Feature Analysis (Example) Bot-Other Time Bot-Response Time X: Average Y: Variance

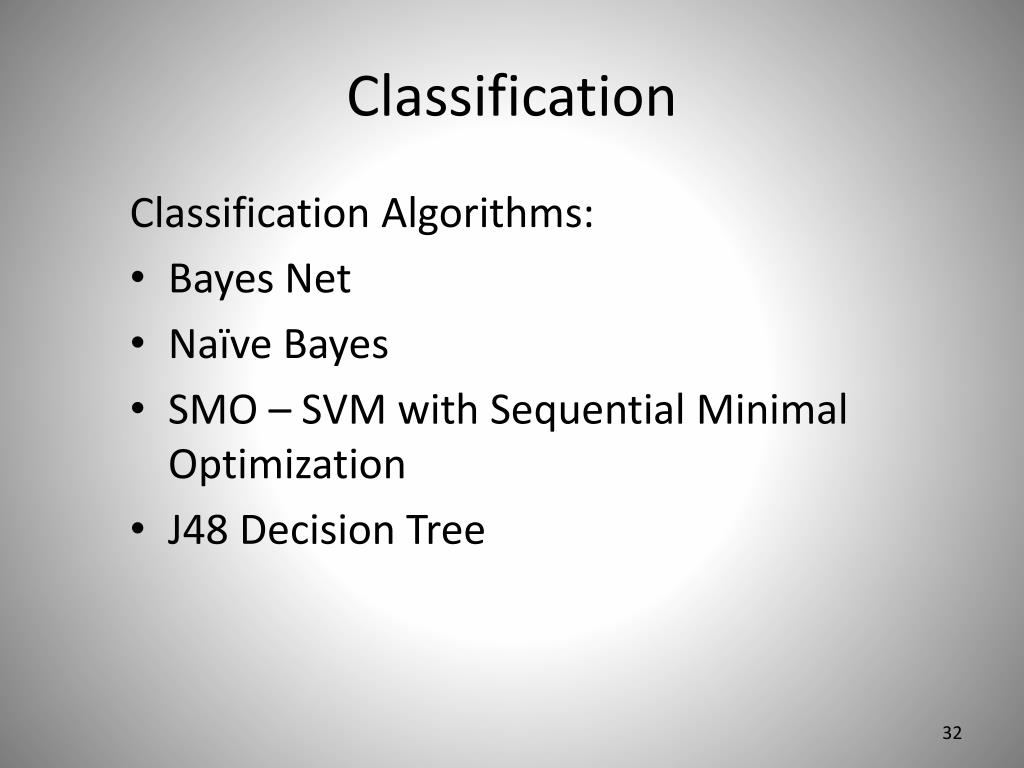

  32. Classification Classification Algorithms: • Bayes Net • Naïve Bayes • SMO – SVM with Sequential Minimal Optimization • J48 Decision Tree

  33. ScopeBackgroundC&C AnalysisFeature Extraction and Classification EngineClassification ResultsConclusion

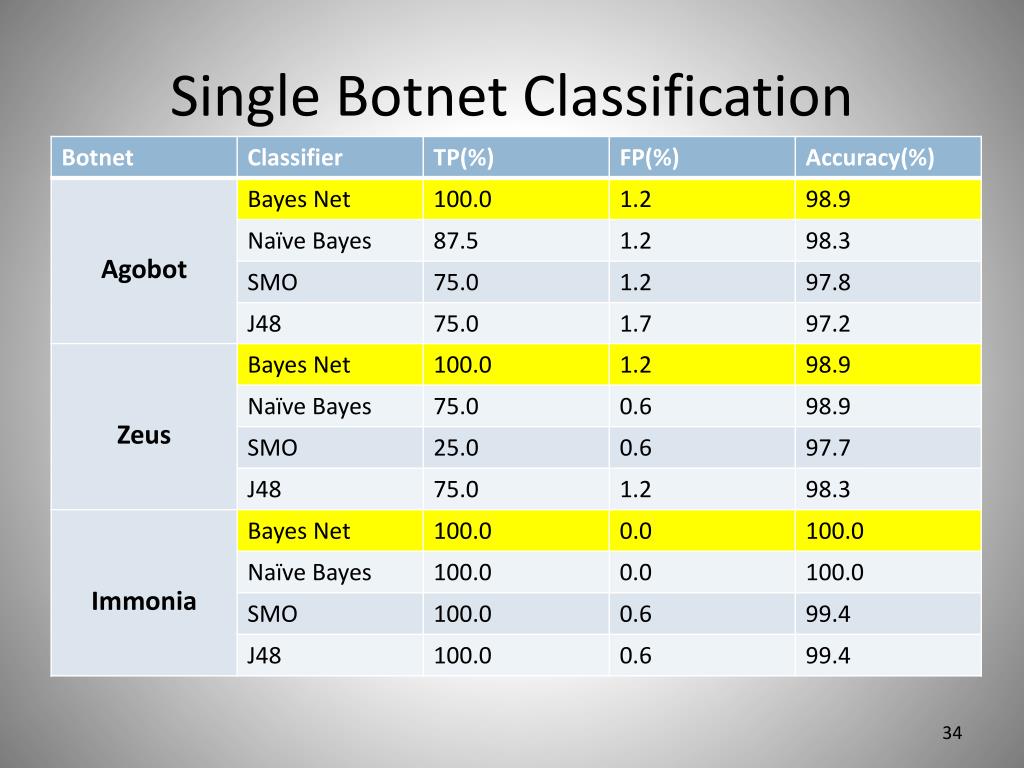

  34. Single Botnet Classification

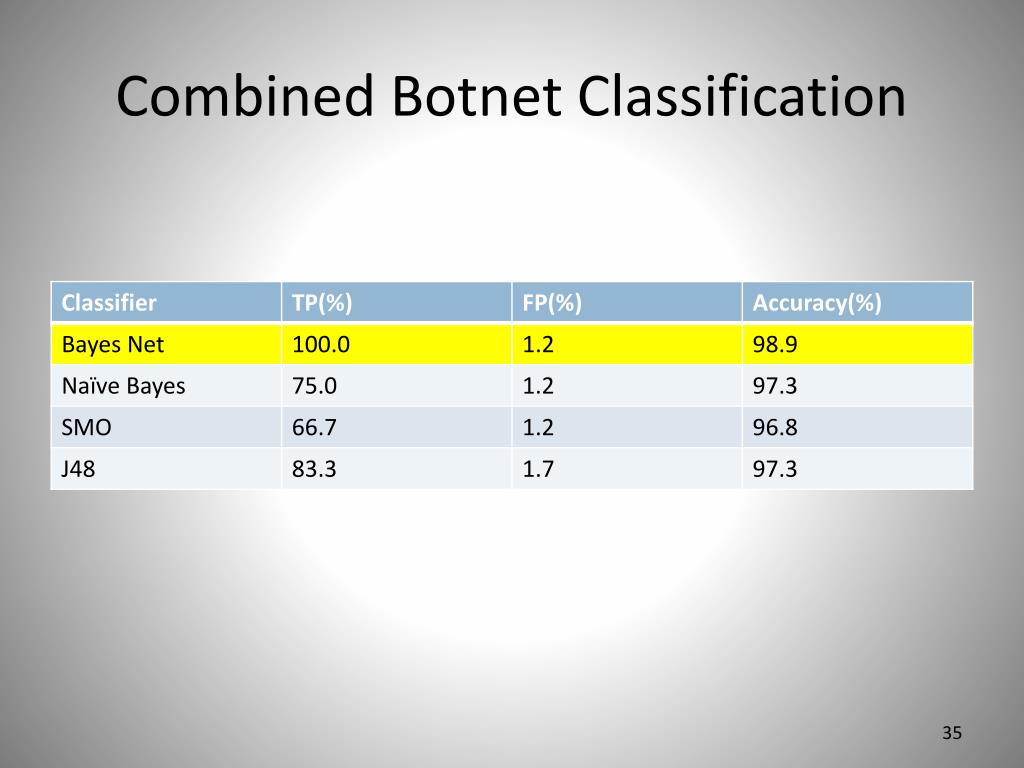

  35. Combined Botnet Classification

  36. Unknown Botnet Classification

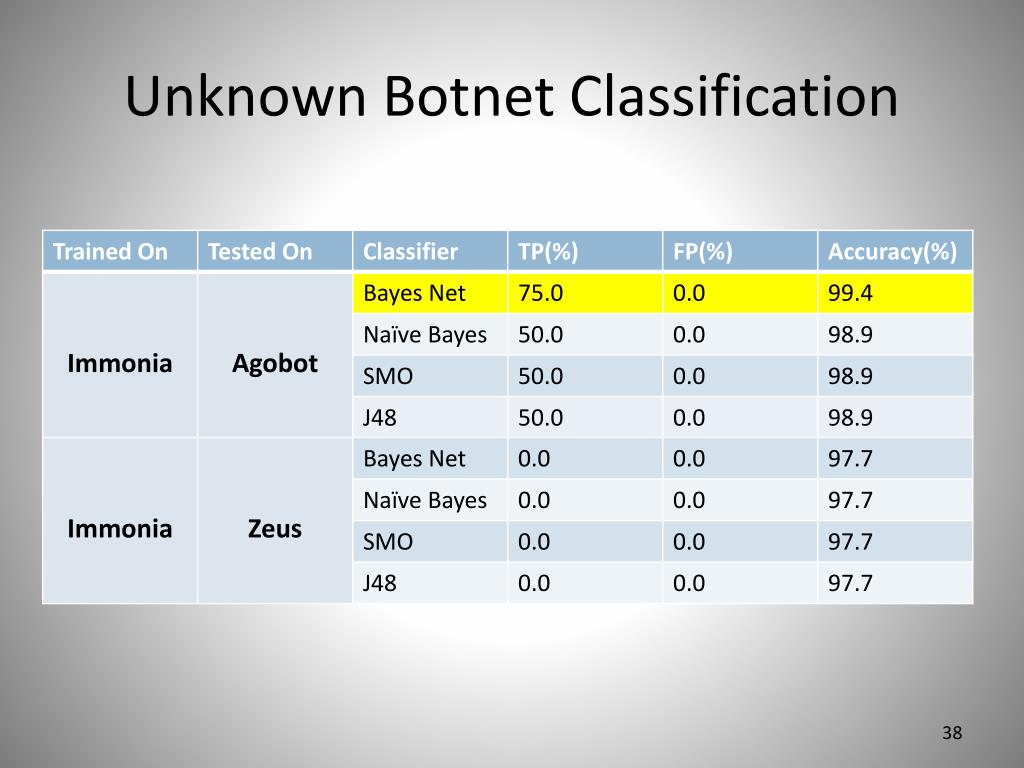

  37. Unknown Botnet Classification

  38. Unknown Botnet Classification

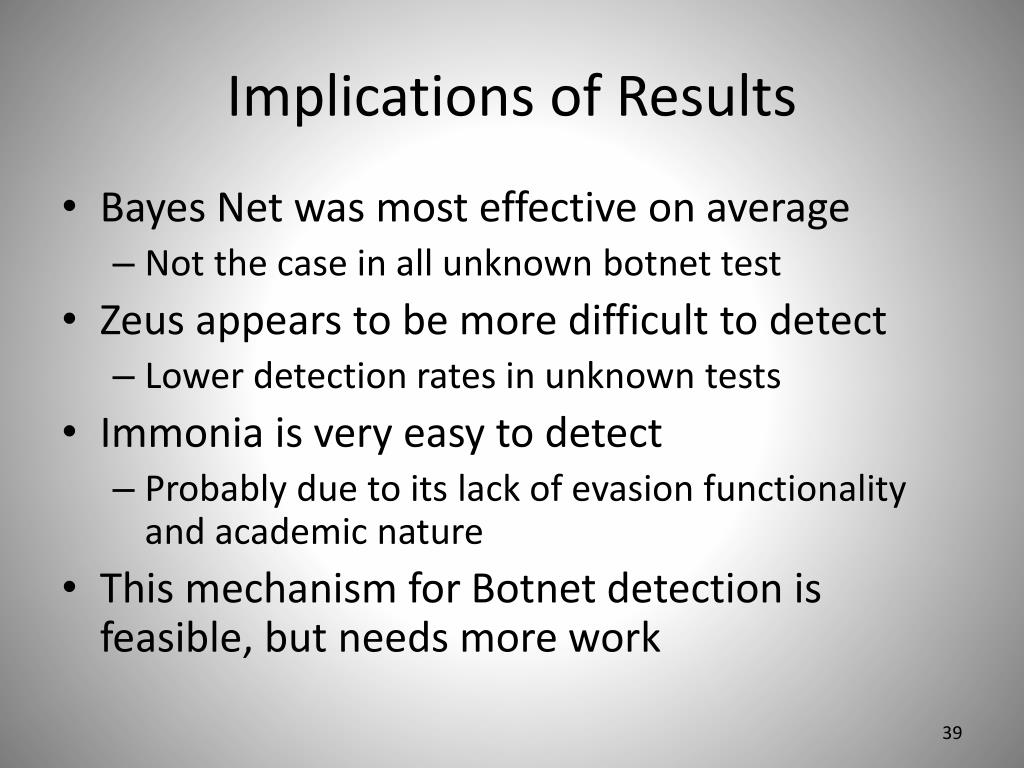

  39. Implications of Results • Bayes Net was most effective on average • Not the case in all unknown botnet test • Zeus appears to be more difficult to detect • Lower detection rates in unknown tests • Immonia is very easy to detect • Probably due to its lack of evasion functionality and academic nature • This mechanism for Botnet detection is feasible, but needs more work

  40. ScopeBackgroundC&C AnalysisFeature Extraction and Classification EngineClassification ResultsConclusion

  41. Summary • Two contributions: • Analysis of three types botnet communication • Proof of concept for a network-based, C&C only detection mechanism

  42. Future Work • Larger Data sets • Expand feature set • Classification algorithm optimization • Botnet network traffic data sets

  43. ?
