  1. Introduction to asynDriver Dirk Zimoch, 2007

  2. What is asynDriver? • “asynDriver is a general purpose facility for interfacing device specific code to low level drivers.” • What does that mean? • It is not a driver – it is a driver framework:Interface definitions and a collection of utilities. • What does it define? • Interfaces to different classes (not brands) of hardware. • What does it provide? • Functionalities common to all (or many) drivers. Page 2 Dirk Zimoch, 2007

  3. The problem • Separate (incompatible) sets of drivers and device supports. • Much effort duplicated but different sets of features. Page 3 Dirk Zimoch, 2007

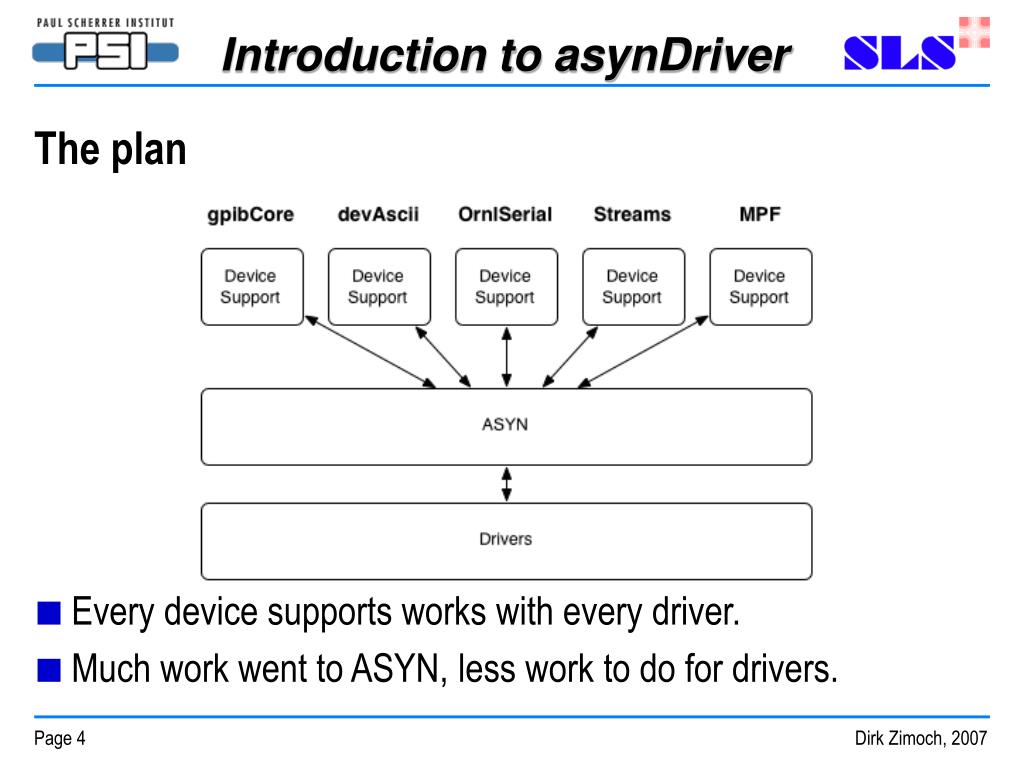

  4. The plan • Every device supports works with every driver. • Much work went to ASYN, less work to do for drivers. Page 4 Dirk Zimoch, 2007

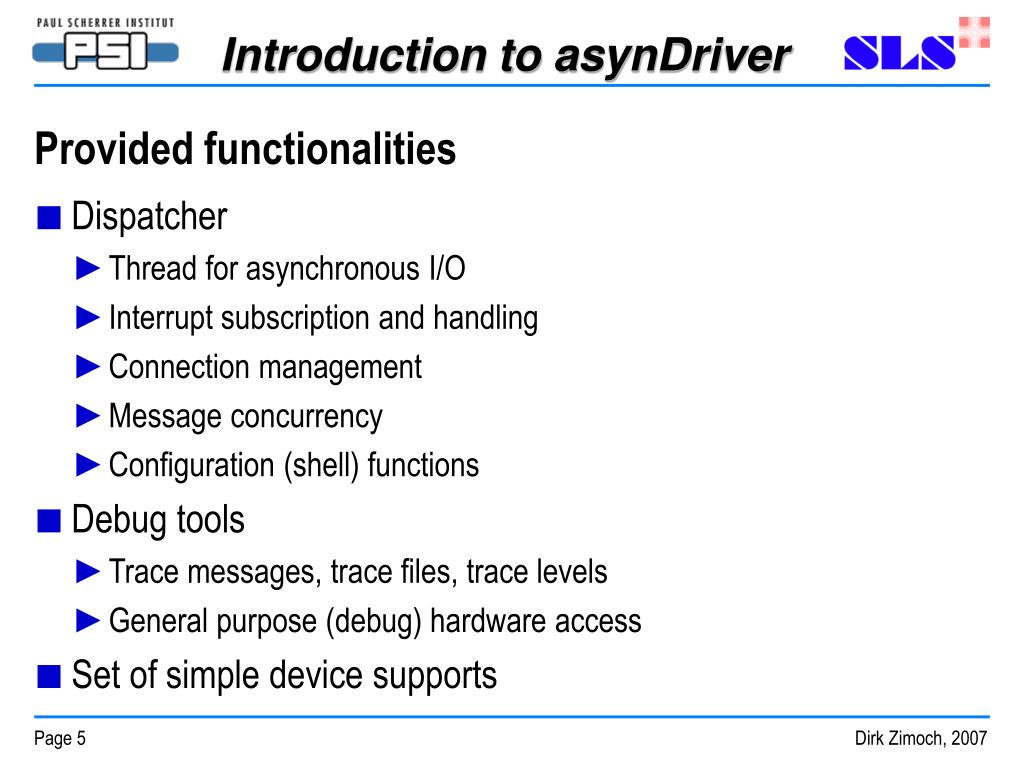

  5. Provided functionalities • Dispatcher • Thread for asynchronous I/O • Interrupt subscription and handling • Connection management • Message concurrency • Configuration (shell) functions • Debug tools • Trace messages, trace files, trace levels • General purpose (debug) hardware access • Set of simple device supports Page 5 Dirk Zimoch, 2007

  6. Interface definitions • Old (bad): Device support talks to drivers. • Different drivers for different hardware have different interfaces. • Need special device support for each type of hardware. • No support for other clients than device support. • New (good): Clients talk to abstract interfaces. • Not limited to device supports. • Shell (debug) functions • Any C (and SNL) code • Different device supports can talk to the same hardware. • Need only one device support for any type of hardware. Page 6 Dirk Zimoch, 2007

  7. The cost • Device supports need to be modified • Talk to asyn interfaces instead of driver • Driver needs to be modified • Remove all “private” dispatcher code • Use asyn library • Implement interfaces for asyn • Example: Simple digital voltmeter – Keithley 196 • ~130 lines removed • 2 lines added • 22 lines changed Page 7 Dirk Zimoch, 2007

  8. Benefits • New devices need to be implemented only once. • All device supports can use all drivers. • O(n+m) problem instead of O(n*m) problem. • Different device supports can share same driver. • Porting to EPICS 3.14. need to be done only once. • “Standard” drivers already done. • Local serial bus • TCP and UDP sockets • several GPIB drivers, including LAN/GPIB interfaces Page 8 Dirk Zimoch, 2007

  9. Current status • Several device supports converted. • Many drivers converted. Page 9 Dirk Zimoch, 2007

  10. Driver architecture Device support (or SNL code, another driver, or non-EPICS software) Interfaces (named; pure virtual functions) asynCommon (connect, report, …) asynOctet (write, read, setInputEos,…) Port (named object) Port driver addr=1 addr=0 device device Page 10 Dirk Zimoch, 2007

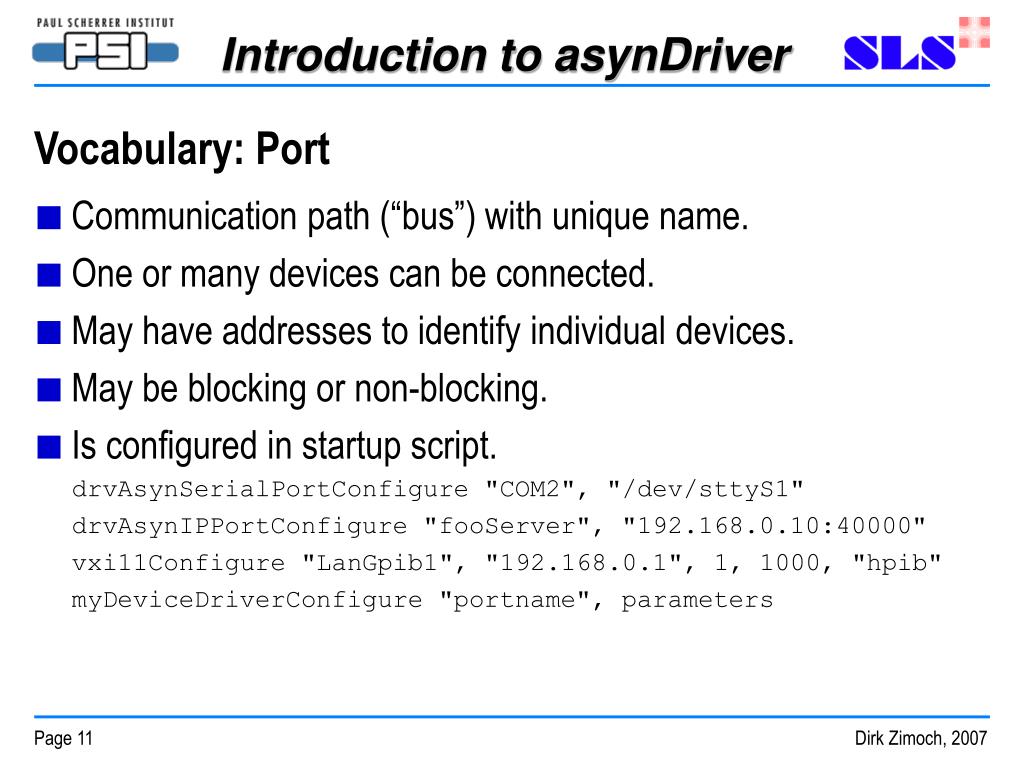

  11. Vocabulary: Port • Communication path (“bus”) with unique name. • One or many devices can be connected. • May have addresses to identify individual devices. • May be blocking or non-blocking. • Is configured in startup script. drvAsynSerialPortConfigure "COM2", "/dev/sttyS1" drvAsynIPPortConfigure "fooServer", "192.168.0.10:40000" vxi11Configure "LanGpib1", "192.168.0.1", 1, 1000, "hpib" myDeviceDriverConfigure "portname", parameters Page 11 Dirk Zimoch, 2007

  12. Vocabulary: Interface • API for a class of ports. • common, message based, register based, … • Defines table of driver functions (“methods”) • Does not implement driver methods. • Every port has one or many interfaces. • Clients talk to interfaces, not to drivers. pasynCommon->connect() pasynOctet->write() Page 12 Dirk Zimoch, 2007

  13. Vocabulary: Driver • Software to handle one type of ports. • Implements one or many interfaces. • Provides method tables for interfaces. • Has internal knowledge about specific port hardware. • Does not handle any specific device type! • Examples: • serial bus, VXI-11, Green Springs IP488, … • Configure function in startup script connects driver to port. Page 13 Dirk Zimoch, 2007

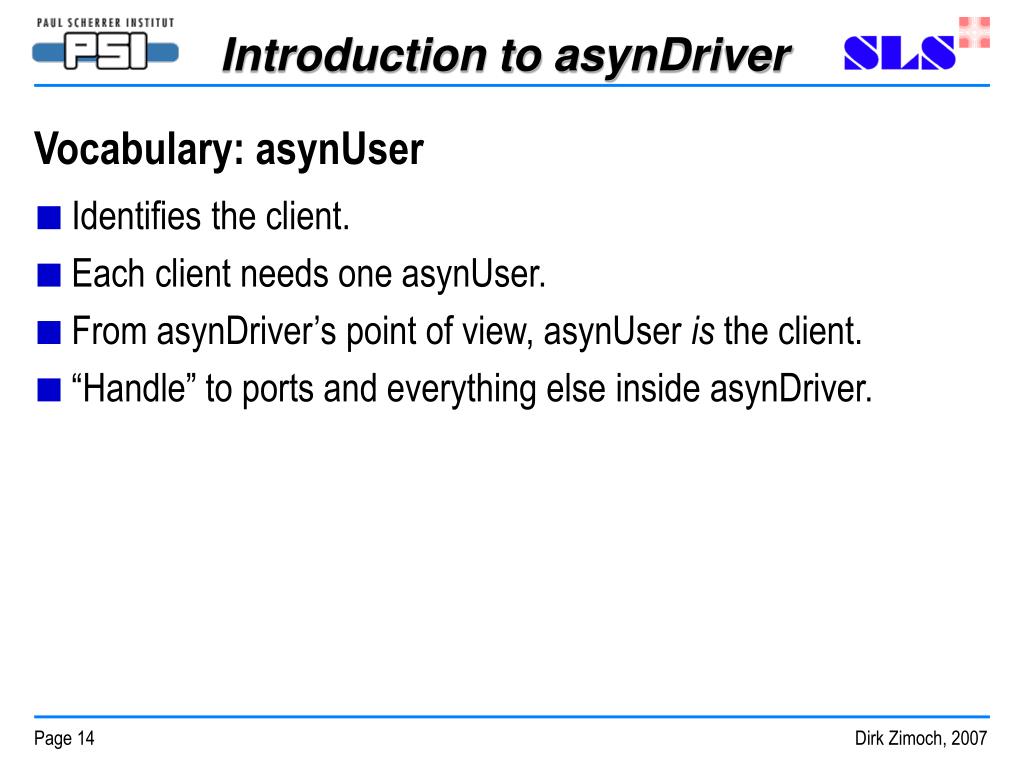

  14. Vocabulary: asynUser • Identifies the client. • Each client needs one asynUser. • From asynDriver’s point of view, asynUser is the client. • “Handle” to ports and everything else inside asynDriver. Page 14 Dirk Zimoch, 2007

  15. Vocabulary: asynManager • Core of asynDriver. • Creates threads for blocking ports. • Registers and finds ports and interfaces. • Schedules access to ports. • There is exactly one global instance: pasynManager • Clients ask asynManager for services pasynManager->connectDevice(pasynUser , "portname", address) pasynManager->findInterface(pasynUser, interfaceType, ...) pasynManager->queueRequest(pasynUser, priority, timeout) • Drivers inform asynManager about any important things. Page 15 Dirk Zimoch, 2007

  16. physical communication Abstraction Layers logical communication • Client knows nothing about port and driver. Software Hardware client / asynUser(e.g. device support) device device addr 1 addr 2 interface bus driver bus controller (port) Page 16 Dirk Zimoch, 2007

  17. Basic asynDriver interfaces • asynOctet • Message based I/O: serial, GPIB, telnet-like TCP/IP, … • asynUInt32Digital • Bit field registers: status word, switches, … • asynInt32, asynInt32Array • Integer registers: ADC, DAC, encoder, … • Integer arrays: spectrum analyzer, oscilloscope, … • asynFloat64, asynFloat64Array • Floating point registers and arrays Page 17 Dirk Zimoch, 2007

  18. More interfaces • asynCommon • Mandatory for every driver • Methods: report, connect, disconnect • asyn*SyncIO • Interfaces for clients which are willing to block • Shell commands. • SNL and C programs with separate threads. • asynGpib • Additional features which are not included in asynOctet:SRQ polling, IFC, REN, addressed and universal commands, … Page 18 Dirk Zimoch, 2007

  19. Notes about register based interfaces • Hardware registers may be smaller/larger than Int32 / Float64 • Driver is responsible for conversion. • Higher bits may be ignored / padded. • Larger registers may be split or implemented as arrays. • What does port and address mean here? • Device and register number. • What is an array register? • Something that holds a waveform. • May be implemented e.g. as many registers or as a fifo. • Driver is responsible for conversion to/from array of Int32 / Float64. Page 19 Dirk Zimoch, 2007

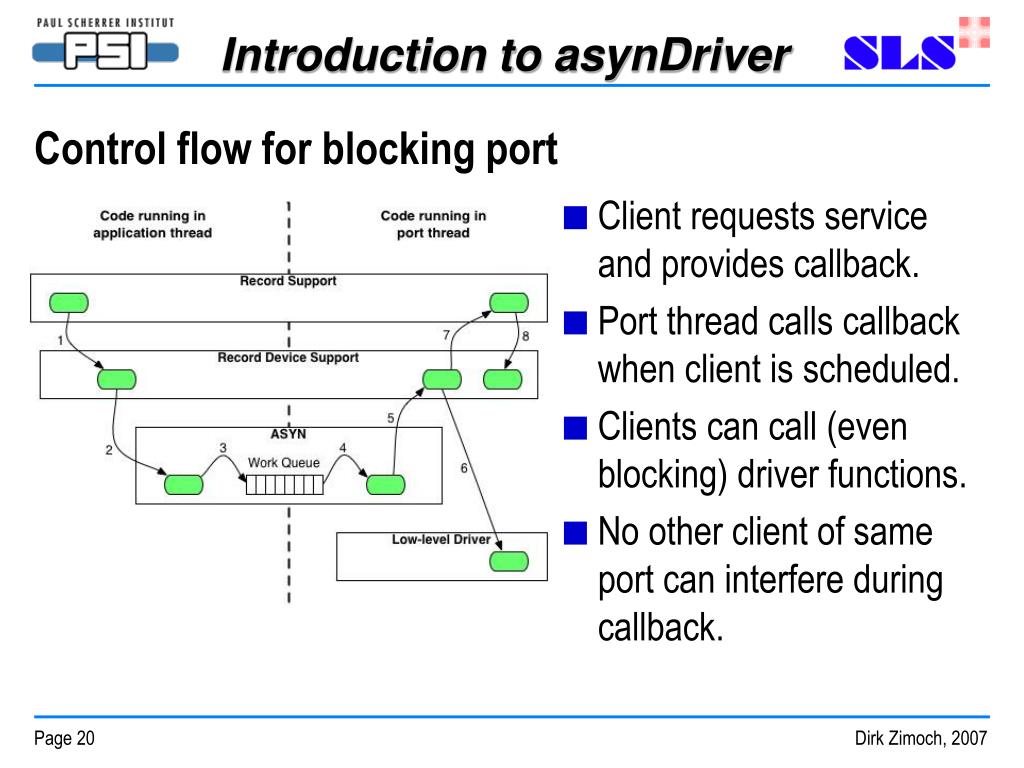

  20. Control flow for blocking port • Client requests service and provides callback. • Port thread calls callback when client is scheduled. • Clients can call (even blocking) driver functions. • No other client of same port can interfere during callback. Page 20 Dirk Zimoch, 2007

  21. Control flow for non-blocking port • Client requests service and provides callback. • Callback is called immediately. • Clients can call (non-blocking) driver functions. • No other client of same port can interfere during callback. Page 21 Dirk Zimoch, 2007

  22. Blocking and non-blocking ports • Ports with a field bus attached are usually blocking. • Access to hardware may have arbitrary long delays. • Client must be willing to block or must use callbacks. • Scan tasks are not allowed to block. • SNL, shell functions, or other code may block. • Driver must have separate port thread to do actual I/O. • Device support is asynchronous. • Ports which access local registers are usually non-blocking. • Access to hardware has only very short delays. • Device support is synchronous. Page 22 Dirk Zimoch, 2007

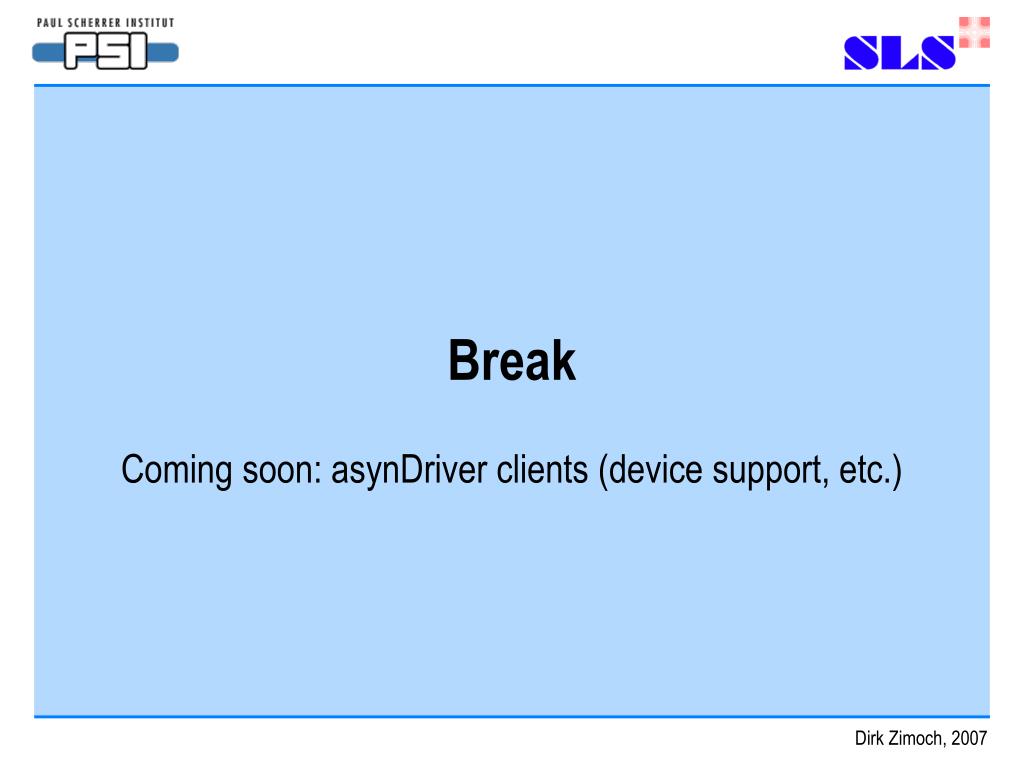

  23. Break Coming soon: asynDriver clients (device support, etc.) Dirk Zimoch, 2007

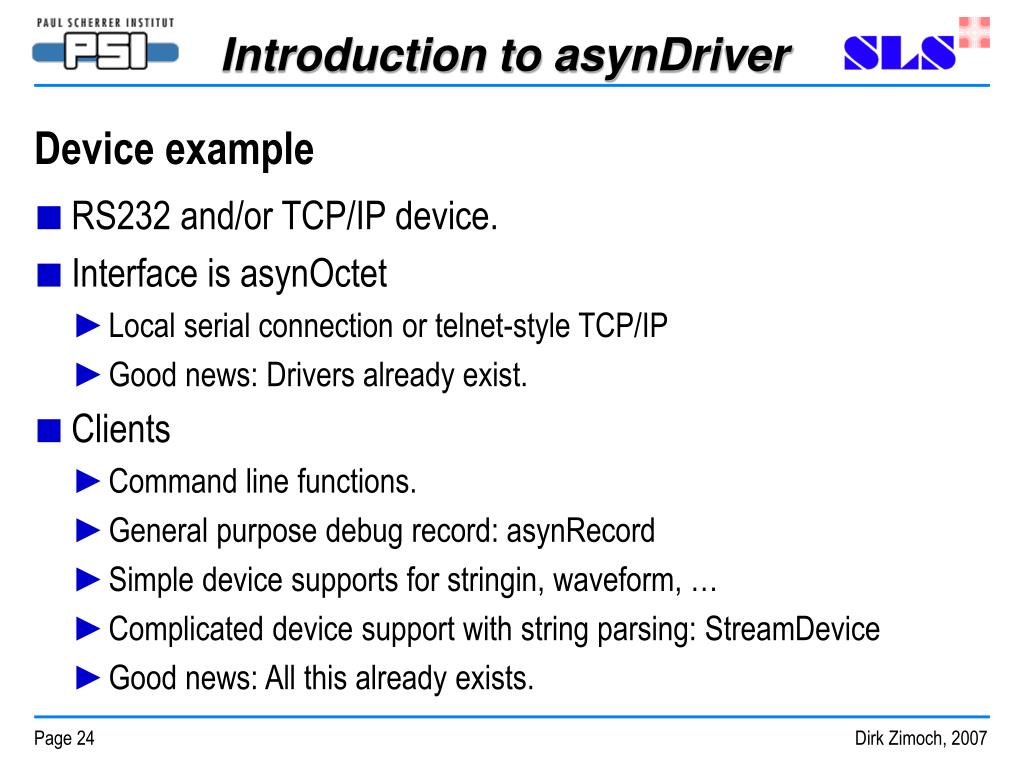

  24. Device example • RS232 and/or TCP/IP device. • Interface is asynOctet • Local serial connection or telnet-style TCP/IP • Good news: Drivers already exist. • Clients • Command line functions. • General purpose debug record: asynRecord • Simple device supports for stringin, waveform, … • Complicated device support with string parsing: StreamDevice • Good news: All this already exists. Page 24 Dirk Zimoch, 2007

  25. asynOctet command line functions • Create / destroy handleasynOctetConnet(handle, port, address=0, timeout=1.0, buffersize=80)asynOctetDisconnect(handle) • Talk to deviceasynOctetWrite(handle, string)asynOctetRead(handle)asynOctetWriteRead(handle, string)asynOctetFlush(handle) • Set / get terminatorsasynOctetSetInputEos(port, address, eos)asynOctetGetInputEos(port, address)asynOctetSetOutputEos(port, address, eos)asynOctetGetOutputEos(port, address) Page 25 Dirk Zimoch, 2007

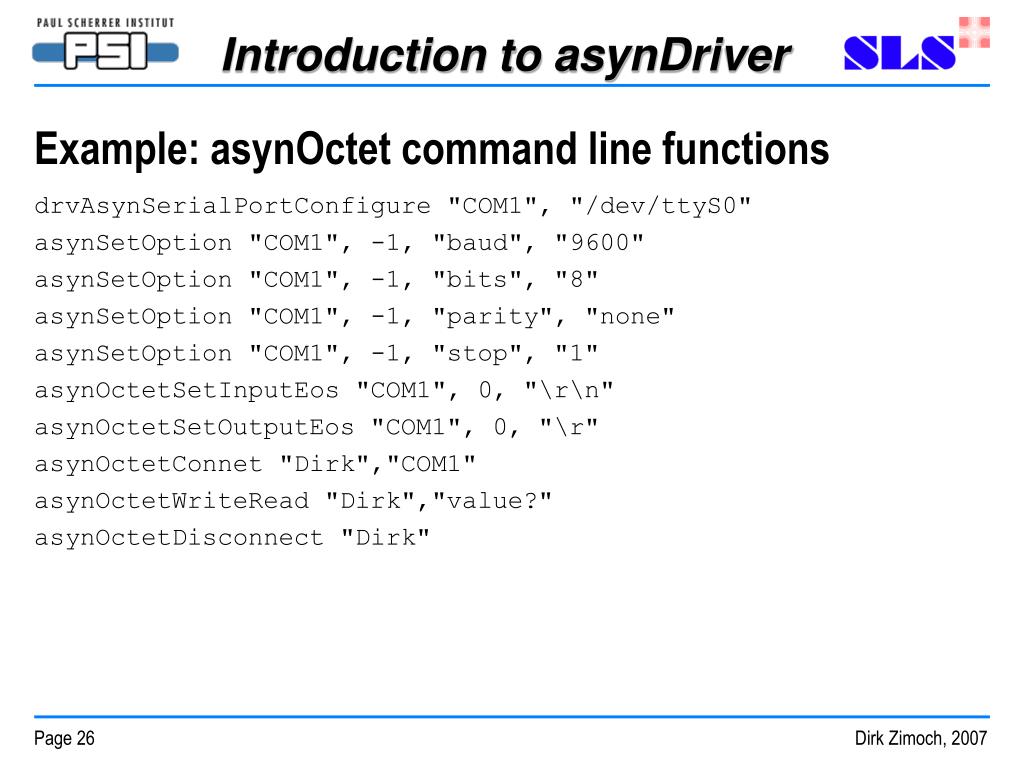

  26. Example: asynOctet command line functions drvAsynSerialPortConfigure "COM1", "/dev/ttyS0" asynSetOption "COM1", -1, "baud", "9600" asynSetOption "COM1", -1, "bits", "8" asynSetOption "COM1", -1, "parity", "none" asynSetOption "COM1", -1, "stop", "1" asynOctetSetInputEos "COM1", 0, "\r\n" asynOctetSetOutputEos "COM1", 0, "\r" asynOctetConnet "Dirk","COM1" asynOctetWriteRead "Dirk","value?" asynOctetDisconnect "Dirk" Page 26 Dirk Zimoch, 2007

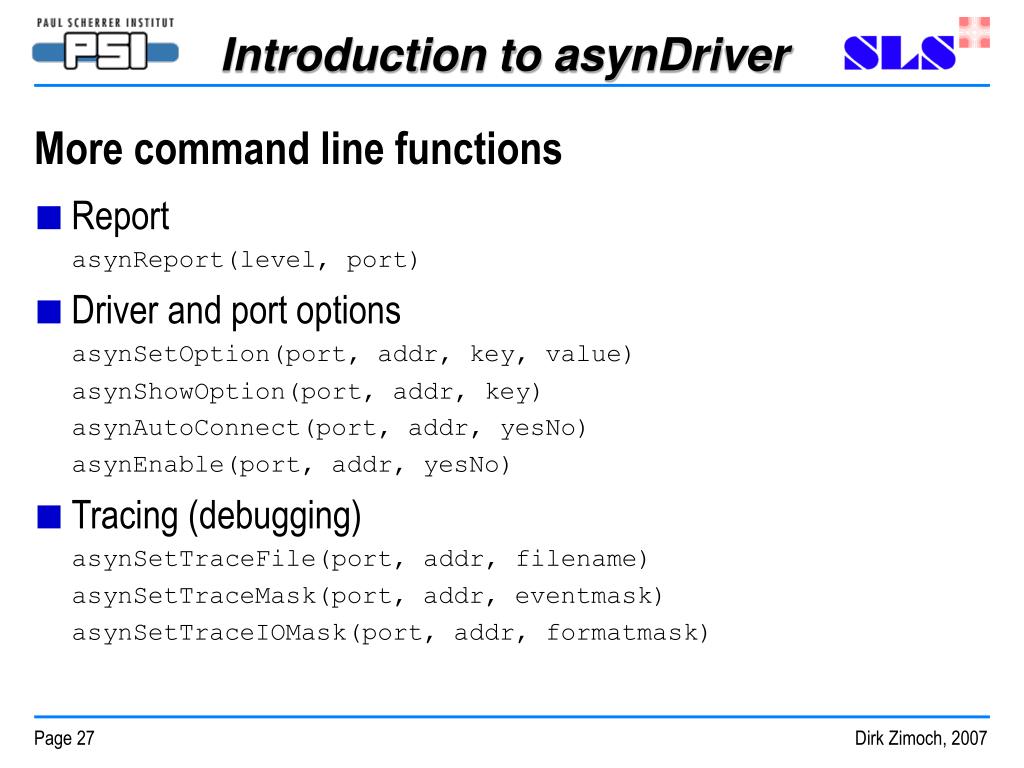

  27. More command line functions • Report asynReport(level, port) • Driver and port options asynSetOption(port, addr, key, value) asynShowOption(port, addr, key) asynAutoConnect(port, addr, yesNo) asynEnable(port, addr, yesNo) • Tracing (debugging) asynSetTraceFile(port, addr, filename) asynSetTraceMask(port, addr, eventmask) asynSetTraceIOMask(port, addr, formatmask) Page 27 Dirk Zimoch, 2007

  28. asynRecord • Special record type that can use all asyn interfaces. • Can connect to different ports at run-time. • Can change any setting of all interfaces types. • Is a good debug tool. • Access to options including tracing. • Comes with set of medm screens for different interfaces. • Can only handle simple devices: • e.g. asynOctet: write one string, read one string • Is all you need (more than you want?) for simple devices. Page 28 Dirk Zimoch, 2007

  29. asynRecord medm screens Page 29 Dirk Zimoch, 2007

  30. Standard record asyn device supports • asynOctet support for stringin, and stringout, waveform • Can do simple write/read of strings • Register support for ao, ai, bo, bi, mbboDirect, mbbiDirect, mbbo, mbbi, longout, longin, waveform • Can do simple register write, register read. • Interrupt can be used for “I/O Intr” scanning. • Can handle only simple devices • But for simple devices, that's all you need. Page 30 Dirk Zimoch, 2007

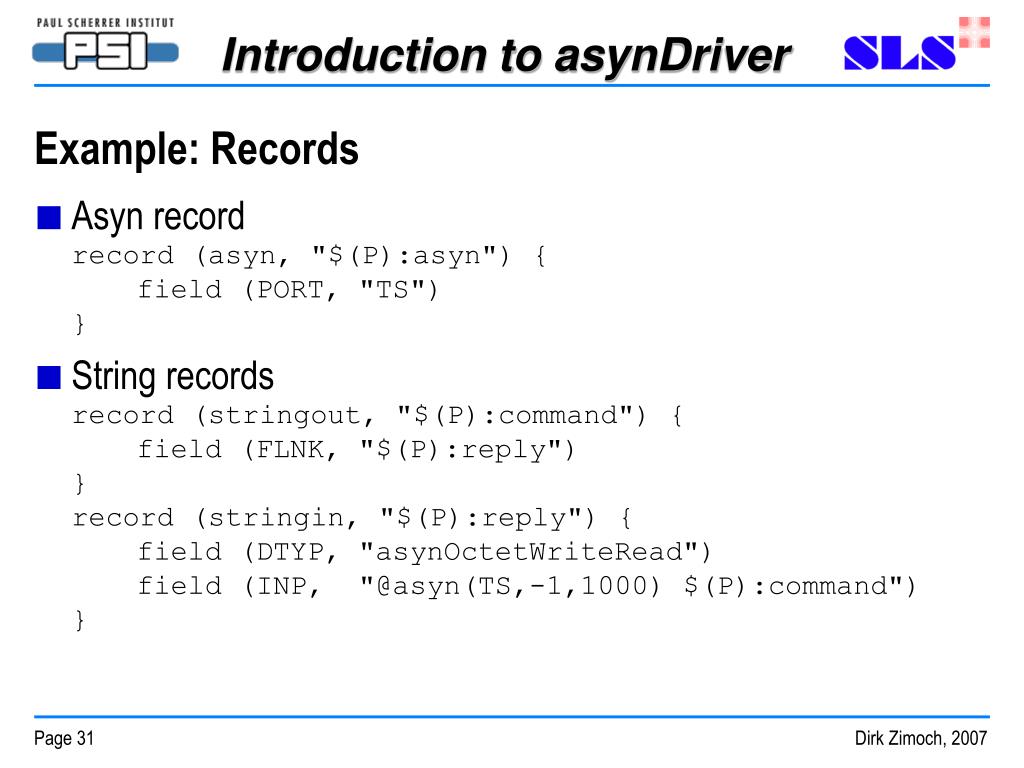

  31. Example: Records • Asyn recordrecord (asyn, "$(P):asyn") { field (PORT, "TS")} • String recordsrecord (stringout, "$(P):command") { field (FLNK, "$(P):reply")}record (stringin, "$(P):reply") { field (DTYP, "asynOctetWriteRead") field (INP, "@asyn(TS,-1,1000) $(P):command")} Page 31 Dirk Zimoch, 2007

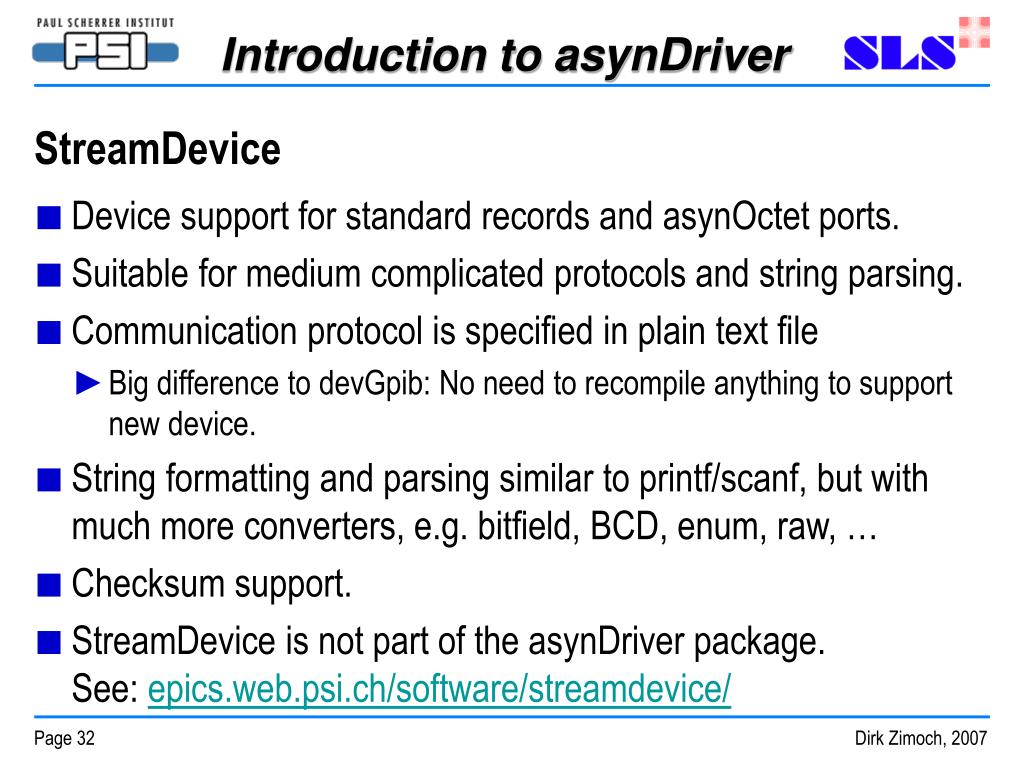

  32. StreamDevice • Device support for standard records and asynOctet ports. • Suitable for medium complicated protocols and string parsing. • Communication protocol is specified in plain text file • Big difference to devGpib: No need to recompile anything to support new device. • String formatting and parsing similar to printf/scanf, but with much more converters, e.g. bitfield, BCD, enum, raw, … • Checksum support. • StreamDevice is not part of the asynDriver package.See: epics.web.psi.ch/software/streamdevice/ Page 32 Dirk Zimoch, 2007

  33. Example: StreamDevice protocol file Terminator = CR LF; setValue { out "VALUE %.3f"; } getValue { out "VALUE?"; in "VALUE=%f"; } getStatus { out "STAT?"; in "STAT=%B.!"; } # bits: .=0 !=1 setSwitch { out "SWITCH %{OFF|ON}"; # enumeration @init {out "SWITCH?"; in "SWITCH=%{OFF|ON}"; } # init record} getDataWithEcho {out "DATA?"; in "DATA?"; in "%d"; } writeCalcoutFieldsWithChecksum { out "A=%(A)g B=%(B)g C=%(C)g D=%(D)g %0<CRC32>";} read2Values { out "get"; in "%f %(OtherRecord.VAL)f"; } read2ValuesWithParameter {out "get"; in "%f %(\$1.VAL)f"; } Page 33 Dirk Zimoch, 2007

  34. Exercise (before break) • TCP device on port 40000 • First connect with telnet: telnet localhost 40000 • Serial device on local port (/dev/ttyS0 or /dev/ttyUSB0) • First connect with minicom: xterm –e minicom & • Find out what the device does • Try command HELP. • Try asynRecord and asyn device support. • Softioc is in directory ioc • medm for asynRecord displays is installed • Try StreamDevice support. Page 34 Dirk Zimoch, 2007

  35. Break Coming soon: writing your own device support Dirk Zimoch, 2007

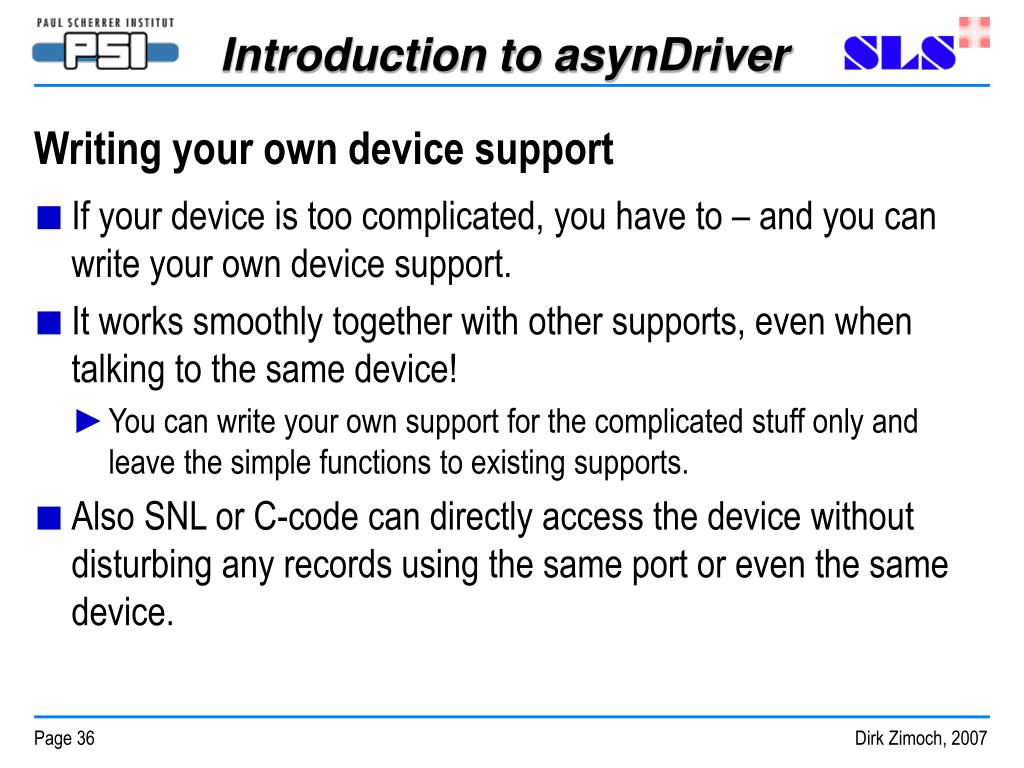

  36. Writing your own device support • If your device is too complicated, you have to – and you can write your own device support. • It works smoothly together with other supports, even when talking to the same device! • You can write your own support for the complicated stuff only and leave the simple functions to existing supports. • Also SNL or C-code can directly access the device without disturbing any records using the same port or even the same device. Page 36 Dirk Zimoch, 2007

  37. Step 1: Connect to the port • Before doing anything you must become an asynUser pasynUser=pasynManager->createAsynUser(processCallback, timeoutCallback); • Provide 1 or 2 callbacks, first is called when you are scheduled to access the port, second is called on timeout. • Connect to the device (port, address) status=pasynManager->connectDevice(pasynUser, port, addr); • Get the interface you need (e.g. asynOctet) pasynInterface=pasynManager->findInterface(pasynUser, asynOctetType, 1); pasynOctet=(asynOctet *)pasynInterface->pinterface; pvtOctet=pasynInterface->drvPvt; Page 37 Dirk Zimoch, 2007

  38. Step 2: Request access to the port • Ask asynManager to put yur request to the queue status=pasynManager->queueRequest(pasynUser, priority, timeout); • Priorities: asynQueuePriority{Low|Medium|High} • queueRequest never blocks. • Blocking port: AsynManager will call your processCallback when port is free. The callback runs in port thread. • Non blocking port: queueRequest calls processCallback. • If port is not free for timeout seconds, asynManager calls timeoutCallback. This callback runs in timer thread. • In processCallback, you have exclusive access to the port. Page 38 Dirk Zimoch, 2007

  39. Step 3: processCallback (asynOctet) • Flush (discard old input) status=pasynOctet->flush(pvtOctet, pasynUser); • Write (with/without output eos appended) status=pasynOctet->write[Raw](pvtOctet, pasynUser, data, size, &bytesWritten); • Actual number of written bytes is returned in bytesWritten. • Read (with/without input eos handling) status=pasynOctet->read[Raw](pvtOctet, pasynUser, buffer, maxsize, &bytesReceived, &eomReason); • Actual number of written bytes is returned in bytesReceived. • End of message reason is returned in eomReason. Page 39 Dirk Zimoch, 2007

  40. Step 3: processCallback (asynInt32) • Get bounds status=pasynInt32->getBounds(pvtInt32, pasynUser, &low, &high); • Limits for valid register values are returned in low and high. • Write status=pasynInt32->write(pvtInt32, pasynUser, value); • Read status=pasynInt32->read(pvtInt32, pasynUser, &value); • Current register value is returned in value. Page 40 Dirk Zimoch, 2007

  41. Step 3: processCallback (asynUInt32Digital) • Write status=pasynUInt32Digital->write(pvtUInt32Digital, pasynUser, value, mask); • Only bits specified by mask are modified. • Read status=pasynUInt32Digital->read(pvtUInt32Digital, pasynUser, &value, mask); • Current register value & mask is returned in value. Page 41 Dirk Zimoch, 2007

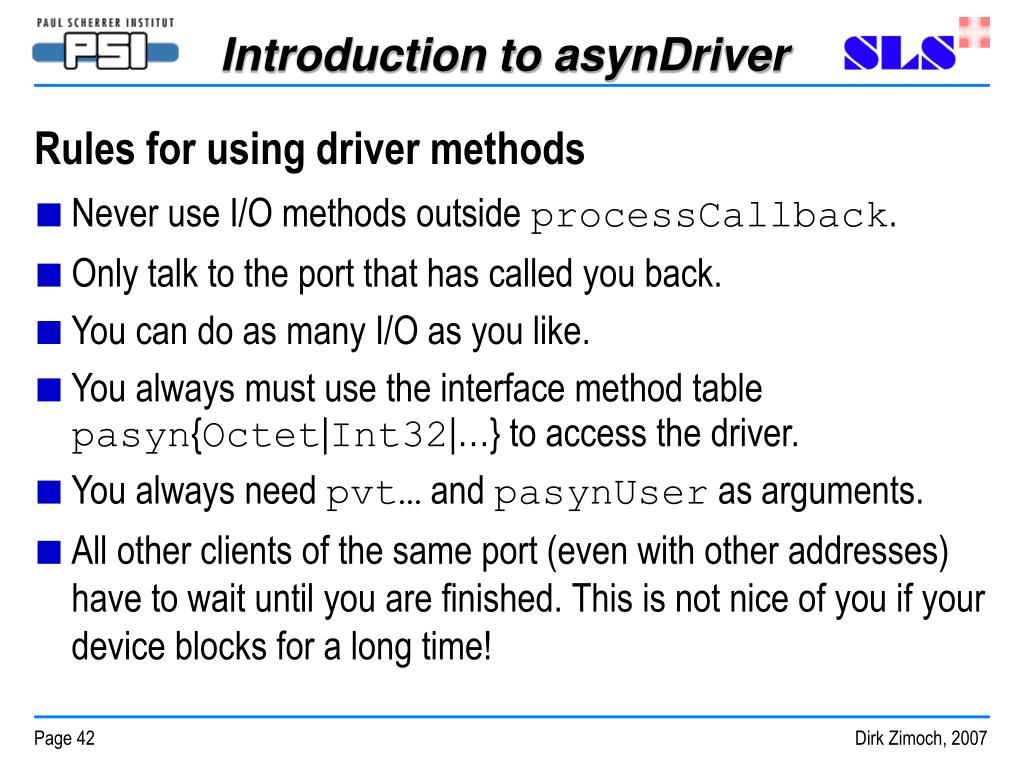

  42. Rules for using driver methods • Never use I/O methods outside processCallback. • Only talk to the port that has called you back. • You can do as many I/O as you like. • You always must use the interface method table pasyn{Octet|Int32|…} to access the driver. • You always need pvt… and pasynUser as arguments. • All other clients of the same port (even with other addresses) have to wait until you are finished. This is not nice of you if your device blocks for a long time! Page 42 Dirk Zimoch, 2007

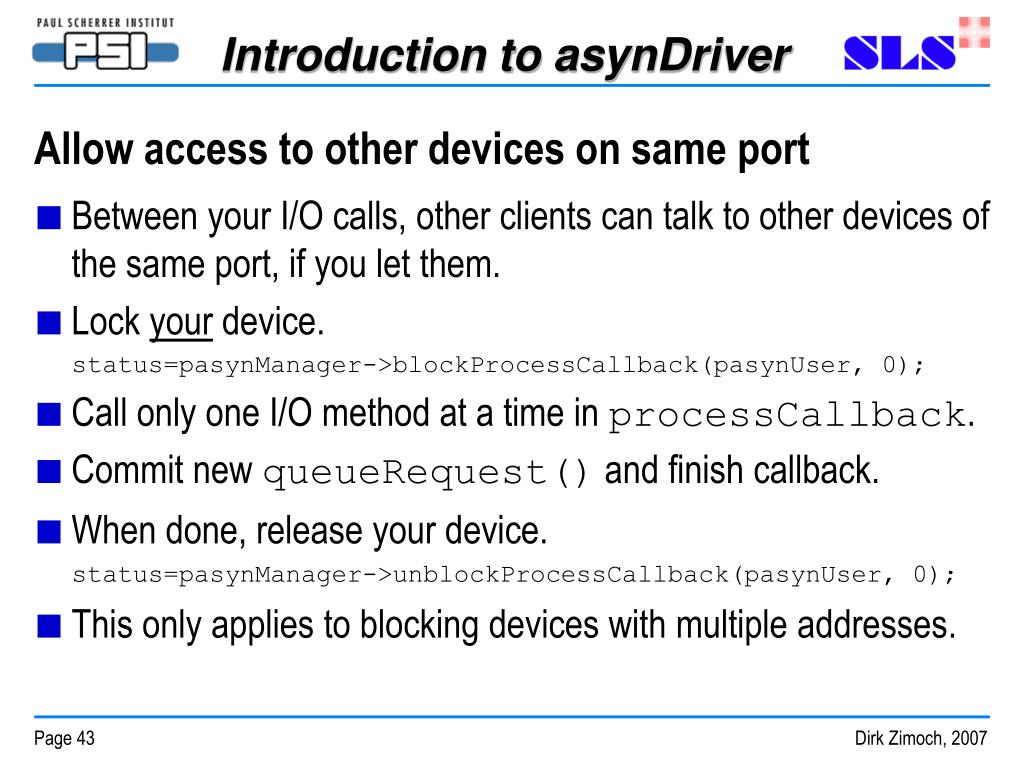

  43. Allow access to other devices on same port • Between your I/O calls, other clients can talk to other devices of the same port, if you let them. • Lock your device. status=pasynManager->blockProcessCallback(pasynUser, 0); • Call only one I/O method at a time in processCallback. • Commit new queueRequest() and finish callback. • When done, release your device. status=pasynManager->unblockProcessCallback(pasynUser, 0); • This only applies to blocking devices with multiple addresses. Page 43 Dirk Zimoch, 2007

  44. Informational asynManager methods • Write report to file pasynManager->report(file, detailLevel, port); • Can be called without asynUser in any context. • Get information about port. status=pasynManager->isMultiDevice(pasynUser, port, &yesNo); • Can be called before connected to port. • Get information about connected port. status=pasynManager->canBlock(pasynUser, &yesNo); status=pasynManager->isEnabled(pasynUser, &yesNo); status=pasynManager->isConnected(pasynUser, &yesNo); status=pasynManager->isAutoConnect(pasynUser, &yesNo); Page 44 Dirk Zimoch, 2007

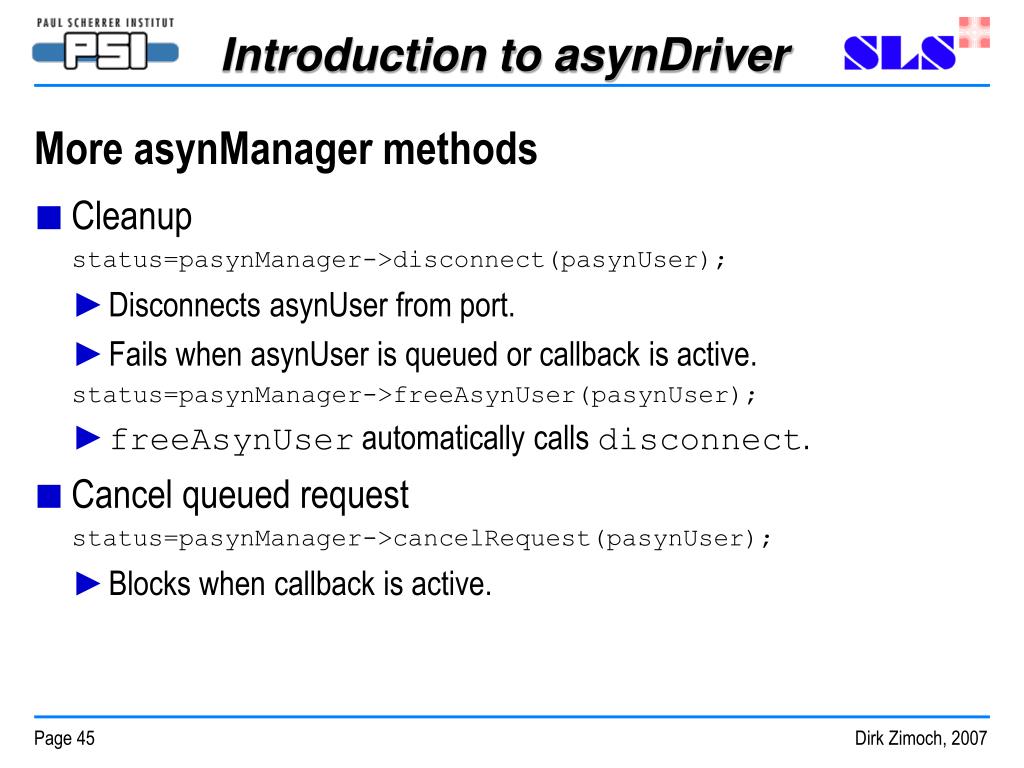

  45. More asynManager methods • Cleanup status=pasynManager->disconnect(pasynUser); • Disconnects asynUser from port. • Fails when asynUser is queued or callback is active. status=pasynManager->freeAsynUser(pasynUser); • freeAsynUser automatically calls disconnect. • Cancel queued request status=pasynManager->cancelRequest(pasynUser); • Blocks when callback is active. Page 45 Dirk Zimoch, 2007

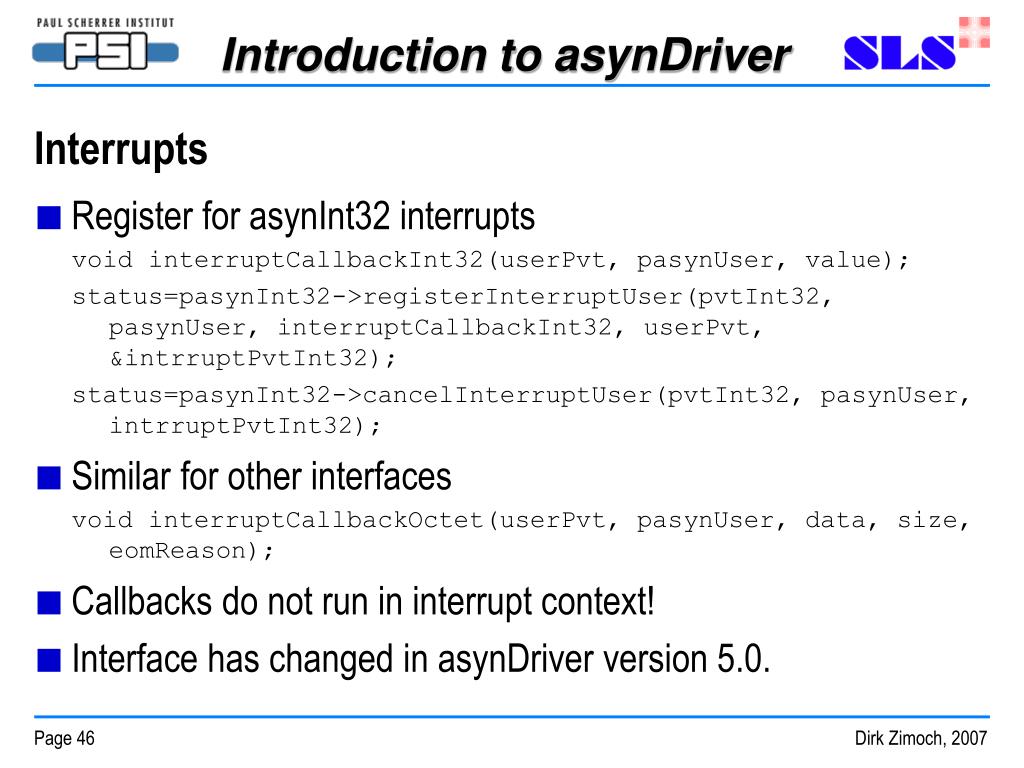

  46. Interrupts • Register for asynInt32 interrupts void interruptCallbackInt32(userPvt, pasynUser, value); status=pasynInt32->registerInterruptUser(pvtInt32, pasynUser, interruptCallbackInt32, userPvt, &intrruptPvtInt32); status=pasynInt32->cancelInterruptUser(pvtInt32, pasynUser, intrruptPvtInt32); • Similar for other interfaces void interruptCallbackOctet(userPvt, pasynUser, data, size, eomReason); • Callbacks do not run in interrupt context! • Interface has changed in asynDriver version 5.0. Page 46 Dirk Zimoch, 2007

  47. Remarks on device supports • Always check return value of methods typedef enum {asynSuccess, asynTimeout, asynOverflow, asynError} asynStatus; • If port can block you must implement asynchronous support. • Set precord->pact=1 before queueRequest. • Return after queueRequest and wait for callback. • In your callback call callbackRequestProcessCallback. • Update record in second processing run. • If port cannot block you can implement synchronous support. • Update record after queueRequest and return. Page 47 Dirk Zimoch, 2007

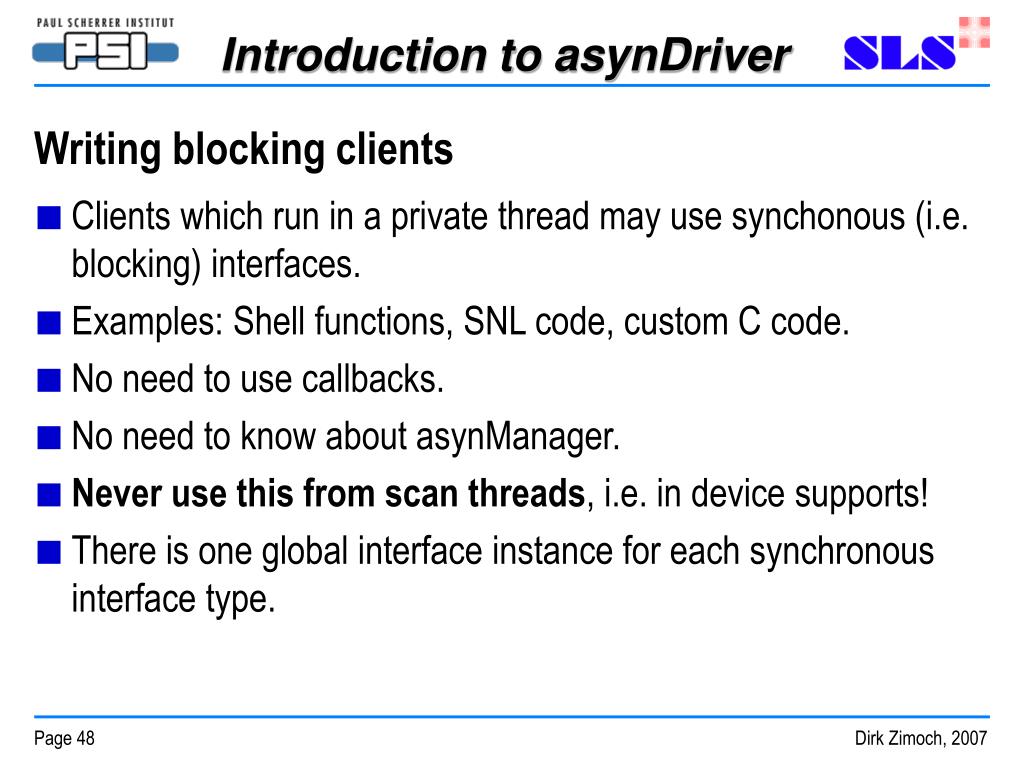

  48. Writing blocking clients • Clients which run in a private thread may use synchonous (i.e. blocking) interfaces. • Examples: Shell functions, SNL code, custom C code. • No need to use callbacks. • No need to know about asynManager. • Never use this from scan threads, i.e. in device supports! • There is one global interface instance for each synchronous interface type. Page 48 Dirk Zimoch, 2007

  49. asynOctetSyncIO • Create asynUser and connect to port status=pasynOctetSyncIO->connect(port, addr, &pasynUser, driverInfo); • Blocking I/O methods status=pasynOctetSyncIO->write[Raw](pasynUser, data, size, timeout, &bytesTransfered); status=pasynOctetSyncIO->read[Raw](pasynUser, buffer, maxsize, timeout, &bytesReceived, &eomReason); status=pasynOctetSyncIO->flush(pasynUser); • Disconnect from port and free asynUser status=pasynOctetSyncIO->disconnect(pasynUser); Page 49 Dirk Zimoch, 2007

  50. asynOctetSyncIO convenience methods • Connect, write, disconnect status=pasynOctetSyncIO->write[Raw]Once(port, addr, data, size, timeout, &bytesTransfered, driverInfo); • Connect, read, disconnect status=pasynOctetSyncIO->read[Raw]Once(port, addr, buffer, maxsize, timeout, &bytesReceived, &eomReason, driverInfo); • Connect, write, read, disconnect status=pasynOctetSyncIO->writeReadOnce(port, addr, data, size, buffer, maxsize, timeout, &bytesTransfered, &bytesReceived, &eomReason, driverInfo); Page 50 Dirk Zimoch, 2007
