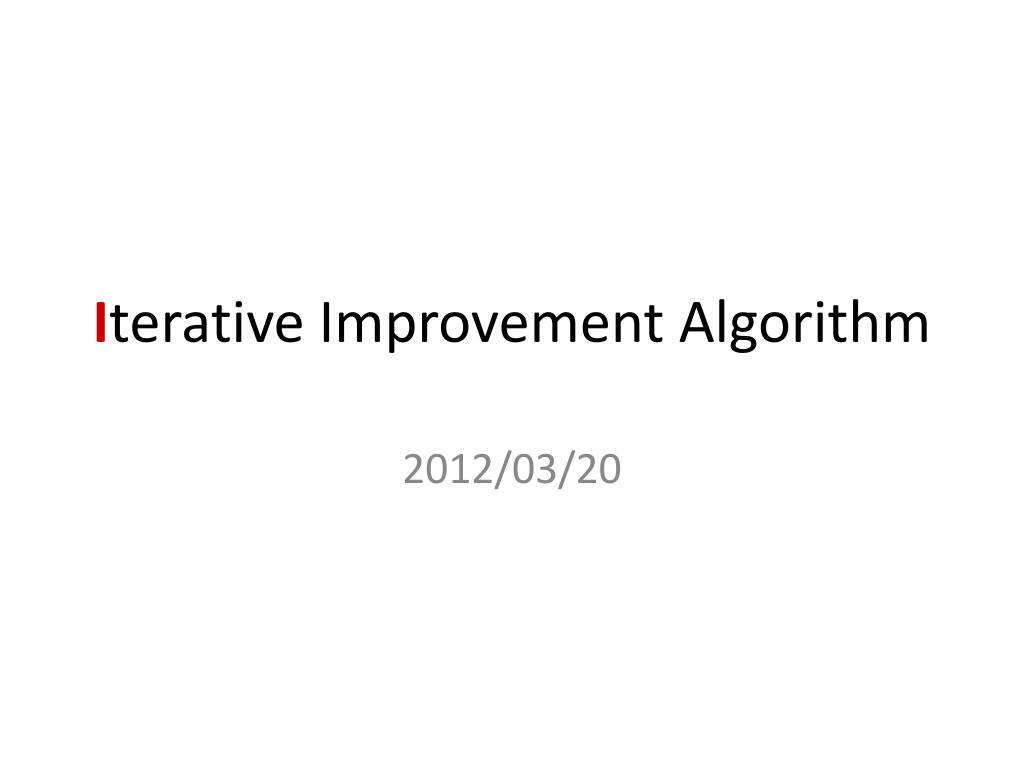

  1. Iterative Improvement Algorithm 2012/03/20

  2. Outline • Local Search Algorithms • Hill-Climbing Search • Simulated Annealing Search • Local Beam Search • Genetic Algorithms

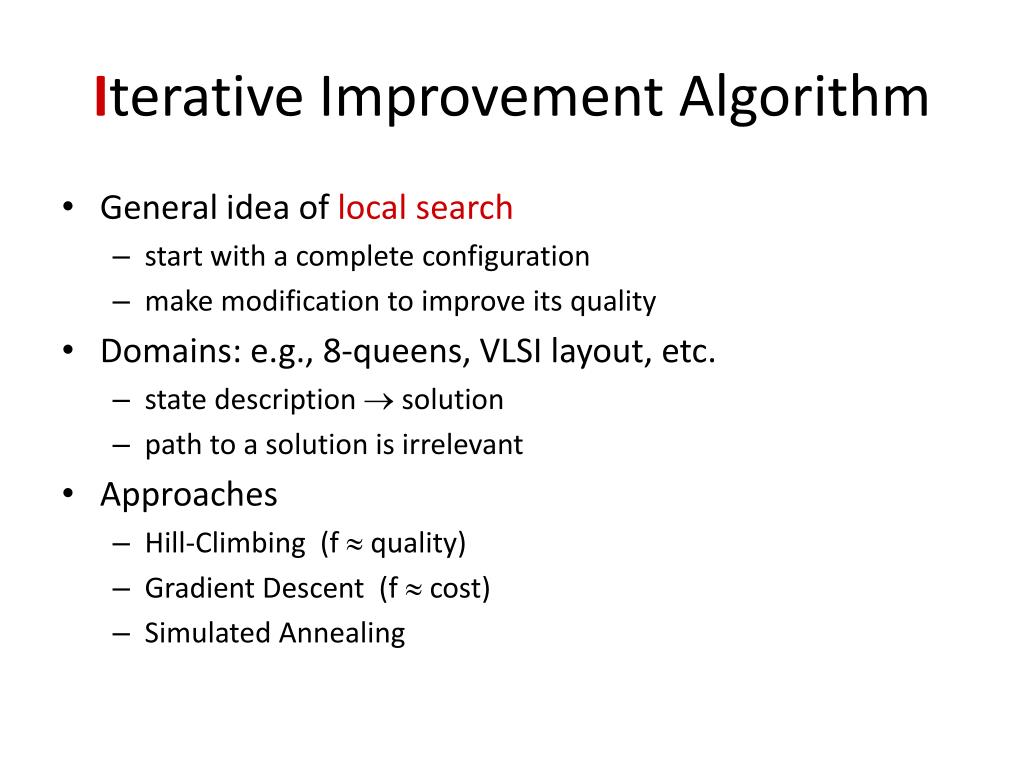

  3. Iterative Improvement Algorithm • General idea of local search • start with a complete configuration • make modification to improve its quality • Domains: e.g., 8-queens, VLSI layout, etc. • state description  solution • path to a solution is irrelevant • Approaches • Hill-Climbing (f  quality) • Gradient Descent (f  cost) • Simulated Annealing

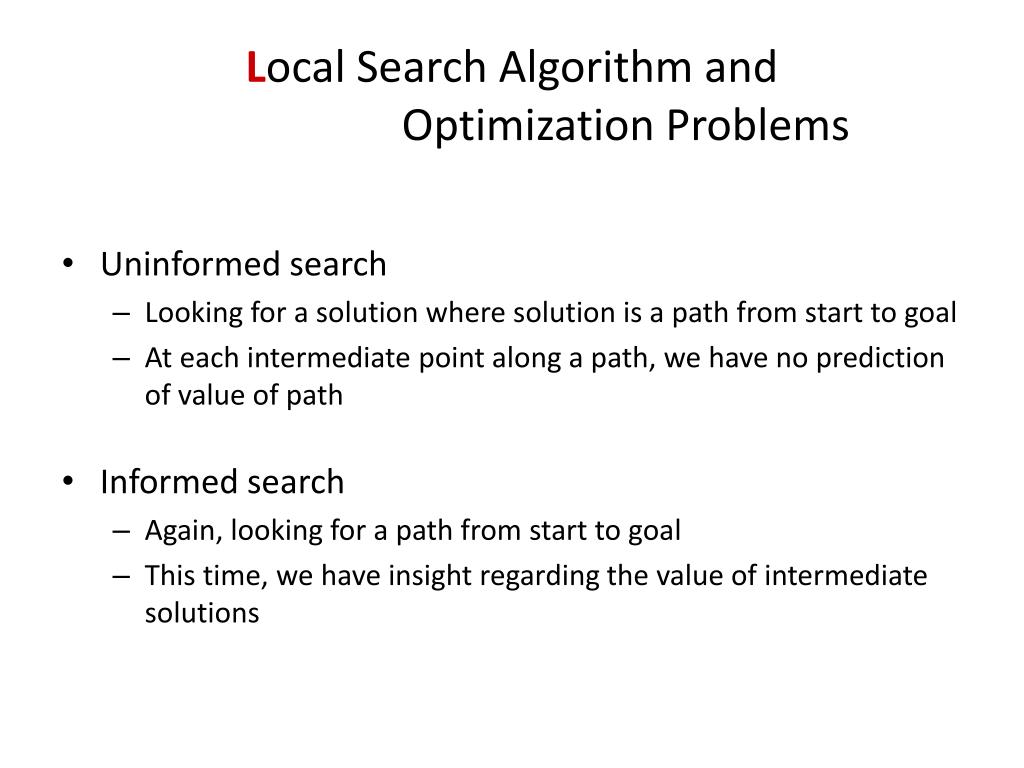

  4. Local Search Algorithm and Optimization Problems • Uninformed search • Looking for a solution where solution is a path from start to goal • At each intermediate point along a path, we have no prediction of value of path • Informed search • Again, looking for a path from start to goal • This time, we have insight regarding the value of intermediate solutions

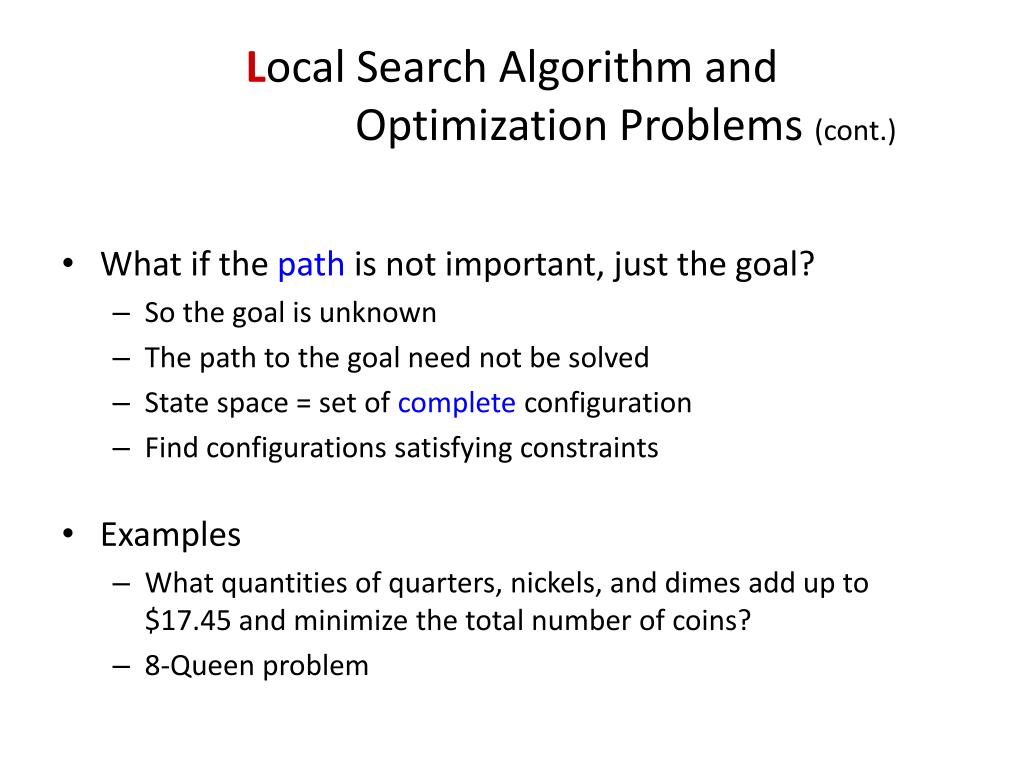

  5. Local Search Algorithm and Optimization Problems (cont.) • What if the path is not important, just the goal? • So the goal is unknown • The path to the goal need not be solved • State space = set of complete configuration • Find configurations satisfying constraints • Examples • What quantities of quarters, nickels, and dimes add up to $17.45 and minimize the total number of coins? • 8-Queen problem

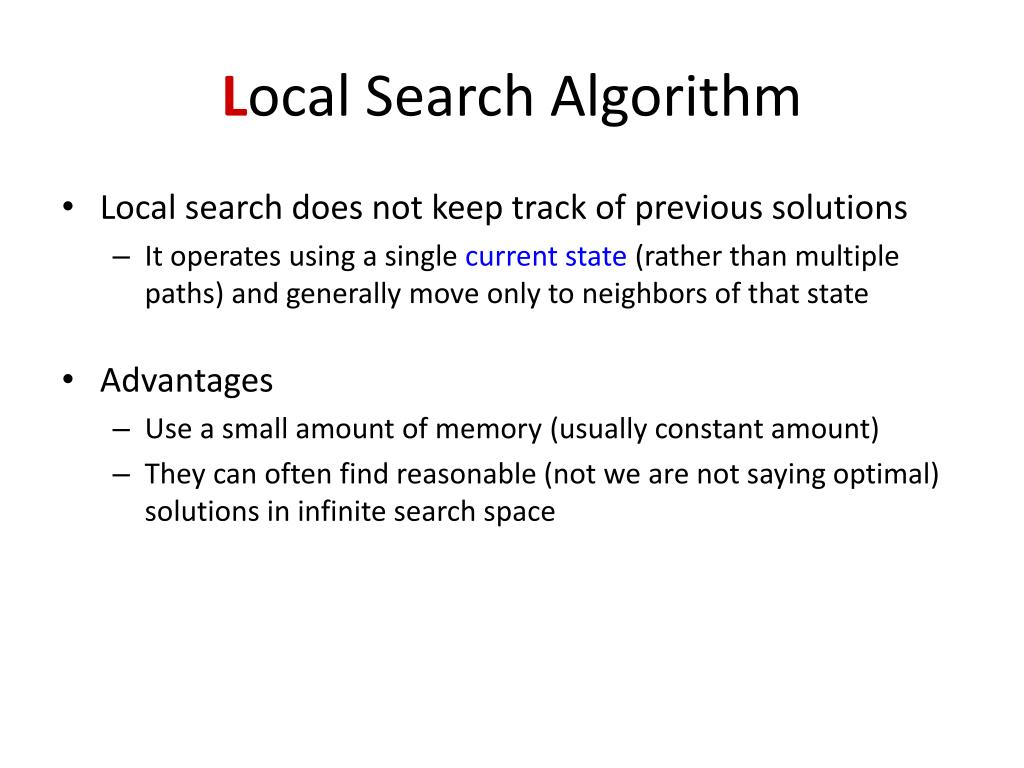

  6. Local Search Algorithm • Local search does not keep track of previous solutions • It operates using a single current state (rather than multiple paths) and generally move only to neighbors of that state • Advantages • Use a small amount of memory (usually constant amount) • They can often find reasonable (not we are not saying optimal) solutions in infinite search space

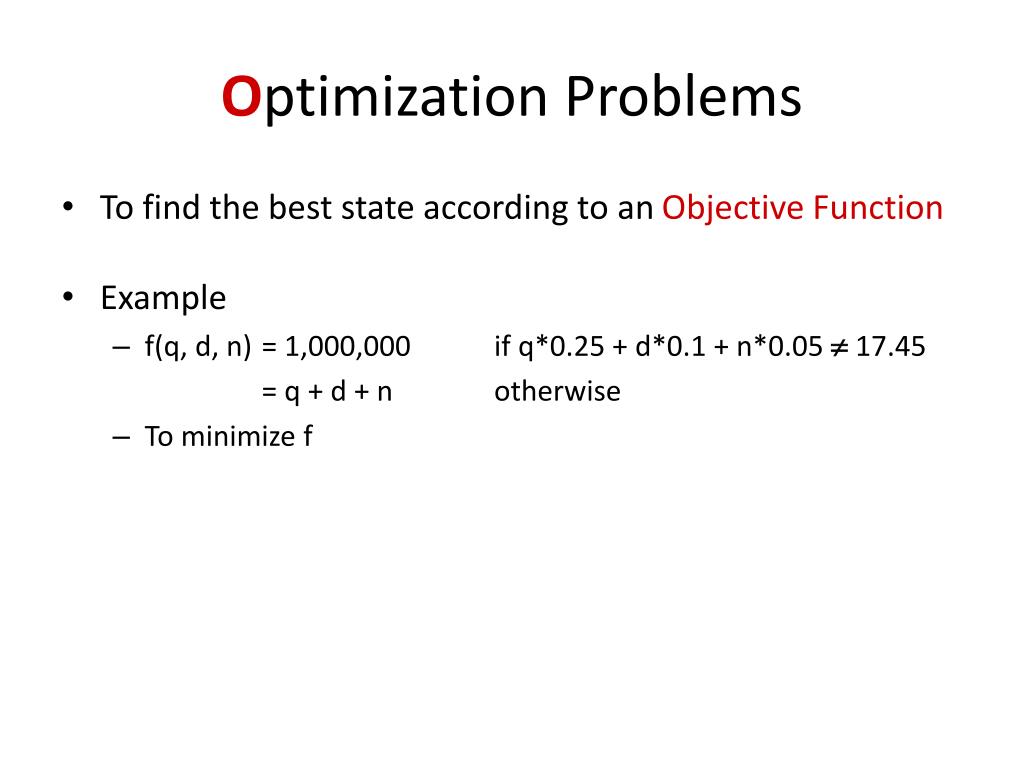

  7. Optimization Problems • To find the best state according to an Objective Function • Example • f(q, d, n) = 1,000,000 if q*0.25 + d*0.1 + n*0.05  17.45 = q + d + n otherwise • To minimize f

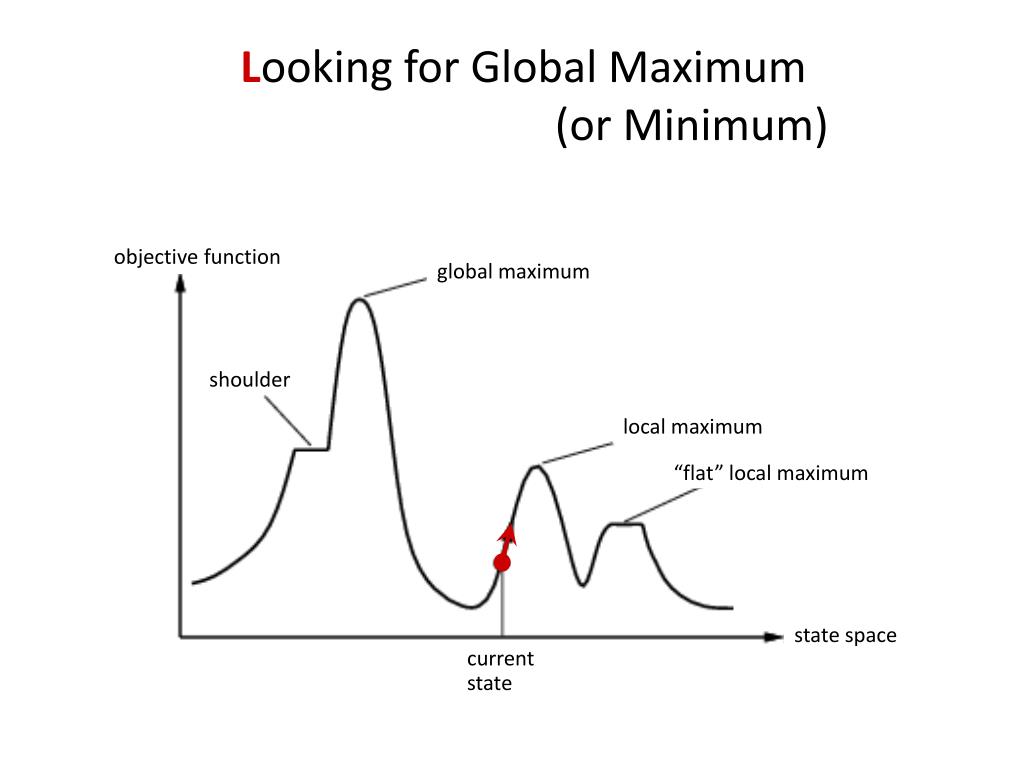

  8. objective function global maximum shoulder local maximum “flat” local maximum state space currentstate Looking for Global Maximum (or Minimum)

  9. Hill-Climbing Search • “Like climbing Everest in thick fog with amnesia” • Only record the state and its evaluation instead of maintaining a search tree function HILL-CLIMBING( problem) returns a state that is a local maximum inputs: problem, a problem local variables: current, a node neighbor, a node current MAKE-NODE(INITIAL-STATE[ problem]) loop do neighbor a highest-valued successor of current if VALUE[neighbor]  VALUE[current] then return STATE[current] current  neighbor

  10. Hill-Climbing Search(cont.-1) • Variations • choose any successor with a higher value than current • choose value[next]  value[current] • Problems • Local Maxima: search halts prematurely • Plateaux: search conducts a random walk • Ridges: search oscillates with slow progress • Solution: Random-Restart Hill-Climbing • start from randomly generated initial states • saving the best result so far • finding the optimal solution eventually if enough iterations are allowed

  11. Hill-Climbing Search(cont.-2) • Creating a sequence of local maximum that are not directly connected to each other • From each local maximum, all the available actions point downhill

  12. Hill-Climbing Search(cont.-3) • 8-queens problem • successor function =all states generated bymoving a single queento another square in the same column • 8  7 successors • h = # of pairs of queens that are attacking each other, either directly or indirectly • h = 17 for the above state

  13. 8 7 6 5 4 3 2 1 a b c d e f g h Hill-Climbing Search(cont.-4) • 8-queens problem • a local minimum with h = 1 • every successor has a higher cost

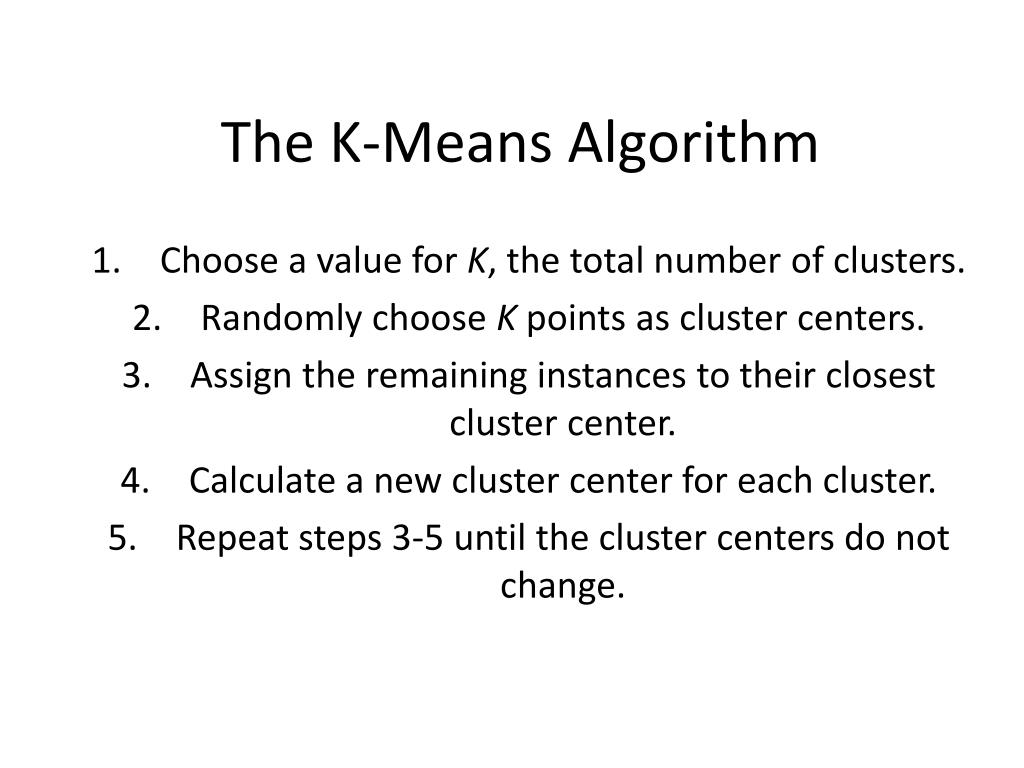

  14. The K-Means Algorithm Choose a value for K, the total number of clusters. Randomly choose K points as cluster centers. Assign the remaining instances to their closest cluster center. Calculate a new cluster center for each cluster. Repeat steps 3-5 until the cluster centers do not change.

  15. General Considerations Requires real-valued data. We must select the number of clusters present in the data. Works best when the clusters in the data are of approximately equal size. Attribute significance cannot be determined. Lacks explanation capabilities.

  16. Simulated Annealing • idea: escape local maxima by allowing some bad moves but gradually decrease their frequency function SIMULATED-ANNEALING ( problem, schedule) returns a solution state inputs: problem, a problem schedule, a mapping from time to “temperature” local variables: current, next, a node T, a “temperature” controlling the probability of downward steps current MAKE-NODE(INITIAL-STATE[ problem]) fort  1 todo T  schedule[t] ifT = 0 then returncurrent next  a randomly selected successor of current E  VALUE[next] - VALUE[current] if E > 0 thencurrent  next elsecurrent  next only with probability eE/T

  17. Simulated Annealing(cont.-1) • A term borrowed from metalworking • We want metal molecules to find a stable location relative to neighbors • Heating causes metal molecules to move around and to take on undesirable locations • During cooling, molecules reduce their movement and settle into a more stable position • Annealing is process of heating metal and letting it cool slowly to lock in the stable locations of the molecules

  18. Simulated Annealing(cont.-2) • Select a random move at each iteration • Move to the selected node if it is better than the current node • The probability of moving to a worse node decreases exponentially with the badness of the move, i.e., eΔE/T • The temperature T changes according to a schedule

  19. Property of Simulated Annealing • One can prove: If T decreases slowly enough, then simulated annealing search will find a global optimum with probability approaching 1 • Wildly used in VLSI layout, airline scheduling, etc.

  20. Local Beam Search • Keep track of k states rather than just one • Begin with k randomly generated states • At each iteration, all the successors of all k states are generated • If any one is a goal state, halt; else select the k best successors from the complete list and repeat • Useful information is passed among the k parallel search thread

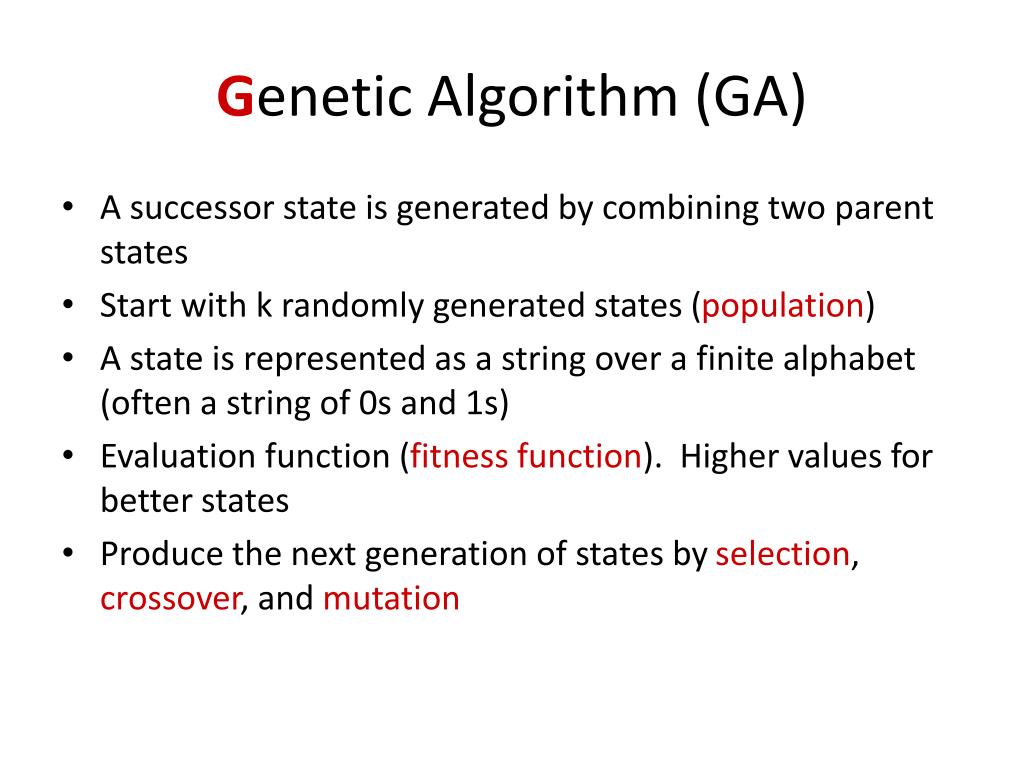

  21. Genetic Algorithm (GA) • A successor state is generated by combining two parent states • Start with k randomly generated states (population) • A state is represented as a string over a finite alphabet (often a string of 0s and 1s) • Evaluation function (fitness function). Higher values for better states • Produce the next generation of states by selection, crossover, and mutation

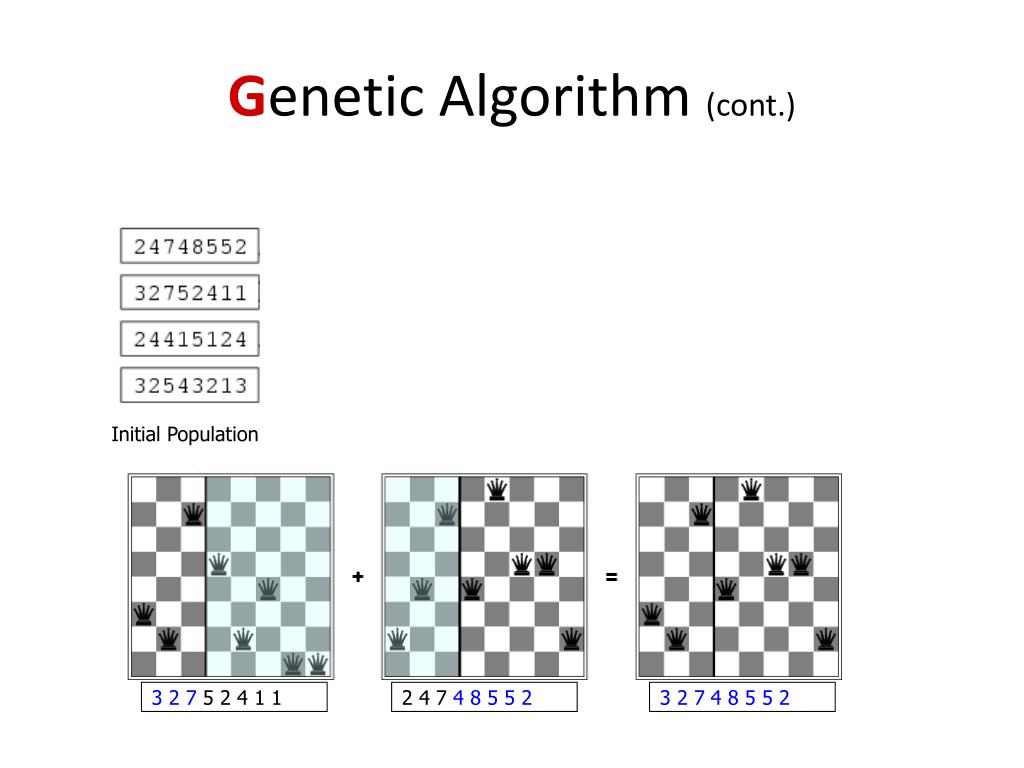

  22. Initial Population Fitness Fn Selection Crossover Mutation 3 2 7 5 2 4 1 1 2 4 7 4 8 5 5 2 3 2 74 8 5 5 2 Genetic Algorithm (cont.) • Fitness function: # of non-attacking pair of queens(min = 0, max = 8×7/2 = 28) • Probability for selected for rep • 24/(24+23+20+11) = 31% • 23/(24+23+20+11) = 29%, etc
