Simplifying Network Configuration for Riso Digital Education Center Printing Solutions

This guide provides a comprehensive overview of configuring network printing solutions at the Riso Digital Education Center. It covers essential topics such as understanding the simplified application layer (LPR/LPD), TCP/IP protocols, and Ethernet physical layers. Learn about suitable Ethernet types (10Base5, 100BaseTX, etc.), cable specifications (UTP max 100m), and necessary configurations including IP addresses, subnet masks, and default gateways. This essential resource ensures smooth printer connection and integration in educational environments.

brinda
Télécharger la présentation

Simplifying Network Configuration for Riso Digital Education Center Printing Solutions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Connectivity Review Riso Digital Education Center

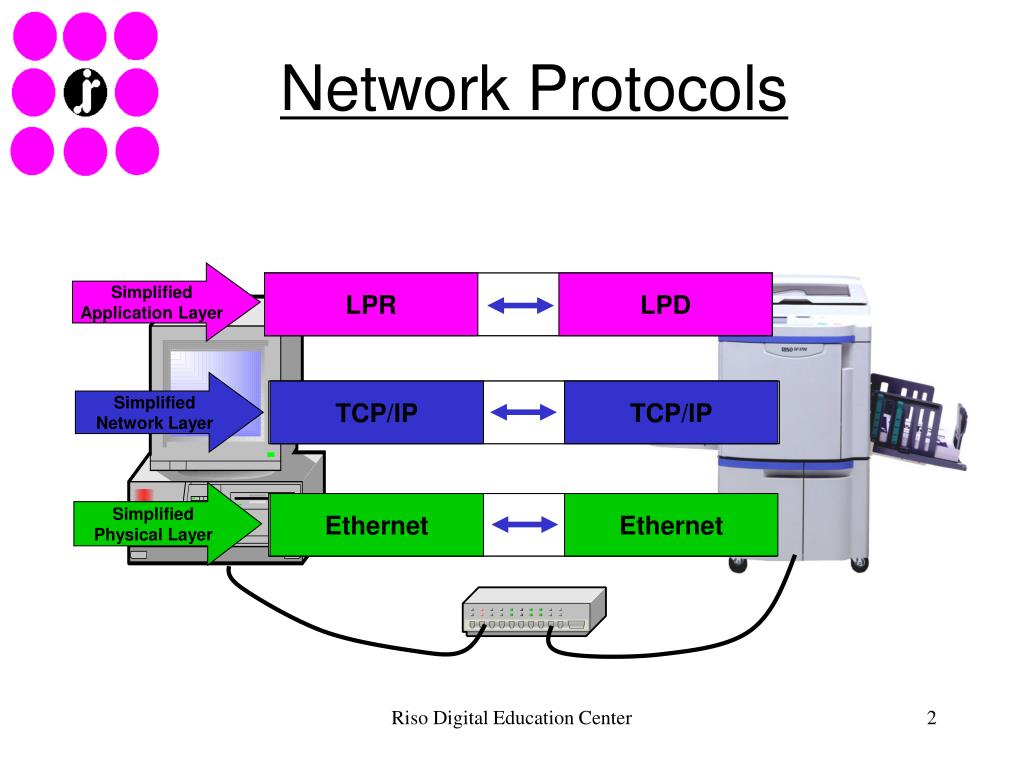

  2. Simplified Application Layer LPR LPD Simplified Network Layer TCP/IP TCP/IP Simplified Physical Layer Ethernet Ethernet Network Protocols Create Printer Port Configuring Network Connect Cable Riso Digital Education Center

  3. What kind of Ethernet RP support? 10Base5 100BaseTX 1000Base-T 10Base2 100BaseFX 10BaseT 100BaseT4 Simplified Physical Layer Ethernet Ethernet Ethernet NET-B or C HUB ? UTP Cable Max. 100m ? UTP Cable Max. 100m Riso Digital Education Center

  4. Simplified Network Layer TCP/IP TCP/IP Simplified Physical Layer Ethernet Ethernet TCP/IP What kind information we should configure? IP Address Subnet Mask If you have a Router, we should configure, Default Gateway 192.168. 0. 1-9 192.168. 0. 11-254 255.255.255. 0 ? 192.168. 0. 10 255.255.255. 0 HUB Riso Digital Education Center

  5. Simplified Application Layer LPR LPD Simplified Network Layer TCP/IP TCP/IP Simplified Physical Layer Ethernet Ethernet LPR/LPD What is LPR/LPD? LPR: Line Printer Remote LPD: Line Printer Daemon LPD is server for Windows to print through TCP/IP LPR is client for Windows to print through TCP/IP, A protocol to create print port HUB Riso Digital Education Center

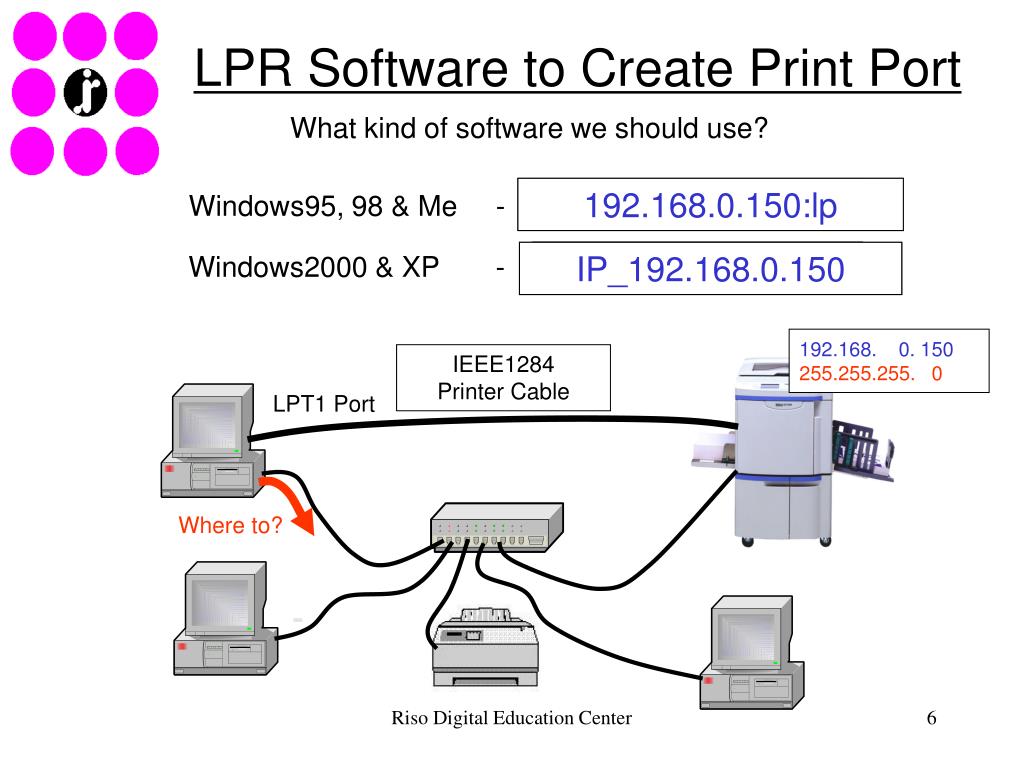

  6. IEEE1284 Printer Cable Where to? LPR Software to Create Print Port What kind of software we should use? RISO-PRINT 192.168.0.150:lp Windows95, 98 & Me - Standard TCP/IP Port IP_192.168.0.150 Windows2000 & XP - 192.168. 0. 150 255.255.255. 0 LPT1 Port Riso Digital Education Center

  7. \\SC7950name\normal \\SC7950name\hold Simplified Application Layer Simplified Application Layer LPR NetBIOS NetBIOS LPD Simplified Network Layer TCP/IP TCP/IP SCIII Cable Simplified Physical Layer Ethernet Ethernet SC7950+RP What kind of protocol SC7950 support instead of LPR/LPD? NetBIOS over TCP/IP Riso Digital Education Center

  8. AppleTalk AppleTalk Simplified Application Layer LPR LPD Simplified Network Layer TCP/IP TCP/IP Simplified Physical Layer Ethernet Ethernet Macintosh Connection What kind of protocol support for Macintosh connection? AppleTalk + Ethernet =EtherTalk SC7950 also support EtherTalk HUB Riso Digital Education Center
