Enhancing Enroute Design: Best Practices and Navigation Specifications for Air Traffic

This presentation by Walter White covers essential principles of enroute design and navigation specifications. Participants will learn about optimal design practices for various flight phases, including oceanic, enroute, and terminal operations. Key topics include RNAV and RNP standards, STAR and SID procedures, and design practices that support efficient air traffic management. By the end, attendees will have a deeper understanding of how to implement these principles in real-world airspace and route network scenarios, particularly within the Gulf of Mexico and other regional contexts.

brita
Télécharger la présentation

Enhancing Enroute Design: Best Practices and Navigation Specifications for Air Traffic

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

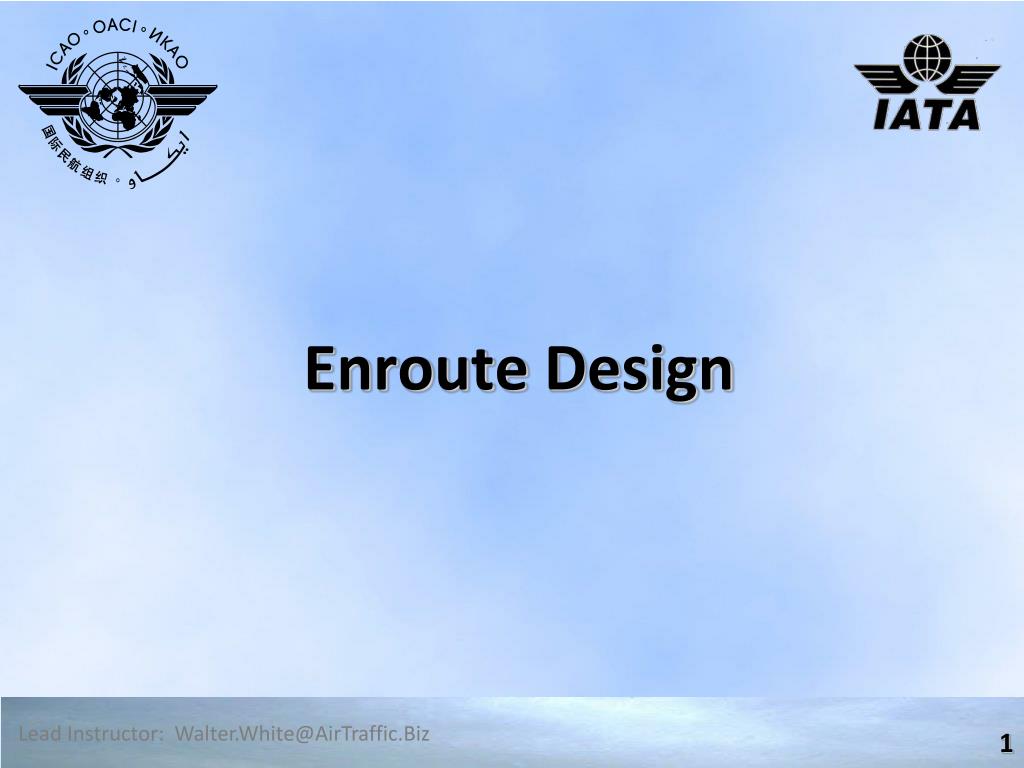

  1. Enroute Design Lead Instructor: Walter.White@AirTraffic.Biz

  2. Learning Objectives • By the end of this presentation you should understand: • General good route design practices.

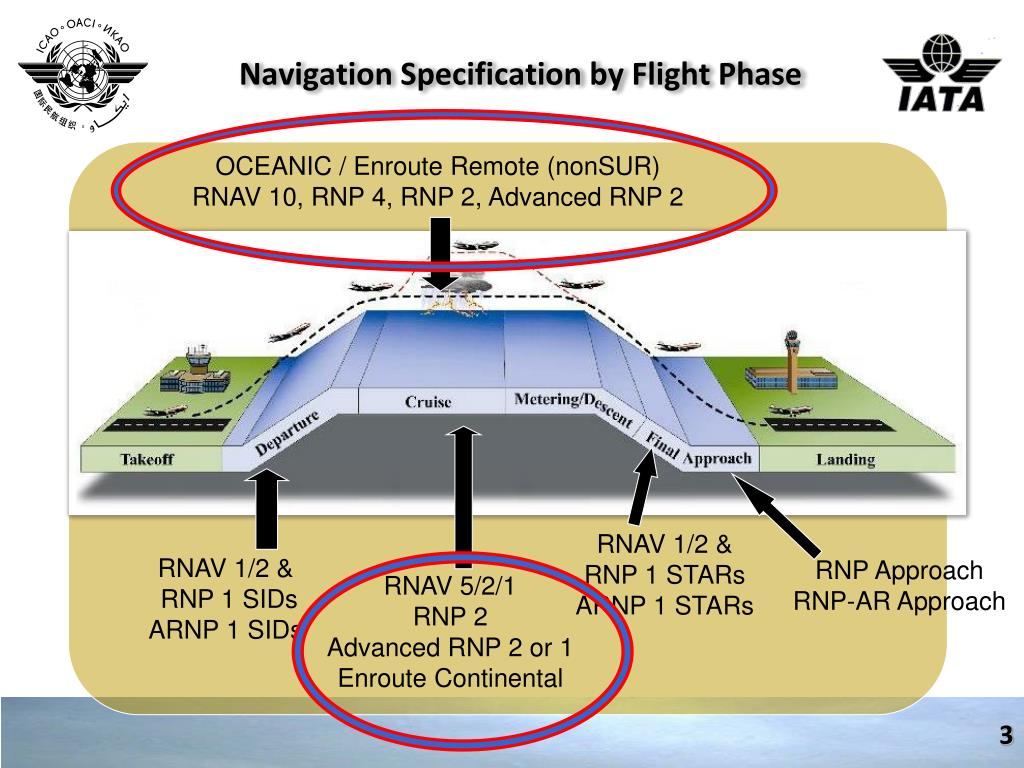

  3. Navigation Specification by Flight Phase OCEANIC / Enroute Remote (nonSUR) RNAV 10, RNP 4, RNP 2, Advanced RNP 2 RNAV 1/2 & RNP 1 STARs ARNP 1 STARs RNAV 1/2 & RNP 1 SIDs ARNP 1 SIDs RNP Approach RNP-AR Approach RNAV 5/2/1 RNP 2 Advanced RNP 2 or 1 Enroute Continental

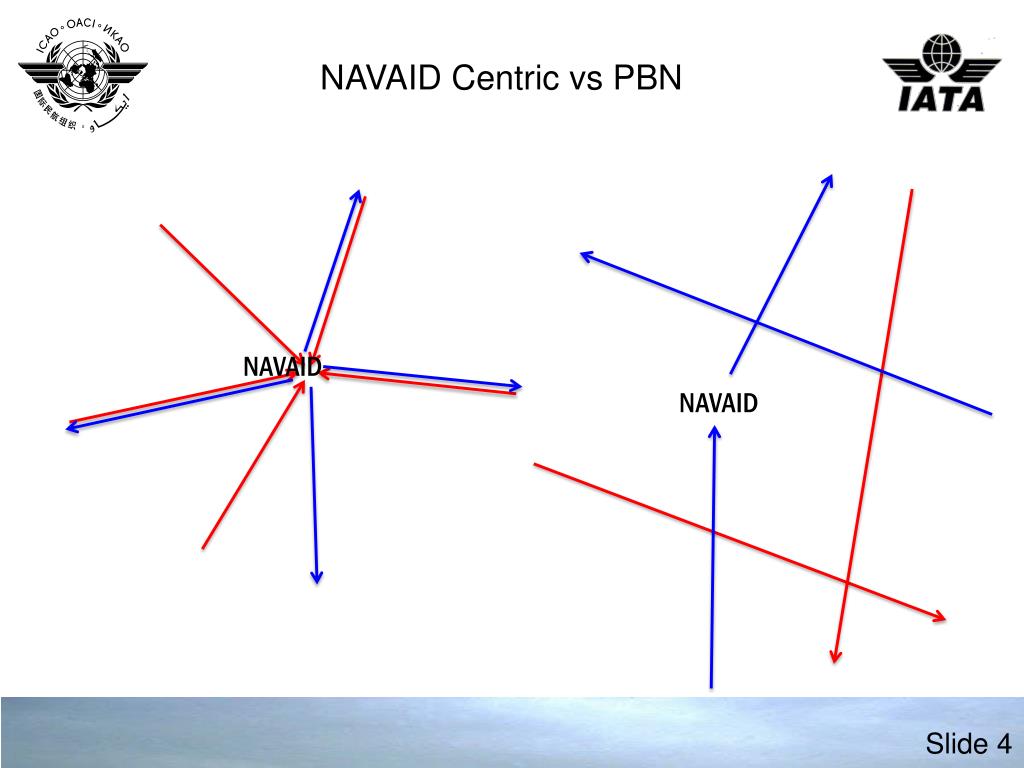

  4. NAVAID Centric vs PBN NAVAID NAVAID

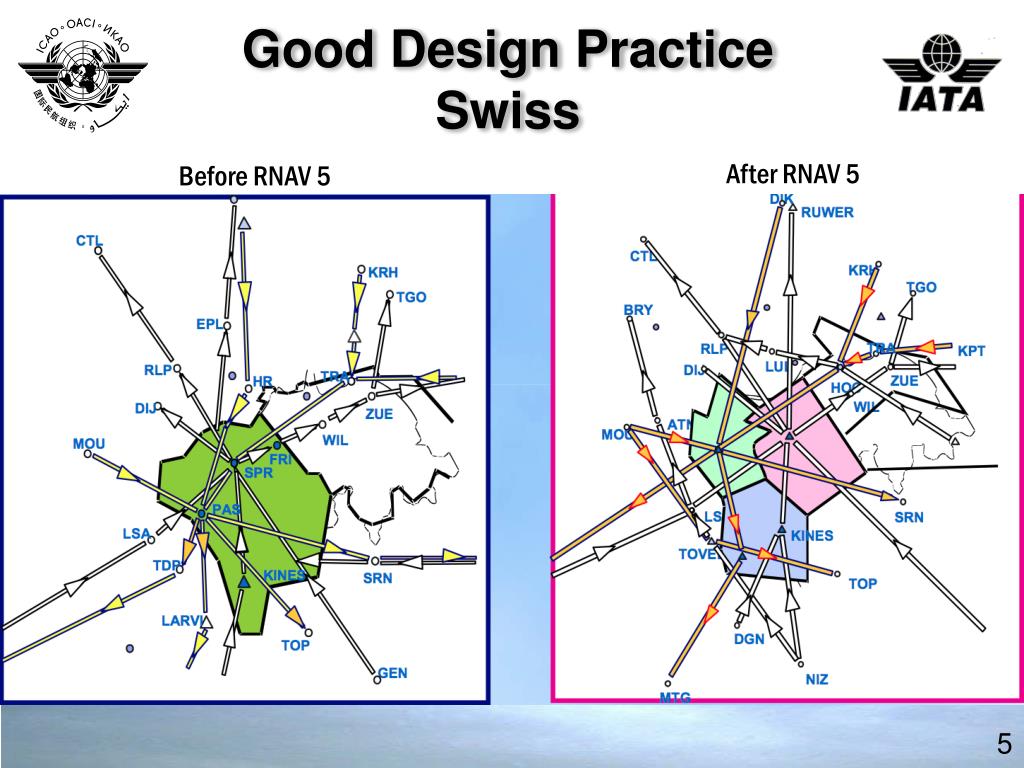

  5. Good Design PracticeSwiss After RNAV 5 Before RNAV 5

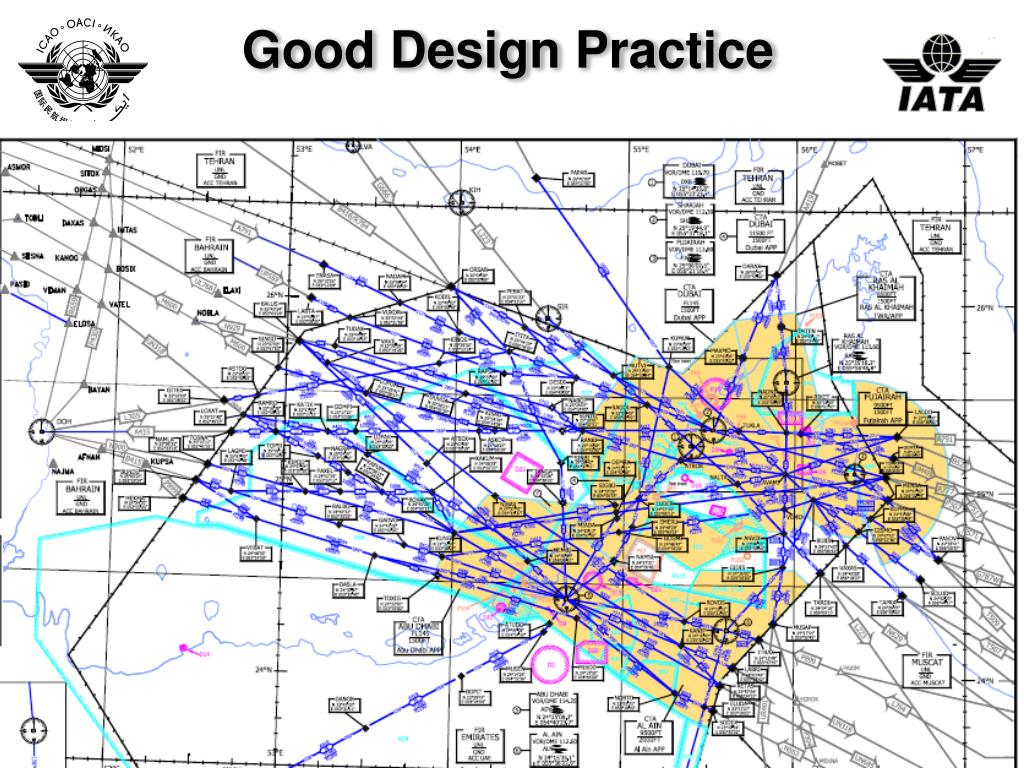

  6. Good Design Practice

  7. Regional ATS route Network

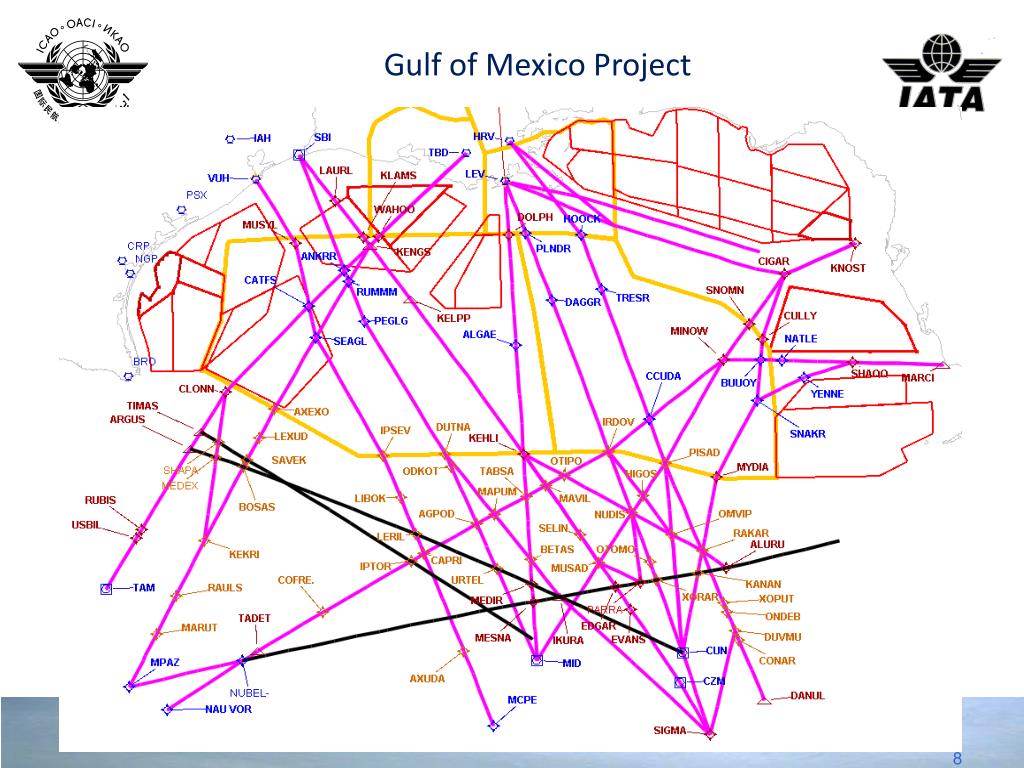

  8. Gulf of Mexico Project 8

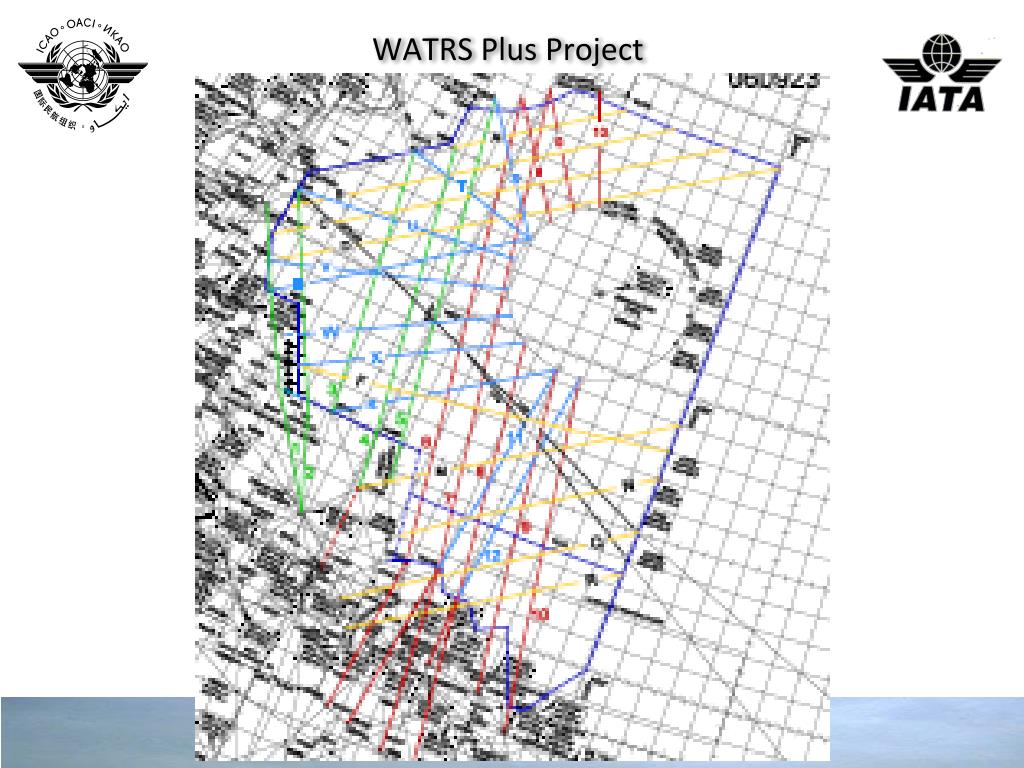

  9. WATRS Plus Project

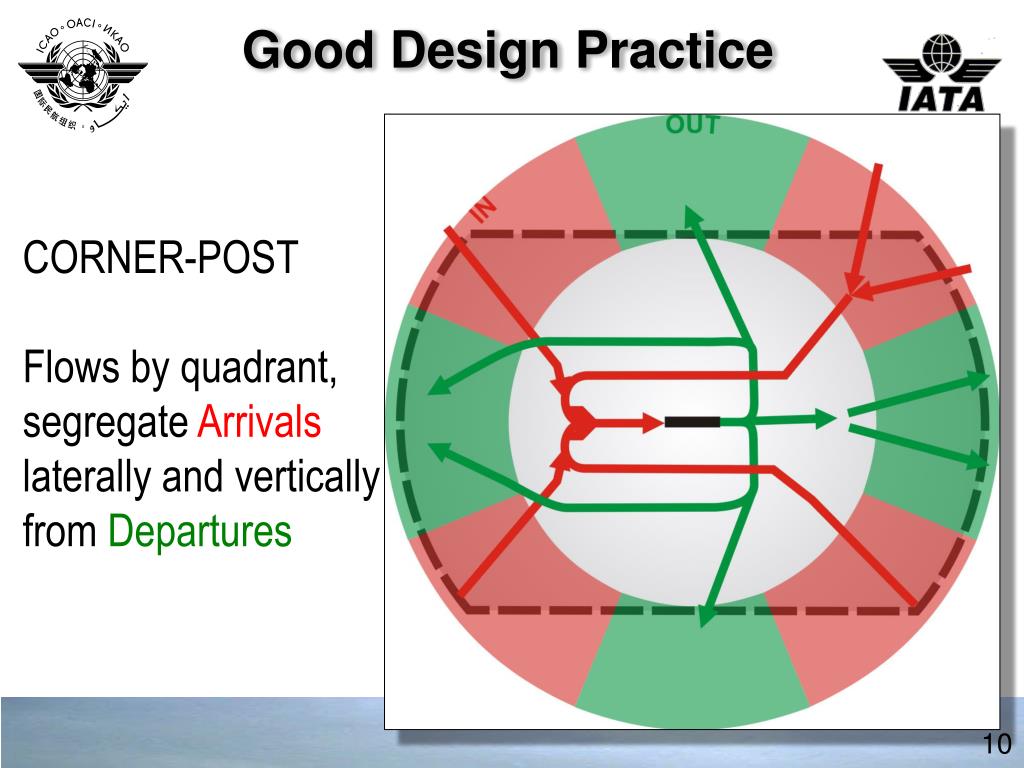

  10. Good Design Practice CORNER-POST Flows by quadrant, segregate Arrivalslaterally and vertically fromDepartures

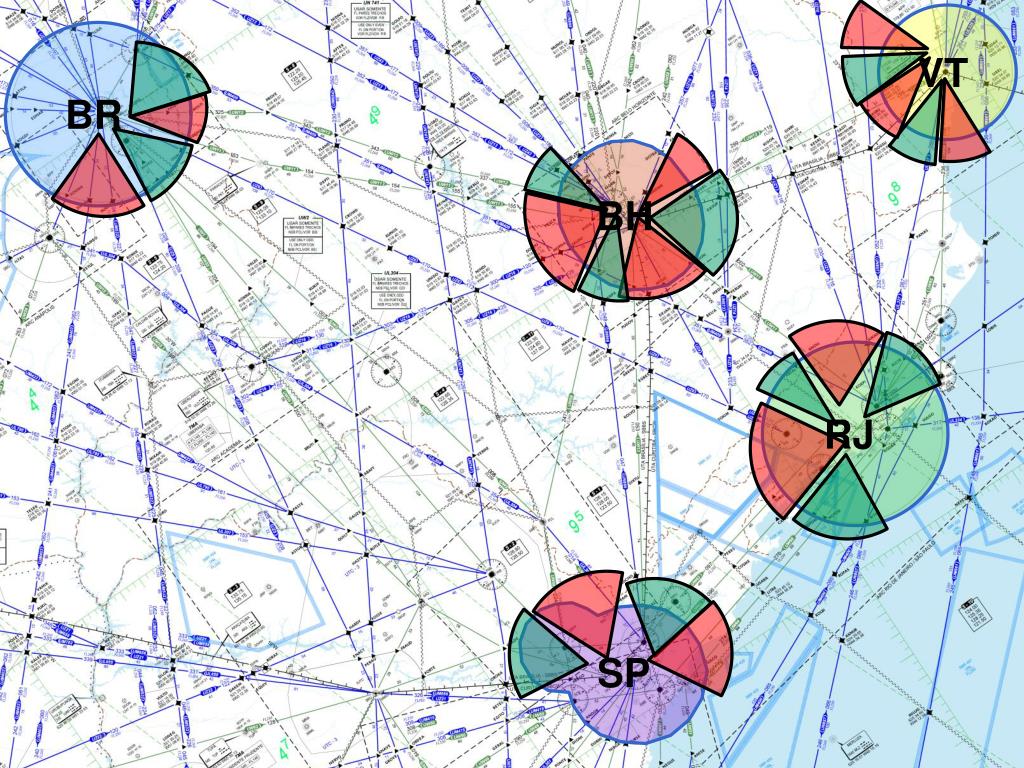

  11. VT BR BH RJ Area Circulation 2011 SP

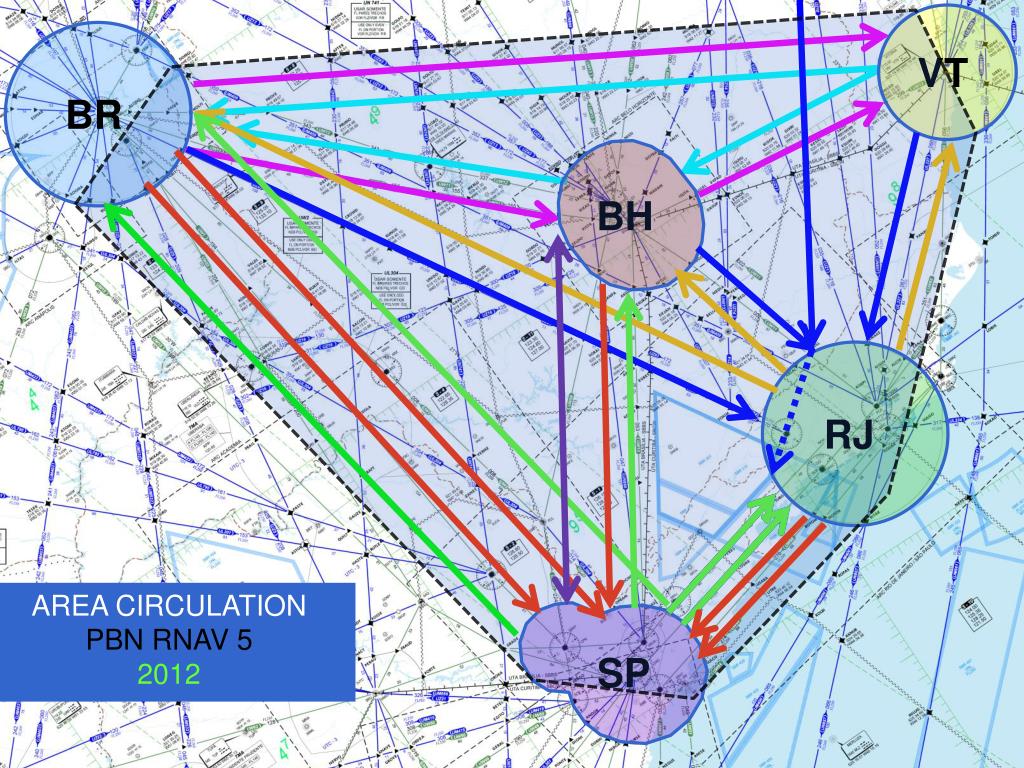

  12. VT BR BH RJ AREA CIRCULATION PBN RNAV 5 2012 SP

  13. VT BR BH RJ SP

  14. VT BR BH RJ SP

  15. VT BR BH RJ SP

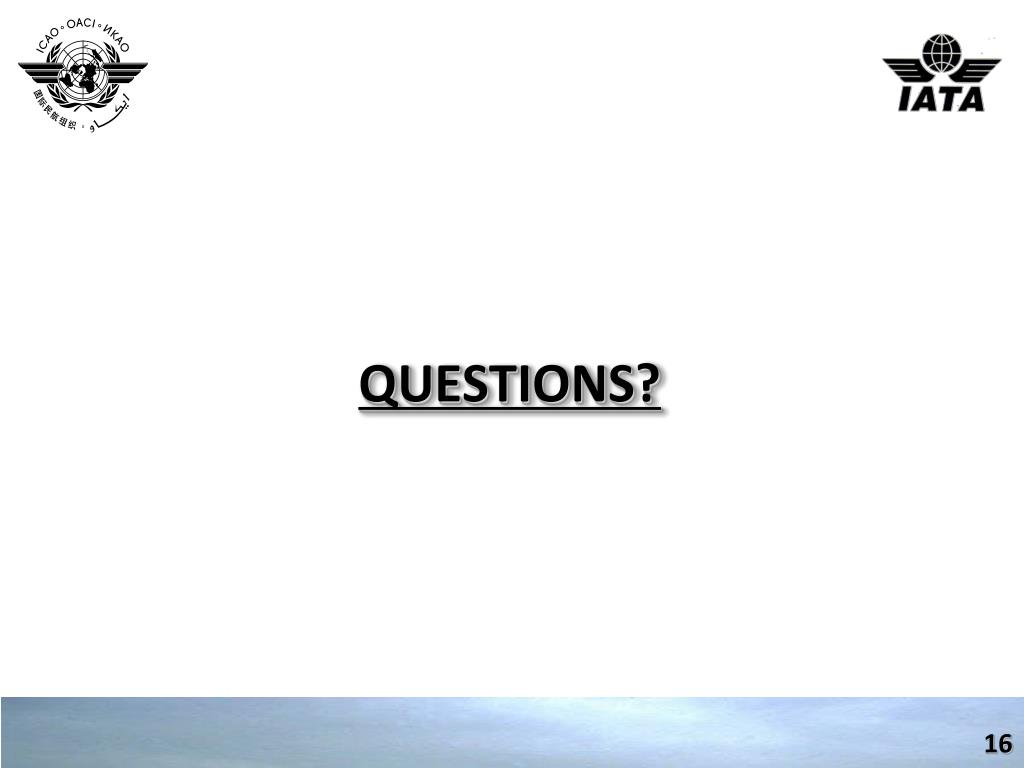

  16. QUESTIONS?
