  1. From Model Interoperability to Data Transformation Steve Grise ESRI

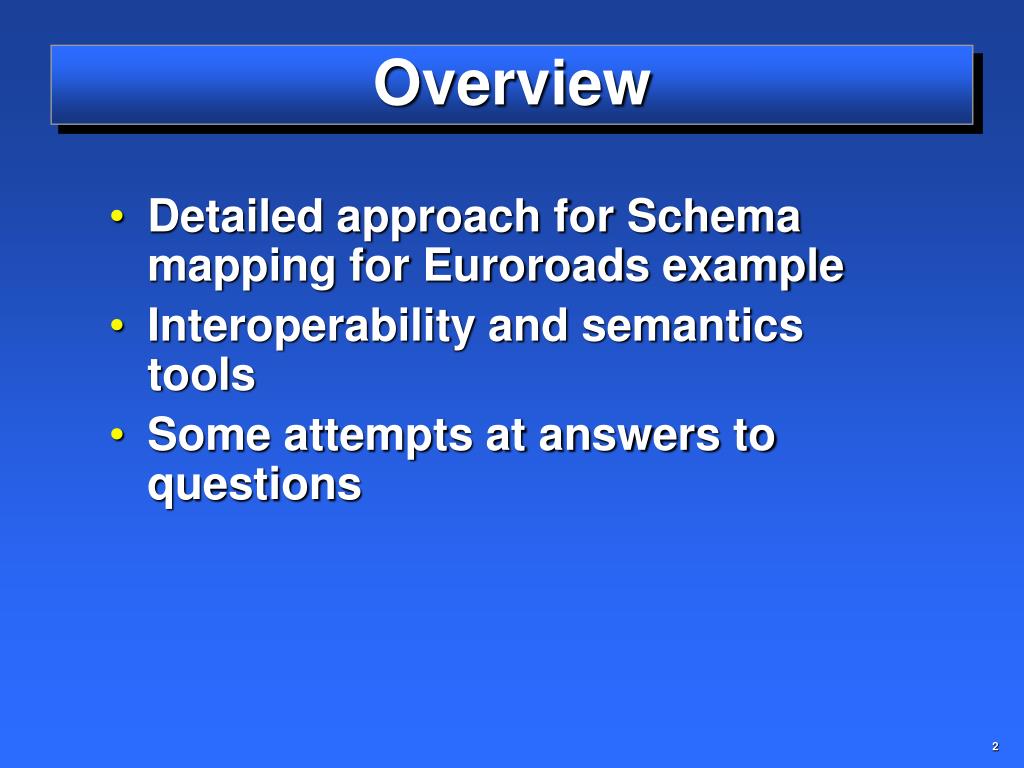

  2. Overview • Detailed approach for Schema mapping for Euroroads example • Interoperability and semantics tools • Some attempts at answers to questions

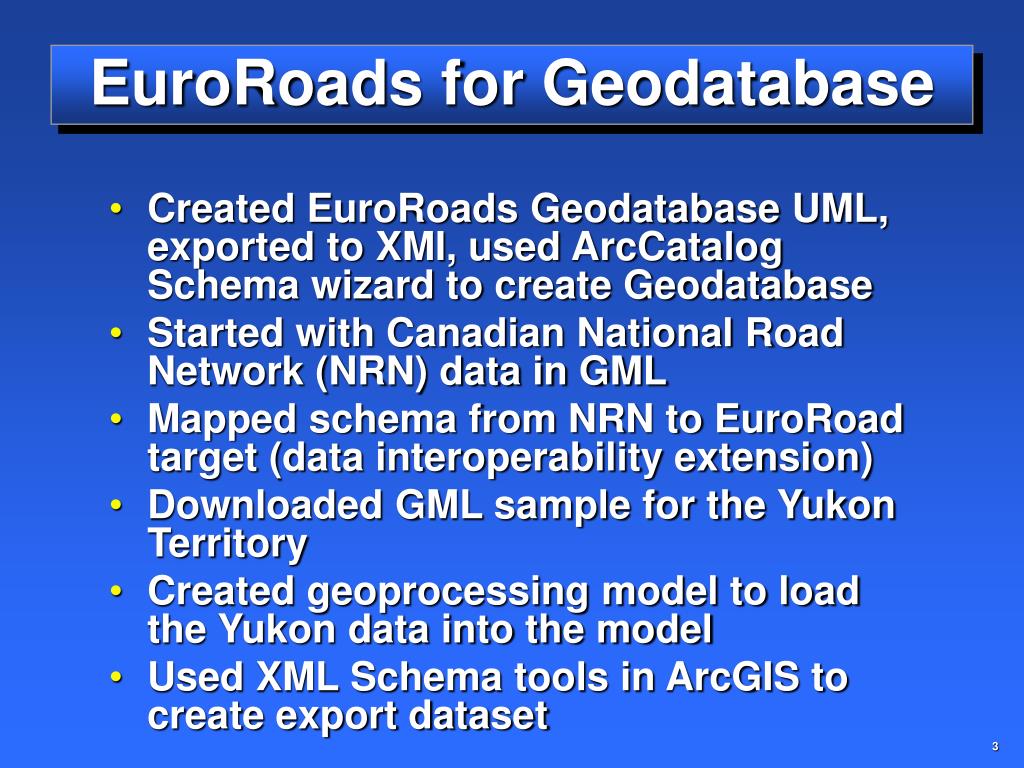

  3. EuroRoads for Geodatabase • Created EuroRoads Geodatabase UML, exported to XMI, used ArcCatalog Schema wizard to create Geodatabase • Started with Canadian National Road Network (NRN) data in GML • Mapped schema from NRN to EuroRoad target (data interoperability extension) • Downloaded GML sample for the Yukon Territory • Created geoprocessing model to load the Yukon data into the model • Used XML Schema tools in ArcGIS to create export dataset

  4. EuroRoads for Geodatabase • Usually start with an Analysis Diagram • Simplified UML • Stepping stone between ideas and implementation • Example from Ontario roads prototype below • Would do Analysis Diagram to handle the more complex event/attributes for implementation model for EuroRoadS

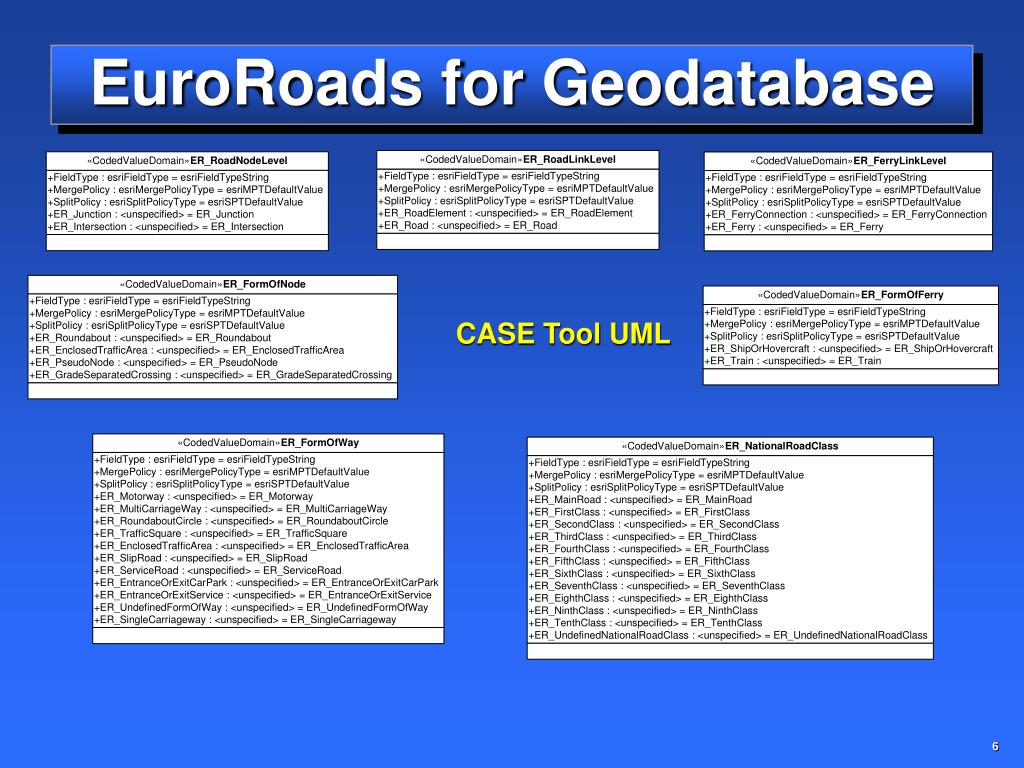

  5. EuroRoads for Geodatabase CASE Tool UML

  6. EuroRoads for Geodatabase CASE Tool UML

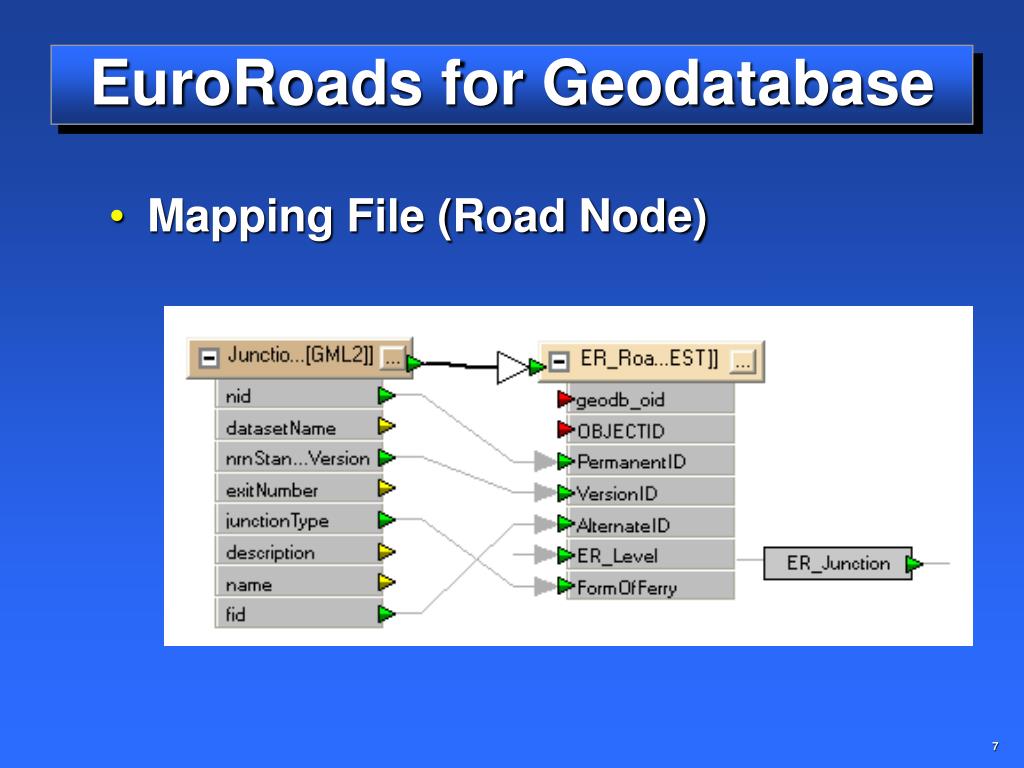

  7. EuroRoads for Geodatabase • Mapping File (Road Node)

  8. EuroRoads for Geodatabase

  9. EuroRoads for Geodatabase

  10. EuroRoads for Geodatabase • XML Schema excerpt

  11. Semantic Interoperability

  12. Catalogs and Searching • Search support • Thesauri • English/other Languages • Geo • Euro SDI • Key is management of terms and relationships between concepts in real datasets • W3C and other standards exist • Some key geo pieces missing • Standards needed in this area • Basically the same problem as conceptual schema mapping, but done at the dataset/catalog level (and the feature level)

  13. W3C Options • XML Schema • Structure/hierarchies, i.e. “Family” • Resource Description Framework (RDF), (RDFS) • “Parents and children” • Ontology Web Language (OWL) • “Cousins” and other more complex relationships

  14. Results • Better search results • “parcel” search returns “Cadastre” • “Cadastral” search returns “Parcel”, “Corner”, other datasets • Some basic structure / semantics missing for Geo • Alexandria Digital Library • ISO Categories • … are both too general for Semantic Web needs (maybe even basic searches)

  15. A Few Tools • Protégé • Stanford, Open Source • Developed for medical ontology work (initially) • protégé.stanford.edu • LegendBurster • GeoReference Online, Commercial tools • Developed for mineral exploration market (initially) • www.georeferenceonline.com

  16. Protégé Example

  17. LegendBurster Example • TreeList Editor • Standalone tool • Query Tools • Complex searches • Results stored as attribute • Complex mapping results

  18. LegendBurster Example

  19. Summary • Euroroads schema mapping • Implementation tools available • Alternative approach • Uml-xmi-gdb-xml (+ other) • Need to work on semantics and relationships between datasets • Important for searching • Tools available • Small group should try to manage relationships

  20. Q&A • Do conceptual modeling languages satisfy Geo needs? • UML missing spatial patterns • UML probably too complex for most people • No other current alternative for graphical representation • Need to add simple, graphical examples to aid communication and comprehension • Consider information products and demonstration systems now, in parallel with CSL work • Harmonize? • Content, not necessarily CSL • Keep it simple at first • Meta model for cataloging and searching between terms • Watch for mixing of concepts and formats

  21. Q&A • Is a common conceptual schema needed? • Challenge is to be convinced that it adds value, makes things easier for partners/designers • Should target more broad audience than Euro community • UML extensions feasible? • Conceptual models – yes • Transition to logical models should be considered

  22. Q&A • Representing constraints? • Difficult to get agreement on behavior other than basic data integrity constraints • Suggest keep this as simple as possible • Different technologies and architectures means major differences in logical models • Relationship to Ontologies? • Catalog/search tool problem for a small group of people • Start work on this now in parallel with other activities
