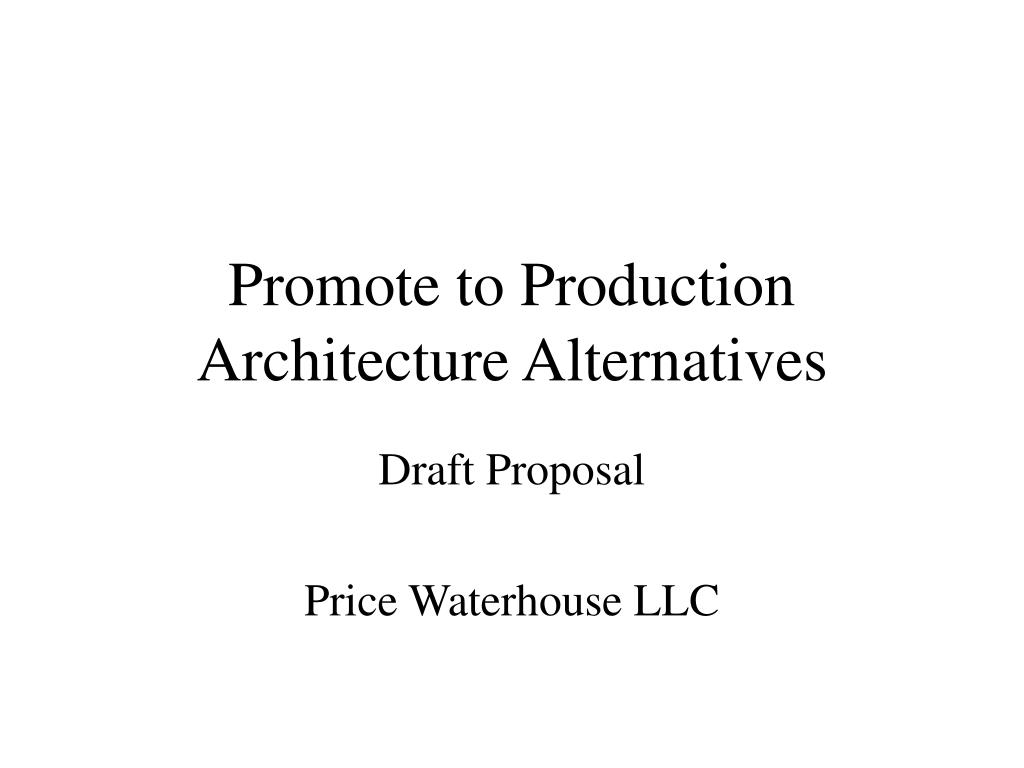

  1. Promote to Production Architecture Alternatives Draft Proposal Price Waterhouse LLC

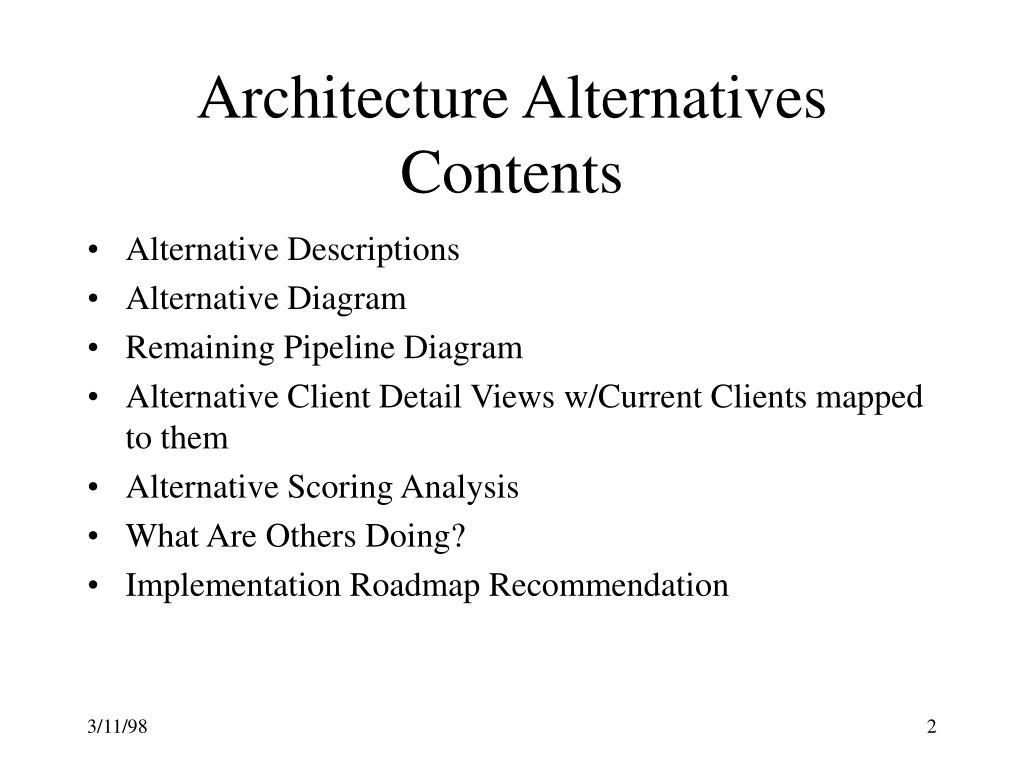

  2. Architecture AlternativesContents • Alternative Descriptions • Alternative Diagram • Remaining Pipeline Diagram • Alternative Client Detail Views w/Current Clients mapped to them • Alternative Scoring Analysis • What Are Others Doing? • Implementation Roadmap Recommendation

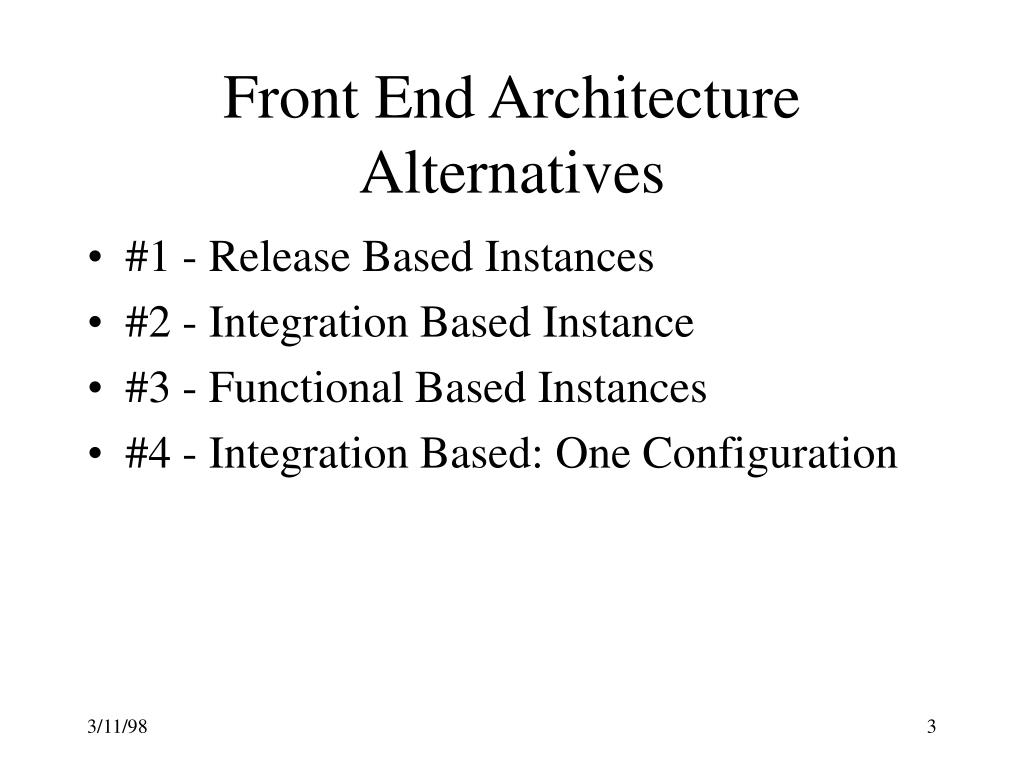

  3. Front End Architecture Alternatives • #1 - Release Based Instances • #2 - Integration Based Instance • #3 - Functional Based Instances • #4 - Integration Based: One Configuration

  4. Front End Architecture Alternatives Risk Matrix # 1 # 2 # 3 # 4 Positives Low Risk from an implementation standpoint Highest Integration Low overhead Very few objects to reconcile May take longer to implement Medium Integration Functionally independant between clients within release Higher risk to implement High Overhead Client Independent and common object reconciliation can be complex Low Risk from an implementation standpoint High Integration Lower overhead All client independent and common objects need to be reconciled Low cost current alternative Very High Overhead Least integration All client independent and common objects need to be reconciled Very high overhead High Risk to implement Negatives

  5. Front End Architecture Alternative Description • #1 - Release Based Instances • Release independance between sets of physical instances • One set of client independant objects per release instance • Functional independance bewteen clients within sets of release instances

  6. Front End Architecture Alternative Description • #2 - Integration Based Instance • Release independance between clients in same instance set (mods need management) • One set of client independant objects for all releases in same instance set • Functional independance between between clients in same instance set

  7. Front End Architecture Alternative Description • #3 - Functional Based Instances • Release independance between sets of clients per functional instance sets (mods need management) • Client independant objects for all functional releases reside in same functional instance sets • Functional independance between instance sets

  8. Front End Architecture Alternative Description • #4 - Integration Based: One Configuration • One and only one Configuration • All development must be reconciled in within one client • Release independance between clients in same instance set (mods need management) • One set of client independant objects for all releases in same instance set • Functional independance between between clients in same instance set

  9. Intel Architecture Alternatives New Version of SAP New Version of SAP New Version of SAP New Release 1-3 Integ. Dev. Dev + Integ Dev+Integ VD1 Dev+Integ VD1 CI0 CV0 CD0 C-Pipe ND1 ND2 EV0 ED0 EI0 E-Pipe NI3 Dev ND1 Dev NI1 NI2 Dev+Integ AV0 AI0 AD0 NI1 Integ A-Pipe Config EDS EIS-Pipe New Release 1-3 New Release 1-3 Dev. Config #1 Released Based Instances #2 Integration Based Instances #3 Functional Based Instances

  10. # 1 Integration Based Detail - Client Level 140 Oracle 100 Gold N+1 ND1 N+2 N+3 Sandbox Dev\Rpts Security Gold Convers Security Gold Dev Dev Security Site #3- Site #2 Site #1-Kulim 130 120 150 160 200 CIM\FASIT 130 120 150 160 200 CUBE Capital Huey 150 110 PLG 700 140 130 120 170 OM \ FG EIS Common Objects can only be changed in C Pipe

  11. # 1 Integration Based Detail - Client Level N+1 N+3 NI1 N+2 Gold Scenario Validation Gold Scenario Validation Scenario Gold Site #3- 250 Funct 251 Funct 210 Gold+ 296 Capital Site #2 231 221 Site #1-Kulim 230 220 200 CIM\FASIT 230 220 200 250 Funct 210 CUBE Capital Huey 20 10 110 Conv 140 Mods 230 Tch PLG 220 210 250 240 230 OM \ FG 220 200 245 OM\F 250 LSAP 280 LSAP EIS 450 Common Objects can only be changed in C Pipe

  12. # 2 Integration Based Detail - Client Level 140 Oracle 100 Gold N+1 ND1 N+2 N+3 Security Dev\Rpts Gold Sandbox Dev\Rpts Dev Convers Gold Convers Site #3- Site #2 Site #1-Kulim 150 130 120 160 200 CIM\FASIT 150 130 120 160 200 CUBE Capital Huey 150 700 PLG 110 140 170 130 OM \ FG 120 EIS Common Objects can only be changed in C Pipe

  13. # 2 Integration Based Detail - Client Level NI1 N+1 N+2 N+3 Gold Scenario Validation Gold Scenario Validation Scenario Gold Site #3- 250 Funct 251 Funct 210 Gold+ 296 Capital Site #2 231 221 Site #1-Kulim 230 220 200 CIM\FASIT 230 220 200 250 Funct 210 CUBE Capital Huey 20 10 110 Conv 140 Mods 230 Tch PLG 220 210 250 240 230 OM \ FG 220 200 245 OM\F 250 LSAP 280 LSAP EIS 450 Common Objects can only be changed in C Pipe

  14. # 3 Integration Based Detail - Client Level 140 Oracle 100 Gold N+1 N+2 N+3 ND1 EDO Security Dev\Rpts Gold Sandbox Dev\Rpts Dev Convers Gold Convers Site #3- Site #2 Site #1-Kulim 150 130 120 160 200 CDO CIM\FASIT 150 130 120 160 200 CUBE Capital AD0 Huey 150 700 PLG 110 140 170 130 OM \ FG 120 EIS Common Objects can only be changed in C Pipe

  15. # 3 Functional Based Detail - Integration Client Level N+3 N+1 N+2 EIO Gold Scenario Validation Gold Scenario Validation Scenario Gold Site #3- 250 Funct 251 Funct 210 Gold+ 296 Capital Site #2 231 221 Site #1-Kulim 230 220 200 CIO CIM\FASIT 230 220 200 250 Funct 210 CUBE Capital AI0 Huey 20 10 110 Conv 140 Mods 230 Tch PLG 220 210 250 240 230 OM \ FG 220 200 245 OM\F 250 LSAP 280 LSAP EIS 450 Enterprise common objects can only be changed in CIM\FASIT pipe

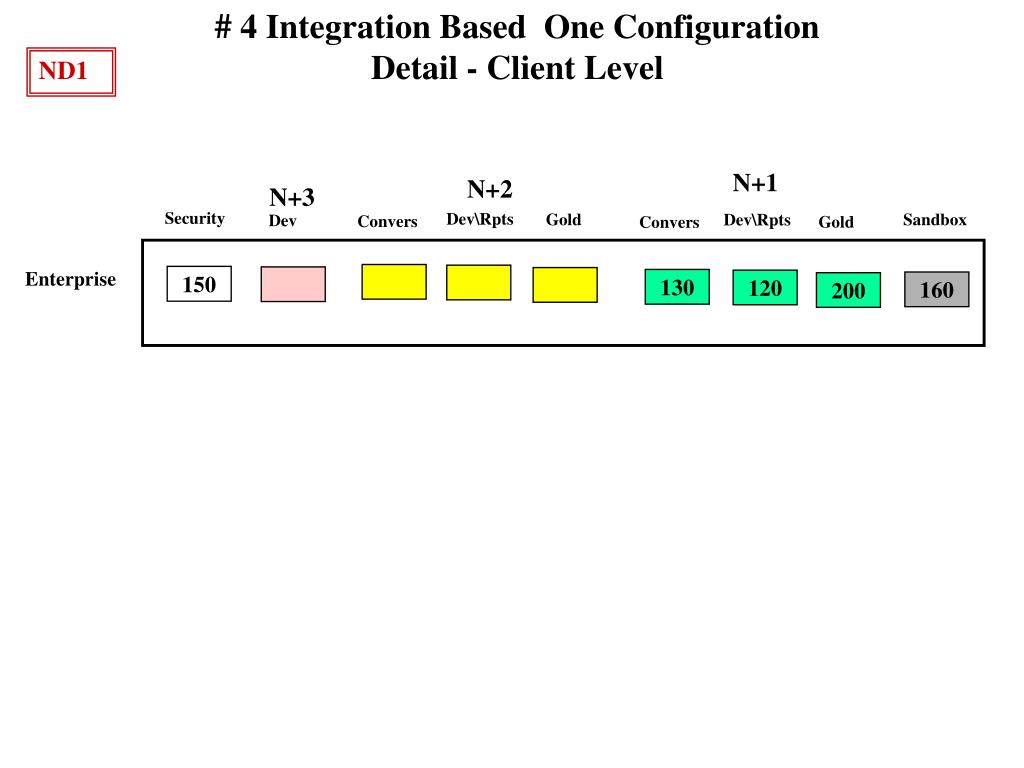

  16. # 4 Integration Based One Configuration Detail - Client Level ND1 N+1 N+2 N+3 Security Dev\Rpts Gold Sandbox Dev\Rpts Dev Convers Gold Convers Enterprise 150 130 120 160 200

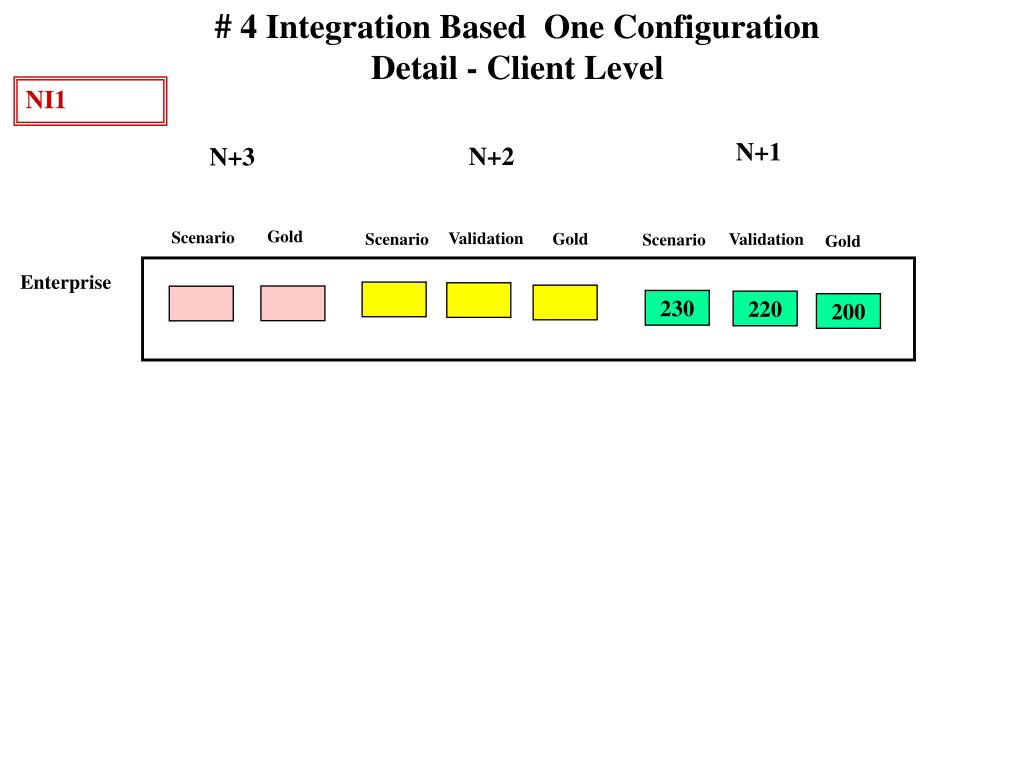

  17. # 4 Integration Based One Configuration Detail - Client Level NI1 N+1 N+2 N+3 Gold Scenario Validation Gold Scenario Validation Scenario Gold Enterprise 230 220 200

  18. Intel Architecture After Each Alternative Stand Alone Training AL1 ETS Lab System Business Info Warehouse BI0 EVL Evaluation Auto. Time & Attendance ATX ATD Central Reference System (C-Pipe) CT2 CC0 CRS CB0 CS0 CX0 ES1 EP1 EC1 EC2 EP2 *ES0 EB0 Materials SAP (E-Pipe) *EC0 *EP0 EX0-2 *Materials Boxes by Plant type ET2 ES2 CP0 AS0 AC0 AP0 AX0 AT1 AC1 Purge Order Management (A-Pipe) AT2 HC0 HP0 Huey EIS Executive Information System ECS Bench-mark P/X=Production T=Training S=Support C=Consolidation X=Day 1 Testing

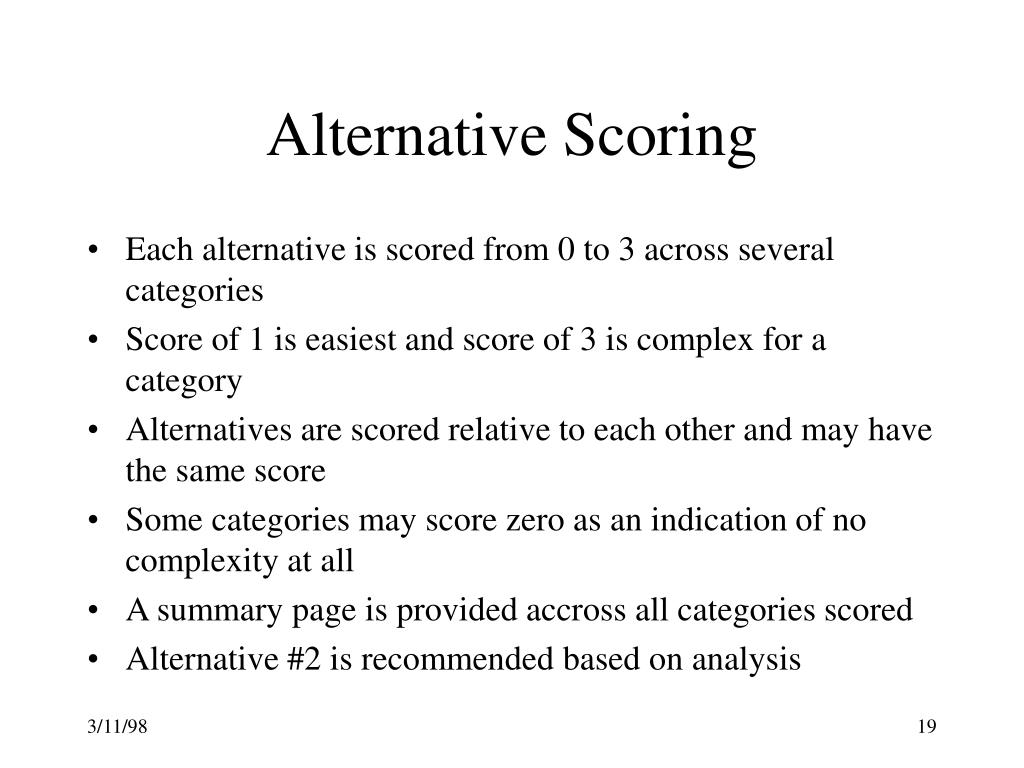

  19. Alternative Scoring • Each alternative is scored from 0 to 3 across several categories • Score of 1 is easiest and score of 3 is complex for a category • Alternatives are scored relative to each other and may have the same score • Some categories may score zero as an indication of no complexity at all • A summary page is provided accross all categories scored • Alternative #2 is recommended based on analysis

  20. Alternative Scoring Summary

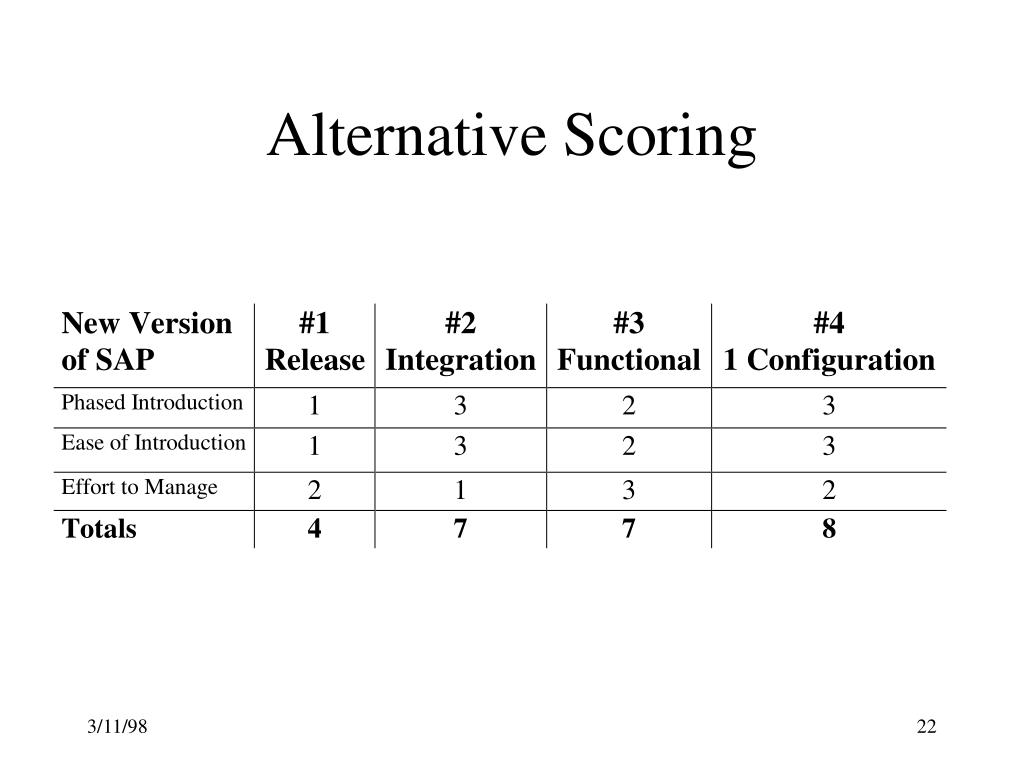

  21. Alternative Scoring

  22. Alternative Scoring

  23. Alternative Scoring

  24. Alternative Scoring

  25. Alternative Scoring

  26. Alternative Scoring

  27. Alternative Scoring

  28. Alternative Scoring

  29. Alternative Scoring

  30. What others are doing ? Warner Lambert Architecture Database or client copy for Database or client copy for regional next wave, database regional next wave, database restores possible restores possible Client Copy Gold D & I European Development & Integration DEV6 European Cons-European Prod-European D & I Iberia Cons-Nordic Prod-Nordic D & I -Nordic Cons-Germany Prod-Germany D & I - Germany Cons-France Prod-France D & I - France Manual Configuration CTS In this architecture, the regions can develop independently. Once development is done, theregions must reconcile to one integration

  31. Training Group 1 Development Acceptance Group 2 Group “X” What others are doing ? Exxon Architecture (by Group) Central Ref System Integration Master Data Transaction Data Development Testing/Training Production In this architecture there is one configuration and development instance. In addition there is but one testing instance. In Production there is only one configuration

  32. What Others are doing? Monsanto Architecture One Configuration/Multiple Pipelines Day 1 Production Support Production Consolidation Benchmark Development Integration Training Product Line # 1 Product Line # 2 Product Line # 3 Product Line # 4 In this architecture, There is a master development and integration client. Once the master development and configuration has been installed in each pipe. The individuals may make very small managed changes to the configuration and development Original & Common Gold CTS Pipeline Gold

  33. 1999 1998 Qtr 4 Qtr 3 Qtr 2 Qtr 1 Qtr 4 Qtr 3 Qtr 2 Qtr 1 Test & Build Syn Intel Enterprise RoadMap PW Recommendation Test & Build Syn Test & Build Test & Build Test & Build Syn Test & Build Sync Test & Build Syn Test & Build Syn Release Site #4 Ireland 4.X Site #3 Cavite Supply Chain Site #1 Kulim/RM Site # 2 PR\CR Venders etc Order Mgmt Huey, EIS Q1 Rel Q3 Rel 4.X Q4 Rel + WM FG Q4 Rel + WM FG Q3 Rel +WM FG Q1 Rel + WM FG Enter. 2,000 testing Speed 4.X CRS Q1 CIM CIM\OM CIM\SCM CRS Q3 CRS Q4 Currency FASIT CCA CUBE Finance Full G\L Puerto Rico Dupont Oregon Penang MMO Ireland Amsterdam Japan (?) NADC (?) Clark IW China CD Costa Rica Logistics Penang FG Technical 4.0 Upgrade 4.0 Kick-off WW10 WW26 WW40 WW27 WW1 WW20 WW11 WW40
