  1. Extending The C Programming Language to Handle Multi-Formatted N-Bit Blocks Jing Yang Department of Computer Science University of Virginia

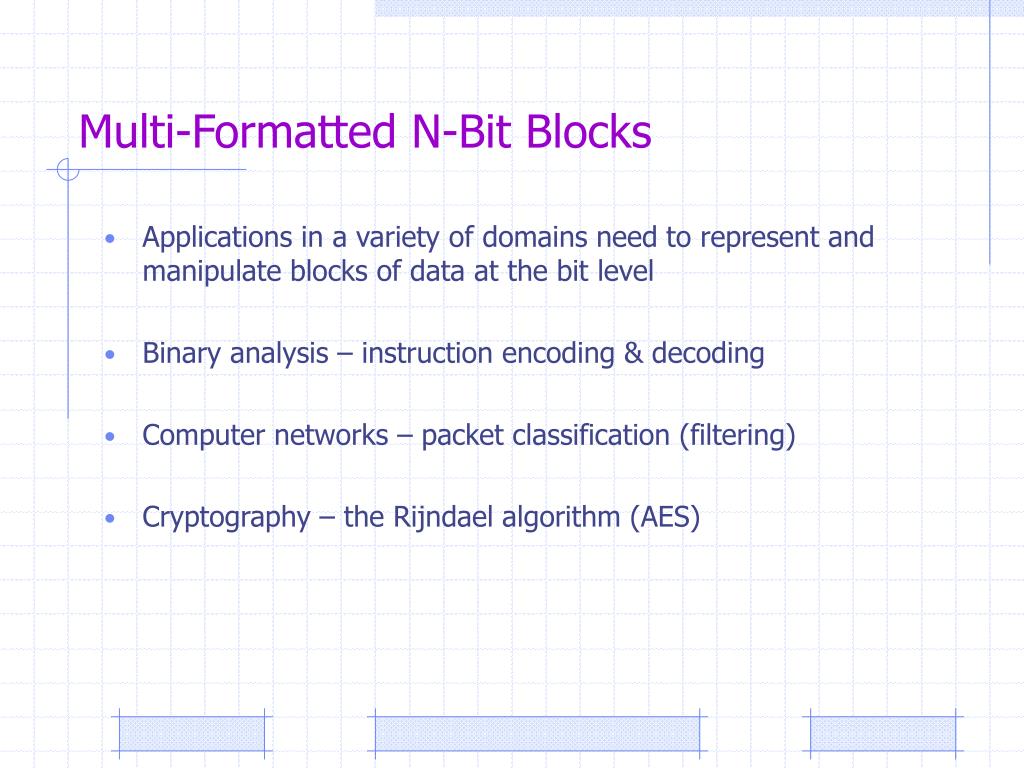

  2. Multi-Formatted N-Bit Blocks • Applications in a variety of domains need to represent and manipulate blocks of data at the bit level • Binary analysis – instruction encoding & decoding • Computer networks – packet classification (filtering) • Cryptography – the Rijndael algorithm (AES)

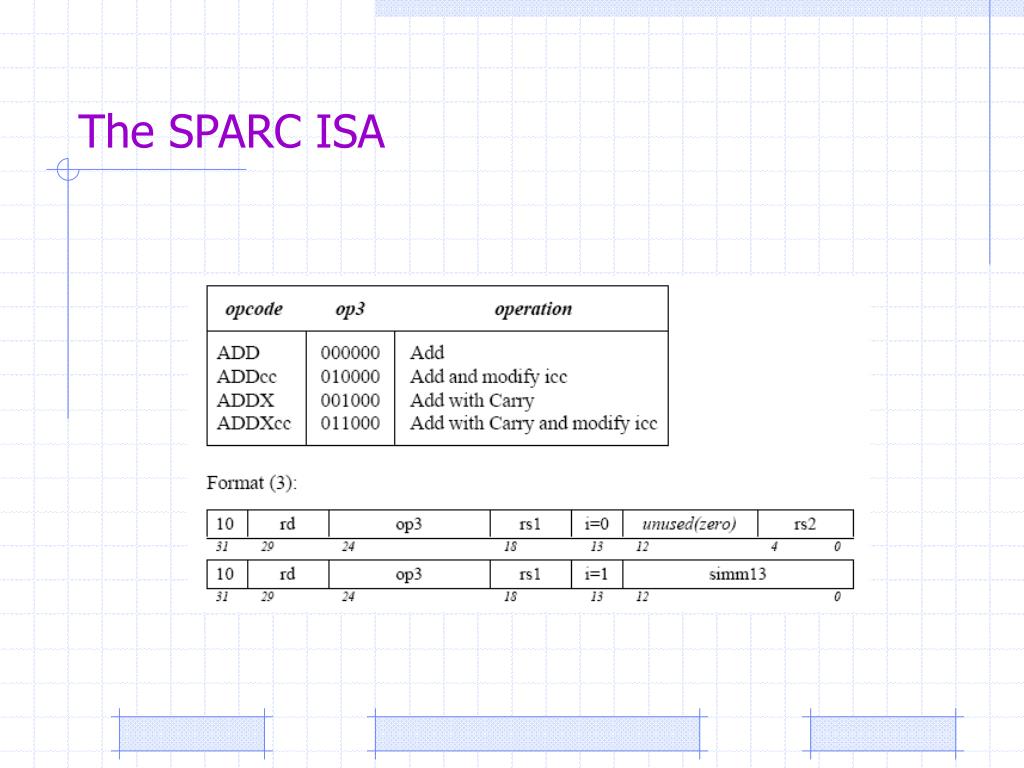

  3. The SPARC ISA

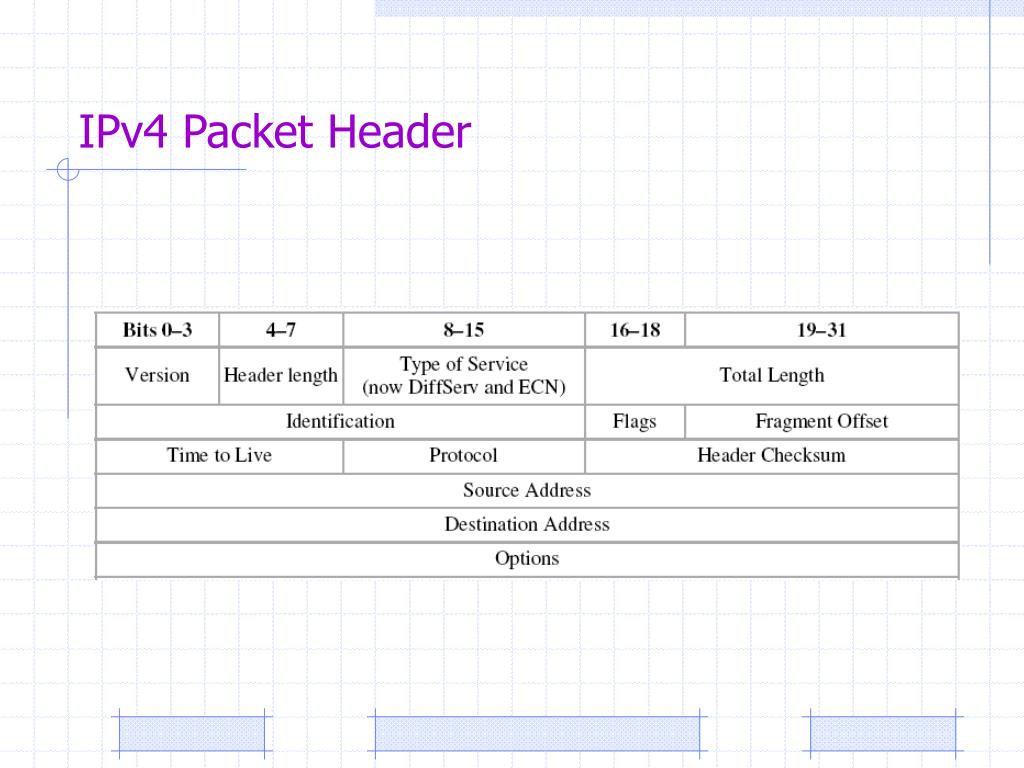

  4. IPv4 Packet Header

  5. AES – Substitution

  6. AES – Row Shifting

  7. AES – Column Mixing

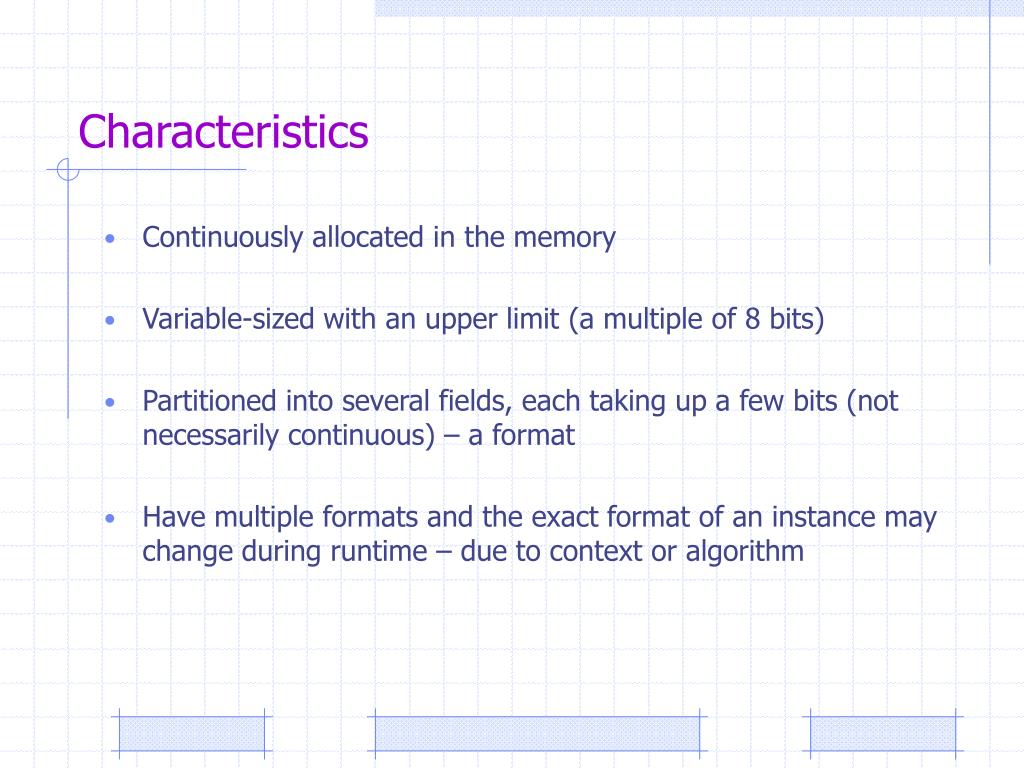

  8. Characteristics • Continuously allocated in the memory • Variable-sized with an upper limit (a multiple of 8 bits) • Partitioned into several fields, each taking up a few bits (not necessarily continuous) – a format • Have multiple formats and the exact format of an instance may change during runtime – due to context or algorithm

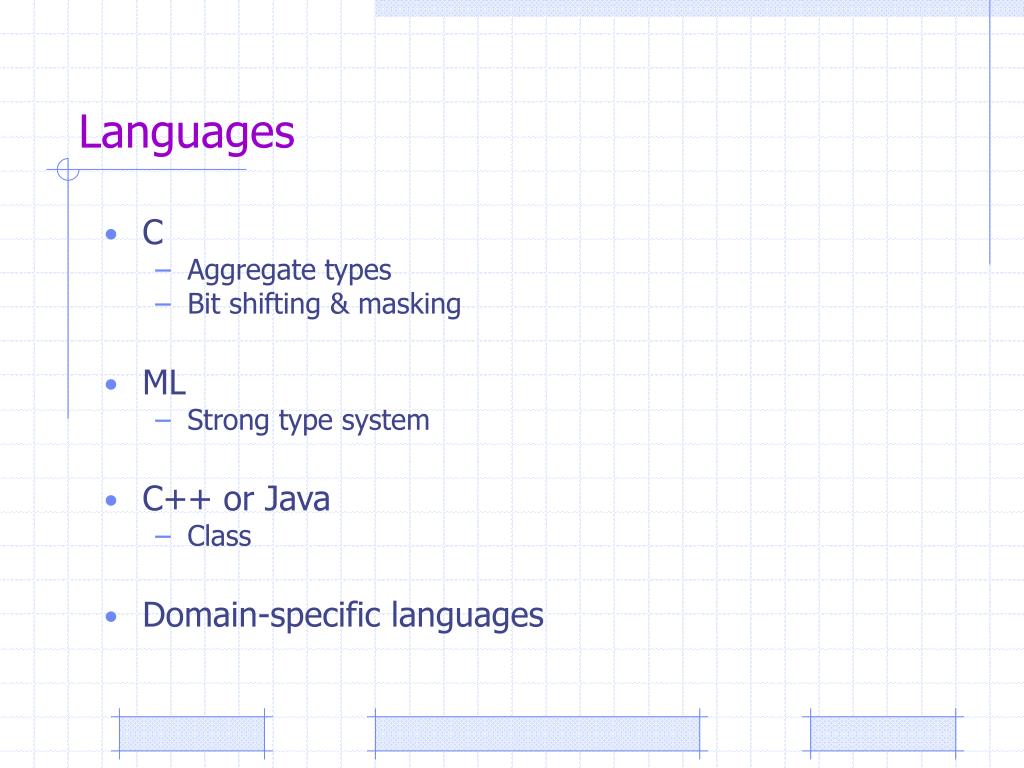

  9. Languages • C • Aggregate types • Bit shifting & masking • ML • Strong type system • C++ or Java • Class • Domain-specific languages

  10. An Example

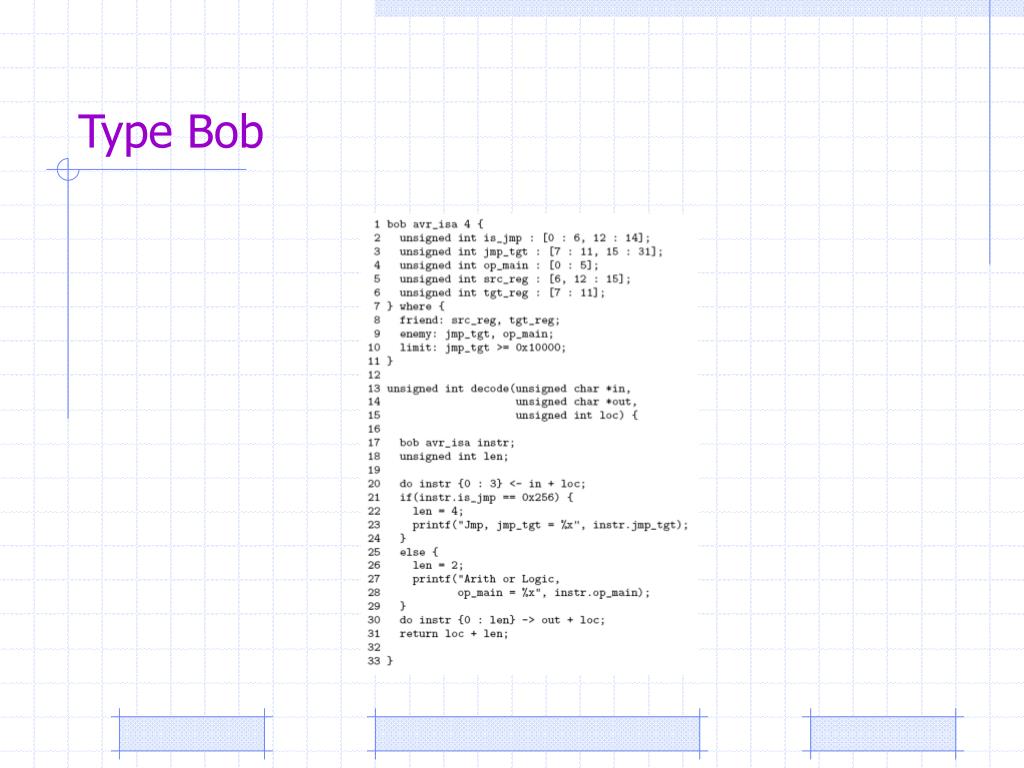

  11. Type Bob

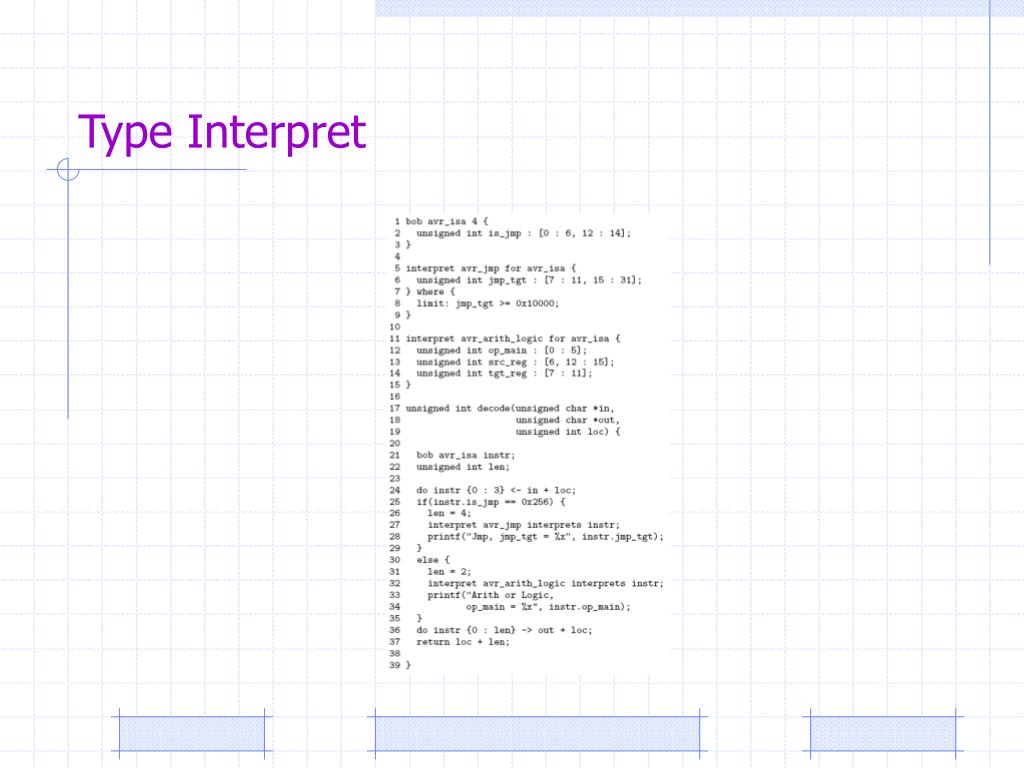

  12. Type Interpret

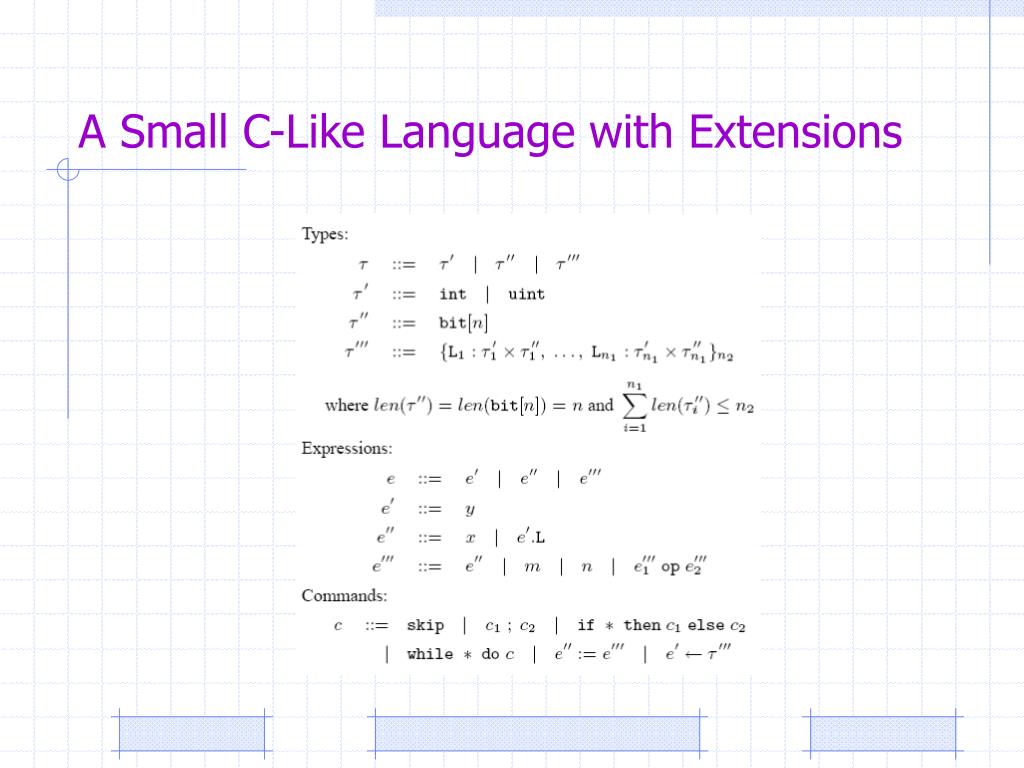

  13. A Small C-Like Language with Extensions

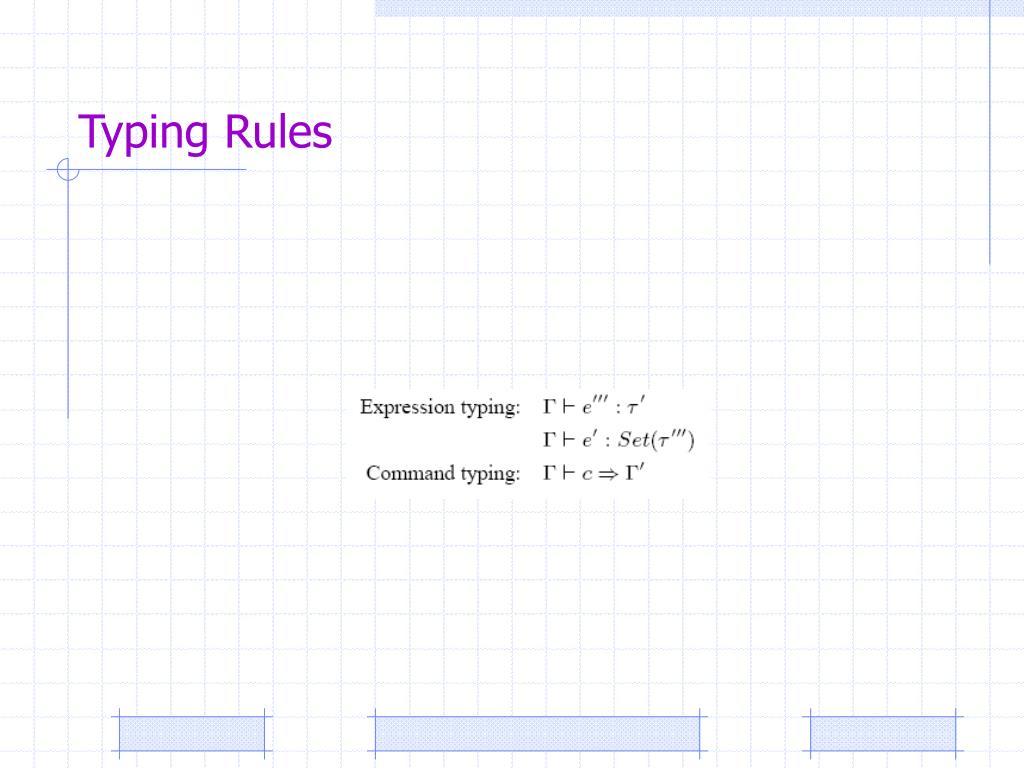

  14. Typing Rules

  15. Derivation Rules for The Type System

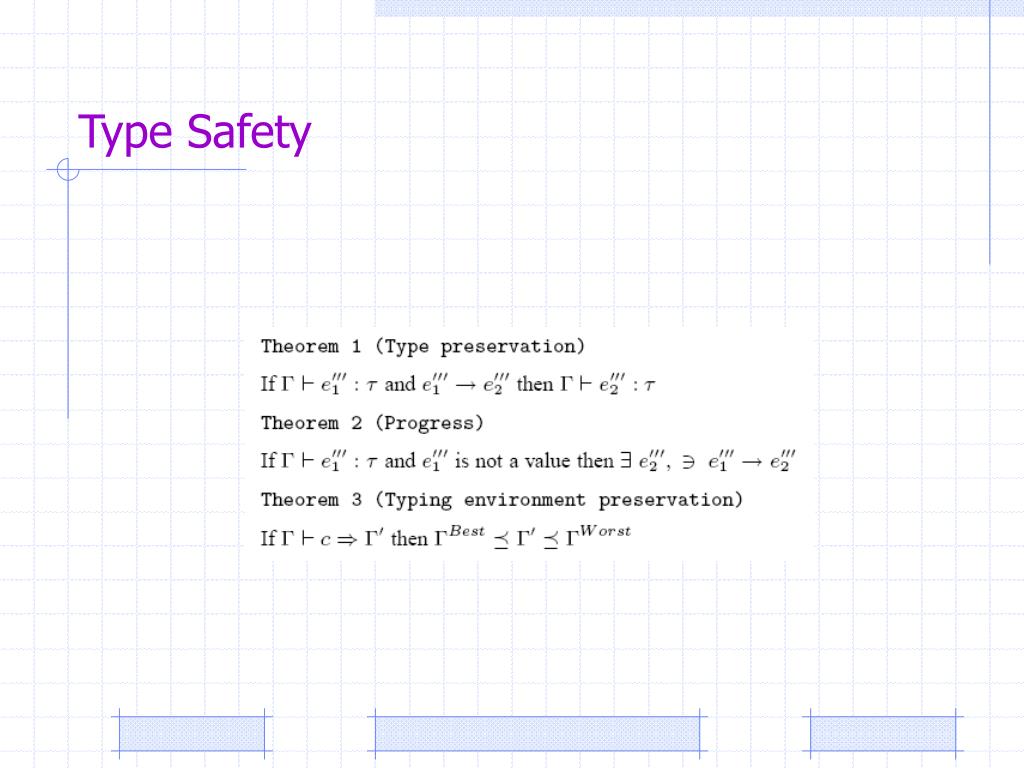

  16. Type Safety

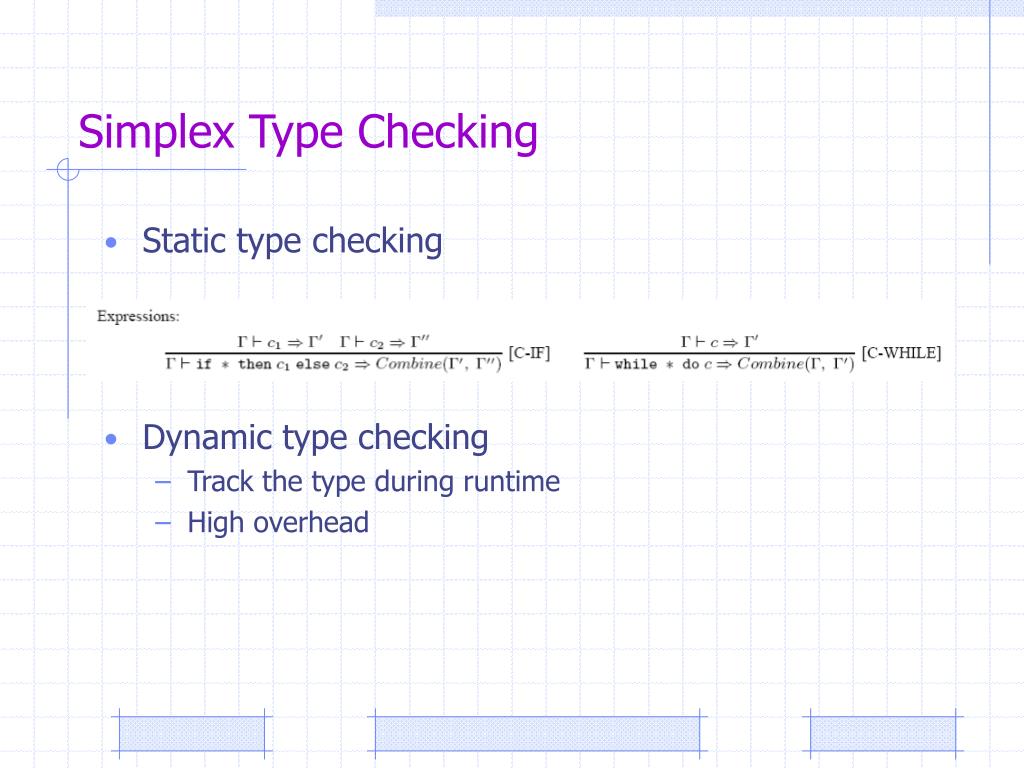

  17. Simplex Type Checking • Static type checking • Dynamic type checking • Track the type during runtime • High overhead

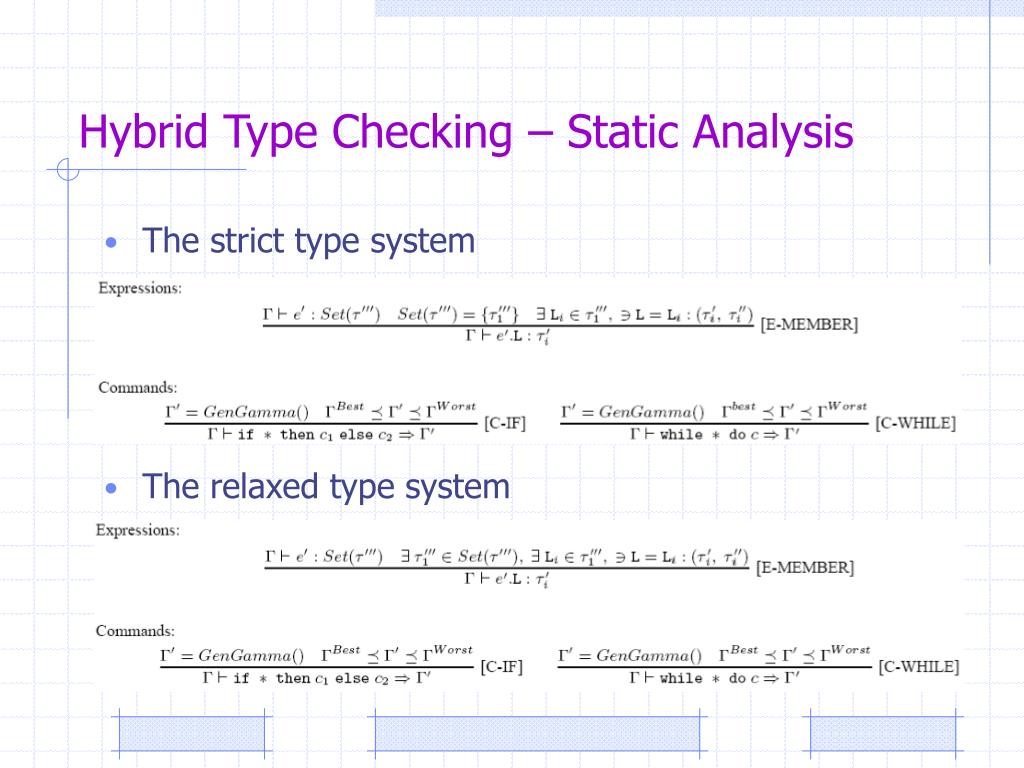

  18. Hybrid Type Checking – Static Analysis • The strict type system • The relaxed type system

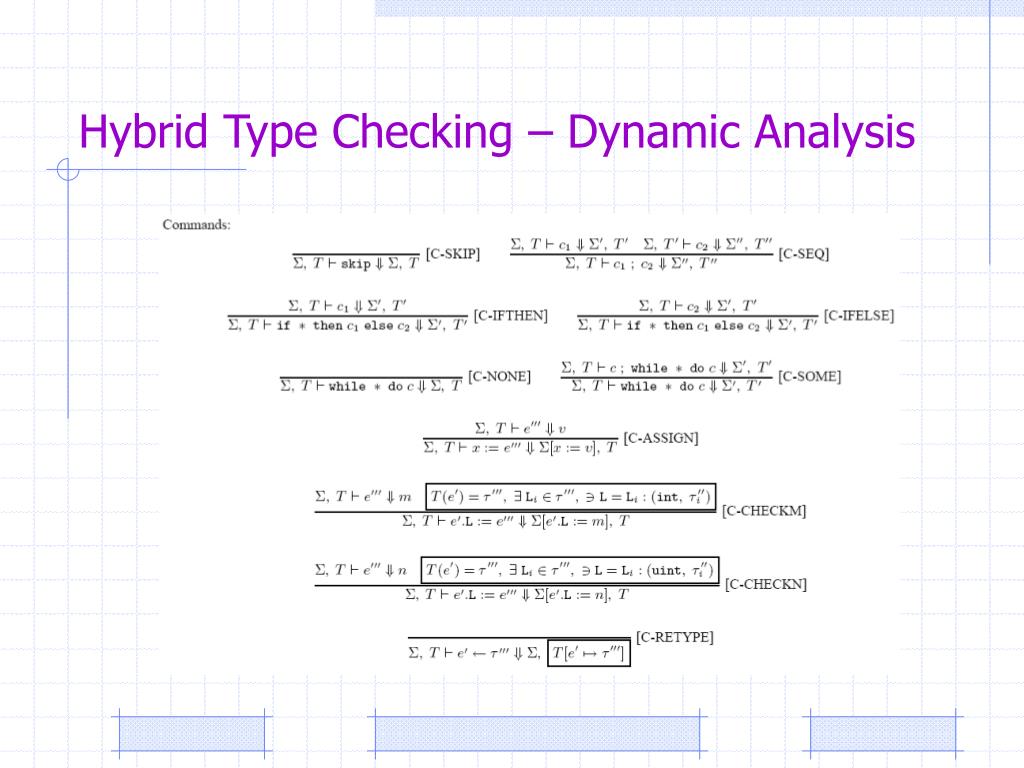

  19. Hybrid Type Checking – Dynamic Analysis

  20. Hybrid Type Checking – Dynamic Analysis

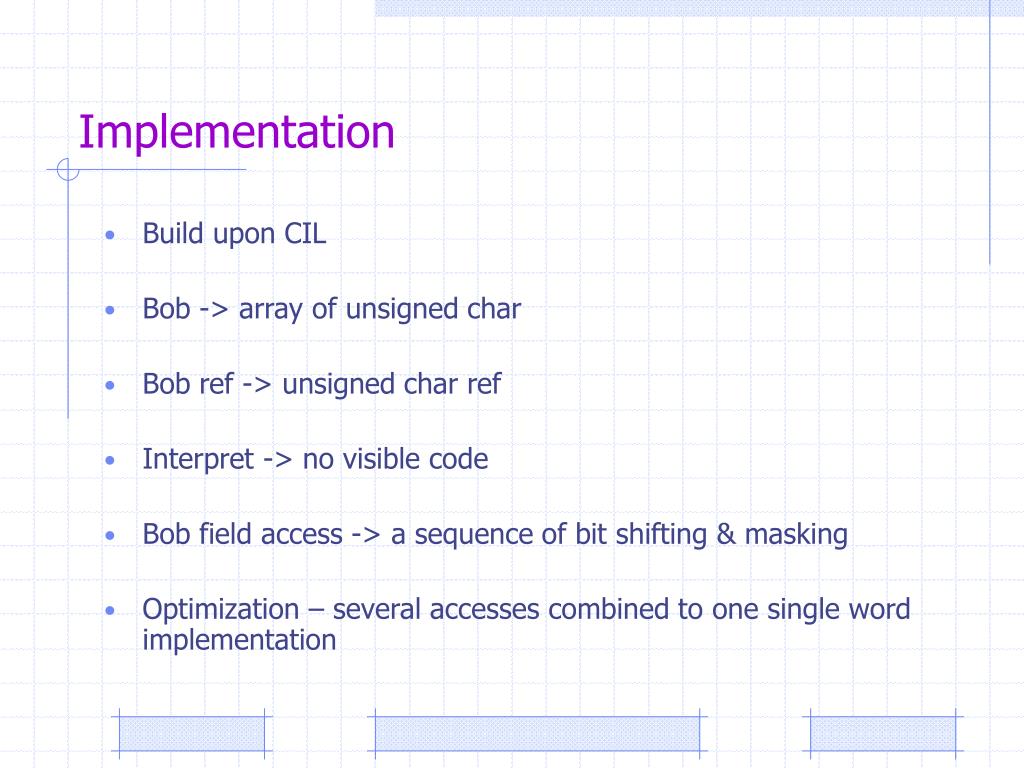

  21. Implementation • Build upon CIL • Bob -> array of unsigned char • Bob ref -> unsigned char ref • Interpret -> no visible code • Bob field access -> a sequence of bit shifting & masking • Optimization – several accesses combined to one single word implementation

  22. Evaluation • Can only run trivial programs now, but • The revised code still shows: • Clearer structure • Shorter size • At least the same performance

  23. Questions ?
