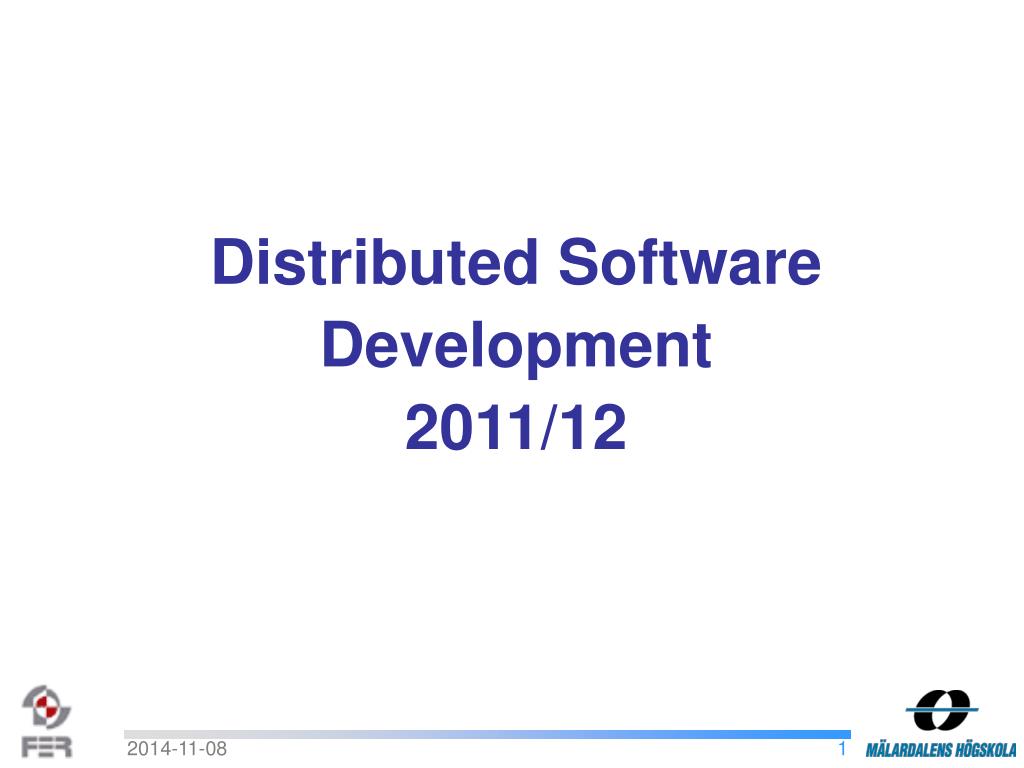

  1. Distributed Software Development 2011/12

  2. Search4Yummy Requirements Definition and System Architecture • Muhammad Sulyman • Petar Paar • Yehui Wang • Ronald Wolvers • Jan Čustović • Andrej Garić • Ivan Bandalo • Lovro Maričić

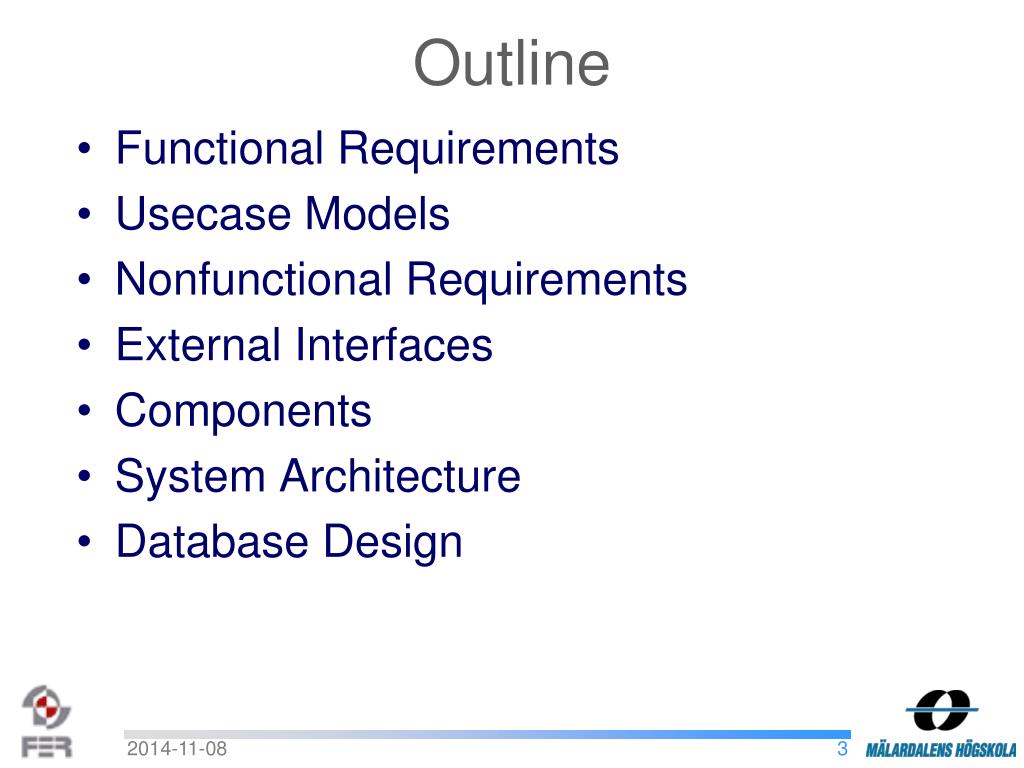

  3. Outline • Functional Requirements • Usecase Models • Nonfunctional Requirements • External Interfaces • Components • System Architecture • Database Design

  4. Functional Requirements Mobile application Web application Customer Staff member Restaurant System administration Guest User Administrator

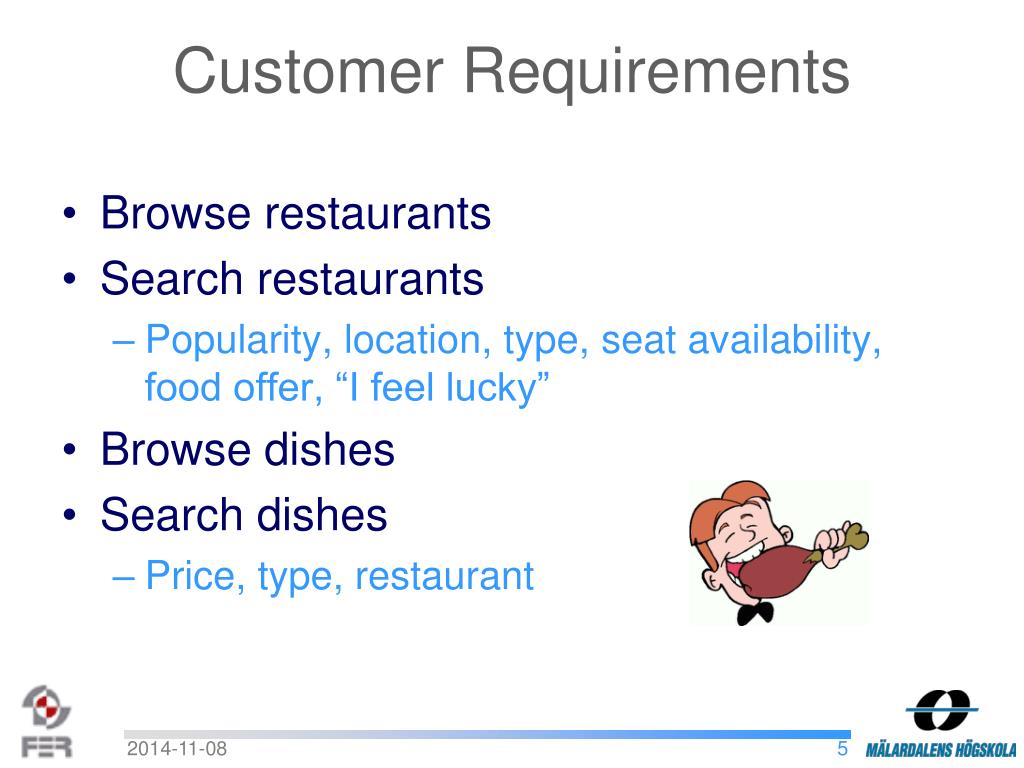

  5. Customer Requirements • Browse restaurants • Search restaurants • Popularity, location, type,seat availability, food offer, “I feel lucky” • Browse dishes • Search dishes • Price, type, restaurant

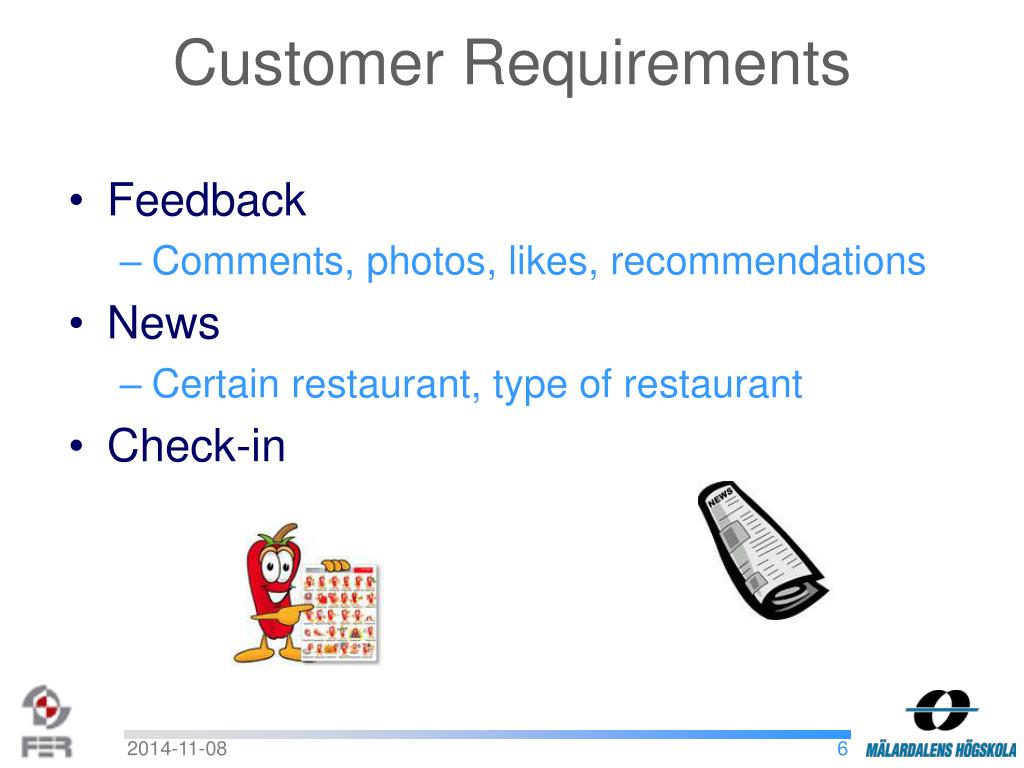

  6. Customer Requirements • Feedback • Comments, photos, likes, recommendations • News • Certain restaurant, type of restaurant • Check-in

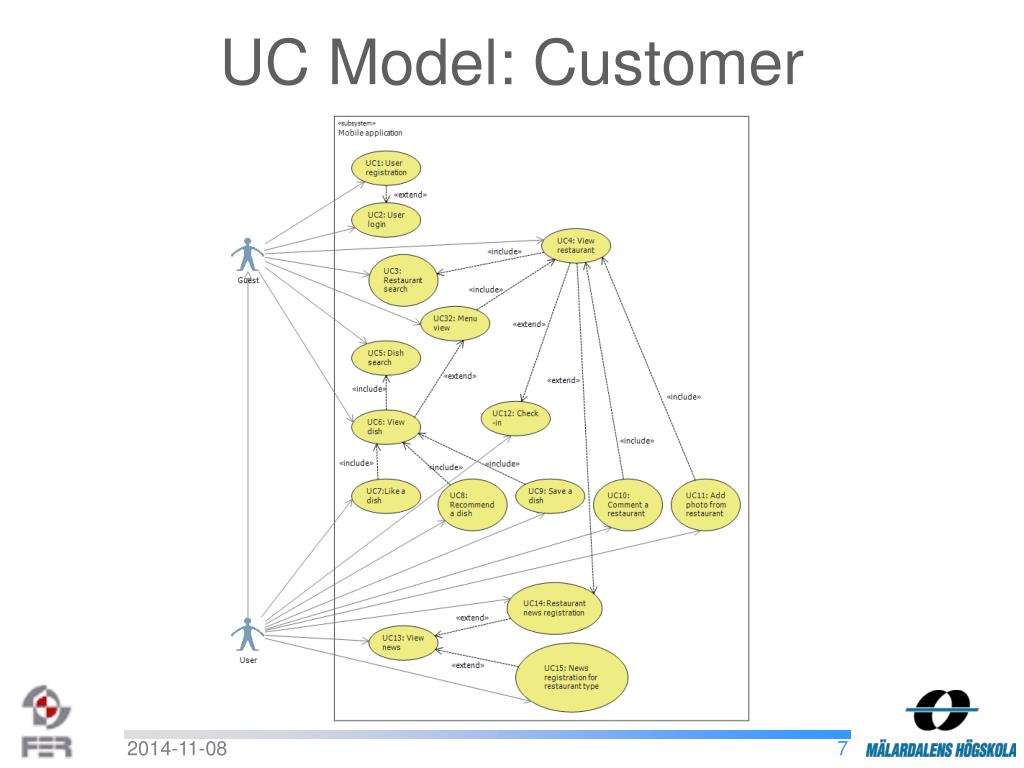

  7. UC Model: Customer

  8. UC Model: Customer

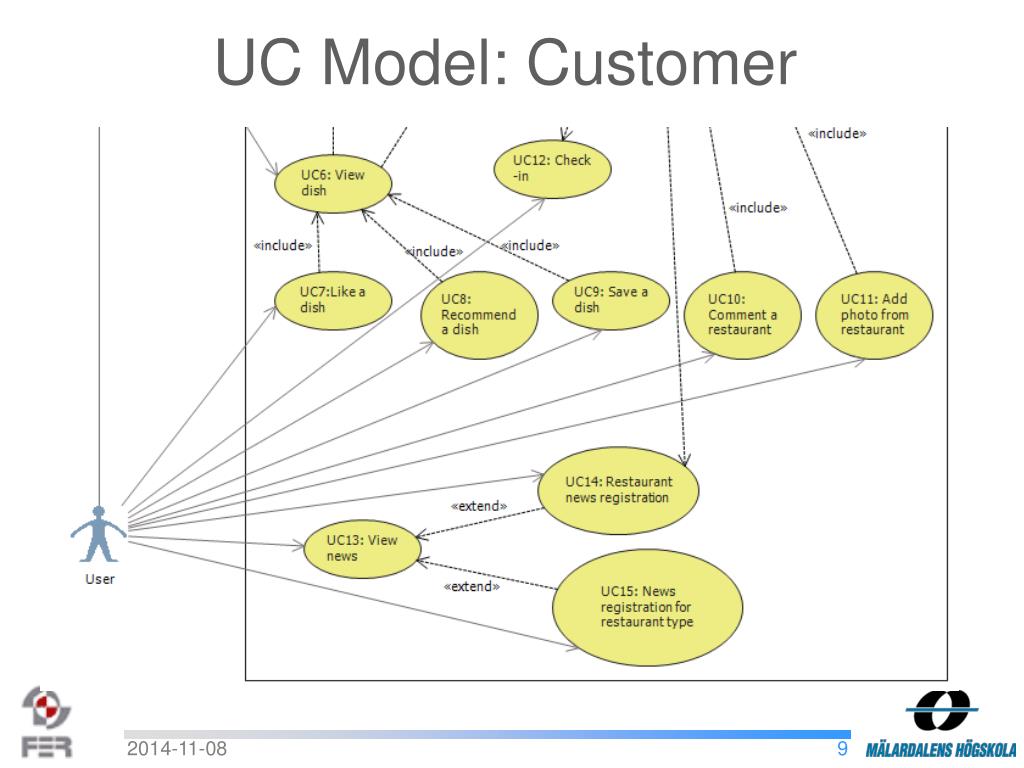

  9. UC Model: Customer

  10. Restaurant Requirements • Menu update • Seat availability update • Restaurant info update • News update

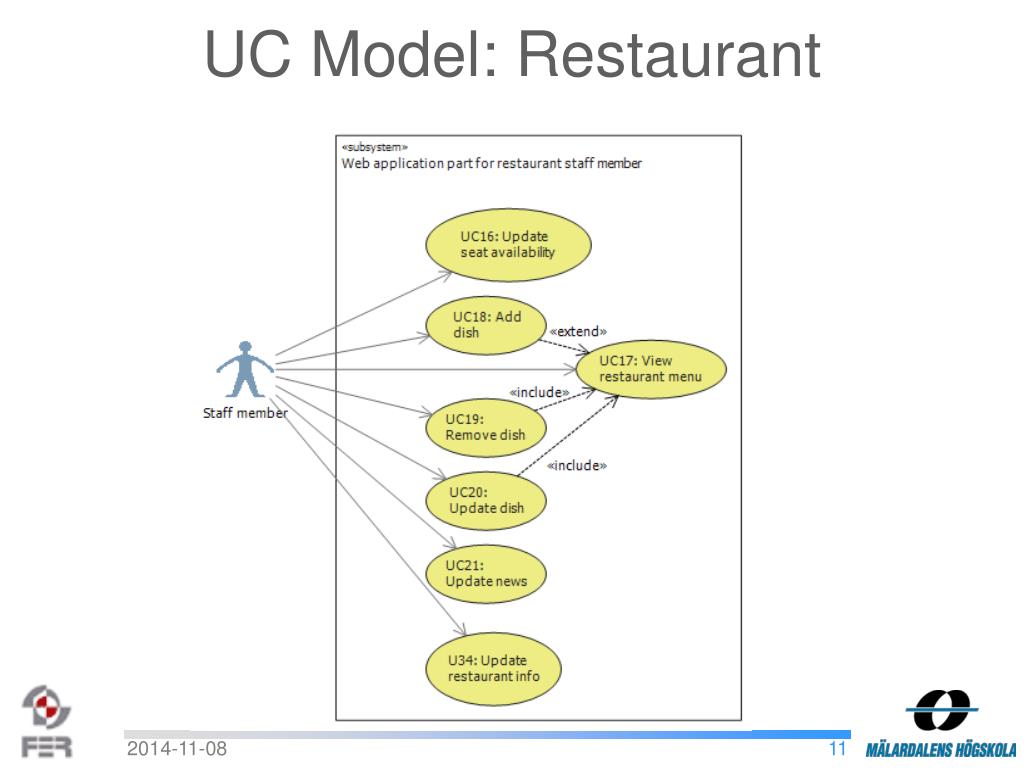

  11. UC Model: Restaurant

  12. System Administration Requirements • User management • Restaurant management • Restaurant staff members management

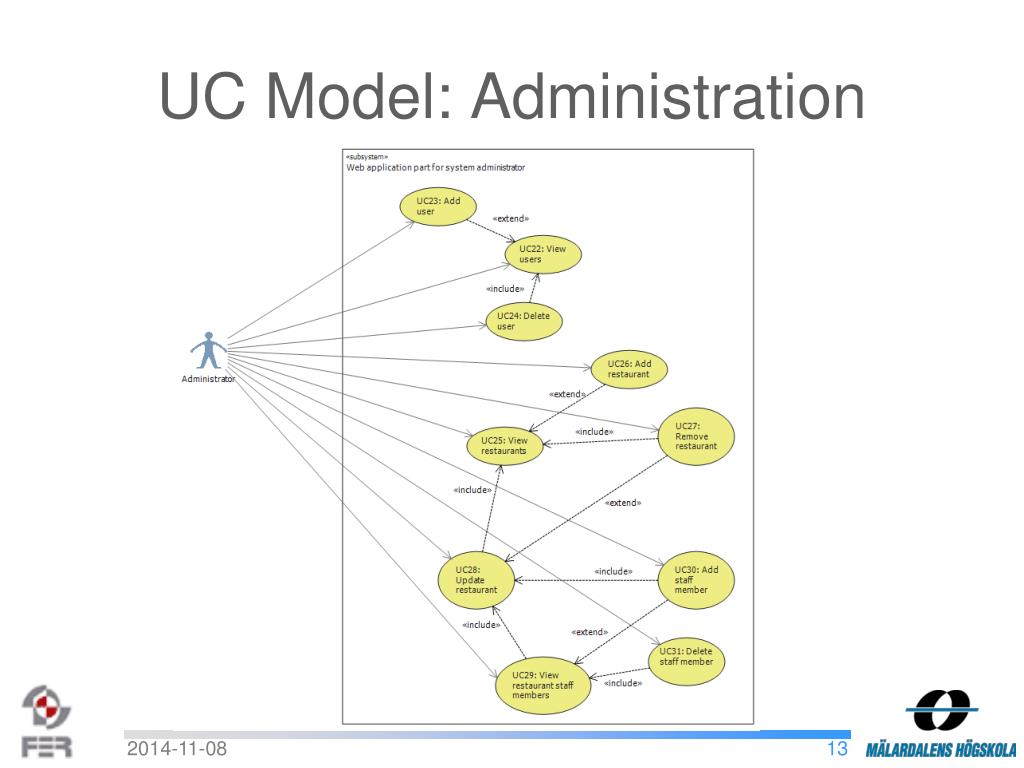

  13. UC Model: Administration

  14. UC Model: Administration

  15. UC Model: Administration

  16. Nonfunctional Requirements 2014-11-08 16 Usability Accessibility Performance Privacy and safety Portability

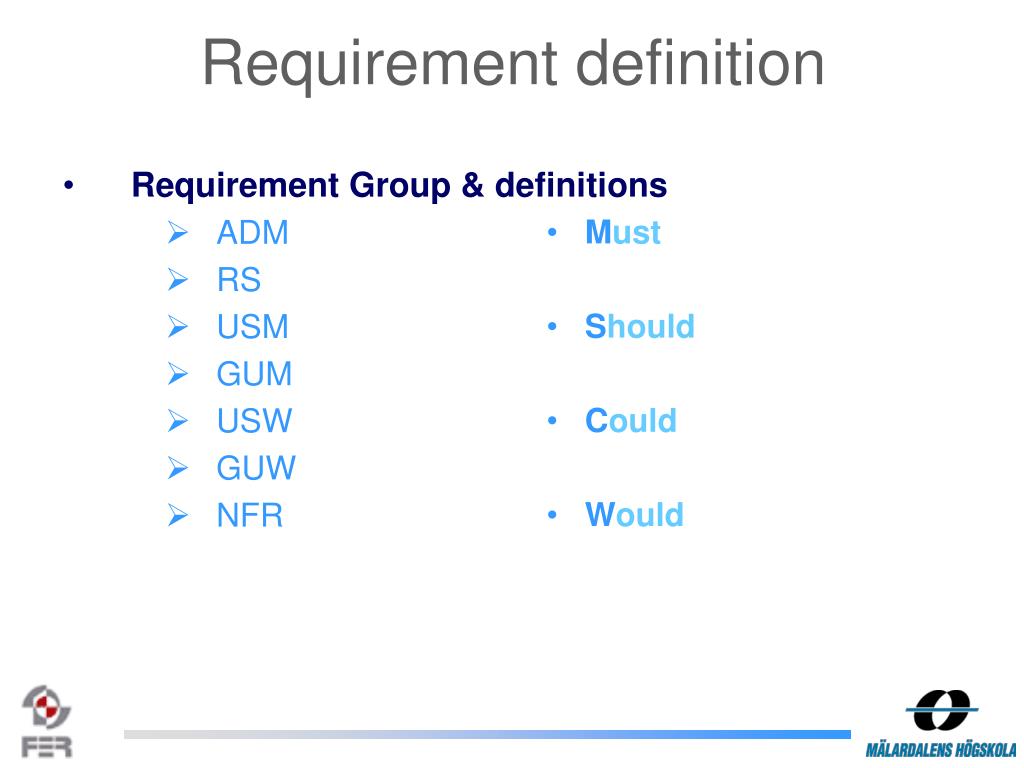

  17. Requirement Group & definitions ADM RS USM GUM USW GUW NFR Must Should Could Would Requirementdefinition

  18. External Interfaces

  19. Components

  20. System Architecture • 3-tier application • Presentation layer • Bussiness logic • Database layer • Client/Server communications model • Each tier can be developed concurrently • Tiers communicate thru interfaces • Easy to change implementation of one tier without changing other tiers

  21. Presentation/Bussiness layer • Struts2 MVC • Spring, Spring security • View rendering: Tiles, Freemarker, taglib, JSON, XML

  22. Database layer • JPA/Hibernate ORM framework • Ehcache • Spring data

  23. Design patterns • One class must do one thing (decoupled as much as possible) • Tests for important parts • Use singletons when possible • Only object itself can change its state (use getters and setters) • Respect naming convention

  24. Stack overview

  25. Questions?
