  1. TIDES

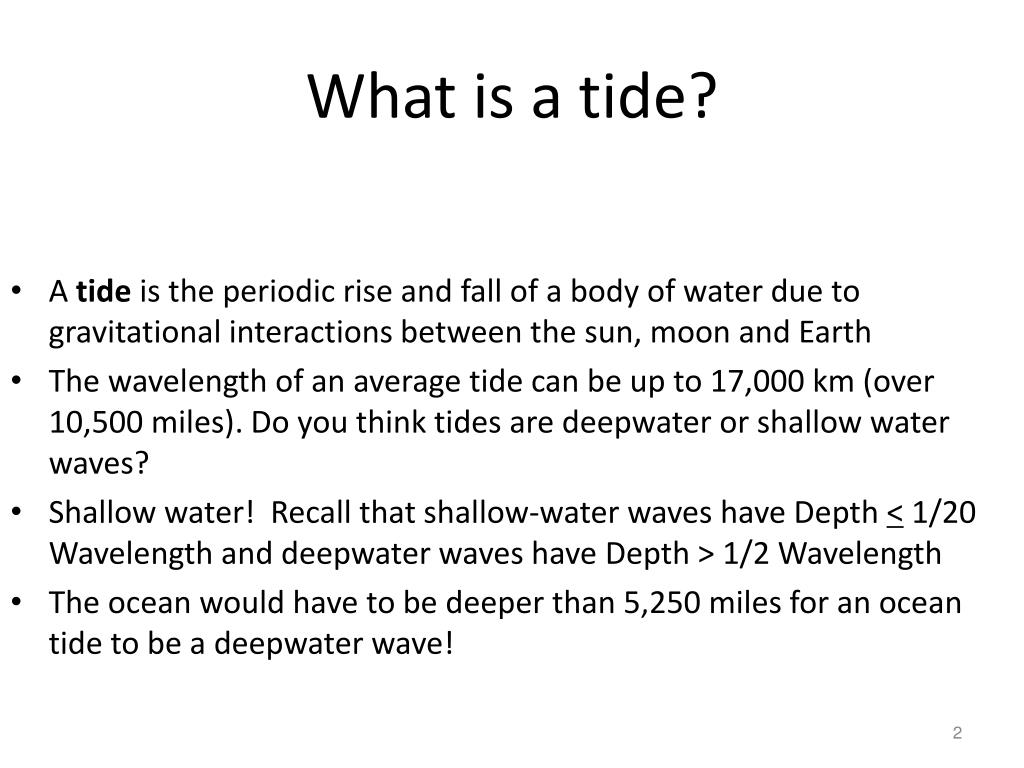

  2. What is a tide? • A tide is the periodic rise and fall of a body of water due to gravitational interactions between the sun, moon and Earth • The wavelength of an average tide can be up to 17,000 km (over 10,500 miles). Do you think tides are deepwater or shallow water waves? • Shallow water! Recall that shallow-water waves have Depth < 1/20 Wavelength and deepwater waves have Depth > 1/2 Wavelength • The ocean would have to be deeper than 5,250 miles for an ocean tide to be a deepwater wave!

  3. Tides are generated by: • Gravitational pull of the moon and sun • Centripetal force of the rotating Earth

  4. Tides are generated by: • the gravitational pull of the moon and sun • - moon has 2x greater gravitational pull than the • sun • - sun is 10 million x more massive than the • moon and is 390 times farther away

  5. Gravitational pull “Bulge” of Earth Sun Moon Earth What causes tides? The gravitational pull of the sun and the moon causes “bulges” on Earth that move as we rotate

  6. Centripetal force

  7. GRAVITATIONAL FORCE CENTRIPETAL GRAVITATIONAL & CENTRIPETAL

  8. High tide What causes tides? The tide rises when coastline enters the bulge and falls when it rotates out

  9. Description of tides • High water: a water level maximum ("high tide") • Low water: a water level minimum ("low tide") • Tidal range: the difference between high and low tide Intertidal zone High tide Low tide

  10. Alma at High Tide Alma at Low Tide

  11. Earth-Moon-Sun positions and the monthly tidal cycle Spring Tide Highest high tide and lowest low tide Neap Tide Moderate tidal range

  12. Sun Moon Earth Different types of tide • Spring tides occur when the sun and moon are in a straight line • The tidal range is typically highest during spring tides

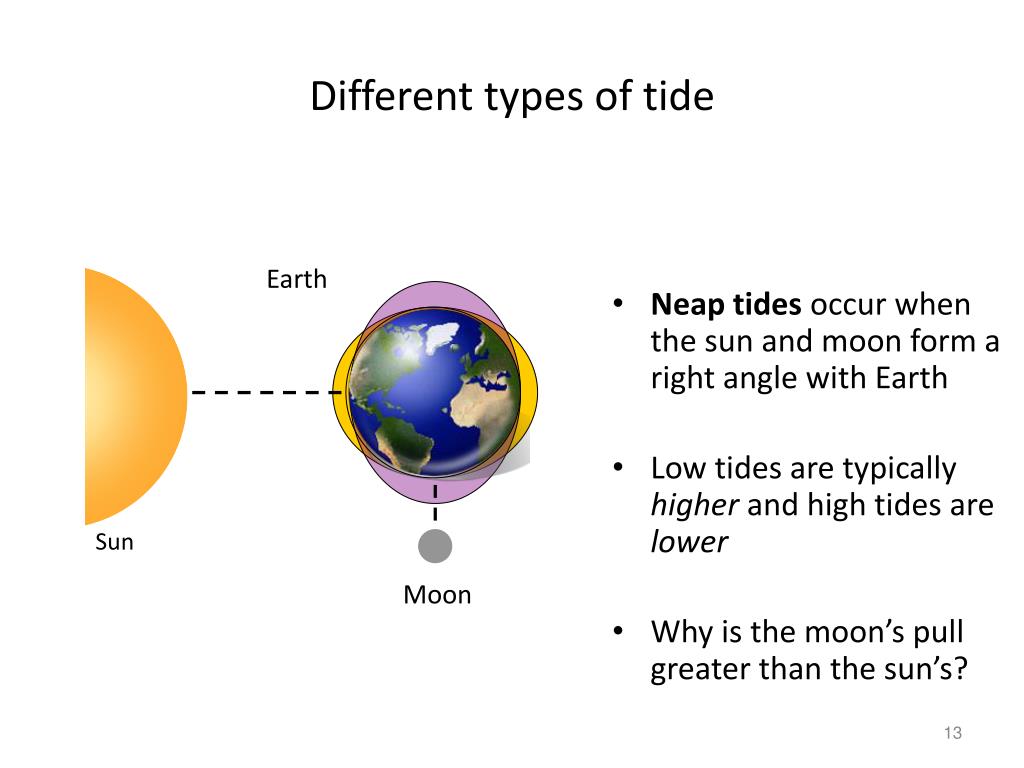

  13. Neap tides occur when the sun and moon form a right angle with Earth Low tides are typically higher and high tides are lower Why is the moon’s pull greater than the sun’s? Different types of tide Earth Sun Moon

  14. Tides are also important physical forces in our ocean • Gravitational interactions between the sun, moon and earth are the primary causes of tides • Different positions of the sun and moon create two different types of tides: spring tides and neap tides • Tides play an important role in the life cycle of many marine organisms

  15. Tidal Range 56 ft 6 ft

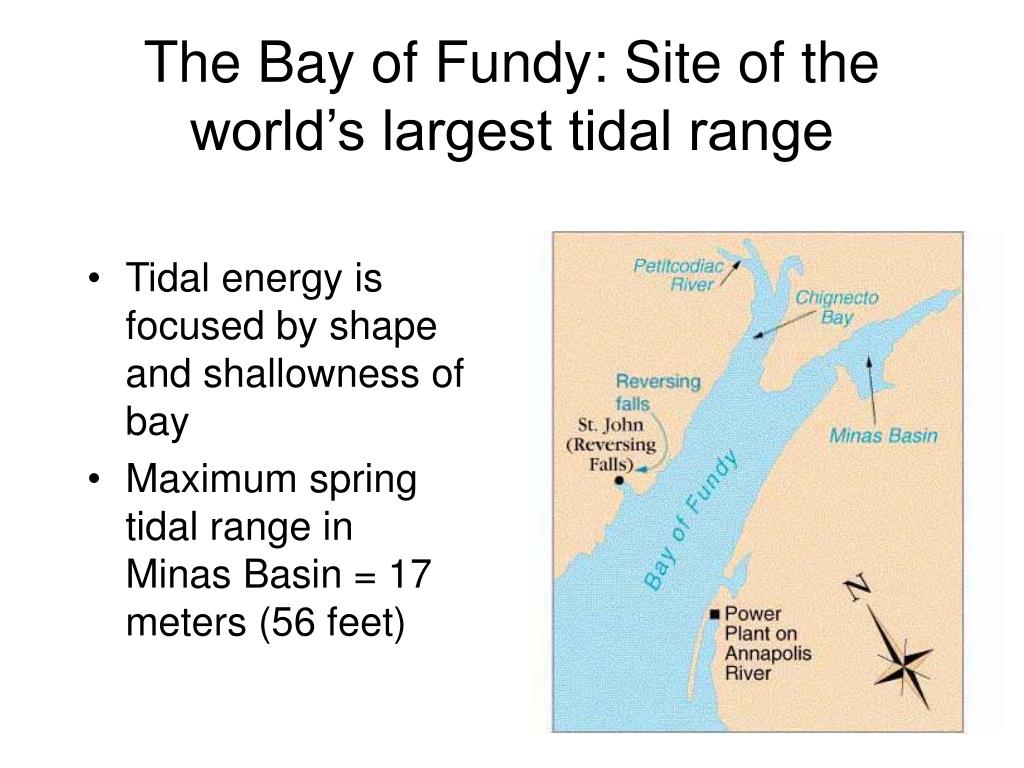

  16. The Bay of Fundy: Site of the world’s largest tidal range • Tidal energy is focused by shape and shallowness of bay • Maximum spring tidal range in Minas Basin = 17 meters (56 feet)

  17. Low tide High tide Tidal extremes: The Bay of Fundy The Bay of Fundy in Canada is known for its large tidal range (differences of over 50ft have been recorded!) Photo: NASA

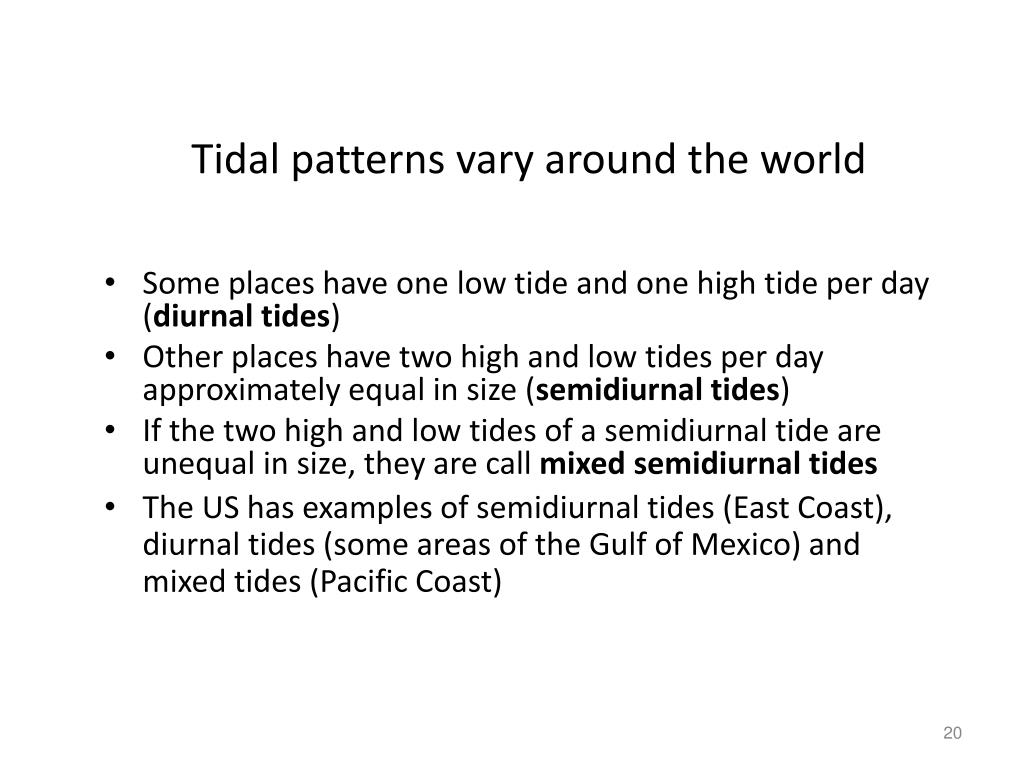

  18. Tidal patterns vary around the world • Some places have one low tide and one high tide per day (diurnal tides) • Other places have two high and low tides per day approximately equal in size (semidiurnal tides) • If the two high and low tides of a semidiurnal tide are unequal in size, they are call mixed semidiurnal tides • The US has examples of semidiurnal tides (East Coast), diurnal tides (some areas of the Gulf of Mexico) and mixed tides (Pacific Coast)

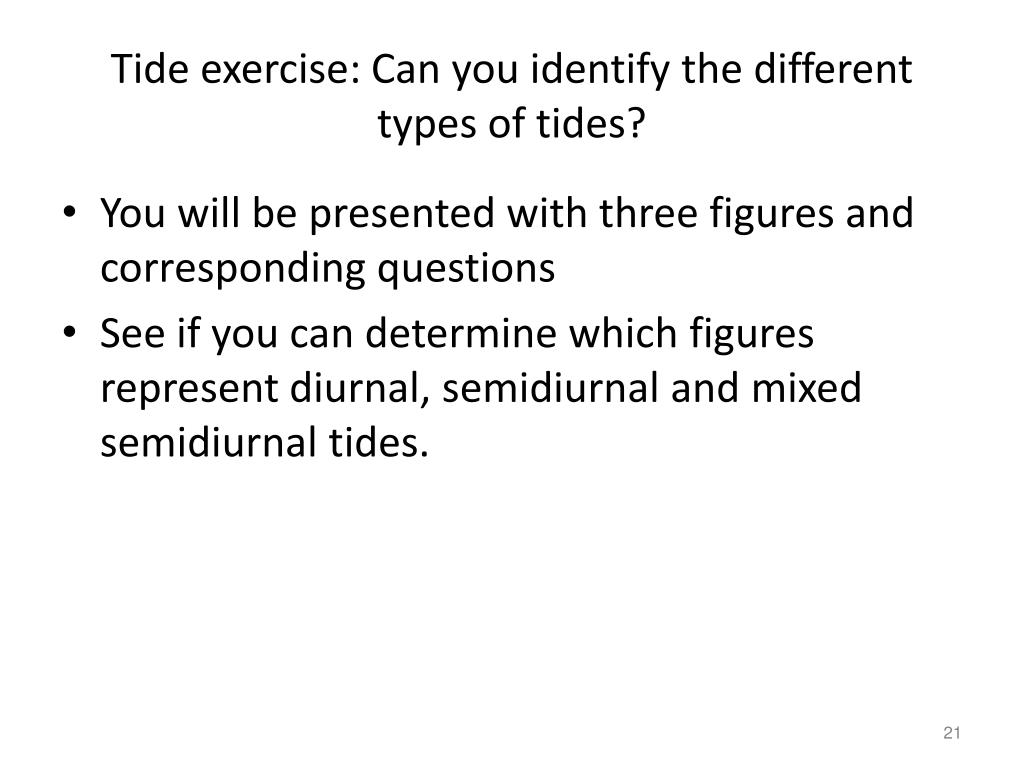

  19. Tide exercise: Can you identify the different types of tides? • You will be presented with three figures and corresponding questions • See if you can determine which figures represent diurnal, semidiurnal and mixed semidiurnal tides.

  20. Figure 1: Tide predictions for Dauphin Island, 3/1/11 Water Level (ft) Time

  21. Figure 1 shows a diurnal tide: one high and one low tide First hightide~8pm Water Level (ft) First low tide~8am Time

  22. Figure 2: Tide predictions for Woods Hole, MA, 8/25/10 Water Level (ft) Time

  23. Figure 2 shows a semidiurnal tide: two high and low tides of equal heights First high tide~9am Secondhigh tide~9pm Tidal range2ft Tidal range2ft Water Level (ft) Second low tide~4pm First low tide~4am Time

  24. Figure 3: Tide predictions for Seattle, WA (Puget Sound), 5/1/11 Water Level (ft) Time

  25. Figure 3 shows a mixed semidiurnal tide: two high and low tides of unequal heights Second high tide~6pm First high tide~4am Tidal range4ft Tidal range10ft Secondlow tide~11pm Water Level (ft) First low tide~11am Time
