Identifying Congruent Triangles

Identifying Congruent Triangles. OBJECTIVES. - Triangle classification by parts - Angle Sum Theorem & Exterior Angle Theorem - CPTC,SSS,SAS,ASA,and AAS Theorems - Problem solving by eliminating possibilities -Equilateral & Isosceles triangles. By side lengths Equilateral  3 sides

buzz
Télécharger la présentation

Identifying Congruent Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

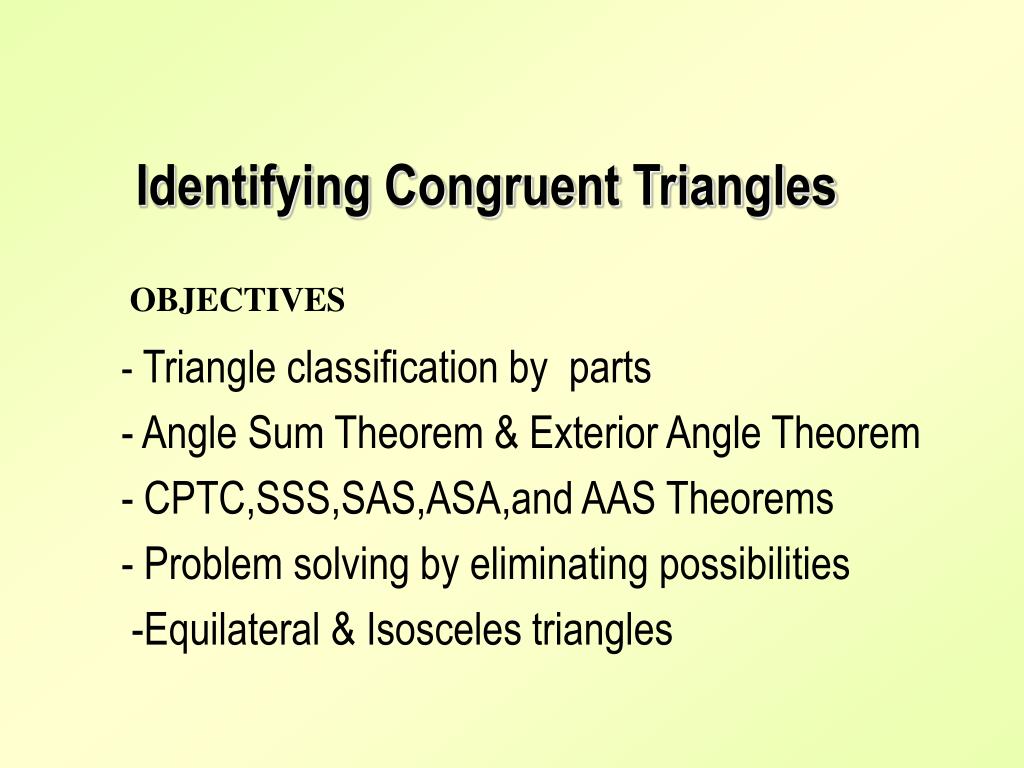

  1. Identifying Congruent Triangles OBJECTIVES - Triangle classification by parts - Angle Sum Theorem & Exterior Angle Theorem - CPTC,SSS,SAS,ASA,and AAS Theorems - Problem solving by eliminating possibilities -Equilateral & Isosceles triangles

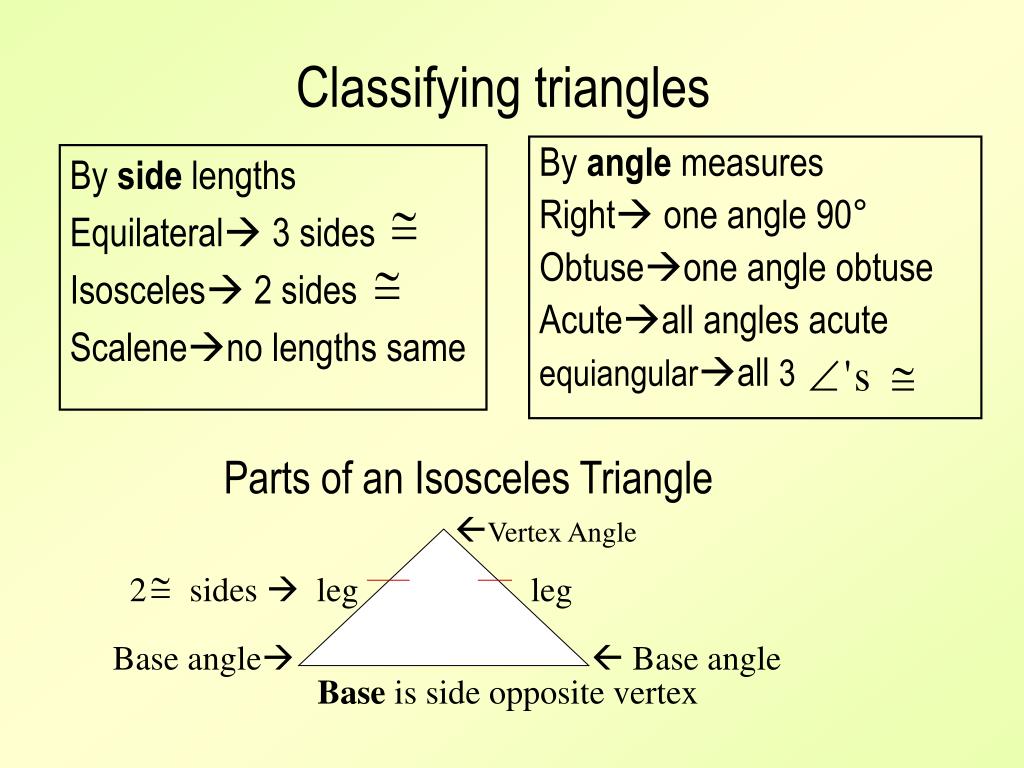

  2. By side lengths Equilateral 3 sides Isosceles 2 sides Scaleneno lengths same By angle measures Right one angle 90° Obtuseone angle obtuse Acuteall angles acute equiangularall 3 Classifying triangles Parts of an Isosceles Triangle Vertex Angle 2 sides  leg leg Base angle  Base angle Base is side opposite vertex

  3. The sum of the measures of the 3 angles of a triangle always equals 180º If 2 In a right triangle, the 2 acute angles are complementary There can be at most 1 obtuse or 1 right angle in a Δ The measure of an exterior angle = the measure of the two remote interior angles: Measuring angles in triangles Remote interior angles Exterior angle

  4. Congruent triangles: CPCTC TwoΔ’s are congruent if and only if their corresponding parts are congruent (all sides & all angles) corr parts 1 2 • Congruence of triangles is: • reflexive(parts to self)symmetric • transitive

  5. If 2 triangles are congruent: 2 1 The congruence statement statement tells which parts of triangle 1 ‘match up’ or correspond to the parts of triangle 2. Means ORDER ISVERY IMPORTANT

  6. Proving Δ’s congruent: SSS & SAS & ASA Given: 2 Δ’s (match up sides/angles that are alike) If 3 sides 2 sides & an included angle  OR 2 angles & an included side  are congruent  THEN the 2 Δ’s are congruent ** remember-- in two column proofs the ‘if’ part matches what you know & goes in the left column. The ‘then’ part goes in the right column & gives direction towards the statement to be proven.

  7. ‘Read around’ the vertices of a triangle: if an angle & another angle & a side not between them are congruent to the corresponding parts of another triangle,  THEN the triangles are congruent Mark the given parts on your triangles to see which theorem or postulate to use. There WILL be a clue to get you started Congruent triangles: AAS B D F E C A

  8. If 2 sides are , then angles opposite them are If 2 angles of a triangle are , then the sides opposite are A triangle is equilateral if and only if it is equiangular Each angle of an equiangular triangle measures 60° B Isosceles triangles A C

  9. Given: ΔTEN is an isosceles triangle with base TN Prove: ΔTEA ΔNEC 1. ΔTEN is an isosceles triangle with base TN 1. Given 2.Def Isosceles 3.Given 4. ΔTEA ΔNEC 4.AAS E Example: 1 2 3 4 T C A N End with what you are to prove
