Multi-Homing Security Gateway

DESCRIPTION

The Multi-Homing Security Gateway MH-1000 is designed for small and medium-sized businesses seeking robust security and seamless connectivity. Featuring dual WAN support, it provides load balancing and failover capabilities to ensure uninterrupted service. With a powerful firewall, it offers stateful packet inspection and DDoS protection. The gateway supports up to 100 VPN tunnels with high encryption standards, enabling secure remote access. Compact and efficient, the MH-1000 is an ideal choice for maintaining network integrity and flexibility.

1 / 13

Télécharger la présentation

Multi-Homing Security Gateway

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Multi-Homing Security Gateway MH-1000

  2. Outline • Product Overview • Product Features • Product Application • Product Comparison

  3. Product Overview • Hardware • 8 x 10/100Mbps switch with auto-negotiation, auto-MDI • 2 x 10/100Mbps WAN port • Environmental Spec. • Operating Temp & Humidity: • 0 ~40 degree C / 20 ~95% (non-condensing) • Storage Temp & Humidity: • -20 ~ 70 degree C / 10~95% (non-condensing) • Power Consumption • 12VDC, 1A max.

  4. Dual RJ-45 WAN 8 RJ-45 LAN Product Overview • Physical Dimension (mm) • 193 x 93 x 28 • Front Panel • Rear Panel

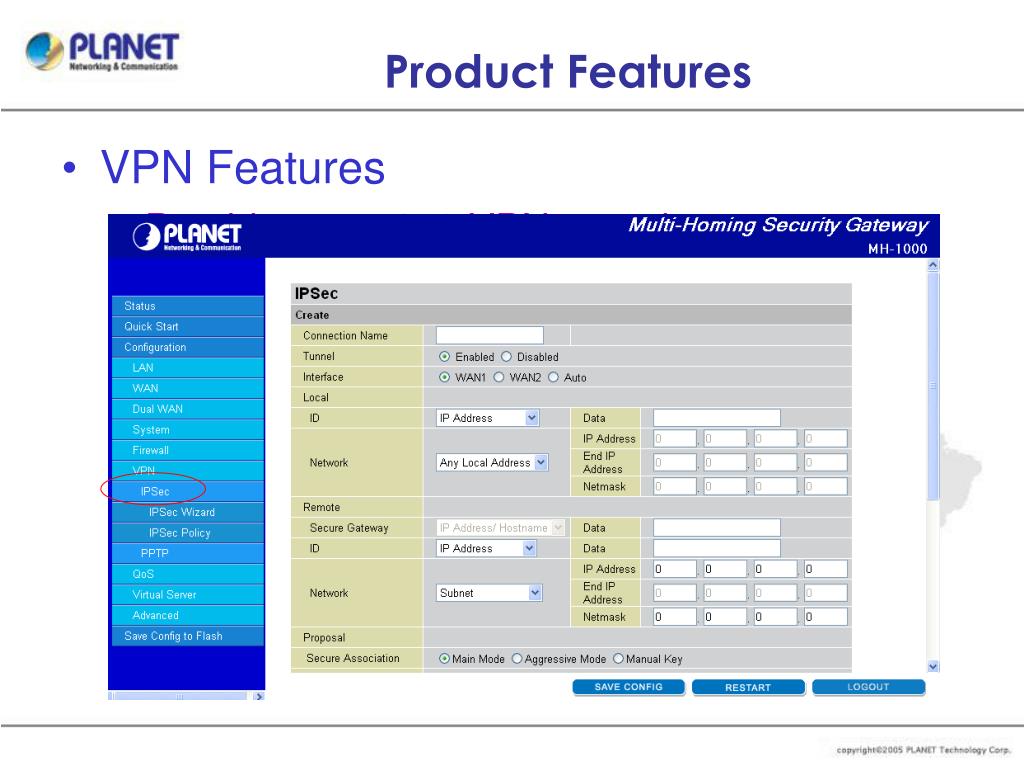

  5. Product Features • VPN Features • Provide up to 100 VPN tunnels • Up to 30Mbps IPSec VPN throughput • MD5/SHA-1 Authentication, 3DES/AES Encryption • IPSec RSA VPN support • IPSec, PPTP and L2TP VPN pass through

  6. Product Features • Multi-Homing • WAN Fail-over support • Outbound Load Balance • DNS Inbound Load Balance

  7. Product Features • Advanced Firewall / Internet Features • Stateful Packet Inspection firewall • DoS (Denial of Service) attacks • Support Packets filter by IP, MAC address and service • QoS support • Virtual server, DMZ and DDNS support • Content Filter to block webpage or scripts • Static route and RIP v2 support

  8. Authoritative Domain Name Server for www.mydomain.com DNS Request 192.168.2.2 200.200.200.1 www.mydomain.com 1st connection FTP Server DNS Reply Built-in DNS Server 192.168.2.3 200.200.200.1 2nd connection HTTP Server Before Fail Over DNS Request 192.168.2.2 1st connection www.mydomain.com FTP Server DNS Reply 2nd connection 192.168.2.3 Built-in DNS Server 100.100.100.1 100.100.100.1 HTTP Server After Fail Over Product Features / Application • DNS Inbound Fail-over

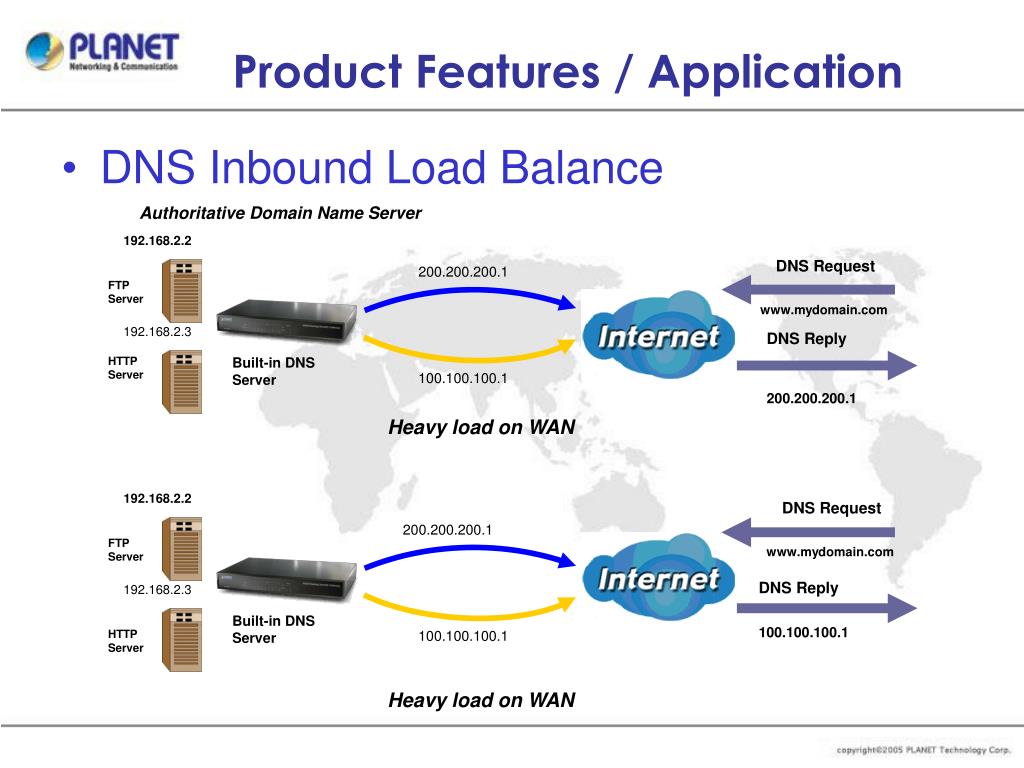

  9. DNS Request www.mydomain.com DNS Reply 200.200.200.1 DNS Request www.mydomain.com DNS Reply 100.100.100.1 Product Features / Application • DNS Inbound Load Balance Authoritative Domain Name Server 192.168.2.2 200.200.200.1 FTP Server 192.168.2.3 HTTP Server Built-in DNS Server 100.100.100.1 Heavy load on WAN 192.168.2.2 200.200.200.1 FTP Server 192.168.2.3 Built-in DNS Server HTTP Server 100.100.100.1 Heavy load on WAN

  10. Application • SoHo Multi-homing Security Gateway • Multi-Homing • Dual WAN in/out-load balance • Fail-over • VPN • 100 VPN tunnels • Firewall • DDoS, SPI, QoS and more 192.168.2.2 200.200.200.1 FTP Server 192.168.2.3 Built-in DNS Server HTTP Server 100.100.100.1

  11. VRT v.s. MH Comparison Features meet SoHo Features meet SMB

  12. Comparison Features meet SoHo Features meet SMB

  13. Pioneer of IP Innovation PLANET Technology Corp
