11.6 – Areas of Regular Polygons

11.6 – Areas of Regular Polygons . Center of a polygon:. Point equidistant to the vertices of the of the polygon. P. Radius of a polygon:. Length from the center to the vertex of a polygon. Apothem of the polygon:. Length from the center to the side of a polygon.

cadee
Télécharger la présentation

11.6 – Areas of Regular Polygons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 11.6 – Areas of Regular Polygons

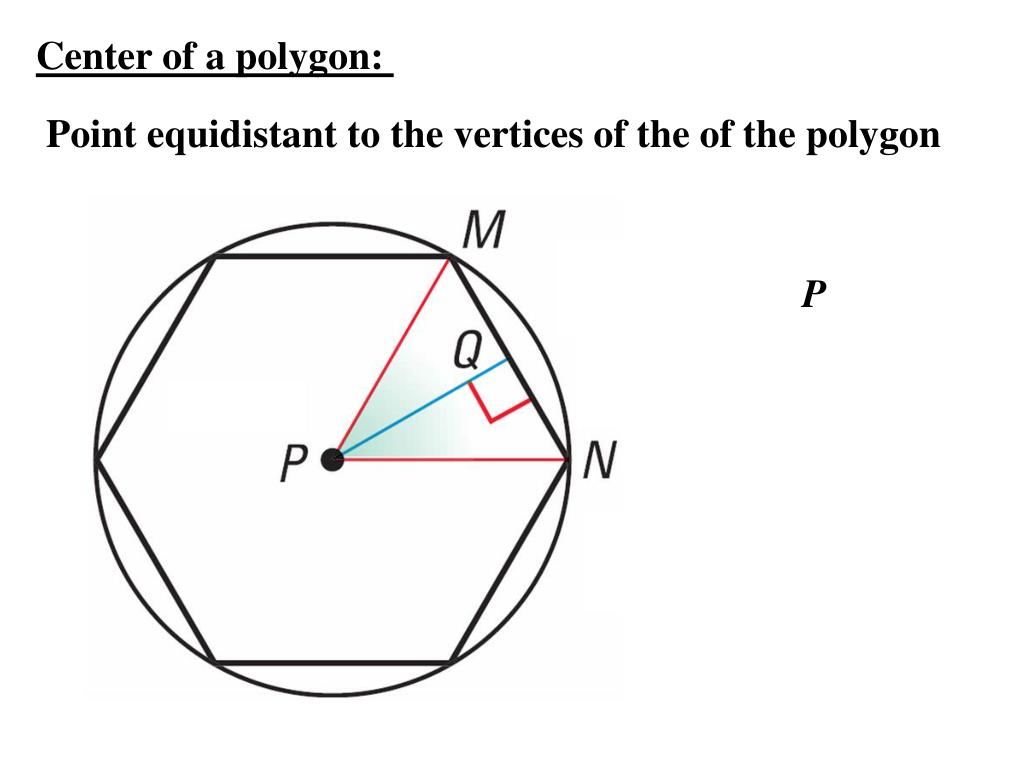

  2. Center of a polygon: Point equidistant to the vertices of the of the polygon P

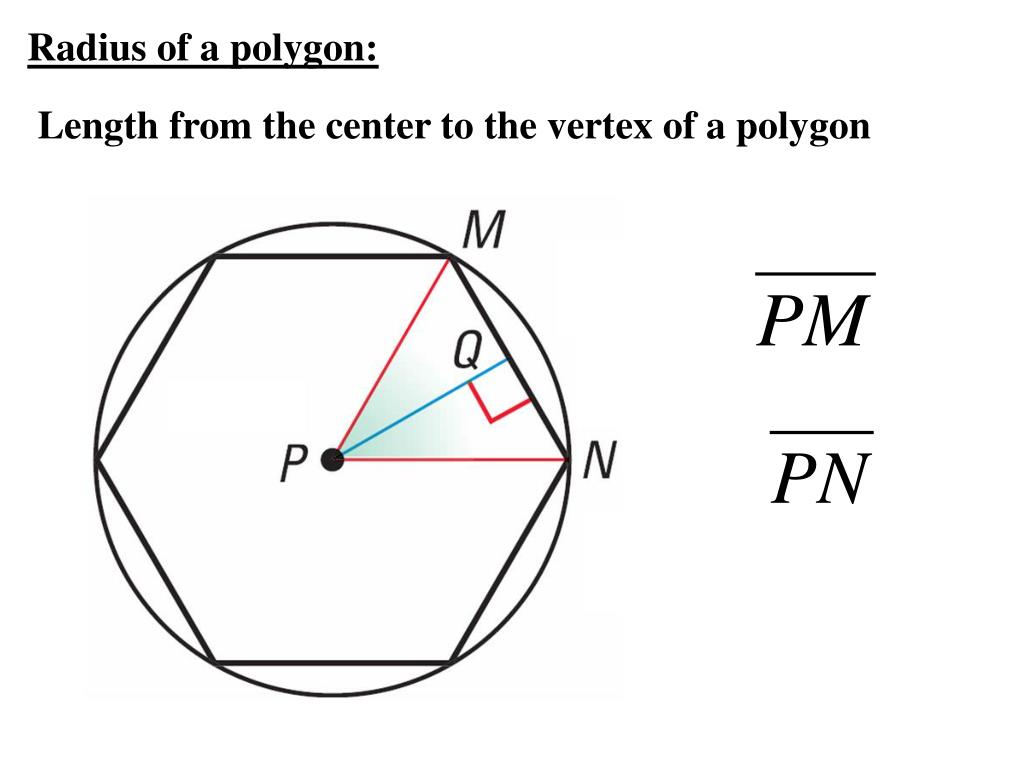

  3. Radius of a polygon: Length from the center to the vertex of a polygon

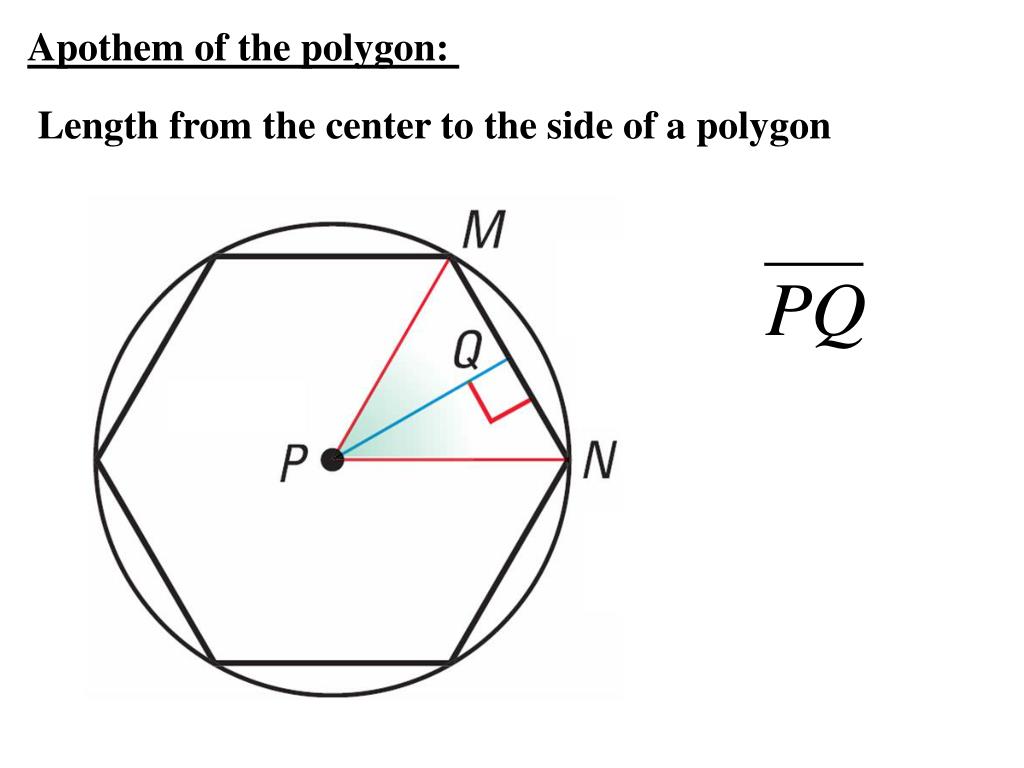

  4. Apothem of the polygon: Length from the center to the side of a polygon

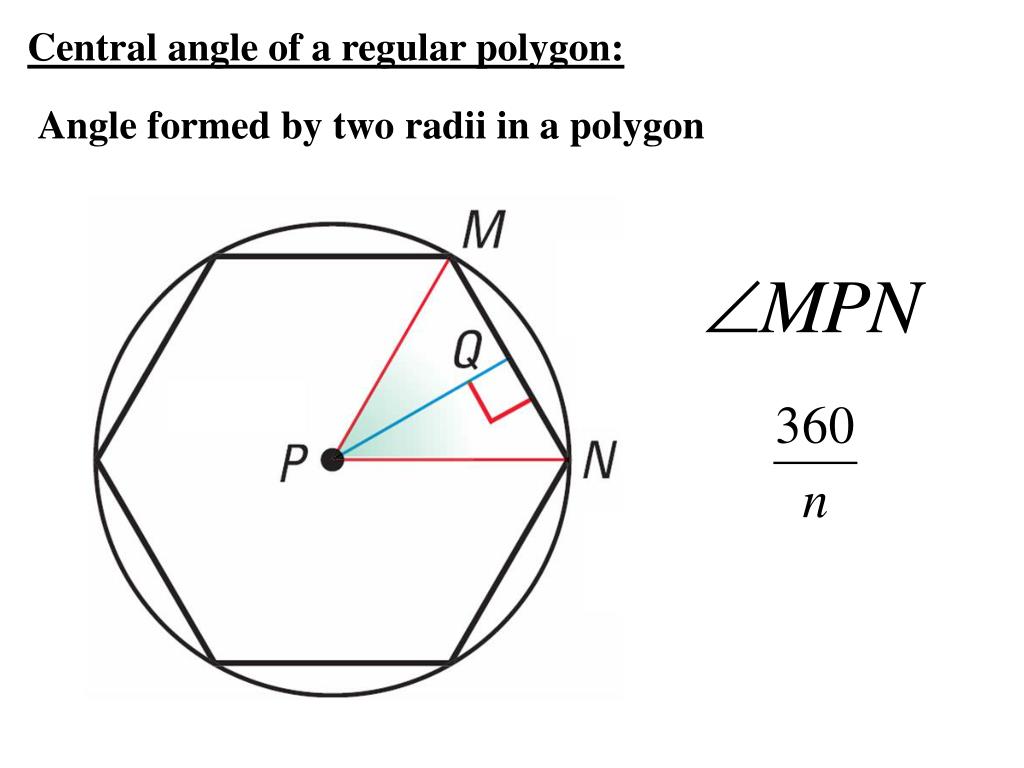

  5. Central angle of a regular polygon: Angle formed by two radii in a polygon

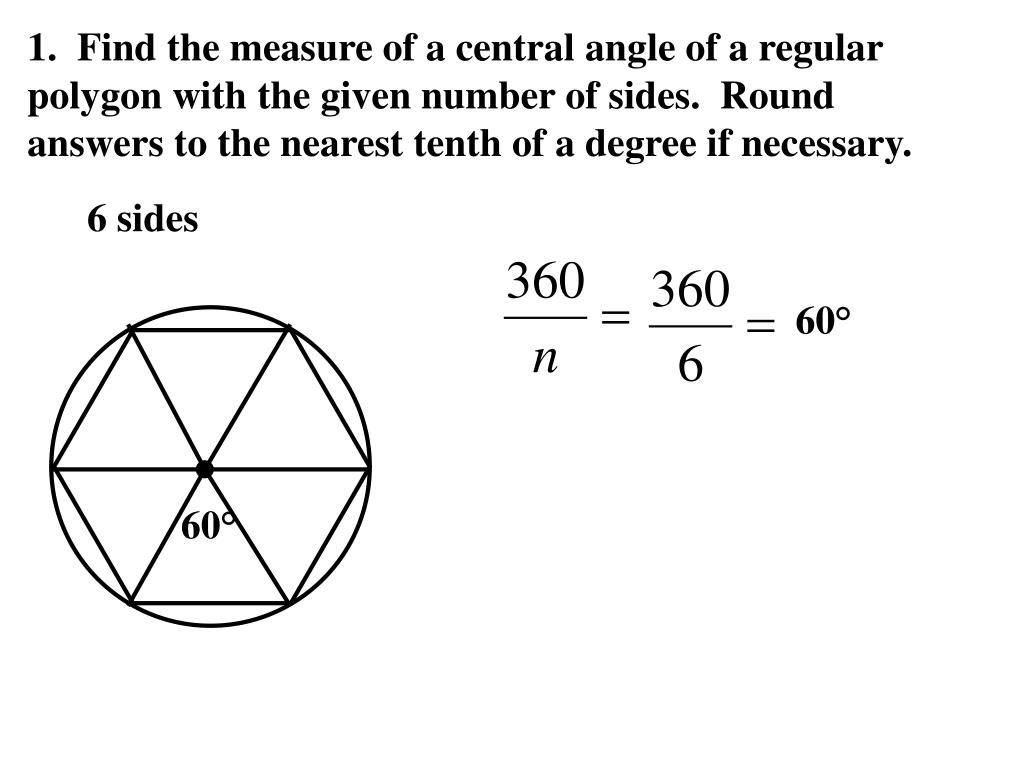

  6. 1. Find the measure of a central angle of a regular polygon with the given number of sides. Round answers to the nearest tenth of a degree if necessary. 6 sides 60° 60°

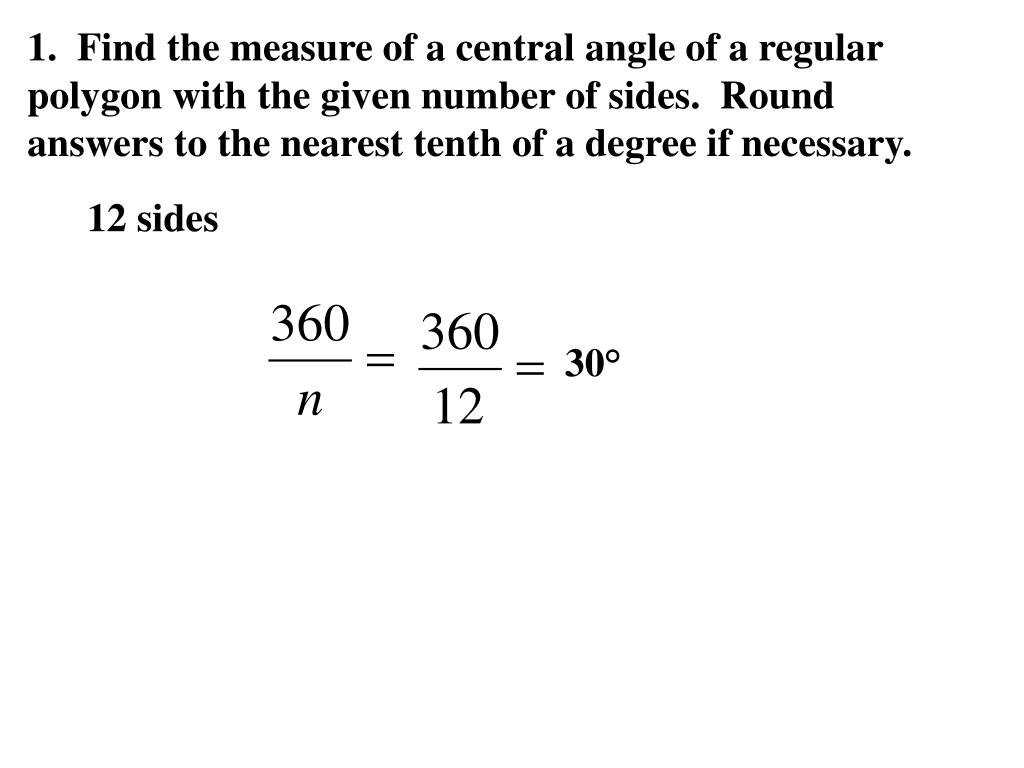

  7. 1. Find the measure of a central angle of a regular polygon with the given number of sides. Round answers to the nearest tenth of a degree if necessary. 12 sides 30°

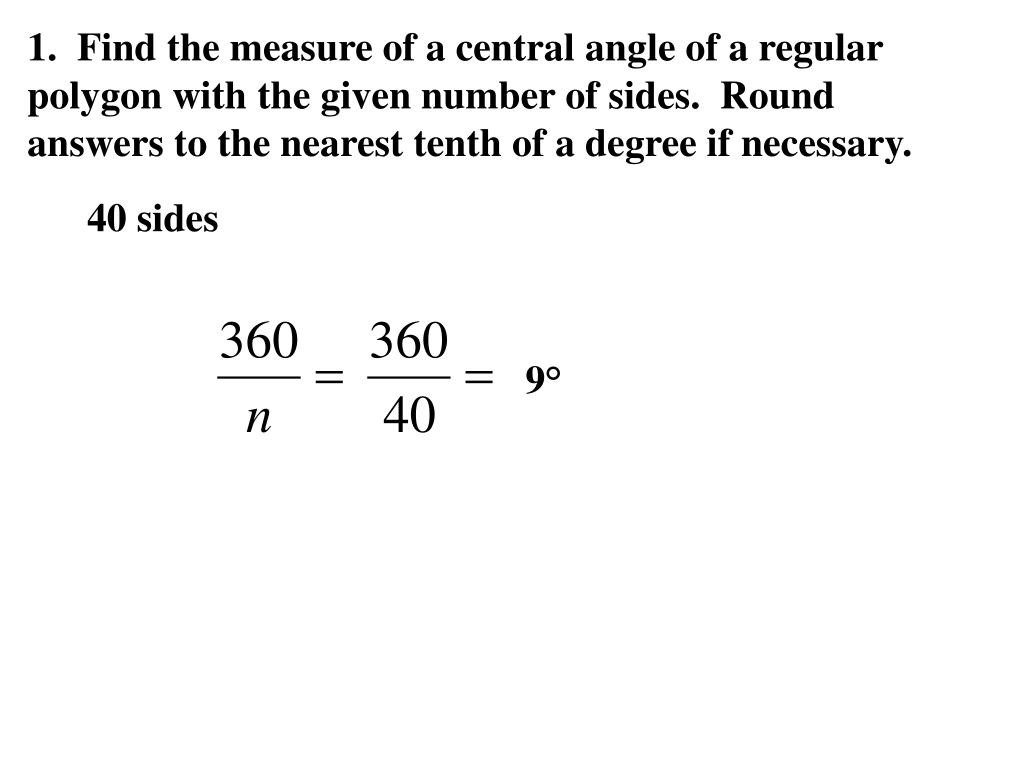

  8. 1. Find the measure of a central angle of a regular polygon with the given number of sides. Round answers to the nearest tenth of a degree if necessary. 40 sides 9°

  9. 1. Find the measure of a central angle of a regular polygon with the given number of sides. Round answers to the nearest tenth of a degree if necessary. 21 sides 17.1°

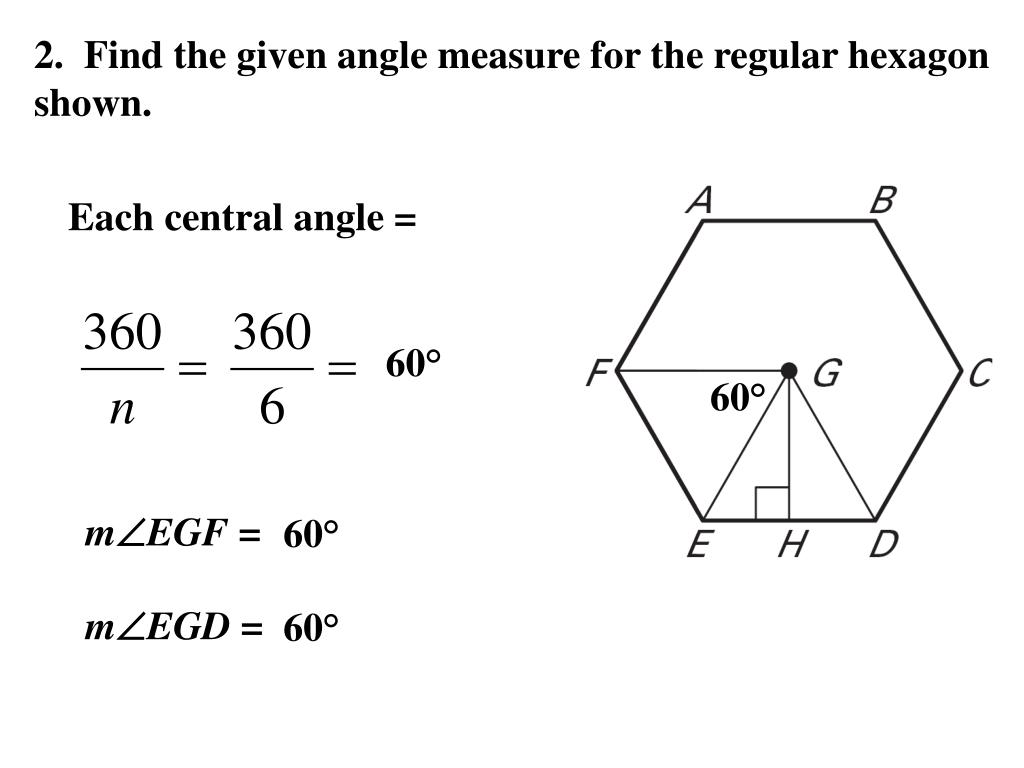

  10. 2. Find the given angle measure for the regular hexagon shown. Each central angle = 60° 60° mEGF = 60° mEGD = 60°

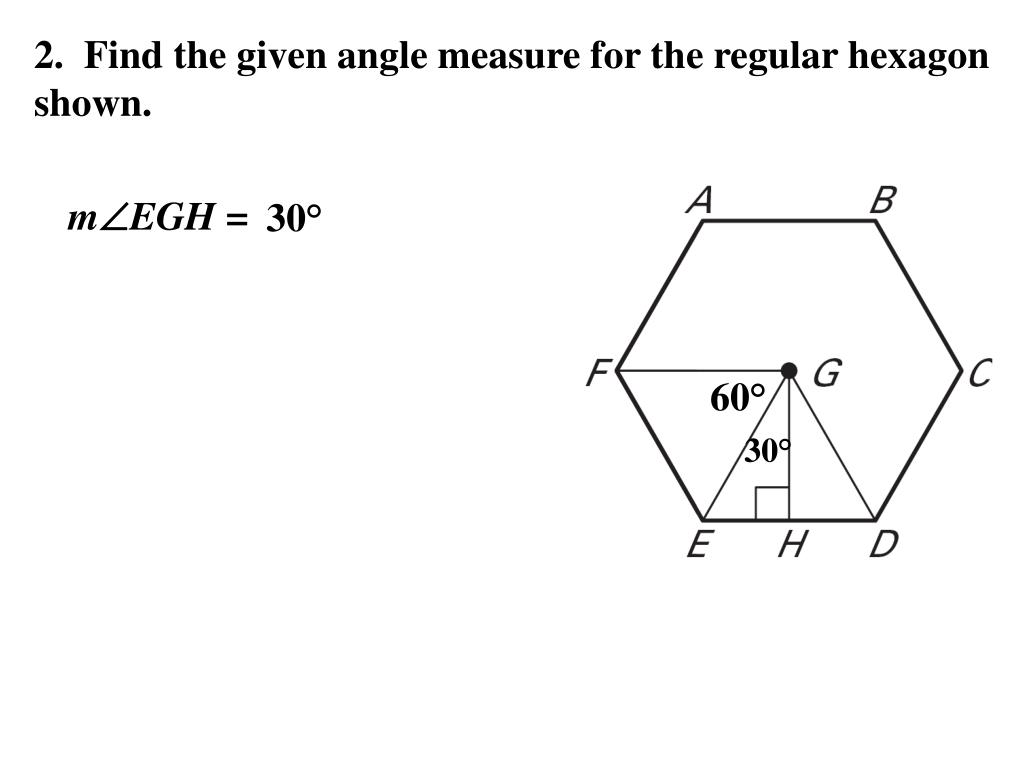

  11. 2. Find the given angle measure for the regular hexagon shown. mEGH = 30° 60° 30°

  12. 2. Find the given angle measure for the regular hexagon shown. mDGH = 30° 60° 30° 30°

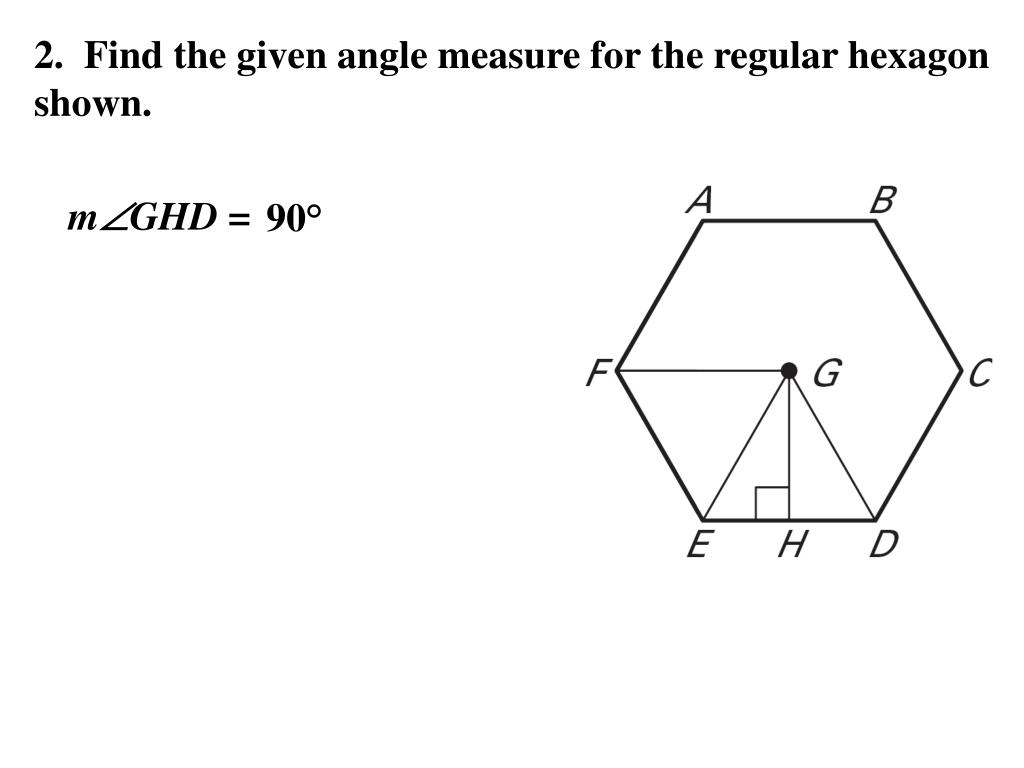

  13. 2. Find the given angle measure for the regular hexagon shown. mGHD = 90°

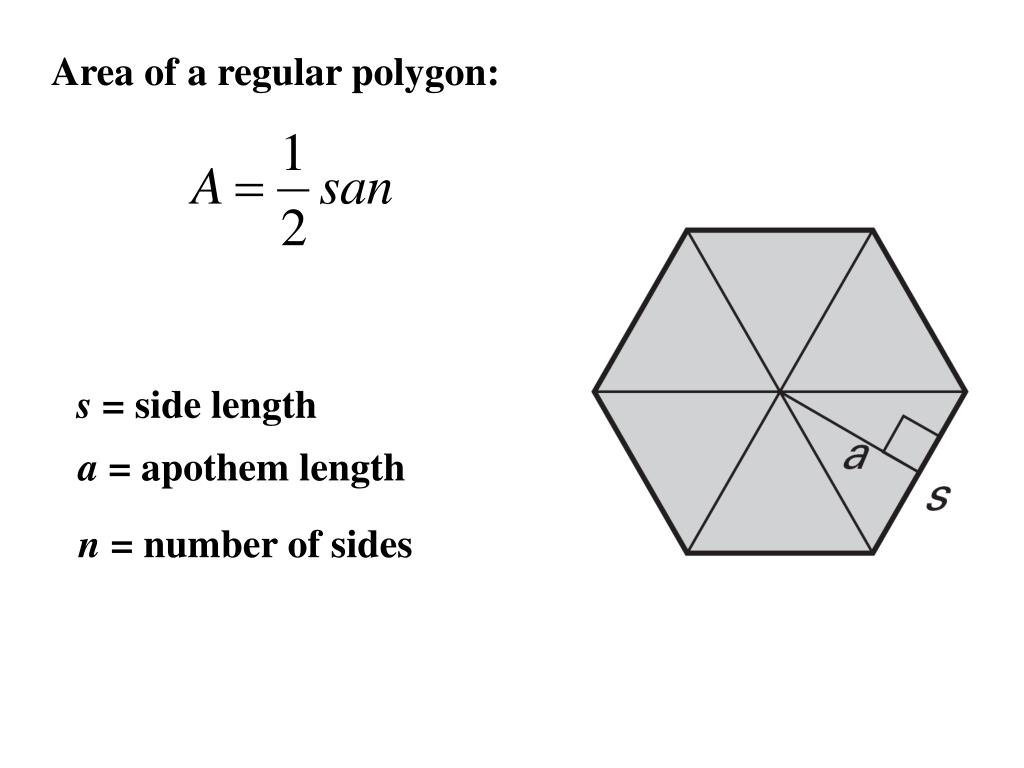

  14. Area of a regular polygon: s = side length a = apothem length n = number of sides

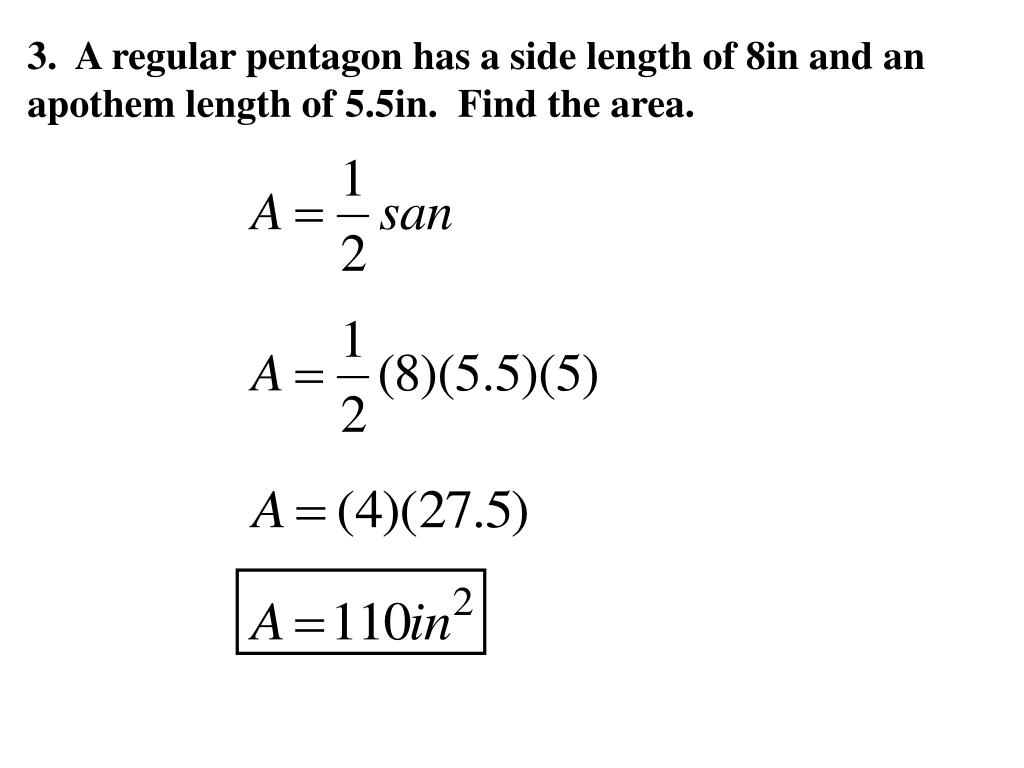

  15. 3. A regular pentagon has a side length of 8in and an apothem length of 5.5in. Find the area.

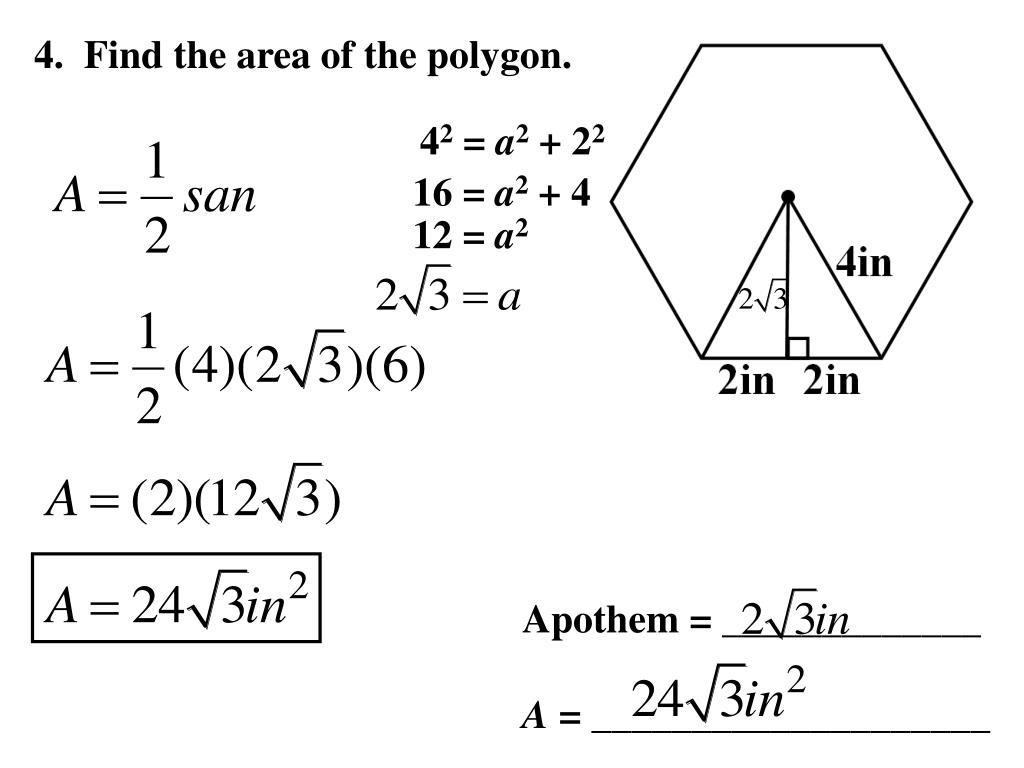

  16. 4. Find the area of the polygon. 42 = a2 + 22 16 = a2 + 4 12 = a2 Apothem = _____________ A = ____________________

  17. 5. Find the area of the polygon. c2 = a2 + b2 6.82 = a2 + 42 46.24 = a2 + 16 30.24 = a2 5.5 5.5 = a 5.5in Apothem = _____________ A = ____________________

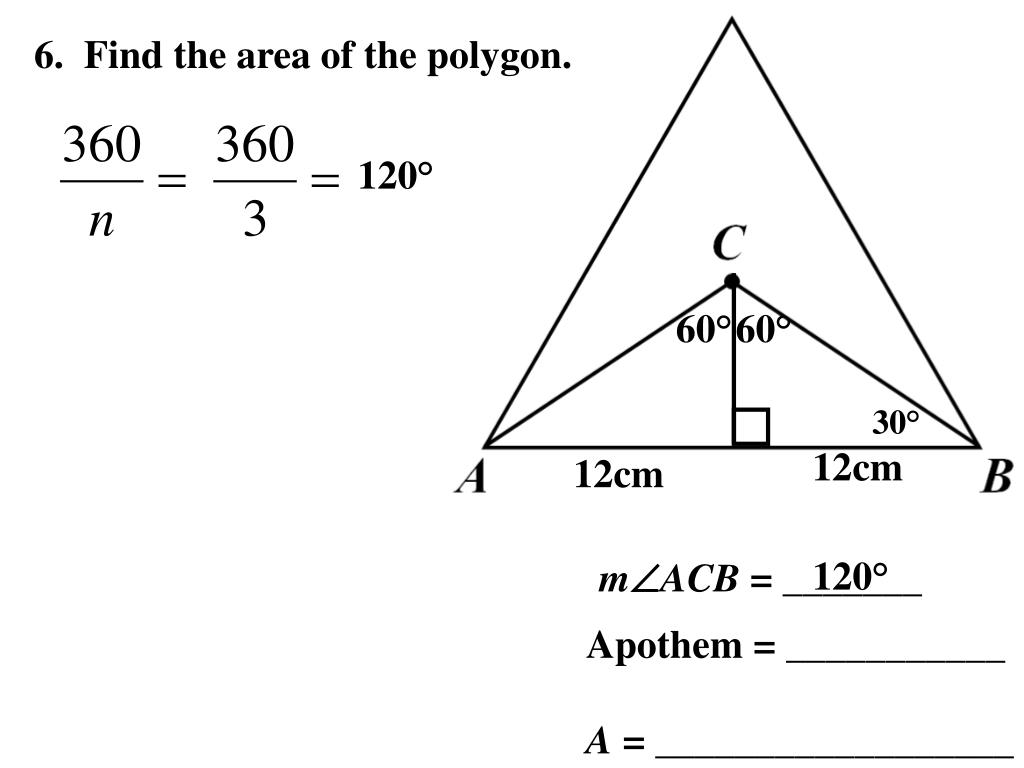

  18. 6. Find the area of the polygon. 120° 60° 60° 30° 12cm 12cm 24cm 120° mACB = _______ Apothem = ___________ A = __________________

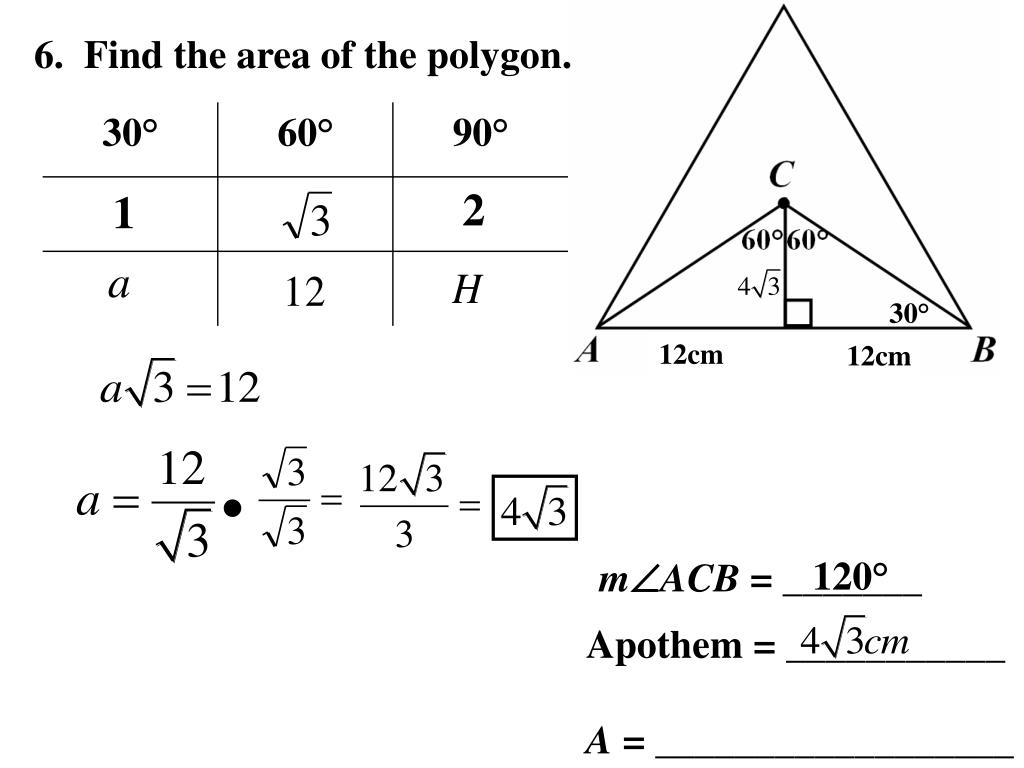

  19. 6. Find the area of the polygon. 2 1 30° 12cm 12cm  120° mACB = _______ Apothem = ___________ A = __________________

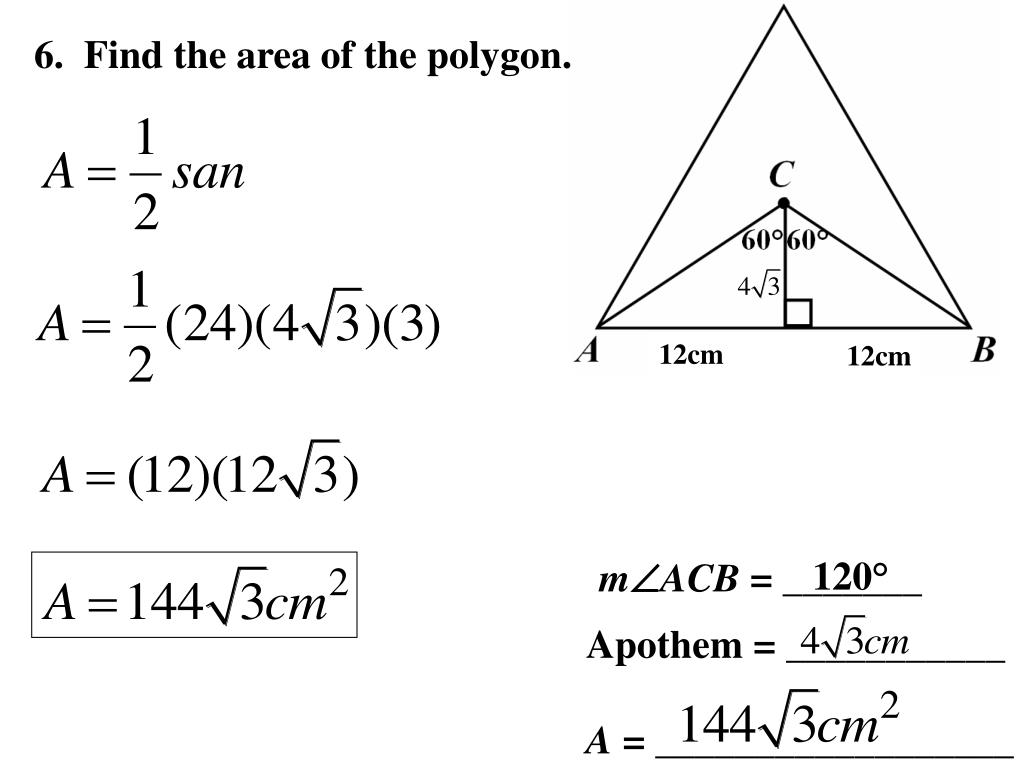

  20. 6. Find the area of the polygon. 12cm 12cm 120° mACB = _______ Apothem = ___________ A = __________________

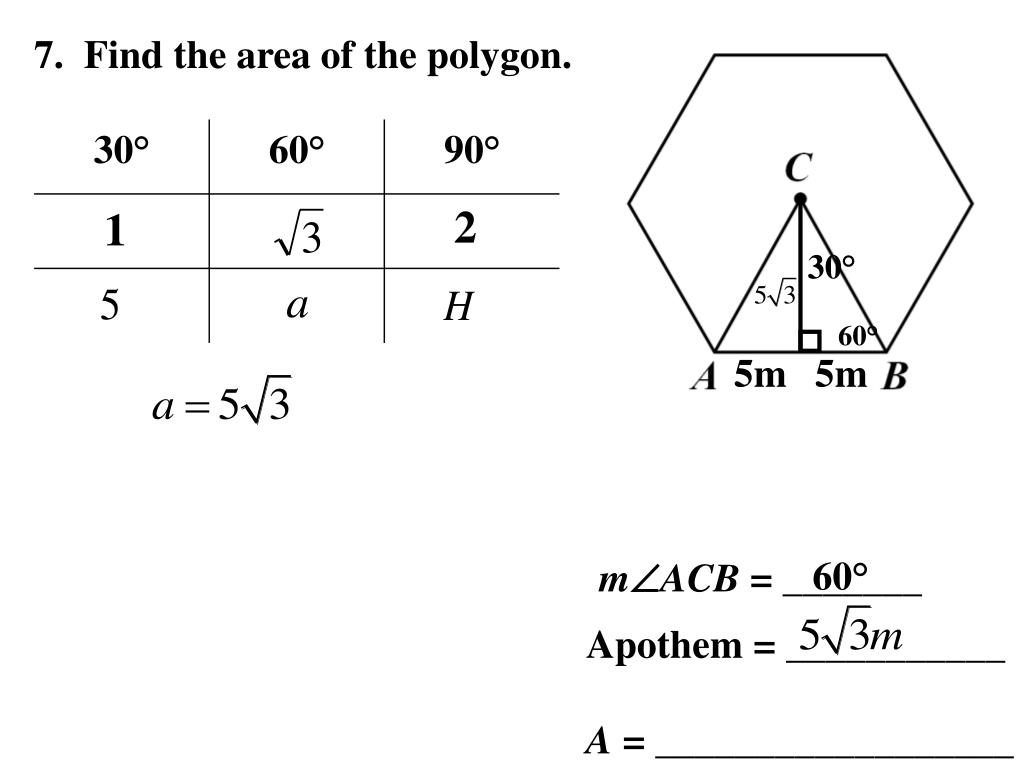

  21. 7. Find the area of the polygon. 60° 30° 60° 5m 5m 60° mACB = _______ Apothem = ___________ A = __________________

  22. 30° 5m 5m 7. Find the area of the polygon. 2 1 60° 60° mACB = _______ Apothem = ___________ A = __________________

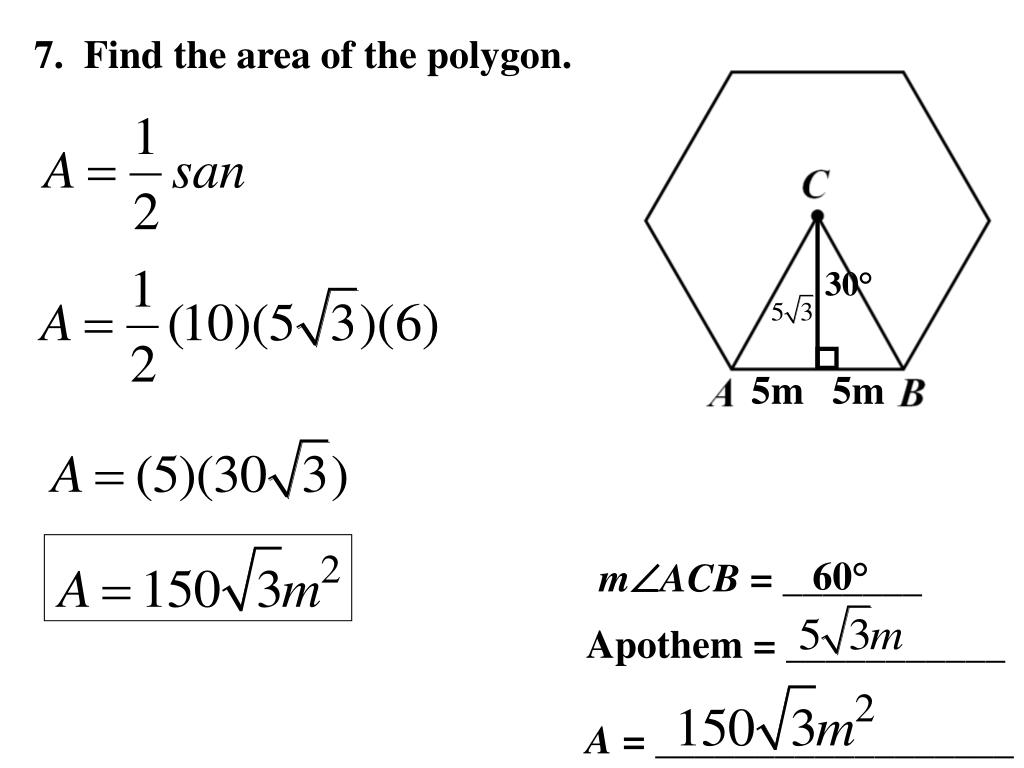

  23. 30° 5m 5m 7. Find the area of the polygon. 60° mACB = _______ Apothem = ___________ A = __________________

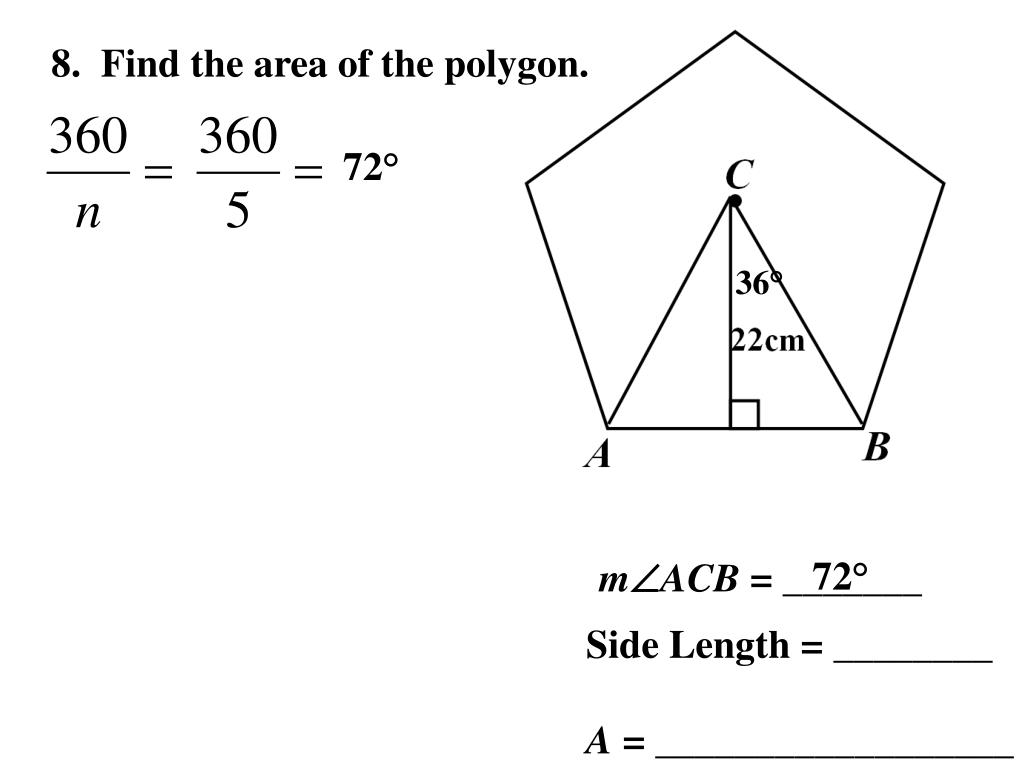

  24. 8. Find the area of the polygon. 72° 36° 72° mACB = _______ Side Length = ________ A = __________________

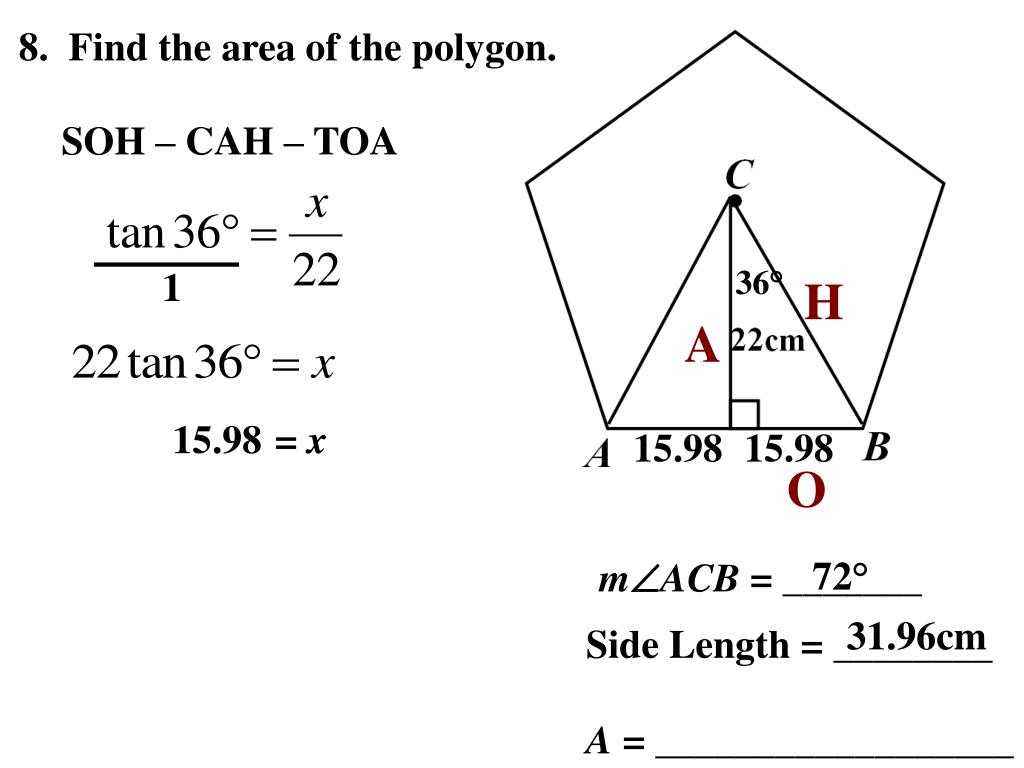

  25. 8. Find the area of the polygon. SOH – CAH – TOA 36° 1 H A 15.98 = x 15.98 15.98 O 72° mACB = _______ 31.96cm Side Length = ________ A = __________________

  26. Find the area of the polygon. 36° H A 15.98 15.98 O 72° mACB = _______ 31.96cm Side Length = ________ A = __________________

  27. 9. Find the area of the polygon. 45° 22.5° 45° mACB = __________ Apothem = __________ Side Length = ________ A = __________________

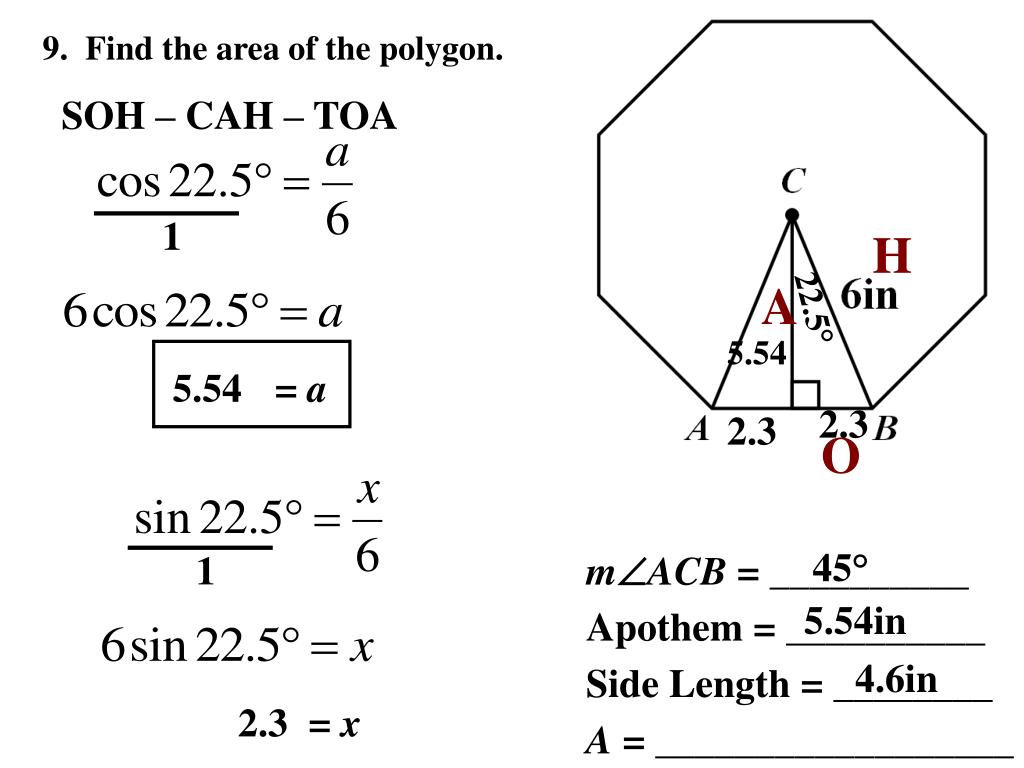

  28. 9. Find the area of the polygon. SOH – CAH – TOA 1 H A 22.5° 5.54 5.54 = a 2.3 2.3 O 45° 1 mACB = __________ Apothem = __________ Side Length = ________ A = __________________ 5.54in 4.6in 2.3 = x

  29. 9. Find the area of the polygon. H A 22.5° 5.54 2.3 O 2.3 45° mACB = __________ Apothem = __________ Side Length = ________ A = __________________ 5.54in 4.6in

  30. HW Problems #20 H O 36° 2.98 A 2.98 SOH – CAH – TOA 29.8u 2.98 = x
