  1. Computer Aided Layout Manual CRAFT ALDEP CORELAP PLANET Examples

  2. CRAFT • Input data • Program name • No. of depts. • No. of rows and columns • Type of interchanges to attempt • Input-output control • Debug parameter • No. of depts. to be fixed • Fixed depts. no. • From-To chart & Move cost • Initial layout • Output data • Improved layout • Total cost • No. of iteration

  3. CRAFT • Program name • No. of depts. • No. of rows and columns • Type of interchanges to attempt • Input-output control • Debug parameter • No. of depts. to be fixed • Fixed depts. no. omitted

  4. CRAFT • From-To chart • Move cost • 0.001$/m from i to j • The transportation cost from dept. i to dept. j ($/unit distance)

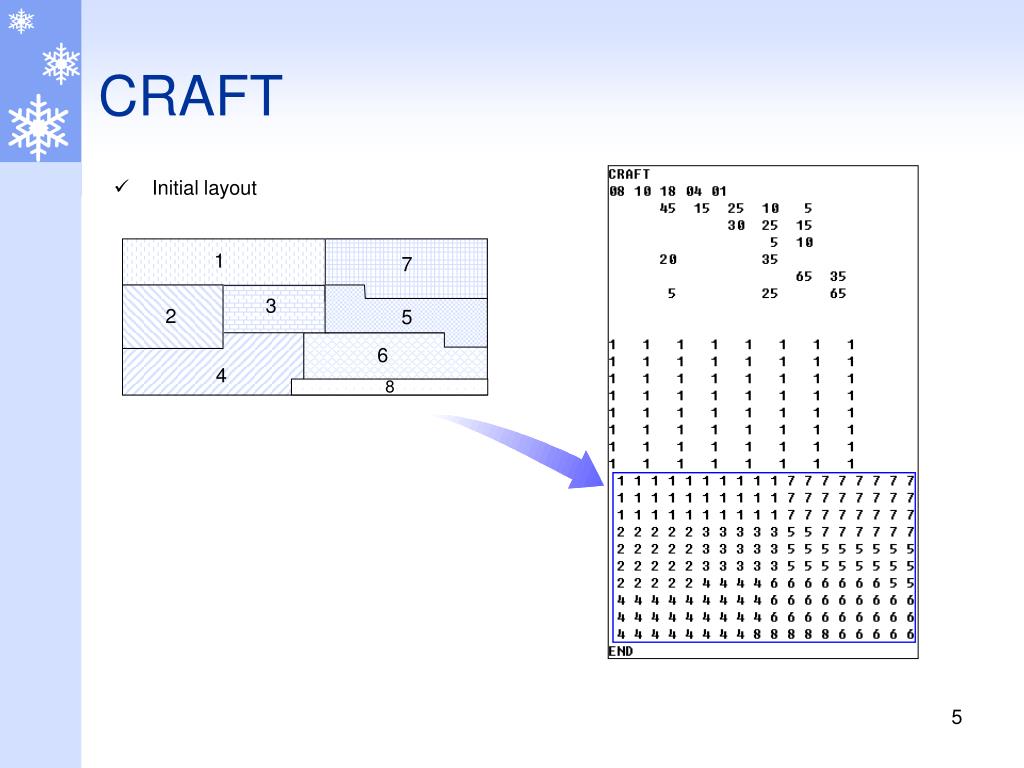

  5. 1 7 3 2 5 6 4 8 CRAFT • Initial layout

  6. CRAFT • Output data • Input data • Results of each iteration • Summary

  7. CRAFT • Output data • Input data • Results of each iteration • Summary

  8. CRAFT • Output data • Input data • Results of each iteration • Summary

  9. ALDEP • Input data • Program name • Random numberseed • Data of each floor • Departmental area data • Relationship chart • Any limitations to be adhered to within the layouts. • Output data • Input data • Final layout

  10. ALDEP • Input data • Program name • Random number seed • Random numberseed • main floor’s • Column no, to begin placing depts. • Column sweep with • No. of unit squares to be available • width • length • No. of square feet in a unit square • Round-off factor • No. of layouts to be generated • Minimum allowable score for print • Degree of closeness

  11. ALDEP • Input data • Departmental area data • Relationship chart • Any limitations to be adhered to within the layouts.

  12. ALDEP • Output data • Input data • Final layout

  13. ALDEP • Output data • Final layout

  14. CORELAP • Input data • Weights • Program name • Information of each depts. • Departmental area data • Pre-assigning depts. • Relationship chart • Output data • Input data • Final layout

  15. CORELAP • Input data • Weights • X, U, O, I, E, A, pre-assigned • Problem no. and name • Depts. information • No. of depts. • Requested unit square side length

  16. CORELAP • Input data • Area of dept. • Pre-assigned • Relationship chart

  17. PLANET • Input data • Problem description • Dept. description • Material flow data

  18. PLANET • Input data • Problem description • Date and problem name • No. of depts. • Unit block size • Type of input data • Construction option

  19. PLANET • Input data • Material flow data • Name of dept. • No. of dept. • Material flow

  20. PLANET • Input data • Dept. description • Name of dept. • Area of dept. • priority • Type of material flow
