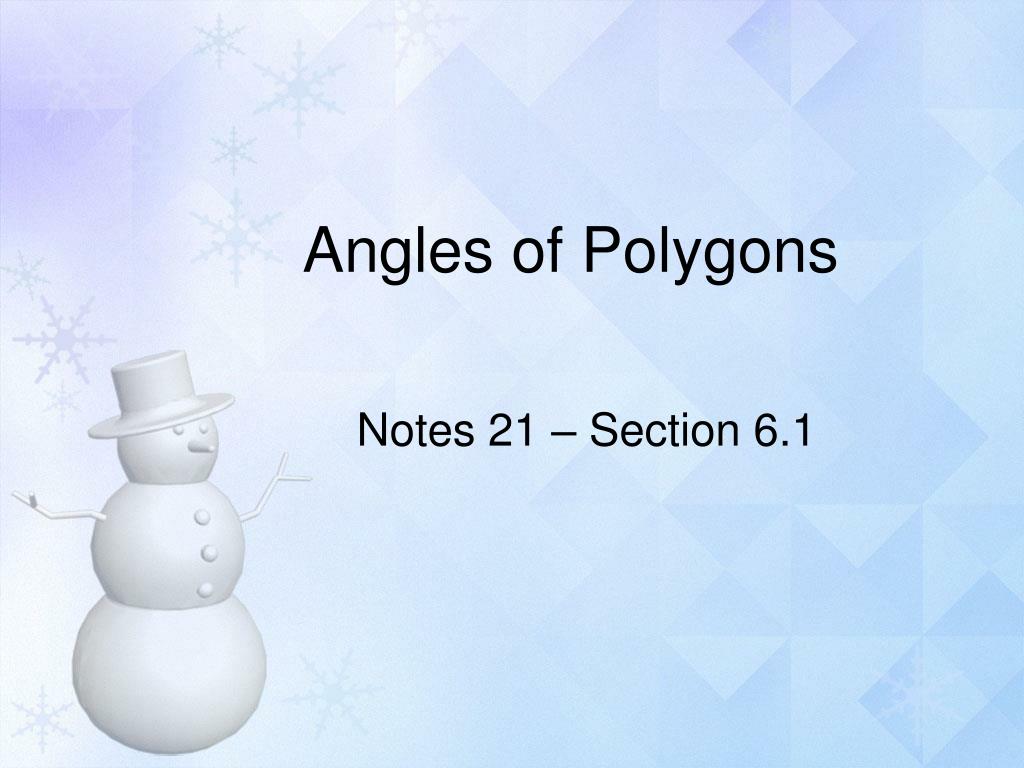

  1. Angles of Polygons Notes 21 – Section 6.1

  2. Essential Learnings • Students will understand and be able to determine the sum of the interior and exterior angles of polygons. • Students will be able to solve problems involving polygons.

  3. Vocabulary • Diagonal – a segment that connects any two nonconsecutive vertices.

  4. Sum of Interior Angle Measures

  5. Polygon Interior Angles Sum • The sum of the interior angle measures of an n-sided convex polygon is (n – 2) • 180. mA + mB + mC + mD + mE = (5 – 2)  180 = 540 B A C E D

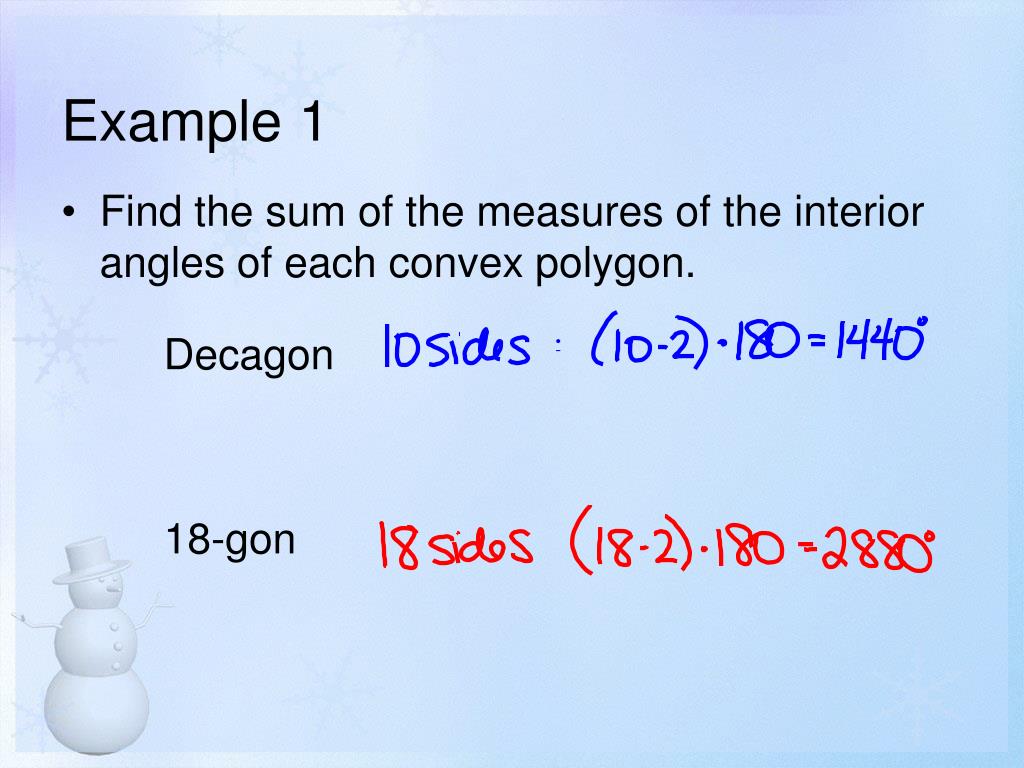

  6. Example 1 • Find the sum of the measures of the interior angles of each convex polygon. Decagon 18-gon

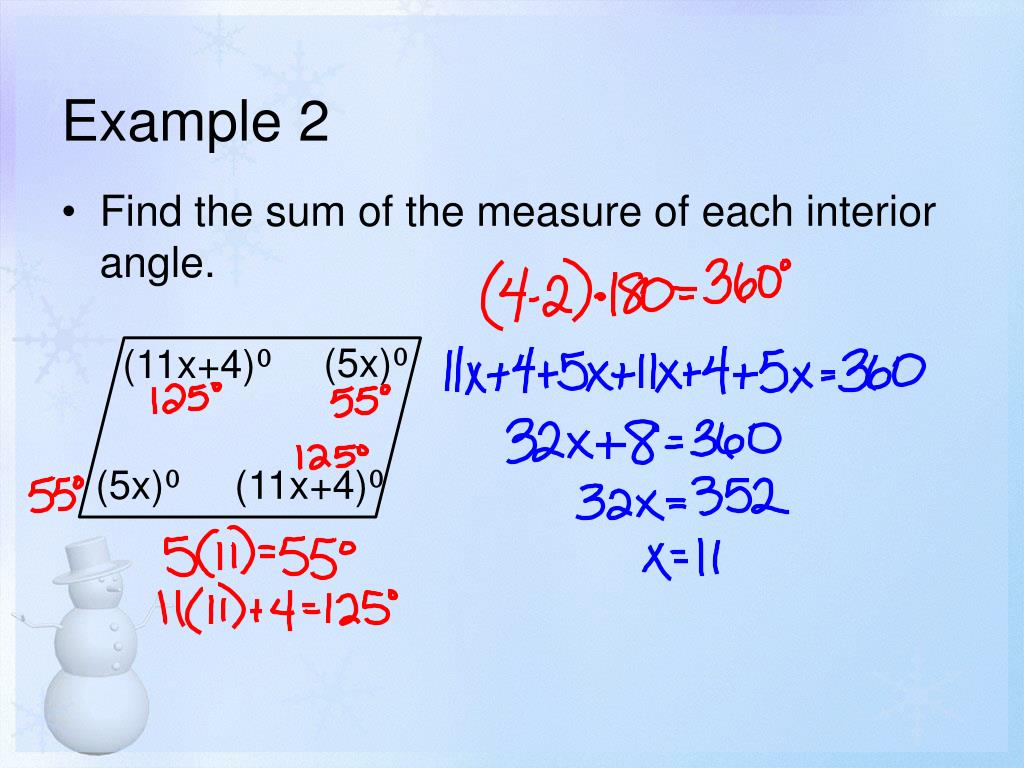

  7. Example 2 • Find the sum of the measure of each interior angle. (5x)⁰ (11x+4)⁰ (11x+4)⁰ (5x)⁰

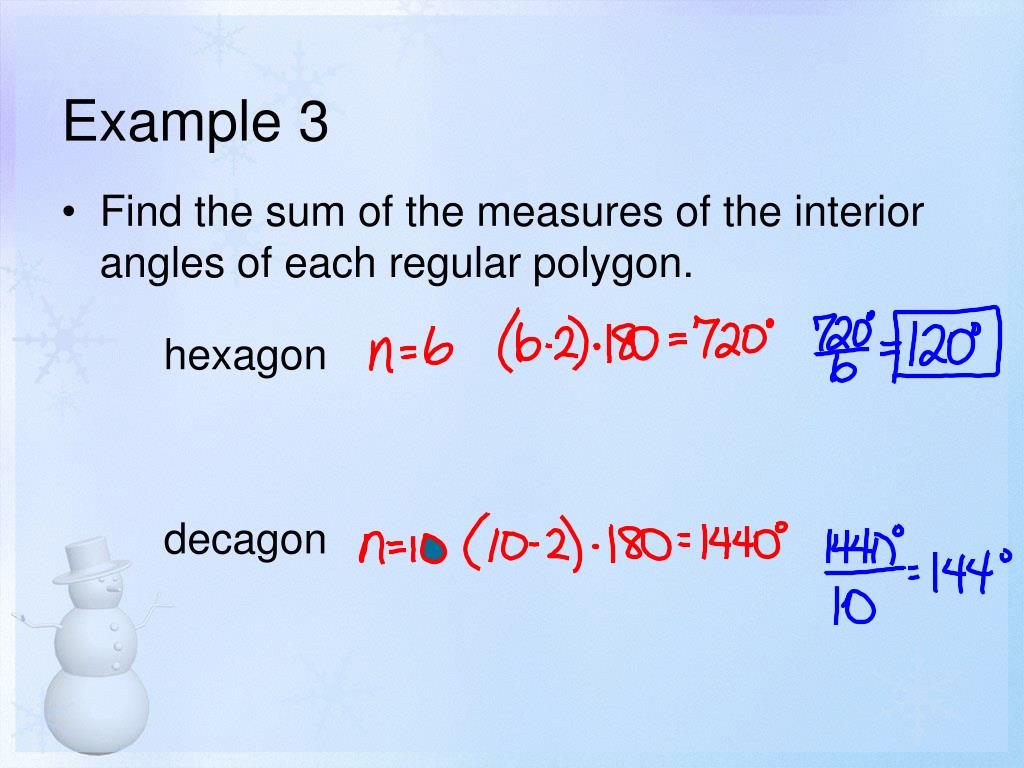

  8. Example 3 • Find the sum of the measures of the interior angles of each regular polygon. hexagon decagon

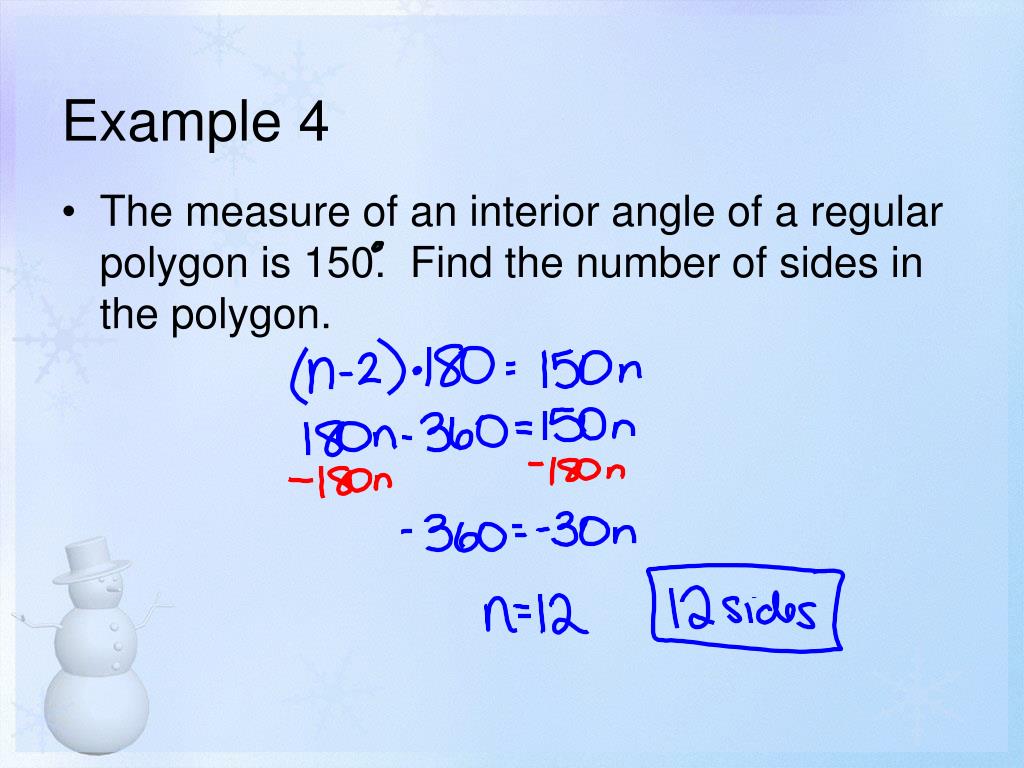

  9. Example 4 • The measure of an interior angle of a regular polygon is 150. Find the number of sides in the polygon.

  10. Polygon Exterior Angles Sum • The sum of the exterior angle measures of a convex polygon, one angle at each vertex, is 360⁰. m1 + m2 + m3 + m4 + m5 = 360. 2 1 3 5 4

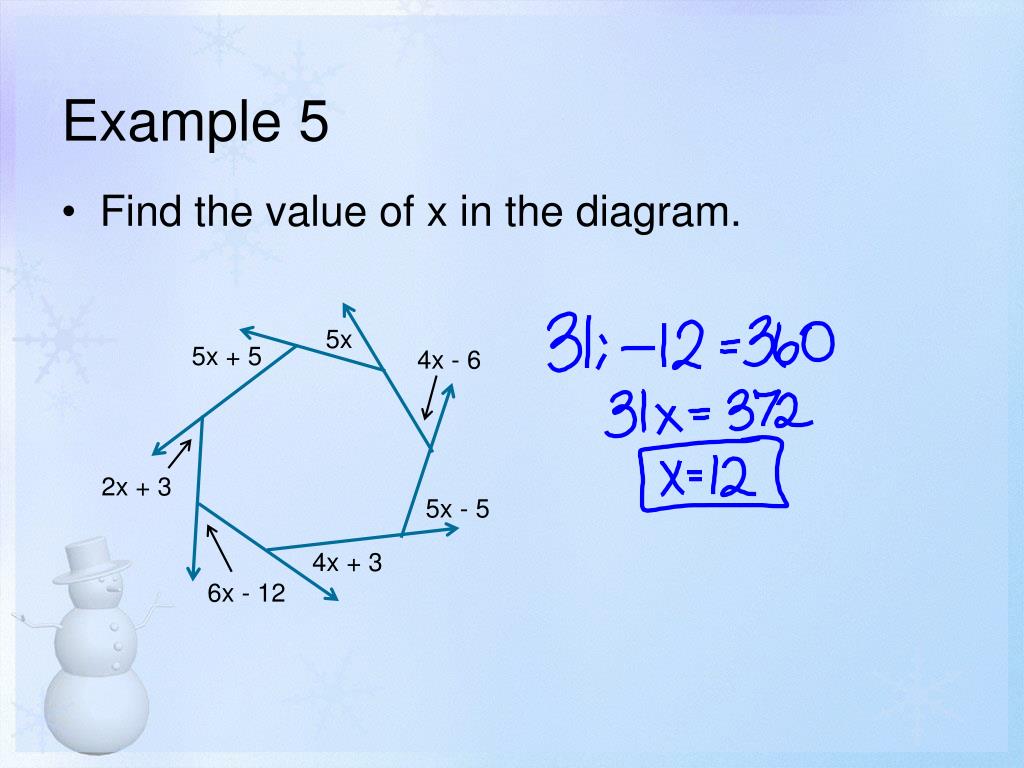

  11. Example 5 • Find the value of x in the diagram. 5x 5x + 5 4x - 6 2x + 3 5x - 5 4x + 3 6x - 12

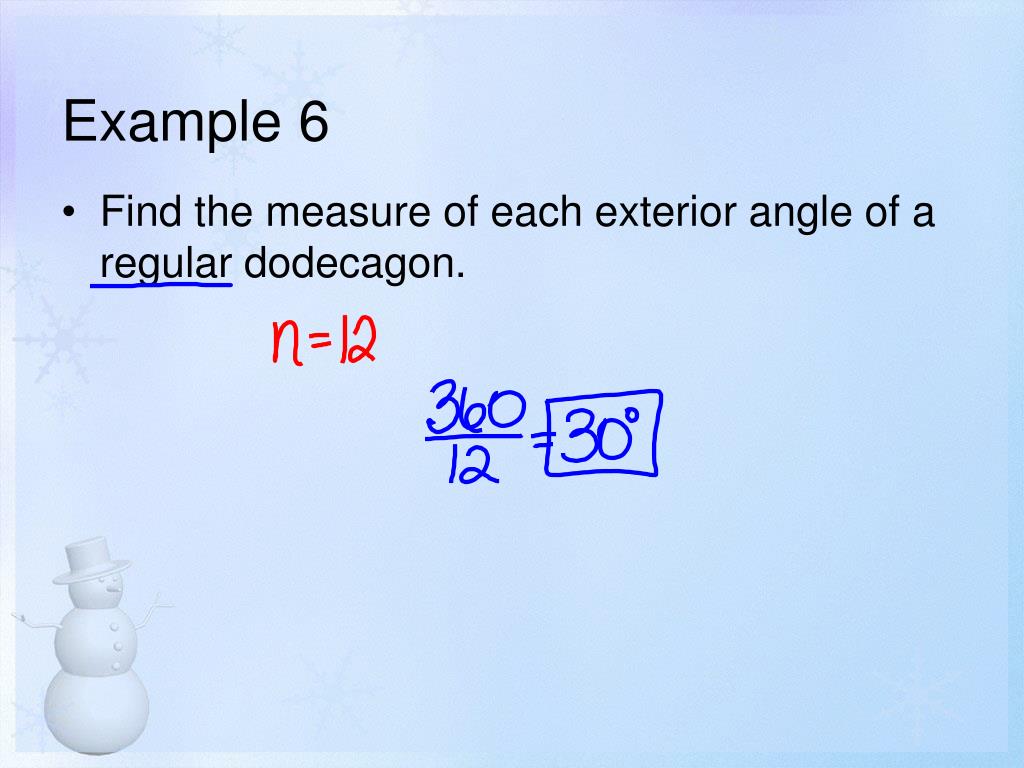

  12. Example 6 • Find the measure of each exterior angle of a regular dodecagon.

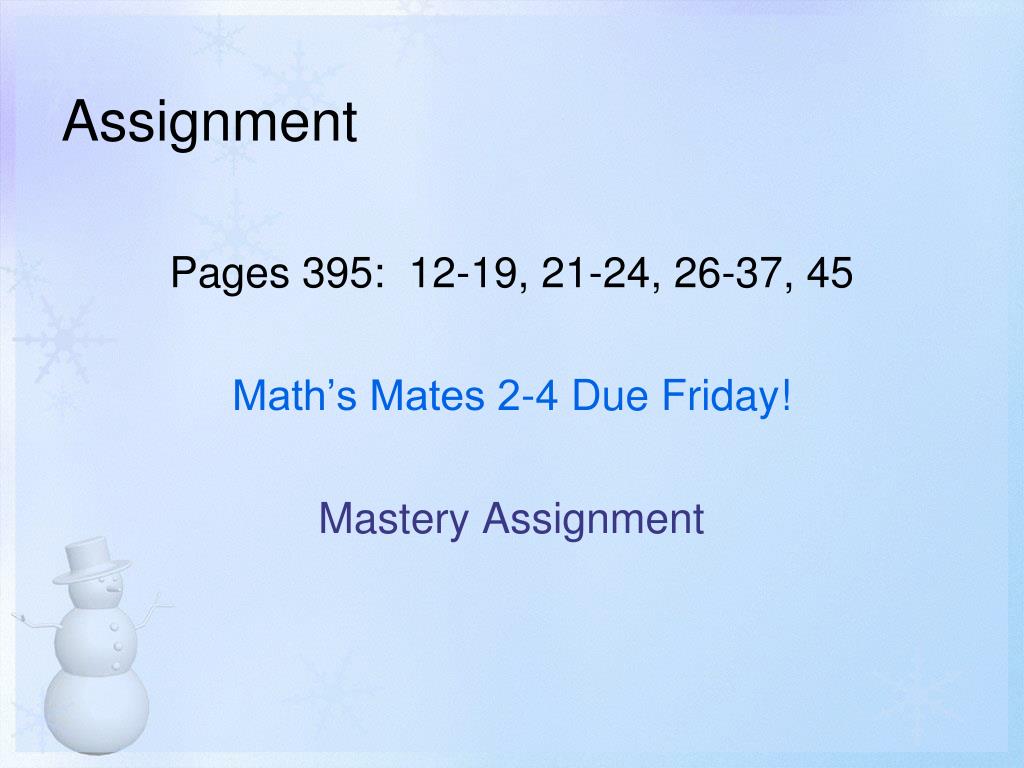

  13. Assignment Pages 395: 12-19, 21-24, 26-37, 45 Math’s Mates 2-4 Due Friday! Mastery Assignment
