  1. Matrix Mapping Tool Sam Gross Internship at Virtual Technology Corporation

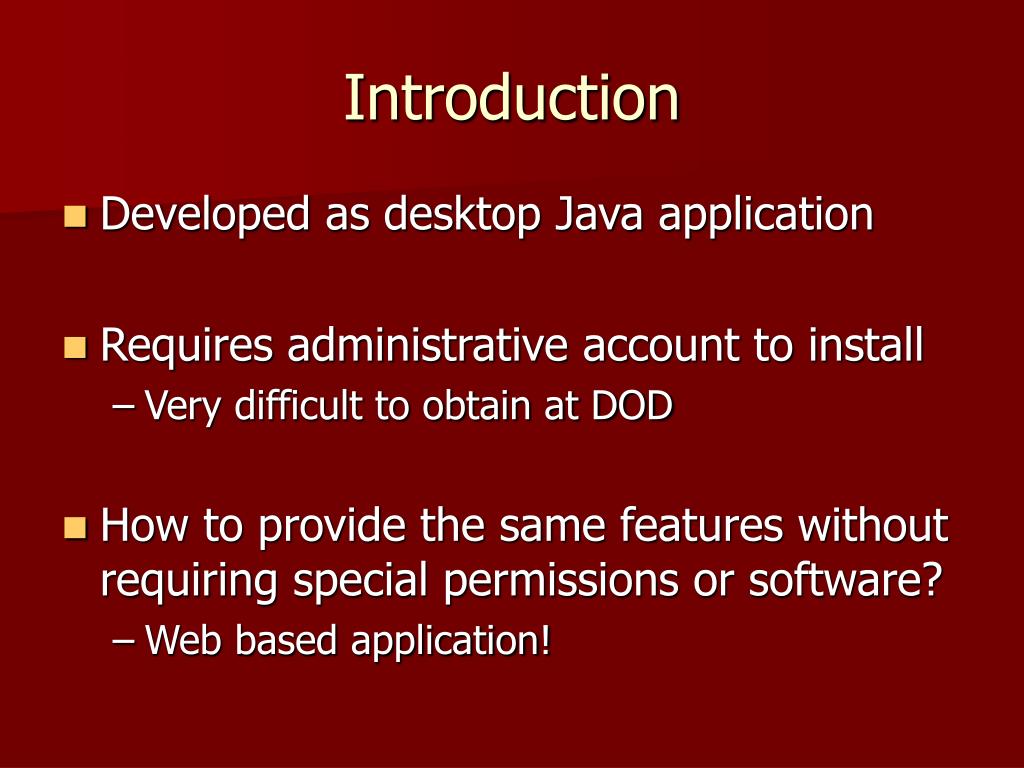

  2. Introduction • Developed as desktop Java application • Requires administrative account to install • Very difficult to obtain at DOD • How to provide the same features without requiring special permissions or software? • Web based application!

  3. Desktop Application Navigate By… Tree Control Property Tables

  4. Technologies • Server: Apache Tomcat • Java Servlets, JSP • Database: Microsoft Access • Client: Web browser (Internet Explorer, Firefox) • HTML, DHTML, JavaScript, AJAX

  5. Web Application Navigate By… Tree Control Property Tables

  6. Tree Control Mechanism • User clicks on node • Browser sends XMLHTTPRequest to server • Displays “Loading…” • Server looks up node based on id • Retrieves children from database • Sends list to browser in XML format • Browser updates DOM of tree

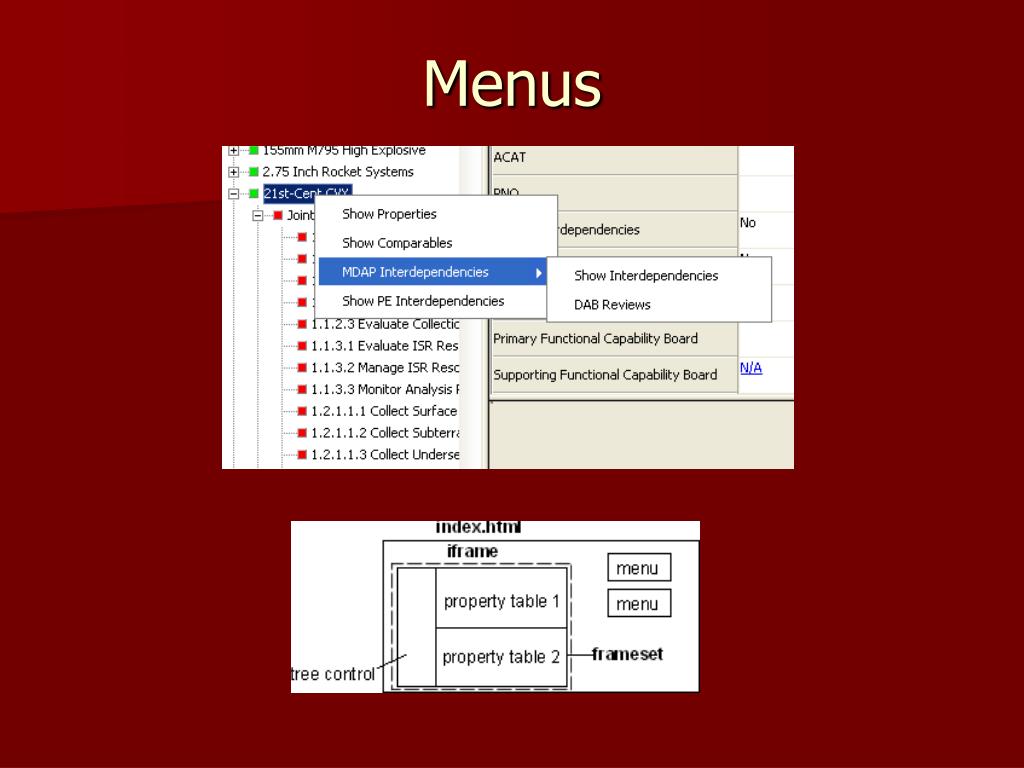

  7. Menus

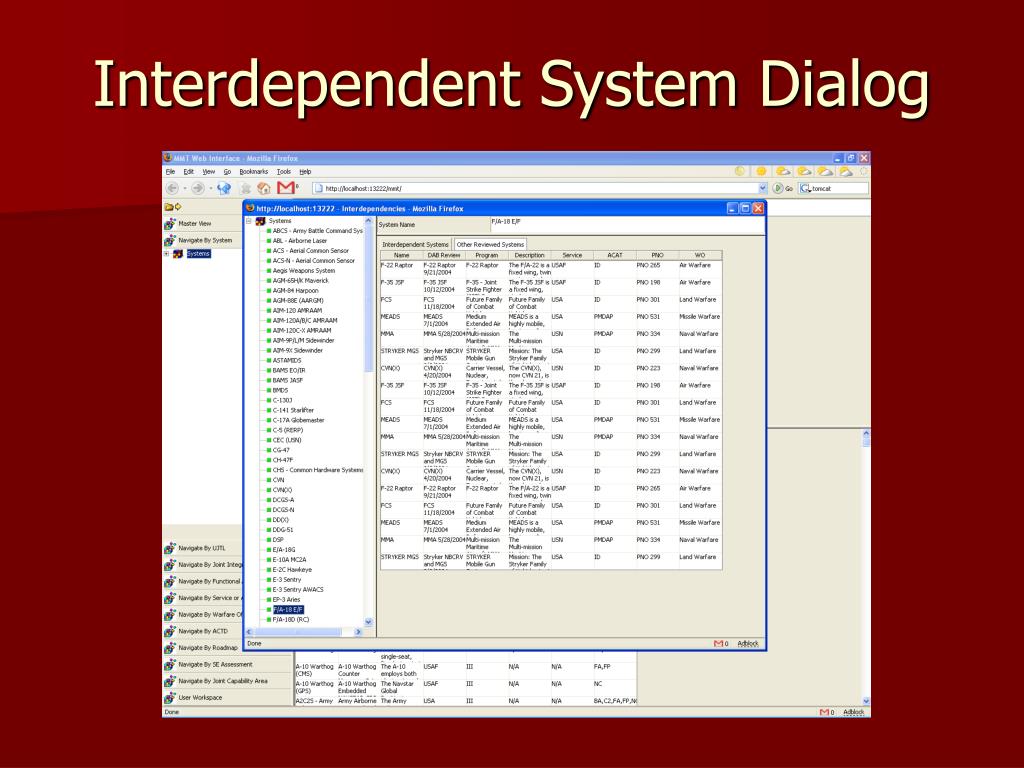

  8. Interdependent System Dialog

  9. JIAS Hierarchy Dialog

  10. Comparables View

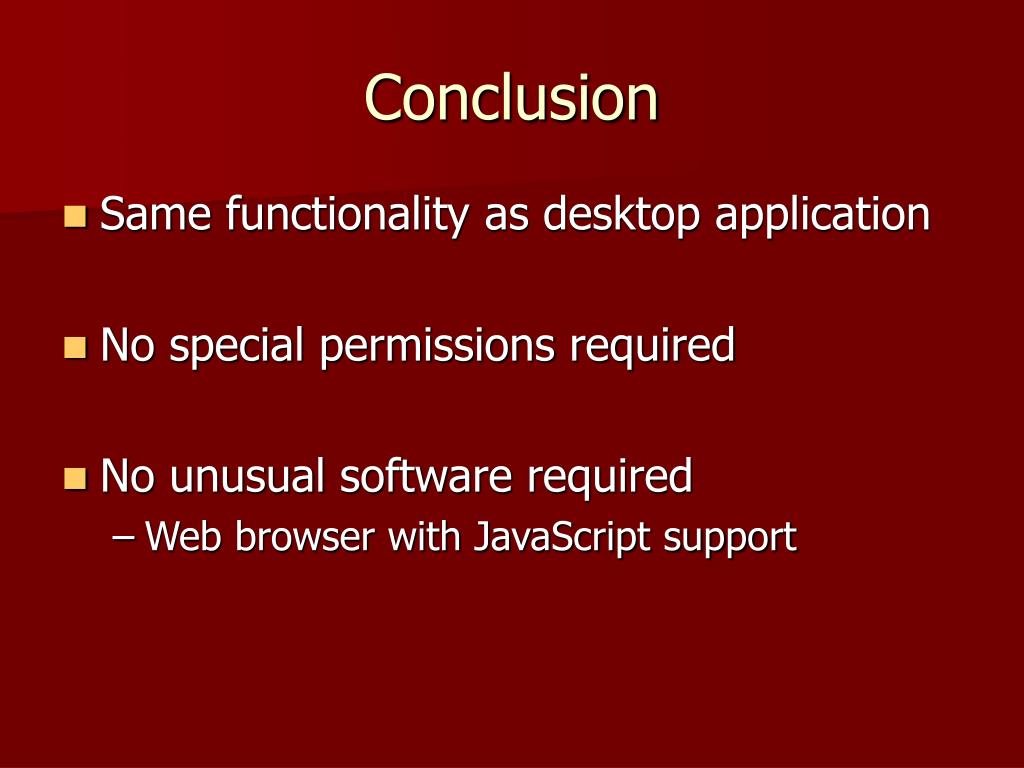

  11. Conclusion • Same functionality as desktop application • No special permissions required • No unusual software required • Web browser with JavaScript support
