  1. PLAN • TELEMAC MODELLING PROGRESS • WATERWARE PROGRESS • RRM model • WRM model • SOCIO-ECONOMIC DATA BASE PROGRESS • SCENARIO ANALYSIS

  2. TELEMAC MODELLING

  3. TELEMAC MODELLING : Objectives Our case study simulates the impact of a recycled water discharge (from the station STEP3 ) on the swimming water quality through an off-shore emissary. For that purpose, we monitored the dispersion plume of COD and BOD coming from the emissary that is 1600 m far from the coast and laying at –23m depth. The objective of this study is to know how the polluants are dispersed in the Gulf of Hammamet (plume extent, affected areas); Even if the rejections are conform to the national standards this will allow us to implement an early warning system and action plan in the case of break down of the treatment station or over-flow; Sustainable management of STEP3 can be done thanks to this study.

  4. Data descriptions TELEMAC MODELLING : Availabledata

  5. TELEMAC MODELLING : Available data Bathymetry plotted on RUBENS Modelling study area

  6. TELEMAC MODELLING : Mesh construction

  7. TELEMAC MODELLING : Mesh construction

  8. TELEMAC MODELLING : Boundary conditions • Solid limit boundary • Imposed velocity liquid boundary

  9. TELEMAC MODELLING : Liquid Boundary conditions INSTM Model ( Institut National des Sciences et Technologies de la Mer) • Hydrodynamic model that includes the whole tunisian coasteline • It integrates a typical wind velocity calculated using a serie of mesures more than 30 years observation • The maille is 5 kms long

  10. TELEMAC MODELLING : Availabledata Averaged velocity calculated on the whole water column (january, 1st)

  11. WATERWARE

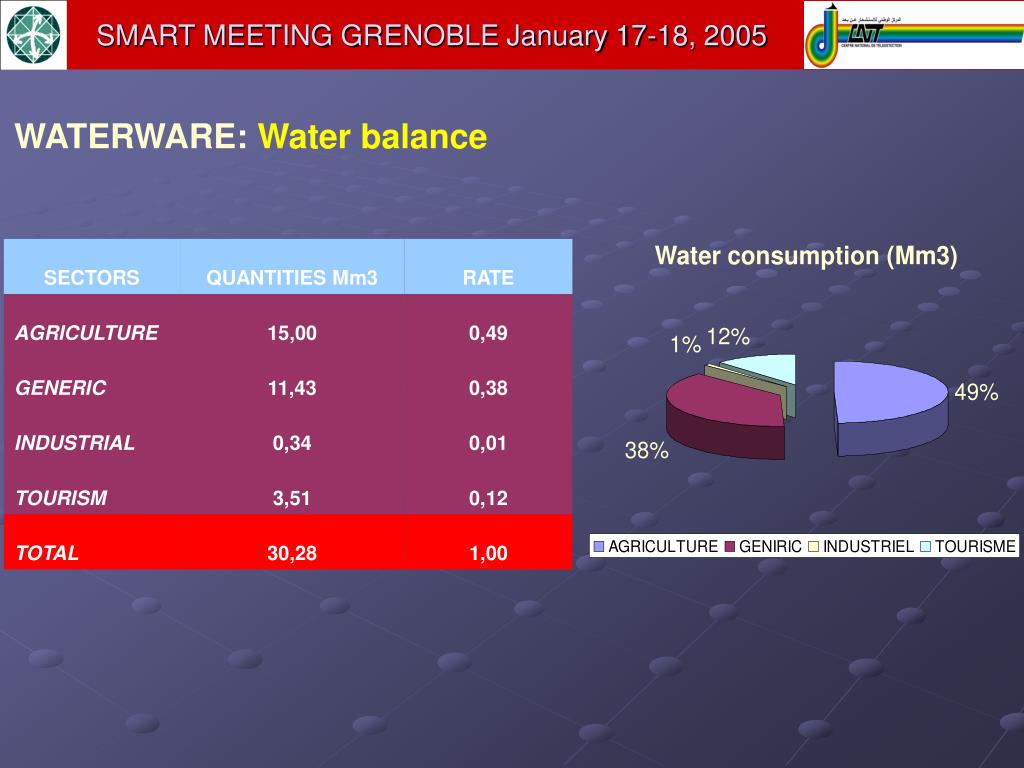

  12. WATERWARE: Water balance

  13. WATERWARE: Water balance

  14. WATERWARE: Water balance WP03: ANALATICOL TOOLS, MODELS

  15. WATERWARE: RRM & WRM modelling Strategy adopted : • Implement RRM model for each sub-catchment in which there is one or more dams • Gather the other sub-catchments in a unique hydrologic unit • In a second step, when inplementing WRM model, every unit is considered as a start node that supplies one or more reservoirs • Connect the outflows of all reservoirs to obtain a unique entry for the surface water

  16. WATERWARE: RRM modelling Sub-catchments : 08 Sub-catchments : 12 Reservoirs : 09

  17. WATERWARE: RRM parameters

  18. WATERWARE: RRM parameters

  19. WATERWARE: RRM parameters

  20. SMART MEETING GRENOBLE 2005 WATERWARE: Node topology Start node : 10 Reservoir node : 09 Damand node : 04 Treatment node : 01 Diversion Node : 15 Confluence Node : 24 Recharge node : 01 End Node : 01 Total nodes : 65 Reaches : 79

  21. WATERWARE: WRM Model Available data • Time series implementation

  22. WATERWARE: WRM Model Available data TS.Agriculture Demand TS.Generic Demand TS.Generic Demand TS.Tourism Demand TS.Industrial Demand

  23. WATERWARE: WRM Model Available data TS.Ground water TS. Interbasin transfert

  24. Precipitation Temperature

  25. SOCIO-ECONOMIC DATABASE

  26. SOCIO-ECONOMIC DATA BASE: Current status

  27. SOCIO-ECONOMIC DATA BASE: Current status CASE_COUNTRY STATION REGION REG_POP

  28. SOCIO-ECONOMIC DATA BASE: Current status NAT_IND

  29. SOCIO-ECONOMIC DATA BASE: Current status REG_IND

  30. SOCIO-ECONOMIC DATA BASE: Current status METADATA WP03: ANALATICOL TOOLS, MODELS

  31. SOCIO-ECONOMIC DATA BASE: Current status

  32. SCENARIO ANALYSIS: Scenario framework precipitation rate decrease (climatic change) Rural to urban immigration Natural growth rate National policies for tourism development Marine Saltwater intrusion Pollution High tourism developpement surface water Mobilization Urban Population increase Taxes Surface water resources decrease Ground water Resources decrease Losses (Network ) Prohibited perimeters unappropriate Irrigation techniques Increase of irrigated surface Policies Import Increase in touristic water demand Decrease in water resource Insufficient Increase in urban water demand Increase in agriculture water demand Insufficient water supply

  33. SCENARIO ANALYSIS: Scenarios

  34. Thank you
