  1. Lecture 4 Introduction to Environmental Engineering January 20, 2000

  2. Engineering Dimensions and Units • Being Technically Sound! • Fundamental Dimensions • force (F) • mass (M) • length (L) • time (T)

  3. Engineering Dimensions and Units • Derived Dimensions • calculated dimensions produced by combining fundamentals • velocity (L/T) • mass balance (M/T) • Dimensions do not describe the quantity • What? Not HOW Much?

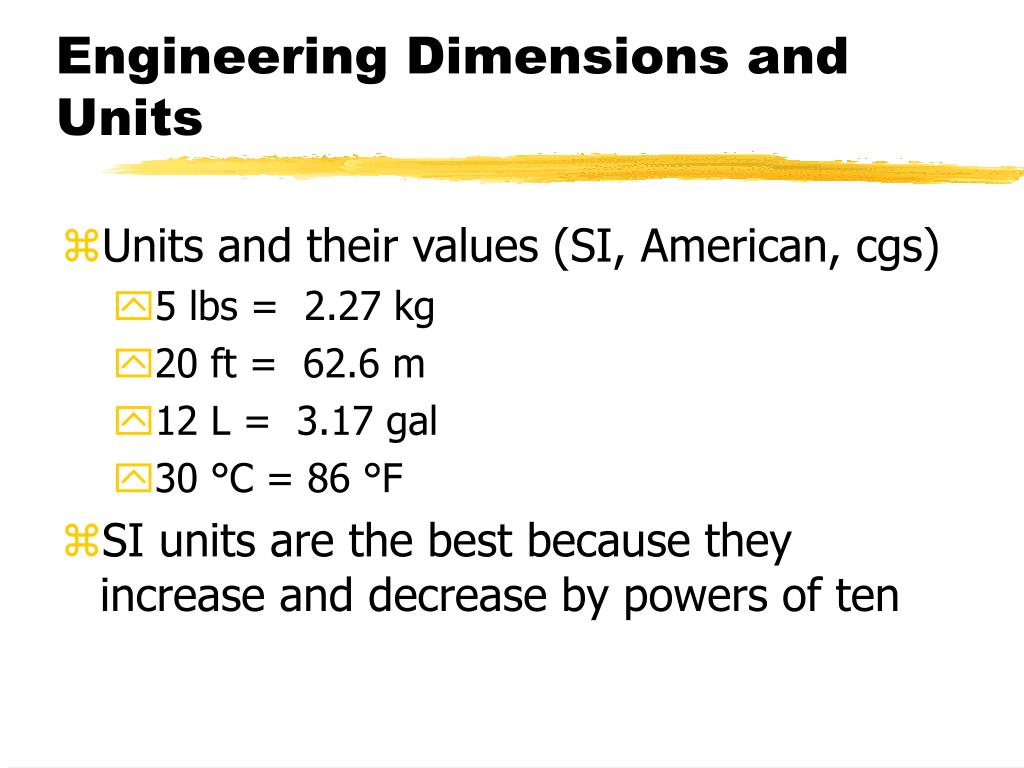

  4. Engineering Dimensions and Units • Units and their values (SI, American, cgs) • 5 lbs = 2.27 kg • 20 ft = 62.6 m • 12 L = 3.17 gal • 30 °C = 86 °F • SI units are the best because they increase and decrease by powers of ten

  5. Engineering Dimensions and Units • Density • CA= concentration of A, MA = mass of material A, • VA = volume of material A, VB = Volume of material B

  6. Engineering Dimensions and Units • Ex. 150g of NaCl are added to 50 m3 of water. The volume of the NaCl = 0.001 m3. What is the concentration of the mixture after the NaCl has completely dissolved (in mg/L)?

  7. Engineering Dimensions and Units • Notice in the previous example that the volume of the salt was quite small in comparison to the volume of water. • Concentration as a percentage (usually by mass) • A= percent of material A, • MA, MB = mass of materials A and B respectively

  8. Engineering Dimensions and Units • Ex.The sand and biological material in an expanded bed reactor has a concentration of 40,000 mg/L, given a density of 1 g/cm3, what is the percent mass of the material?

  9. Engineering Dimensions and Units • Air Pollution Dimensions • generally expressed as mass of pollutant per volume of air at standard temperature and pressure • occasionally expressed as ppm or part per million, in which case • one volume of a pollutant per 1 x 106 volumes of air • conversion from mass/volume (mg/m3) requires knowledge of the molecular weight

  10. Engineering Dimensions and Units • at standard temperature (0 ° C) and pressure (1 atm) one mole of gas occupies 22.4 L of volume

  11. Engineering Dimensions and Units • Flow Rate and Residence Time • either gravimetric or volumetric • kg/s or m3/s • they are not independent of each other but related by density of the substance • [mass] = [density] x [volume] • QM =  QV

  12. Engineering Dimensions and Units • Ex. The BOD5 of the influent to a WWTP is 500 g/L with the flowrate of 100 m3/s. What are the gravimetric and volumetric flowrates of BOD5? • Gravimetric = 100 m3/s x 500 g/L x 1000 L/m3 = • = 5 x 107 g/s • Volumetric = ?, need to know the percent of the 100 m3/s that is BOD5

  13. Engineering Dimensions and Units • Residence Time •  = V/Q, the amount of time for a particle to pass through a reactor • What is the residence time of BOD5 in the previous example for a reactor of 100 m3? •  =100 m3/100 m3/s = 1 s • it takes 1 second for the water to pass through the reactor

  14. Homework #2 • Chapter 2: 2, 5, 9, 12, 16, 18
