Presentation Transcript

  1. DGET 1360 Nielson Homes Shady Meadows Design Competition 1300-1500 Finished Sq. Ft. Rambler

  2. Location

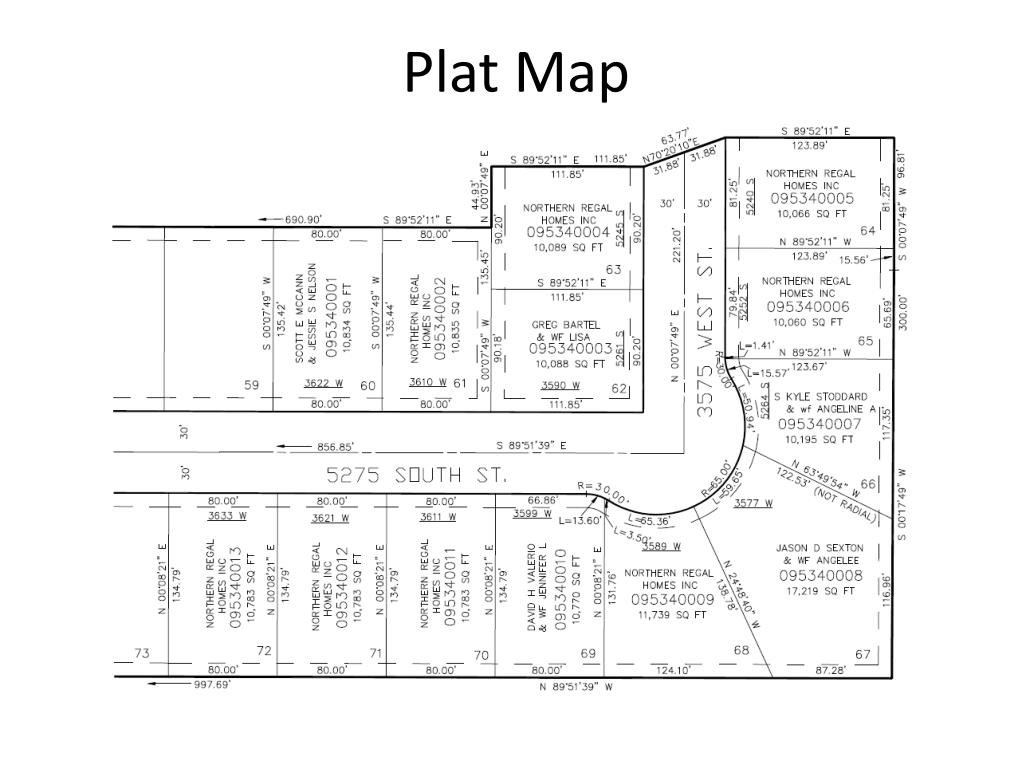

  3. Plat Map

  4. 3645 West 5275 South, Roy Utah

  5. 3589 West 5275 South, Roy Utah

  6. 5252 South 3575 West, Roy Utah

  7. 5245 South 3575 West, Roy Utah

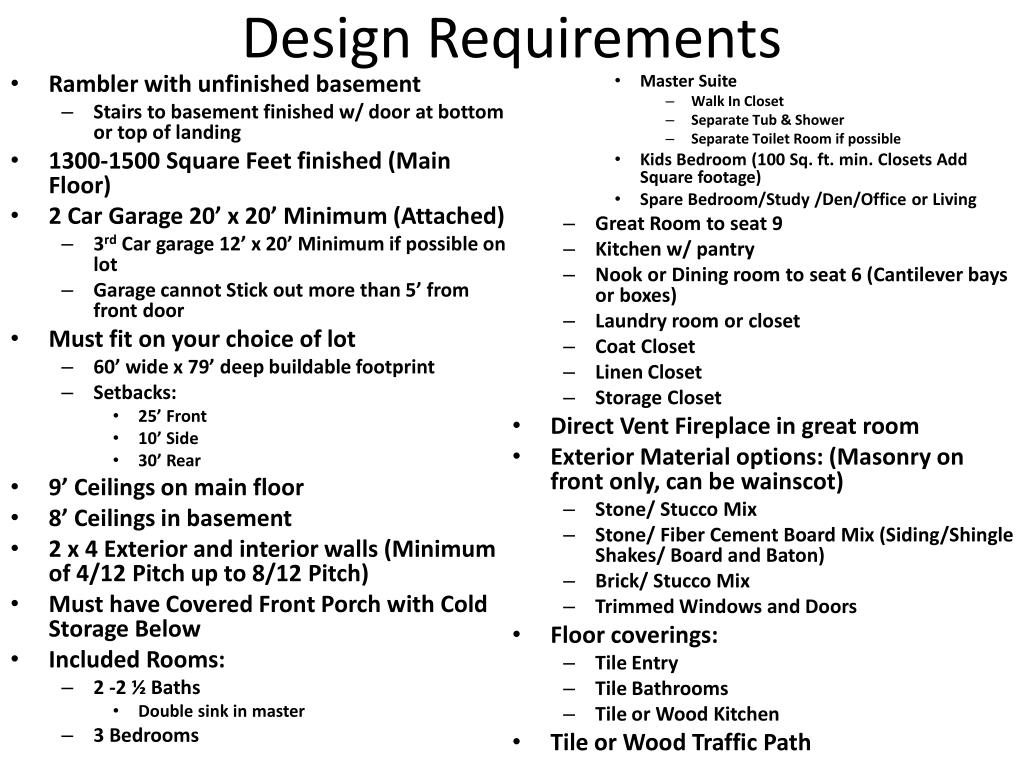

  8. Design Requirements • Rambler with unfinished basement • Stairs to basement finished w/ door at bottom or top of landing • 1300-1500 Square Feet finished (Main Floor) • 2 Car Garage 20’ x 20’ Minimum (Attached) • 3rd Car garage 12’ x 20’ Minimum if possible on lot • Garage cannot Stick out more than 5’ from front door • Must fit on your choice of lot • 60’ wide x 79’ deep buildable footprint • Setbacks: • 25’ Front • 10’ Side • 30’ Rear • 9’ Ceilings on main floor • 8’ Ceilings in basement • 2 x 4 Exterior and interior walls (Minimum of 4/12 Pitch up to 8/12 Pitch) • Must have Covered Front Porch with Cold Storage Below • Included Rooms: • 2 -2 ½ Baths • Double sink in master • 3 Bedrooms • Master Suite • Walk In Closet • Separate Tub & Shower • Separate Toilet Room if possible • Kids Bedroom (100 Sq. ft. min. Closets Add Square footage) • Spare Bedroom/Study /Den/Office or Living • Great Room to seat 9 • Kitchen w/ pantry • Nook or Dining room to seat 6 (Cantilever bays or boxes) • Laundry room or closet • Coat Closet • Linen Closet • Storage Closet • Direct Vent Fireplace in great room • Exterior Material options: (Masonry on front only, can be wainscot) • Stone/ Stucco Mix • Stone/ Fiber Cement Board Mix (Siding/Shingle Shakes/ Board and Baton) • Brick/ Stucco Mix • Trimmed Windows and Doors • Floor coverings: • Tile Entry • Tile Bathrooms • Tile or Wood Kitchen • Tile or Wood Traffic Path
