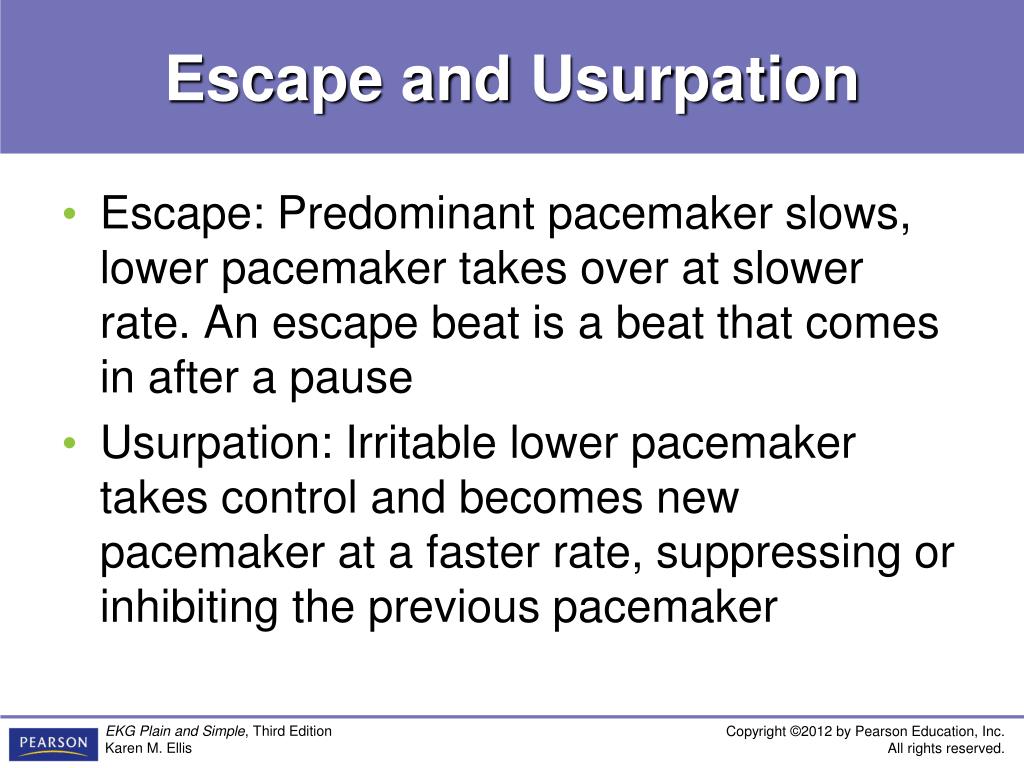

  1. Escape and Usurpation • Escape: Predominant pacemaker slows, lower pacemaker takes over at slower rate. An escape beat is a beat that comes in after a pause • Usurpation: Irritable lower pacemaker takes control and becomes new pacemaker at a faster rate, suppressing or inhibiting the previous pacemaker

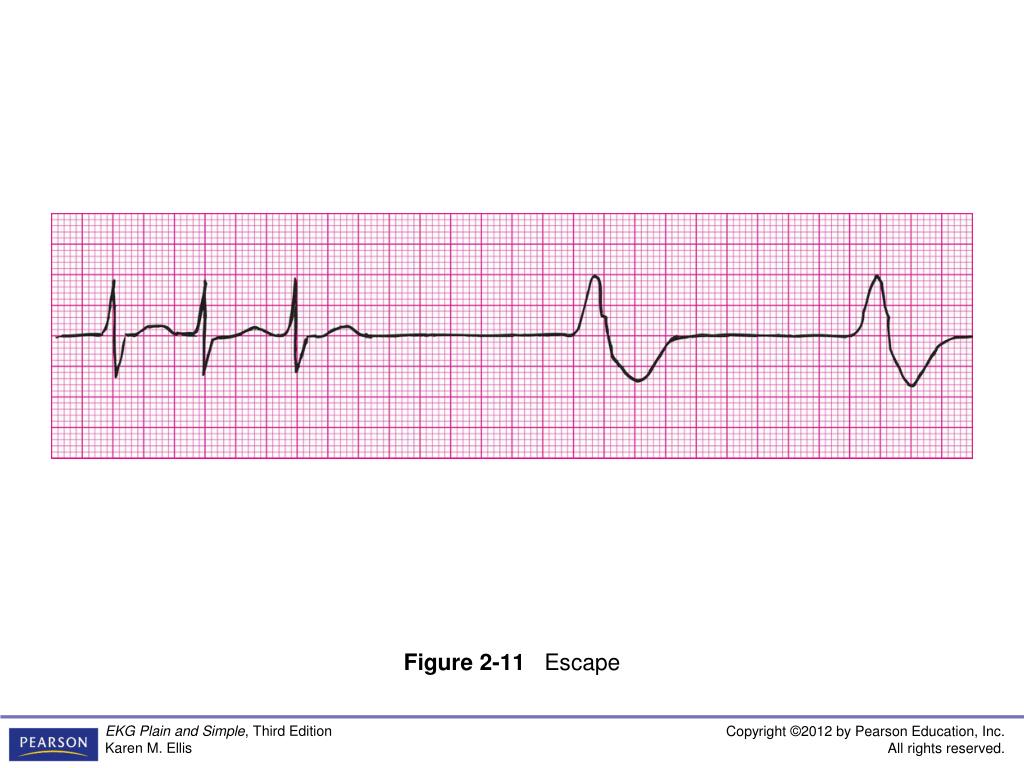

  2. Figure 2-11 Escape

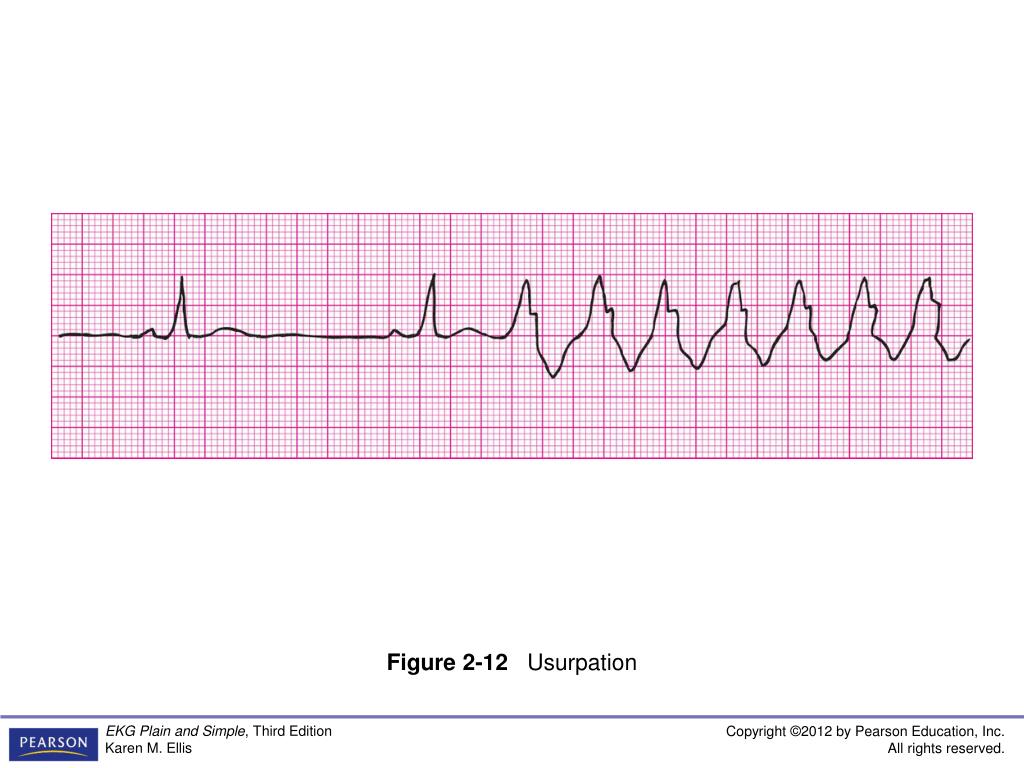

  3. Figure 2-12 Usurpation

  4. EKG Paper • Graph paper that EKGs are printed on • Divided into small blocks 1 millimeter in height and width • Counting horizontally measures time (intervals) • Counting vertically measures amplitude

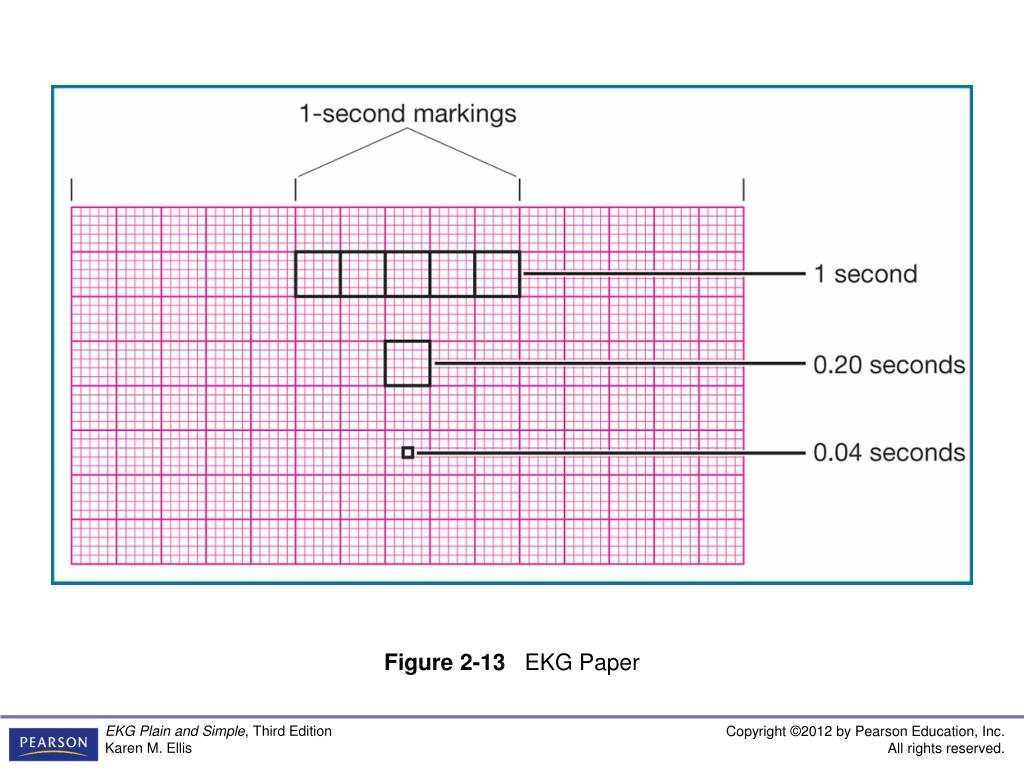

  5. Figure 2-13 EKG Paper

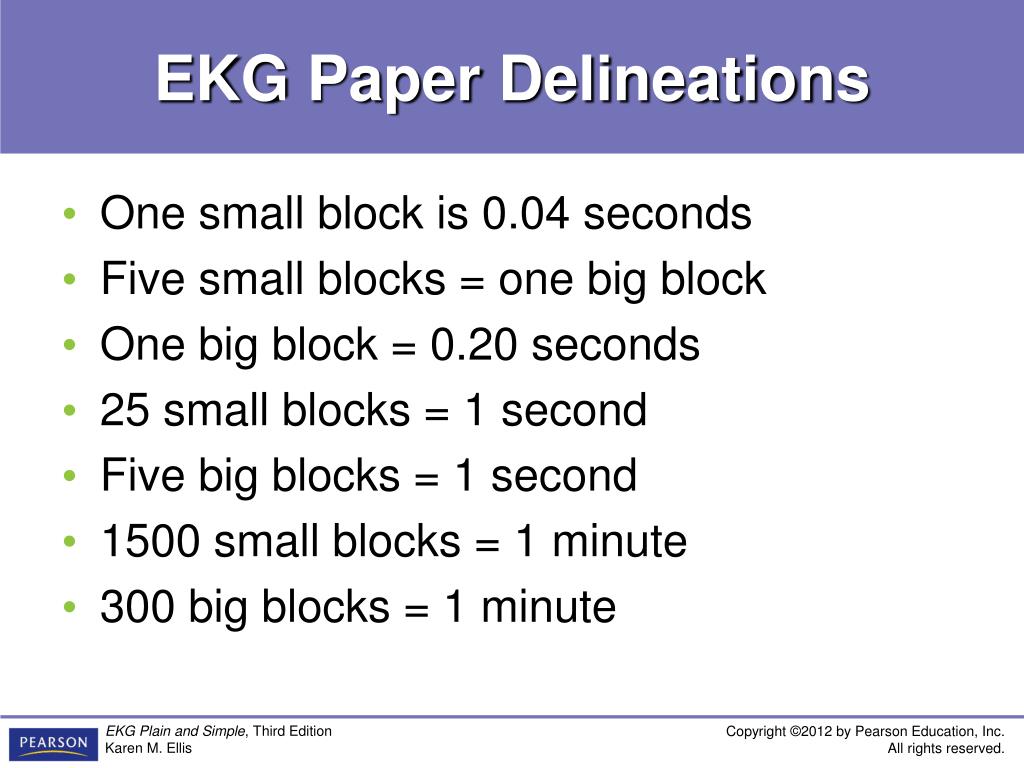

  6. EKG Paper Delineations • One small block is 0.04 seconds • Five small blocks = one big block • One big block = 0.20 seconds • 25 small blocks = 1 second • Five big blocks = 1 second • 1500 small blocks = 1 minute • 300 big blocks = 1 minute

  7. 12-Lead EKGs and Rhythm Strips • 12-Lead EKG: Printout of the heart’s electrical activity viewed from 12 different angles as seen in 12 different leads • A lead is an electrocardiographic picture of the heart’s electrical activity • Rhythm Strip: Printout of only one or two leads at a time

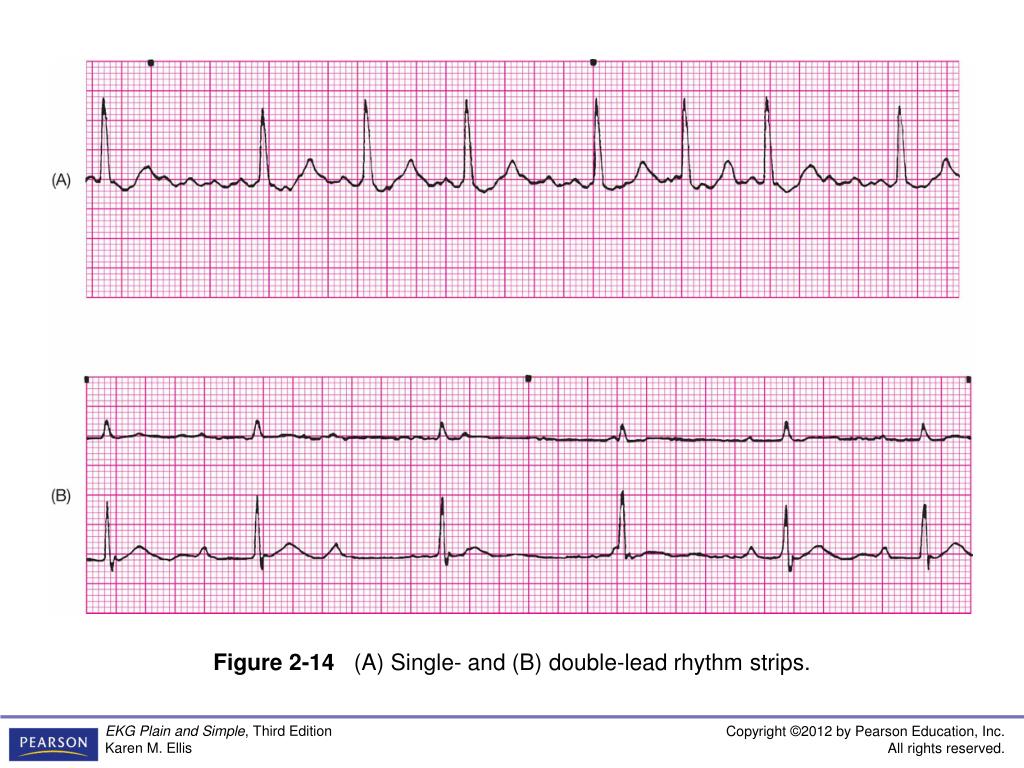

  8. Figure 2-14 (A) Single- and (B) double-lead rhythm strips.

  9. Benefit of Double-Lead Strips • Both leads show the same rhythm, just viewed from two different angles • Therefore both leads have the same rhythm, intervals, and heart rate

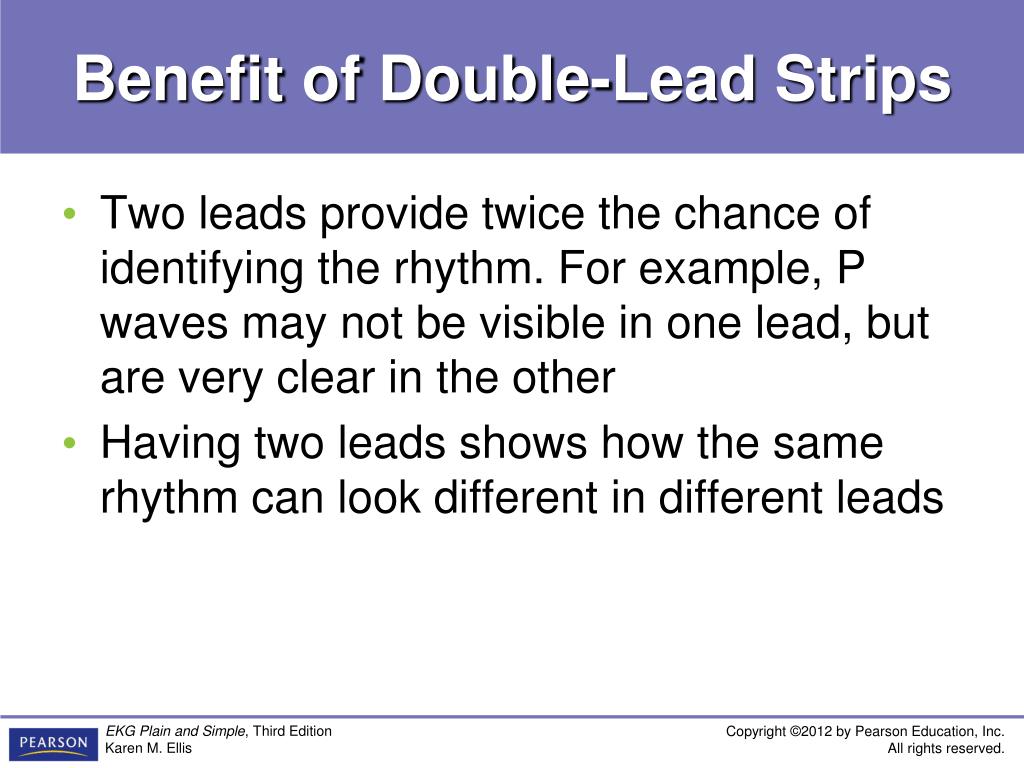

  10. Benefit of Double-Lead Strips • Two leads provide twice the chance of identifying the rhythm. For example, P waves may not be visible in one lead, but are very clear in the other • Having two leads shows how the same rhythm can look different in different leads

  11. Figure 2-15 12-Lead EKG

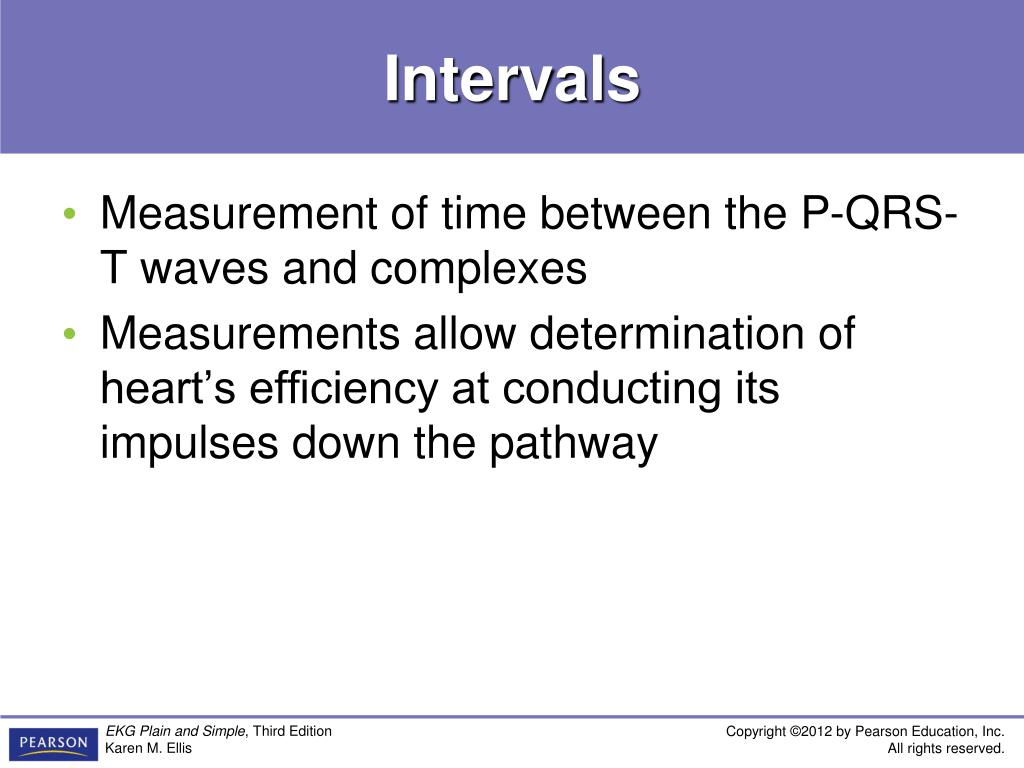

  12. Intervals • Measurement of time between the P-QRS-T waves and complexes • Measurements allow determination of heart’s efficiency at conducting its impulses down the pathway

  13. Intervals • PR: Measured from beginning of P to beginning of QRS • QRS: Measured from beginning of QRS to its end • QT: Measured from beginning of QRS to end of T wave

  14. Figure 2-16 Intervals

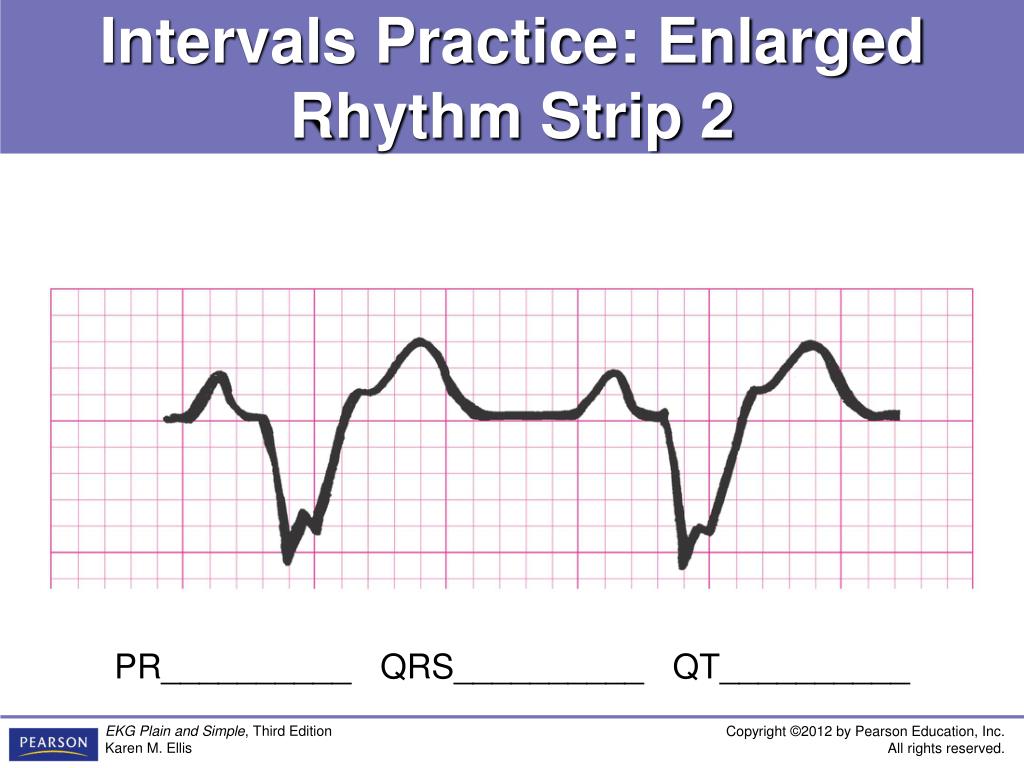

  15. Intervals Practice: Enlarged Rhythm Strip 1 PR__________ QRS__________ QT__________

  16. Intervals Practice: Enlarged Rhythm Strip 2 PR__________ QRS__________ QT__________

  17. Intervals Practice: Enlarged Rhythm Strip 3 PR__________ QRS__________ QT__________
