  1. Exploring Quartz Schedulerhttp://quartz-scheduler.org Orlando Java User Group Zemian Deng 2011.04.28

  2. Agenda (1.5 hours) • Introduction (5 mins) • Scheduling Jobs (20 mins) • How job is stored and executed (15 mins) • Scheduler Deployment (20 mins) • Tips for working with quartz API (5 mins) • QA session (25 mins)

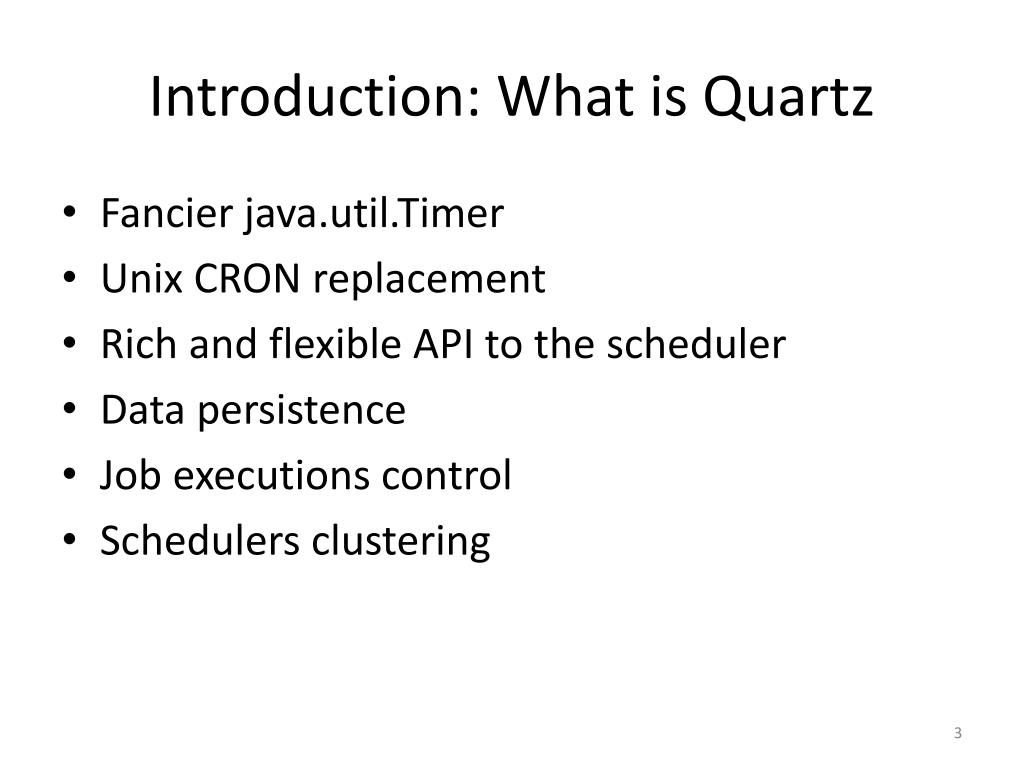

  3. Introduction: What is Quartz • Fancier java.util.Timer • Unix CRON replacement • Rich and flexible API to the scheduler • Data persistence • Job executions control • Schedulers clustering

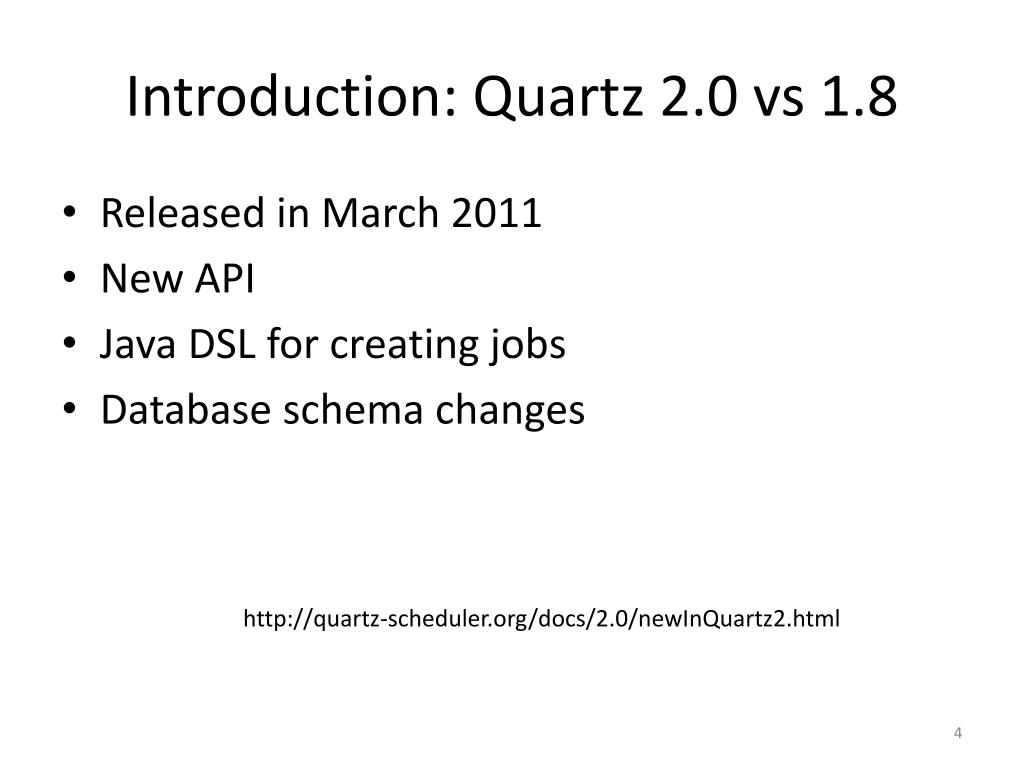

  4. Introduction: Quartz 2.0 vs 1.8 • Released in March 2011 • New API • Java DSL for creating jobs • Database schema changes http://quartz-scheduler.org/docs/2.0/newInQuartz2.html

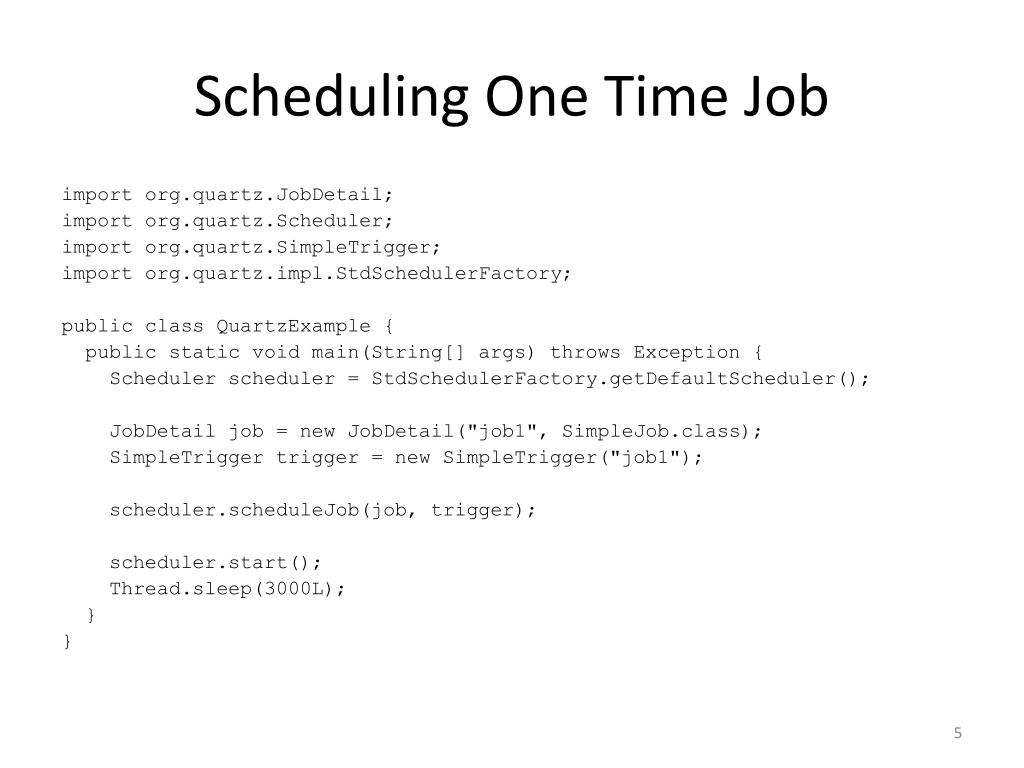

  5. Scheduling One Time Job import org.quartz.JobDetail; import org.quartz.Scheduler; import org.quartz.SimpleTrigger; import org.quartz.impl.StdSchedulerFactory; public class QuartzExample { public static void main(String[] args) throws Exception { Scheduler scheduler = StdSchedulerFactory.getDefaultScheduler(); JobDetail job = new JobDetail("job1", SimpleJob.class); SimpleTrigger trigger = new SimpleTrigger("job1"); scheduler.scheduleJob(job, trigger); scheduler.start(); Thread.sleep(3000L); } }

  6. More Scheduling Job Examples • One time job with startTime • Repeat job now • Repeat job with startTime • Repeat job forever • Cron job

  7. Job Storages • In Memory Job Storage • JDBC Job Storage • JTM JDBC Job Storage • Spring JTM Job Storage

  8. Quartz Scheduler Deployment • Standalone single JVM/Quartz scheduler • Server/Client based via RMI registry • Web Container single JVM/Quartz scheduler • Clustering Quartz scheduler servers

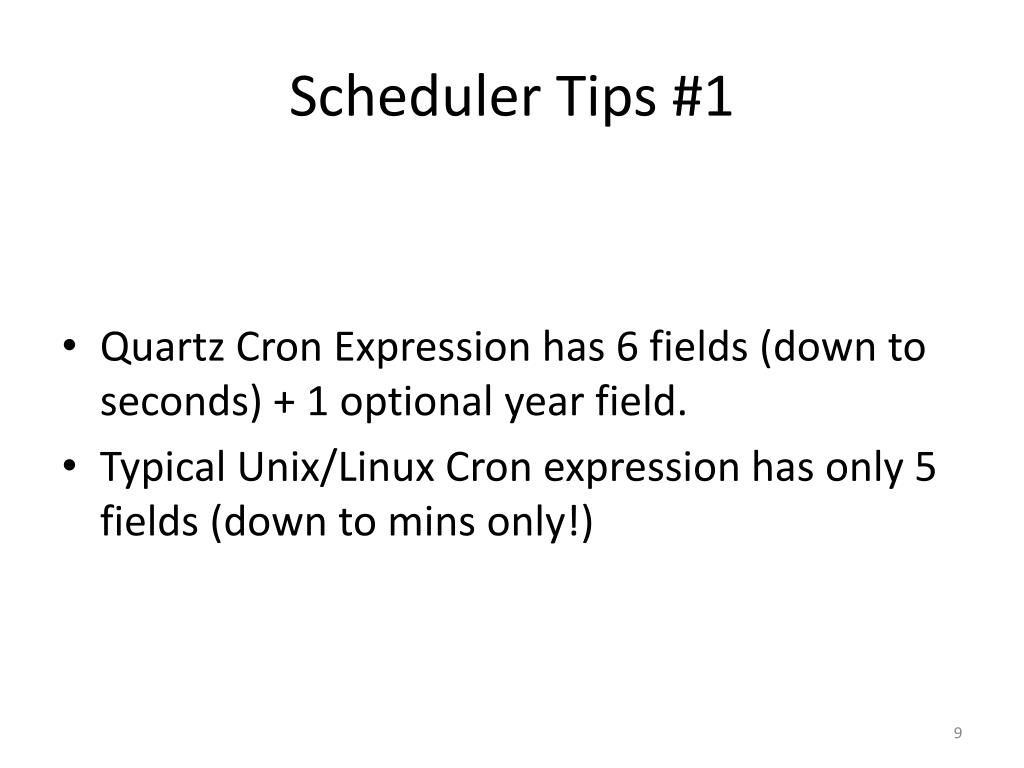

  9. Scheduler Tips #1 • Quartz Cron Expression has 6 fields (down to seconds) + 1 optional year field. • Typical Unix/Linux Cron expression has only 5 fields (down to mins only!)

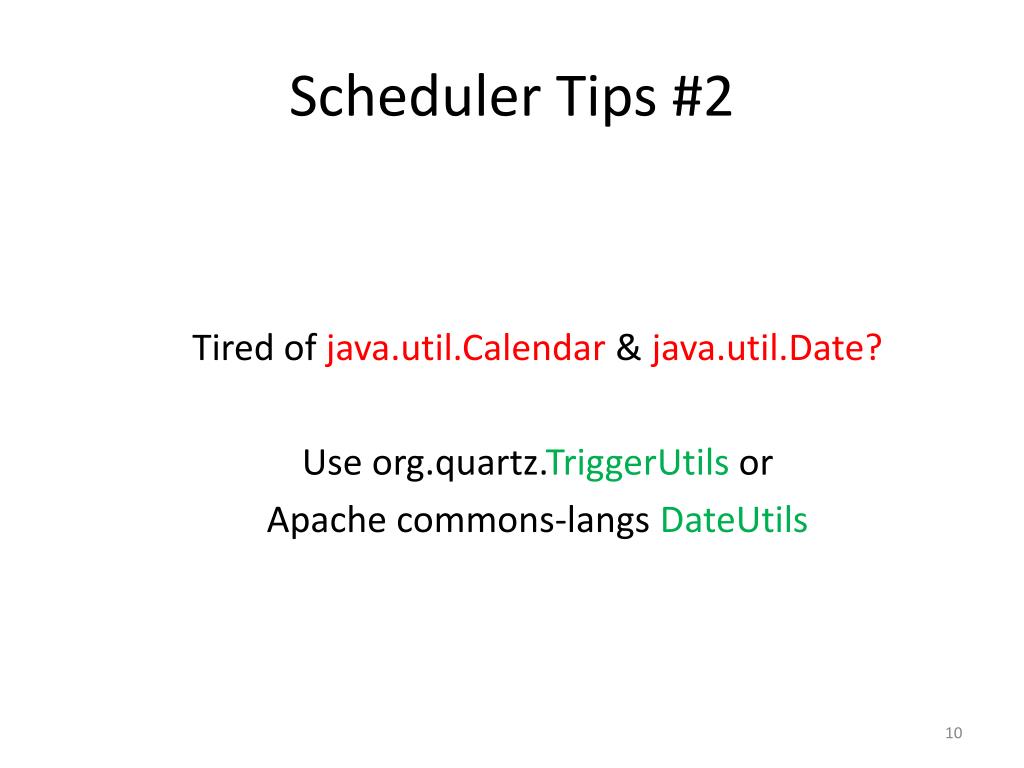

  10. Scheduler Tips #2 Tired of java.util.Calendar& java.util.Date? Use org.quartz.TriggerUtils or Apache commons-langsDateUtils

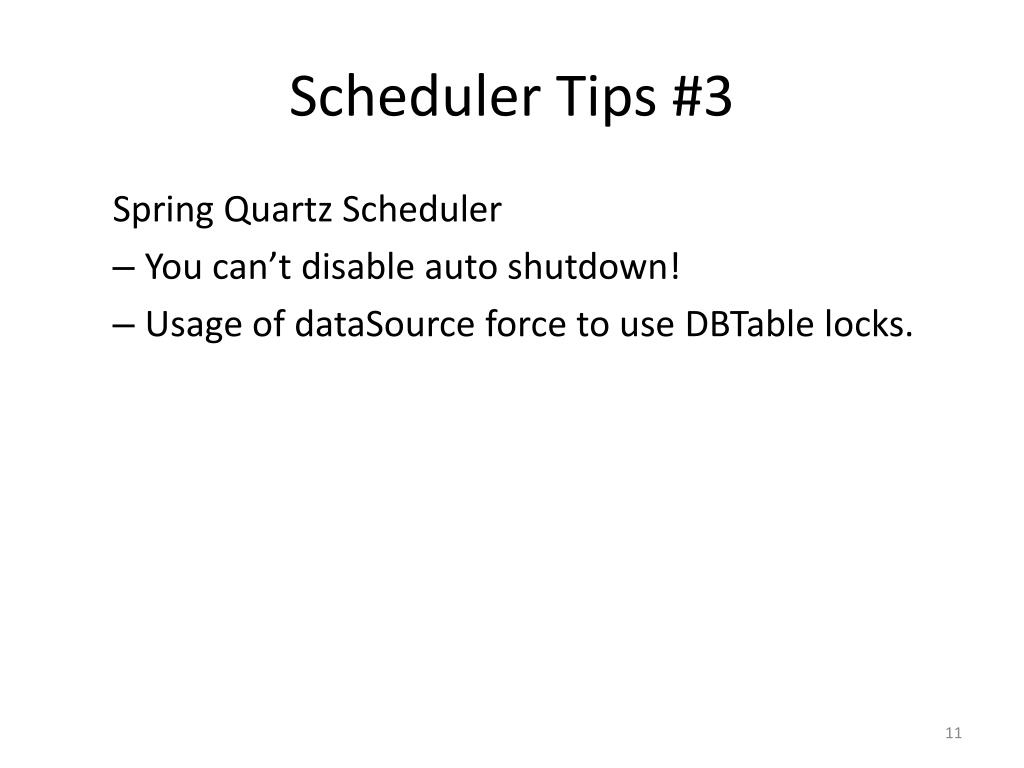

  11. Scheduler Tips #3 Spring Quartz Scheduler • You can’t disable auto shutdown! • Usage of dataSource force to use DBTable locks.

  12. Scheduler Tips #4 When using RMI server mode, there is a bug that can crash your scheduler: http://jira.terracotta.org/jira/browse/QTZ-135

  13. Questions?
