  1. Shape Analysisvia 3-Valued Logic Mooly Sagiv Thomas Reps Reinhard Wilhelm http://www.cs.tau.ac.il/~msagiv/toplas02.ps http://www.cs.tau.ac.il/~rumster/TVLA

  2. Tel-Aviv University N. Dor T. Lev-Ami R. Manevich E. Yahav Universität des Saarlandes Jörg Bauer Ronald Biber University of Wisconsin F. DiMaio D. Gopan A. Loginov A. Mulhern IBM Research G. Ramalingam J. Field D. Goyal . . . and also

  3. t y NULL 1 2 3 NULL x Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; }

  4. t y NULL 1 2 3 NULL x Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; }

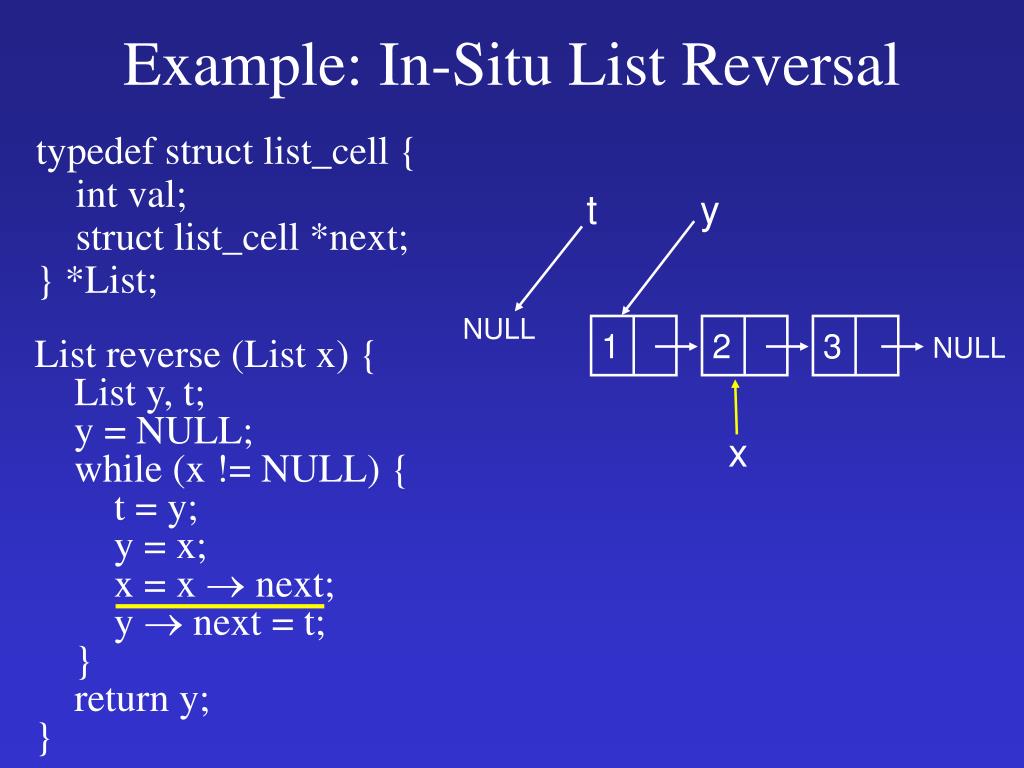

  5. t y 1 2 3 NULL x Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; }

  6. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  7. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

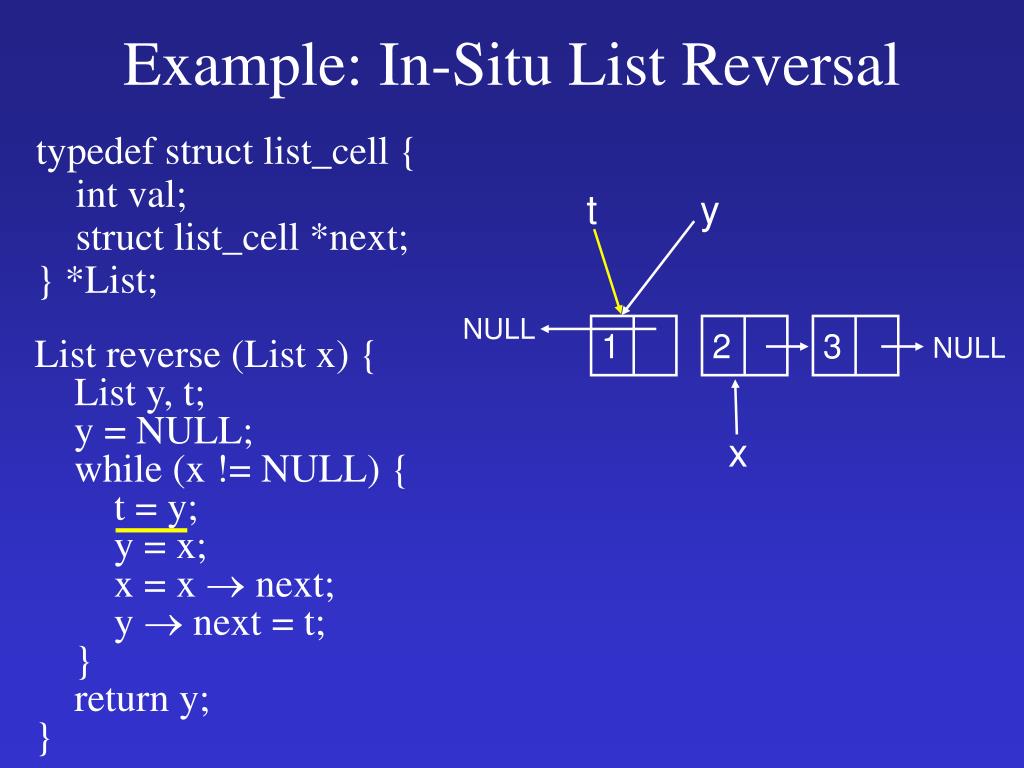

  8. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

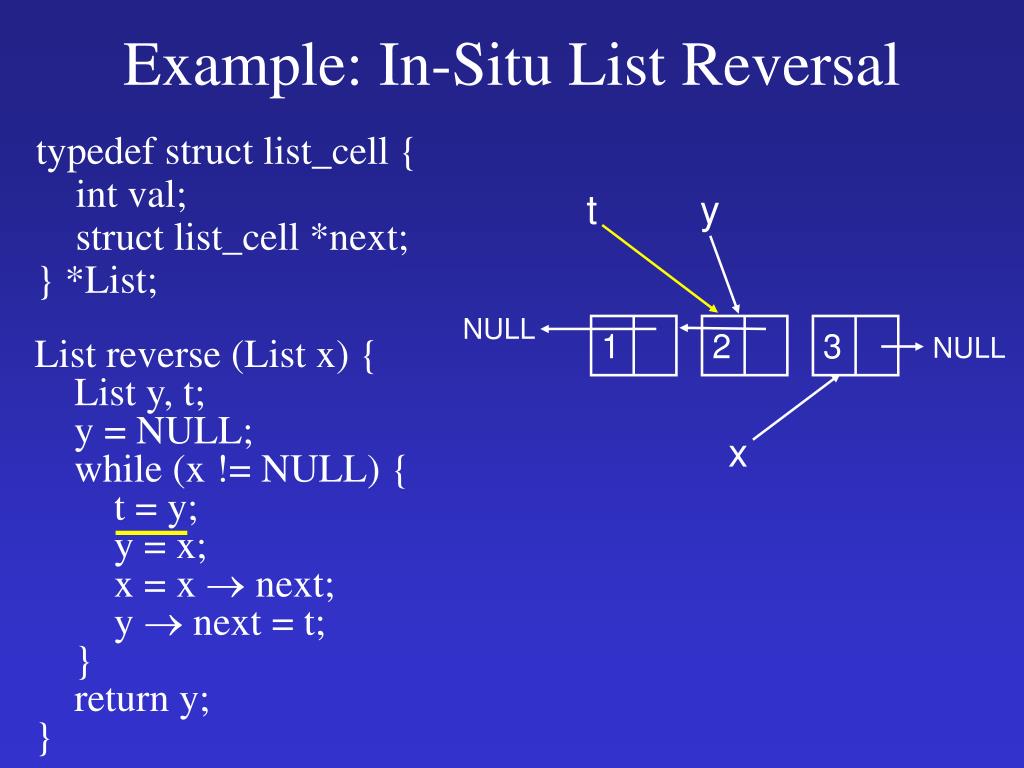

  9. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  10. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

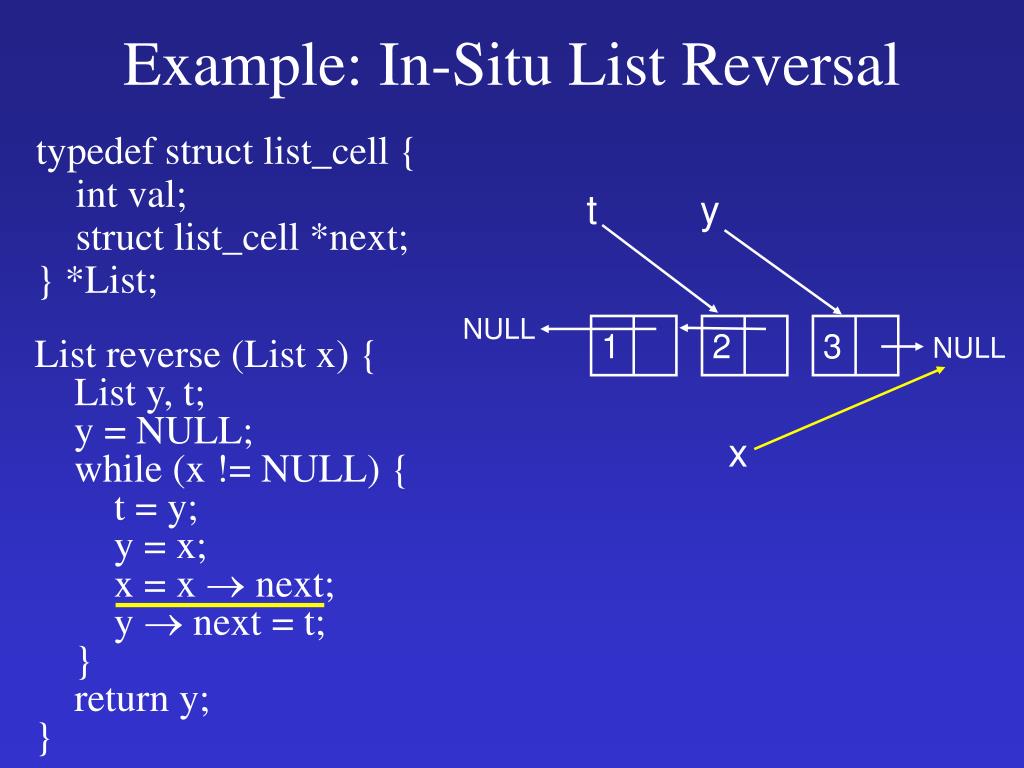

  11. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

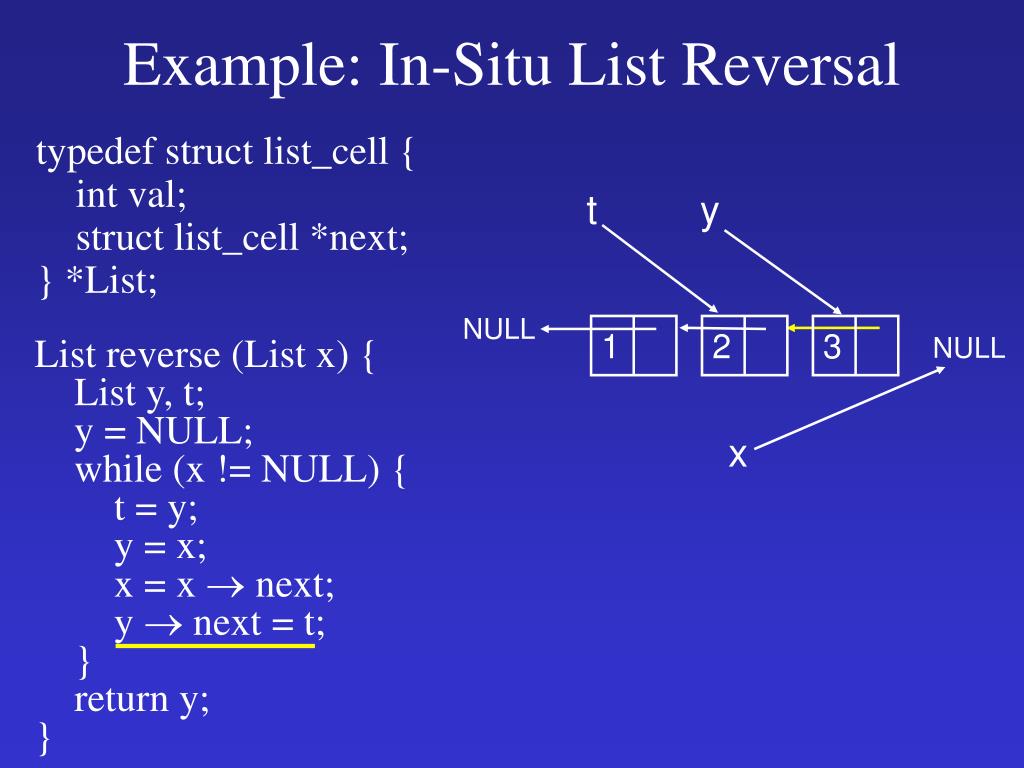

  12. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  13. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

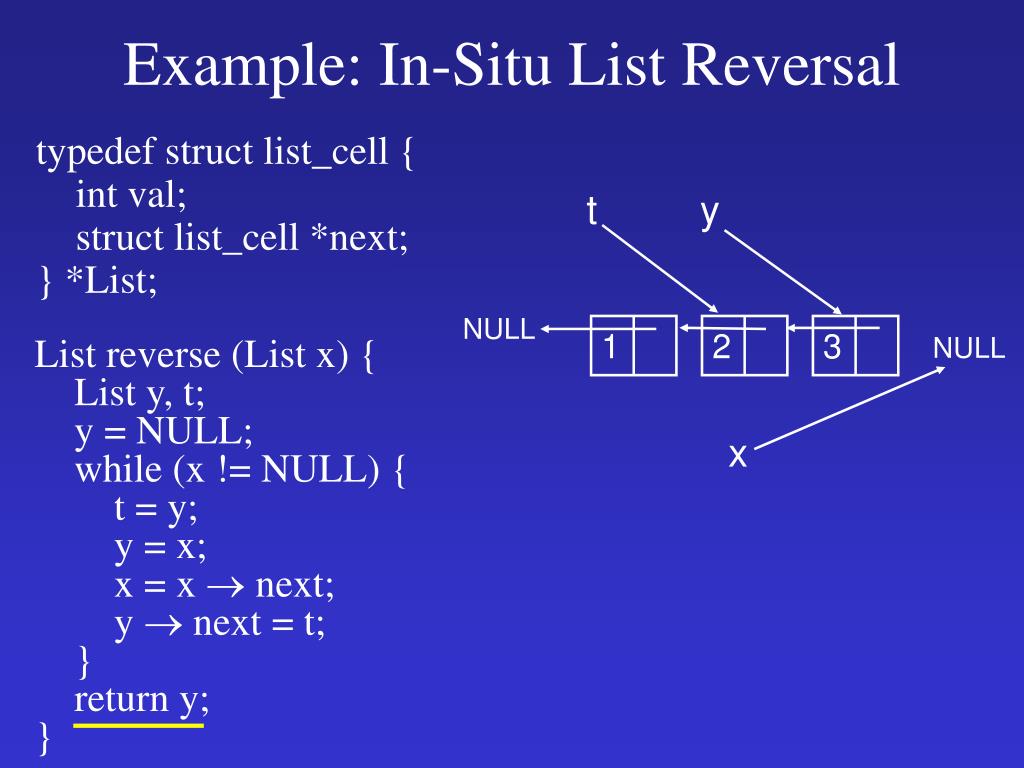

  14. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

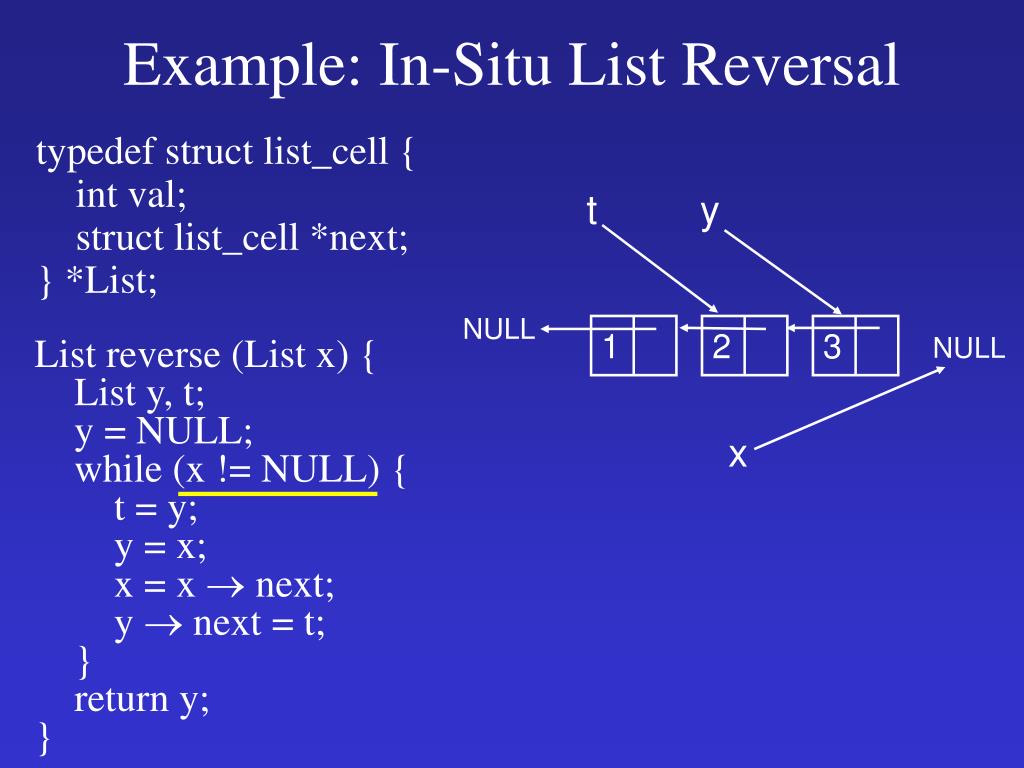

  15. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  16. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  17. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL 1 2 3 NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

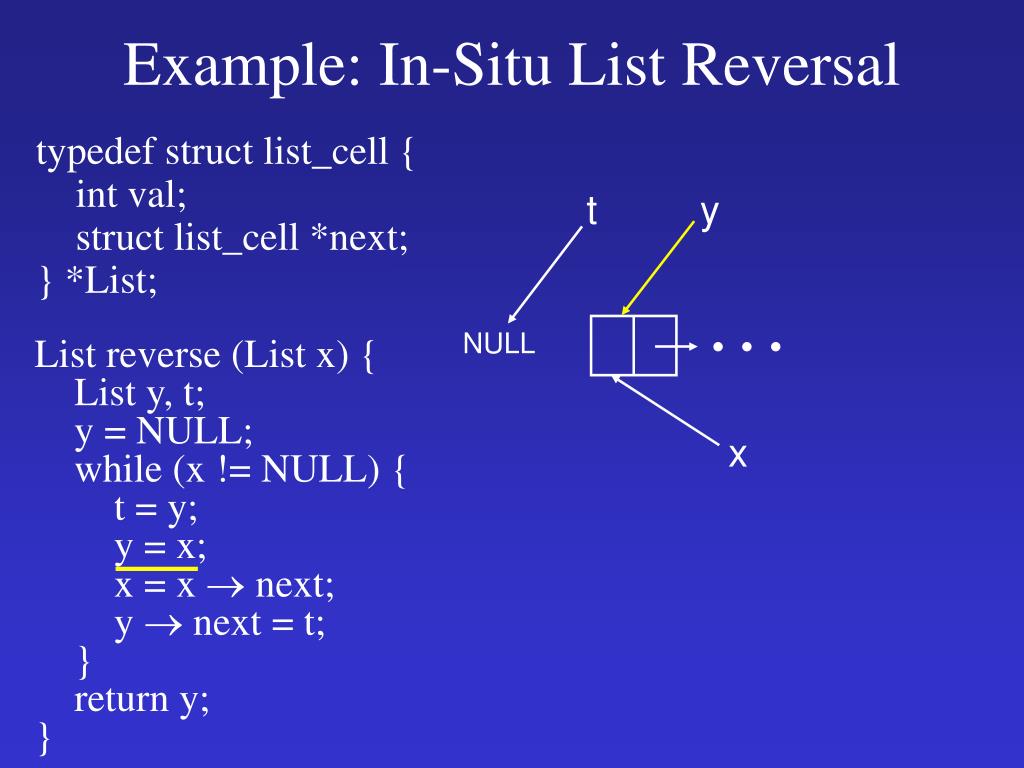

  18. t y x Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; }

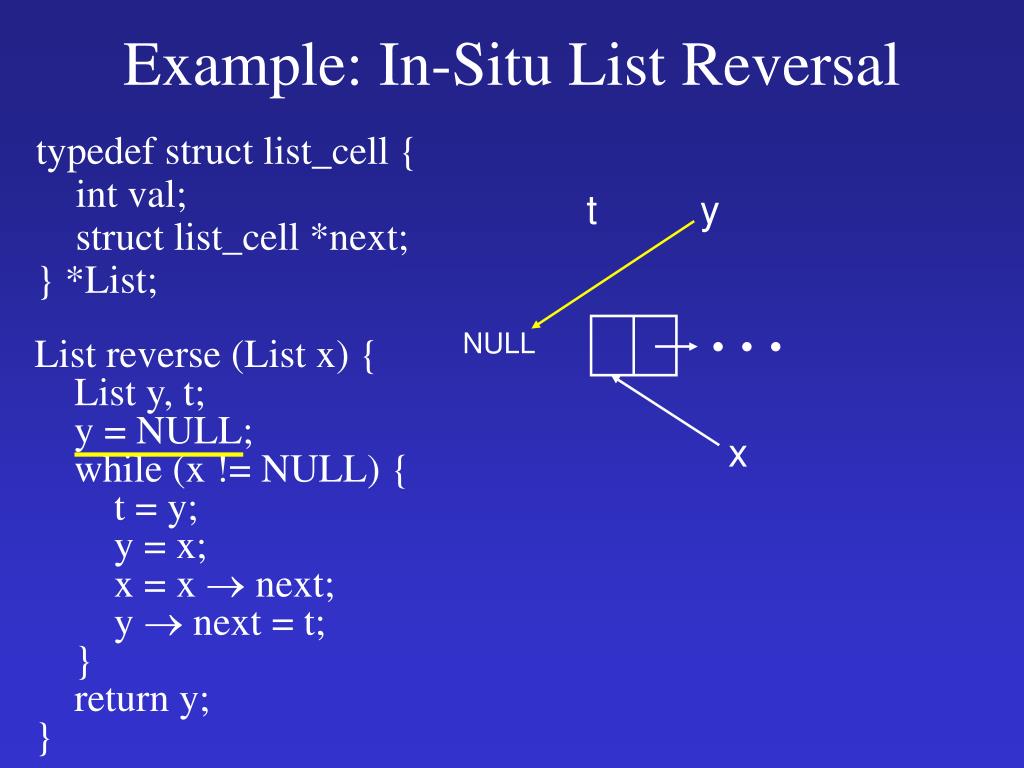

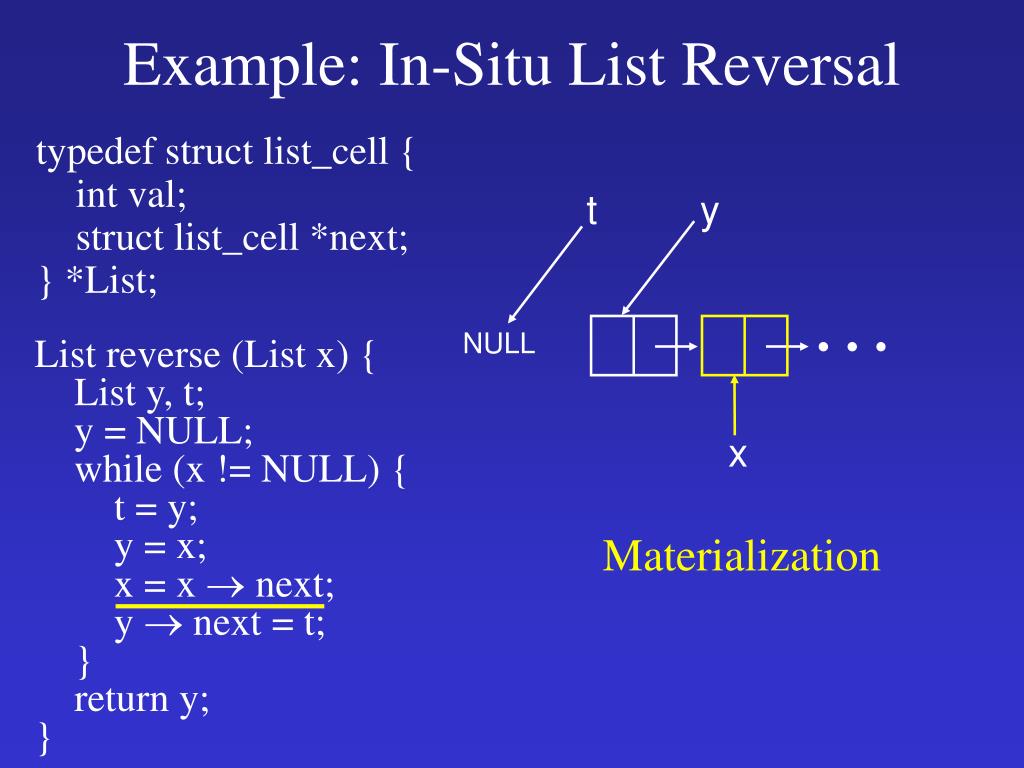

  19. t y NULL x Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; }

  20. NULL Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

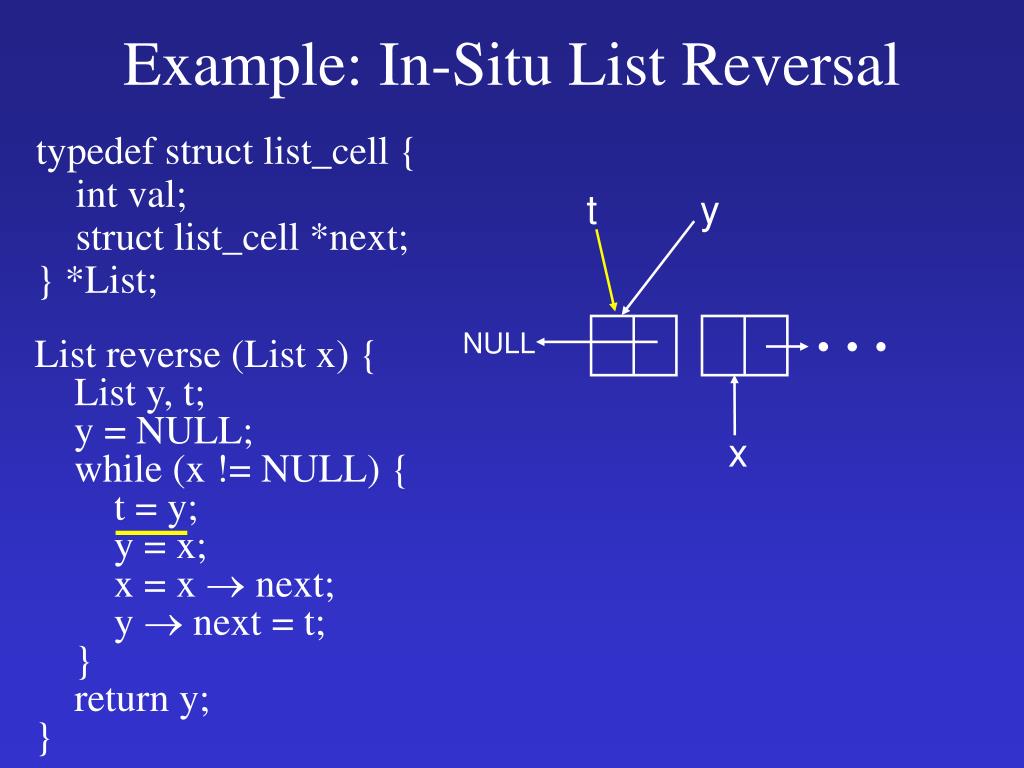

  21. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  22. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x Materialization

  23. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  24. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  25. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  26. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  27. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  28. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  29. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  30. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

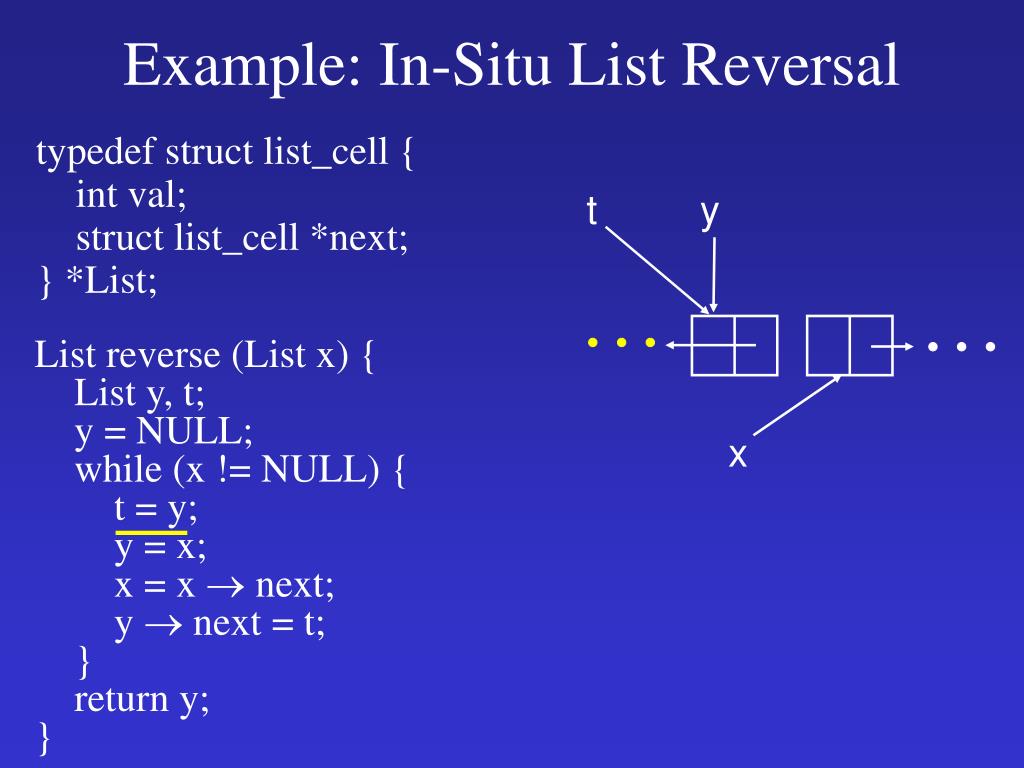

  31. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  32. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  33. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

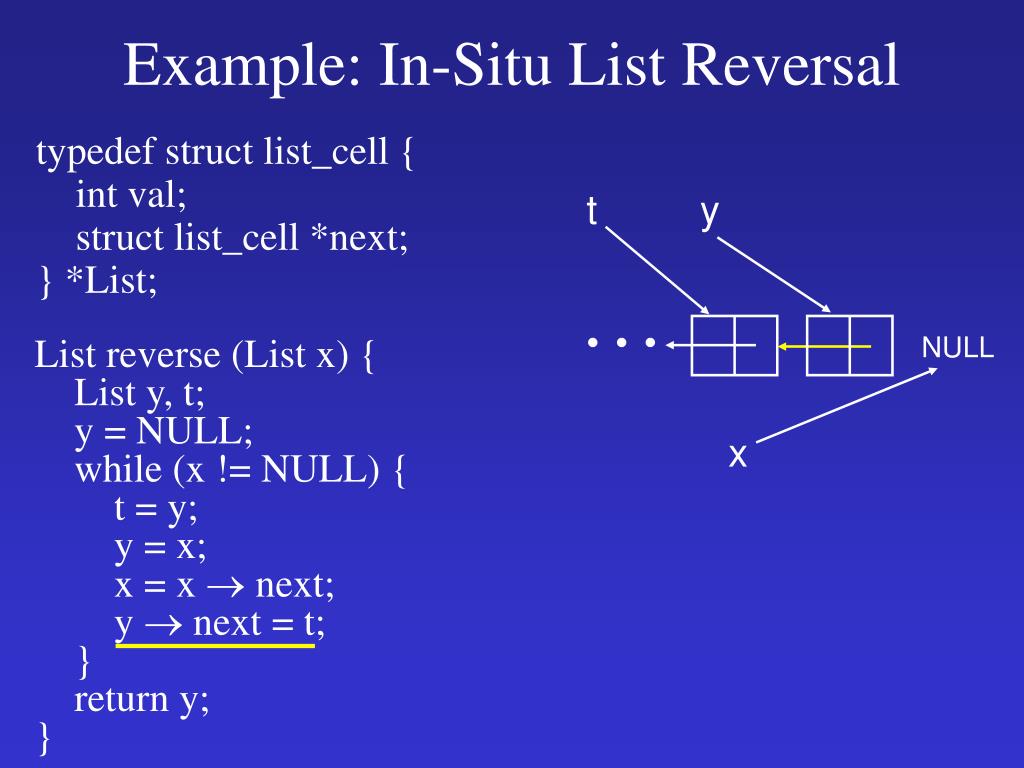

  34. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  35. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

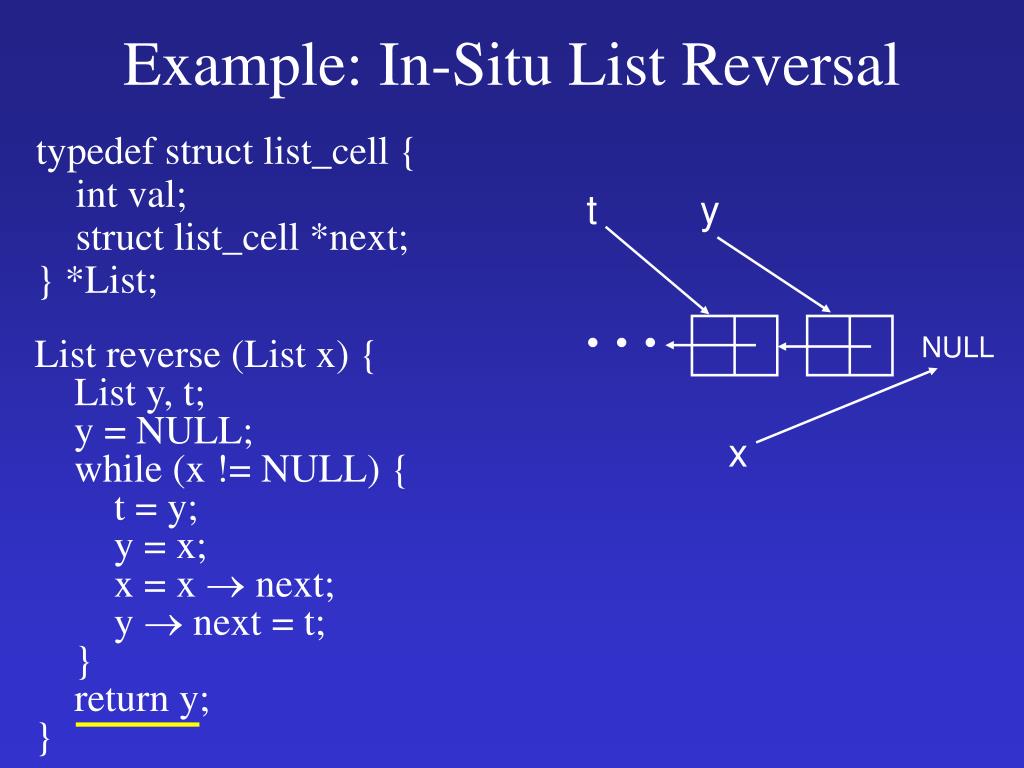

  36. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  37. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  38. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  39. Example: In-Situ List Reversal typedef struct list_cell { int val; struct list_cell *next; } *List; t y NULL List reverse (List x) { List y, t; y = NULL; while (x != NULL) { t = y; y = x; x = x  next; y  next = t; } return y; } x

  40. Original Problem: Shape Analysis (Jones and Muchnick 1981) • Characterize dynamically allocated data • x points to an acyclic list, cyclic list, tree, dag, etc. • show that data-structure invariants hold • Identify may-alias relationships • Establish “disjointedness” properties • x and y point to structures that do not share cells

  41. Properties of reverse(x) • On entry, x points to an acyclic list • On each iteration, x & y point to disjoint acyclic lists • All the pointer dereferences are safe • No memory leaks • On exit, y points to an acyclic list • On exit, x == NULL • On exit, all cells reachable from y were reachable • from x on entry, and vice versa • On exit, the order between neighbors in the y-list is • opposite to the order they had in the x-list on entry

  42. Why is Shape Analysis Difficult? • Destructive updating through pointers • pnext = q • Produces complicated aliasing relationships • Dynamic storage allocation • No bound on the size of run-time data structures

  43. Why is Shape Analysis Difficult? • Destructive updating through pointers • pnext = q • Produces complicated aliasing relationships • Dynamic storage allocation • No bound on the size of run-time data structures • Data-structure invariants typically only hold at the beginning and end of operations • Need to verify that data-structure invariants are re-established

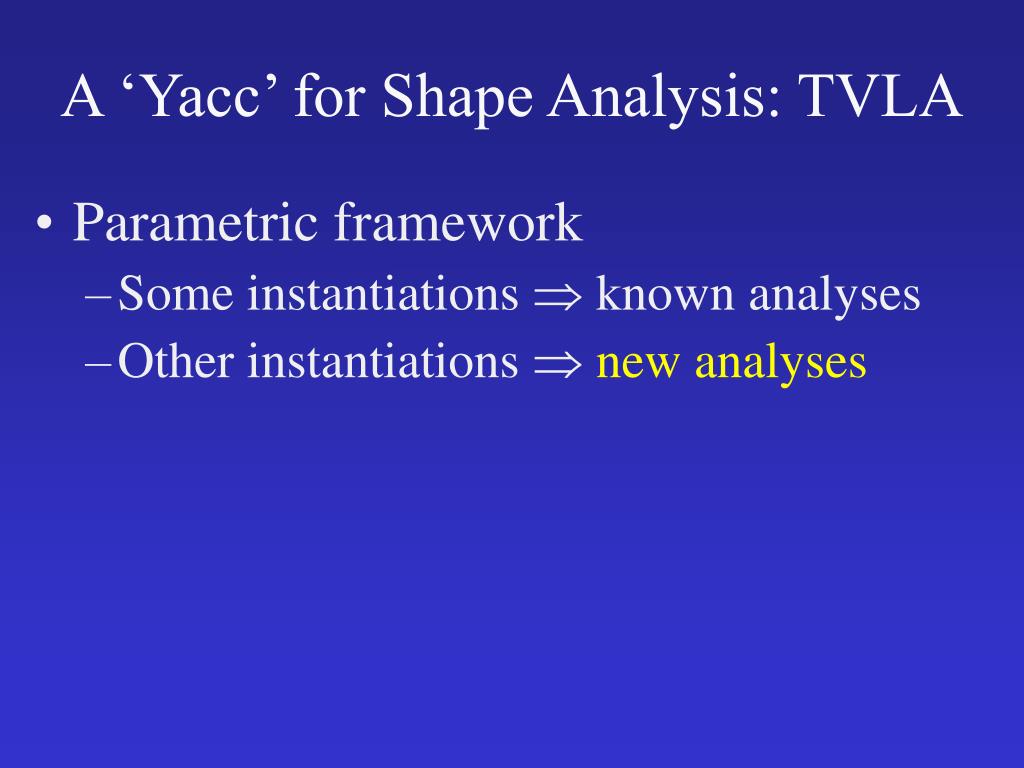

  44. A ‘Yacc’ for Shape Analysis: TVLA • Parametric framework • Some instantiations  known analyses • Other instantiations new analyses

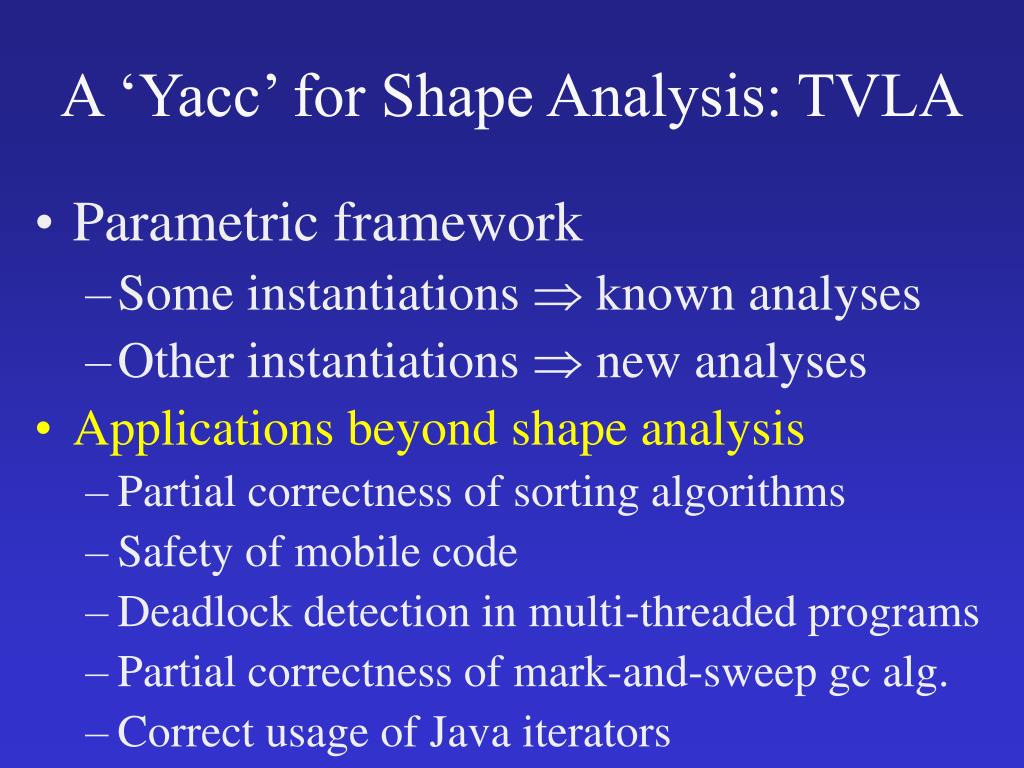

  45. A ‘Yacc’ for Shape Analysis: TVLA • Parametric framework • Some instantiations  known analyses • Other instantiations  new analyses • Applications beyond shape analysis • Partial correctness of sorting algorithms • Safety of mobile code • Deadlock detection in multi-threaded programs • Partial correctness of mark-and-sweep gc alg. • Correct usage of Java iterators

  46. x != NULL t y t y NULL NULL y t y t x x t = y NULL x x y t y t t y y = x NULL NULL x x x y t y t x = xnext y t NULL NULL x x y y t t ynext = t y y t t x NULL NULL y t NULL NULL x x x x return y x

  47. Plan • Operational semantics using first order logic • Canonic Abstraction • Abstract interpretation using canonic abstraction • Discussion

  48. Recorded Information (for reverse)

  49. x y u2 u3 u4 u1 Recorded Information (for reverse)

  50. Formulas for Observing Properties • Does x point to a non NULL elementv: x(v) • Are x and y pointer aliases? v: x(v)  y(v) • Does x point to a cell with a self cycle? v : x(v)  n(v,v)
