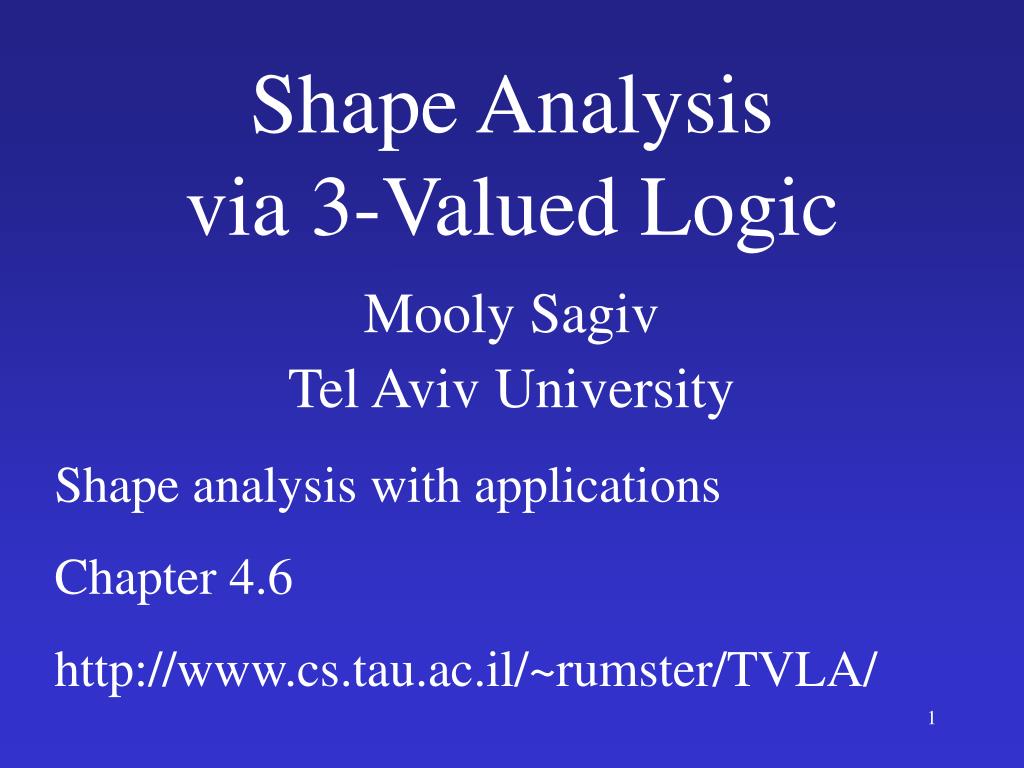

  1. Shape Analysisvia 3-Valued Logic Mooly Sagiv Tel Aviv University Shape analysis with applications Chapter 4.6 http://www.cs.tau.ac.il/~rumster/TVLA/

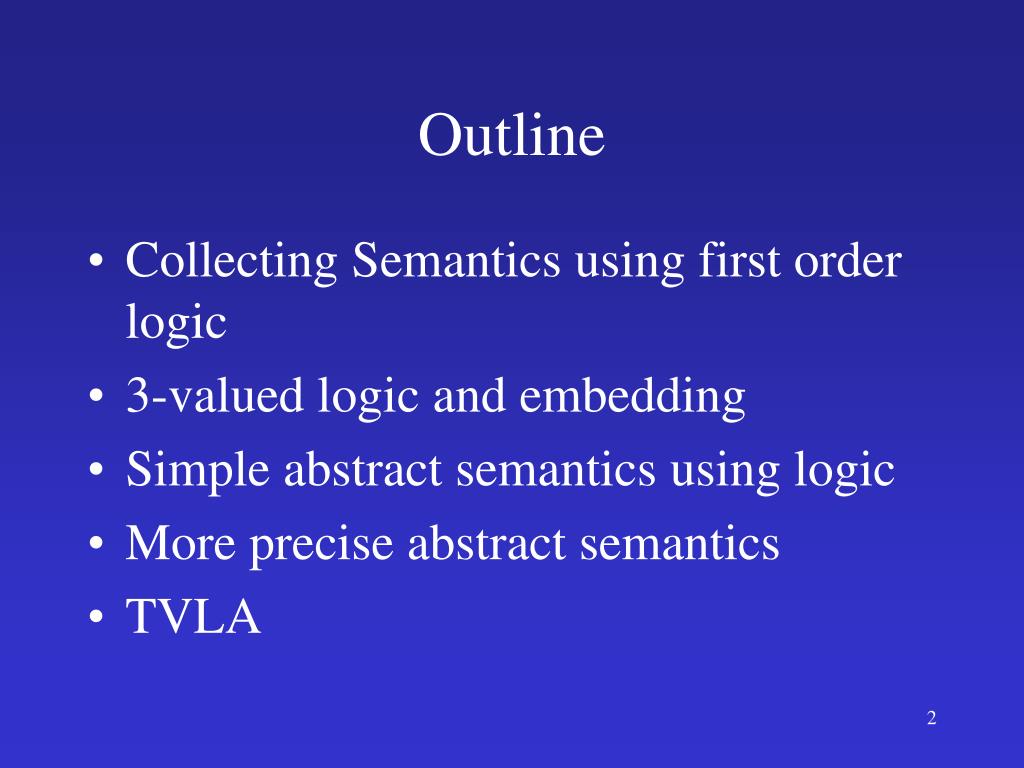

  2. Outline • Collecting Semantics using first order logic • 3-valued logic and embedding • Simple abstract semantics using logic • More precise abstract semantics • TVLA

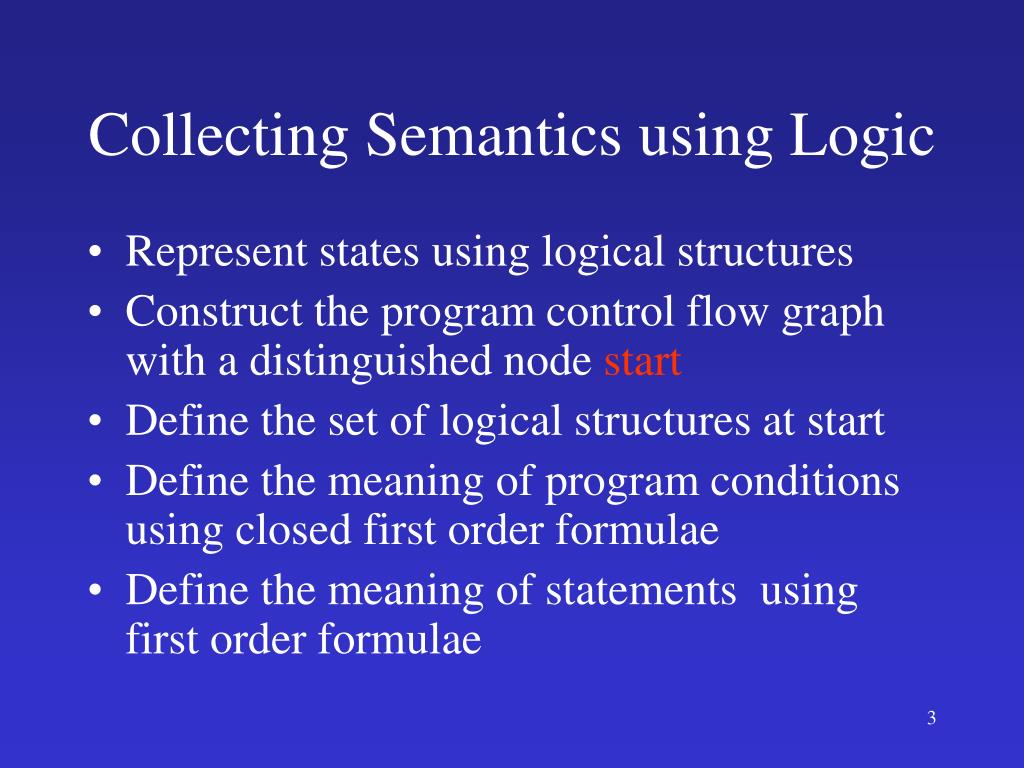

  3. Collecting Semantics using Logic • Represent states using logical structures • Construct the program control flow graph with a distinguished node start • Define the set of logical structures at start • Define the meaning of program conditions using closed first order formulae • Define the meaning of statements using first order formulae

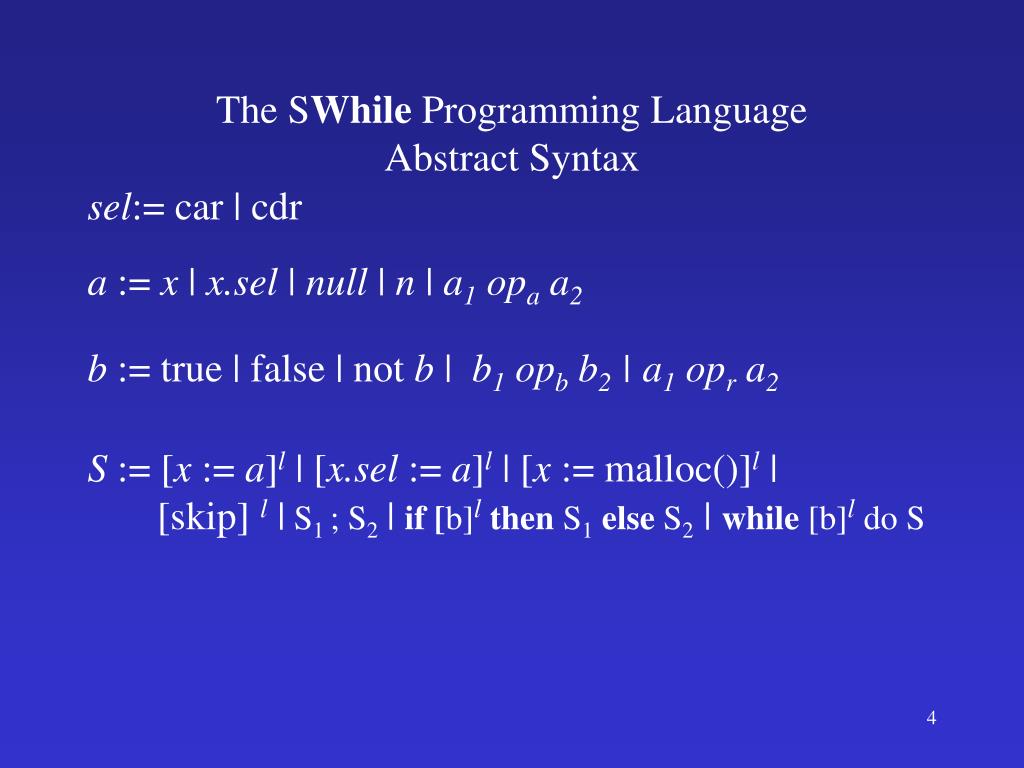

  4. The SWhile Programming Language Abstract Syntax sel:= car | cdr a := x | x.sel | null | n | a1 opa a2 b := true | false | not b | b1 opb b2 | a1 opr a2 S := [x := a]l | [x.sel := a]l | [x := malloc()]l | [skip] l | S1 ; S2| if [b]lthen S1else S2 | while [b]l do S

  5. Example • Predicates • Unary • x(v) • t(v) • Binary • car(v1, v2) • cdr(v1, v2) • eq(v1, v2) [x := null;]1 while ([count > 0]2) ( [t := malloc();]3 [t.cdr := x;]4 [x :=t;]5

  6. x:=null {x’(v) := 0 } t:=malloc() { let v0 := new() in t(v) := eq(v, v0) } [x := null;]1 ([count > 0]2 t.cdr :=x { message v: t(v) … cdr’(v1, v2) := (t(v1)? x(v2): cdr(v1, v2)) } [count:=count-1;]6 [t :=malloc();]3 exit [t.cdr :=x;]4 x:=t x’(v) := t(v) } (?1:2) (1)(2) [x :=t;]5

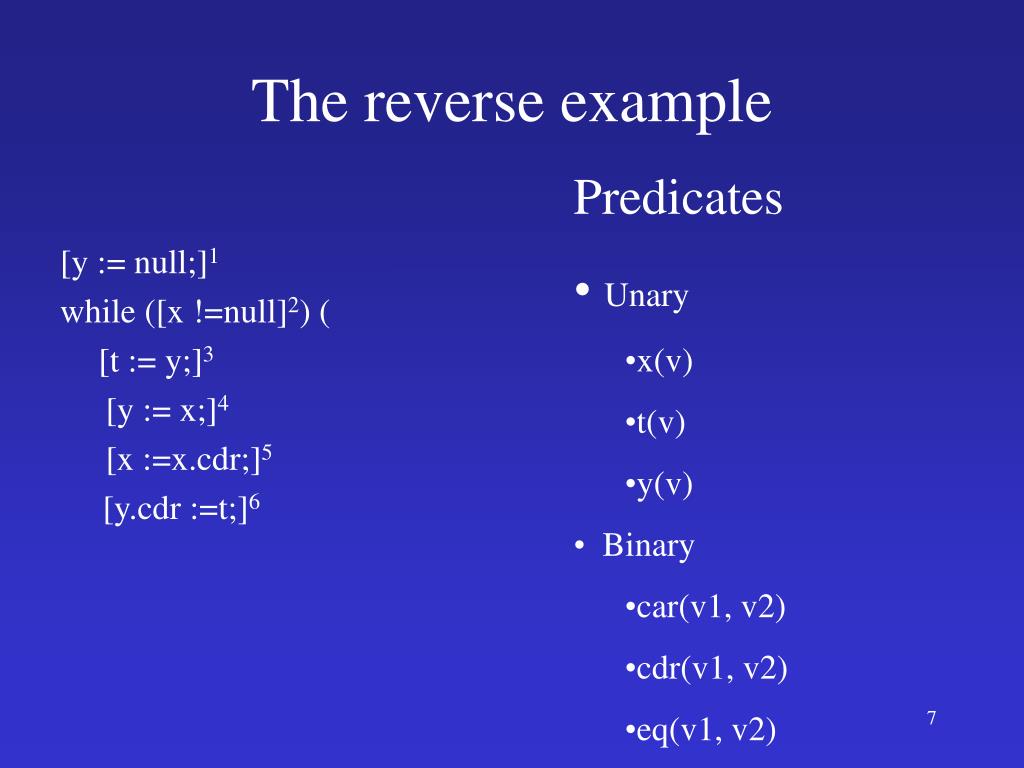

  7. The reverse example • Predicates • Unary • x(v) • t(v) • y(v) • Binary • car(v1, v2) • cdr(v1, v2) • eq(v1, v2) [y := null;]1 while ([x !=null]2) ( [t := y;]3 [y := x;]4 [x :=x.cdr;]5 [y.cdr :=t;]6

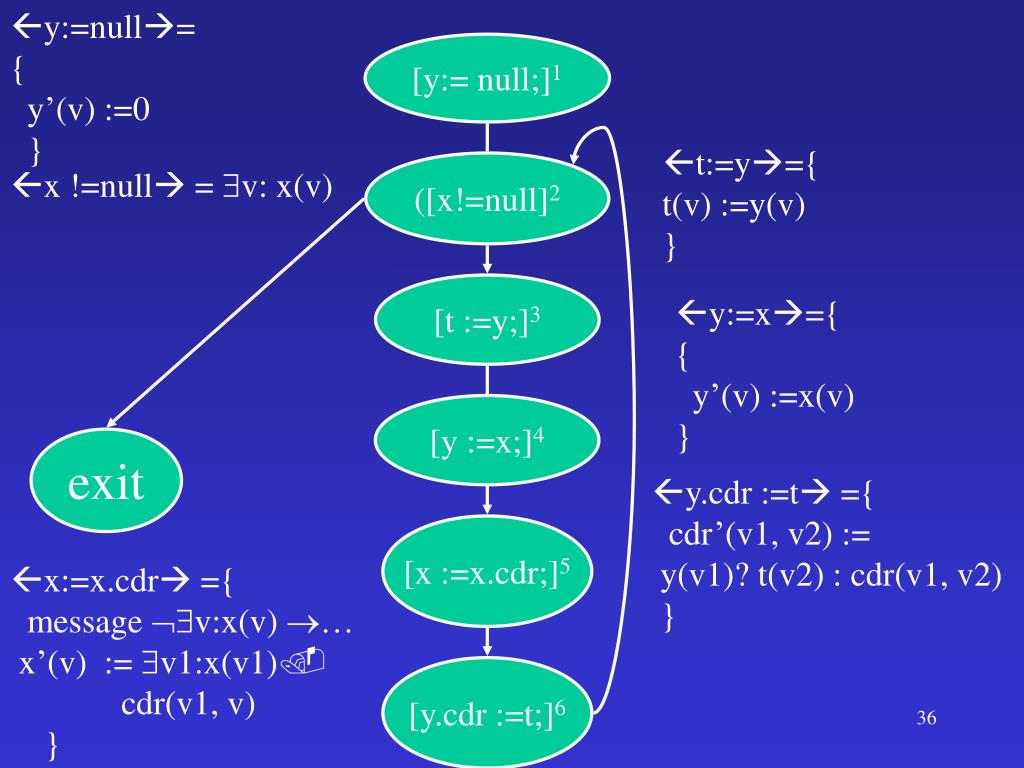

  8. y:=null={ y’(v) :=0 } [y:= null;]1 t:=y={ t(v) :=y(v) } ([x!=null]2 x !=null = v: x(v) [t :=y;]3 y:=x={ { y’(v) :=x(v) } [y :=x;]4 a3 exit y.cdr :=t ={ cdr’(v1, v2) := y(v1)? t(v2) : cdr(v1, v2) } [x :=x.cdr;]5 x:=x.cdr ={ message v:x(v) … x’(v) := v1:x(v1) cdr(v1, v) } [y.cdr :=t;]6

  9. Statement’s Meaning

  10. Condition’s Meaning

  11. Collecting Semantics CS (start) = {<, >} CS (v) = {st(u) (S): uv  E, S CS(u)} {S : S, uv  Et , S cond(u) }  {S: S, uv  Ef , S cond(u) }

  12. 1/2 Information order   Three-Valued Logic • 1: True • 0: False • 1/2: Unknown • A join semi-lattice: 0  1 = 1/2

  13. 3-Valued Logical Structures • A set of individuals (nodes) U • Predicate meaning • PS: US {0, 1, 1/2}

  14. cdr cdr cdr x x u u2 u1 u1 u3 US={u1, u2, u3} xS=[u11, u20, u30] yS=[u10, u20, u30] carS=[<u1 , u1>0, <u1, u2>0, <u1,u3>0, <u2, u1>0, <u2, u2>0, <u2, u3>0 <u3, u1>0, <u3, u2>0, <u3, u3>0] cdrS=[<u1 , u1>0, <u1, u2>1, <u1,u3>0, <u2, u1>0, <u2, u2>0, <u2, u3>1/2, <u3, u1>0, <u3, u2>0, <u3, u3>1/2] eqS=[<u1 , u1>1, <u1, u2>0, <u1,u3>0, <u2, u1>0, <u2, u2>1, <u2, u3>0, <u3, u1>0, <u3, u2>0, <u3, u3>1/2]

  15. Embedding • A pre-partial order on 3-valued logical structures • S1 S2 every concrete state represented by S1 is also represented by S2 • The set of nodes in S1 and S2 may be different • No meaning for nodes (abstract locations)

  16. Embedding • S1f S2 • f maps the individuals of S1 onto S2 • pS1(u1, .., uk)  pS2(f(u1), ..., f(uk)) • S1 S2 there exists f such that S1f S2 • Pre partial order • Induces a pre-partial order on P(3-Struct) • Set-union is a least upper bound • Finite height • :3-Struct  P(2-Struct) • (S) = {S’ : S’2-Struct, S’  S } • :P(3-Struct)  P(2-Struct) • (XS) =  S XS (S)

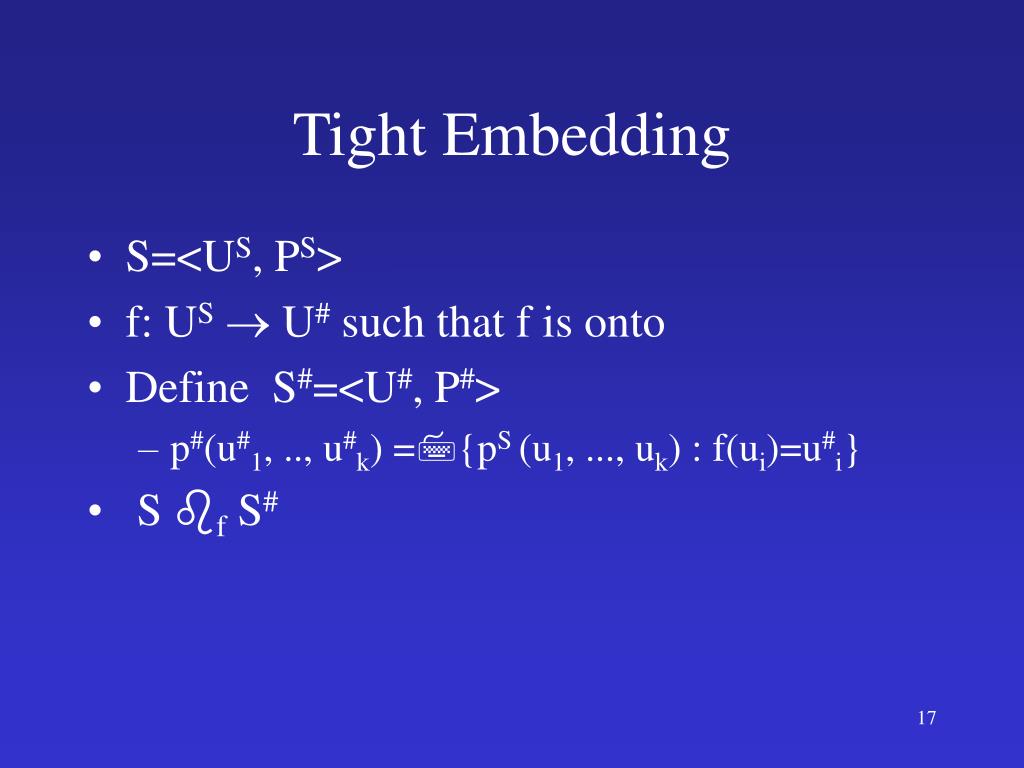

  17. Tight Embedding • S=<US, PS> • f: US U# such that f is onto • Define S#=<U#, P#> • p#(u#1, .., u#k) ={pS (u1, ..., uk) : f(ui)=u#i} • S f S#

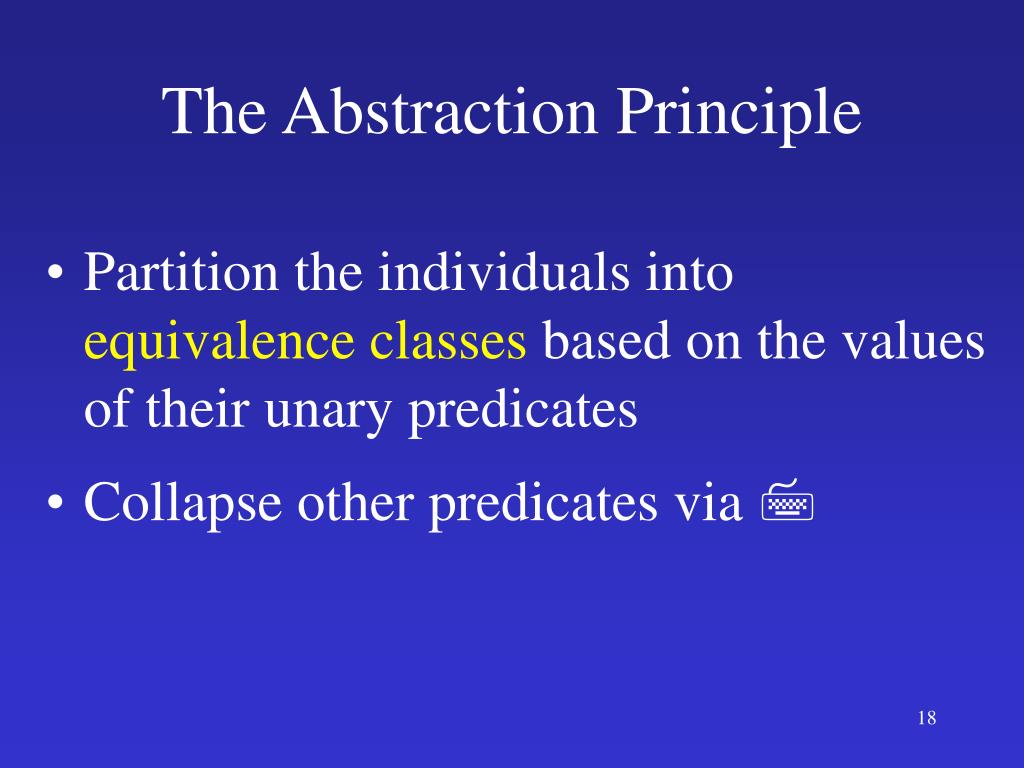

  18. The Abstraction Principle • Partition the individuals into equivalence classes based on the values of their unary predicates • Collapse other predicates via 

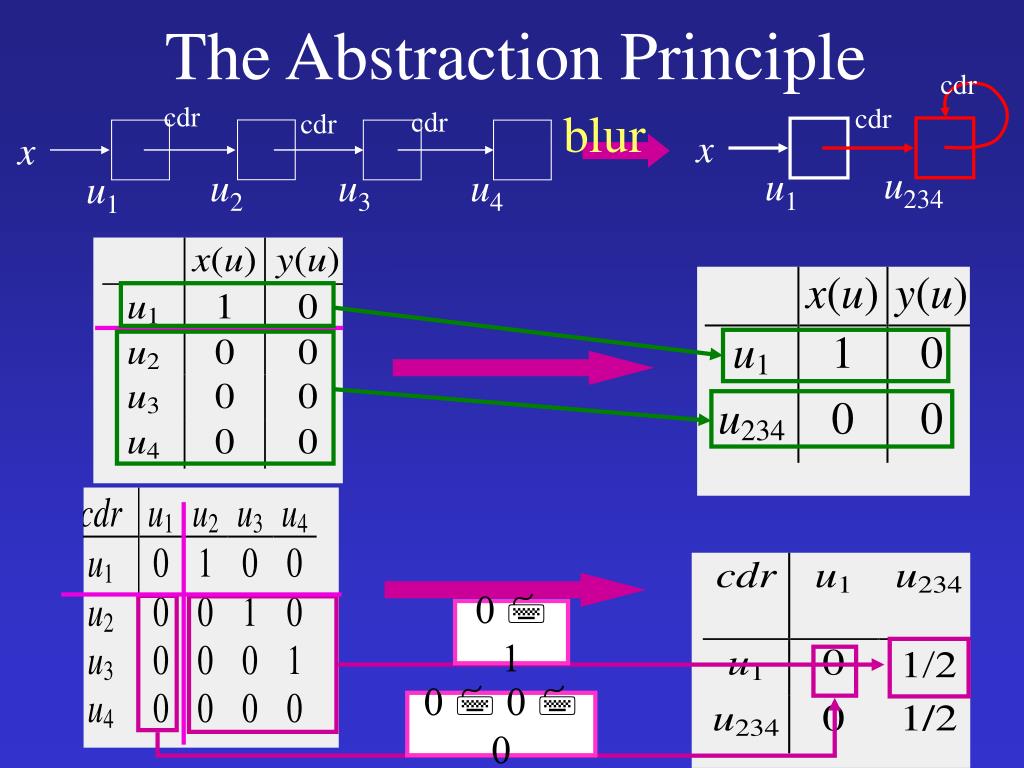

  19. cdr cdr blur x x u234 u1 u2 u3 u4 u1 0  1 0  0  0 The Abstraction Principle cdr cdr cdr

  20. Boolean Connectives [Kleene]

  21. Formal Semantics of First Order Formulae • For a structure S=<US, PS> • Formulae  with LVar free variables • Assignment z: LVarUS • S(z): {0, 1, 1/2} • 1S(z)=1 • 0S(z)=1 p(v1, v2, …, vk)S(z)=pS (z(v1), z(v2), …, z(vk))

  22. Formal Semantics of First Order Formulae • For a structure S=<US, PS> • Formulae  with LVar free variables • Assignment z: LVarUS • S(z): {0, 1, 1/2} • 12S(z)=max (1 S(z), 2S(z)) • 12S(z)=min (1 S(z), 2S(z)) • 1S(z)=1- 1 S(z) • v: 1S(z)=max {1 S(z[vu]) : u  US}

  23. The Embedding Theorem • Evaluating a formula in S is conservative with respect to (S) • Every formula  is preserved • =1 in S =1 in every S’(S) • =0 in S =0 in every S’(S) • =1/2 in S don’t know

  24. The Embedding Theorem • Sf S’ • Formulae  with LVar free variables • Assignment z: LVarUS • S(z)  S’(f  z)

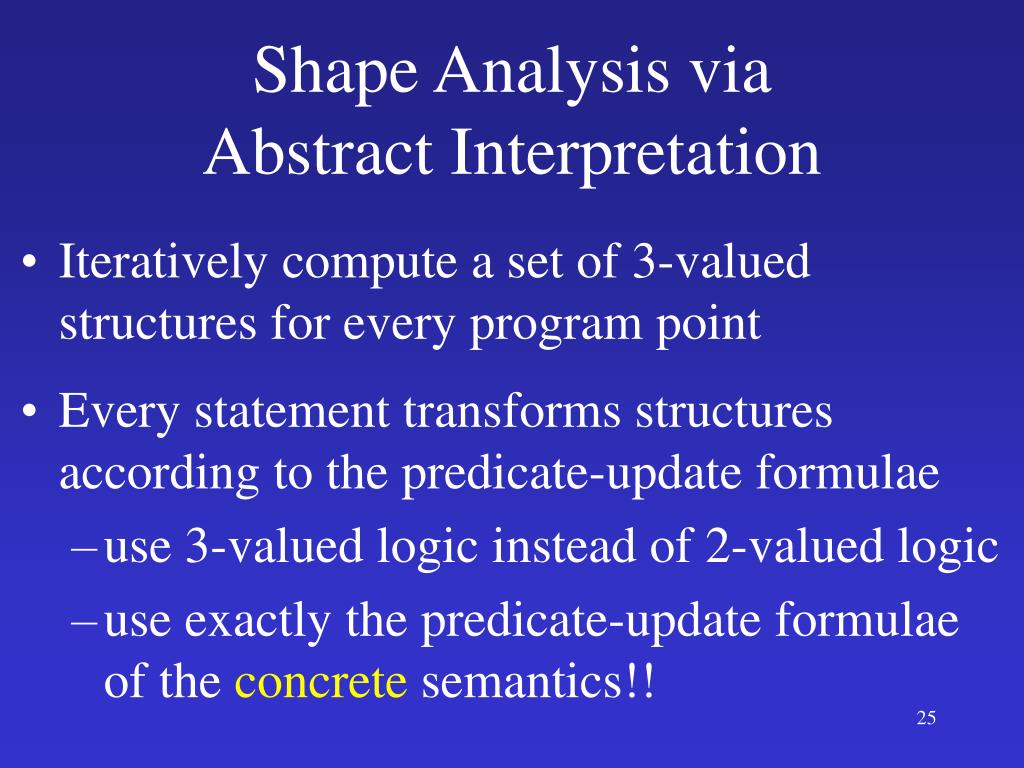

  25. Shape Analysis viaAbstract Interpretation • Iteratively compute a set of 3-valued structures for every program point • Every statement transforms structures according to the predicate-update formulae • use 3-valued logic instead of 2-valued logic • use exactly the predicate-update formulae of the concrete semantics!!

  26. Abstract Semantics AI (start) = {<, >} CS (v) = {blur(st(u)3(S)): uv  E, S AI(u)} {S : S, uv  Et , S3 cond(u) }  {S: S, uv  Ef , S3cond(u) }

  27. x:=null {x’(v) := 0 } t:=malloc() { let v0 := new() in t(v) := eq(v, v0) } [x := null;]1 ([count > 0]2 t.cdr :=x { message v: t(v) … cdr’(v1, v2) := (t(v1)? x(v2): cdr(v1, v2)) } [t :=malloc();]3 exit [t.cdr :=x;]4 a2 x:=t x’(v) := t(v) } [x :=t;]5

  28. y:=null={ y’(v) :=0 } [y:= null;]1 t:=y={ t(v) :=y(v) } ([x!=null]2 x !=null = v: x(v) [t :=y;]3 y:=x={ { y’(v) :=x(v) } [y :=x;]4 a3 exit y.cdr :=t ={ cdr’(v1, v2) := y(v1)? t(v2) : cdr(v1, v2) } [x :=x.cdr;]5 x:=x.cdr ={ message v:x(v) … x’(v) := v1:x(v1) cdr(v1, v) } [y.cdr :=t;]6

  29. Intermediate Summary • Predicate logics allows naturally expressing SOS for languages with pointers and dynamically allocated structures • 3-valued logic provides a sound solution • Immediate from Embedding theorem • All you need is to guarantee the SOS correctness • But not very precise

  30. More precise abstract interpretation • Refine the abstraction (concretization) • More precise abstract interpretation of basic statements • But not necessarily the best (induced)

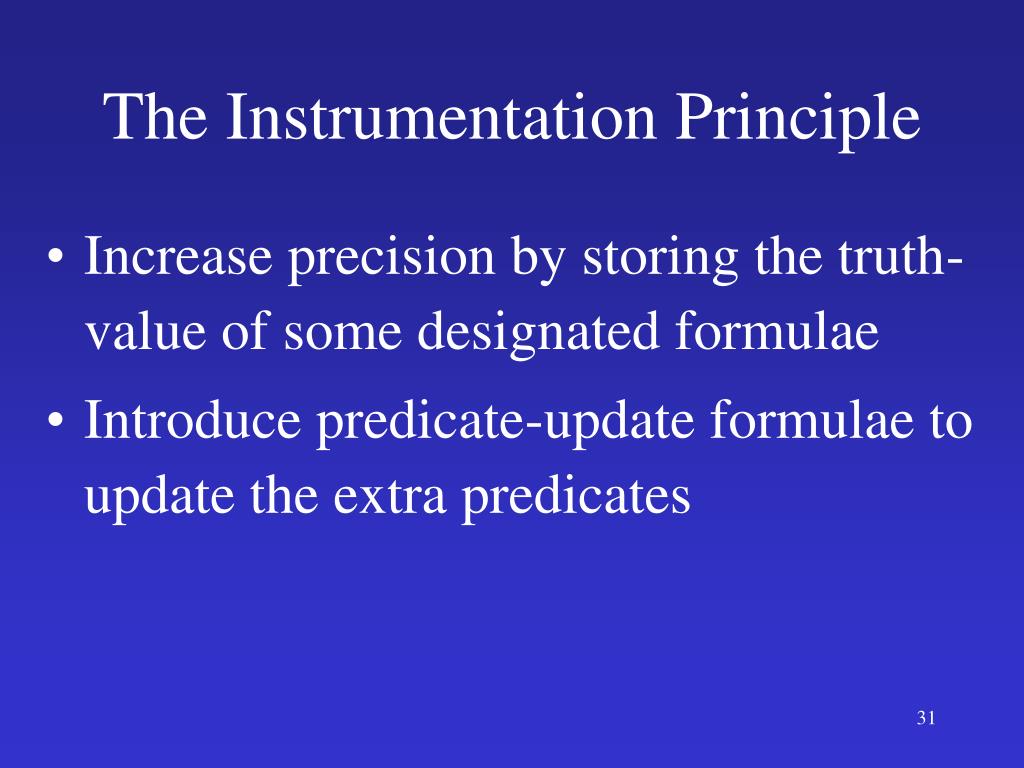

  31. The Instrumentation Principle • Increase precision by storing the truth-value of some designated formulae • Introduce predicate-update formulae to update the extra predicates

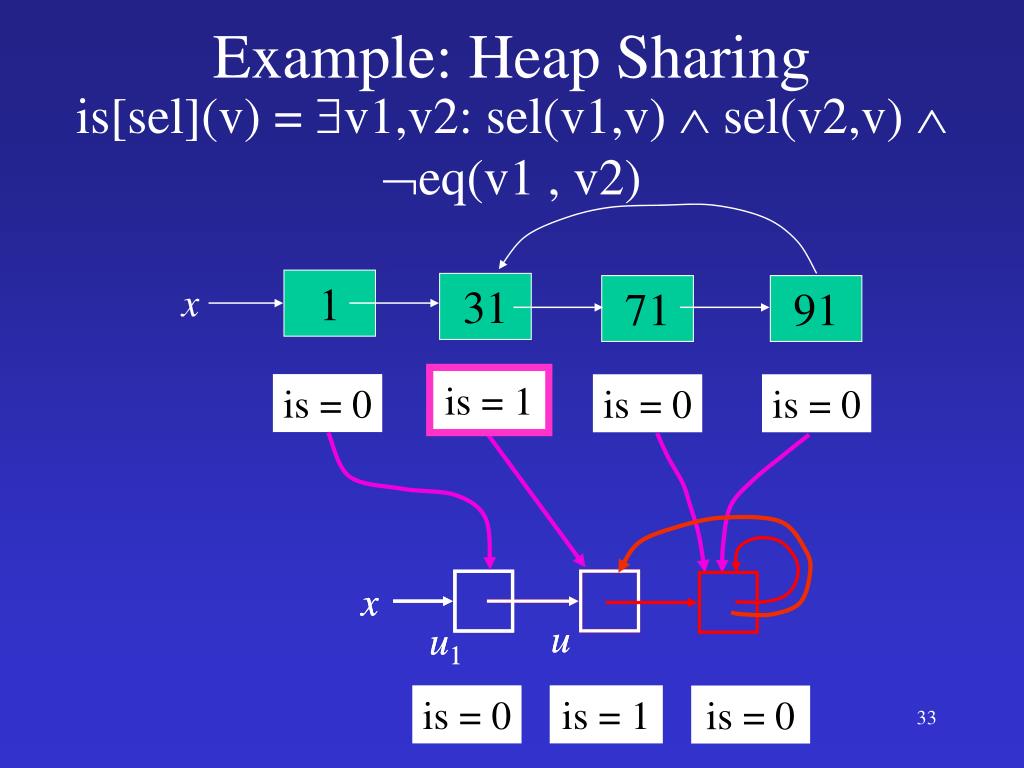

  32. x 31 71 91 is = 0 is = 0 is = 0 is = 0 x x u u u1 u1 is = 0 is = 0 Example: Heap Sharing is[sel](v) = v1,v2: sel(v1,v)  sel(v2,v)  eq(v1, v2)

  33. x 31 71 91 is = 0 is = 0 is = 0 is = 0 Example: Heap Sharing is[sel](v) = v1,v2: sel(v1,v)  sel(v2,v)  eq(v1 , v2) is = 1 x x u u u1 u1 is = 0 is = 1 is = 0

  34. Updating sharing x.sel:=y is [sel]’(v) := (v1:x(v1)? (y(v)? v2:sel(v2, v) x(v2) :(sel(v1, v)? v2, v3: is[sel](v2, v3, v)  x(v2) x(v3) : is[sel](v)) :is[sel](v)) is[sel](v2, v3, v) = sel(v2, v)sel(v3, v)  eq(v2, v3)

  35. Other Instrumentation • c[cdr,car](v)=v1: cdr(v, v1)car(v1, v) • c[car,cdr](v)=v1: car(v, v1)cdr(v1, v) • r[sel](v1, v2) = sel*(v1, v2) • r[x, sel](v) = v1: x(v1)sel*(v1, v) • r[x](v) = v1: x(v1)(car|cdr)*(v1, v) • inOrder[sel,dle](v) = v1: sel(v, v1) dle(v, v1) • inROrder[sel,dle](v) = v1: sel(v, v1) dle(v1, v)

  36. y:=null={ y’(v) :=0 } [y:= null;]1 t:=y={ t(v) :=y(v) } ([x!=null]2 x !=null = v: x(v) [t :=y;]3 y:=x={ { y’(v) :=x(v) } [y :=x;]4 a3 exit y.cdr :=t ={ cdr’(v1, v2) := y(v1)? t(v2) : cdr(v1, v2) } [x :=x.cdr;]5 x:=x.cdr ={ message v:x(v) … x’(v) := v1:x(v1) cdr(v1, v) } [y.cdr :=t;]6

  37. L1  L2  l  op Semantic Reduction • Improve the precision of the analysis by recovering properties of the program semantics • A Galois connection (L1, , , L2) • An operation op:L2L2 is a semantic reduction • lL2 op(l)l • (op(l)) = (l) • Can be applied before and after basic operations • Preserve soundness

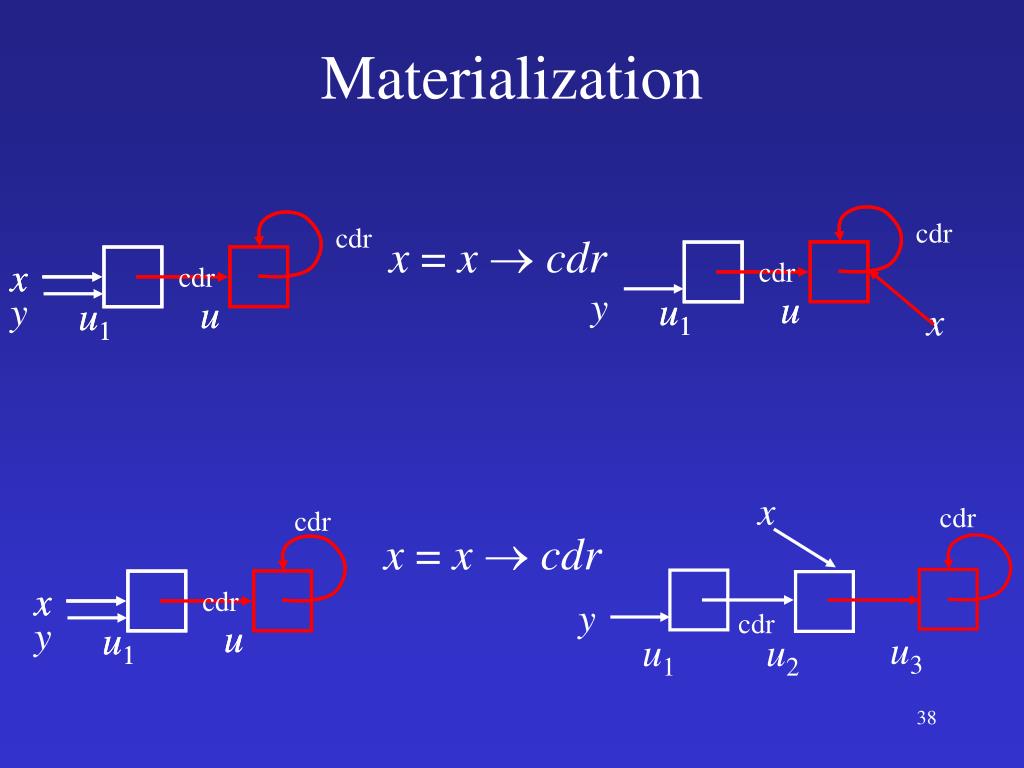

  38. x x u u u1 u1 Materialization cdr cdr x = x  cdr x cdr cdr y u u y u1 u1 u u1 x x cdr cdr x = x  cdr x cdr y cdr y u u1 u3 u1 u2

  39. The Focusing Principle • To increase precision • “Bring the predicate-update formula into focus” (Force 1/2 to 0 or 1) • Then apply the predicate-update formulae • Generalizes materialization

  40. x x x u u u1 u1 (1) Focus on  v1: x(v1)  cdr(v1,v) cdr            x x y u u u1 u1 cdr cdr x cdr x cdr y u u1 y u u1 r[cdr] cdr cdr cdr y cdr u1 u.1 u.0

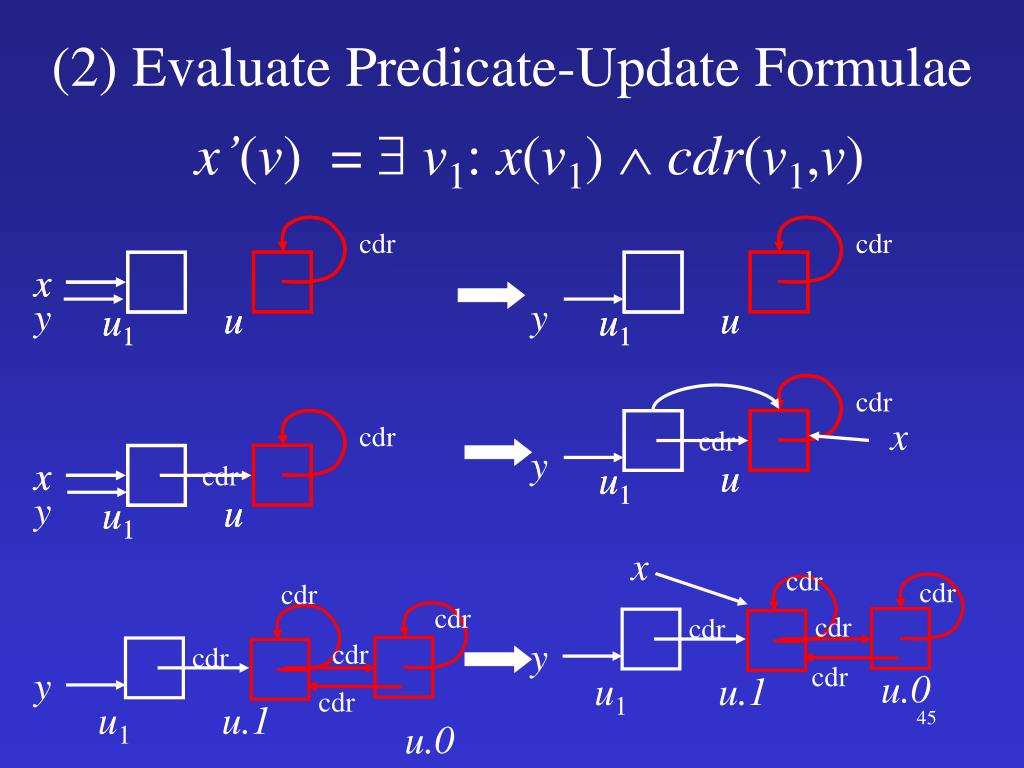

  41. x u u1 (2) Evaluate Predicate-Update Formulae x’(v) =  v1: x(v1)  cdr(v1,v) cdr cdr x x y y u u u u u1 u1 u1 u1 cdr x cdr cdr y x u u u1 u1 cdr y u u1 x cdr cdr cdr cdr cdr cdr y cdr cdr cdr y u.0 u1 u.1 cdr u1 u.1 u.0

  42. The Focus Operation • Focus: Formula(P(3-Struct) P(3-Struct)) • For every formula  • Focus()(X) yields structure in which  evaluates to a definite values in all assignments • Focus() is a semantic reduction • But Focus()(X) may be undefined for some X

  43. x x x u u u1 u1 (1) Focus on  v1: x(v1)  cdr(v1,v) cdr            x x y u u u1 u1 cdr cdr x cdr x cdr y u u1 y u u1 cdr cdr cdr y cdr u1 u.1 u.0

  44. x u u1 (1) Focus on  v1: cdr(v1,v) cdr x cdr y u u1

  45. x u u1 (2) Evaluate Predicate-Update Formulae x’(v) =  v1: x(v1)  cdr(v1,v) cdr cdr x x y y u u u u u1 u1 u1 u1 cdr x cdr cdr y x u u u1 u1 cdr y u u1 x cdr cdr cdr cdr cdr cdr y cdr cdr cdr y u.0 u1 u.1 cdr u1 u.1 u.0

  46. The Coercion Principle • Another Semantic Reduction • Can be applied after Focus or after Update or both • Increase precision by exploiting some structural properties possessed by all stores (Global invariants) • Structural properties captured by constraints • Apply a constraint solver

  47. x x cdr cdr cdr y cdr cdr u.0 u1 u.1 y cdr u.0 u1 u.1 (3) Apply Constraint Solver cdr

  48. Example Constraints x(v1) x(v2)eq(v1, v2) sel(v, v1) sel(v,v2)eq(v1, v2) sel(v1, v) sel(v2,v)eq(v1, v2)is[sel](v)

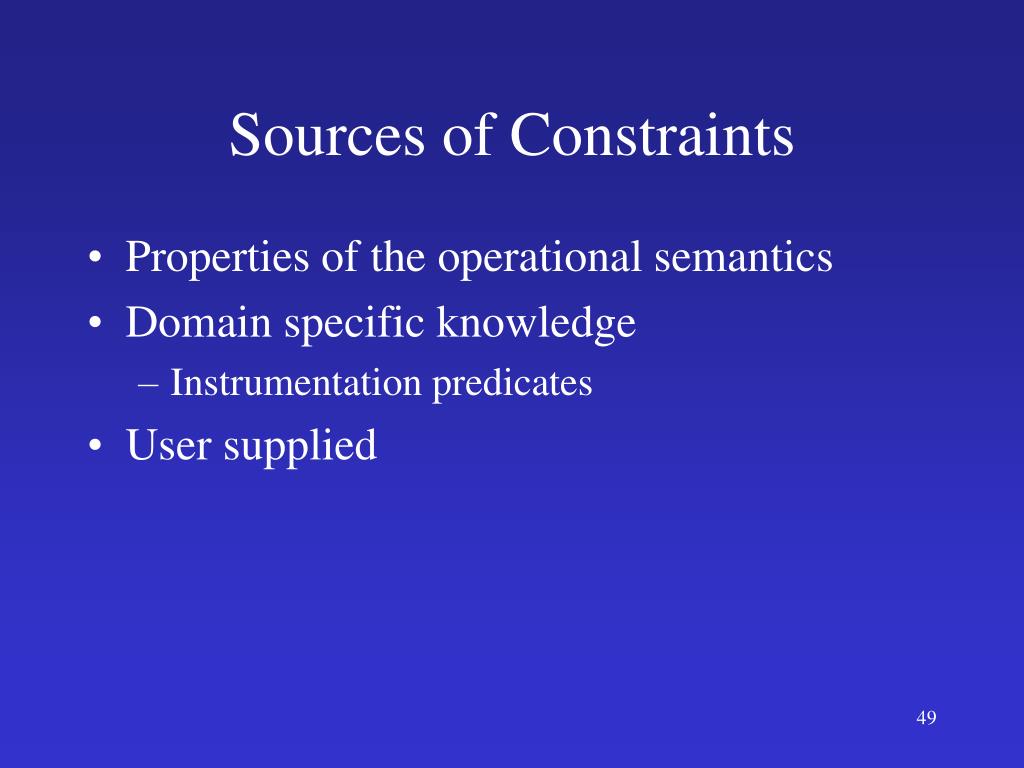

  49. Sources of Constraints • Properties of the operational semantics • Domain specific knowledge • Instrumentation predicates • User supplied

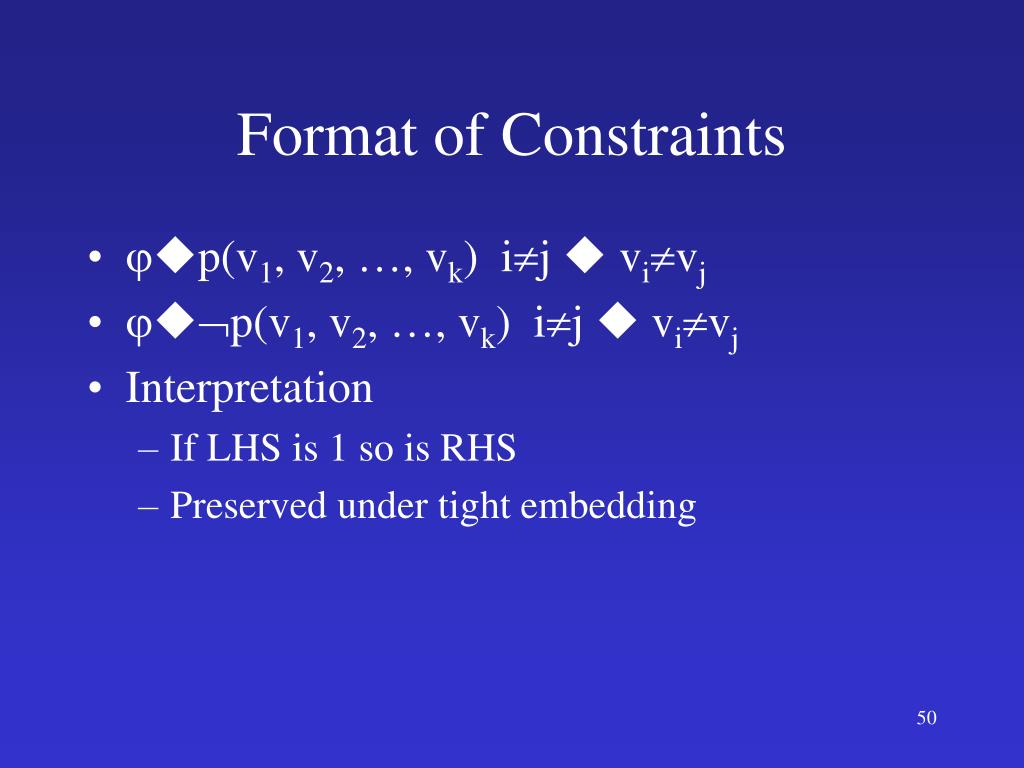

  50. Format of Constraints • p(v1, v2, …, vk) ij  vivj • p(v1, v2, …, vk) ij  vivj • Interpretation • If LHS is 1 so is RHS • Preserved under tight embedding
