Presentation Transcript

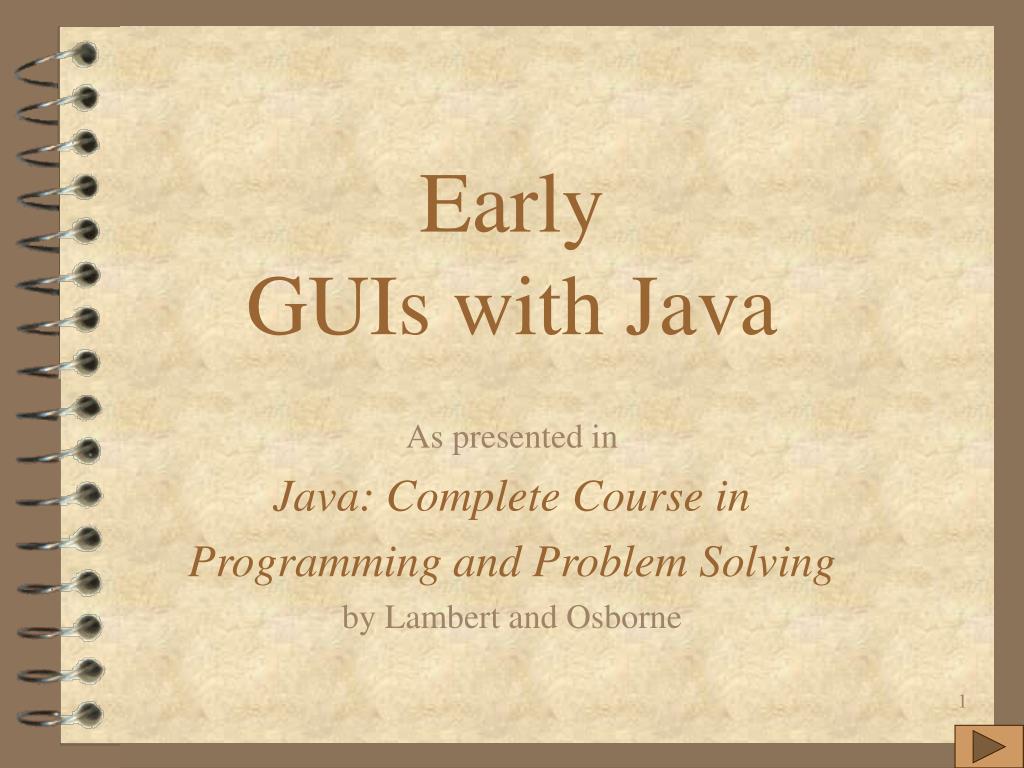

  1. EarlyGUIs with Java As presented in Java: Complete Course in Programming and Problem Solving by Lambert and Osborne

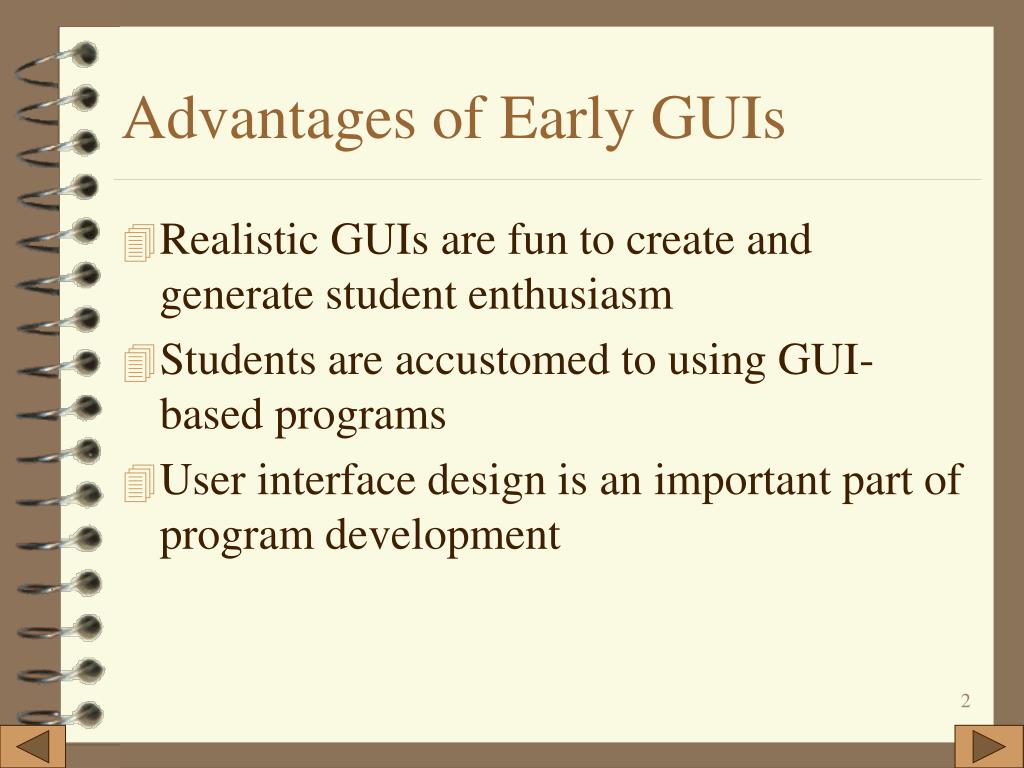

  2. Advantages of Early GUIs • Realistic GUIs are fun to create and generate student enthusiasm • Students are accustomed to using GUI-based programs • User interface design is an important part of program development

  3. But . . . • GUIs are too hard to create in Java • The abstract windowing toolkit (AWT) is too complicated • So doing GUIs would distract from core programming concepts

  4. Abstraction to the Rescue • We use Java’s power of abstraction to simplify GUI creation • We call the result BreezyGUI

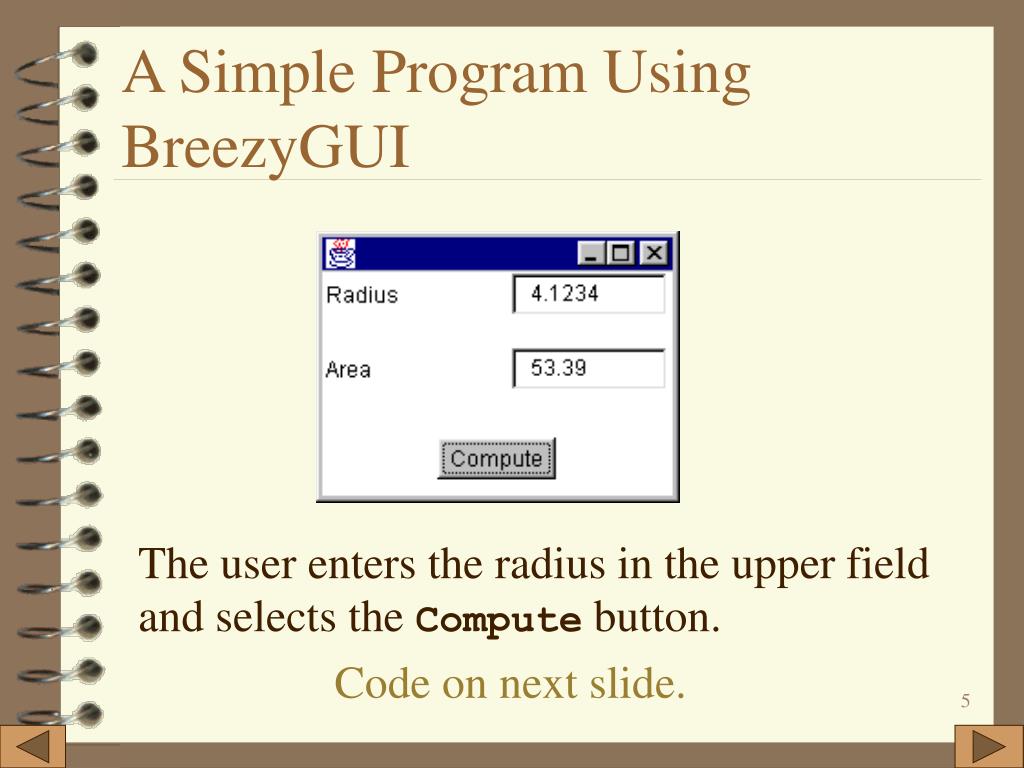

  5. A Simple Program Using BreezyGUI The user enters the radius in the upper field and selects the Compute button. Code on next slide.

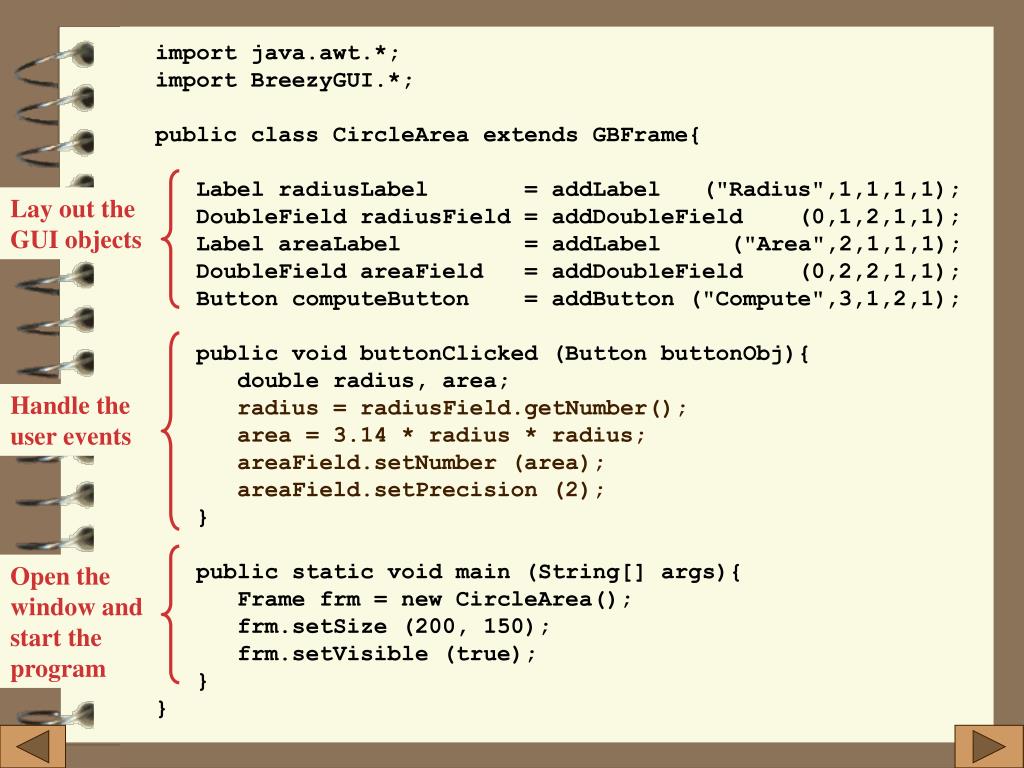

  6. import java.awt.*; • import BreezyGUI.*; • public class CircleArea extends GBFrame{ • Label radiusLabel = addLabel ("Radius",1,1,1,1); • DoubleField radiusField = addDoubleField (0,1,2,1,1); • Label areaLabel = addLabel ("Area",2,1,1,1); • DoubleField areaField = addDoubleField (0,2,2,1,1); • Button computeButton = addButton ("Compute",3,1,2,1); • public void buttonClicked (Button buttonObj){ • double radius, area; • radius = radiusField.getNumber(); • area = 3.14 * radius * radius; • areaField.setNumber (area); • areaField.setPrecision (2); • } • public static void main (String[] args){ • Frame frm = new CircleArea(); • frm.setSize (200, 150); • frm.setVisible (true); • } • } Lay out the GUI objects Handle the user events Open the window and start the program

  7. Transition to Full AWT Is Easy Students are now familiar with • structure of event driven programs • behavior of basic window components • designing GUI based applications In addition • BreezyGUI is an extension of Java’s AWT • and the book shows one how to make the transition

  8. BreezyGUI Highlights Supports • applications, applets, and dialogs • common window components • drop down menus • mouse events And it’s actually easier to use than terminal I/O

  9. BreezyGUI in Many Courses • Has been used in CS0, CS1, CS2, and more advanced courses • Useful in any course where direct use of AWT is not required

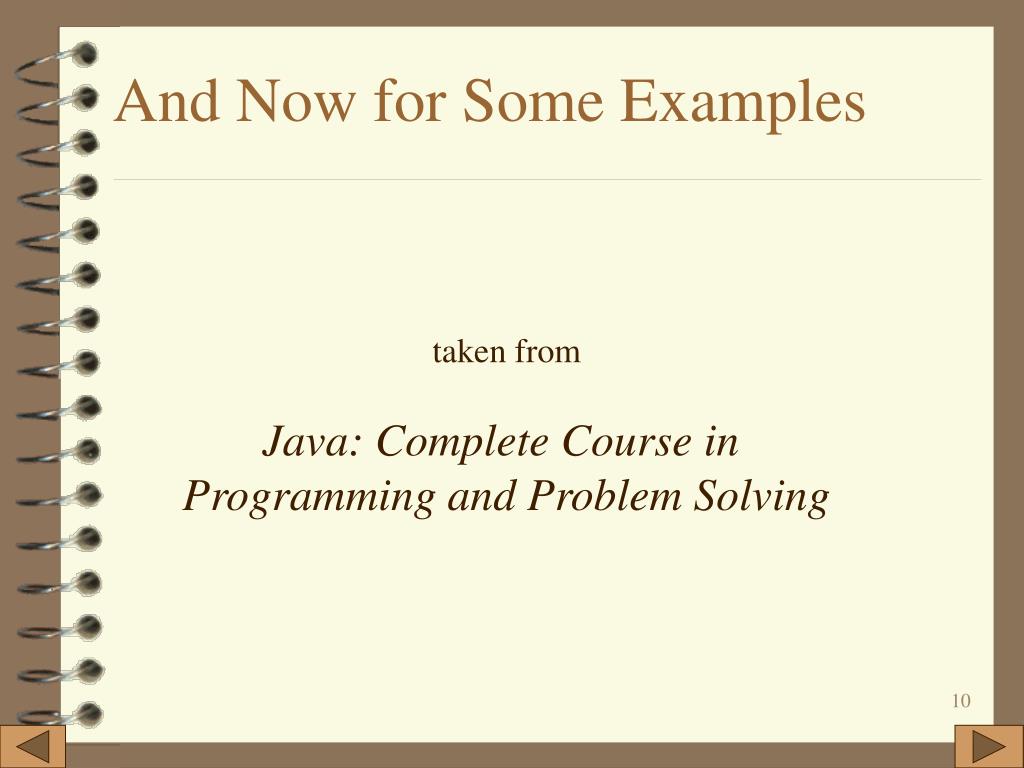

  10. And Now for Some Examples taken from Java: Complete Course in Programming and Problem Solving

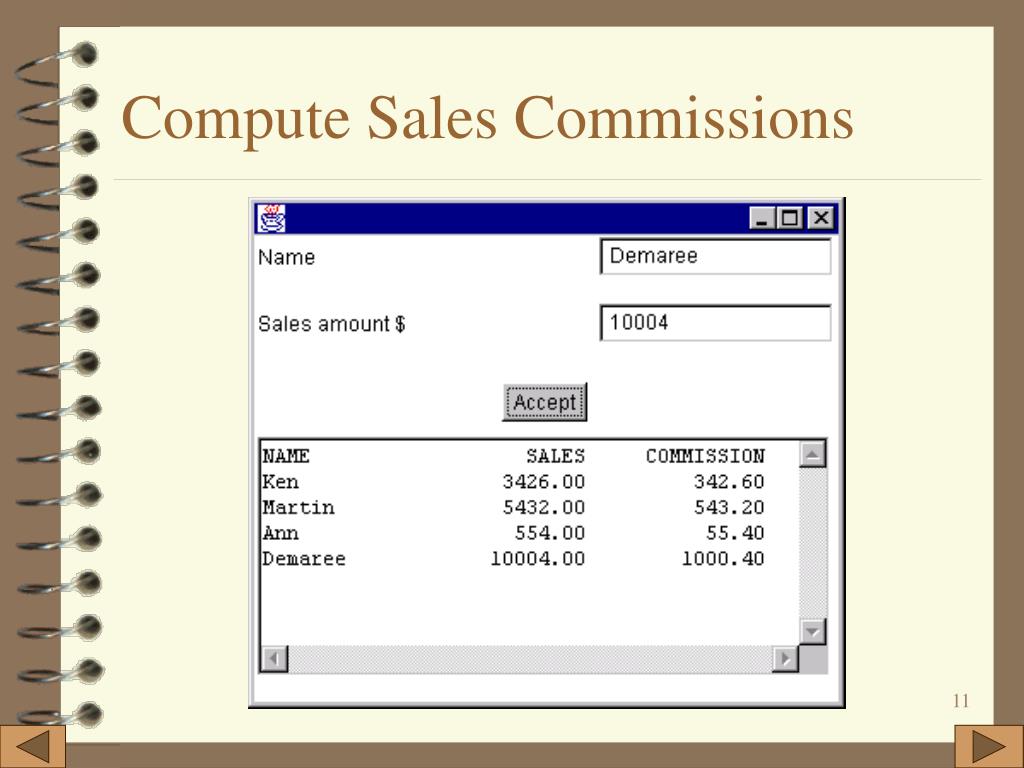

  11. Compute Sales Commissions

  12. Navigate and Maintain an Array of Student Objects

  13. Drag Circles

  14. Analyze a Text File

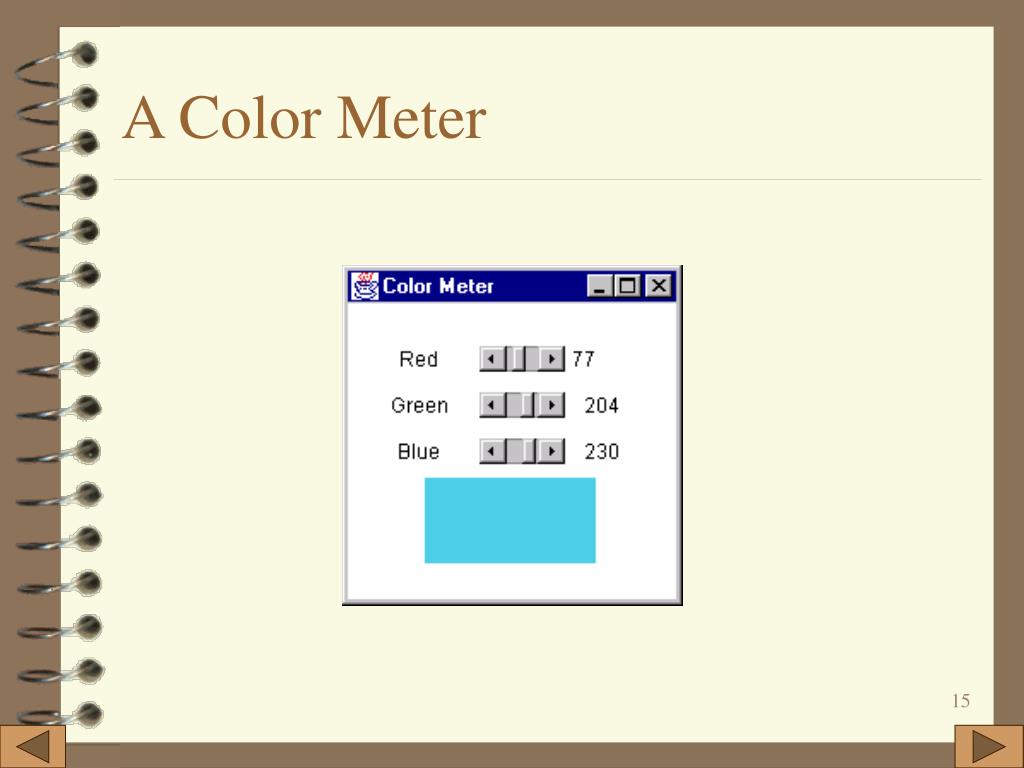

  15. A Color Meter
