  1. People are Talking! Internet Voice Gateways Oki Electric Industry Co., Ltd. James Knowles IP Product Manager

  2. Presentation topics: • What is an Internet Voice Gateway and what are the benefits of VoIP? • New products • 3 new products launched at CEBIT 2000 • Pricing • Competitive pricing for FY2000 • New target application • Case study of Internet Telephony Service Provider • Global IVG success stories • OKI IVG success stories that span the globe • Reviews of OKI Internet Voice Gateway • reviews showing OKI IVG solution’s high quality of voice

  3. What is Internet Voice Gateway? • Creates the bridge between the PSTN and a IP Network • Voice is converted, compressed & grouped into data packets PSTN Tokyo Paris BS1200 Gateway BS1200 Gateway IP Network

  4. Why use a packet switched network? Circuit Switched Voice Network • Dedicated capacity of ‘channels’ for duration of • connection • Inefficient use of available capacity • A channel, such as a standard telephone line, has a capacity or bandwidth of 64Kb/s

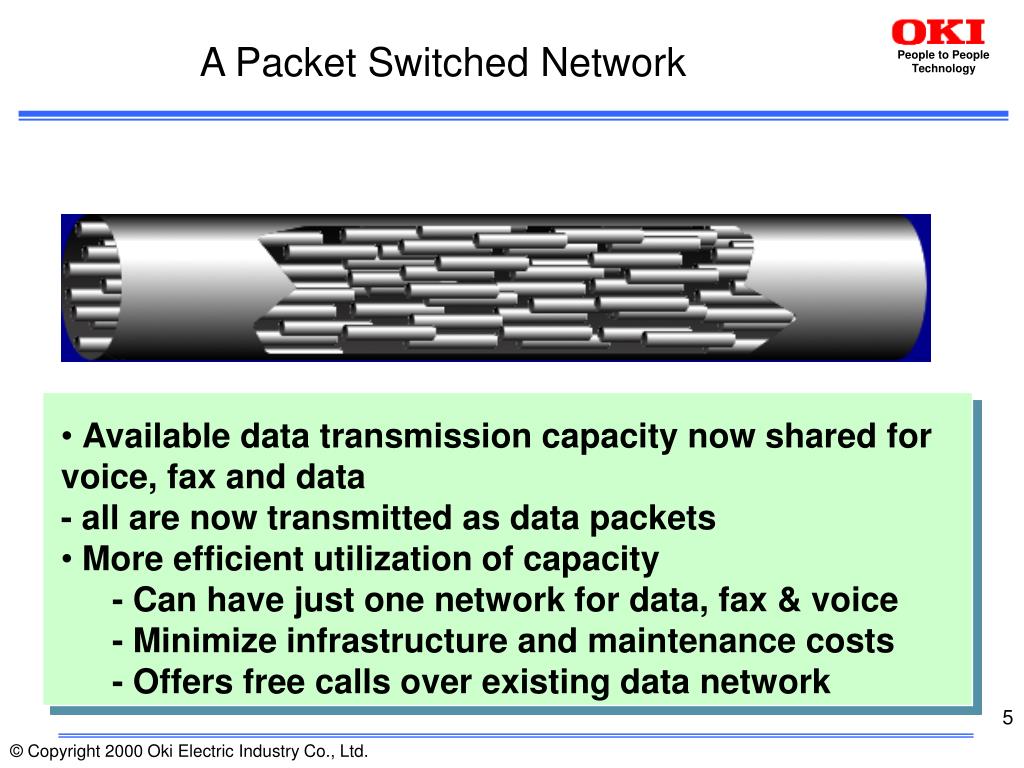

  5. A Packet Switched Network • Available data transmission capacity now shared for • voice, fax and data • - all are now transmitted as data packets • More efficient utilization of capacity • - Can have just one network for data, fax & voice • - Minimize infrastructure and maintenance costs • - Offers free calls over existing data network

  6. Benefits of an OKI VoIP solution • The OKI VoIP solutions use ‘standalone’ gateways which means easy installation with no disruption to current phone or data network infrastructure • The OKI VoIP solutions offer a structured migration path towards a wholly IP infrastructure for voice and data using OKI’s IP PBX • OKI VoIP solutions offer large cost savings, with payback times typically less than 6 months • OKI VoIP solutions offer the best quality of voice using advanced ‘jitter buffer’ technology • OKI has experience of installing and supporting VoIP networks from the smallest, to those including over 250 sites and global organisations that span the globe!

  7. OKI IVG range FY2000 - 1 to 120 channels in a single box • OKI 4 channel gateway, launched for Europe at Voice ‘98 • Launched as BS1200 with support for analogue FXS, E&M type 5, E&M types 1&2, and basic rate ISDN voice interfaces • New model, BV1250 launched at CEBIT 2000 • Range include a gatekeeper product that allows management of bandwidth used for IVG communications • OKI 1 channel gateway, launched at CEBIT 2000 • Called VOIP-TA this currently supports only an analogue voice interface • OKI E1 gateway, launched at CEBIT 2000 • This product can support from 1 to 4 E1 voice interfaces

  8. BS1200 Internet Voice Gateway Line-up • <BS1200> • AP type • Type 1: Analog Port:4 • Type 2: Tie Trunk Port:4, • EM type • -E&M Type 1&2, 2/4 wire • OD type • -E&M Type 5, 4 wire(EU model) • <BS1200E> • Euro ISDN BRI x 2 Port: TE mode • QSIG Protocol • <BS1200GateKeeper> BS1200 AP Type

  9. BS1200 Specifications • Station Interface: • BS1200AP: Analog Port: 4 (Includes FAX) • BS1200E&M: Private Line Port: 4, E&M Type 1, 2 & 5 Interfaces • BS1200E: Euro ISDN BRI: 4 (BRI x 2), QSIG Protocol • Network Interface • Uplink port: 1, 10Base-T interface, RJ45 • Voice Compression channel: 4, G.729(CS-ACELP) 8 Kbps • Facsimile channel: 1, G3 mode, (Incl. in Voice channels) • Power Requirement: 90-240Vac, 70VA, 50/60Hz • Chassis: Stand-alone/ 19” Rack Mountable, 7Kg 434(W) x 65(H) x 350(D) mm • Basic Features • H.323 V2 Compliant • QoS Control - G729 codec and jitter buffer technology • Traffic & fault management features • SNMP supported for remote maintenance • Oki Proprietary MIB information is open to public • Tailored maintenance console software provided • Stackable for up to 30 units

  10. Award Winning BS1200 The Oki’s BS1200 Internet Gateway is our latest Editor’s choice award winner for its performance, cost and simple set-up process, all of which are among the best we’ve seen in a non-NT Server gateway. - Internet Telephony, 1998 Editors’ Choice Award - Weighting only sixteen pounds, the BS1200 from OKI packs a lot of power into a small 17” x 14” footprint . - CTI magazine, 1998 Editor’s Choice - We prefer the BS1200 by OKI. It achieves the best test results on voice quality - 01 Network, Dec 1999 Recommended

  11. BV1250 Internet Voice Gateway Line-up < BV1250 series > - FXS port - Tie Trunk Port -E&M Type 1，2&5 2/4 wire - Analogue PSTN Interface - E-ISDN(S0/QSIG), TE mode BV1250 BRI Type

  12. Basic Specifications • Station Interface: • BV1250AP:Analogue Interface: 4 • BV1250E&M:Private Line Interface: 4, E&M Type 1, 2 & 5 Interface • BV1250FXO:Analogue PSTN Interface: 4 • BV1250BRI:Euro ISDN BRI: 4 (S0 x 2), QSIG, TE mode • Network Interface: • Physical Network Port:1, IEEE802.3, 10Base-T Interface, RJ45 • Voice Compression channel:4, G.729a(8Kbit/s)/G.723.1(6.3/5.3Kbit/s) • Facsimile channel:4, G3 mode, 4.8/9.6Kbit/s • Simultaneous Connection:4:Flexibly usable for Voice + Fax ports • Maintenance Port:1, EIA/TIA RS232C BD9 • Power Requirement:100-240Vac, 70VA, 50/60Hz • Chassis:Stand-alone/ 19” Rack Mountable, 4 Kg 420(W) x 400(D) x 44(H) mm

  13. Features • H.323 V2 Compliant • High Quality of Voice • Supports G.729a(8Kbit/s), G.723.1(6.3/5.3Kbit/s) • Toll quality voice (with G729) without delays or packet loss • Adaptive Jitter Buffer Control • Automatic delay recovery control • Adjustable Voice Payload Length • Automatic Voice Level Adjustment • Automatic Gain Control • Automatic Integrated Echo Cancellation • Real-time Fax Communications • 4CH Automatic Fax Signal Detection • Accommodates existing PBX numbering Plan • A Variety of Interface Support • Scaleable • Easy maintenance

  14. BV1250 AP (FXS) model uses standard RJ11 Will develop FXO model for Europe also (Estimate Q3 2000) Also support G723.1 (6.3,5.3k) Automatic selection of best CODEC All 4 channels for fax and voice Automatic fax detection Transparent to additional QSIG services Transparent to DTMF 2/3 the size of the BS1200 Adaptive Jitter Buffer Control Automatic delay recovery control Adjustable Voice Packet Length Automatic Voice Level Adjustment BS1200 Has FXO model for US and Asia Only supports G729 (8k) With optional fax board supports only 1 channel for fax Supports basic connection for QSIG Transparent to DTMF only with fax board Jitter buffer only increases BV1250 compared with BS1200

  15. UPLINK UPLINK OKI COMSON OKI COMSON BS1100 BS1100 PORT PORT PBX UPLINK COMSON OKI BS1100 PORT UPLINK OKI COMSON BS1100 PORT Network Configuration PBX BV1250 BRI BV1250-AP Hub Hub UPLINK PORT Router Router Maintenance Console BS1200-GK *BS1200-GK is an option when required the bandwidth control. IP Network Router Router PBX BV1250E&M BV1250-FXO PSTN Hub Hub

  16. BS1200 Internet Voice Gatekeeper • Key Features: • ITU-T Recommendation H.323 V.2 compliant • Centralized Address Conversion • Voice Bandwidth Management • System Redundancy (Standby Gatekeeper) • Remote Management:FTP/TELENET • SNMP Management:MIB II • Advanced Maintenance Console Software • Manages up to 256 links

  17. Outline of VoIP-TA • One Channel Internet Telephony Gateway • Analogue phone, KTS, or G3 fax, and PC can be connected. • Compliant with ITU-T recommendations: H.323 V2 and T.38 real-time fax. PC Router IP Network TEL/KTS/FAX : Analogue VoIP-TA V1.1 : 10Base-T

  18. Basic Specifications * FXS: Foreign Exchange Station

  19. Features • H.323 compliant Internet telephony (G.729a, G.723.1, G.711) • T.38 compliant realtime Internet fax • Analogue telephone, G3 fax and PC can be connected. • QoS control for voice • ITU-T G. 729a(8kb/s), G723,1(5.3/6.3kb/s), G.711(64kb/s) • Oki’s unique jitter buffer technology • Automatic integrated echo cancellation • Work with an external gatekeeper or with built-in DNS (up to 100 IP address) for numbering management • Easy installation • Configurable from PC (RS232C, LAN) • Advanced maintenance console software • Remote Management: FTP/TELENET

  20. Potential Usage of VoIP-TA • For CATV providers: • VoIP-TA to SoHo and residential subscribers • A part of IP telephony service via cable modem • VoIP-TA works with VoIP-GW and GK at the provider side • For Carriers, ISPs, ITSPs and CLECs: • VoIP-TA to SoHo and residential subscribers • A part of IP telephony service • VoIP-TA works with VoIP-GW and GK at the provider side • For Enterprises: • VoIP-TA to small branch offices or to telecommuters • VoIP-TA works as a counterpart to larger VoIP-GW at the HQ • Use IP-VPN service from service providers

  21. OKI OKI Network Example: Service Provider • For Service Providers: • CPE use by service providers SOHO KTS IP-TA Router Service Provider Existing LAN IVG PSTN Router Leased line or IP-VPN Residence IP-TA Router BS1200-GK Customer Tel / Fax

  22. BV7000 Internet Voice Gateway Line-up < BV7000 series > - European DS 1 (E1/PRI) - European DS 1 (E1/QSIG) - North American DS 1 (T1) BV7000 PRI Type

  23. Basic Specifications • Station Interface: • BV7000-30 :European DS 1 : 30 (E1 x1), PRI/QSIG • BV7000-60 :European DS 1 : 60 (E1 x2), PRI/QSIG • BV7000-120 :European DS 1 : 120 (E1 x4), PRI/QSIG • BV7000-24 :North American DS 1: 24 (T1 x 1) • BV7000-48 :North American DS 1: 48 (T1 x 2) • BV7000-96 :North American DS 1: 96 (T1 x 4) • Network Interface: • Physical Network Port:1, IEEE802.3, 10/100Base-T Interface, RJ-45 • Voice Compression channel:120, G.729a(8Kbit/s)/G.723.1(6.3/5.3Kbit/s) • Facsimile: T.38 real-time Internet fax • Simultaneous Connection:120:Flexibly usable for Voice + Fax ports • Maintenance Port:1, EIA/TIA RS232C BD9 • Power Requirement:100-240Vac,120VA, 50/60Hz • Chassis:Stand-alone/ 19” Rack Mountable, 7 Kg 440(W) x 310(D) x 66(H) mm

  24. Features • H.323 V2 Compliant • T.38 real-time Internet Fax • High Quality of Voice • Supports G.729a(8Kbit/s), G.723.1(6.3/5.3Kbit/s) • Near toll quality voicewithout delays or packet loss • Adaptive Jitter Buffer Control • Automatic delay recovery control • Adjustable Voice Payload Length • Automatic Integrated Echo Cancellation • Accommodates existing PBX numbering Plan • Easy installation & maintenance

  25. FY2000 Product Availability 2000 2001 Apr. May June July Aug. Sep. Oct. Nov. Dec. Jan. Feb. Mar. Product Lineup VoIP-TA FXS, T.38, Europeonly PSTN I/F (TBR21/Germany) DHCP, NAT Enter- prise Based on SPs’ requirement (MGCP, Router, LCR, SNMP) Service Provider BV1250 DSS1(NT/TE) for ISDN BRI / T.38 BV7000 E1 QSIG T.38 T1 <E1 : 30ch / 60ch / 120ch> <T1 : 24ch / 48ch / 96ch > BS1200 GK H.323 V2 Compliant

  26. Oki VoIP gateway advantages • ITU-T H.323 Version 2 Compliant • Toll Quality Voice (G.729) • QoS Control • Oki’s Jitter Buffer Technology • Automatic Integrated Echo Cancellation • Real-time Internet Fax (T38) • DTMF Transmission • Accommodates existing PBX numbering plan • Scaleable • Easy maintenance

  27. IVG Pricing FY2000 Pricing for OKI IVG products (In DeutscheMarks) BS1200(All) BV1250 VOIP-TA BV70001 Y2000 Y2000 Y2000 Y2000 List 4,550 4,995 995 24,000 Please note that prices include where applicable (BS1200, BV1250, BV7000): Main unit including rack-mount kit One Interface card Accessory Kit 1Price given is for single E1. 2*E1(40,000DM) and 4*E1(65,000DM) available

  28. Intranet/Extranet Market for Corporate users • Voice communication over Existing Data Network • PBX Gateway trunk to IP Network BRANCH HEAD OFFICE PBX Key Telephone system PSTN Voice Internet Voice Gateway as PBX adapter LAN SWITCH Router IP Network Router LAN LAN Data DNS

  29. Internet Telephony Gateway for ISP / Telecom Carrier • New Telephone Service over IP Network Low cost solution for Subscribers ACCESS POINT ACCESS POINT PBX Internet Voice Gateway PBX E&M Internet Voice Gateway PSTN(Local) E&M PSTN(Local) Router Internet LAN Switch Access Server Router DNS Access Server

  30. Internet PSTN Case Study: New ITSP Network Configuration China side:400ch Fullerton,CA Line:120ch Stack of E&M 30 units E&M Router Chinese clients E&M or FXS . . . PBX • Fullerton side PBX Requirement • E&M board(120ch) • T1 board(120ch) • transfer numbers T1

  31. Case Study: Issue management 1) Numbering: BS1200 PBX PBX PSTN To US 001-714-870-0861 1-714-870-0861 1-714-870-0861 To Japan 0081-3-3452-4111 81-3-3452-4111 011-81-3-3452-4111 To others country 00xx-yyyyyyyyyy xx-yyyyyyyyyy 011-xx-yyyyyyyyyy BS1200 delete “00” (BS1200 function) To others country PBX add “011” (PBX function) 2) Billing: This solution utilized the Ascend Multivoice Manager Gatekeeper. This ITSP has developed billing and database solutions based on this gatekeeper solution. OKI works with external billing solutions.

  32. Case study: Keys for success • Voice Quality • Customer cited OKI’s excellent voice quality over IP connections as a reason for choosing OKI • Scaleable solution • OKI’s gateway solutions can be easily scaled as up to 30 units offering 120 simultaneous calls can be stacked together and connected to a single PBX • Competitive pricing • OKI gateways are very price competitive • Toll Bypass • High cost of International calls are bypassed using local PSTN access to IP gateway

  33. OKI IVG Success stories include: (1)Customer Private Network (2) Public Network (3)Other Network Car Dealer Electronics Manufacturing *2 Chemical Maker Bank Construction Machine Manufacturer Mining Company Political Org. Computer Service Business School Internet Service Provider Governmental Org. Car Dealer Construction Materials Vendor Electronics Food Manufacturer Measurement Equipment *3 Electronics Car Manufacturer *1 ITSP Global connection *1: Germany /Poland/Japan *2: UK /Germany /USA /Japan /China/Thailand/Singapore *3: UK /Germany /France /USA /Japan

  34. Score S Quality t Description of Impairment 4 5 Excellent Imperceptible t 3 4 Good Just Perceptible, not Annoying 2 3 Fair Perceptible and Slightly Annoying 1 2 Poor Annoying but not Objectionable 0 1 Bad Very Annoying and Objectionable Reviews of OKI Internet Voice Gateway Two leading telecommunication publications conducted separate evaluations of competing VoIP products. Their evaluations centered on two critical factors: Delay Time and Delay Deviation Article #1. Nikkei Communication, Dec. 99 - Nine products tested by NTT Communications Test conducted in three areas: 1. Normal Conversation -MOS -Delay Time 2. Random Number Read Accuracy Test -MOS -Number of digits correctly received 3. Comparison of Wave Form -Loss of sine wave form of received signal *MOS score (Mean Opinion Score) is a widely used subjective measure of voice quality) Article #2. Decision Micro & Reseaux, Nov. 99 - Voice quality rating with traffic and without traffic (out of 10)

  35. <Test tool> PBX: Toshiba EX500 LAN-SW: 3Com SuperStack L3-SW: 3Com CoreBuilder3500 Network Emulator:NTT NE3000E <Products in test> VoIP-GW:OKI BS1200, Cisco3640, Motorola 6560MP Router Pro, Nuera F200ip*#, NTT-AT VH100, VocalTec IP Gateway*, Soliton Solphone1204, Fujitsu IT adapter*#, NEC IP45/951 <Note> *: Not G.729 voice CODEC, # :Not 40 bytes voice packet size [Fig.4] Network configuration of evaluation test PBX PBX VoIP-GW VoIP-GW L3-SW L3-SW product A product A product B product B Network Emulator product I product I LAN-SW LAN-SW Telephone Telephone Speech wave measurement Network configuration evaluation test for VoIP-GW by NTT Com. Content of evaluation test for VoIP-GW Item Delay Deviation Measurement (1)Normal conversation 1)No delay deviation MOS score / Delay time 2)Delay deviation MOS score / Delay time (2)Random table read 1)No delay deviation MOS score / Correctly received digits accuracy test 2)Delay deviation MOS score / Correctly received digits Test condition -Voice CODEC: G.729 or G.729AnnexA -Voice packet size: 40 bytes (Source: Nikkei Communication, Dec. 99)

  36. ○ (MOS, Delay time) ↓ Gaps in the speech pattern ○ : No △: small level ×: middle level ※: large level Normal Conversation Test Results OKI’s IVG tested well in Voice Quality Opinion Test Good voice quality = Less delay time & Good MOS score MOS [Fig.5] 0.0 1.0 2.0 3.0 4.0 bad poor fair good excellent 0 Test in the lab 100 (No delay deviation. With no load, all products score in this area ) Bad or poor voice quality Soliton Solphone1204 200 ×(0.9, 262) Test in the field ● Cisco3640 (Delay variation With additional load applied) 300 ● ×(1.5, 315) VocalTec IP Gateway *1 Delay time [ms] OKI BS1200 ● △(1.6, 376) ×(2.3, 412) 400 ● NTT-AT VH100 ○(2.0, 477) ● Motorola 6560MP Router Pro ● 500 ○(2.1, 480) ● ○(2.2, 555) ● Nuera F200ip*1 600 ○(2.2, 569) NEC IP45/951 Fujitsu IT-adapter*1 Higher delay time 700 ※(0.9, 747) ● *1:not G.729 voice CODEC 800 (Source: Nikkei Communication, Dec. 99)

  37. NTT-AT VH100 Nuera F200ip*1 NEC IP45/951 Results of Random Table Reading Accuracy Test. Results of Random Table Reading Accuracy Test Good voice quality = High number of correctly received digits & Good MOS score 25 Test in the lab No delay deviation No Load applied Bad or poor voice quality 20 Delay variation Test in the field OKI BS1200 15 Cisco3640 ● ● ● Number of digits correctly received ● ● Soliton Solphone1204 VocalTec*1 IP Gateway ● ● 10 ● Motorola 6560MP Router Pro ● Fujitsu IT-adapter *1 5 *1:not G.729 voice CODEC 0 bad poor fair good excellent [Fig.6] 0.0 1.0 2.0 3.0 4.0 MOS (Source: Nikkei Communication, Dec. 99)

  38. Results of Comparison of Wave Form Test OKI's IVG has a better balance of voice quality in comparison to other vendors. -Oki’s IVG shows no gaps in the speech pattern & Less delay time in the field. Max Delay(ms) / Loss of Signal Wave Form of Received Signal Products/ Vendors No Load Applied With Load Applied No Load Applied With Load Applied 124 / No 477 / No 105 / No 316 / Medium 144 / No 480 / No 77 / No 412 / Medium 91 / No 555 / No 438 / No 569 / No BS1200 /OKI Cisco3640 /CISCO 6560MP Router /MOTOROLA VH-100 /NTT-AT F200ip /Nuera IP45/951 /NEC Much delay time [Table 1-1] Much delay time (Source: Nikkei Communication, Dec. 99)

  39. Pt.2 Results of Comparison of Wave Form Test <Delay time, Gaps in the speech pattern> OKI's IVG has a better balance of voice quality in comparison to other vendors. Max Delay(ms)/ Loss of Signal Products/ Vendors Wave Form of Received Signal No Load Applied Load Applied No Load Applied Load Applied BS1200 /OKI IT Adapter /Fujitsu Solphone1204 /Soliton IP-Gateway /Vocaltec 124 / No 477 / No 279 / No 747 / Large 213 / No 262 / Medium 137 / No 378 / Small Much delay time [Table 1-2] (Source: Nikkei Communication, Dec. 99)

  40. Comparison between OKI's IVG and Multitech? OKI's IVG has better voice quality than Multitech Article #2. Decision Micro & Reseaux, Nov. 99 - Voice quality rating with traffic and without traffic (out of 10) [Fig.9] Lab Test Quality of Voice Rating (out of 10) Voice without traffic OKI: 7.38 Multitech: 6 Voice with traffic OKI: 7.13 Multitech: 2.15

  41. Comparison of BS1200 with other VoIP products (Source: Nikkei Communication, Dec. 99)

  42. Growth of the global VoIP Market? • Analysis at San Francisco brokerage Robertson Stephens projects worldwide Internet phone revenues rocketing at a rate of 110% a year over the next half a decade -- from $1.8 billion this year to $19 billion by 2004. "It's going to be a very strong market going into the end of 2000, as well as 2001," predicts Rick Juarez, Robertson Stephens senior analyst in e-commerce infrastructure services. • Voice over Internet Protocol (VoIP) gateway sales will increase 280 percent during the next five years, reaching $3.8 billion in 2003, according to research by Cahners In-Stat Group.
