ADI develops clock ICs targeting all critical timing functions

ADI develops clock ICs targeting all critical timing functions. Synchronization. Generation. Distribution. For jitter clean-up from a noisy reference, or generating a clean signal...combined with multiple, flexible frequency outputs.

carina
Télécharger la présentation

ADI develops clock ICs targeting all critical timing functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

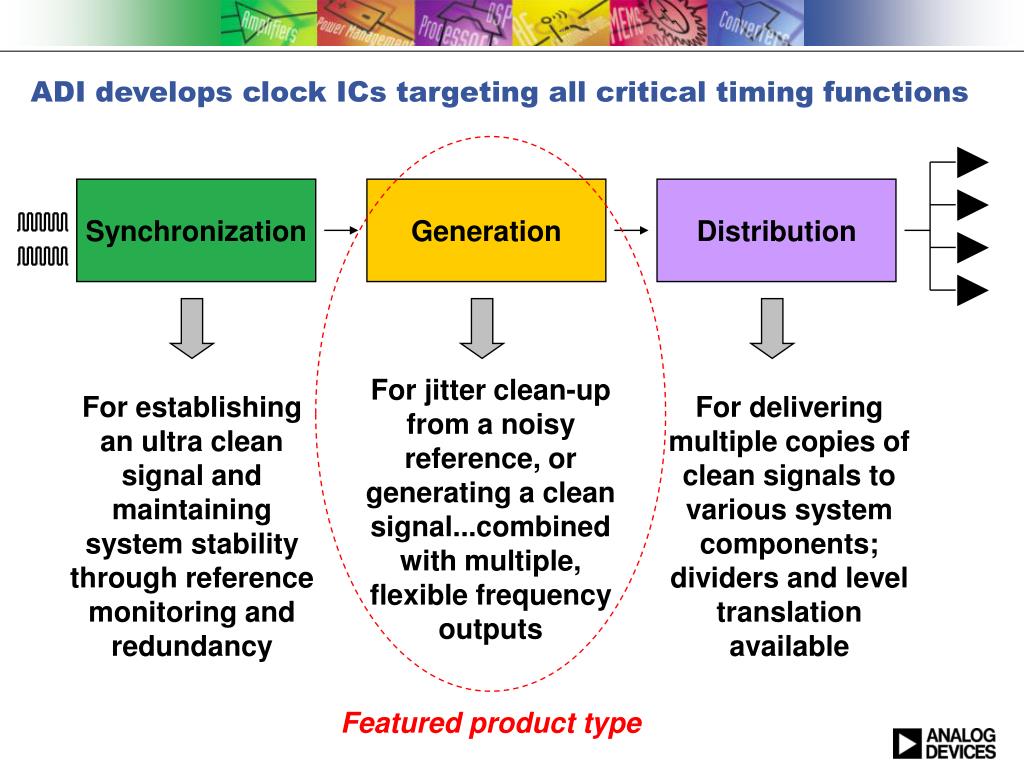

  1. ADI develops clock ICs targeting all critical timing functions Synchronization Generation Distribution For jitter clean-up from a noisy reference, or generating a clean signal...combined with multiple, flexible frequency outputs For establishing an ultra clean signal and maintaining system stability through reference monitoring and redundancy For delivering multiple copies of clean signals to various system components; dividers and level translation available Featured product type

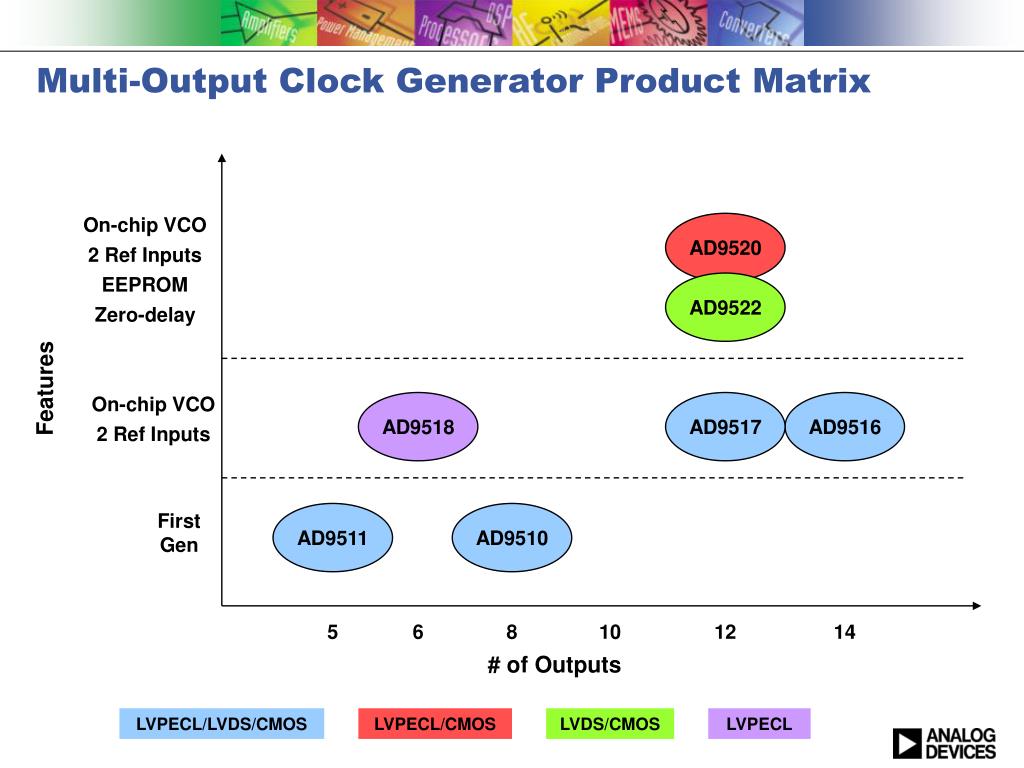

  2. Multi-Output Clock Generator Product Matrix On-chip VCO 2 Ref Inputs EEPROM Zero-delay AD9520 AD9522 Features On-chip VCO 2 Ref Inputs AD9518 AD9517 AD9516 First Gen AD9511 AD9510 # of Outputs 5 6 8 10 12 14 LVPECL/LVDS/CMOS LVPECL/CMOS LVDS/CMOS LVPECL

  3. AD9510/AD9511 First Generation

  4. AD9516/AD9517/AD9518 On-Chip VCO, 2nd Reference Input Added

  5. DIVIDER DELAY AD9516/17/18 Family of Clock Generators VCO

  6. AD9520/AD9522 EEPROM, Zero Delay Mode Added

  7. DIVIDER I/O AD9520/22 Family of Clock Generators VCO

  8. Clock Design and Simulation Tool Easy-To-Use Tutorials Design Wizards Reference Designs New Products Added Enhanced VCO/VCXO Library More PLL Config Options Loop Filter Design Accurate Models Free download from ADI website: www.analog.com/ADIsimCLK Adding new products Updating Functionality Version 1.2 released July ’07 Includes AD9516/17/18 Clock Generators
