Presentation Transcript

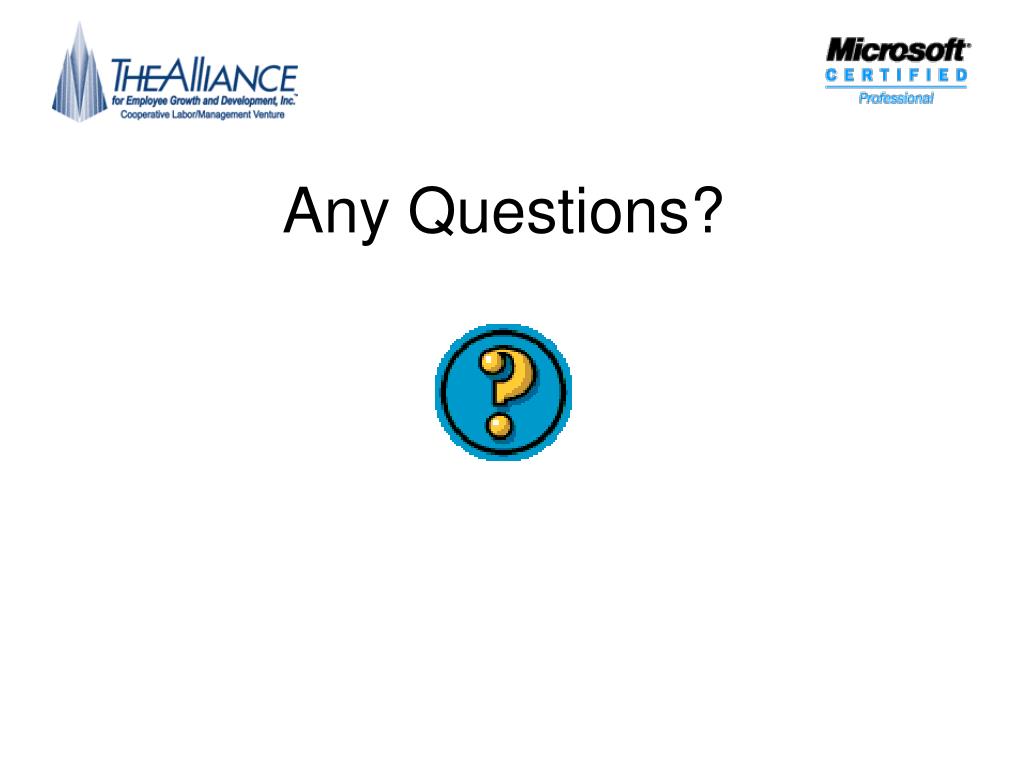

  1. Any Questions?

  2. Chapter 3-User Accounts ■ Create and manage user accounts ■ Create and modify user accounts by using the Active Directory Users And Computers Microsoft Management Console (MMC) snap-in ■ Create and modify user accounts by using automation ■ Import user accounts ■ Manage local, roaming, and mandatory user profiles ■ Troubleshoot user accounts ■ Diagnose and resolve account lockouts ■ Diagnose and resolve issues related to user account properties ■ Troubleshoot user authentication issues Pg 3-1

  3. Chapter 3-User Accounts ■ Lesson 1: Creating and Managing User Objects ■ Lesson 2: Creating Multiple User Objects ■ Lesson 3: Managing User Profiles ■ Lesson 4: Securing and Troubleshooting Authentication Pg 3-2

  4. Any Questions?

  5. Chapter 3 Lesson 1Creating and managing User Objects ■ Create user objects in Active Directory using the Active Directory Users And Computers snap-in ■ Configure user object properties ■ Understand important account options that are not self-explanatory based on their descriptions ■ Modify properties of multiple users simultaneously Pg 3-3

  6. Creating Objects with Active Directory • User the Users and Computers Snap-in • Best to create users inside an Organization Unit, not at root of domain • Select the OU or container, click Action then choose New and choose User • Enterprise Admin • Domain Admin • Account Operators • Delegated Admin Permissions Pg 3-3

  7. New User Object • Very Basic Fields • Then Set password • NOTE-Default Domain Policy is for Complex passwords • The selections here take precedence over conflicting GPO • Reversible encryption • Password age Pg 3-4-6

  8. Any Questions?

  9. Managing Users Objects • User Creation requires minimal properties to be set for the user object • After creation, view the properties Pg 3-7

  10. User Object Properties ■ Account properties: the Account tab These properties include those that are configured when you create a user object, including logon names, password, and account flags. ■ Personal information: the General, Address, Telephones, and Organization tabs The General tab exposes the name properties that are configured when you create a user object. ■ User configuration management: the Profile tab Here you can configure the user’s profile path, logon script, and home folder locations. ■ Group membership: the Member Of tab You can add and remove user groups and set the user’s primary group. Pg 3-7-8

  11. User Object Properties ■ Terminal services: the Terminal Services Profile, Environment, Remote Control, and Sessions tabs These four tabs allow you to configure and manage the users’ experience when they are connected to a Terminal Services session. ■ Remote access: the Dial-in tab Allows you to enable and configure remote access permission for a user. ■ Applications: the COM+ tab Assigns Active Directory COM+ partition sets to the user. This feature, new to Windows Server 2003, facilitates the management of distributed applications. Pg 3-7-8

  12. Account Properties • Logon Hours • Can limit hours they can sign on • Log On To • Can limit which workstations they can log on to • Same as Computer Restrictions • Account is trusted for Delegation • Account Expires Pg 3-8-9

  13. Any Questions?

  14. Managing Properties on Multiple Accounts • Can CTRL or SHIFT click multiple users on list • Will have a subset of properties • General tab: Description, Office, Telephone Number, Fax, Web Page, E-mail • Account tab: UPN Suffix, Logon Hours, Computer Restrictions (logon workstations), all Account Options, Account Expires • Address: Street, PO Box, City, State/Province, ZIP/Postal Code, Country/Region • Profile:Profile Path, Logon Script, and Home Folder • Organization: Title, Department, Company, Manager Pg 3-10

  15. Saved Queries and Moving Users • You can query the list of users and save the query • Virtual OU • User Objects can be moved between OUs • Select Move from Action • Drag and Drop

  16. Any Questions?

  17. Chapter 3 Lesson 2Creating Multiple User Objects ■ Create and utilize user object templates ■ Import user objects from comma-delimited files ■ Leverage new command-line tools to create and manage user objects Pg 3-15

  18. Creating and Using Templates • Create a generic User • Then copy that object to create new users • Make sure the template is disabled • Copied information: ■ General No properties are copied. ■ Address All properties except Street address are copied. ■ Account All properties are copied except for logon names, which you are prompted to enter when copying the template. ■ Profile All properties are copied, and the profile and home-folder paths are modified to reflect the new user’s logon name. ■ Telephones No properties are copied. ■ Organization All properties are copied, except for Title. ■ Member Of All properties are copied. ■ Dial-in, Environment, Sessions, Remote Control, Terminal Services Profile, COM+ No properties are copied. Pg 3-15-16

  19. Any Questions?

  20. Importing Object • Command line-Csvde • Import from comma delimited text file • csvde [-i] [-f FileName] [-k] • -i : Specifies import mode. If not specified, the default mode is export. • -f FileName : Identifies the import file name. • -k : Ignores errors including “object already exists,” “constraint violation,” and “attribute or value already exists” during the import operation and continues processing. • Passwords are not imported Pg 3-16

  21. Importing Object-Example • DN,objectClass,sAMAccountName,sn,givenName,userPrincipalName "CN=Scott Bishop,OU=Employees, DC=contoso,DC=com", user,sbishop,Bishop,Scott,scott.bishop@contoso.com • Above entry would create • User object in the Employees OU called Scott Bishop. The logon, first, and last names are configured by the file. • The object will be disabled initially. After you have reset the password, you can enable the object. Pg 3-17

  22. Importing Object • Must have • DN • Object Class Pg 3-17

  23. Any Questions?

  24. Other Command line tools ■ Dsadd Adds objects to the directory. ■ Dsget Displays (“gets”) properties of objects in the directory. ■ Dsmod Modifies select attributes of an existing object in the directory. ■ Dsmove Moves an object from its current container to a new location. Can also be used to rename an object without moving it. ■ Dsrm Removes an object, the complete subtree under an object, or both. ■ Dsquery Queries Active Directory for objects that match a specified search criterion. This command is often used to create a list of objects, which are then piped to the other command-line tools for management or modification. Pg 3-18-26

  25. Other Command line tools • Query the object class • User • Group • Etc • Specify the Distinguished name attributes • OU-Organizational Unit • DC-Domain • Properties to search • Stalepwd 60 • Passwords not changed for 60 days Pg 3-18-26

  26. Command line hints • Be familiar with general ideas of commands • What they are used for • General format • Be able to figure it out on exam Pg 3-18-26

  27. Utilizing VBScript • Not a ton on the test • Useful ideas • Check out CD

  28. Any Questions?

  29. Chapter 3 Lesson 3Managing User Profiles • Understand the application of local and roaming user profiles • Configure a roaming user profile • Create a preconfigured roaming user or group profile • Configure a mandatory profile Pg 3-32

  30. User Profile • Includes: ■ Shortcuts in your Start menu, on your desktop, and in your Quick Launch bar ■ Documents on your desktop and, unless redirection is configured, in your My Documents folder ■ Internet Explorer favorites and cookies ■ Certificates (if implemented) ■ Application-specific files such as the Microsoft Office custom user dictionary, user templates, and autocomplete list ■ My Network Places ■ Desktop display settings such as appearance, wallpaper, and screensaver Pg 3-33

  31. Local Profile • Usually details of the profile are stored on each machine that you have logged into • %Systemdrive% \Documents and Settings\%Username% • Created at first login • From default user profile • Changes stored locally • All Users profile is combined with specific user • Local means that machine ONLY Pg 3-33

  32. Roaming Profile • Lets users have same profile on every machine • Stored on a server • Backed up with server Pg 3-33

  33. Setting up Roaming Profiles • Create a shared folder on the server • Must be set to everyone having Full Control • Modify User Account so that the profile path has: • \\<server >\<share>\%Username%. • Not a property of the computer object • Except that they can be disabled by specifying the Only Allow Local User Profiles Pg 3-33-34

  34. Any Questions?

  35. Creating a Preconfigured User Profile • Can create a preconfigured environment for users ■ Provide a productive work environment with easy access to needed network resources and applications ■ Remove access to unnecessary resources and applications ■ Simplify help desk troubleshooting by enforcing a more straightforward and consistent desktop Pg 3-35

  36. Preconfigured Profile • Done Locally on an individual machine • Set up the profile the way you want • Don’t use your own • Log in as an admin, go to system, advanced, user profiles • Select the profile and choose Copy to • Put in the path the to server • Change who is permitted to use the profile Pg 3-33

  37. Preconfigured Default User Profile • Default profile used when no user or roaming profile exists when user logs in • Either for the local system • Create the profile and then copy the details to default profile location • C:\Documents and Settings\Default User. • Domain Wide • Create profile and copy to the NETLOGON folder on domain controller • \\servername\NETLOGON\Default User • Watch out because this takes effect for ALL systems, servers included. Pg 3-37

  38. Preconfigured Group Profile • Create a profile you want to have used by group • Copy the profile to a directory with the group profile name • \\<server>\<share>\<group profile name>. • Grant Access to the profile to the group or the Built-in\Users group • Assign the path in the users profiles • Can use the multiple select trick Pg 3-38

  39. Mandatory Profile • Restrict the user ability to modify settings in the profile • Does not maintain changes • Used to lock down a system • Rename the ntuser.dat to ntuser.man • Must be done on the actual systems directly Pg 3-39

  40. Any Questions?

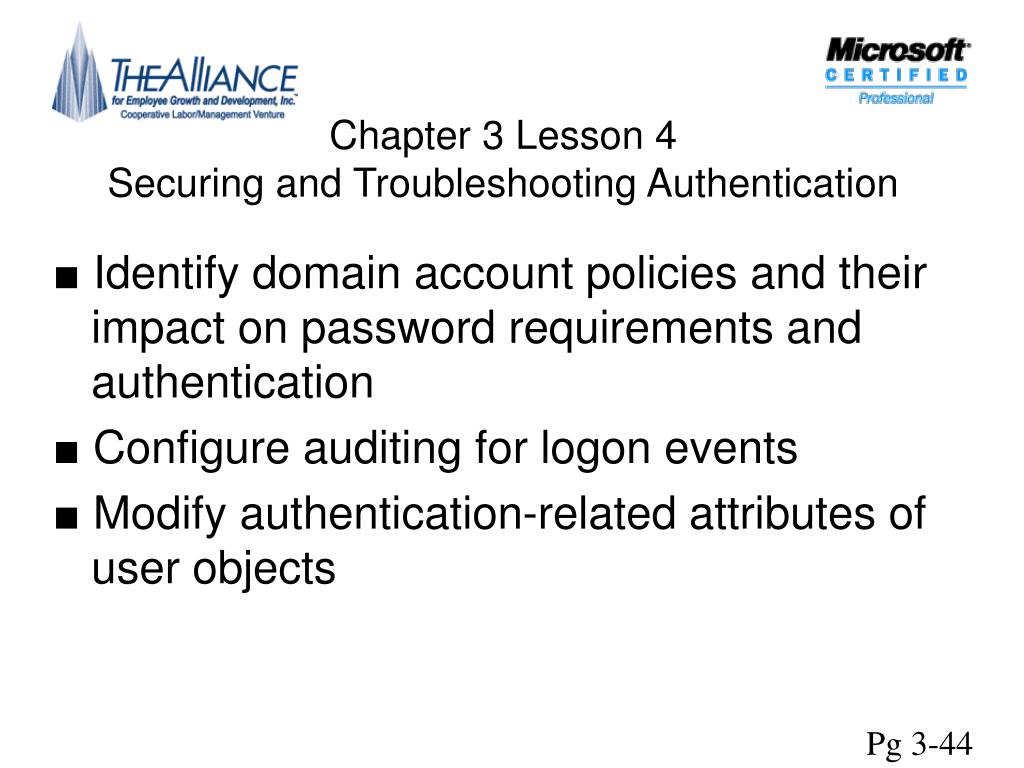

  41. Chapter 3 Lesson 4Securing and Troubleshooting Authentication ■ Identify domain account policies and their impact on password requirements and authentication ■ Configure auditing for logon events ■ Modify authentication-related attributes of user objects Pg 3-44

  42. Securing Authentication with Policy • Can set policy for Local Accounts • Specific to that machine • For Domain objects • Use the domain security policy MMC Pg 3-44

  43. Password Policy • History • Age • Length • Complexity Pg 3-45

  44. Lockout Policy • Threshold • How Many Times • Duration • How long before auto reset • Counter • How long before threshold counter resets Pg 3-46-47

  45. Cross Platform • Other versions of windows will not support all Active Directory features Pg 3-47-48

  46. Auditing Authentication • Choose what kind of entries will appear on security log • Account Management • Creation or modification of user objects • Account Logon • Events that include the domain controller • Logon • Wherever the logon occurs • Note: • Keep track of the distinction between Account Logon and Logon events. When a user logs on to his or her workstation using a domain account, the workstation registers a Logon event and the domain controller registers an Account Logon event. When the user connects to a network server’s shared folder, the server registers a Logon event and the domain controller registers an Account Logon event. Pg 3-49
