  1. Experimental Design Fr. Clinic II

  2. Planning • Begins with carefully considering what the objectives (or goals)are • How do our filters work? • Which filter is best? • Performance • Cost • Ease of Use • Durability…

  3. Variables • Process variables include both inputs and outputs - i.e. factors and responses • The selection of these variables is best done as a team effort

  4. Terms • Factor • Something that can be varied, e.g.,temperature, pressure, material … • Response • the results • Level • Each variable can be “set” to or measured at different levels • Run • How many times each unique combinations of factors and levels will be tested

  5. What are our factors? • How do filters work? • Could be the membrane/porous filter, the activated carbon, the viral guard… • Comparative Assessment • We have one factor, the portable water filters themselves!

  6. Water are our possible responses? • Removal of contaminants • Produced water quality • Cost • Ease of use • …

  7. Experimental Design • Choosing an experimental design depends on the objectives of the experiment and the number of factors to be investigated.

  8. Experimental Design Objectives • Comparative objective • 1 or several factors under investigation • primary goal to make conclusion about 1 important factor • in the presence of, and/or in spite of the other factors • Screening objective • select or screen out few important main effects from many lesser important ones • Response Surface (method) objective • estimate response to multiple factors • find improved or optimal process settings, troubleshoot process problems and weak points, or make a product or process more robust against external and non-controllable influences.

  9. Experimental Designs • Completely Randomized Designs • Comparative objective, 1 factor • Randomized Block Designs • Comparative objective, multiple factors • Full or fractional factorial • Screening objective, multiple factors • Many more!…

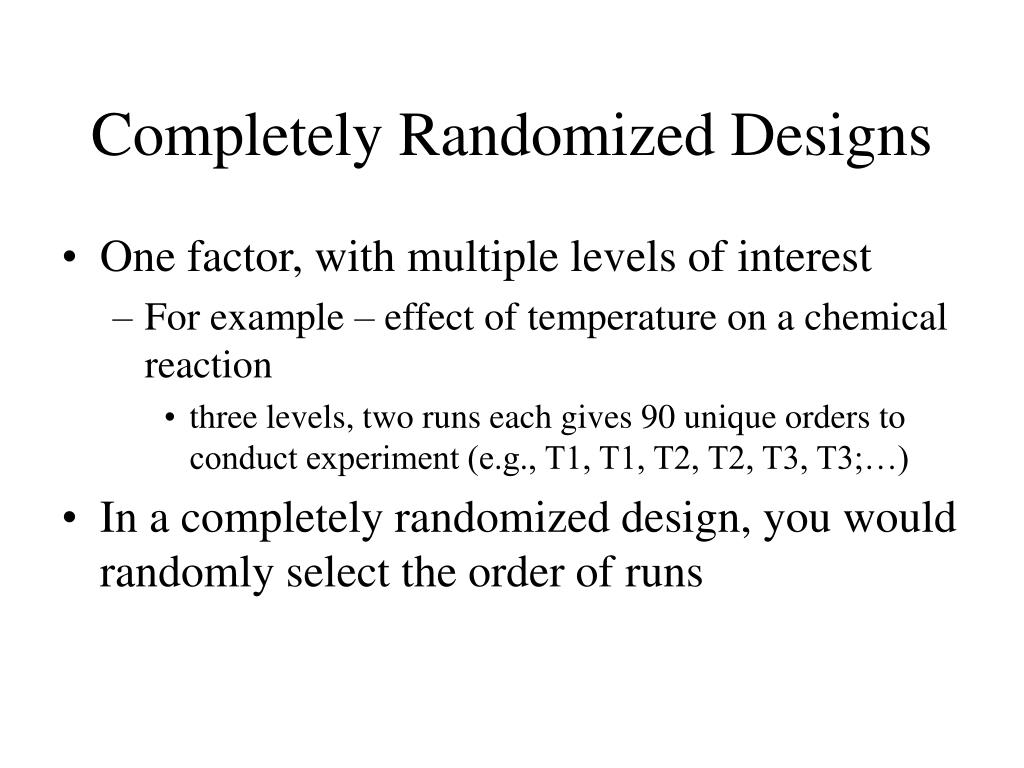

  10. Completely Randomized Designs • One factor, with multiple levels of interest • For example – effect of temperature on a chemical reaction • three levels, two runs each gives 90 unique orders to conduct experiment (e.g., T1, T1, T2, T2, T3, T3;…) • In a completely randomized design, you would randomly select the order of runs

  11. Randomized Block Designs • One factor or variable is of primary interest. However, there are also several other nuisance factor variables • Nuisance variables are those which may affect the measured result, but are not considered of primary interest. • For example: specific operator who prepared the treatment, the time of day the experiment was run, and the room temperature. • All experiments have nuisance factors.

  12. Randomized Block Designs (cont.) • Blocking • Run every level of the primary factor with the nuisance factor(s) held the same • Minimizes total # of runs • Random • Run with nuisance factors selected randomly. • More runs may be required • Likely to get more variability (error) in results • May be able to block some nuisance factors, but not all

  13. Randomized Block Design Example • Engineers at semiconductor manufacturing facility want to test effect of 4 different wafer implant material dosages using 3 runs for each level • The nuisance factor is "furnace run", since it is known that each furnace run differs from the last and impacts many process parameters • Block: run all 4x3=12 wafers in the same furnace run • Completely Random: randomly select order and and include each run each on a different furnace run

  14. Full Factorial • Run all combinations of factors and levels. • For example: A basic experimental design is one with all input factors set at two levels each • These levels are called ‘high’ and ‘low’ or ‘+1’ and‘-1’ respectively. • A design with all possible high/low combinations of all the input factors is called a “full factorial design in two levels”

  15. Fractional Factorial • A factorial experiment in which only an adequately chosen fraction of the treatment combinations required for the complete factorial experiment is selected to be run

  16. What should we do? • For our competitive assessment, we have one factor – portable water filters • The levels are the different filters • What are our nuisance factors? • Properties of pond water? • Day of experiment? • Operators of experiment? • ???

  17. Competitive Assessment Experiment • We will run a randomized block design • However, we may only be able to do one run per level • We’ll try to block as many of the nuisance factors as possible • There are some that we won’t be able to block or randomize
