  1. Final Exam Review CSE 241 B.Ramamurthy B.Ramamurthy

  2. Place and Time • Date: 12/11/2013 • Time: 8.00 – 11.00 AM • Place: Cooke 121 • Please bring • Pencils, pens and erasers. • Closed book exam B.Ramamurthy

  3. Topics • Chapter 4: HDL Models of combinational circuit: Gate level modeling and behavioral modeling: 164-181 • Chapter 5: Sequential circuit analysis: pages 201-217 • Chapter 5: Synthesizable HDL models of sequential circuits: pages 217-220, p.229-231 • Chapter 5: Sequential circuit design: p.236-p.245 • All the homework problems B.Ramamurthy

  4. How do I study? Help! • Writing a test bench: pages 176-181, read every line of these pages, and understand Example 4.10 on p.181 • From state diagram to Verilog HDL simulation: see example on p.229, only state diagram based model and ONLY its test bench on the next page (p.230) • Analysis example: see figure 5.18, table 5.4, up to figure 5.19 on p.214 • Design example; p.238-241: figure 5.27, table 5.11, figure 5.28, figure 5.29 • Counter design: figure 5.32, table 5.14, figure 5.33, figure 5.34 B.Ramamurthy

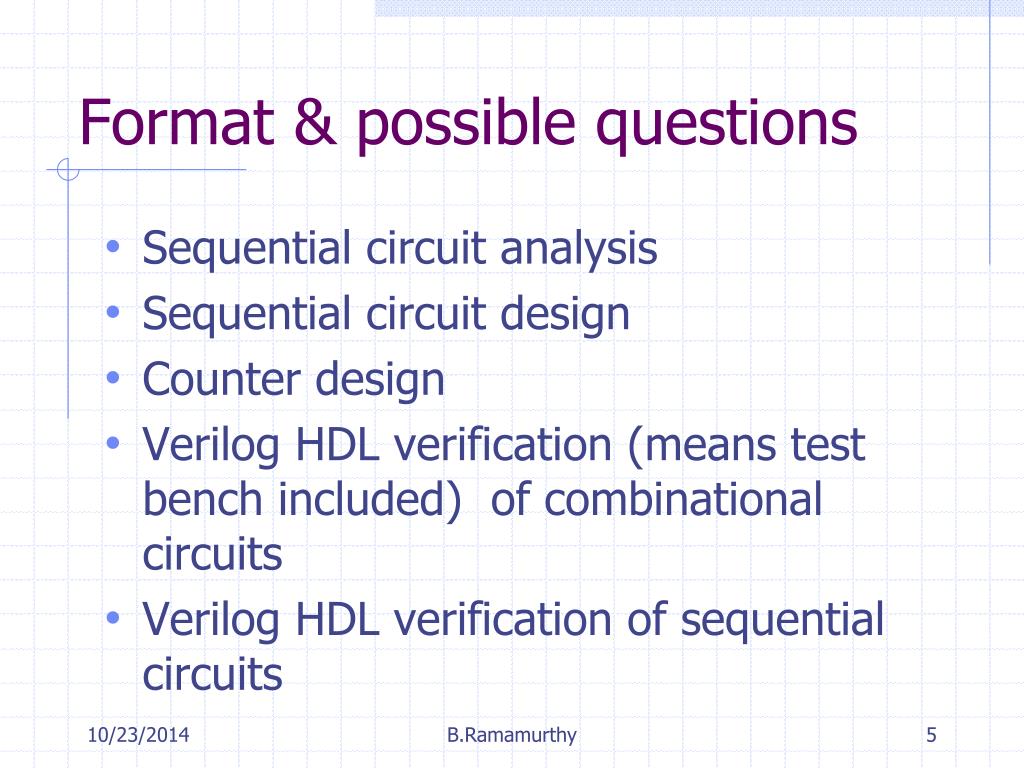

  5. Format & possible questions • Sequential circuit analysis • Sequential circuit design • Counter design • Verilog HDL verification (means test bench included) of combinational circuits • Verilog HDL verification of sequential circuits B.Ramamurthy

  6. Remember… • Learn from the home works assigned • Find ways to efficiently answer questions • Find ways to not make silly mistakes • Create a mental checklist to make sure you have not missed anything important on the exam (like your name of the exam paper!) • Read the question paper and strategize on the order in which you will answer the questions • Come prepared: there is no substitute for hard work • Build up competencies and not deficiencies… • Good luck. B.Ramamurthy
