  1. WWW.CHEMPROLINE.COM 06.10.12 Rev D.

  2. Problem? Glued or threaded systems Painted CPVC for visual identification 06.10.12 Rev D.

  3. Chem Proline® Solution! 06.10.12 Rev D.

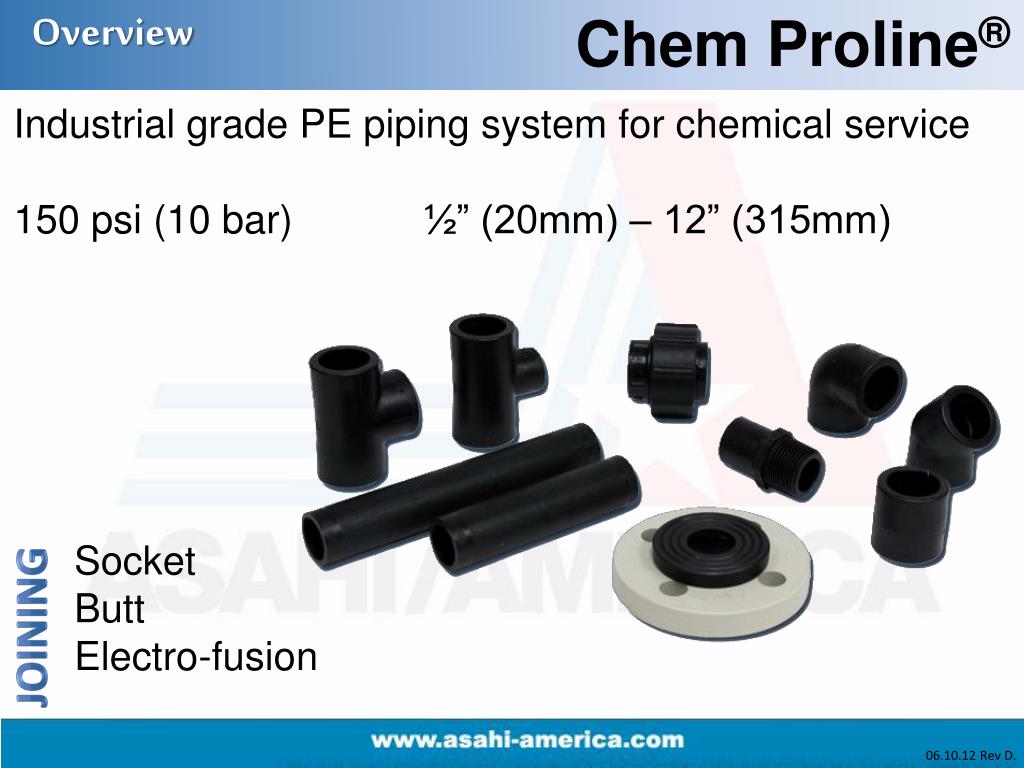

  4. Chem Proline® Overview Industrial grade PE piping system for chemical service 150 psi (10 bar) ½” (20mm) – 12” (315mm) Socket Butt Electro-fusion Joining 06.10.12 Rev D.

  5. Chem Proline® Evolution PE 4710 Performance PE 3408 PE 63 1970 1980 1990 2000 2010 06.10.12 Rev D.

  6. Chem Proline® Evolution ASTM F1473 - Pipe Notch Test PE 3408 10 Hours PE 4710 500 Hours PE 4710 Plus* 2000 Hours Chem Proline 11000 Hours 10,000 11,000 9,000 8,000 7,000 1,000 times better than what you’re using today 6,000 Time to failure (h) 5,000 4,000 3,000 2,000 1,000 ChemProline PE 4710 PE 3408 PE 4710Plus* * Canada gas only 06.10.12 Rev D.

  7. Chem Proline® Evolution Puncture Resistance PE 3408 Failure Chem Proline External No failure will occur External Results Internal Internal Results 06.10.12 Rev D.

  8. Chem Proline® Evolution Puncture Resistance Direct burial without sand or gravel grading 06.10.12 Rev D.

  9. Chem Proline® Valves Valve solutions Chem Proline end connectors eliminate threaded joints Valve body material remains PVC (or other standard) Standard Materials: Body/Seals/Diaphragms Chem Proline 06.10.12 Rev D.
