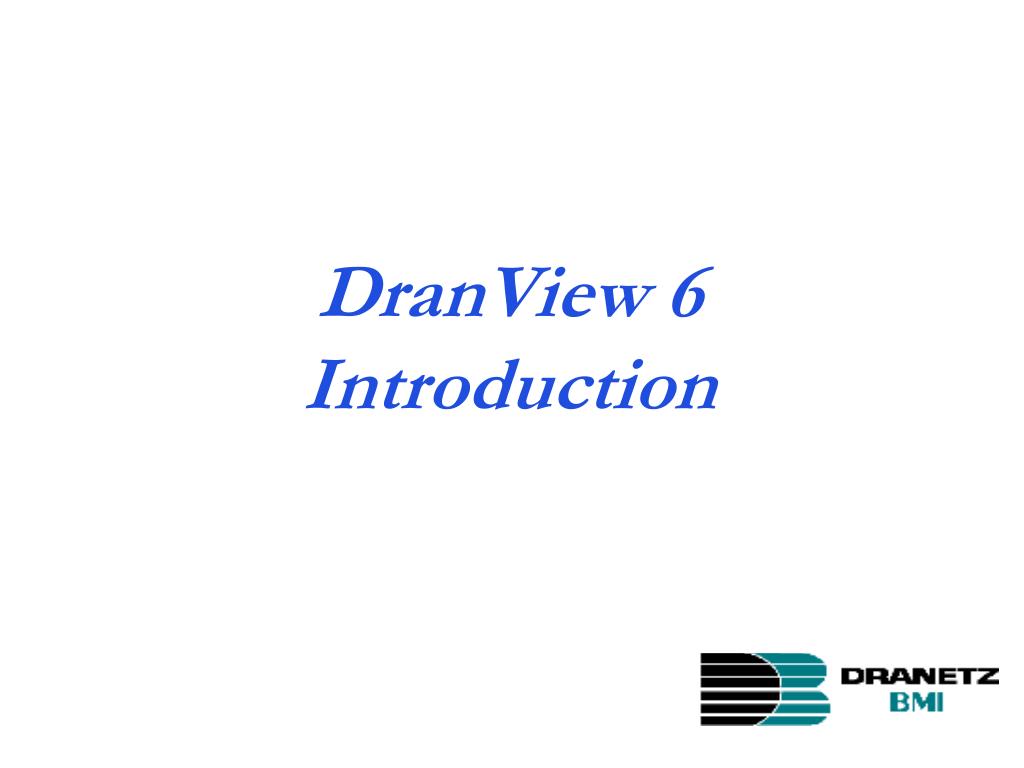

  1. DranView 6Introduction

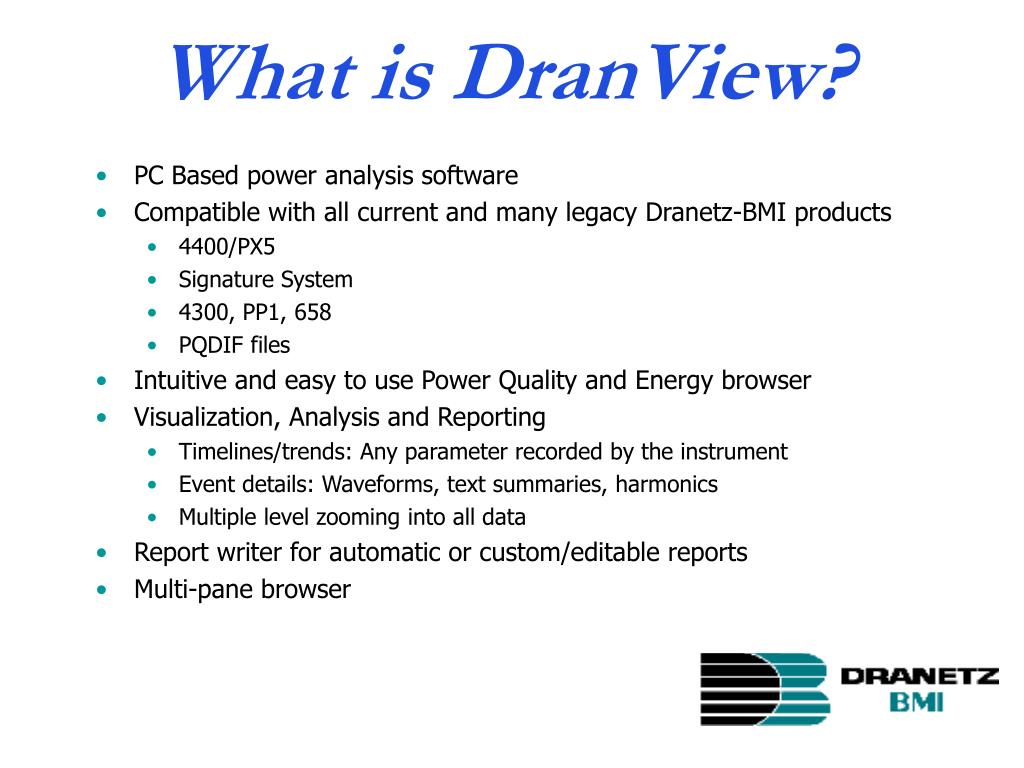

  2. What is DranView? • PC Based power analysis software • Compatible with all current and many legacy Dranetz-BMI products • 4400/PX5 • Signature System • 4300, PP1, 658 • PQDIF files • Intuitive and easy to use Power Quality and Energy browser • Visualization, Analysis and Reporting • Timelines/trends: Any parameter recorded by the instrument • Event details: Waveforms, text summaries, harmonics • Multiple level zooming into all data • Report writer for automatic or custom/editable reports • Multi-pane browser

  3. What is DranView? • Multi-pane browser • Timelines, event details, event lists, etc are displayed in separate panes (windows) within DranView. • Each pane relates to the others: Select a point on the timeline or event list and the event details at that point in time are displayed in another pane. • Advanced Math package • Create formulas to perform computations on data (trends/waveforms) to create new parameters. Example: Leakage current. • Rescue Kit • Correct and make adjustments to monitoring results. • Examples: Adjust times, flip probes, change scaling, etc… • Special features such as the Harmonics Demo Tool

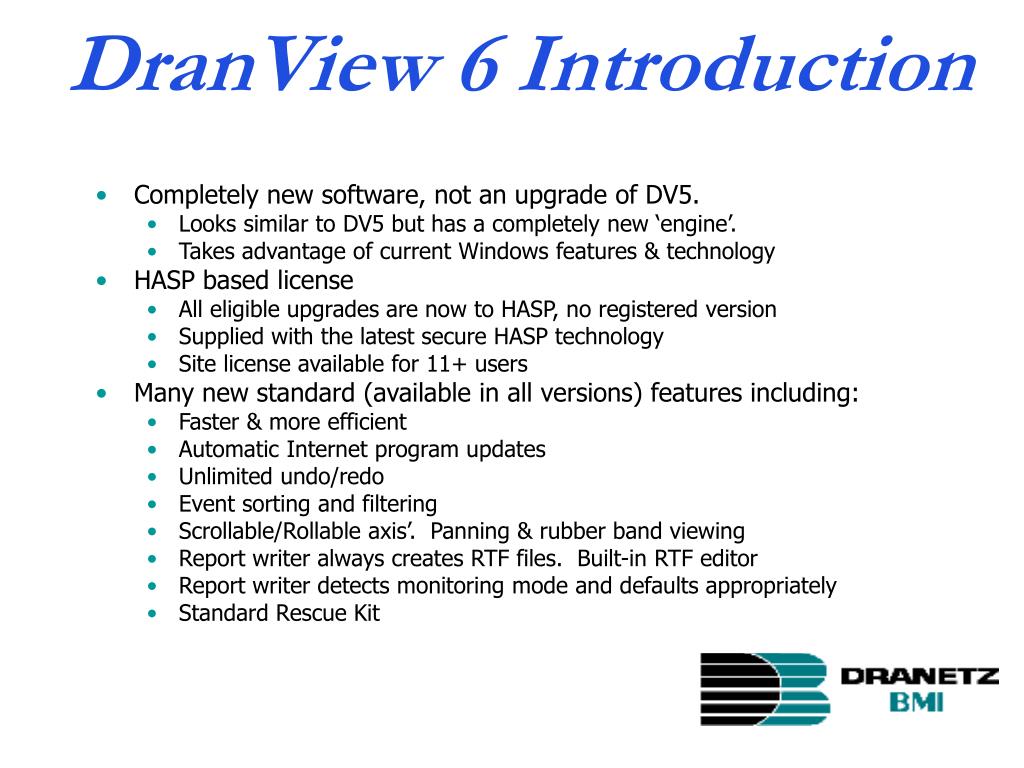

  4. DranView 6 Introduction • Completely new software, not an upgrade of DV5. • Looks similar to DV5 but has a completely new ‘engine’. • Takes advantage of current Windows features & technology • HASP based license • All eligible upgrades are now to HASP, no registered version • Supplied with the latest secure HASP technology • Site license available for 11+ users • Many new standard (available in all versions) features including: • Faster & more efficient • Automatic Internet program updates • Unlimited undo/redo • Event sorting and filtering • Scrollable/Rollable axis’. Panning & rubber band viewing • Report writer always creates RTF files. Built-in RTF editor • Report writer detects monitoring mode and defaults appropriately • Standard Rescue Kit

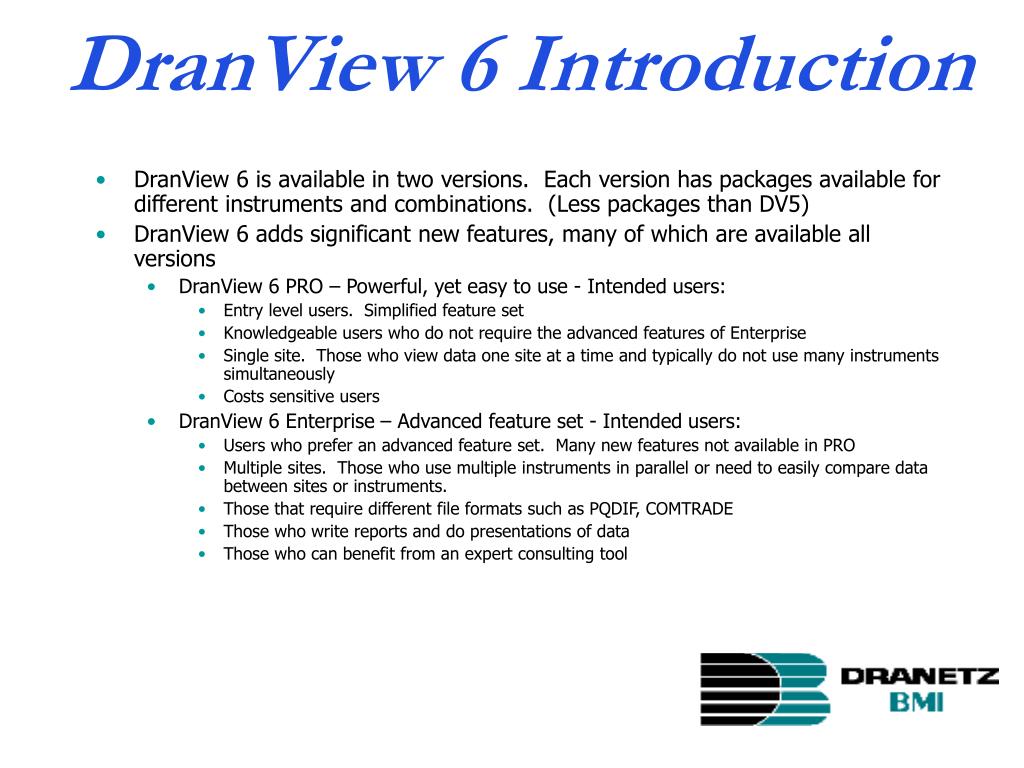

  5. DranView 6 Introduction • DranView 6 is available in two versions. Each version has packages available for different instruments and combinations. (Less packages than DV5) • DranView 6 adds significant new features, many of which are available all versions • DranView 6 PRO – Powerful, yet easy to use - Intended users: • Entry level users. Simplified feature set • Knowledgeable users who do not require the advanced features of Enterprise • Single site. Those who view data one site at a time and typically do not use many instruments simultaneously • Costs sensitive users • DranView 6 Enterprise – Advanced feature set - Intended users: • Users who prefer an advanced feature set. Many new features not available in PRO • Multiple sites. Those who use multiple instruments in parallel or need to easily compare data between sites or instruments. • Those that require different file formats such as PQDIF, COMTRADE • Those who write reports and do presentations of data • Those who can benefit from an expert consulting tool

  6. DranView 6 PRO Note: Orange splash screen like the 4400

  7. DranView 6 PRO • General look and feel of DV5 • Users should be very comfortable with the transition • Automatic Internet updates New • Data analysis enhancements New • Scrollable – Pan left/right, up/down • Rubber band – stretch and contract data • Note: Zoom capabilities remain unchanged • Chart area marking tool • Format templates • Event pane New • Event sorting and filtering

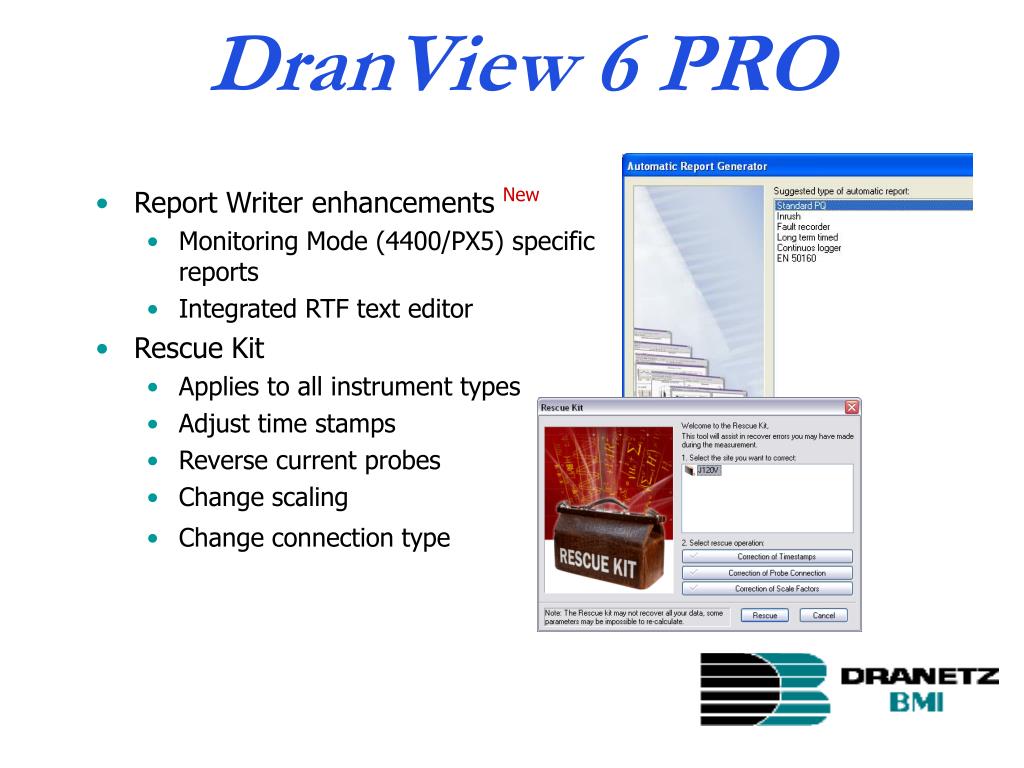

  8. DranView 6 PRO • Report Writer enhancements New • Monitoring Mode (4400/PX5) specific reports • Integrated RTF text editor • Rescue Kit • Applies to all instrument types • Adjust time stamps • Reverse current probes • Change scaling • Change connection type

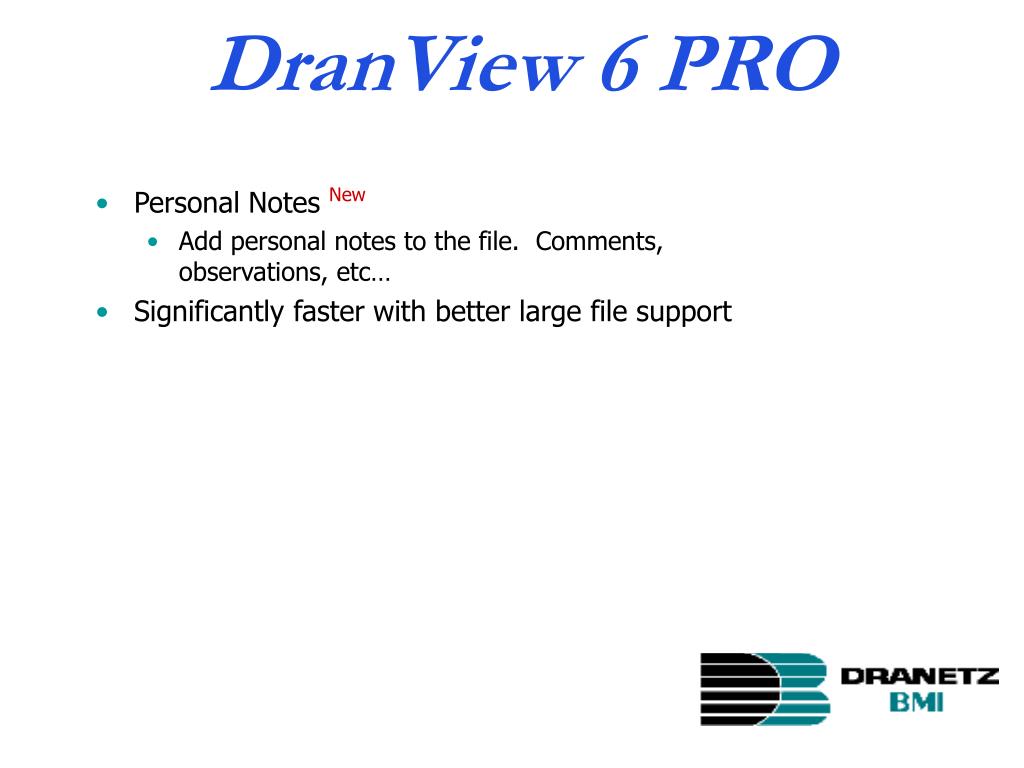

  9. DranView 6 PRO • Personal Notes New • Add personal notes to the file. Comments, observations, etc… • Significantly faster with better large file support

  10. DranView 6 Enterprise Note: Blue splash screen like the PX5

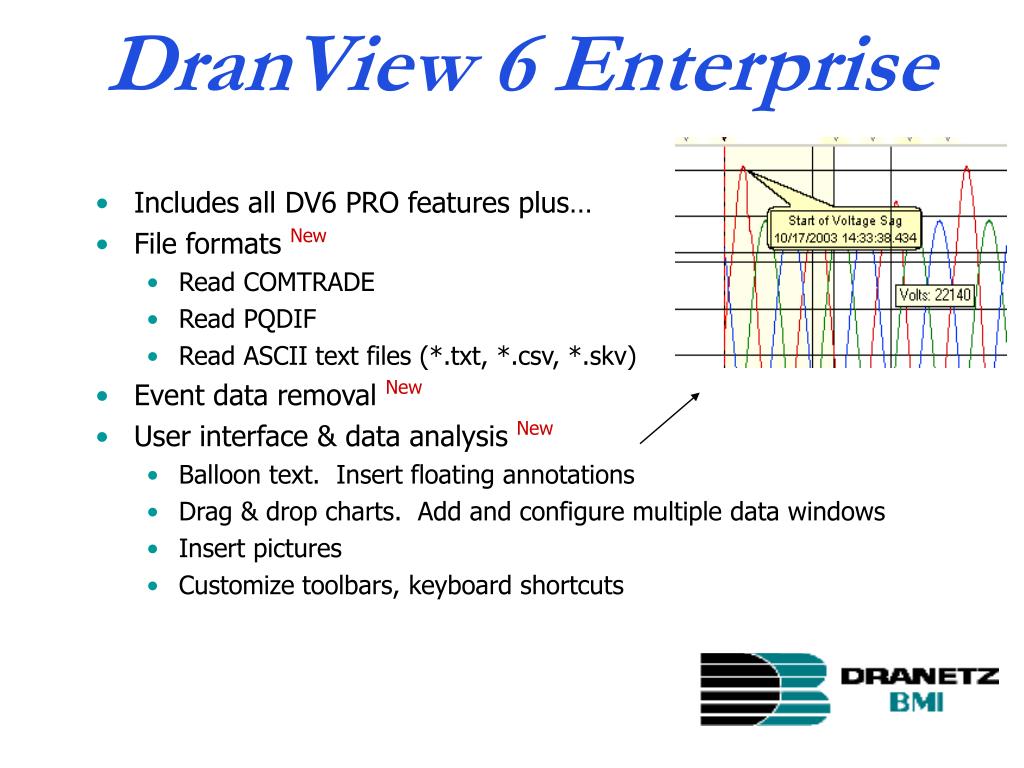

  11. DranView 6 Enterprise • Includes all DV6 PRO features plus… • File formats New • Read COMTRADE • Read PQDIF • Read ASCII text files (*.txt, *.csv, *.skv) • Event data removal New • User interface & data analysis New • Balloon text. Insert floating annotations • Drag & drop charts. Add and configure multiple data windows • Insert pictures • Customize toolbars, keyboard shortcuts

  12. DranView 6 Enterprise • Camera New • Take a snapshot (bookmark) of a window (pane) for future reference • Makes a record of a particular analysis configuration • Zoom, channels, colors, etc • Just select snapshot to display again • Create a filmstrip of snapshots • Easily create a Word file with all snapshots • Report Writer New • Insert pictures, diagrams, etc • Add selected and trends to a report • Reports for EN, IEC, G5/4, NVE standards • Multi-site report writing

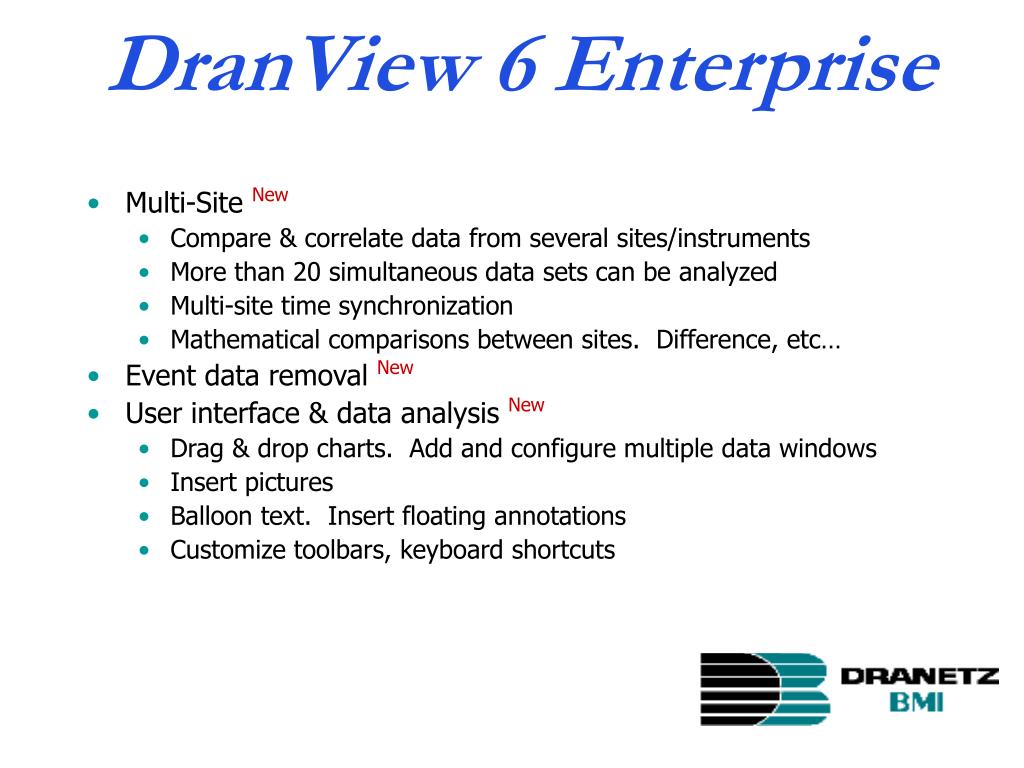

  13. DranView 6 Enterprise • Multi-Site New • Compare & correlate data from several sites/instruments • More than 20 simultaneous data sets can be analyzed • Multi-site time synchronization • Mathematical comparisons between sites. Difference, etc… • Event data removal New • User interface & data analysis New • Drag & drop charts. Add and configure multiple data windows • Insert pictures • Balloon text. Insert floating annotations • Customize toolbars, keyboard shortcuts

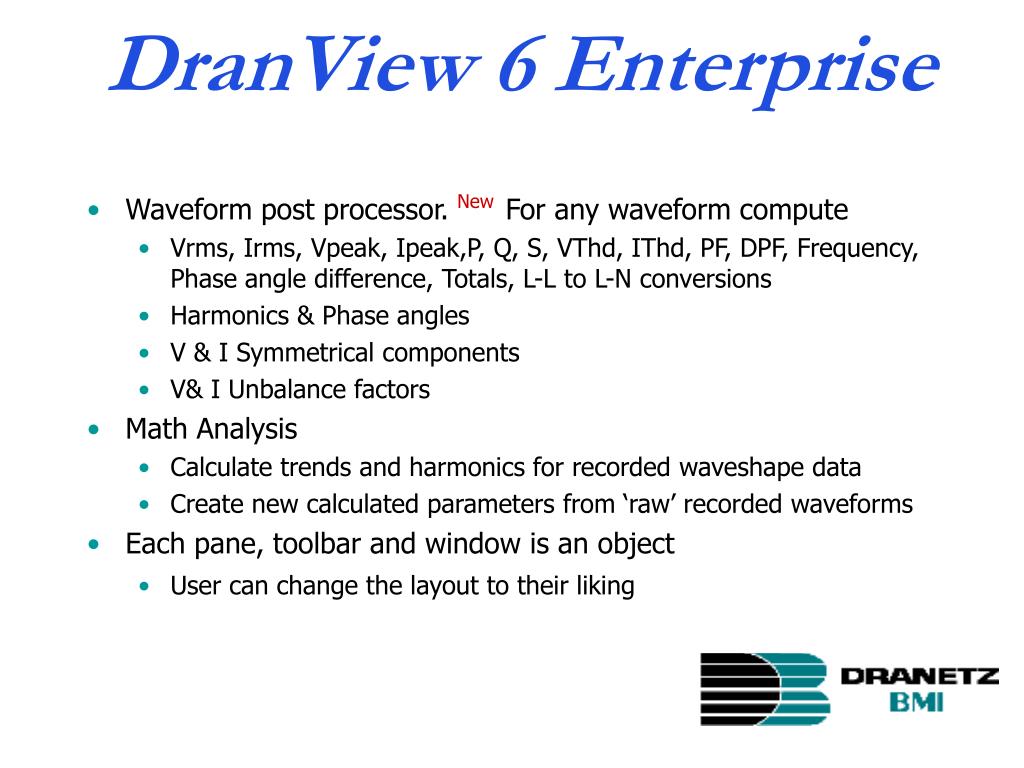

  14. DranView 6 Enterprise • Waveform post processor. New For any waveform compute • Vrms, Irms, Vpeak, Ipeak,P, Q, S, VThd, IThd, PF, DPF, Frequency, Phase angle difference, Totals, L-L to L-N conversions • Harmonics & Phase angles • V & I Symmetrical components • V& I Unbalance factors • Math Analysis • Calculate trends and harmonics for recorded waveshape data • Create new calculated parameters from ‘raw’ recorded waveforms • Each pane, toolbar and window is an object • User can change the layout to their liking

  15. DranView 6 Packages New Users - HASP Versions Only • 4400, PX5, PX5-400 • DVP-PX –> PRO • DVE-PX -> Enterprise • Legacy (4300, PP1, 658, includes DranLink PP1/658) • DVP-LEGACY –> PRO • DVE-LEGACY -> Enterprise • All • DVP-ALLPORTABLE -> PRO: 4400, PX5, 4300, 658, PP1, Includes DranLink PP1/658 • DVE-ALL -> Enterprise: 4400, PX5, 4300, 658, PP1, COMTRADE, PQDIF, TXT, Includes DranLink PP1/658

  16. DranView 6 Packages Upgrades from DranView 5 to 6 PRO. Available only for those who purchased DV5 after November 2003 Upgrade to HASP Versions Only • Upgrade DV5 4400, PX5, PX5-400 • DV5-DV6P-PX -> Upgrade to DV6P-PX (PRO) • DV5-DV6E-PX -> Enterprise to DV6E-PX (Enterprise) • Upgrade any DV5 Legacy to DV6P • DV5-DV6P-LEGACY –> DVP-LEGACY (PRO) • DV5-DV6E-LEGACY -> DVE_LEGACY (Enterprise) • Upgrade any All to DV6 ALL • DV5-DV6PALLPORTABLE -> Upgrade to DVP-ALLPORTABLE -> (PRO) • DV5-DV6E-ALL -> DVE-ALL (Enterprise)

  17. DranView 6 Sales Tools • This Power Point presentation • FAQ’s • PDF Brochure • Comparison chart • Demo version • Selectable between PRO and Enterprise versions • Web site update is being updated • Monthly newsletter announcement

  18. Thank You! DranView 6Demonstration
