Presentation Transcript

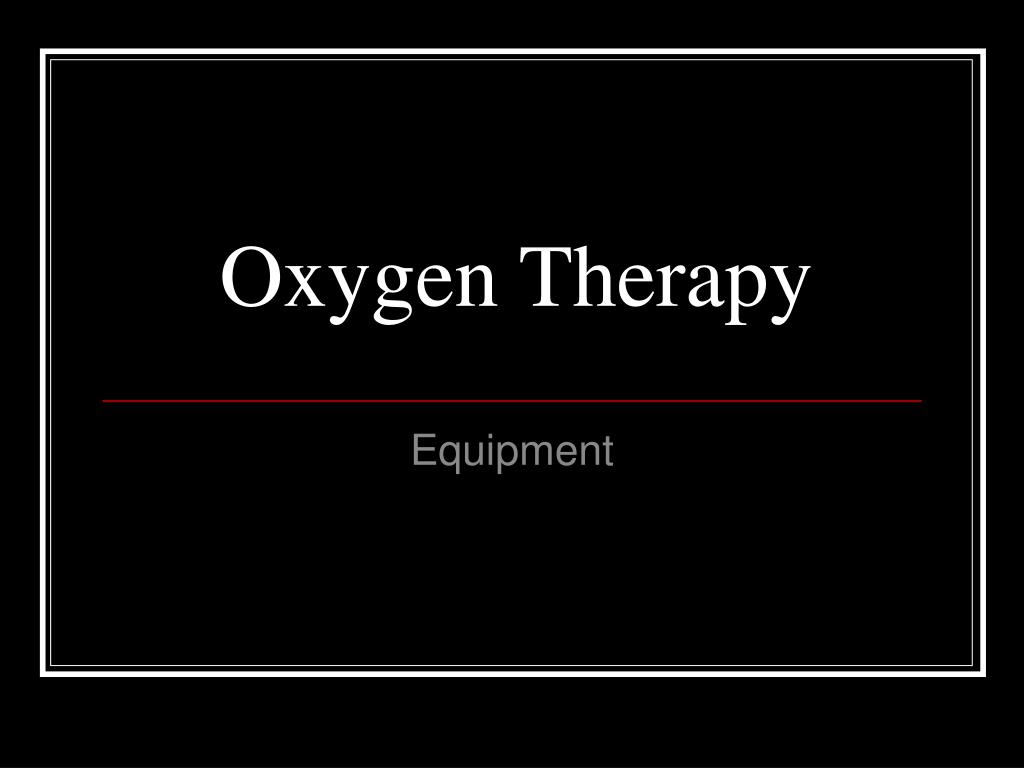

  1. Oxygen Therapy Equipment

  2. Oxygen Equipment Regulators High Pressure Cylinder to cylinder Low Pressure Cylinder to patient Humidifier

  3. Delivery Devices Nasal cannula Simple face mask Partial rebreather mask Non-rebreather mask Venturi mask Small volume nebulizer

  4. Nasal Cannula Optimal delivery 40% at 6 LPM Indication Low FiO2 Long term therapy Contraindications Apnea Mouth breathing Need for High FiO2

  5. Venturi Mask Specific O2 Concentrations 24% 28% 35% 40%

  6. Simple Face Mask Range 40-60% at 10 LPM Volumes greater that 10 LPM does not increase O2 delivery Indications Moderate FiO2 Contraindications Apnea Need for High FiO2

  7. Non-Rebreather Mask Range 80-95% at 15 LPM Indications Delivery of high FiO2 Contraindications Apnea Poor respiratory effort

  8. Partial Rebreather Range 40 – 60% Indications Moderate FiO2 Contraindications Apnea Need for High FiO2

  9. Oxygen Equipment Oxygen source Compressed gas Tank size D 400L E 660L M 3450 L Liquid oxygen

  10. Oxygen Slides Source Slides for this presentation from Temple College EMS http://www.templejc.edu/dept/ems/pages/powerpoint.html
