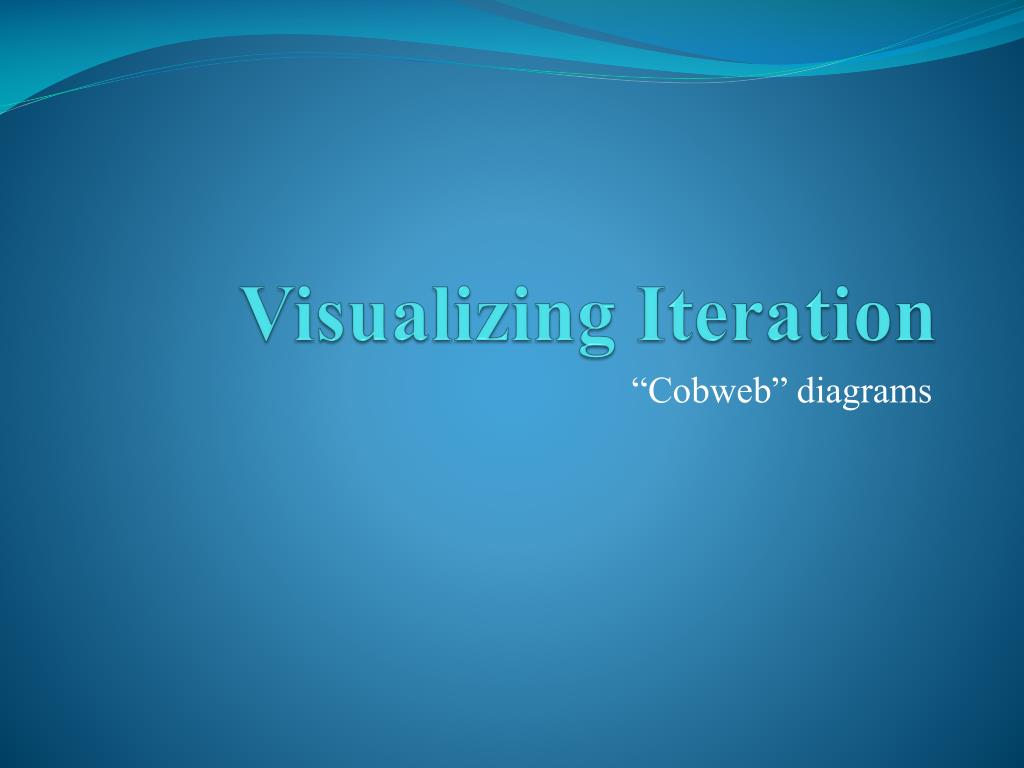

  1. Visualizing Iteration “Cobweb” diagrams

  2. Affine Difference Equations---Slope bigger than 1

  3. Affine Difference Equations---Slope bigger than 1

  4. Affine Difference Equations---Slope less than -1

  5. Affine Difference Equations---Slope smaller than 1 What if we start iterating with a point that lies to the left of the fixed point?

  6. Affine Difference Equations---Slope in (-1,0).

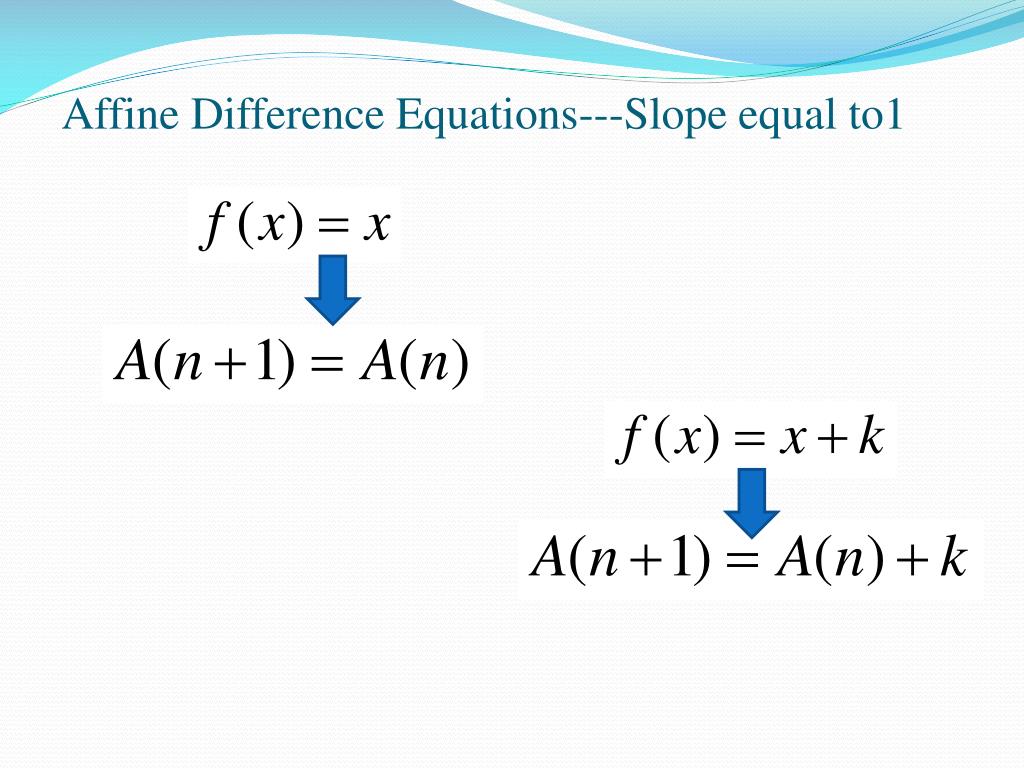

  7. Affine Difference Equations---Slope equal to1

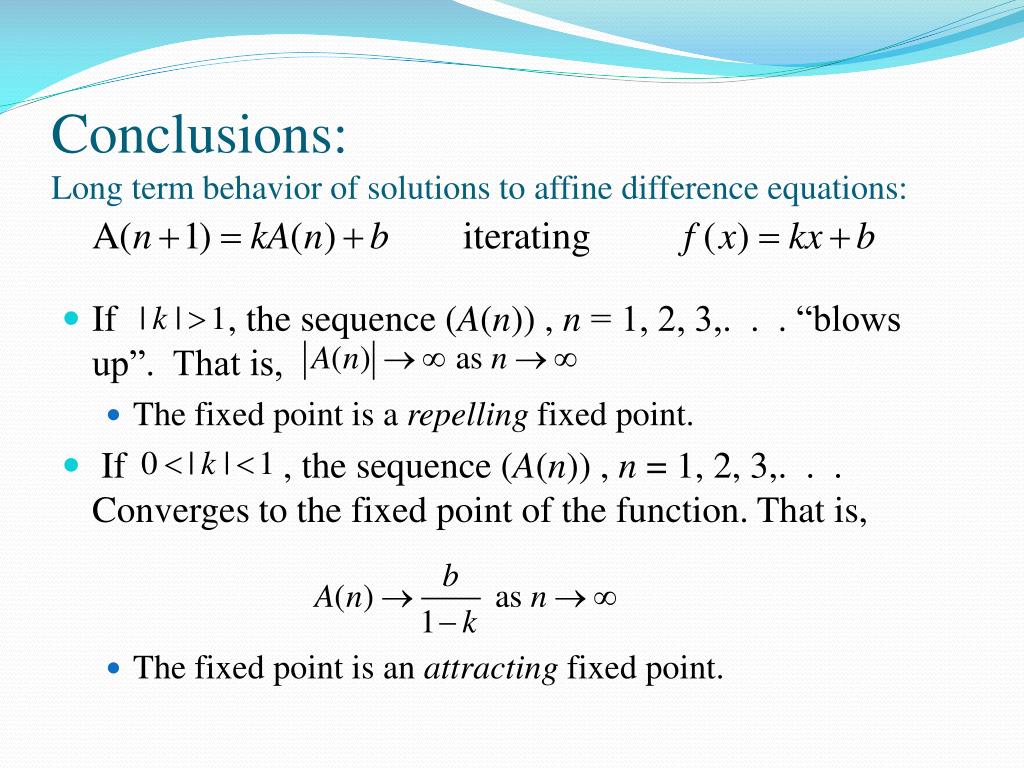

  8. Conclusions: Long term behavior of solutions to affine difference equations: • If , the sequence (A(n)) , n = 1, 2, 3,. . . “blows up”. That is, • The fixed point is a repelling fixed point. • If , the sequence (A(n)) , n = 1, 2, 3,. . . Converges to the fixed point of the function. That is, • The fixed point is an attracting fixed point.
