Presentation Transcript

  1. Title Page

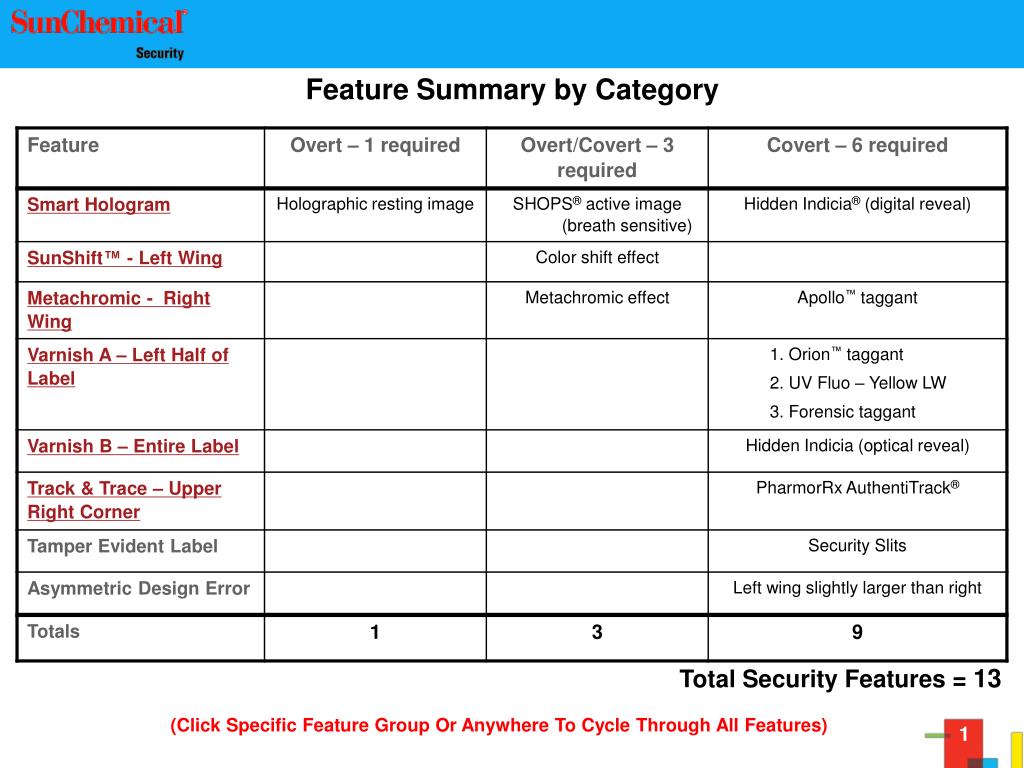

  2. Feature Summary by Category Total Security Features = 13 (Click Specific Feature Group Or Anywhere To Cycle Through All Features) 1

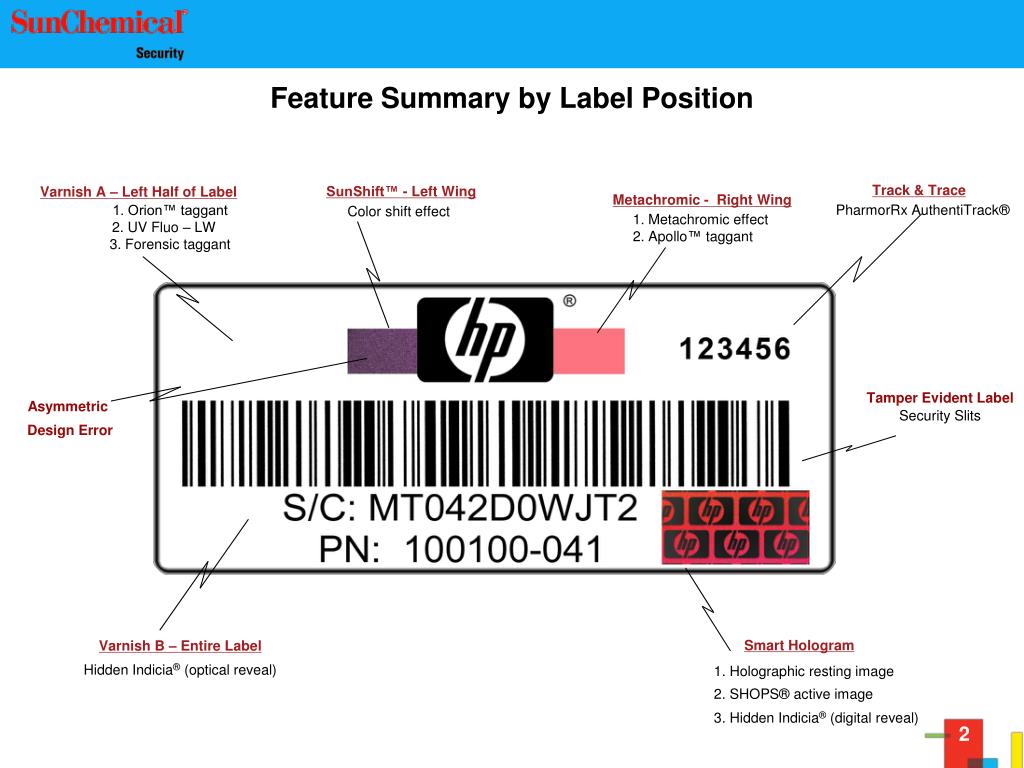

  3. Feature Summary by Label Position SunShift™ - Left Wing Color shift effect Track & Trace Varnish A – Left Half of Label • 1. Orion™ taggant • 2. UV Fluo – LW • 3. Forensic taggant Metachromic - Right Wing PharmorRx AuthentiTrack® 1. Metachromic effect 2. Apollo™ taggant Tamper Evident LabelSecurity Slits Asymmetric Design Error Smart Hologram Varnish B – Entire Label Hidden Indicia® (optical reveal) 1. Holographic resting image 2. SHOPS® active image 3. Hidden Indicia® (digital reveal) 2

  4. Smart Hologram® & Hidden Indicia™ Smart Hologram® & Hidden Indicia™ (Label on Label) Smart Hologram Optical Programmable Sensor (SHOPS®) changes states, revealing a second holographic image when activated by moist breath. Initial resting image returns in 10-15 seconds Use template viewfinder to line up Smart Hologram in iPhone iDetector Application. Hidden Indicia imbedded into Smart Hologram origination is decoded and displayed digitally. 3 (Click Home to Return to Feature Summary Or Anywhere to Cycle Through All Features)

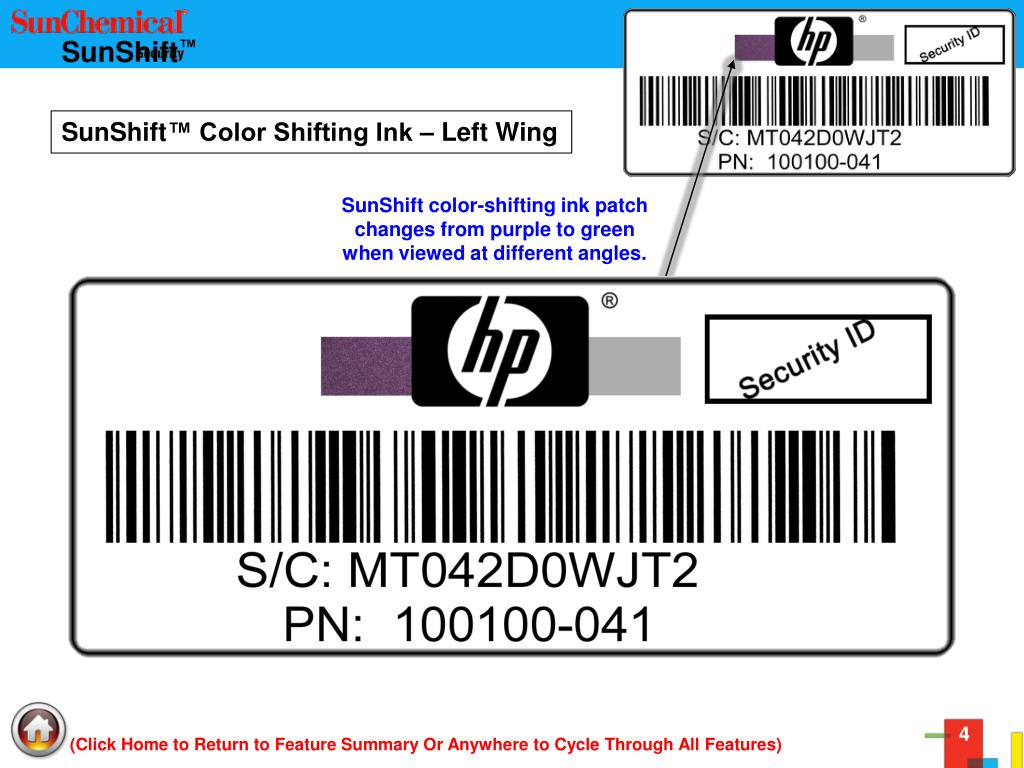

  5. SunShift™ SunShift™ Color Shifting Ink – Left Wing SunShift color-shifting ink patch changes from purple to green when viewed at different angles. 4 (Click Home to Return to Feature Summary Or Anywhere to Cycle Through All Features)

  6. Metachromic Metachromic Ink – Right Wing Metachromic patch also contains Apollo taggant, readable with S-150 key fob (Green Light + Constant Tone) Metachromic patch changes to appear yellow when exposed to incandescent light. Metachromic patch appears pink under fluorescent lighting. 5 (Click Home to Return to Feature Summary Or Anywhere to Cycle Through All Features)

  7. Varnish A Varnish A - Left Half of Label The left half of the label contains an additional forensic taggant that can be verified in a laboratory. The left half of the label also contains Orion taggant, readable with the same S-150 key fob. (Blue Light + Stutter Tone) The left half of the label illuminates yellow when exposed to UV light. 6 (Click Home to Return to Feature Summary Or Anywhere to Cycle Through All Features)

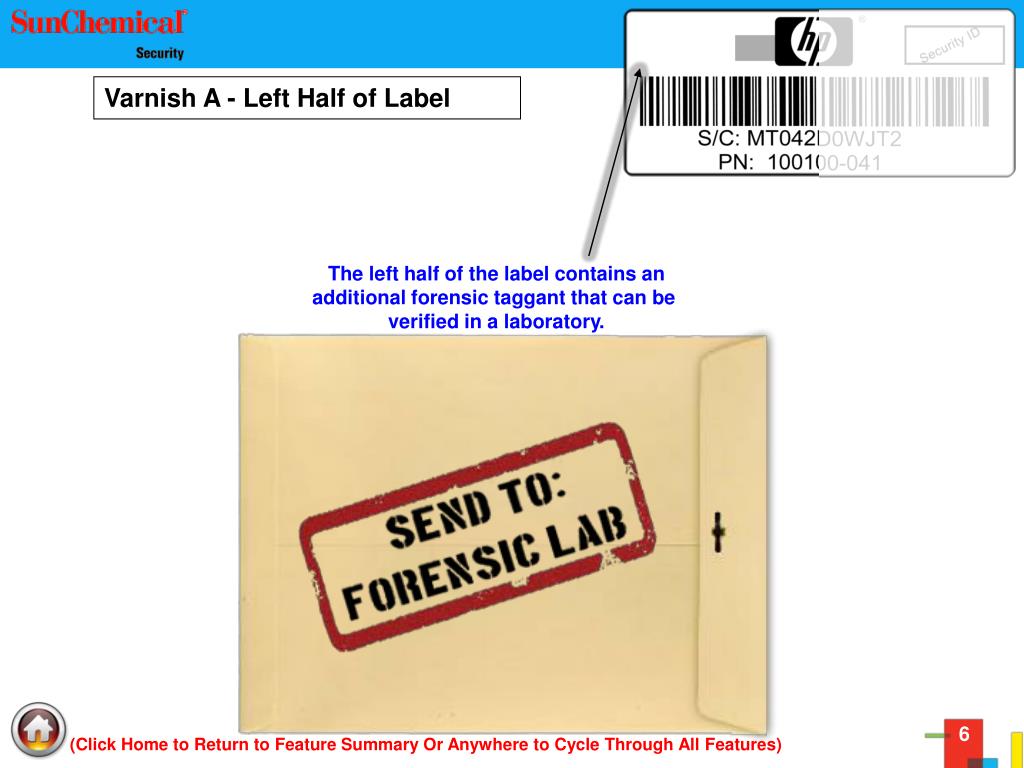

  8. Varnish A (cont.) Varnish A - Left Half of Label The left half of the label contains an additional forensic taggant that can be verified in a laboratory. 6 (Click Home to Return to Feature Summary Or Anywhere to Cycle Through All Features)

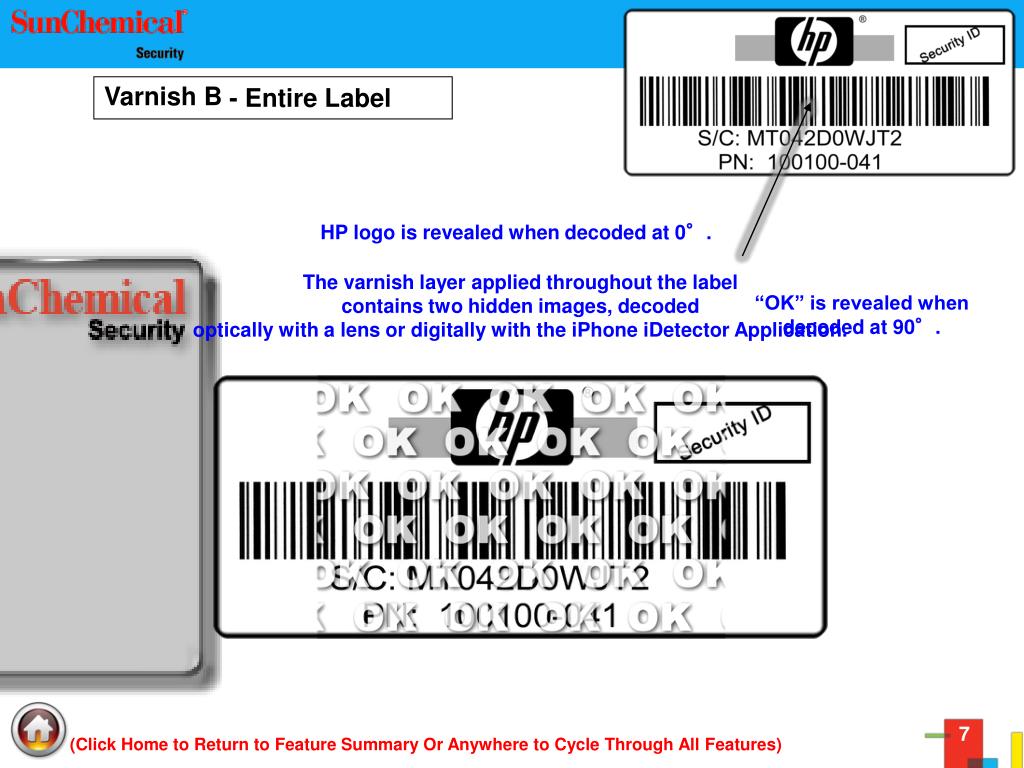

  9. Varnish B Varnish B - Entire Label HP logo is revealed when decoded at 0°. The varnish layer applied throughout the label contains two hidden images, decoded optically with a lens or digitally with the iPhone iDetector Application. “OK” is revealed when decoded at 90°. 7 (Click Home to Return to Feature Summary Or Anywhere to Cycle Through All Features)

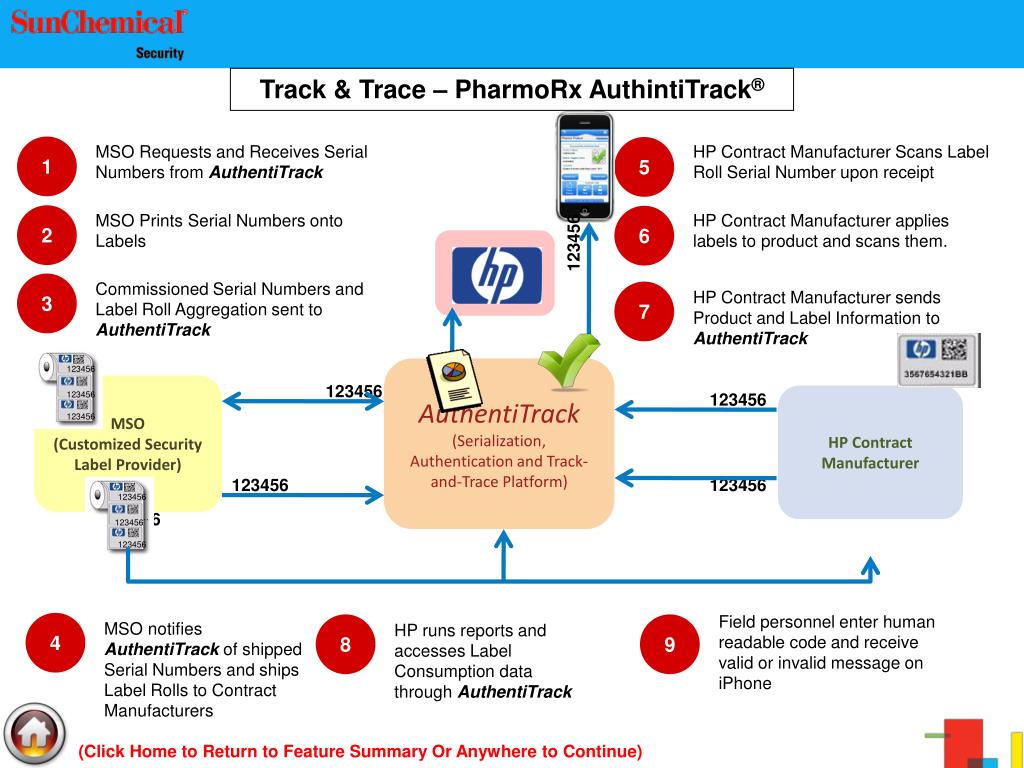

  10. Track & Trace Track & Trace – PharmoRx AuthintiTrack® MSO Requests and Receives Serial Numbers from AuthentiTrack HP Contract Manufacturer Scans Label Roll Serial Number upon receipt 1 5 MSO Prints Serial Numbers onto Labels Commissioned Serial Numbers and Label Roll Aggregation sent to AuthentiTrack HP Contract Manufacturer applies labels to product and scans them. 2 3 6 123456 HP 7 HP Contract Manufacturer sends Product and Label Information to AuthentiTrack HP Contract Manufacturer AuthentiTrack (Serialization, Authentication and Track-and-Trace Platform) HP Contract Manufacturer HP Contract Manufacturer MSO (Customized Security Label Provider) 123456 123456 123456 123456 123456 123456`` 123456 123456 123456 123456 123456 4 MSO notifies AuthentiTrack of shipped Serial Numbers and ships Label Rolls to Contract Manufacturers Field personnel enter human readable code and receive valid or invalid message on iPhone 8 HP runs reports and accesses Label Consumption data through AuthentiTrack 9 (Click Home to Return to Feature Summary Or Anywhere to Continue)

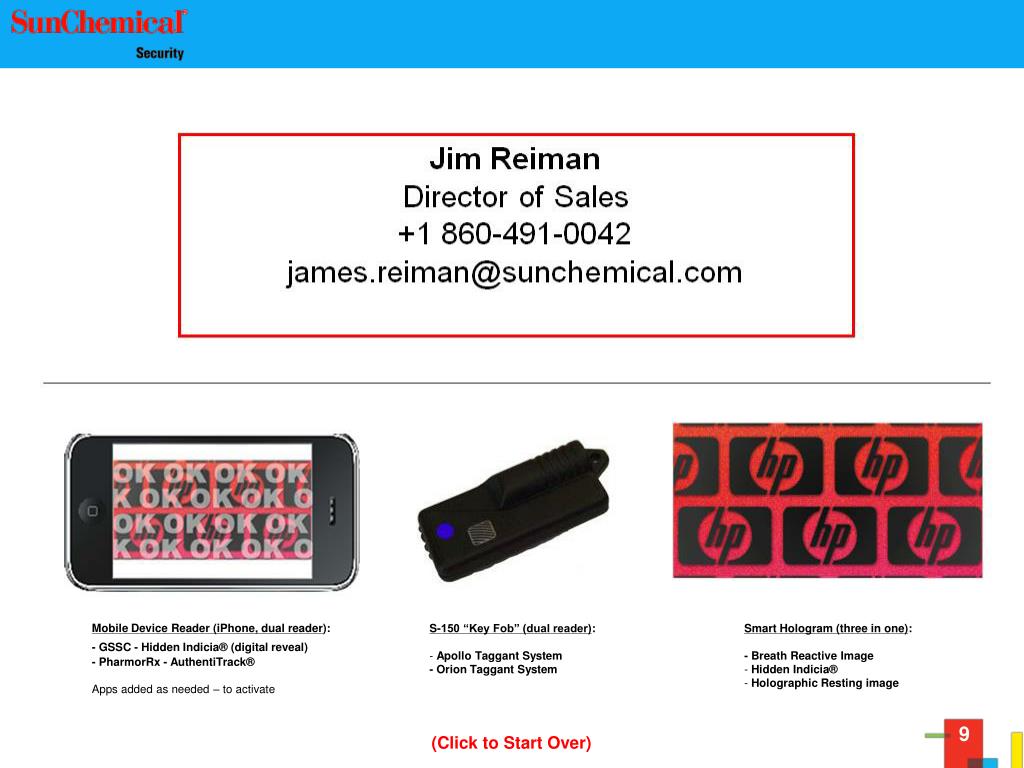

  11. Contact Page Mobile Device Reader (iPhone, dual reader): - GSSC - Hidden Indicia® (digital reveal) - PharmorRx - AuthentiTrack® Apps added as needed – to activate • S-150 “Key Fob” (dual reader): • Apollo Taggant System • - Orion Taggant System • Smart Hologram (three in one): • - Breath Reactive Image • Hidden Indicia® • Holographic Resting image 9 (Click to Start Over)
