This project focuses on the development of a high-speed fast tool servo for diamond turning, targeting operational capability at 10 kHz or higher with a 5 mm stroke (P-V). The first Fast Tool Servo (FTS) achieved a 20 mm stroke at 2 kHz, while previous Ultramill models operated at 500 Hz and 5 kHz. Key challenges include actuator selection, structural design, heat generation management, control system development, and machining experiments. The outcome is a compact design capable of 10 kHz with a closed-loop feedback system ensuring optimal performance and dynamic values.

cate
Télécharger la présentation

FTS turbo Development

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FTSturbo Development By Nathan Buescher November 7, 2003

  2. Objectives • Build high-speed fast tool servo for diamond turning • Operate at 10 KHz or greater • 5 mm stroke ( P-V )

  3. Background • 1st FTS : 20 mm stroke, 2 KHz bandwidth

  4. Background • Ultramill I (500 Hz) and II (5 KHz)

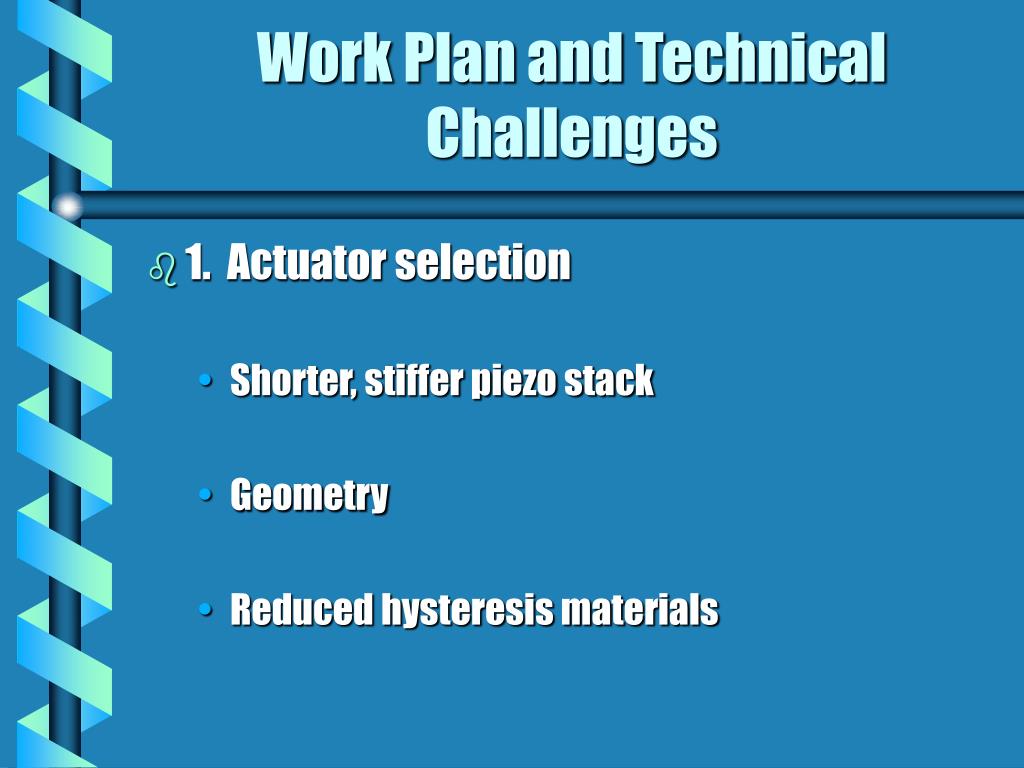

  5. Work Plan and Technical Challenges • 1. Actuator selection • Shorter, stiffer piezo stack • Geometry • Reduced hysteresis materials

  6. Work Plan and Technical Challenges • 2. Structural Design • Small, lightweight moving mass/tool holder • Preload and flexures • Capacitance gauge orientation

  7. Work Plan and Technical Challenges • Examples

  8. Work Plan and Technical Challenges • 3. Heat Generation • Fluid Cooling system • Reduced hysteresis  Air-cooled

  9. Work Plan and Technical Challenges • 4. Control System Development • System model • Frequency Response  Transfer fcn • PID or pole placement control

  10. Work Plan and Technical Challenges • Example of Closed-Loop control scheme

  11. Work Plan and Technical Challenges • 5. Machining Experiments • Cutting error and surface shapes evaluated • Dynamic response (overshoot, rise time, etc) • Test wide range of frequencies and spindle speeds

  12. Results • 5 mm stroke with bandwidth of 10 KHz • Small, compact design with maximized component life • Closed loop feedback system with acceptable dynamic values
