  1. Programming withState Machines Team 1279 ColdFusion November 6, 2010

  2. What are State Machines? • Logical Model of a System • Collection of Related Settings: States • Connected by Triggering Events: Transitions • Simple, Consistent Framework: the Machine Initializing Ready

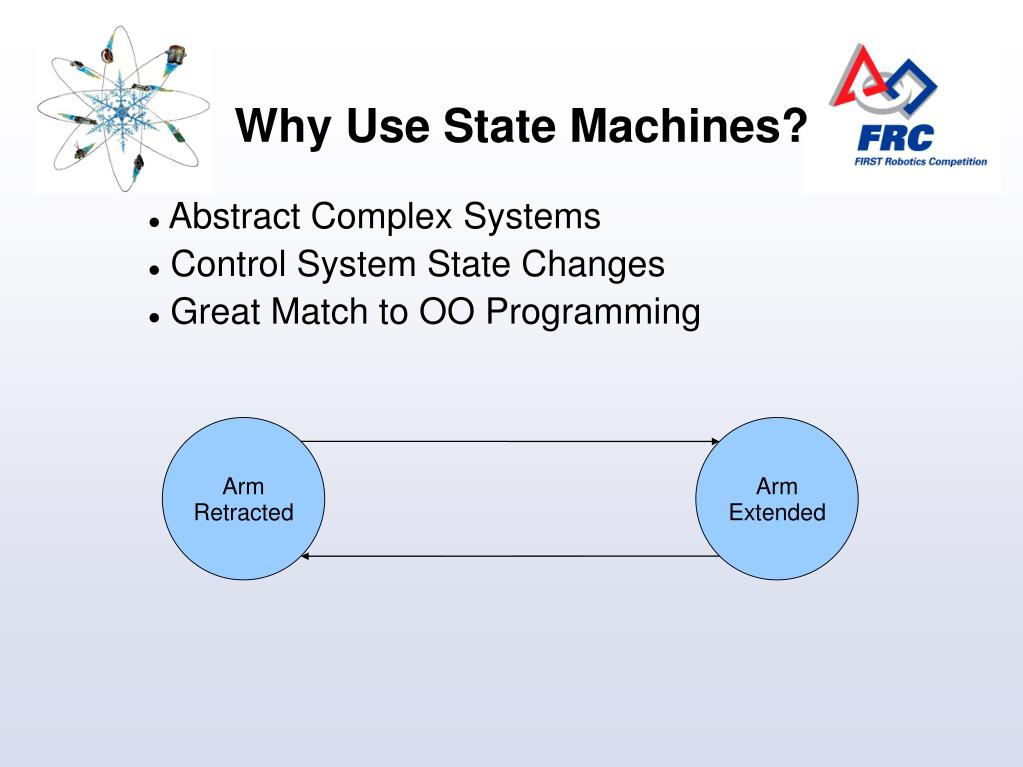

  3. Why Use State Machines? • Abstract Complex Systems • Control System State Changes • Great Match to OO Programming Arm Retracted Arm Extended

  4. The States • States for Each Class to Control • e.g. Kicker, Arm • Easy, Abstract Names • ReadyToKick not Limit1OnandTimerExpired • Everyone needs Init • Constructor/Init should use common method • Easy error recovery • May need transitional States • ArmExtending • Not just ArmRetracted, ArmExtended • Fully Encapsulate! • Easy to add or remove states later

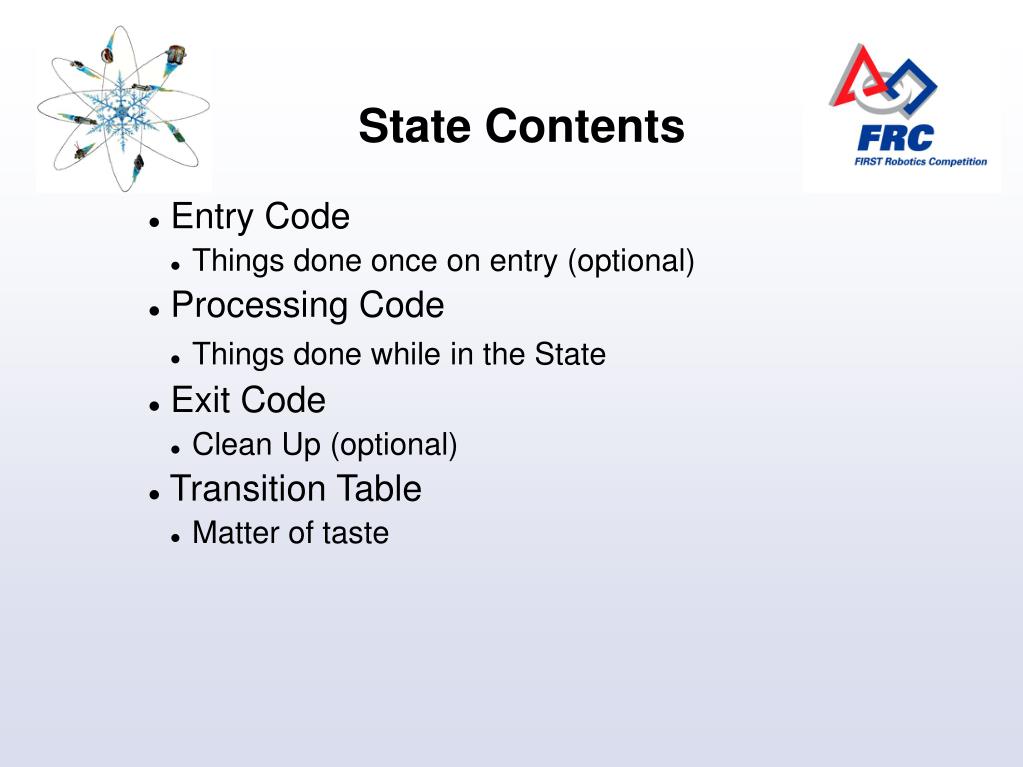

  5. State Contents • Entry Code • Things done once on entry (optional) • Processing Code • Things done while in the State • Exit Code • Clean Up (optional) • Transition Table • Matter of taste

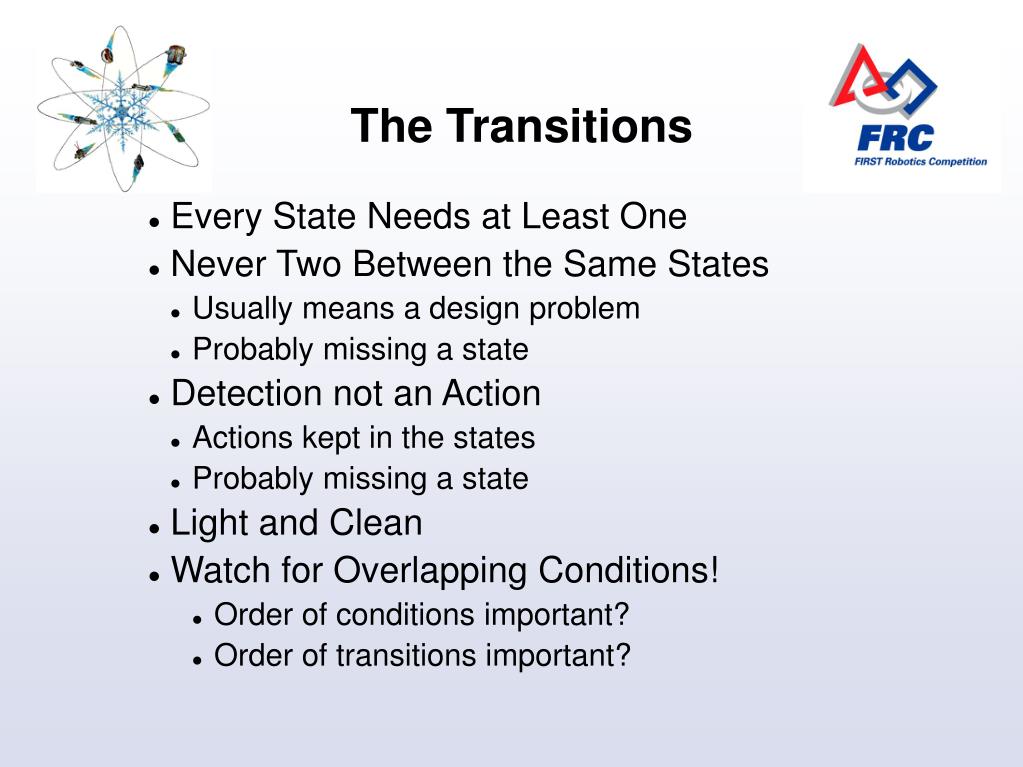

  6. The Transitions • Every State Needs at Least One • Never Two Between the Same States • Usually means a design problem • Probably missing a state • Detection not an Action • Actions kept in the states • Probably missing a state • Light and Clean • Watch for Overlapping Conditions! • Order of conditions important? • Order of transitions important?

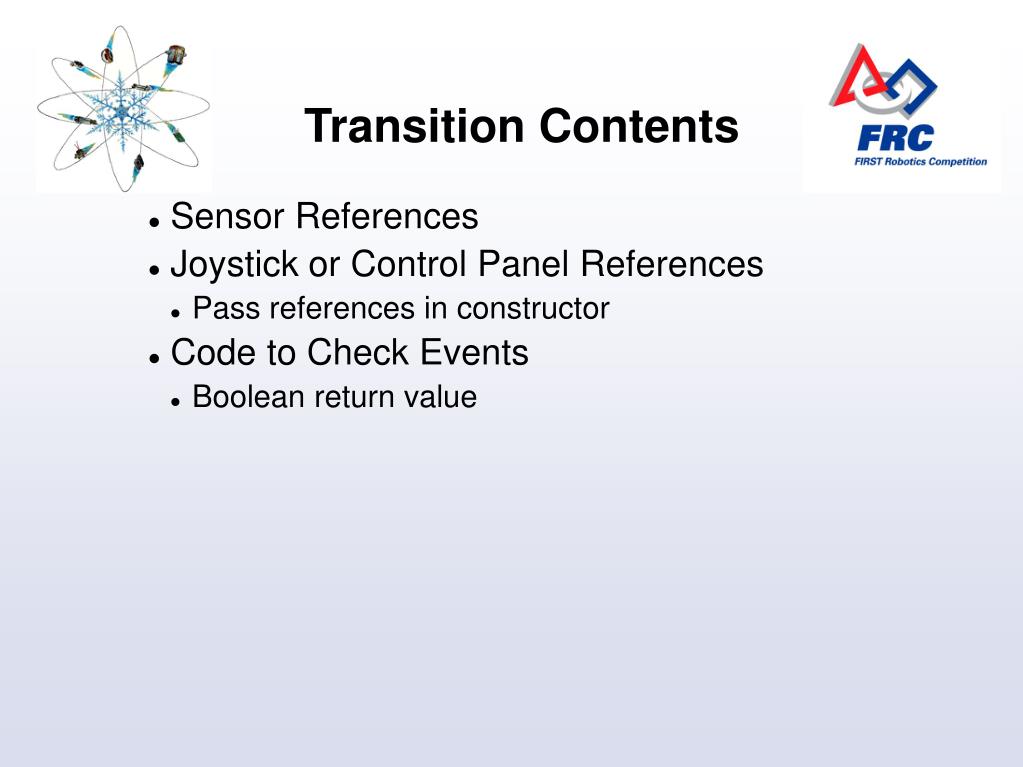

  7. Transition Contents • Sensor References • Joystick or Control Panel References • Pass references in constructor • Code to Check Events • Boolean return value

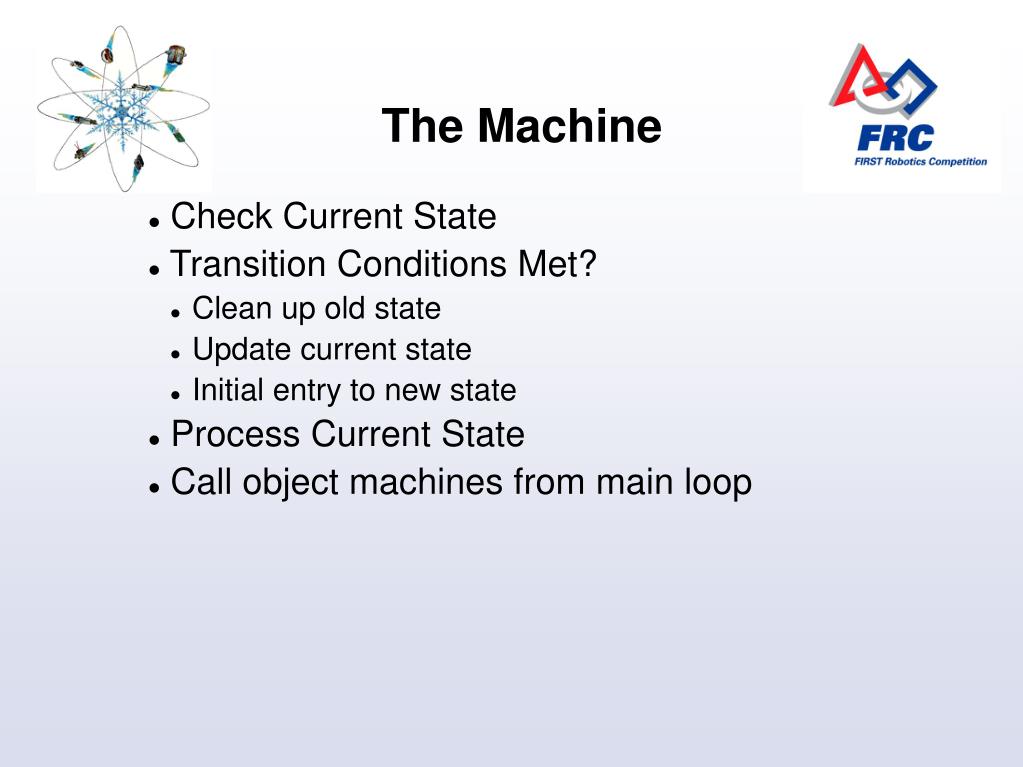

  8. The Machine • Check Current State • Transition Conditions Met? • Clean up old state • Update current state • Initial entry to new state • Process Current State • Call object machines from main loop

  9. Diagrams Proc1 Proc2 Init Ready Proc3 Any State Visio is a great tool for this, but many free apps are also available, this is done in Open Office Impress

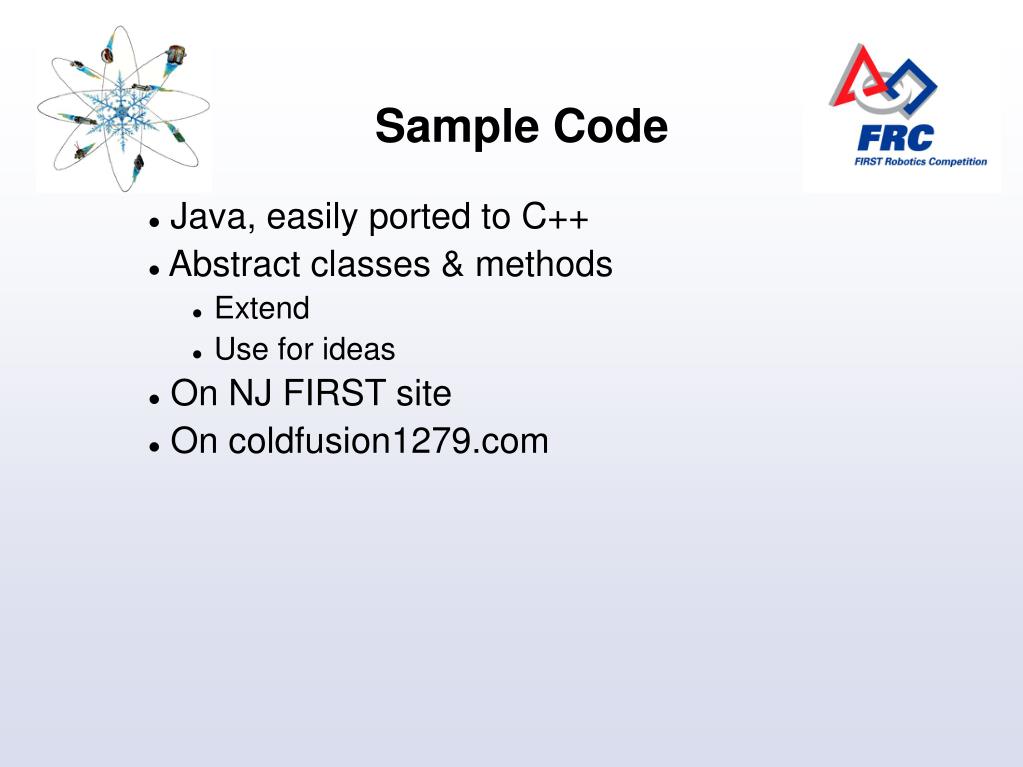

  10. Sample Code • Java, easily ported to C++ • Abstract classes & methods • Extend • Use for ideas • On NJ FIRST site • On coldfusion1279.com
