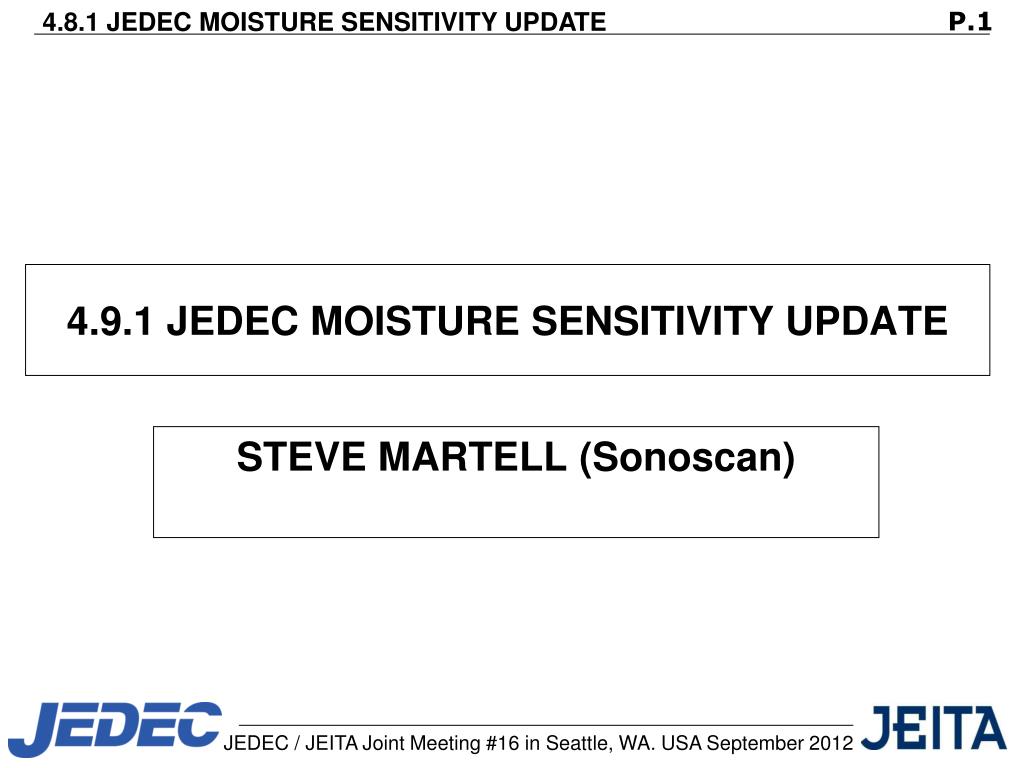

  1. 4.9.1 JEDEC MOISTURE SENSITIVITY UPDATE STEVE MARTELL (Sonoscan)

  2. J-STD-033C Published February 2012 J-STD-075 Published August 2008 Request to remove connectors (per EIA) J-STD-020D.1 Published August 2007 Typos corrected 3/08 (Rev D.1) Draft of 020C in process Future Topics to be Considered Outline

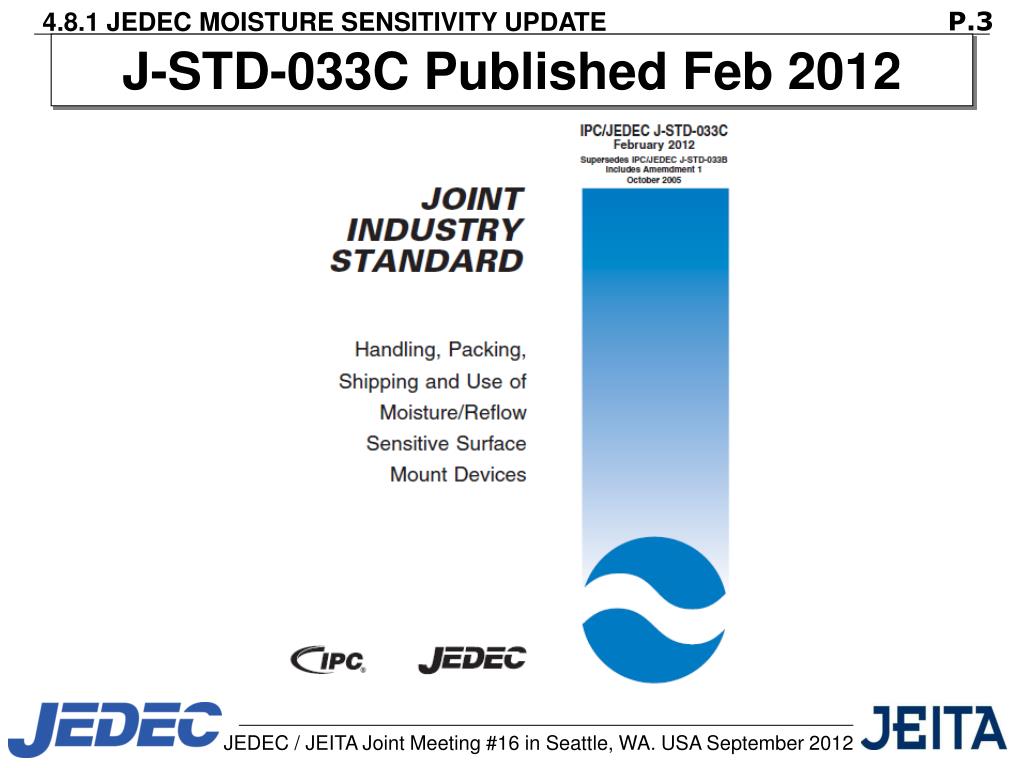

  3. J-STD-033C Published Feb 2012

  4. J-STD-033C Published Feb 2012Summary of Changes

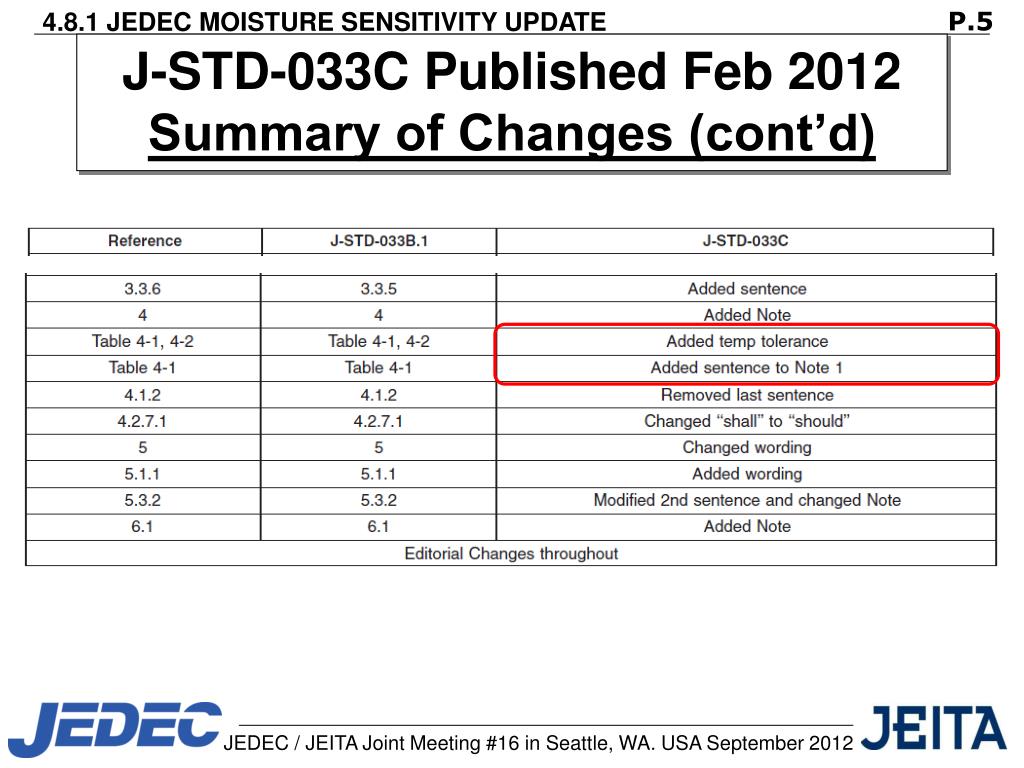

  5. J-STD-033C Published Feb 2012Summary of Changes (cont’d)

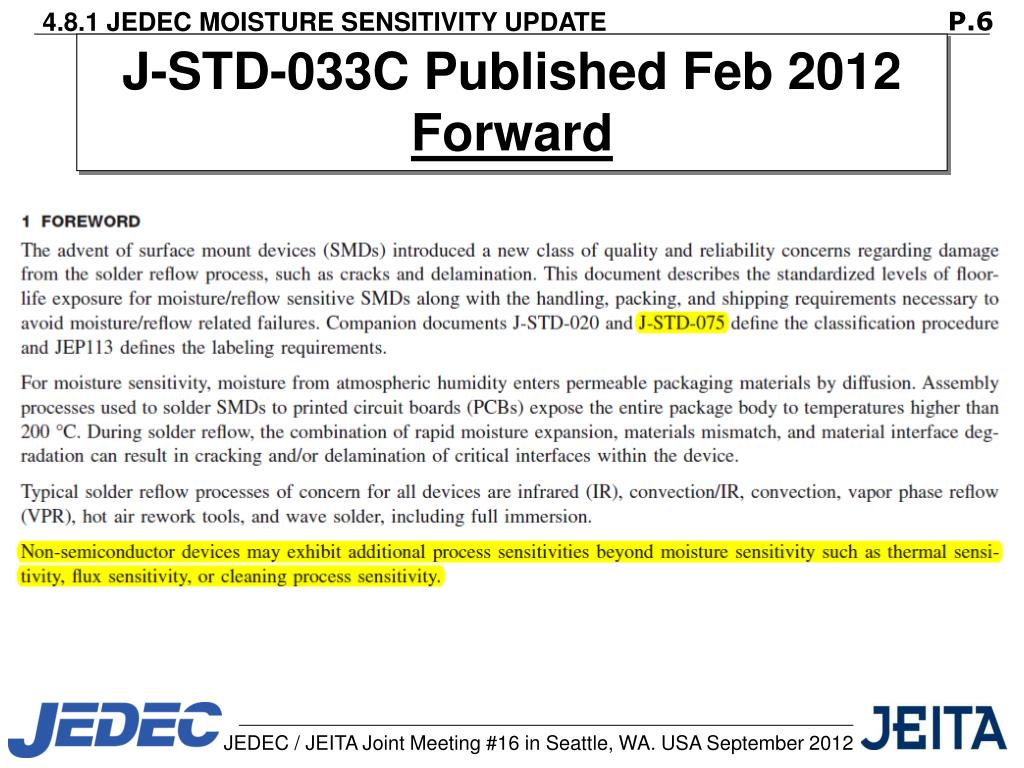

  6. J-STD-033C Published Feb 2012 Forward

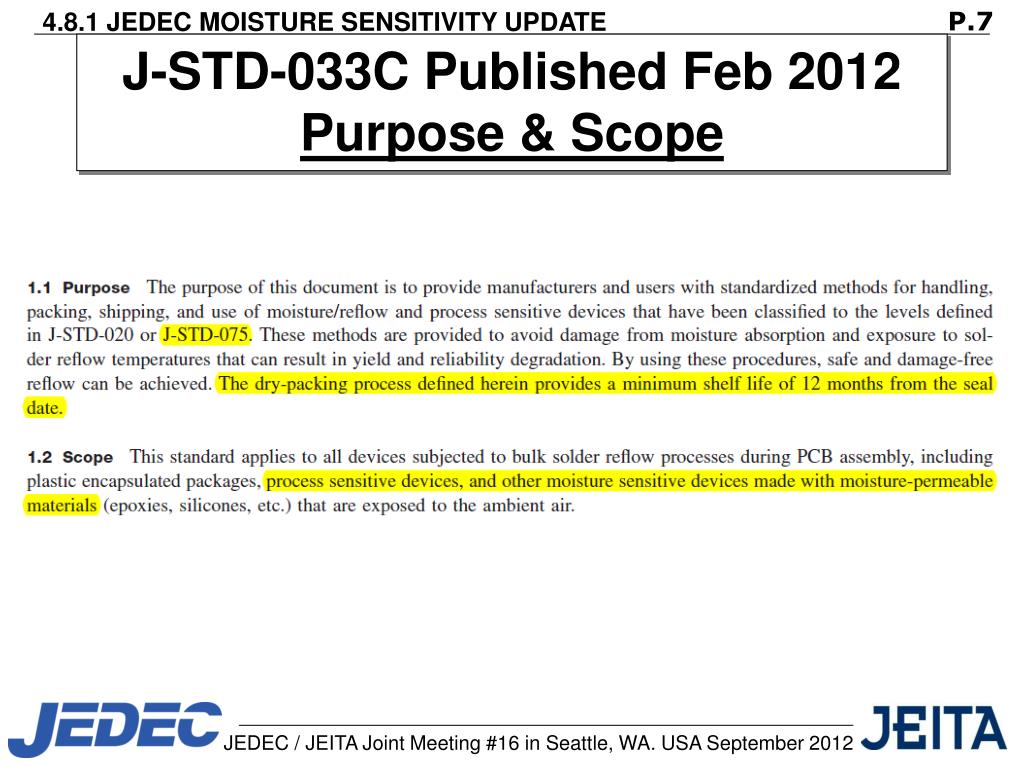

  7. J-STD-033C Published Feb 2012 Purpose & Scope

  8. J-STD-033C Published Feb 2012 Desiccant Quantity Calculation

  9. J-STD-033C Published Feb 2012 Desiccant Handling & Storage

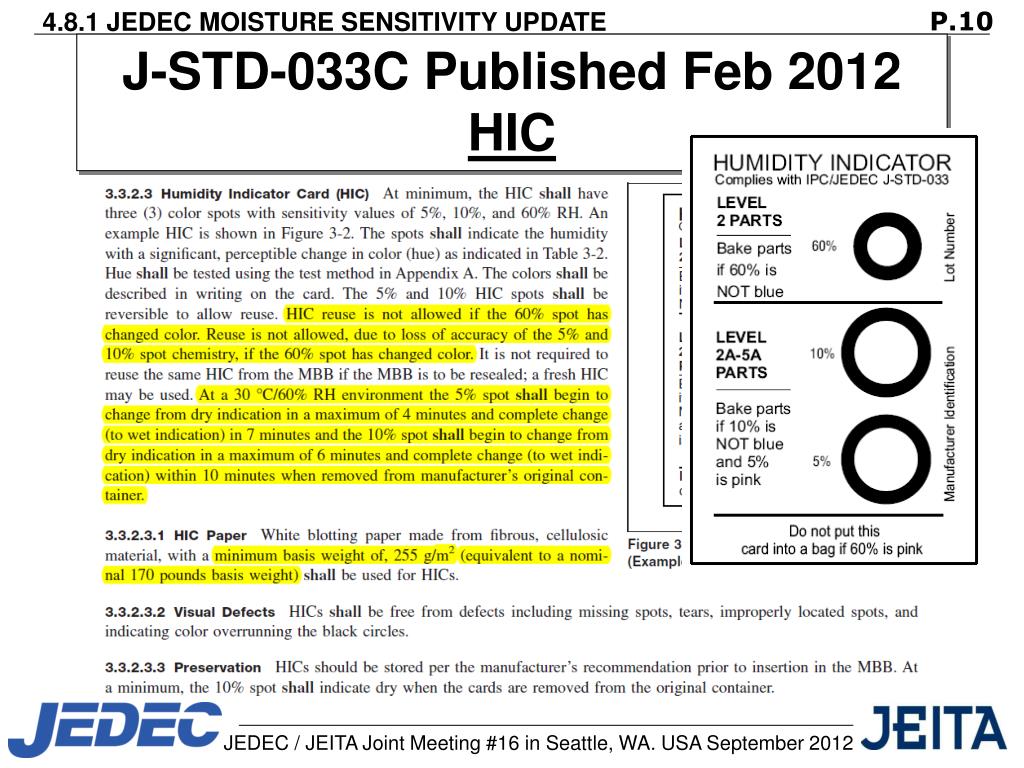

  10. J-STD-033C Published Feb 2012 HIC

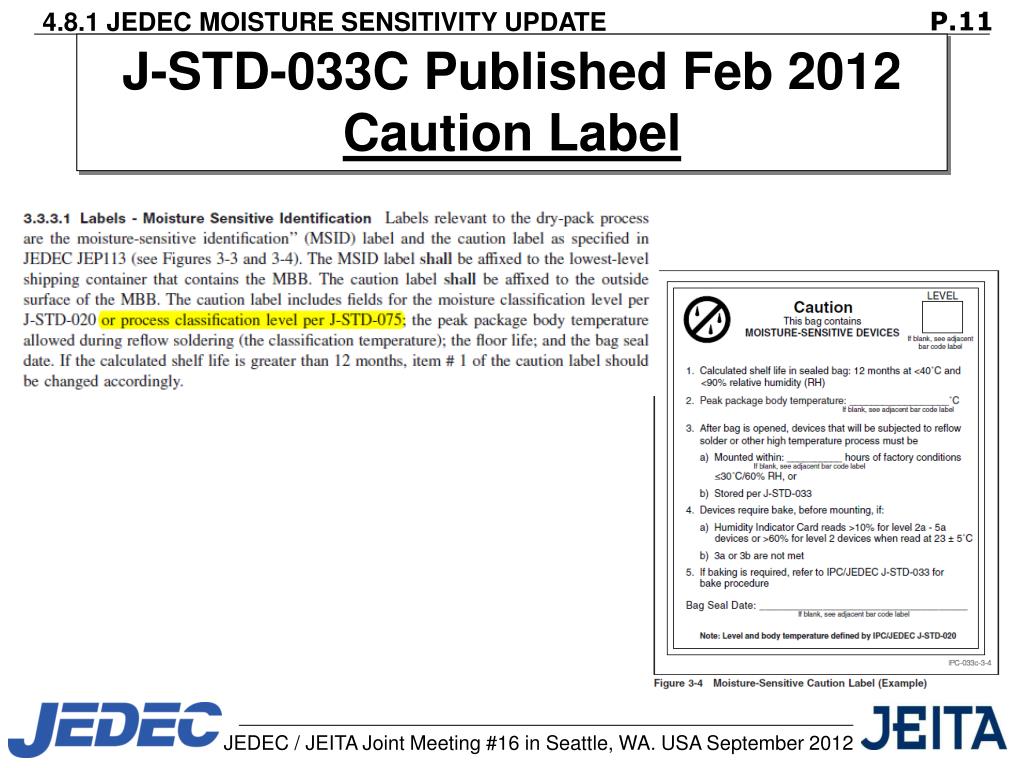

  11. J-STD-033C Published Feb 2012 Caution Label

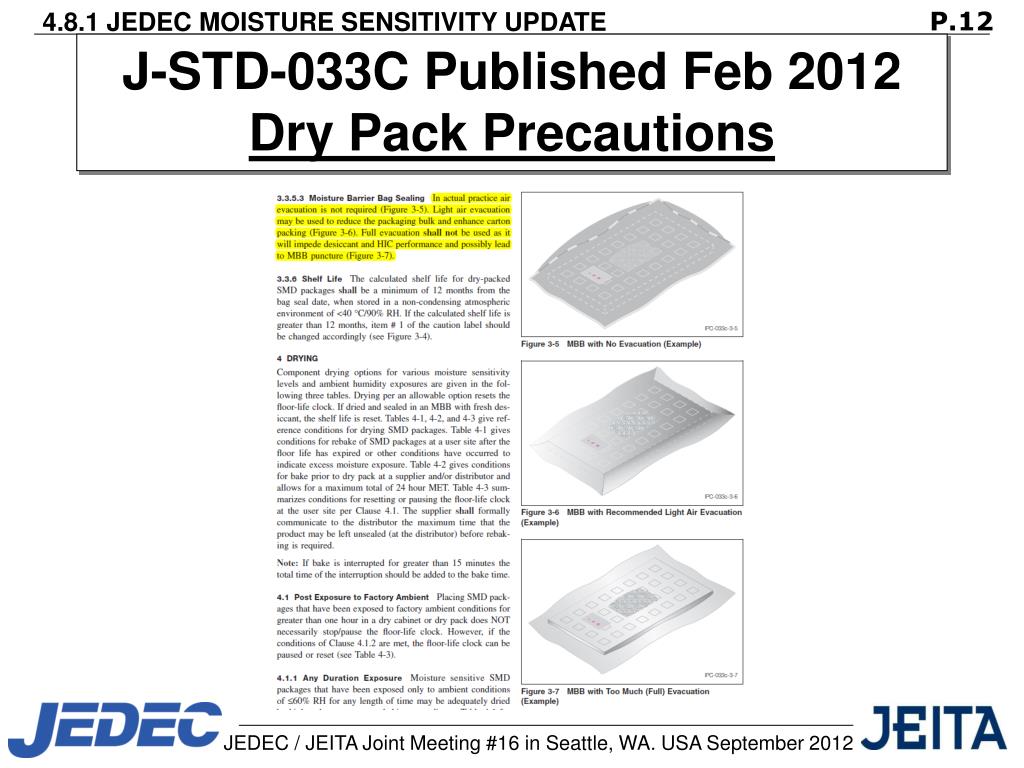

  12. J-STD-033C Published Feb 2012 Dry Pack Precautions

  13. J-STD-033C Published Feb 2012 Bake Temperature Tolerance

  14. J-STD-033C Published Feb 2012 Bake Temperature Tolerance

  15. J-STD-075

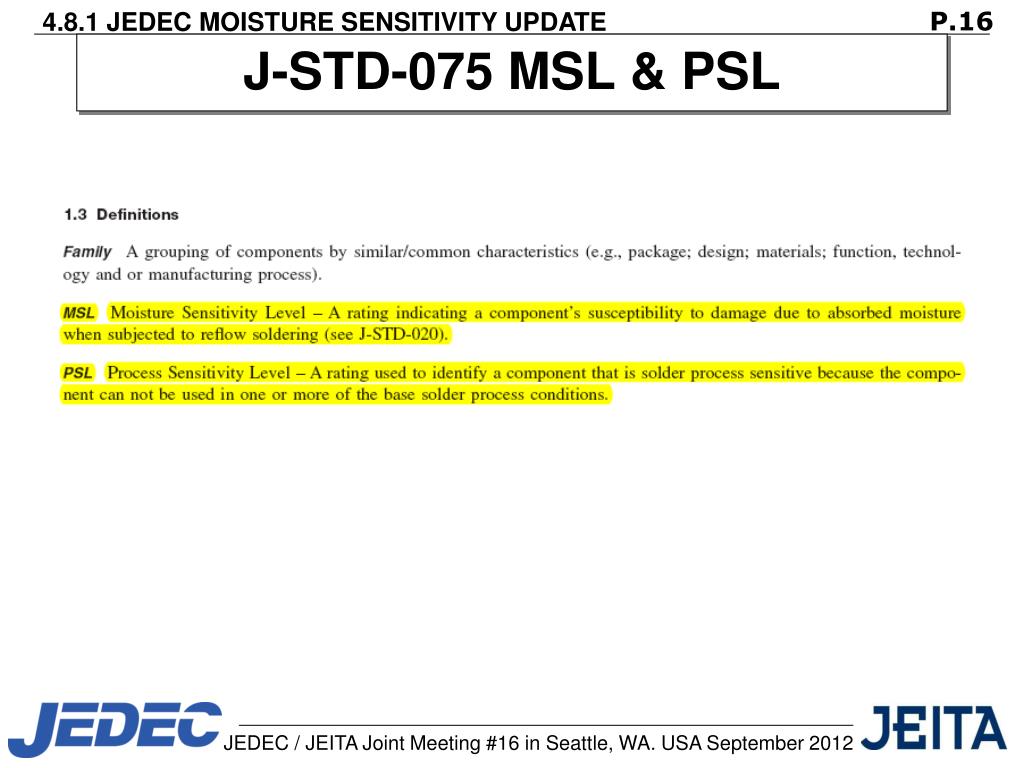

  16. J-STD-075 MSL & PSL

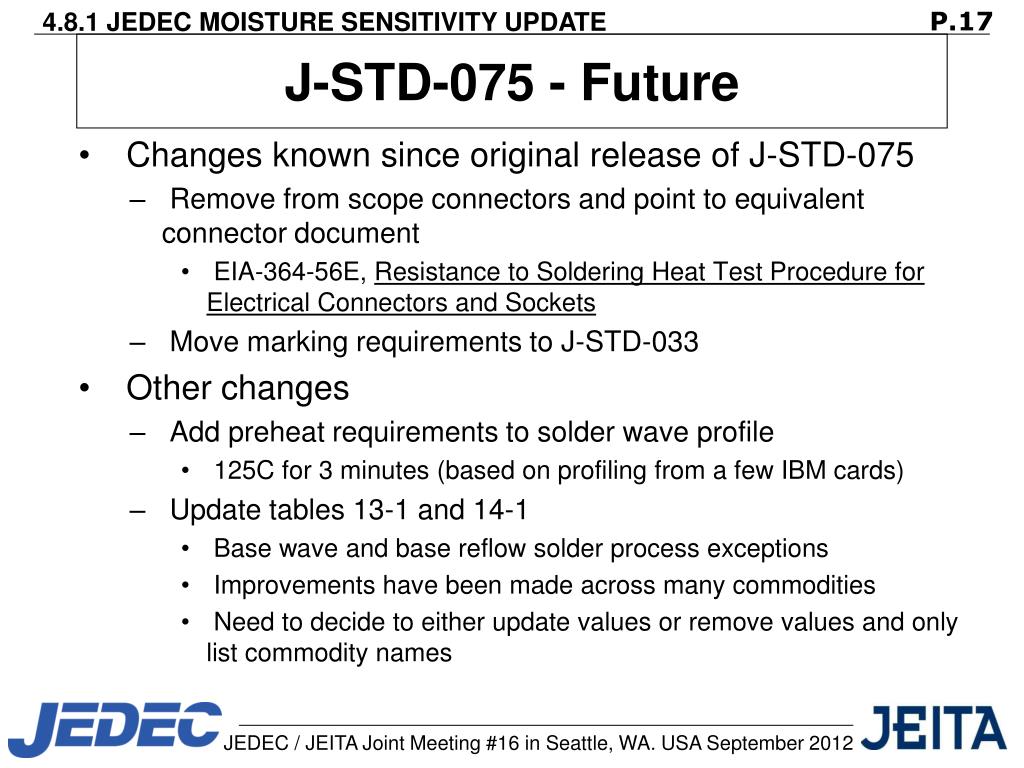

  17. J-STD-075 - Future • Changes known since original release of J-STD-075 • Remove from scope connectors and point to equivalent connector document • EIA-364-56E, Resistance to Soldering Heat Test Procedure for Electrical Connectors and Sockets • Move marking requirements to J-STD-033 • Other changes • Add preheat requirements to solder wave profile • 125C for 3 minutes (based on profiling from a few IBM cards) • Update tables 13-1 and 14-1 • Base wave and base reflow solder process exceptions • Improvements have been made across many commodities • Need to decide to either update values or remove values and only list commodity names

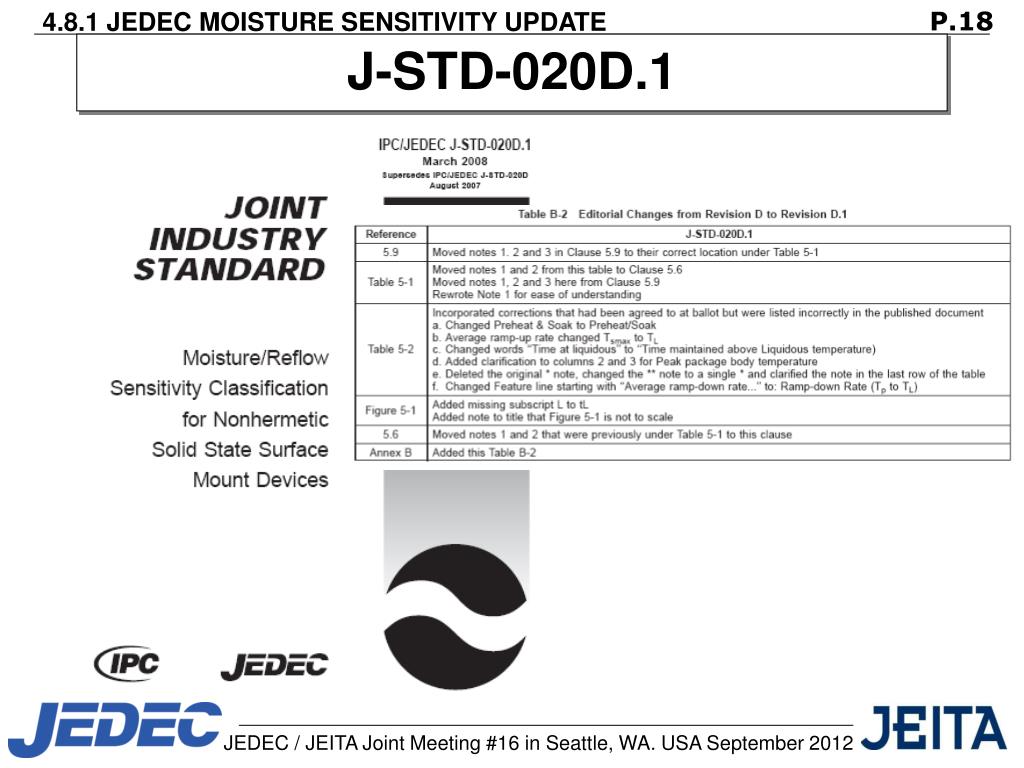

  18. J-STD-020D.1

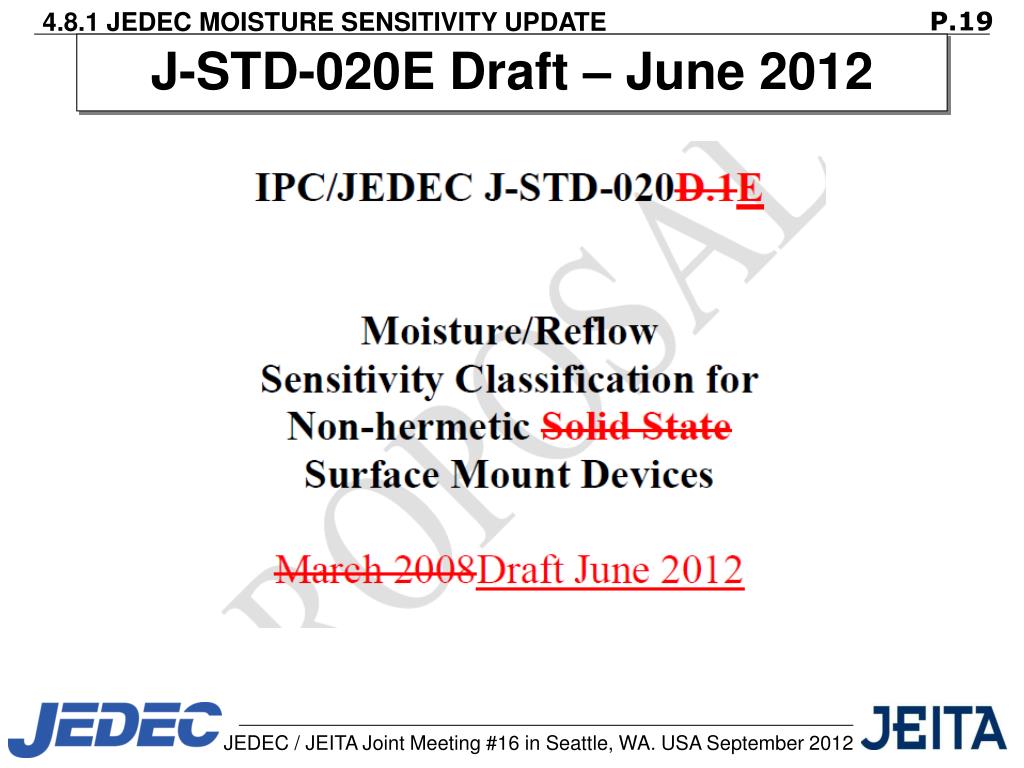

  19. J-STD-020E Draft – June 2012

  20. J-STD-020E Draft – June 2012

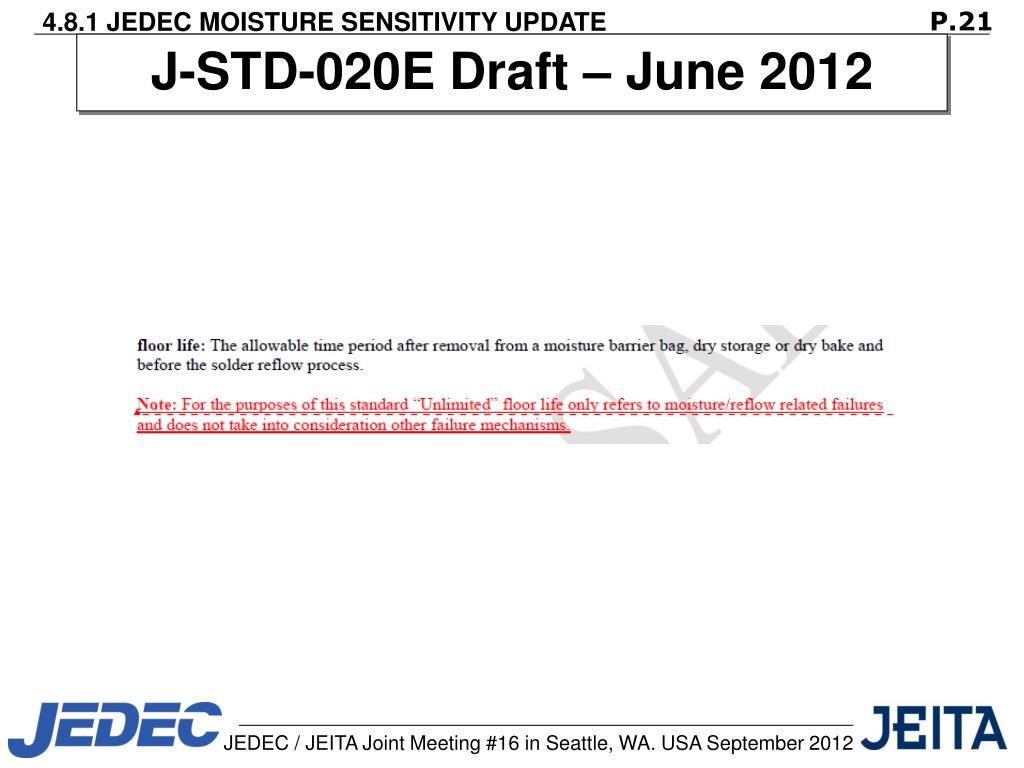

  21. J-STD-020E Draft – June 2012

  22. J-STD-020E Draft – June 2012

  23. J-STD-020E Draft – June 2012

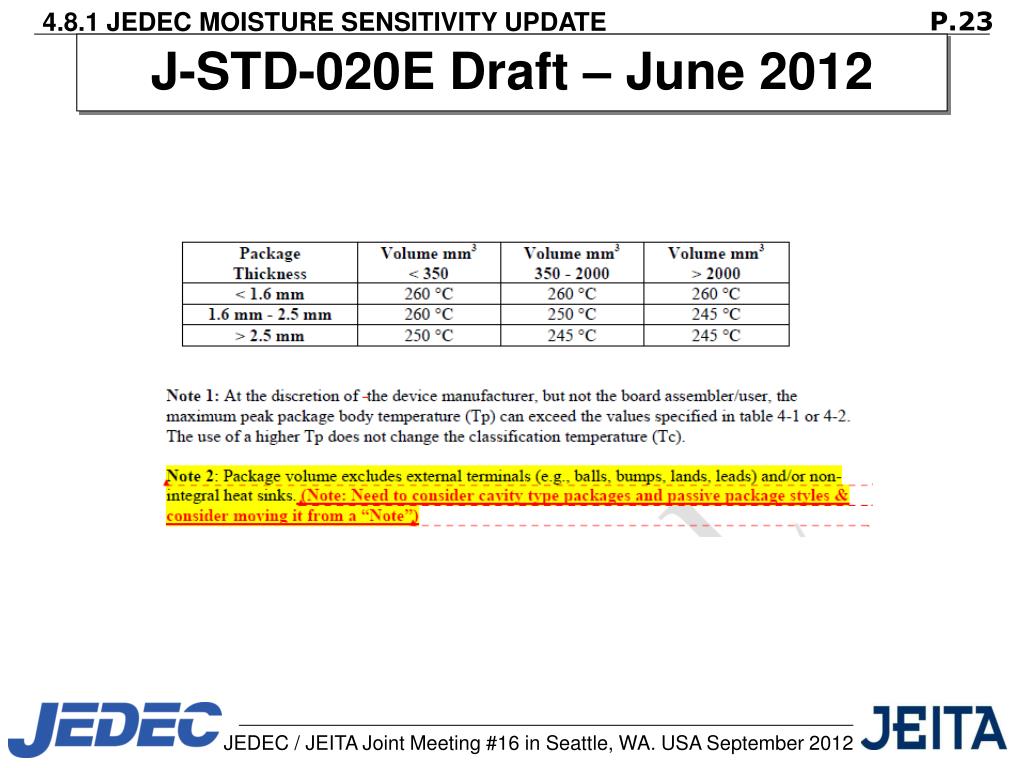

  24. J-STD-020E Draft – June 2012

  25. J-STD-020E Draft – June 2012

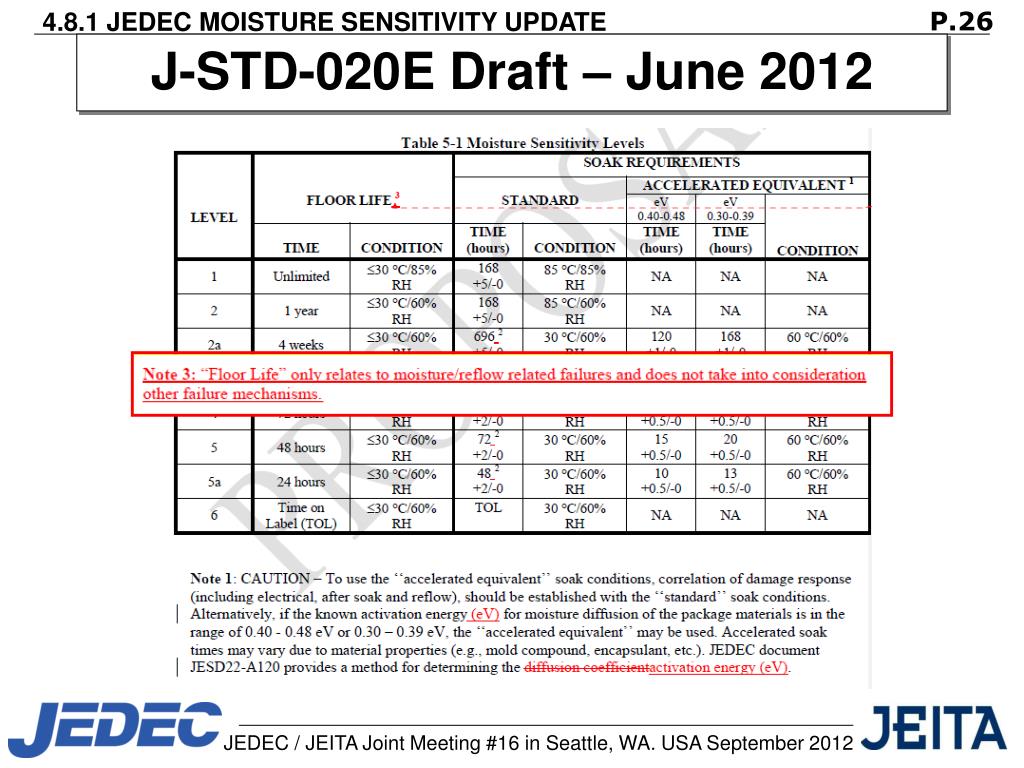

  26. J-STD-020E Draft – June 2012

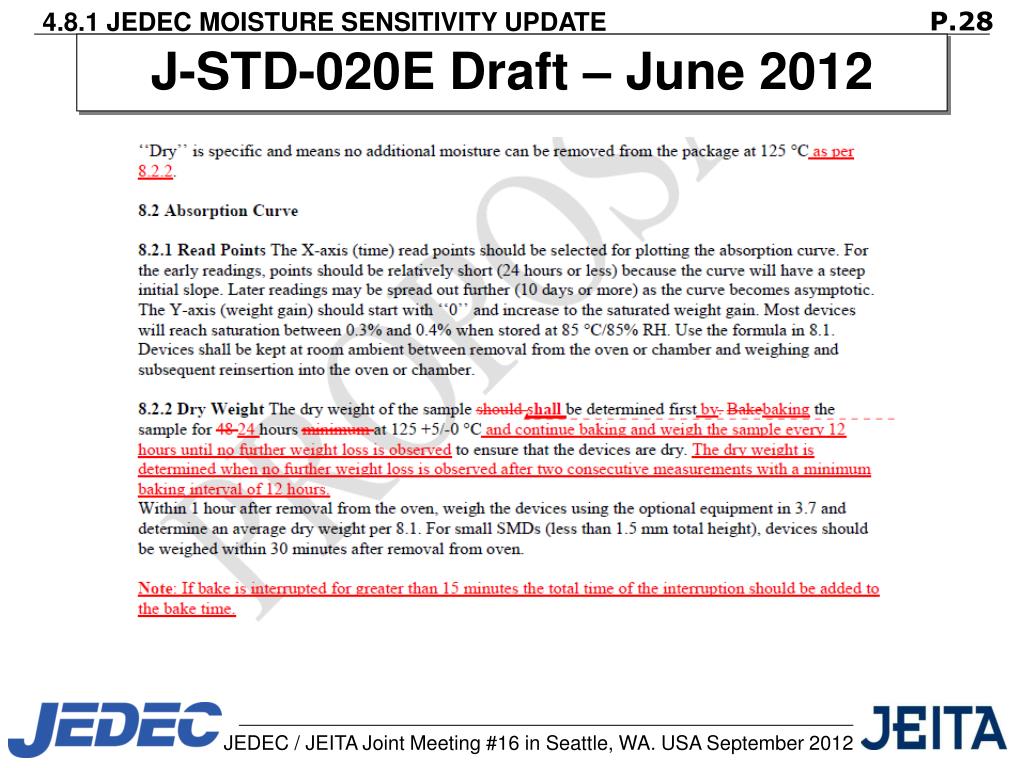

  27. J-STD-020E Draft – June 2012

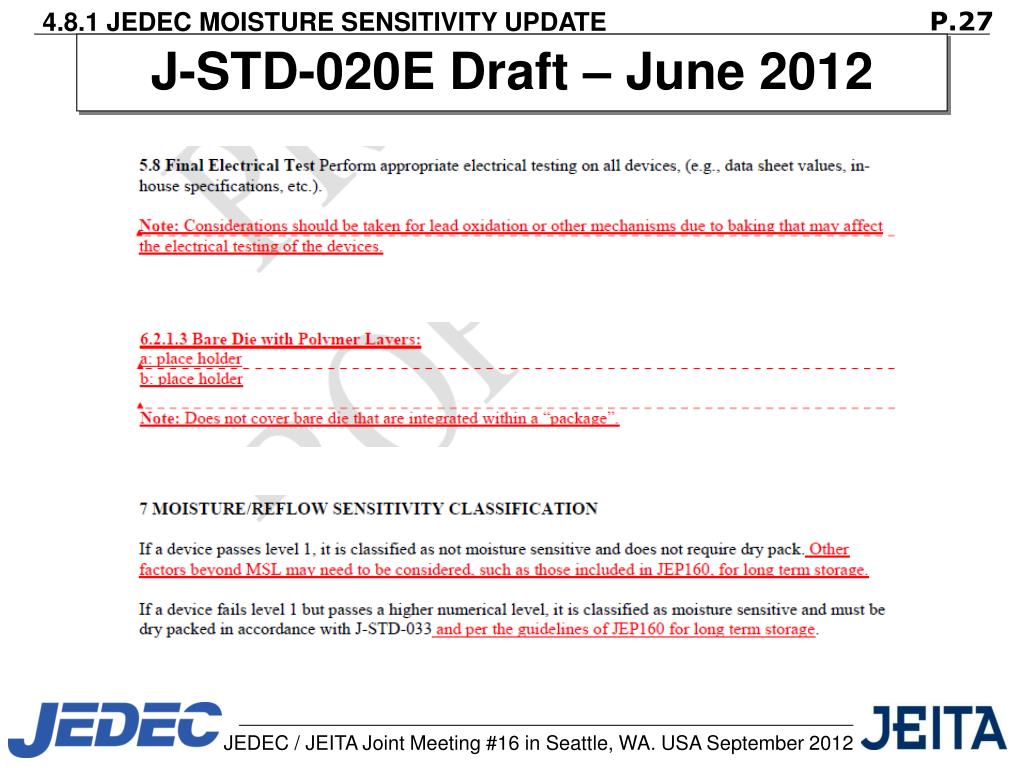

  28. J-STD-020E Draft – June 2012

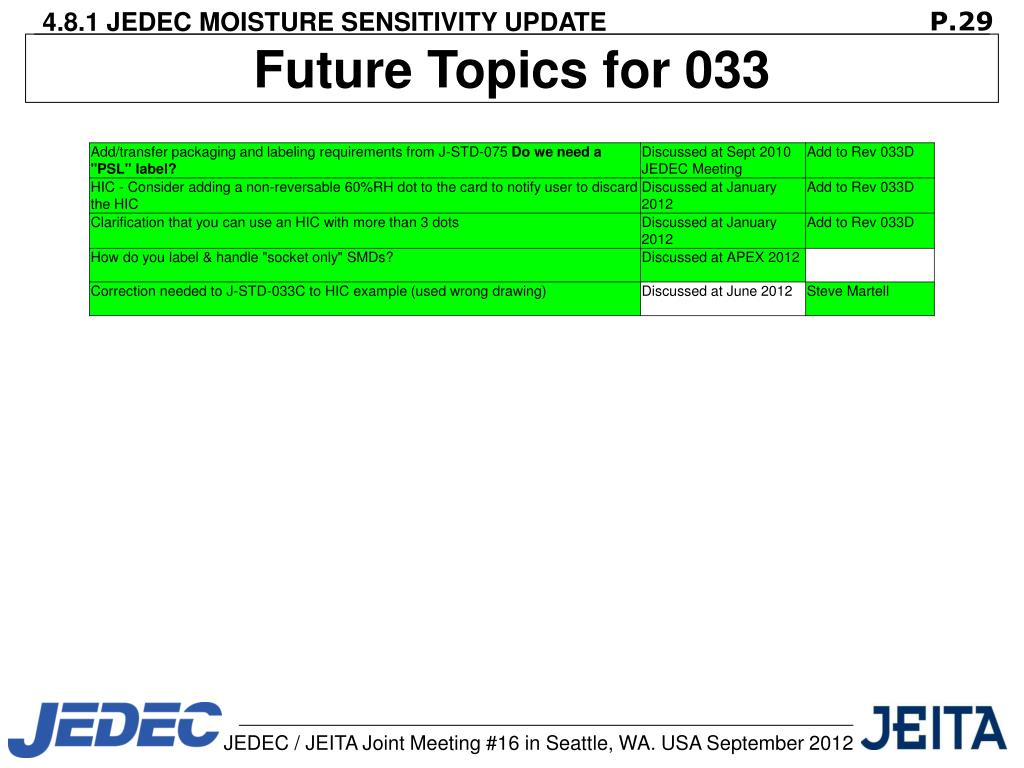

  29. Future Topics for 033

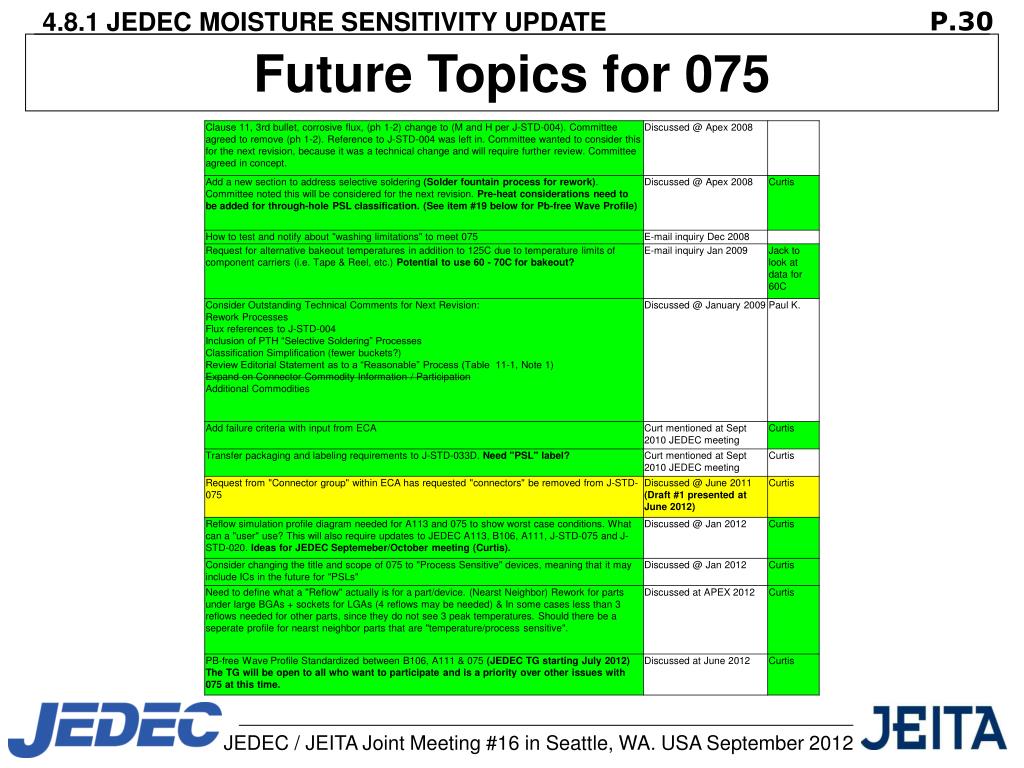

  30. Future Topics for 075

  31. Future Topics for 020

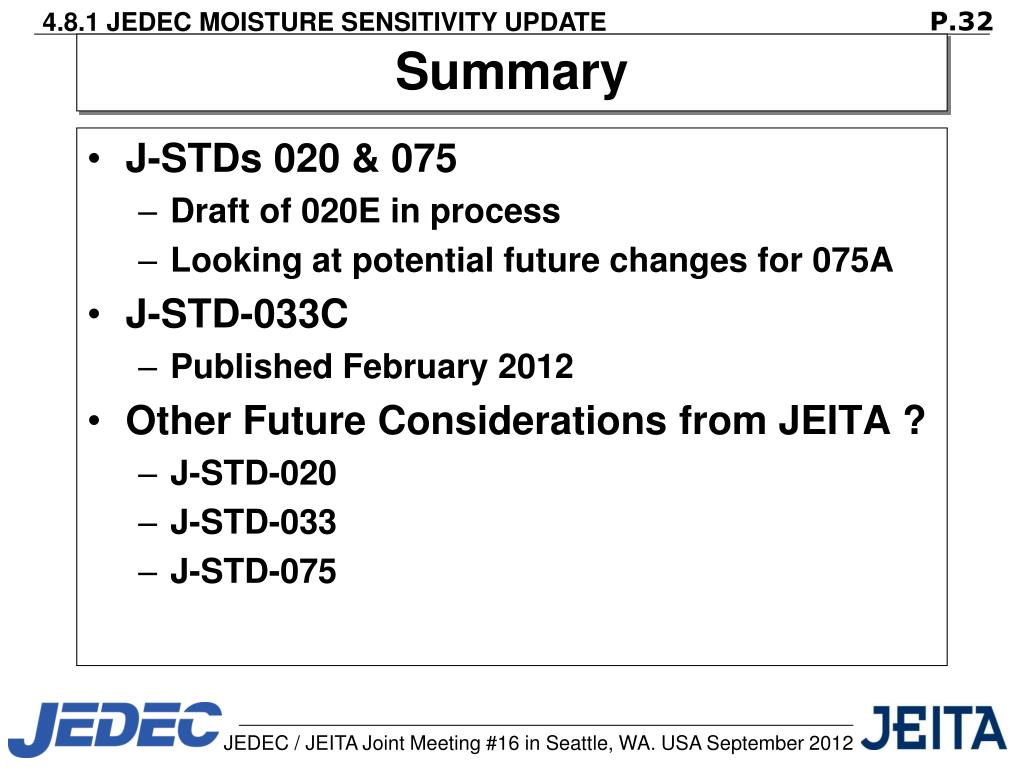

  32. J-STDs 020 & 075 Draft of 020E in process Looking at potential future changes for 075A J-STD-033C Published February 2012 Other Future Considerations from JEITA ? J-STD-020 J-STD-033 J-STD-075 Summary
