Units and Measurement in Science

cdanielle avatar
cdanielle
28 diapositives · 528 Views · Jan 05, 2020

Learn about base and derived units, SI units, unit conversion methods, precision vs. accuracy, significant figures, and more in the realm of science measurements.

#units and measurement in science #units and measurement in science ppt #powerpoint #presentation
Units and Measurement in Science - slide 1
01 / 28Units and Measurement in Science
1 / 17

Télécharger la présentation

Units and Measurement in Science
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

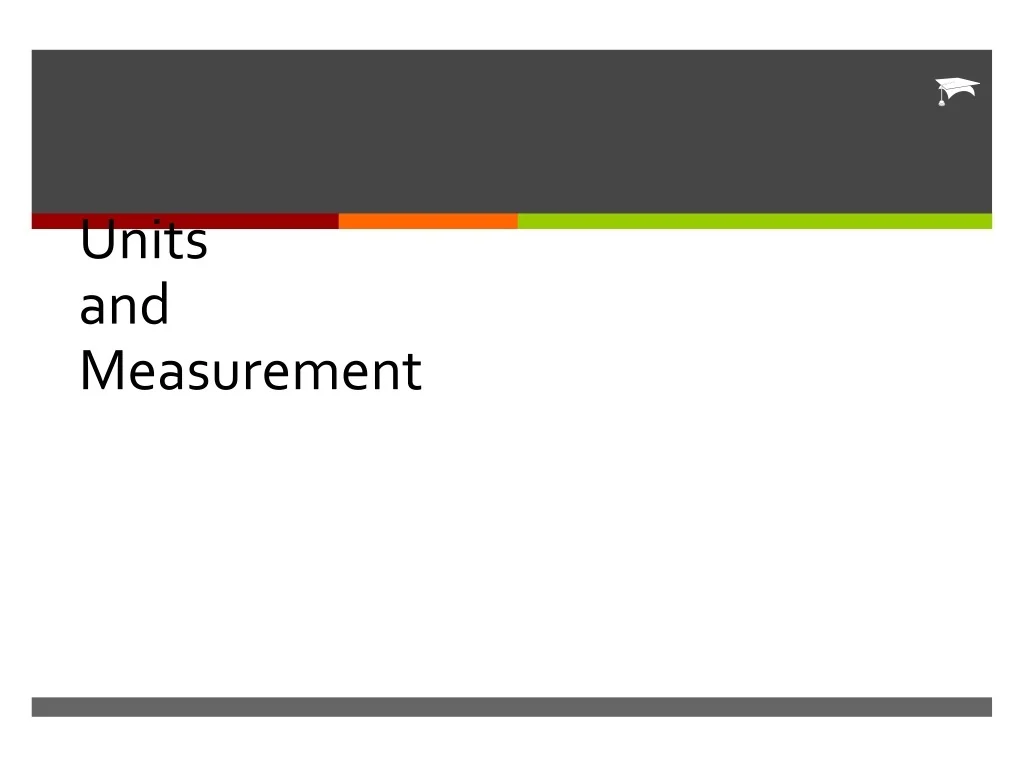

  1. Units andMeasurement

  2. Kinds of Units • Base • Derived

  3. Math and Units • SI Units – International System • MKS (Base Units) • Meter m • Mass kg • Time s

  4. Derived SI Units (examples)

  5. Units • Derived Units Velocity = Distance /Time => Unit of Velocity is _____ Density = Mass/ Volume => Unit of Density is _____ Rule: You EXPRESS the quantity in terms of Mass, Kilogram and Second

  6. The Seven Base SI Units

  7. SI Unit Prefixes - Part I

  8. SI Unit Prefixes- Part II

  9. SI Unit Prefixes for Length

  10. Scientific Notation M x 10n • M is the coefficient 1<M<10 • 10 is the base • n is the exponent or power of 10

  11. Other Examples: • 5.45E+6 or • 5.45 x 10^6

  12. Numbers less than 1 will have a negative exponent. A millionth of a second is: 0.000001 sec 1x10-6 1.0E-6 1.0^-6

  13. Factor-Label Method of Unit Conversion • Example: Convert 5km to m: • Multiply the original measurement by a conversion factor. NEW UNIT 85km x 1,000m = 85,000m 1km OLD UNIT

  14. Example: Convert 789m to km: 789m x 1km =0.789km= _____?? 1000m

  15. Convert 75.00 km/h to m/s 75.00 km x 1000 m x 1 h___ = 20.83m/s h 1 km 3600 s

  16. Limits of Measurement • Accuracy and Precision

  17. Accuracy - a measure of how close a measurement is to the true value of the quantity being measured.

  18. Example: Accuracy • Who is more accurate when measuring a book that has a true length of 17.0cm? Susan: 17.0cm, 16.0cm, 18.0cm, 15.0cm Amy: 15.5cm, 15.0cm, 15.2cm, 15.3cm

  19. Precision – a measure of how close a series of measurements are to one another. A measure of how exact a measurement is.

  20. Example: Precision Who is more precise when measuring the same 17.0cm book? Susan: 17.0cm, 16.0cm, 18.0cm, 15.0cm Amy: 15.5cm, 15.0cm, 15.2cm, 15.3cm

  21. Example: Evaluate whether the following are precise, accurate or both. Accurate Not Precise Not Accurate Precise Accurate Precise

  22. Significant Figures • The significant figures in a measurement include all of the digits that are known, plus one last digit that is estimated.

  23. Finding the Number of Sig Figs: • When the decimal is present, start counting from the left. • When the decimal is absent, start counting from the right. • Zeroes encountered before a non zero digit do not count.

  24. How many sig figs? 100 10302.00 0.001 10302 1.0302x104

  25. Sig Figs in Addition/Subtraction Express the result with the same number of decimal places as the number in the operation with the least decimal places. Ex: 2.33 cm + 3.0 cm 5.3 cm (Result is rounded to one decimal place)

  26. Sig Figs in Multiplication/Division • Express the answer with the same sig figs as the factor with the least sig figs. • Ex: 3.22 cm x 2.0 cm 6.4 cm2(Result is rounded to two sig figs)

  27. Counting Numbers • Counting numbers have infinite sig figs. Ex: 3 apples • WHY?
