  1. Architectural Reverse Engineering Kristof De Vos

  2. Overview • Why? • Current state • Approaches • Tools • RevEngE • Dali • Bookshelfs • Dowsing • Next Generation

  3. Overview • Why? • Current state • Approaches • Tools • RevEngE • Dali • Bookshelfs • Dowsing • Next Generation

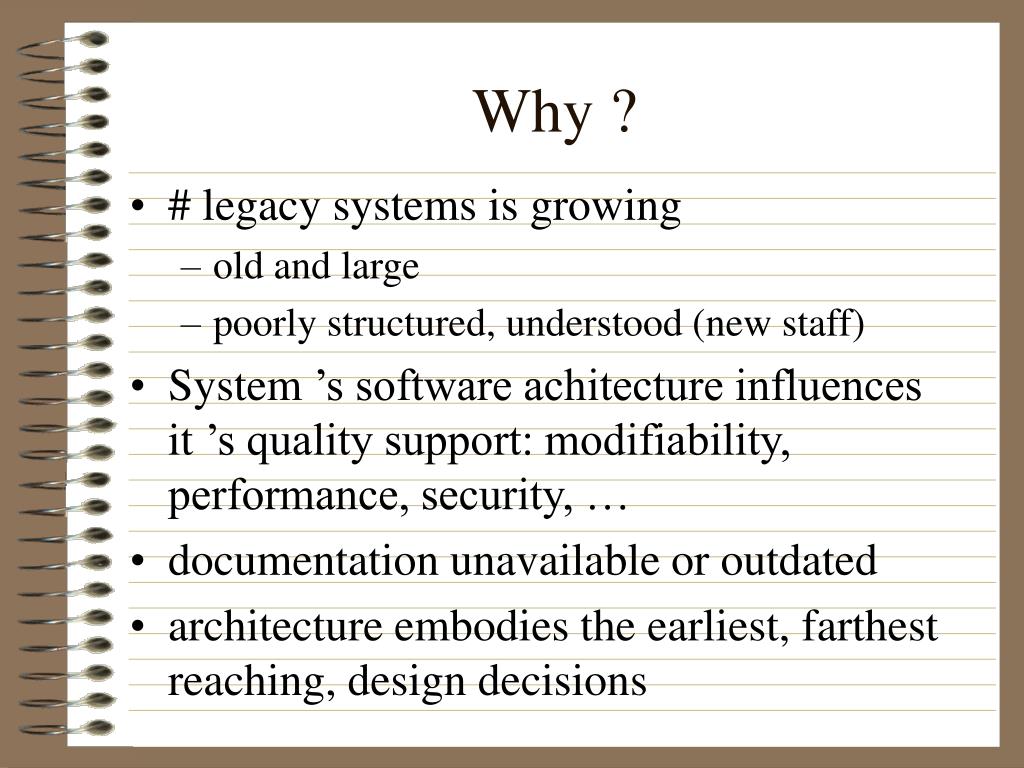

  4. Why ? • # legacy systems is growing • old and large • poorly structured, understood (new staff) • System ’s software achitecture influences it ’s quality support: modifiability, performance, security, … • documentation unavailable or outdated • architecture embodies the earliest, farthest reaching, design decisions

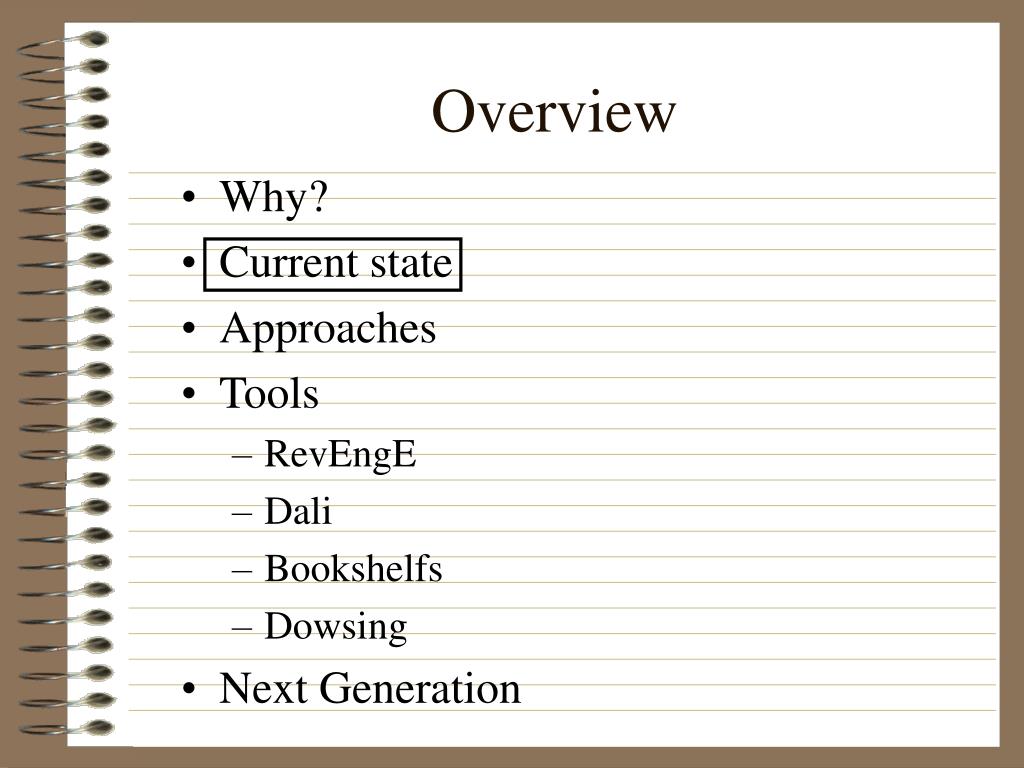

  5. Overview • Why? • Current state • Approaches • Tools • RevEngE • Dali • Bookshelfs • Dowsing • Next Generation

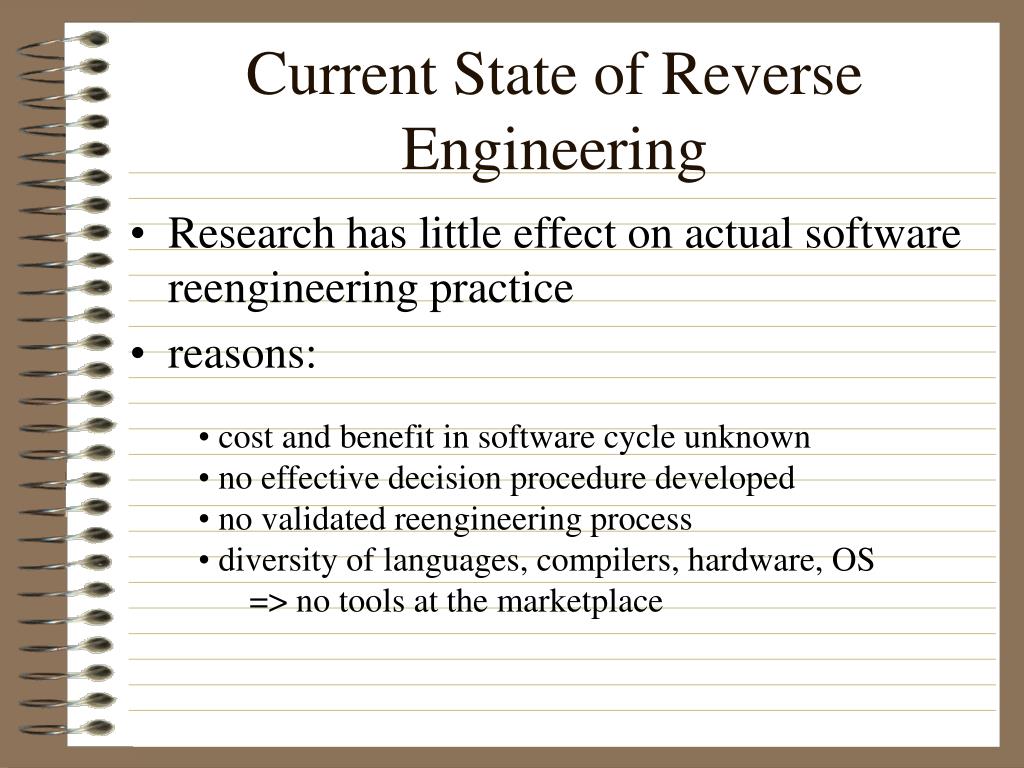

  6. Current State of Reverse Engineering • Research has little effect on actual software reengineering practice • reasons: • cost and benefit in software cycle unknown • no effective decision procedure developed • no validated reengineering process • diversity of languages, compilers, hardware, OS => no tools at the marketplace

  7. Related Research Areas • Taxonomy: • IEEE Reengineering Taxonomy Project • Intermediate Representation: • common, portable, interoperable, … • lot research, but not commercial • Educational and Training Material • WWW

  8. Research Areas • Reengineering Task Descriptions • activities, inputs, outputs, costs, benefits • Standard Datasets • specific source code , test data =>comparing • Case Studies • systematic collection • uniformly documented • Public Domain Tools

  9. Overview • Why? • Current state • Approaches • Tools • RevEngE • Dali • Bookshelfs • Dowsing • Next Generation

  10. Approaches • Bottom-up • source code => system model • start with program knowledge • creating higher abstractions • Top-down • map abstract domain concepts on concrete system artifacts

  11. 2 distinct steps • Identify current components, capture dependencies • reconstruction of design and requirements specification (= domain model) • highly interactive • find correlation between design and code

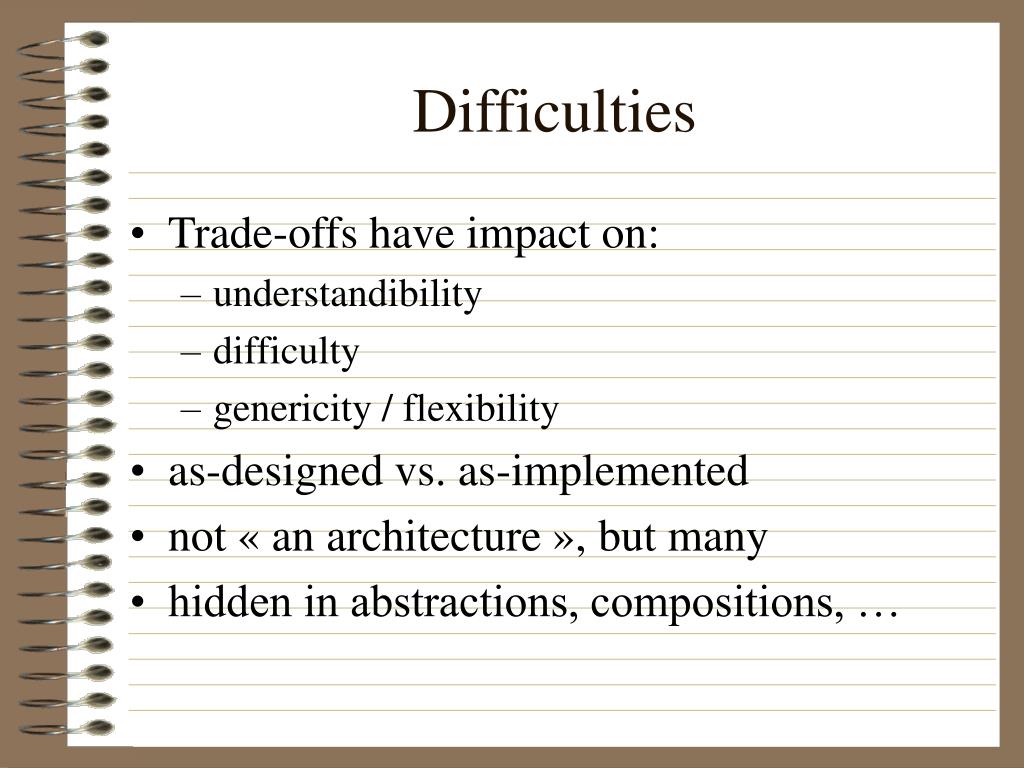

  12. Difficulties • Trade-offs have impact on: • understandibility • difficulty • genericity / flexibility • as-designed vs. as-implemented • not « an architecture », but many • hidden in abstractions, compositions, …

  13. Architectural Recovery Framework

  14. Error prone tools • Static error tools are proved to be error prone • false negatives • don’t identify elements from source code • false positives • identify elements that do not actually appear • solution: combine results

  15. Overview • Why? • Current state • Approaches • Tools • RevEngE • Dali • Bookshelfs • Dowsing • Next Generation

  16. RevEngE • Integrated toolkit for program understanding • Code localization • data flow analysis • pattern matching • system clustering • visualization

  17. Ariadne , ART and Rigi • Single tool is unsufficient • Common repository: Telos • Global repository & data integration mechanism • adapted: changed way of retrieving: • Complete objects • objects of a class • partial objects • related information

  18. ART • prototype textual redundancy analysis engine • sourcefiles => substrings (snips) • matching snips • pieces of code that are connected • rough => startingpoint deeper analysis

  19. Ariadne • Set of pattern-matching, design recovery and program analysis engines • code localization: • pattern matching algorithm to discover known patterns • Clustering: • analyzing global data-flow and data artifacts which are shared • “common references analysis”

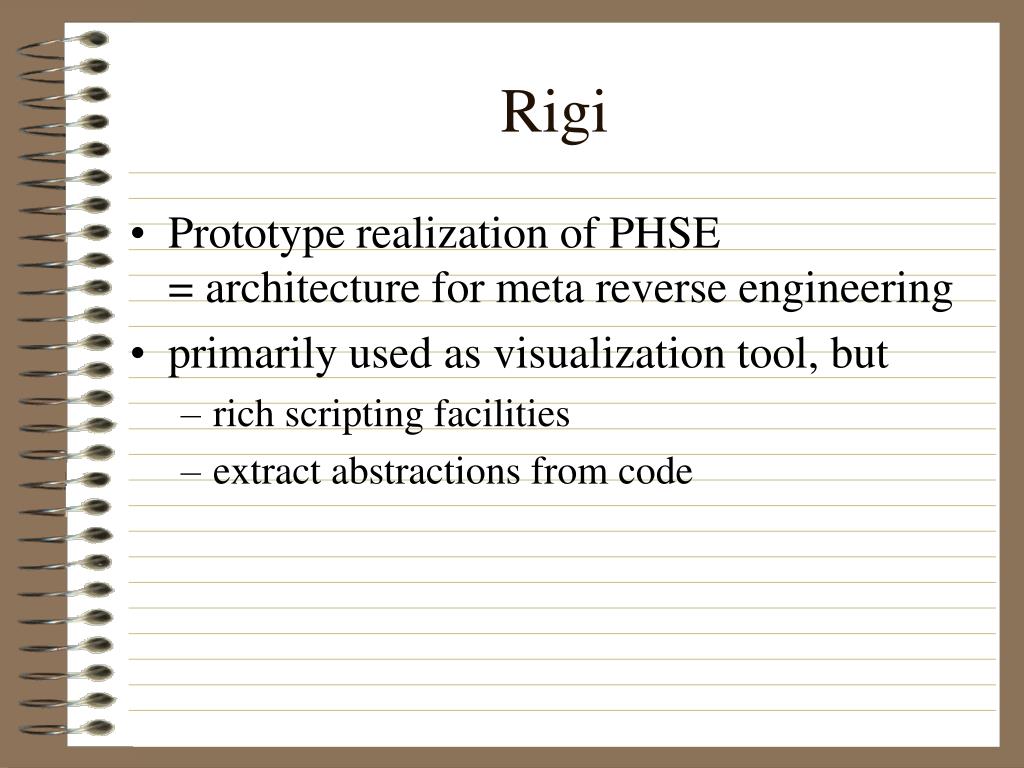

  20. Rigi • Prototype realization of PHSE= architecture for meta reverse engineering • primarily used as visualization tool, but • rich scripting facilities • extract abstractions from code

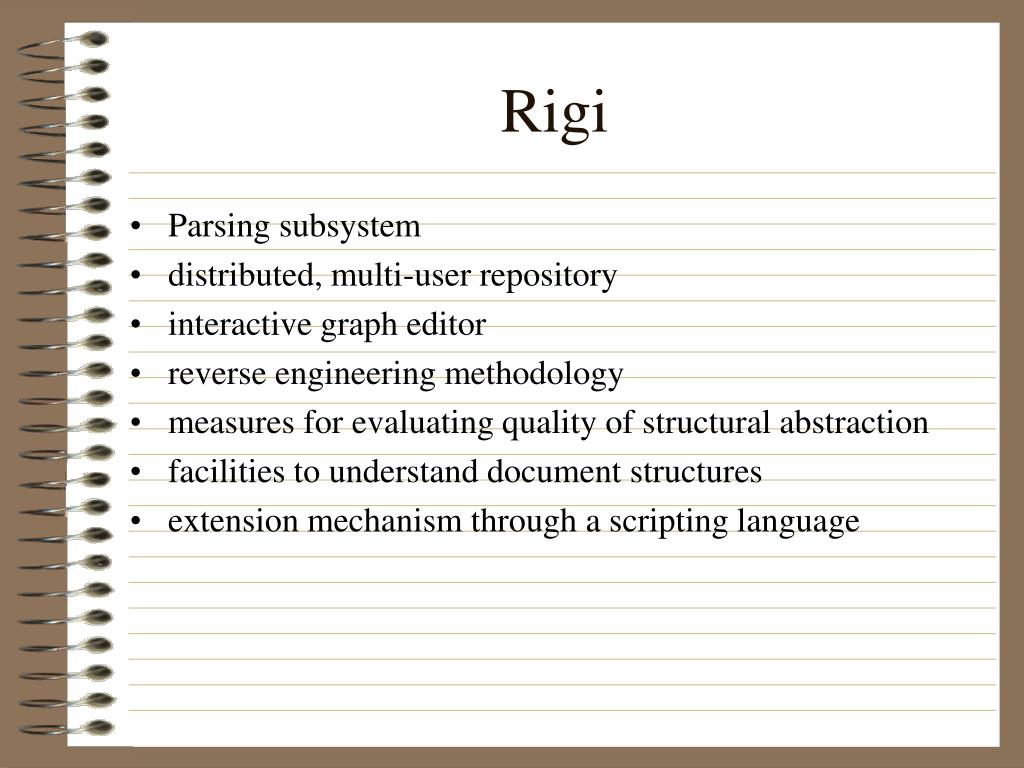

  21. Rigi • Parsing subsystem • distributed, multi-user repository • interactive graph editor • reverse engineering methodology • measures for evaluating quality of structural abstraction • facilities to understand document structures • extension mechanism through a scripting language

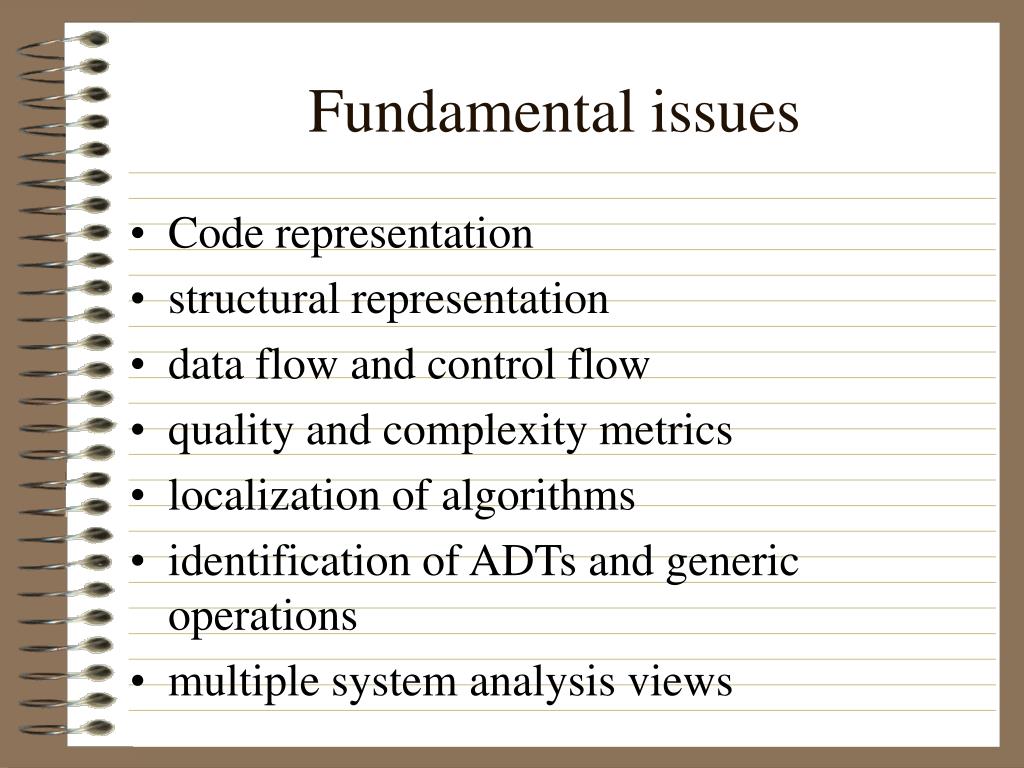

  22. Fundamental issues • Code representation • structural representation • data flow and control flow • quality and complexity metrics • localization of algorithms • identification of ADTs and generic operations • multiple system analysis views

  23. More specific (1) • Data-binding analysis • Tupple <p,q,x> where variable x is defined by function p and used by function q • Common Reference Analysis • Tupple <p,q,x> where variable x is defined or used by functions p and q • Similarity Analysis • 5 software quality and complexity metrics are applied to identify similar code fragments

  24. More Specific (2) • Subsystem Analysis • input: Common reference & data-binding analysis • e.g. functions that define 2-10 variables and have 3-15 common references statistically show error-prone modules • Redundancy Analysis • check text that occurs multiple times • cut-and-paste analysis

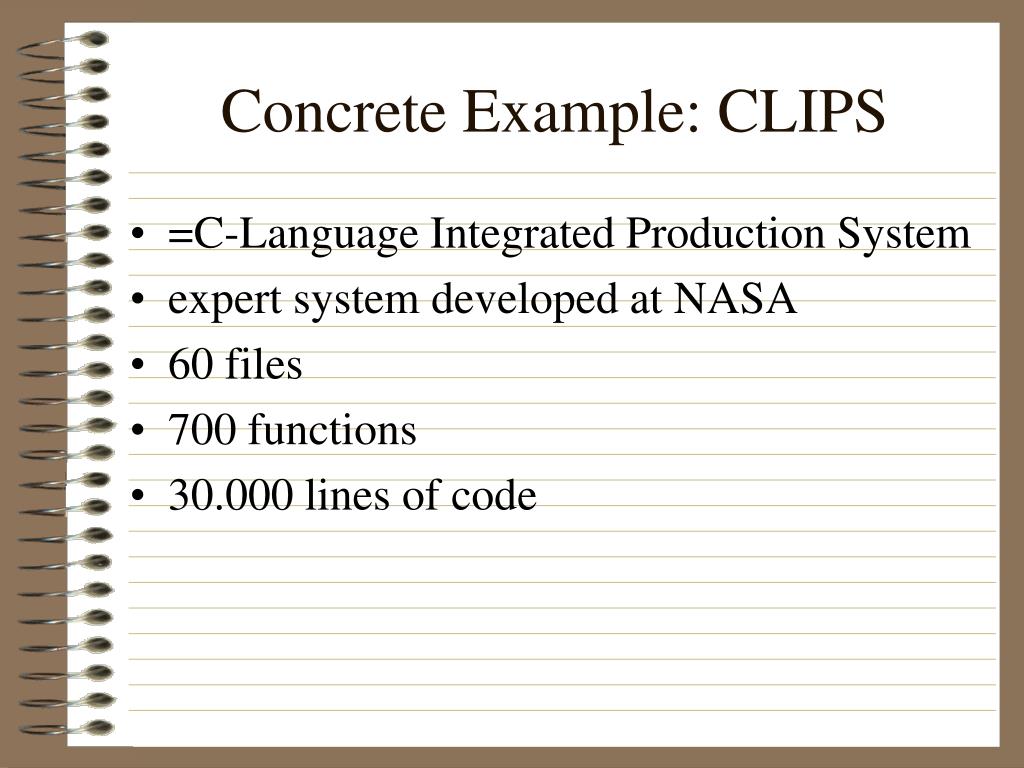

  25. Concrete Example: CLIPS • =C-Language Integrated Production System • expert system developed at NASA • 60 files • 700 functions • 30.000 lines of code

  26. CLIPS: Data-Binding Ana. • Remember <p,q,x> • simplifications • removal of unconnected objects • decomposition into distinct connected objects • filtering singly connected objects • identification of key-functions that have high coupling with rest of the system • starting point for further analysis

  27. CLIPS: Common Reference Ana. • Remember <p,q,x> • define clusters of functions that have an interface to another cluster • clusters usually group functions that operate on similar concepts • again startingpoint for further analysis

  28. CLIPS: Similarity Ana. • Detect instances of code cloning • functions with same structure • functions with same data-flow • usually define similar algorithms • e.g. implementations of patterns

  29. CLIPS: Subsystem ana. • Further investigation of clusters of ALL previous analyses • common interface: functions • define entry-points of clusters • define central (important) components

  30. CLIPS: Redundancy Ana. • ART: find exact matches of 5 or more lines • again clusters as result • inspection with texteditor • can identify design patterns

  31. Other Techniques • Values of Variables • = inter-procedural data flow • most if-statements switch on values • potential values are defined • Special Patterns • p.e. Using files • pattern matching in almost every tool

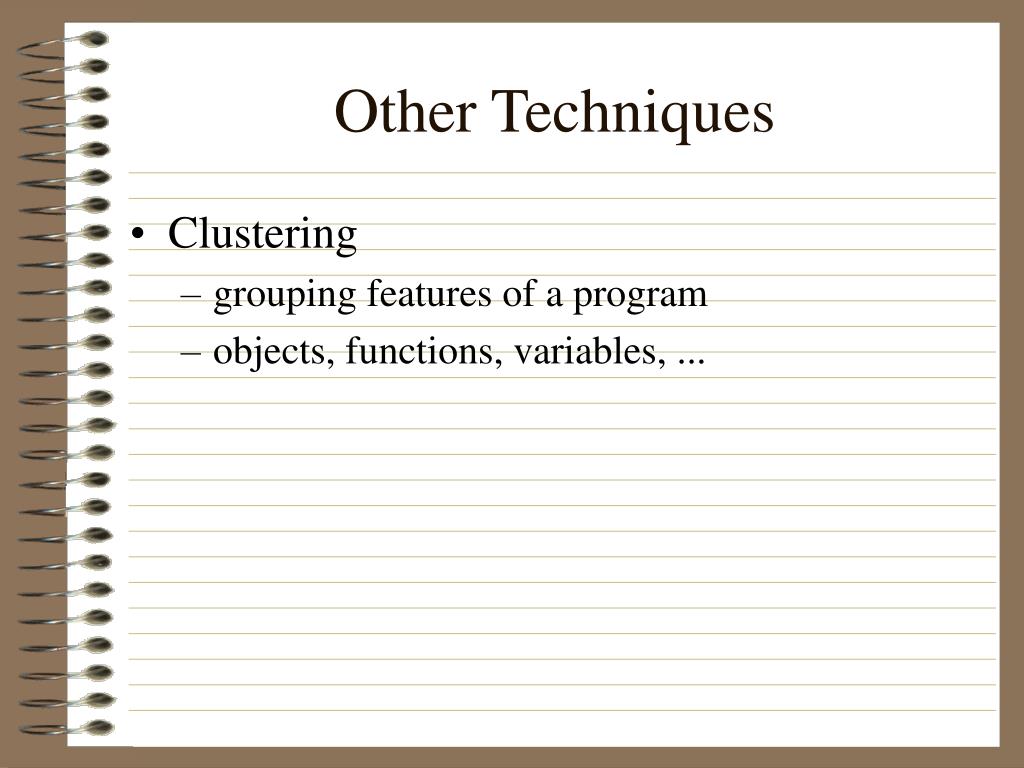

  32. Other Techniques • Clustering • grouping features of a program • objects, functions, variables, ...

  33. Overview • Why? • Current state • Approaches • Tools • RevEngE • Dali • Bookshelfs • Dowsing • Next Generation

  34. Dali • single source of information is not enough • Late Binding • architectural relations that are not bound at compile-time • polymorphism, function pointers, parameters, … • System Topology • allocation of software to processes (or processors) • typically not stated in a compiled source

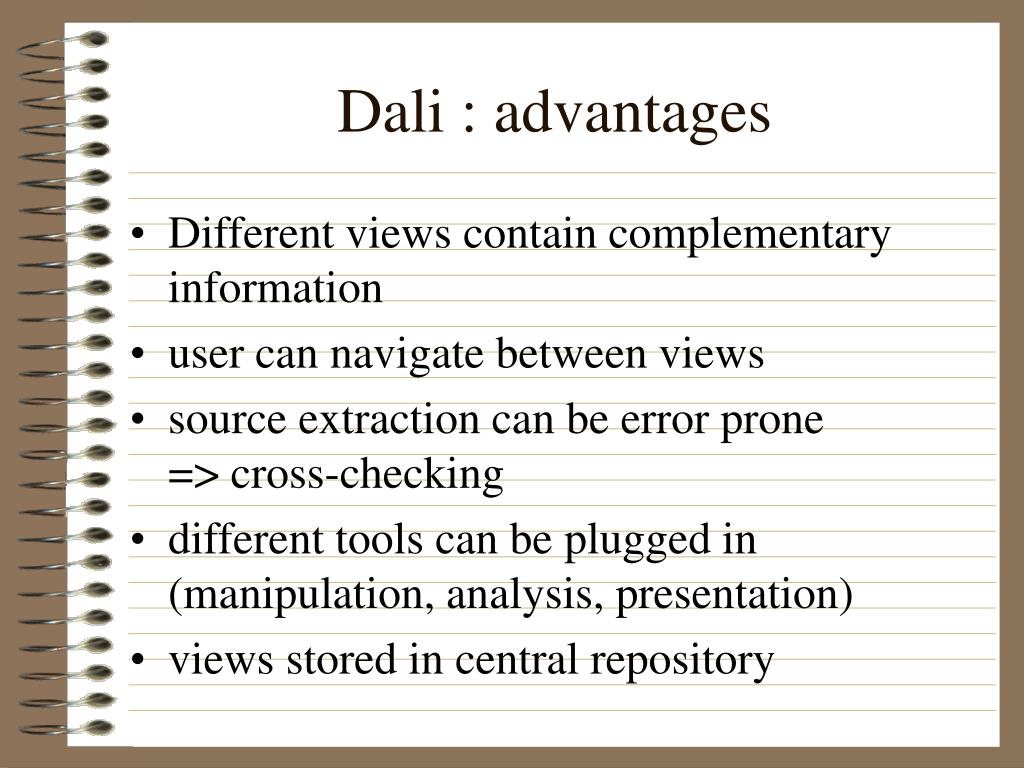

  35. Dali : advantages • Different views contain complementary information • user can navigate between views • source extraction can be error prone=> cross-checking • different tools can be plugged in(manipulation, analysis, presentation) • views stored in central repository

  36. Dali: how it works • View extraction • static • inheritance hierarchies, build dependencies, call graphs, variable accesses, … • extracted directly from source code • dynamic • process spawning, inter process communication, run time procedure invocation • there will be overlap • result: “Extracted Views”

  37. Dali: How it works • View Fusion • views are combined, defined and manipulated • pruning: unneeded parts are cut away • to define views that are more meaningfull • eliminate errors by cross-checking • External Manipulation • openness • other tools can be integrated and used

  38. Dali: How it works • Analysis • conformance testing, pattern based complexity measurement, ...

  39. Dali

  40. Overview • Why? • Current state • Approaches • Tools • RevEngE • Dali • Bookshelfs • Dowsing • Next Generation

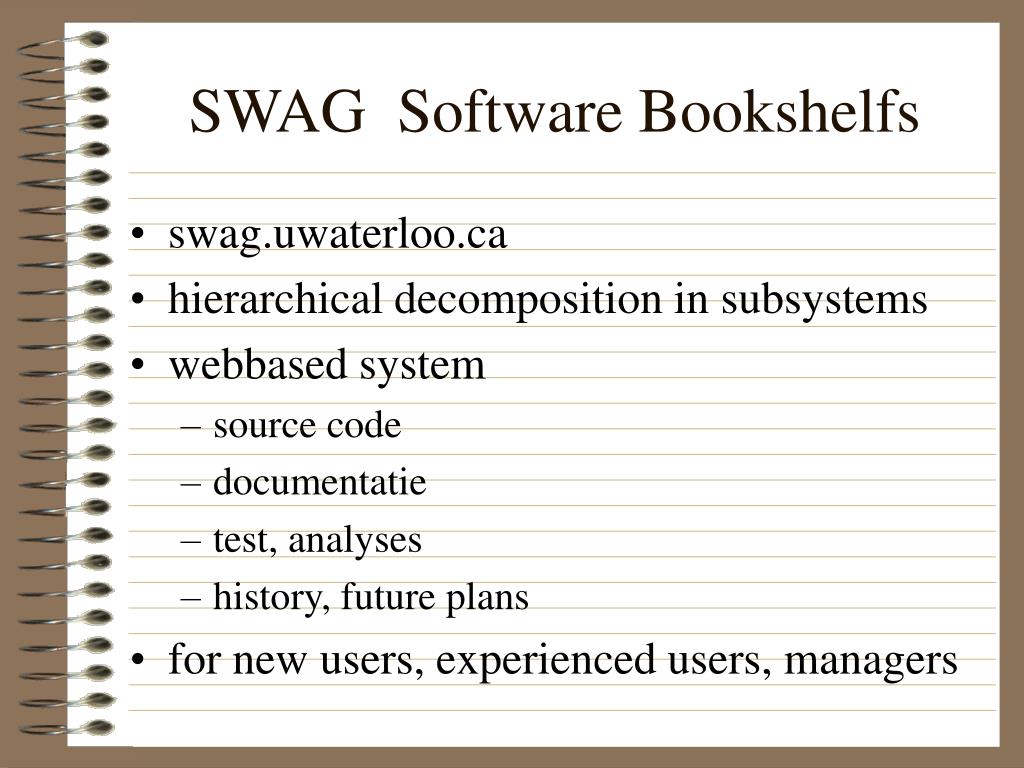

  41. SWAG Software Bookshelfs • swag.uwaterloo.ca • hierarchical decomposition in subsystems • webbased system • source code • documentatie • test, analyses • history, future plans • for new users, experienced users, managers

  42. BS: what? • Separate webpage per subsystem • hierarchical structure: webpages/subsystems • each page contains : • landscape diagram • all contained items (files,subsystems) • supersystem • all links (inside and outside) • associated documentation

  43. BS: Building it • Extractors: • parse source file for facts • Rigi Standard Form (RSF) • Fact Manipulator • software tool GROK • uses database interface to manipulate facts • subdiviside, compose, ...

  44. BS: Building Tools • Diagram Layouter • Layouter read facts • attaches position, size, color, … • Landscape Viewer • LS Viewer = java program • displays the complete system/subsystem • layout of facts can be changed in LS Editor

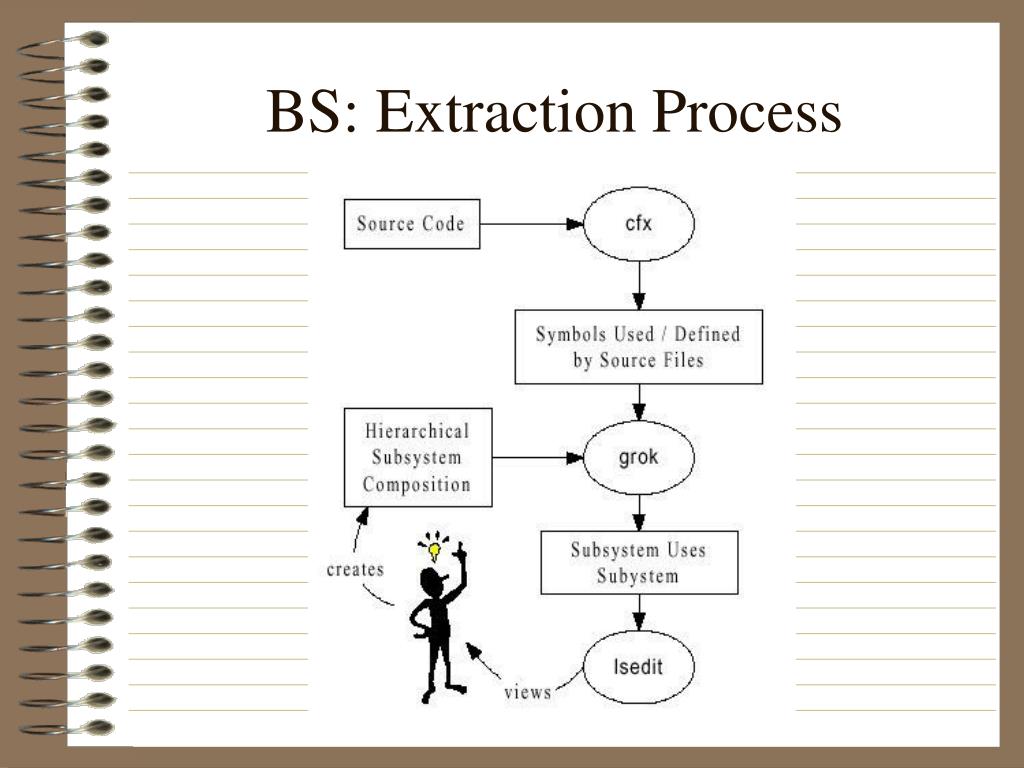

  45. BS: Extraction Process
