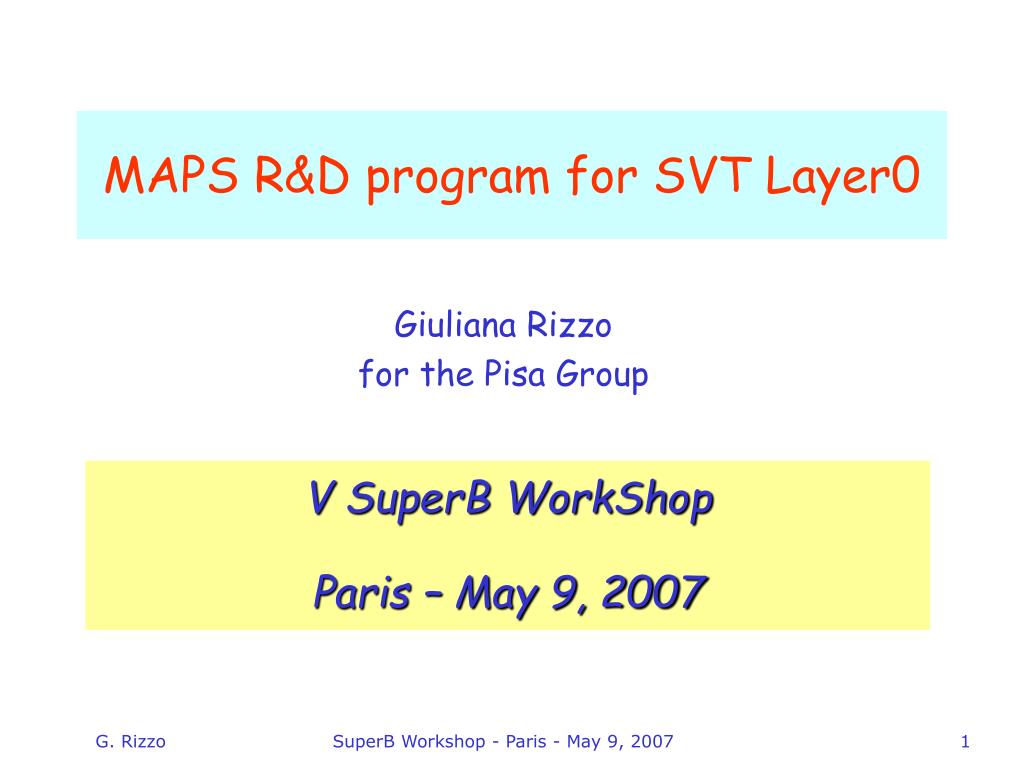

  1. MAPS R&D program for SVT Layer0 Giuliana Rizzo for the Pisa Group V SuperB WorkShop Paris – May 9, 2007 SuperB Workshop - Paris - May 9, 2007

  2. Outline • Recent results on deep nwell (DNW) CMOS MAPS • R&D issues for CMOS MAPS: • Fast readout architecture • Sensor optimization • Radiation hardness • Mechanical issues covered in the next talk • R&D strategy SuperB Workshop - Paris - May 9, 2007

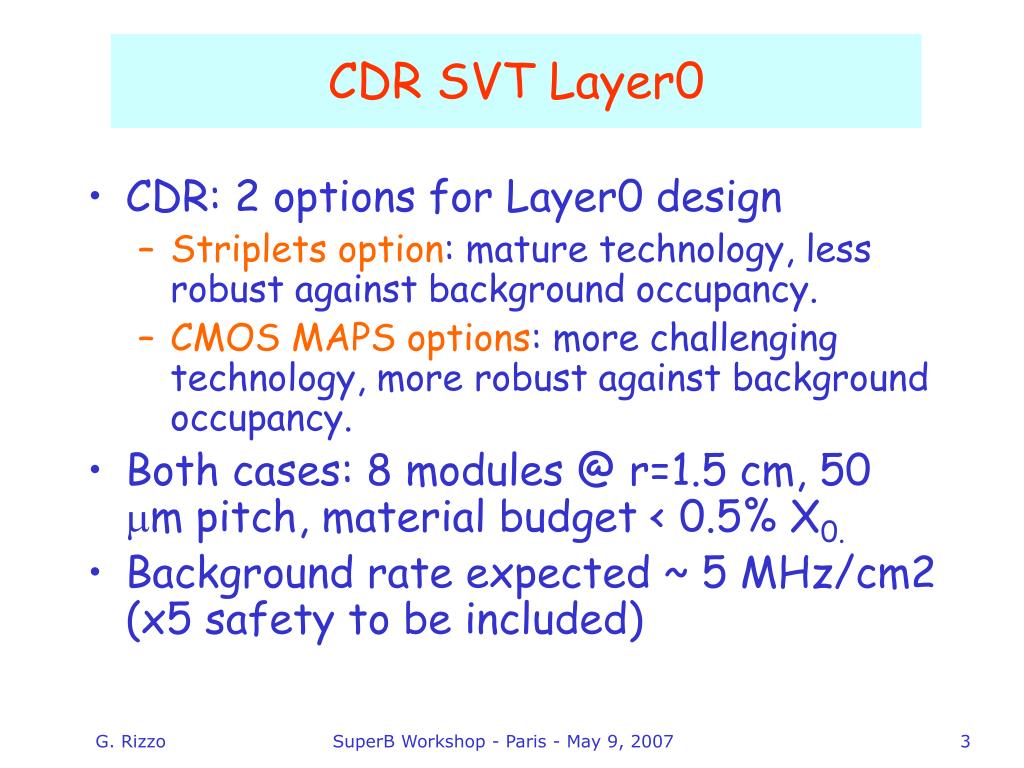

  3. CDR SVT Layer0 • CDR: 2 options for Layer0 design • Striplets option: mature technology, less robust against background occupancy. • CMOS MAPS options: more challenging technology, more robust against background occupancy. • Both cases: 8 modules @ r=1.5 cm, 50 mm pitch, material budget < 0.5% X0. • Background rate expected ~ 5 MHz/cm2 (x5 safety to be included) SuperB Workshop - Paris - May 9, 2007

  4. Layer0 MAPS R&D issues • CMOS Monolithic Active Pixels (MAPS) are a very promising “new device” (granular, thin, quite rad hard), but so far never used in a real operating detector. • Extensive R&D needed • Fast readout architecture • Sensor optimization • Radiation hardness • Mechanical issues: Sensor thinning, module design, light cooling … see next talk by S. Bettarini • CMOS MAPS is an option for the ILC vertex detector  many aspects of the R&D are common Design trade off with monolithic pixels SuperB Workshop - Paris - May 9, 2007

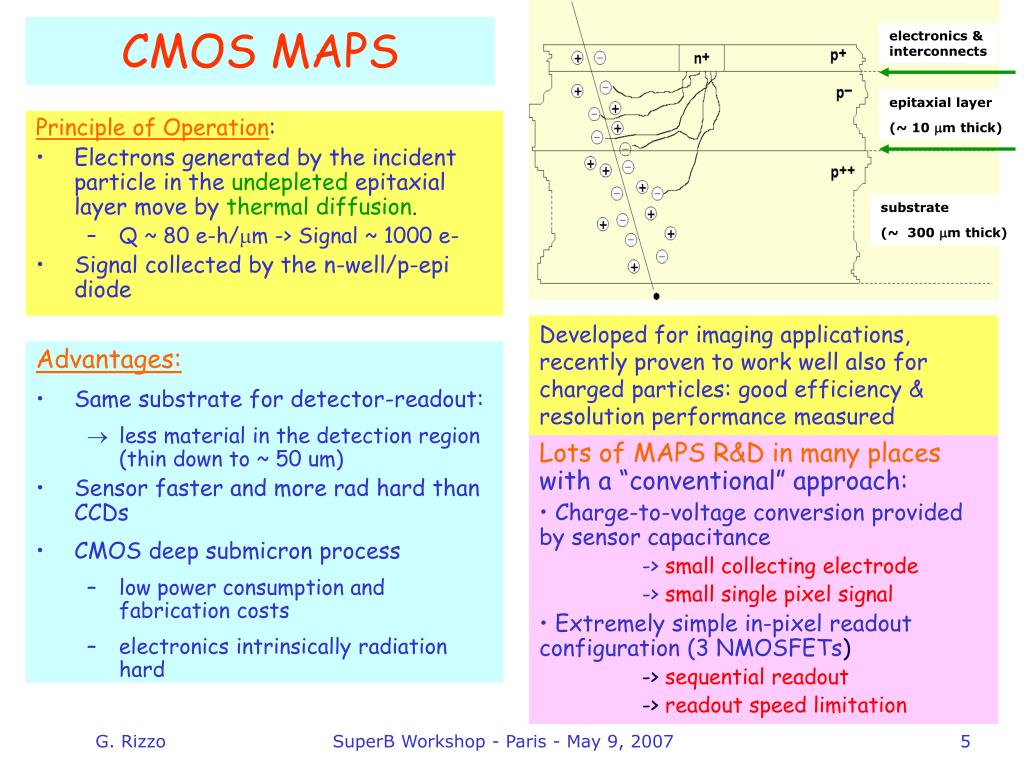

  5. Advantages: Same substrate for detector-readout: less material in the detection region (thin down to ~ 50 um) Sensor faster and more rad hard than CCDs CMOS deep submicron process low power consumption and fabrication costs electronics intrinsically radiation hard electronics & interconnects epitaxial layer (~ 10 m thick) substrate (~ 300 m thick) CMOS MAPS Principle of Operation: • Electrons generated by the incident particle in the undepleted epitaxial layer move by thermal diffusion. • Q ~ 80 e-h/m -> Signal ~ 1000 e- • Signal collected by the n-well/p-epi diode Developed for imaging applications, recently proven to work well also for charged particles: good efficiency & resolution performance measured Lots of MAPS R&D in many places with a “conventional” approach: • Charge-to-voltage conversion provided by sensor capacitance -> small collecting electrode -> small single pixel signal • Extremely simple in-pixel readout configuration (3 NMOSFETs) -> sequential readout -> readout speed limitation SuperB Workshop - Paris - May 9, 2007

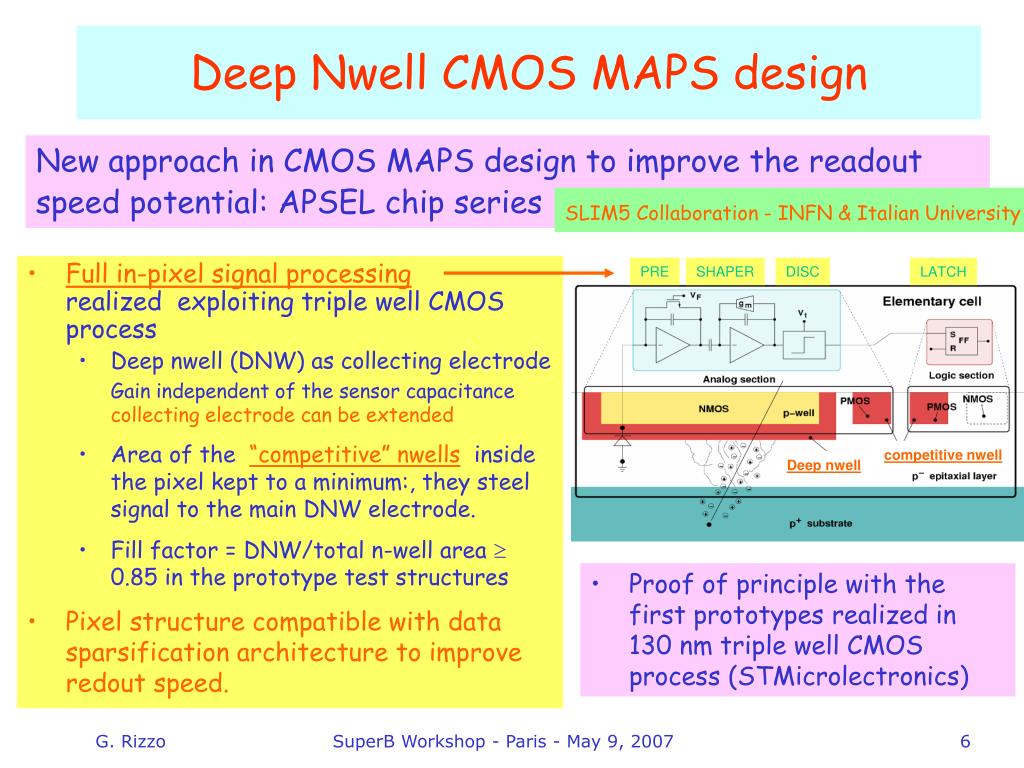

  6. Proof of principle with the first prototypes realized in 130 nm triple well CMOS process (STMicrolectronics) PRE SHAPER DISC LATCH Deep Nwell CMOS MAPS design New approach in CMOS MAPS design to improve the readout speed potential: APSEL chip series SLIM5 Collaboration - INFN & Italian University • Full in-pixel signal processingrealized exploiting triple well CMOS process • Deep nwell (DNW) as collecting electrode Gain independent of the sensor capacitance collecting electrode can be extended • Area of the “competitive” nwells inside the pixel kept to a minimum:, they steel signal to the main DNW electrode. • Fill factor = DNW/total n-well area  0.85 in the prototype test structures • Pixel structure compatible with data sparsification architecture to improve redout speed. competitive nwell Deep nwell SuperB Workshop - Paris - May 9, 2007

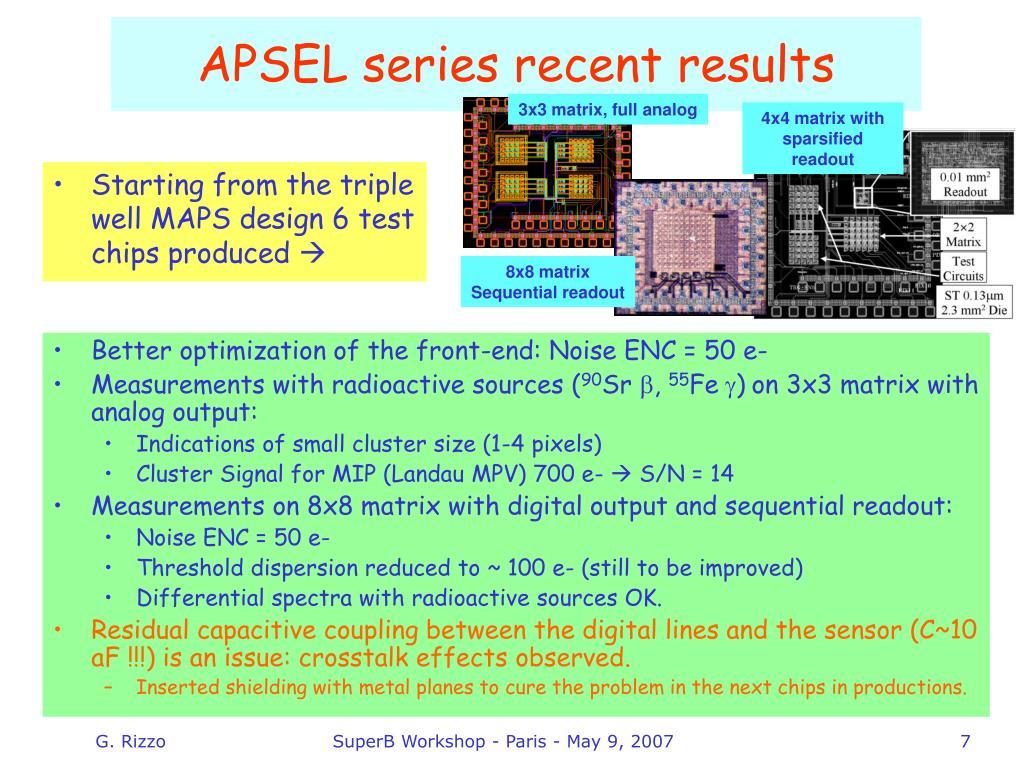

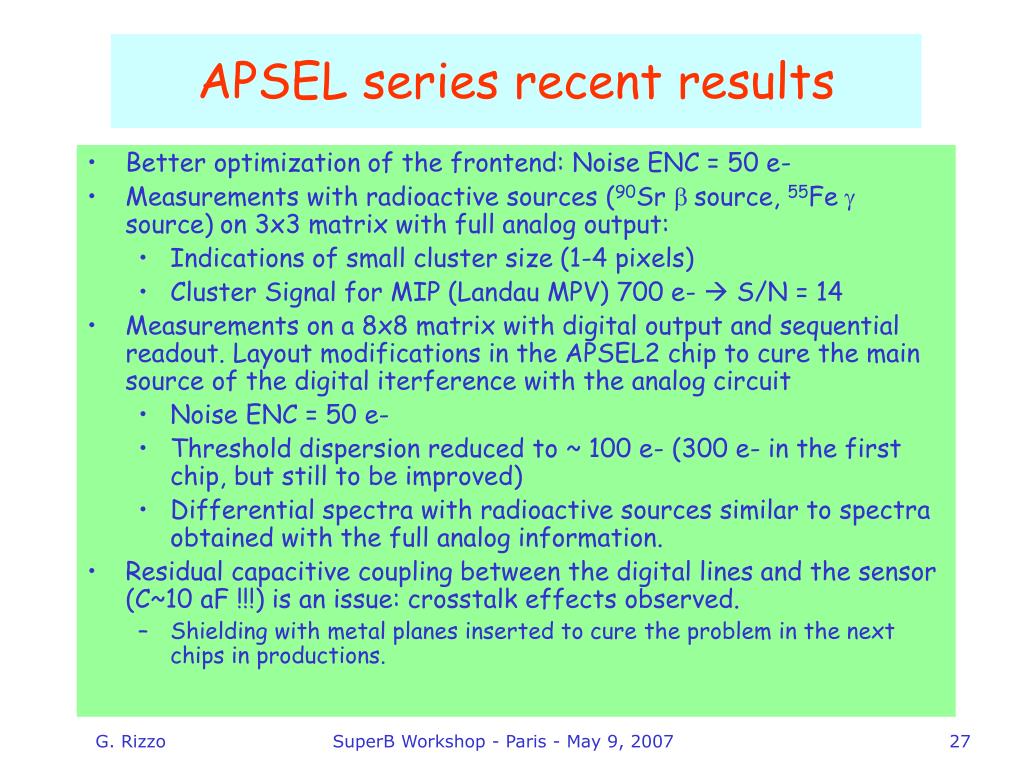

  7. APSEL series recent results 3x3 matrix, full analog 4x4 matrix with sparsified readout • Starting from the triple well MAPS design 6 test chips produced  8x8 matrix Sequential readout • Better optimization of the front-end: Noise ENC = 50 e- • Measurements with radioactive sources (90Srb, 55Fe g)on 3x3 matrix with analog output: • Indications of small cluster size (1-4 pixels) • Cluster Signal for MIP (Landau MPV) 700 e-  S/N = 14 • Measurements on 8x8 matrix with digital output and sequential readout: • Noise ENC = 50 e- • Threshold dispersion reduced to ~ 100 e- (still to be improved) • Differential spectra with radioactive sources OK. • Residual capacitive coupling between the digital lines and the sensor (C~10 aF !!!) is an issue: crosstalk effects observed. • Inserted shielding with metal planes to cure the problem in the next chips in productions. SuperB Workshop - Paris - May 9, 2007

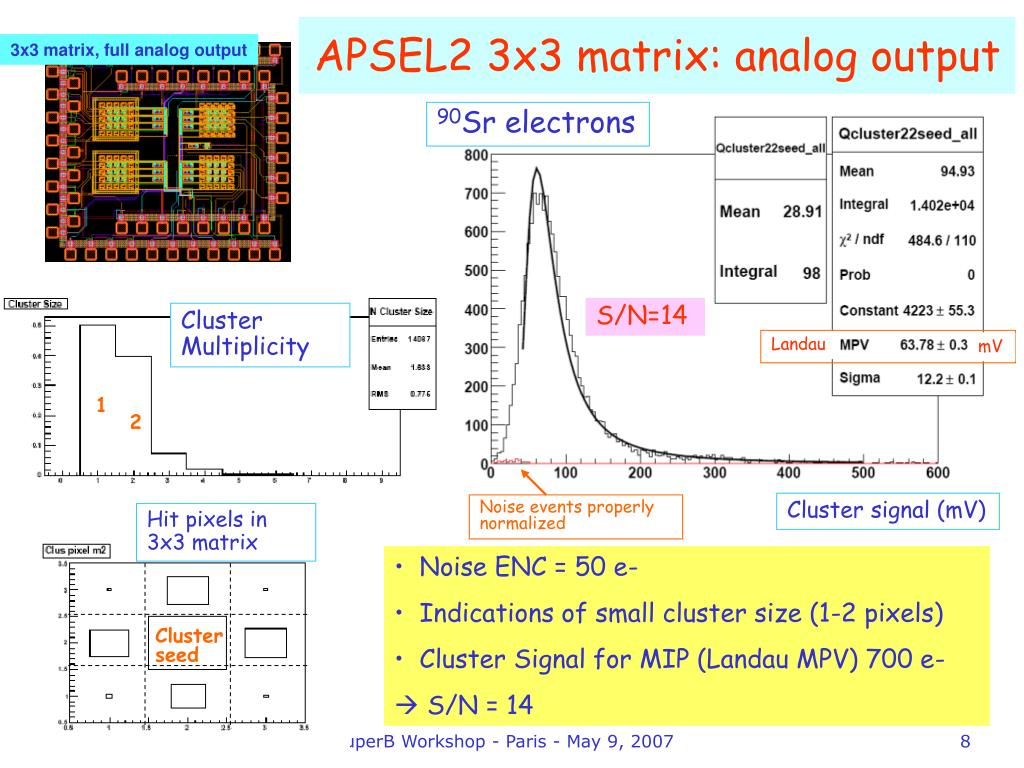

  8. 90Sr electrons S/N=14 Landau mV Cluster signal (mV) APSEL2 3x3 matrix: analog output 3x3 matrix, full analog output Cluster Multiplicity 1 2 Noise events properly normalized Hit pixels in 3x3 matrix • Noise ENC = 50 e- • Indications of small cluster size (1-2 pixels) • Cluster Signal for MIP (Landau MPV) 700 e-  S/N = 14 Cluster seed SuperB Workshop - Paris - May 9, 2007

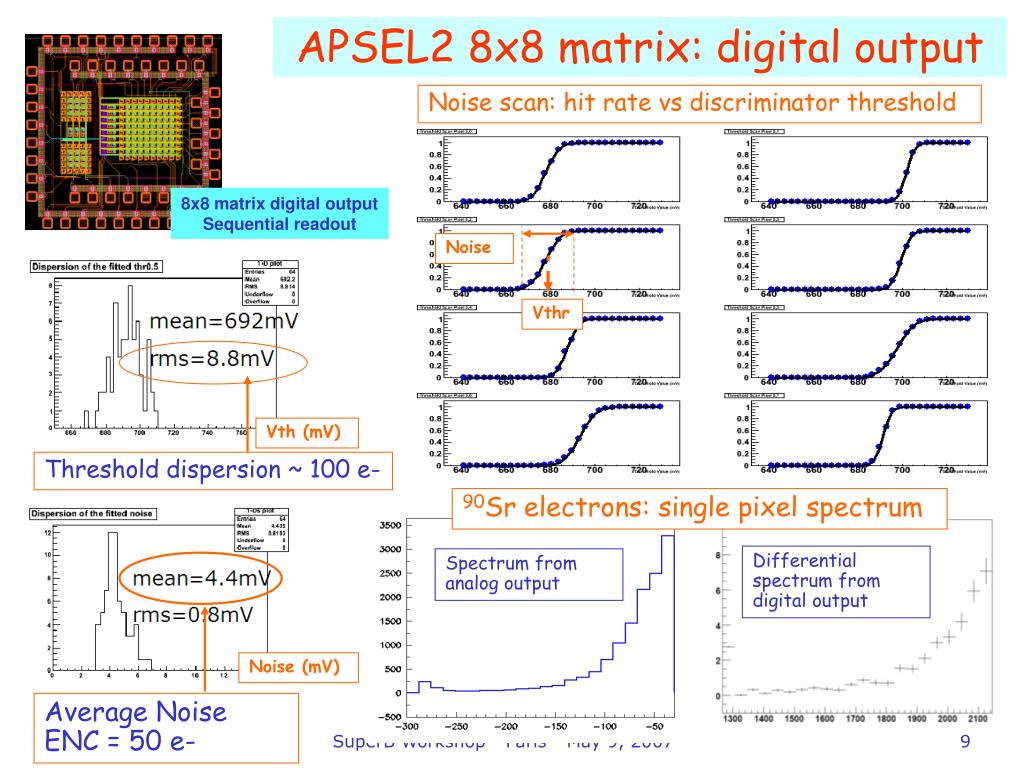

  9. Noise Vthr APSEL2 8x8 matrix: digital output Noise scan: hit rate vs discriminator threshold 8x8 matrix digital output Sequential readout Vth (mV) Threshold dispersion ~ 100 e- 90Sr electrons: single pixel spectrum Differential spectrum from digital output Spectrum from analog output Noise (mV) Average Noise ENC = 50 e- SuperB Workshop - Paris - May 9, 2007

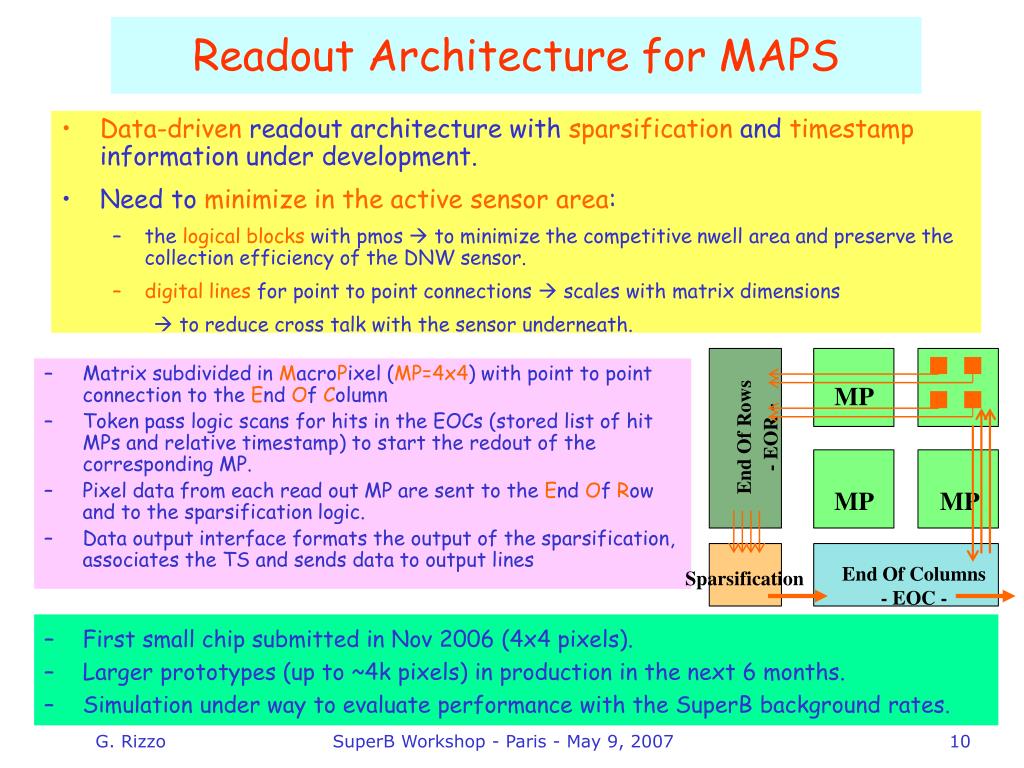

  10. End Of Rows - EOR - End Of Columns - EOC - MP Sparsification MP MP Readout Architecture for MAPS • Data-driven readout architecture with sparsification and timestamp information under development. • Need to minimize in the active sensor area: • the logical blocks with pmos  to minimize the competitive nwell area and preserve the collection efficiency of the DNW sensor. • digital lines for point to point connections  scales with matrix dimensions  to reduce cross talk with the sensor underneath. • Matrix subdivided in MacroPixel (MP=4x4) with point to point connection to the End Of Column • Token pass logic scans for hits in the EOCs (stored list of hit MPs and relative timestamp) to start the redout of the corresponding MP. • Pixel data from each read out MP are sent to the End Of Row and to the sparsification logic. • Data output interface formats the output of the sparsification, associates the TS and sends data to output lines • First small chip submitted in Nov 2006 (4x4 pixels). • Larger prototypes (up to ~4k pixels) in production in the next 6 months. • Simulation under way to evaluate performance with the SuperB background rates. SuperB Workshop - Paris - May 9, 2007

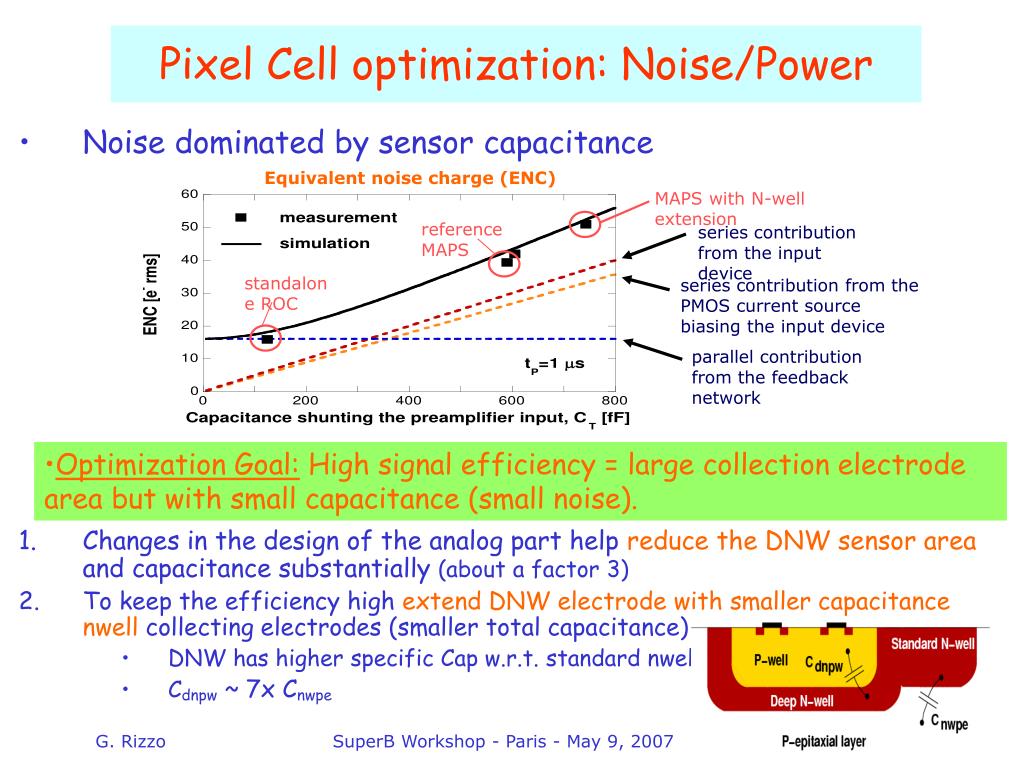

  11. Equivalent noise charge (ENC) MAPS with N-well extension reference MAPS series contribution from the input device standalone ROC series contribution from the PMOS current source biasing the input device parallel contribution from the feedback network Pixel Cell optimization: Noise/Power • Noise dominated by sensor capacitance • Changes in the design of the analog part help reduce the DNW sensor area and capacitance substantially (about a factor 3) • To keep the efficiency high extend DNW electrode with smaller capacitance nwell collecting electrodes (smaller total capacitance) • DNW has higher specific Cap w.r.t. standard nwell • Cdnpw ~ 7x Cnwpe Optimization Goal: High signal efficiency = large collection electrode area but with small capacitance (small noise). SuperB Workshop - Paris - May 9, 2007

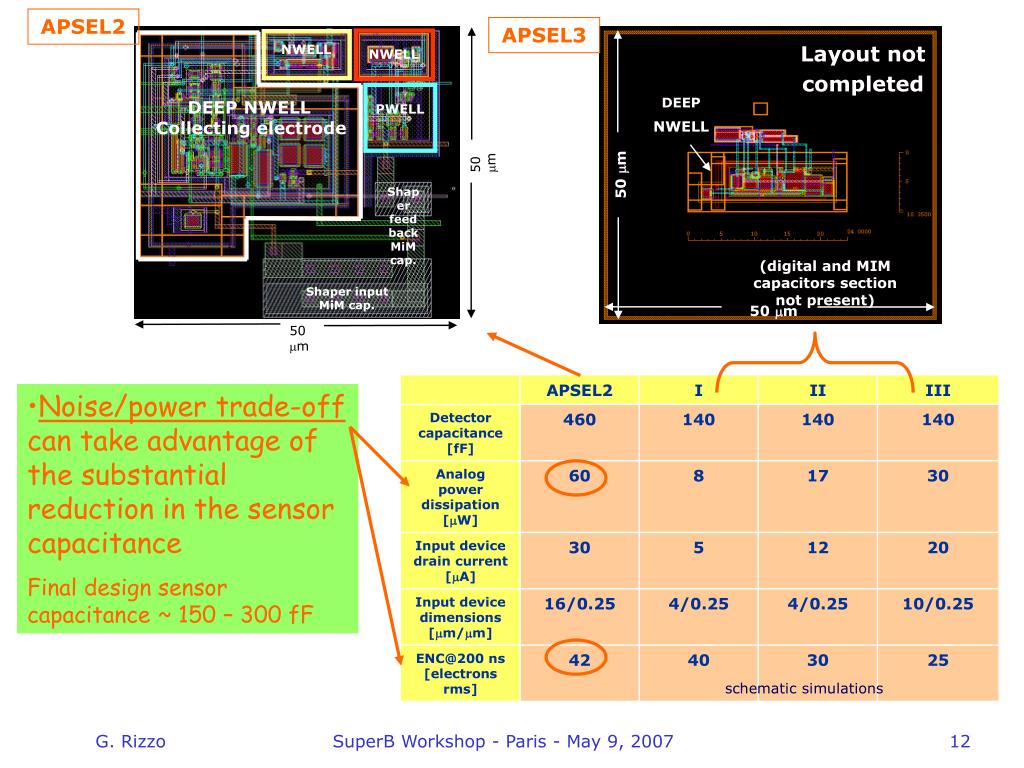

  12. APSEL2 APSEL3 NWELL NWELL Layout not completed DEEPNWELL DEEP NWELL Collecting electrode PWELL 50 mm 50 mm Shaper feedback MiM cap. (digital and MIM capacitors section not present) Shaper input MiM cap. 50 mm 50 mm Noise/power trade-off in Apsel3 • Noise/power trade-off can take advantage of the substantial reduction in the sensor capacitance Final design sensor capacitance ~ 150 – 300 fF schematic simulations SuperB Workshop - Paris - May 9, 2007

  13. Pixel Cell optimization: Signal • Developed a fast simulation of the device (ionization and diffusion) to optimize the sensor geometry (E. Paoloni) 90Sr electrons • Detailed device simulation (ISE-TCAD) gives similar results • Fair agreement among data and Fast Simulation • Need further tuning of the sensible parameters - APSEL2 data + Fast Simulation Fast Simulation identifies low efficiency regions inside pixel • Improve efficiency adding in these areas small satellite nwells connected to the main DNW electrode (low contribution to the total sensor capacitance) • Satellite nwells in the surroundings of the competitive nwell very effective to increase the efficiency SuperB Workshop - Paris - May 9, 2007

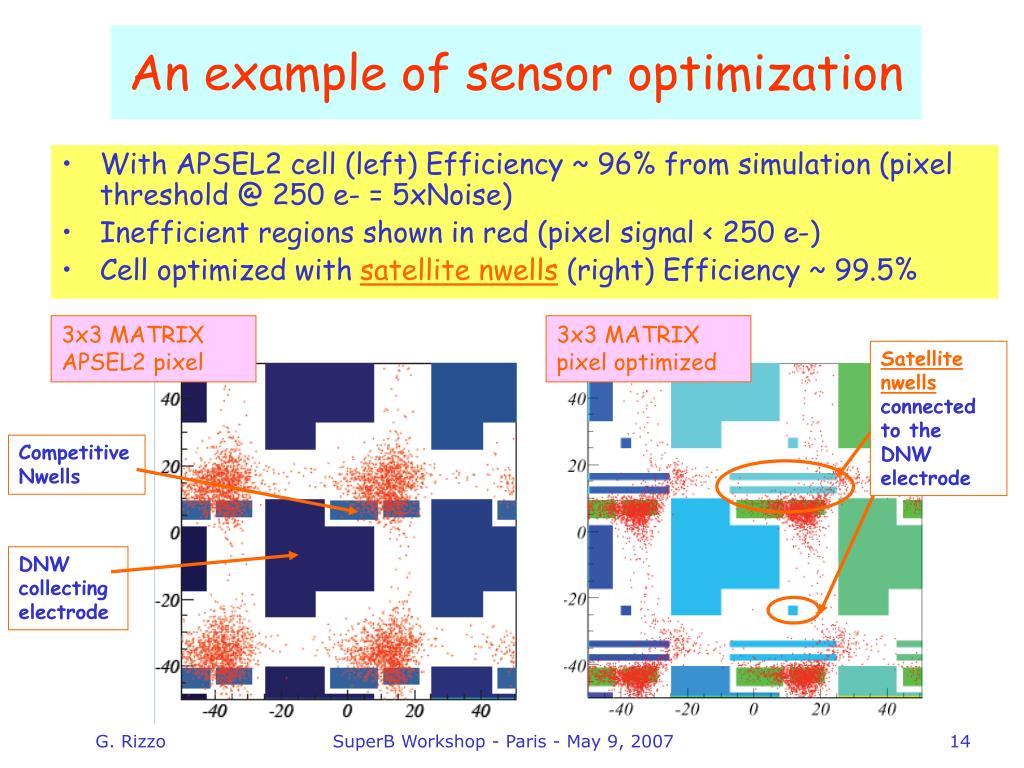

  14. An example of sensor optimization • With APSEL2 cell (left) Efficiency ~ 96% from simulation (pixel threshold @ 250 e- = 5xNoise) • Inefficient regions shown in red (pixel signal < 250 e-) • Cell optimized with satellite nwells (right) Efficiency ~ 99.5% 3x3 MATRIX APSEL2 pixel 3x3 MATRIX pixel optimized Satellite nwells connected to the DNW electrode Competitive Nwells DNW collecting electrode SuperB Workshop - Paris - May 9, 2007

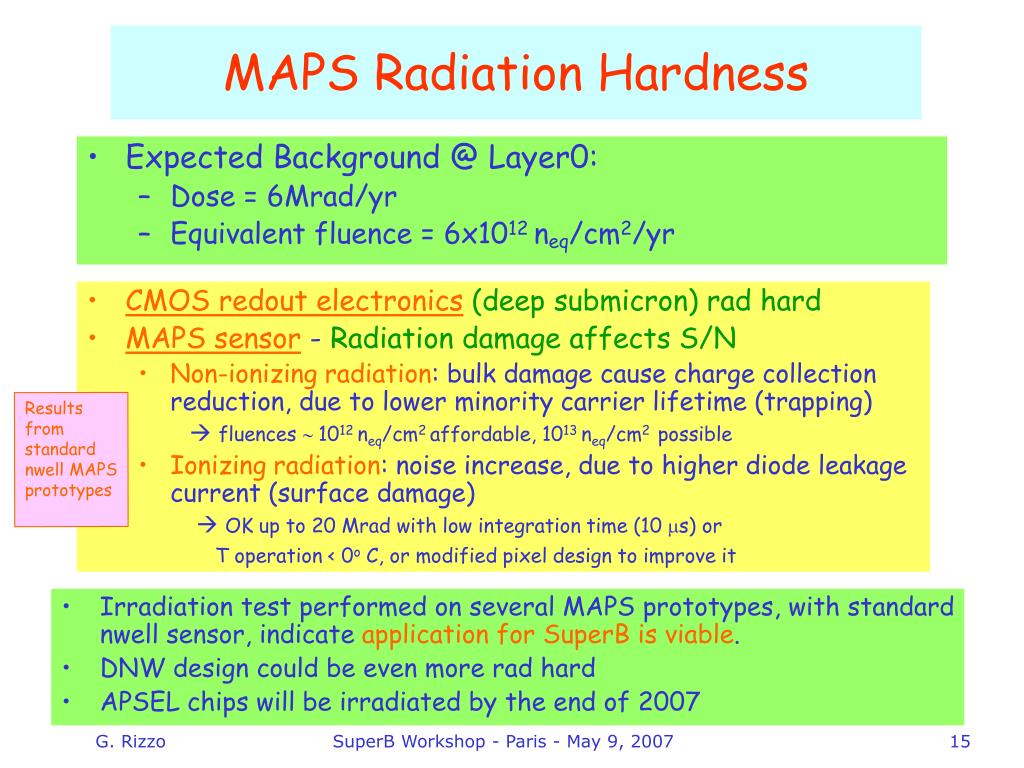

  15. MAPS Radiation Hardness • Expected Background @ Layer0: • Dose = 6Mrad/yr • Equivalent fluence = 6x1012 neq/cm2/yr • CMOS redout electronics(deep submicron) rad hard • MAPS sensor - Radiation damage affects S/N • Non-ionizing radiation: bulk damage cause charge collection reduction, due to lower minority carrier lifetime (trapping)  fluences ~ 1012 neq/cm2 affordable, 1013 neq/cm2 possible • Ionizing radiation: noise increase, due to higher diode leakage current (surface damage)  OK up to 20 Mrad with low integration time (10 ms) or T operation < 0o C, or modified pixel design to improve it Results from standard nwell MAPS prototypes Irradiation test performed on several MAPS prototypes, with standard nwell sensor, indicate application for SuperB is viable. DNW design could be even more rad hard APSEL chips will be irradiated by the end of 2007 SuperB Workshop - Paris - May 9, 2007

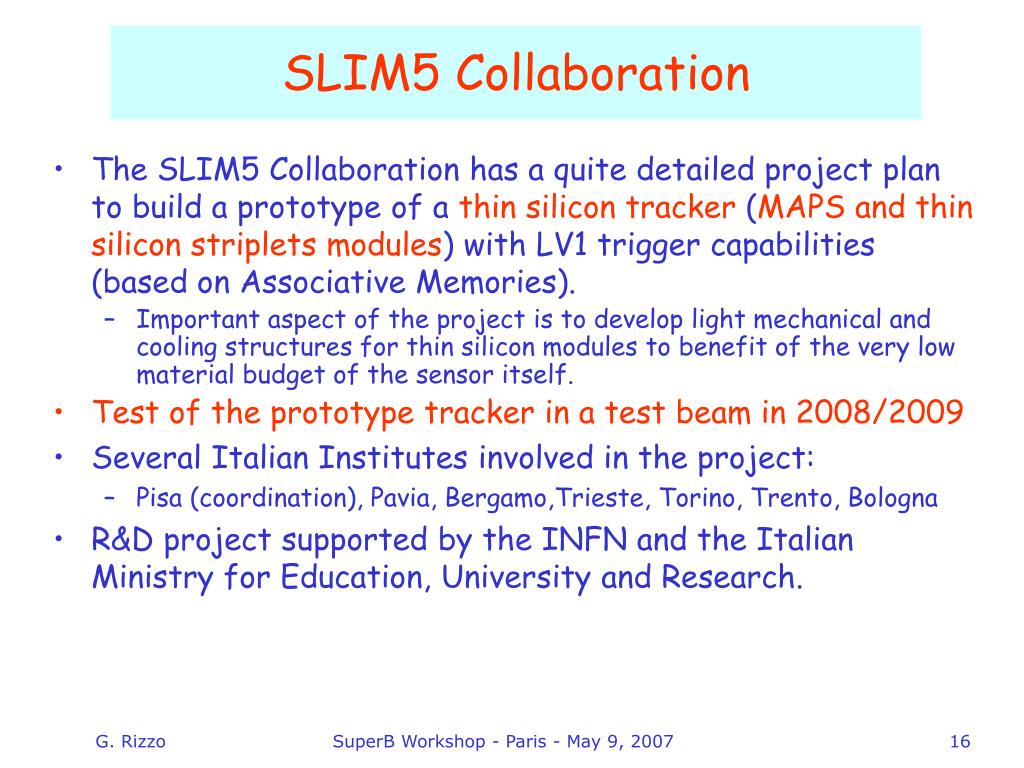

  16. SLIM5 Collaboration • The SLIM5 Collaboration has a quite detailed project plan to build a prototype of a thinsilicon tracker (MAPS and thin silicon striplets modules) with LV1 trigger capabilities (based on Associative Memories). • Important aspect of the project is to develop light mechanical and cooling structures for thin silicon modules to benefit of the very low material budget of the sensor itself. • Test of the prototype tracker in a test beam in 2008/2009 • Several Italian Institutes involved in the project: • Pisa (coordination), Pavia, Bergamo,Trieste, Torino, Trento, Bologna • R&D project supported by the INFN and the Italian Ministry for Education, University and Research. SuperB Workshop - Paris - May 9, 2007

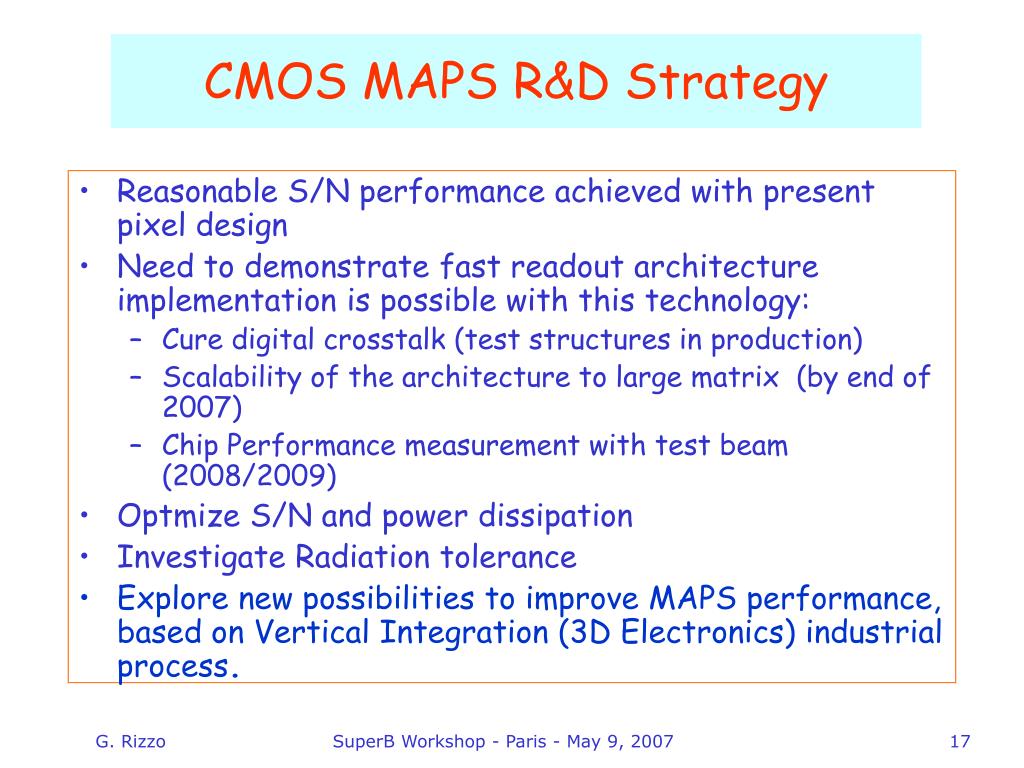

  17. CMOS MAPS R&D Strategy • Reasonable S/N performance achieved with present pixel design • Need to demonstrate fast readout architecture implementation is possible with this technology: • Cure digital crosstalk (test structures in production) • Scalability of the architecture to large matrix (by end of 2007) • Chip Performance measurement with test beam (2008/2009) • Optmize S/N and power dissipation • Investigate Radiation tolerance • Explore new possibilities to improve MAPS performance, based on Vertical Integration (3D Electronics) industrial process. SuperB Workshop - Paris - May 9, 2007

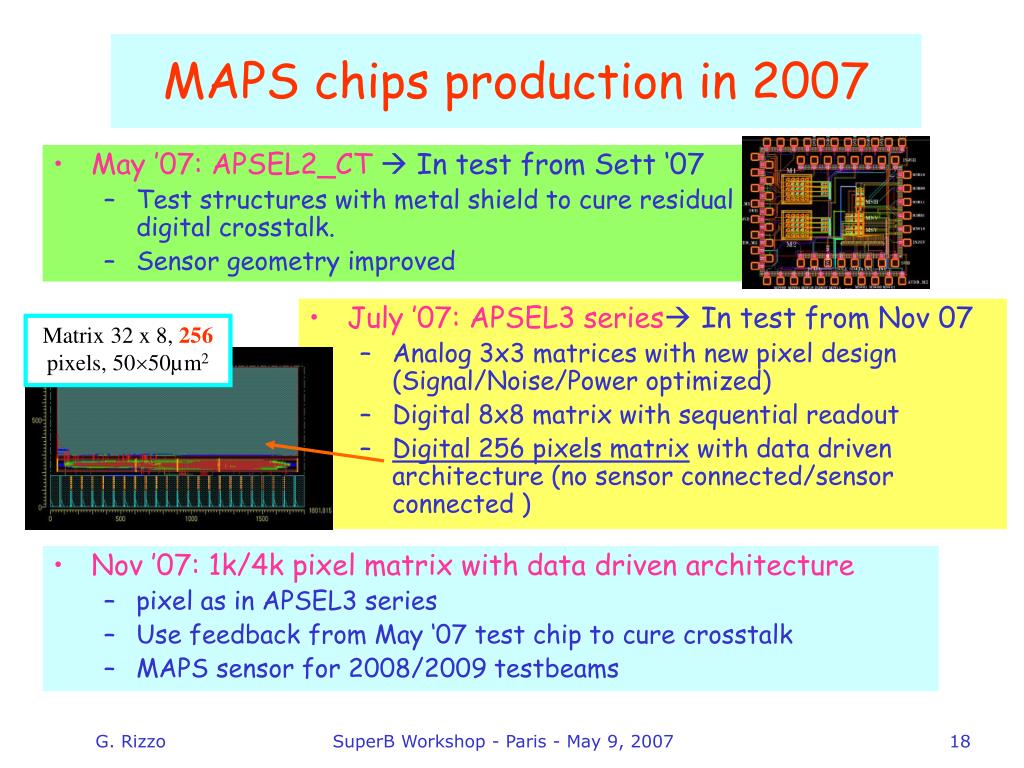

  18. MAPS chips production in 2007 • May ’07: APSEL2_CT In test from Sett ‘07 • Test structures with metal shield to cure residual digital crosstalk. • Sensor geometry improved • July ’07: APSEL3 series In test from Nov 07 • Analog 3x3 matrices with new pixel design (Signal/Noise/Power optimized) • Digital 8x8 matrix with sequential readout • Digital 256 pixels matrix with data driven architecture (no sensor connected/sensor connected ) Matrix 32 x 8, 256 pixels, 5050µm2 • Nov ’07: 1k/4k pixel matrix with data driven architecture • pixel as in APSEL3 series • Use feedback from May ‘07 test chip to cure crosstalk • MAPS sensor for 2008/2009 testbeams SuperB Workshop - Paris - May 9, 2007

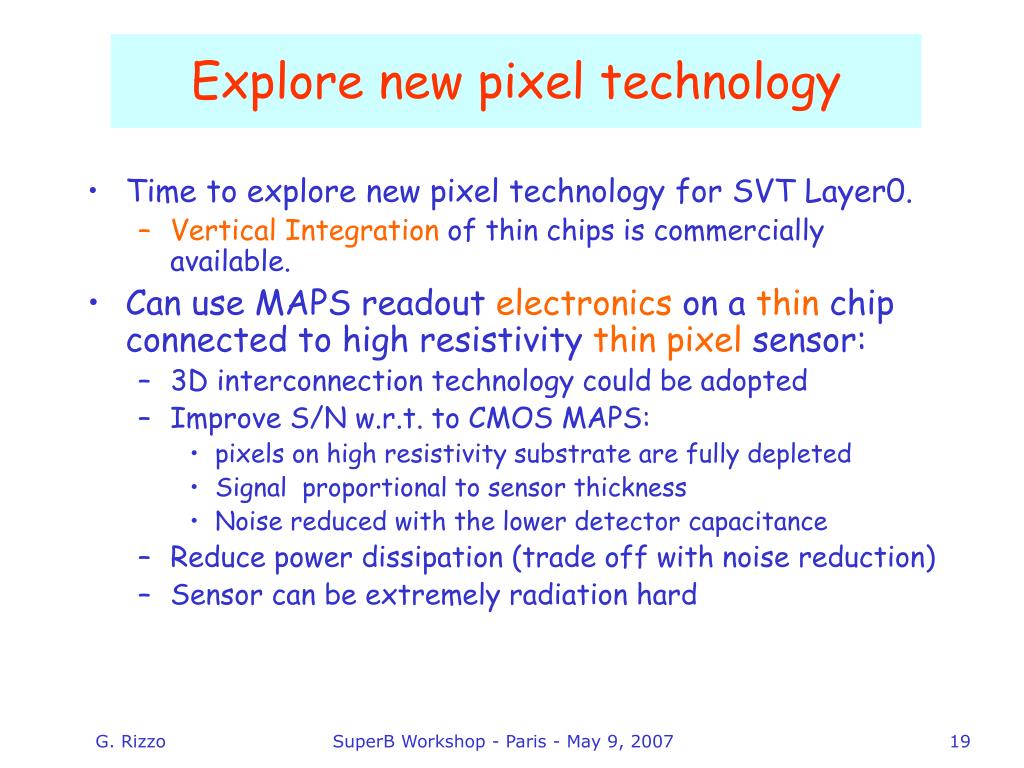

  19. Explore new pixel technology • Time to explore new pixel technology for SVT Layer0. • Vertical Integration of thin chips is commercially available. • Can use MAPS readout electronics on a thin chip connected to high resistivity thin pixel sensor: • 3D interconnection technology could be adopted • Improve S/N w.r.t. to CMOS MAPS: • pixels on high resistivity substrate are fully depleted • Signal proportional to sensor thickness • Noise reduced with the lower detector capacitance • Reduce power dissipation (trade off with noise reduction) • Sensor can be extremely radiation hard SuperB Workshop - Paris - May 9, 2007

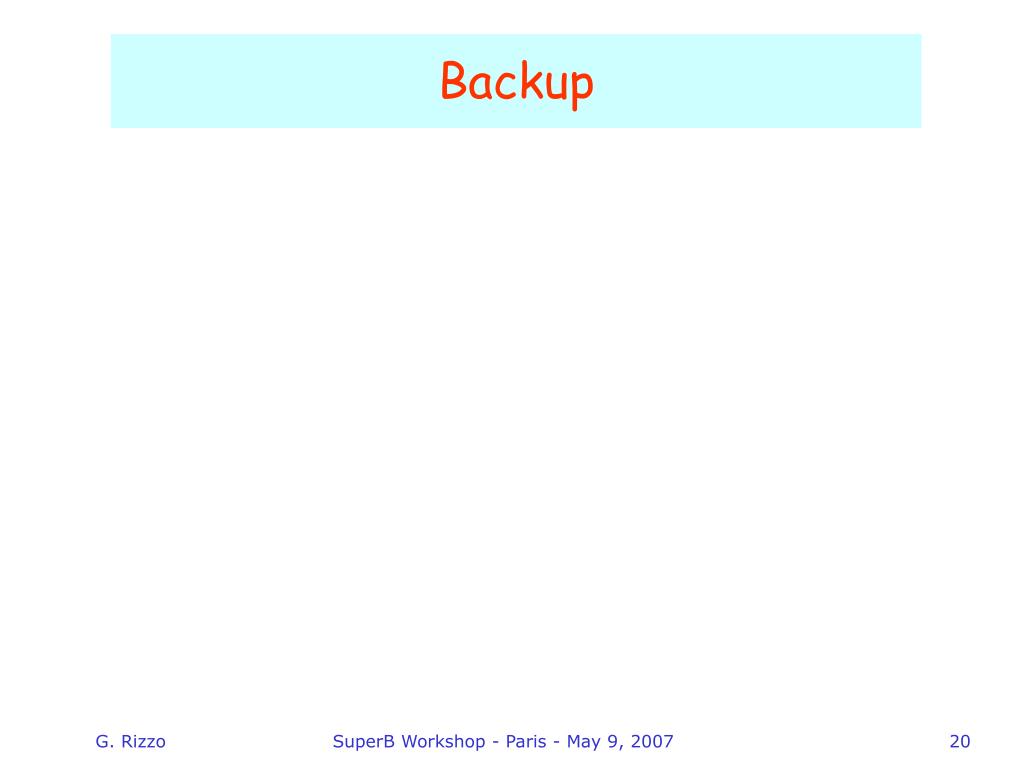

  20. Backup SuperB Workshop - Paris - May 9, 2007

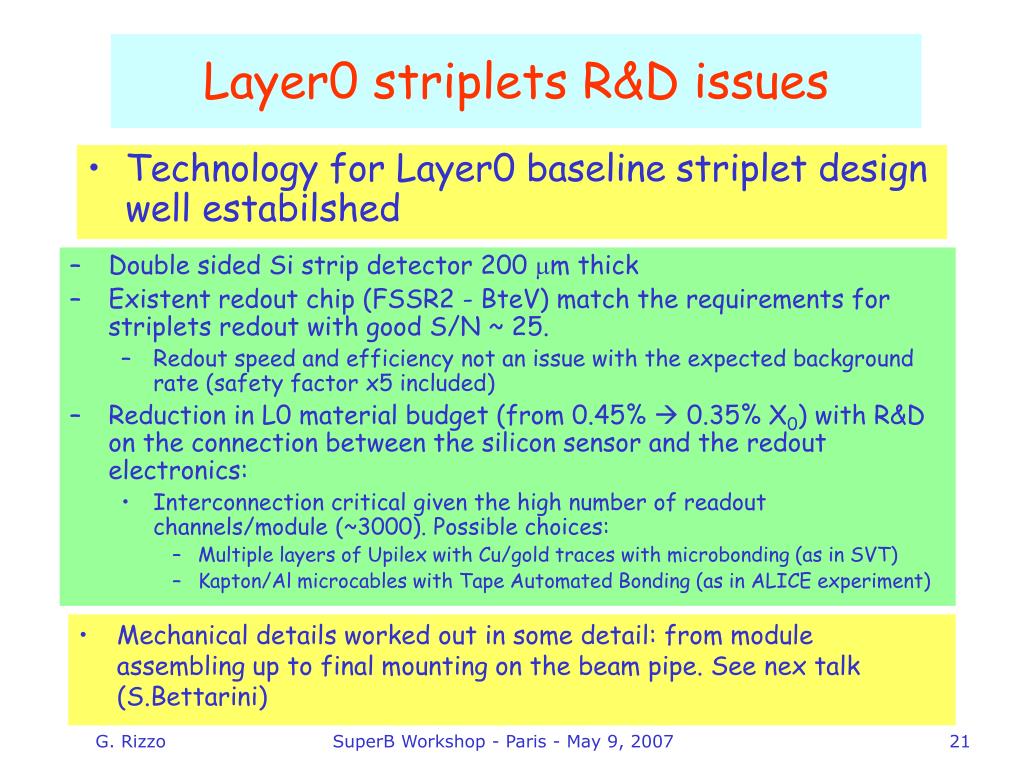

  21. Layer0 striplets R&D issues • Technology for Layer0 baseline striplet design well estabilshed • Double sided Si strip detector 200 mm thick • Existent redout chip (FSSR2 - BteV) match the requirements for striplets redout with good S/N ~ 25. • Redout speed and efficiency not an issue with the expected background rate (safety factor x5 included) • Reduction in L0 material budget (from 0.45%  0.35% X0) with R&D on the connection between the silicon sensor and the redout electronics: • Interconnection critical given the high number of readout channels/module (~3000). Possible choices: • Multiple layers of Upilex with Cu/gold traces with microbonding (as in SVT) • Kapton/Al microcables with Tape Automated Bonding (as in ALICE experiment) Mechanical details worked out in some detail: from module assembling up to final mounting on the beam pipe. See nex talk (S.Bettarini) SuperB Workshop - Paris - May 9, 2007

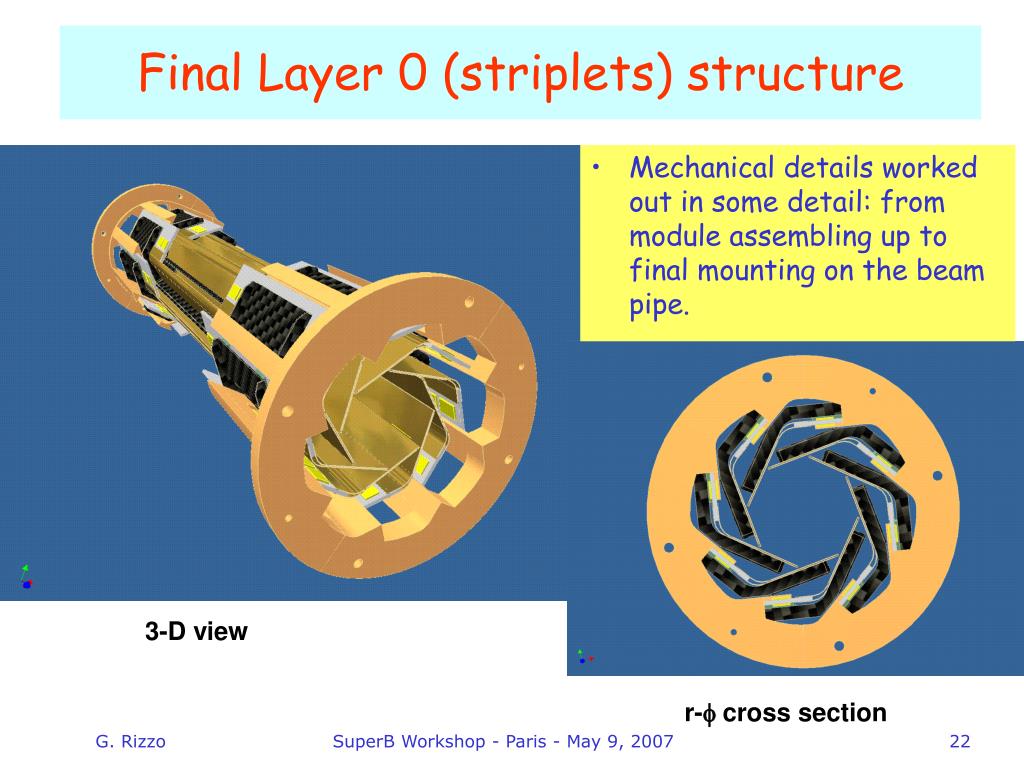

  22. Final Layer 0 (striplets) structure • Mechanical details worked out in some detail: from module assembling up to final mounting on the beam pipe. 3-D view r-f cross section SuperB Workshop - Paris - May 9, 2007

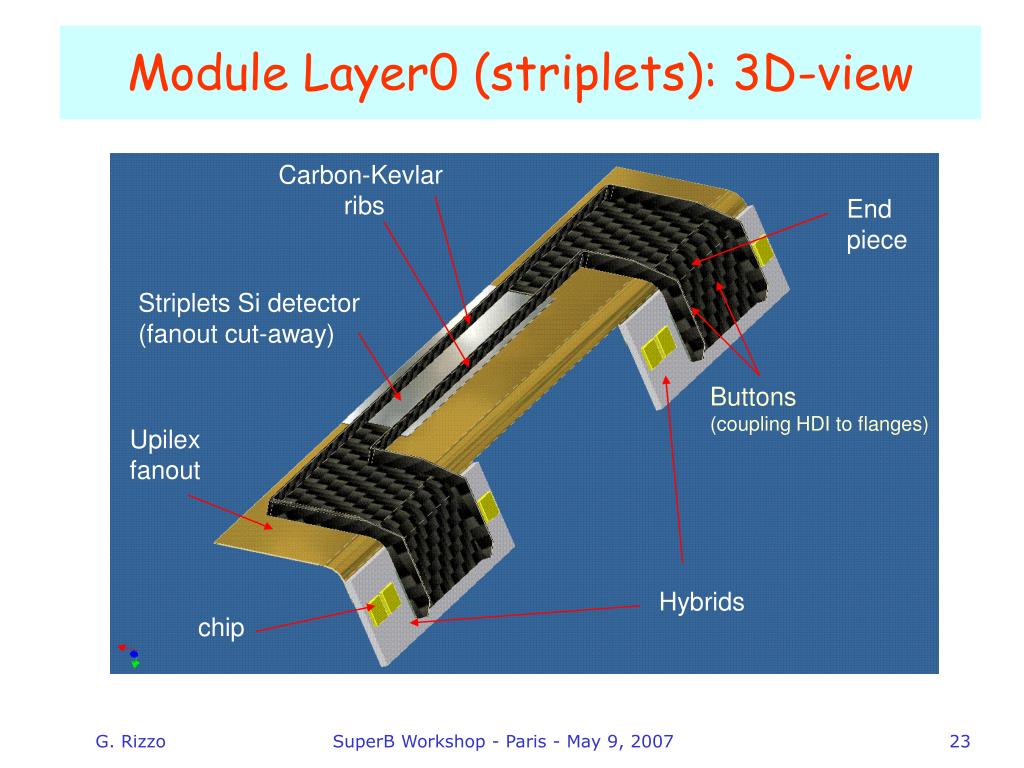

  23. Module Layer0 (striplets): 3D-view Carbon-Kevlar ribs End piece Striplets Si detector (fanout cut-away) Buttons (coupling HDI to flanges) Upilex fanout Hybrids chip SuperB Workshop - Paris - May 9, 2007

  24. Placing the Layer0 module on the flanges Semi-circular flanges (cooling circuit inside) Places for Buttons Thermal Conductive wings SuperB Workshop - Paris - May 9, 2007

  25. The whole SVT: Layer 0 inside the BaBar SVT SuperB Workshop - Paris - May 9, 2007

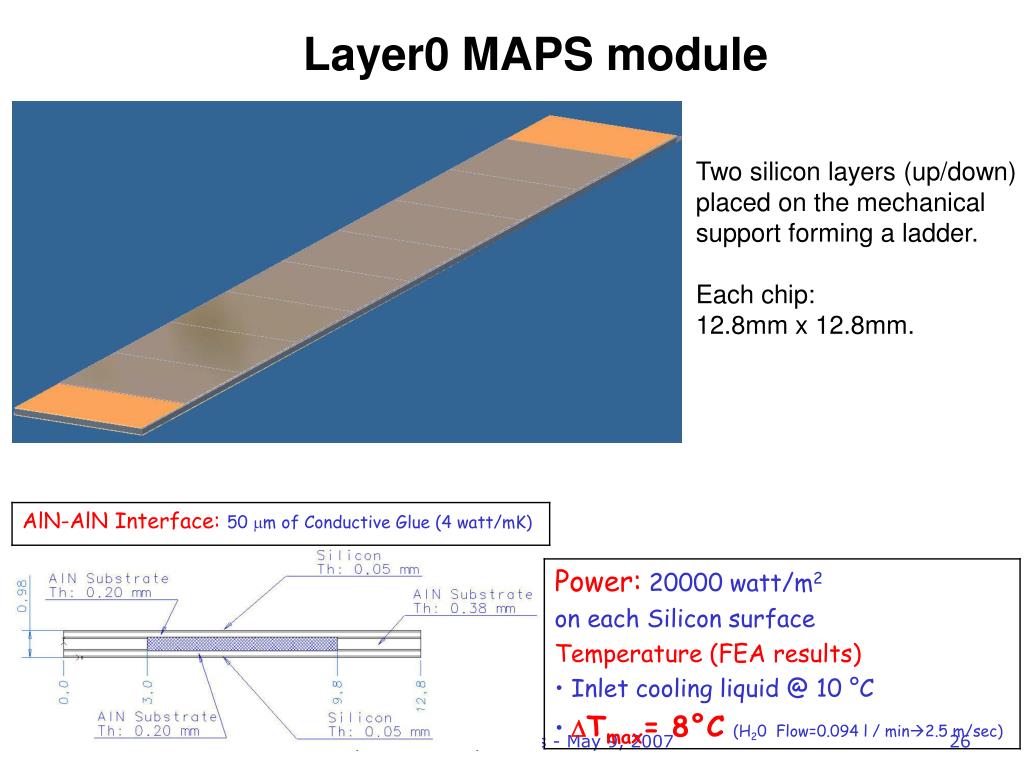

  26. Layer0 MAPS module Two silicon layers (up/down) placed on the mechanical support forming a ladder. Each chip: 12.8mm x 12.8mm. SuperB Workshop - Paris - May 9, 2007

  27. APSEL series recent results • Better optimization of the frontend: Noise ENC = 50 e- • Measurements with radioactive sources (90Srb source, 55Fe g source)on 3x3 matrix with full analog output: • Indications of small cluster size (1-4 pixels) • Cluster Signal for MIP (Landau MPV) 700 e-  S/N = 14 • Measurements on a 8x8 matrix with digital output and sequential readout. Layout modifications in the APSEL2 chip to cure the main source of the digital iterference with the analog circuit • Noise ENC = 50 e- • Threshold dispersion reduced to ~ 100 e- (300 e- in the first chip, but still to be improved) • Differential spectra with radioactive sources similar to spectra obtained with the full analog information. • Residual capacitive coupling between the digital lines and the sensor (C~10 aF !!!) is an issue: crosstalk effects observed. • Shielding with metal planes inserted to cure the problem in the next chips in productions. SuperB Workshop - Paris - May 9, 2007

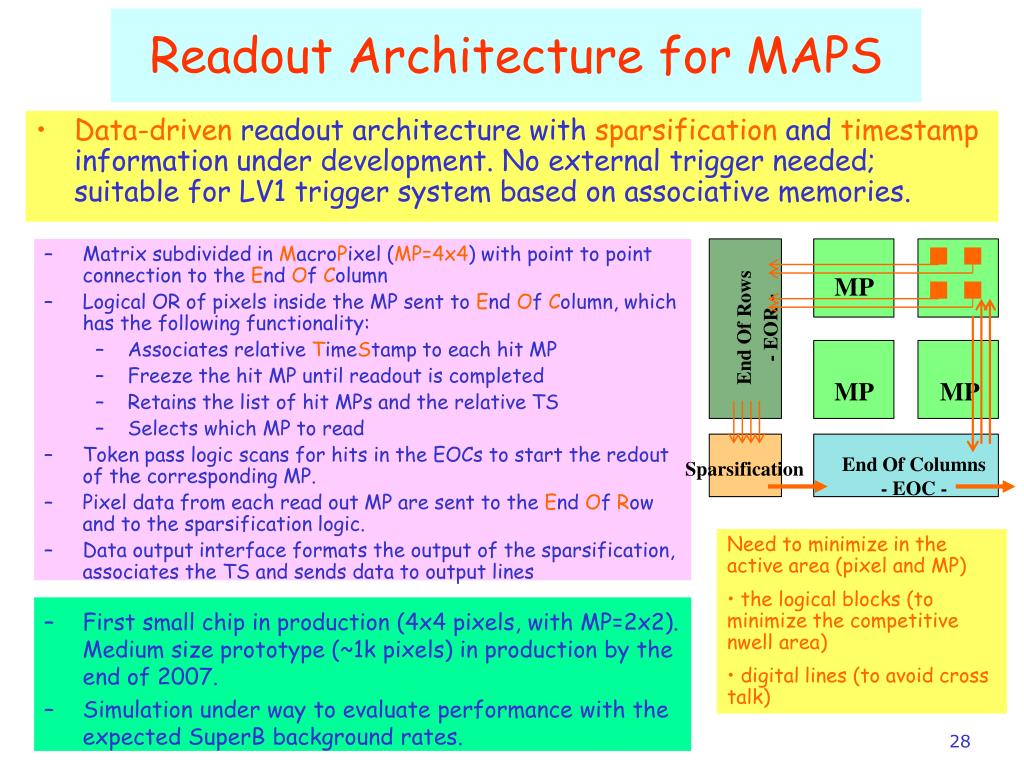

  28. End Of Rows - EOR - End Of Columns - EOC - MP Sparsification MP MP Readout Architecture for MAPS • Data-driven readout architecture with sparsification and timestamp information under development. No external trigger needed; suitable for LV1 trigger system based on associative memories. • Matrix subdivided in MacroPixel (MP=4x4) with point to point connection to the End Of Column • Logical OR of pixels inside the MP sent to End Of Column, which has the following functionality: • Associates relative TimeStamp to each hit MP • Freeze the hit MP until readout is completed • Retains the list of hit MPs and the relative TS • Selects which MP to read • Token pass logic scans for hits in the EOCs to start the redout of the corresponding MP. • Pixel data from each read out MP are sent to the End Of Row and to the sparsification logic. • Data output interface formats the output of the sparsification, associates the TS and sends data to output lines Need to minimize in the active area (pixel and MP) • the logical blocks (to minimize the competitive nwell area) • digital lines (to avoid cross talk) • First small chip in production (4x4 pixels, with MP=2x2). Medium size prototype (~1k pixels) in production by the end of 2007. • Simulation under way to evaluate performance with the expected SuperB background rates. SuperB Workshop - Paris - May 9, 2007

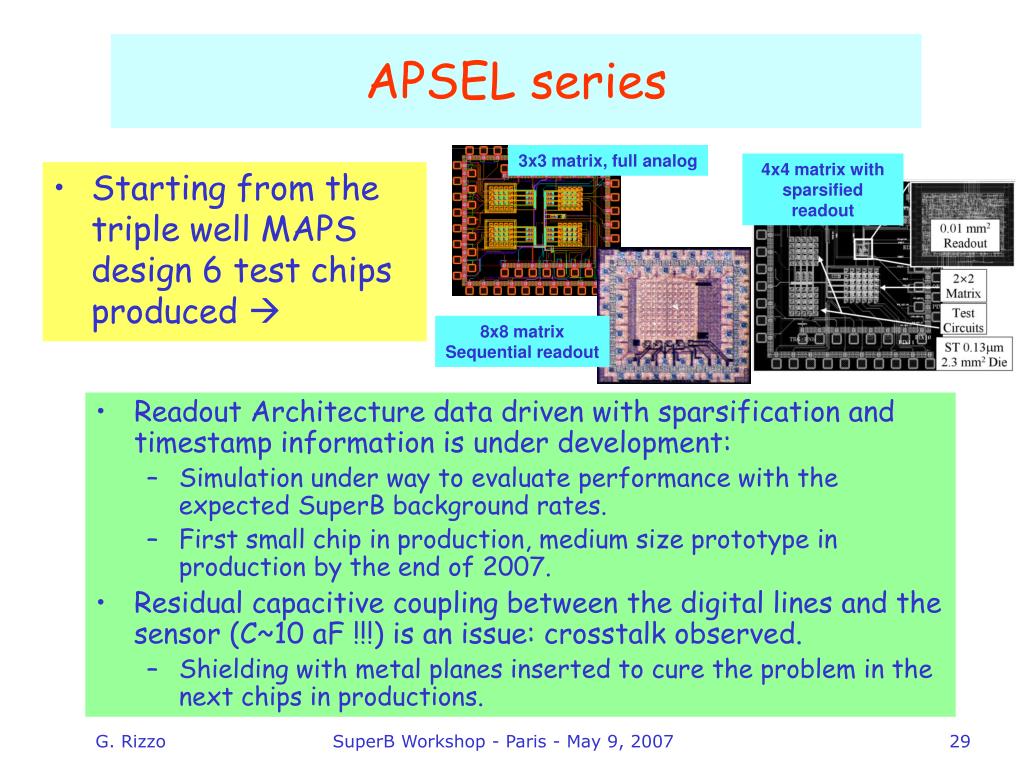

  29. APSEL series 3x3 matrix, full analog 4x4 matrix with sparsified readout • Starting from the triple well MAPS design 6 test chips produced  8x8 matrix Sequential readout • Readout Architecture data driven with sparsification and timestamp information is under development: • Simulation under way to evaluate performance with the expected SuperB background rates. • First small chip in production, medium size prototype in production by the end of 2007. • Residual capacitive coupling between the digital lines and the sensor (C~10 aF !!!) is an issue: crosstalk observed. • Shielding with metal planes inserted to cure the problem in the next chips in productions. SuperB Workshop - Paris - May 9, 2007

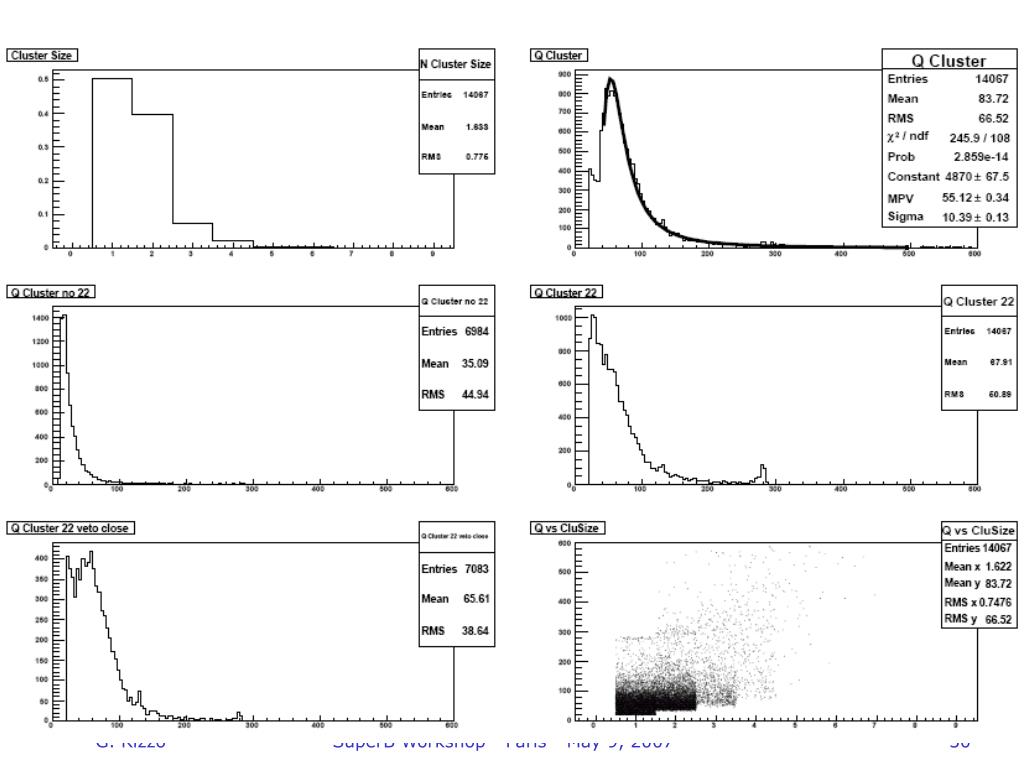

  30. SuperB Workshop - Paris - May 9, 2007
