  1. SmartMap Advantage Program A Visual Network Education Solution • CCIE Training Lab • CCNA/CCNP Training Class • Cisco Academia Class • Self-study of Cisco Skills

  2. NetBrain Technologies • Founded in 2004 • Inventors of Computer-Aided Network Engineering (CANE) • Over 100 man years of engineering and development • 3 technology related patents pending • Over 1000 features • Key Solutions • Server-based Solution • NetBrain Operator Edition • Stand-Alone Solution • NetBrain Architect Edition • Educational Solution • NetBrain Personal Edition + Special Server-Based Solution

  3. What Can NetBrain Do? The First Map-driven Troubleshooting and Network Documentation Solution • Network Mapping Automation • One-Click Network Assessment • Map-Driven Performance Troubleshooting • Enterprise Network Discovery • Network Simulation • L2 Connectivity & Map • Configuration and Routing Management • Real-time Application Mapping and Diagnosis Easy to use Map-driven features

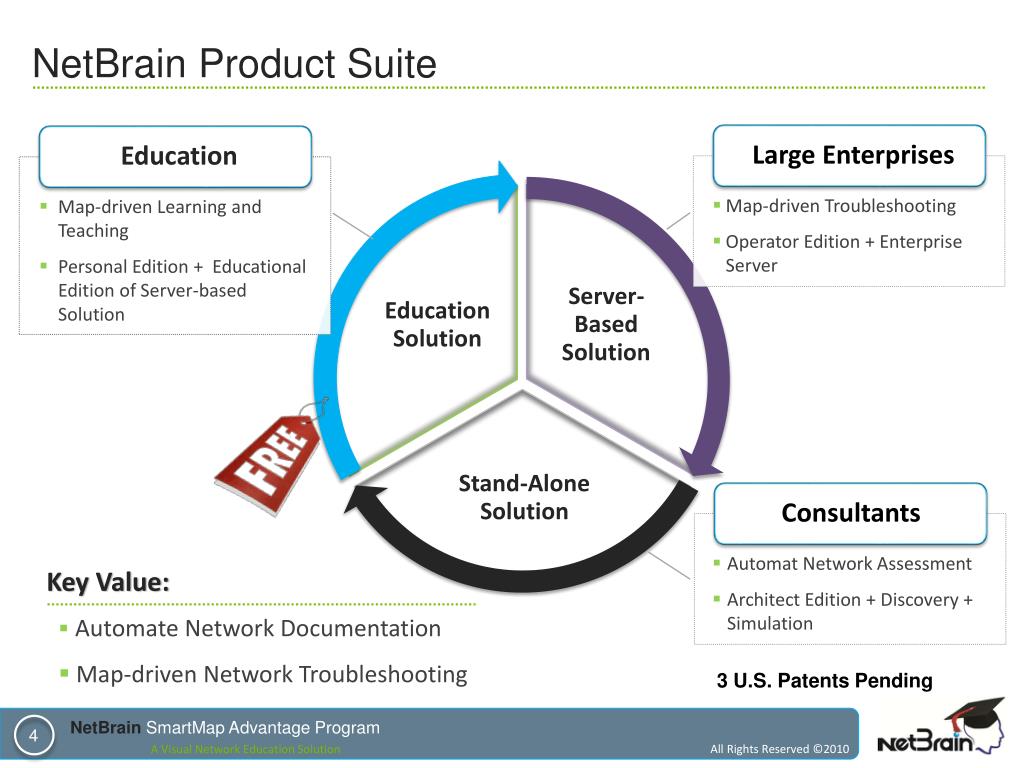

  4. Large Enterprises Consultants Education NetBrain Product Suite • Map-driven Troubleshooting • Operator Edition + Enterprise Server • Automat Network Assessment • Architect Edition + Discovery + Simulation • Map-driven Learning and Teaching • Personal Edition + Educational Edition of Server-based Solution Key Value: • Automate Network Documentation • Map-driven Network Troubleshooting 3 U.S. Patents Pending

  5. Introducing The SmartMap Advantage Program • Enabling training classroom and Self-study engineers with: • Map-driven teaching/learning tools • Use map to document and share learning processes • Use map-driven automation to check step-by-step lab work • Free Server-based Solution for qualified training classes • Free Personal Edition software for engineers • Online community via map-enabled forum Who is eligible? • Cisco Academia Classes • Self-Study Network Engineers • CCIE Training Labs • CCNP/CCNA Training Classes

  6. How To Start:

  7. Top-10 Features For Network Teaching/Learning

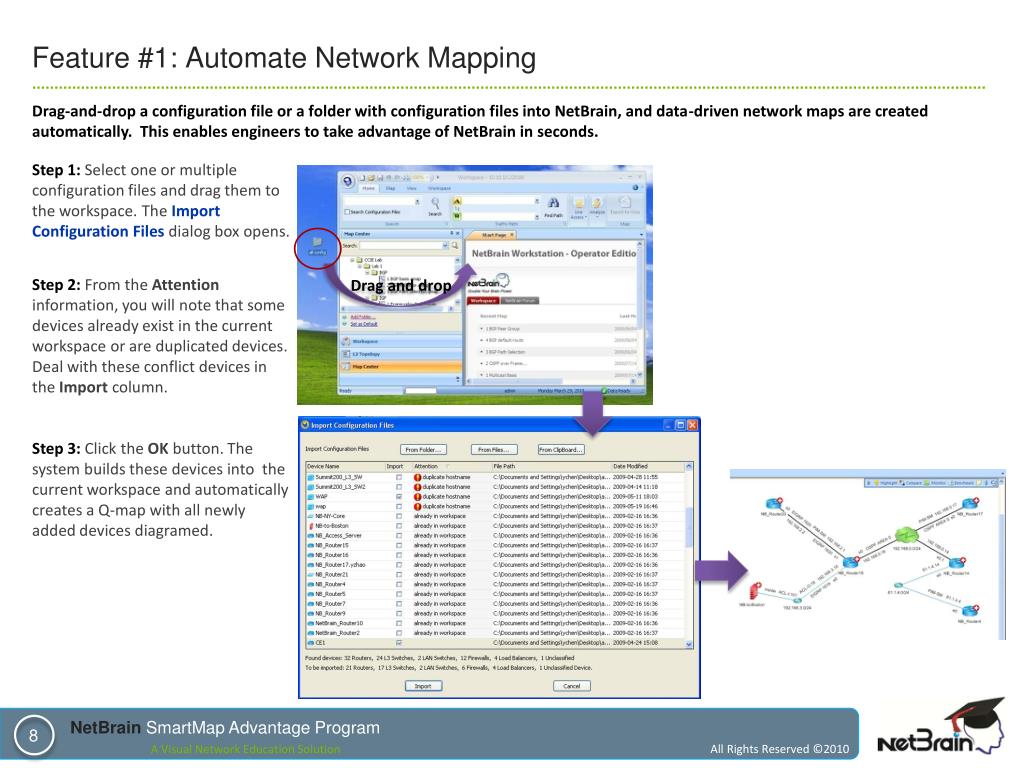

  8. Feature #1: Automate Network Mapping Drag and drop

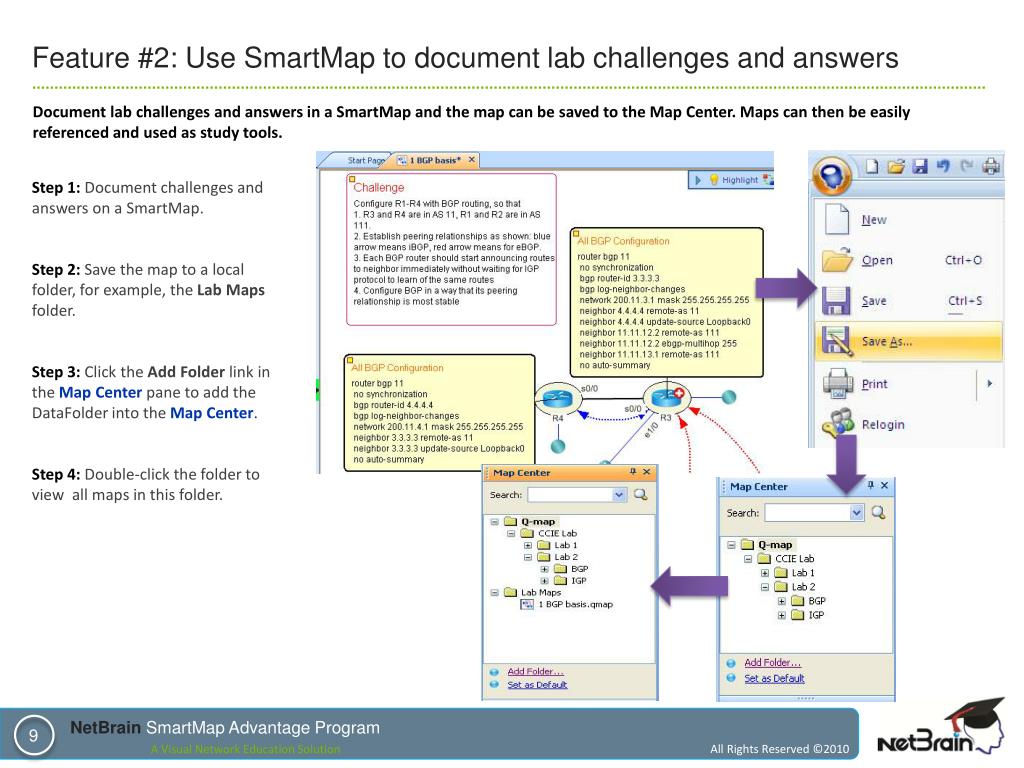

  9. Feature #2: Use SmartMap to document lab challenges and answers Document lab challenges and answers in a SmartMap and the map can be saved to the Map Center. Maps can then be easily referenced and used as study tools. Step 1: Document challenges and answers on a SmartMap. Step 2: Save the map to a local folder, for example, the Lab Maps folder. Step 3: Click the Add Folder link in the Map Centerpane to add the DataFolder into the Map Center. Step 4: Double-click the folder to view all maps in this folder.

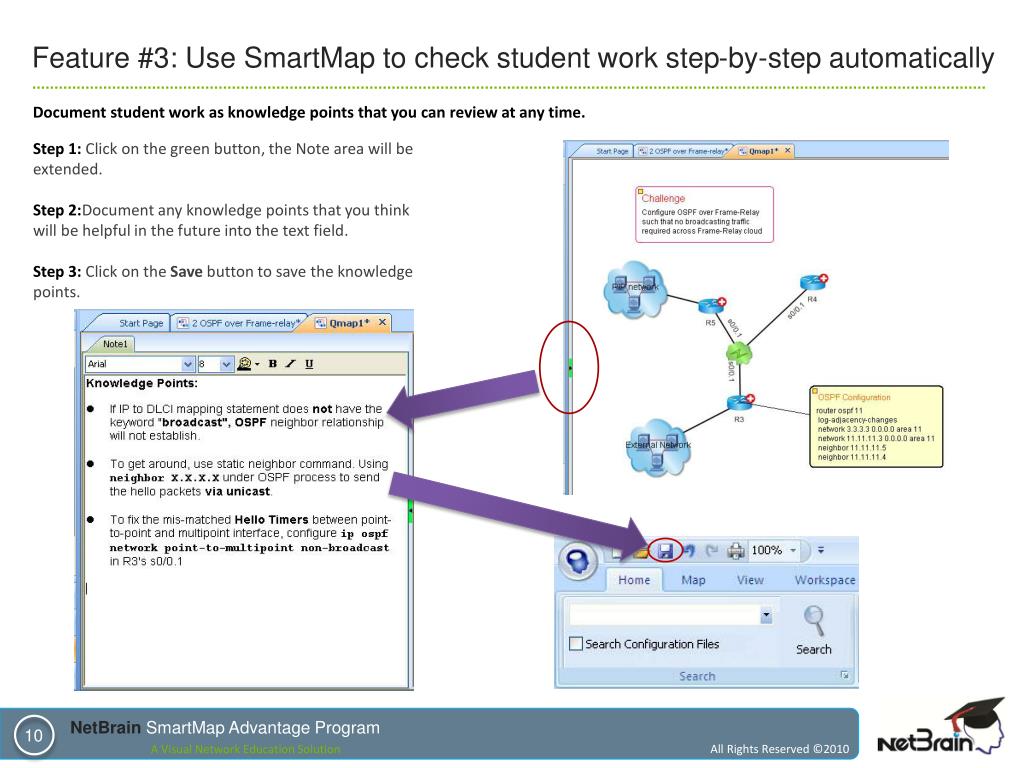

  10. Feature #3: Use SmartMap to check student work step-by-step automatically Document student work as knowledge points that you can review at any time. Step 1: Click on the green button, the Note area will be extended. Step 2:Document any knowledge points that you think will be helpful in the future into the text field. Step 3: Click on the Save button to save the knowledge points.

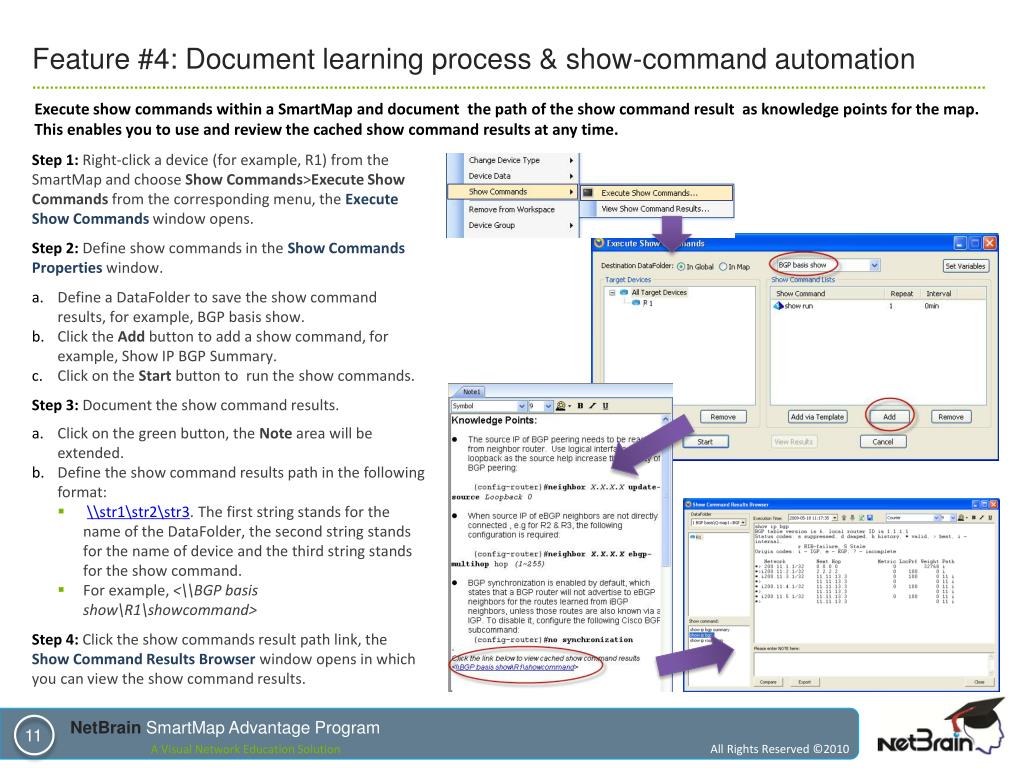

  11. Feature #4: Document learning process & show-command automation Execute show commands within a SmartMap and document the path of the show command result as knowledge points for the map. This enables you to use and review the cached show command results at any time. • Step 1: Right-click a device (for example, R1) from the SmartMap and choose Show Commands>Execute Show Commands from the corresponding menu, the Execute Show Commands window opens. • Step 2: Define show commands in the Show Commands Properties window. • Define a DataFolder to save the show command results, for example, BGP basis show. • Click the Add button to add a show command, for example, Show IP BGP Summary. • Click on the Start button to run the show commands. • Step 3: Document the show command results. • Click on the green button, the Notearea will be extended. • Define the show command results path in the following format: • \\str1\str2\str3. The first string stands for the name of the DataFolder, the second string stands for the name of device and the third string stands for the show command. • For example, <\\BGP basis show\R1\showcommand> • Step 4: Click the show commands result path link, the Show Command Results Browserwindow opens in which you can view the show command results.

  12. Feature #5: One-click access to the rack network from a SmartMap UP UNSTABLE DOWN

  13. Feature #6: Free-hand data-driven diagramming Click the “+” Drag and drop Scroll the middle wheel of your mouse to zoom in or out of the map

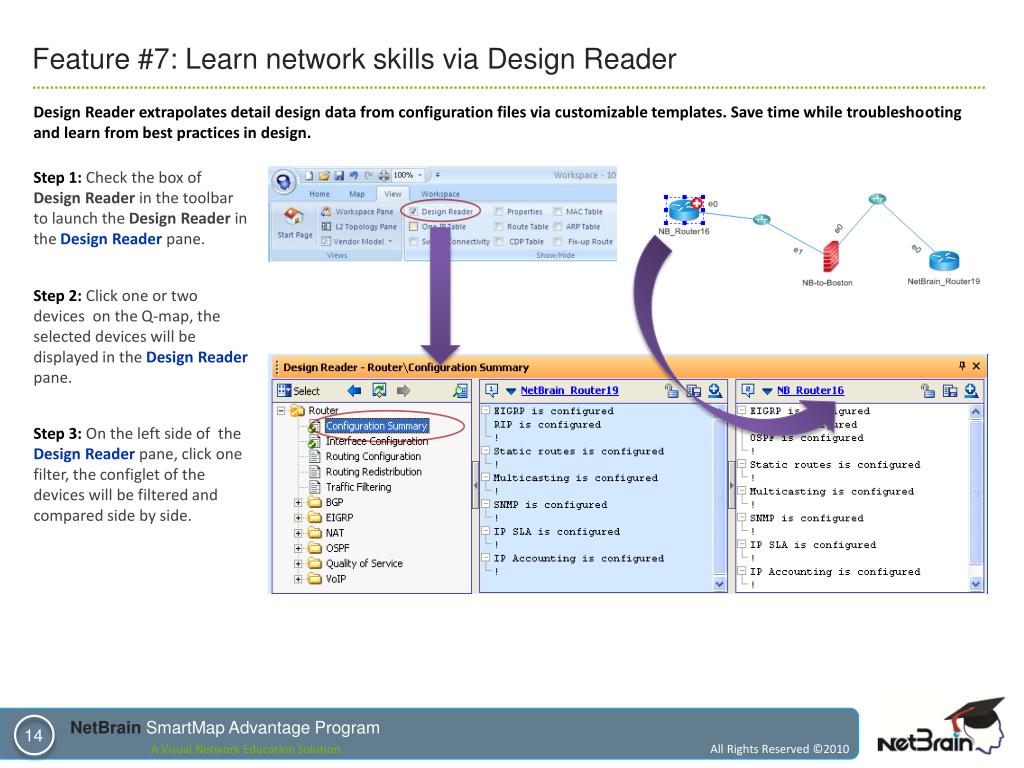

  14. Feature #7: Learn network skills via Design Reader

  15. Feature #8: Routing table toolkits

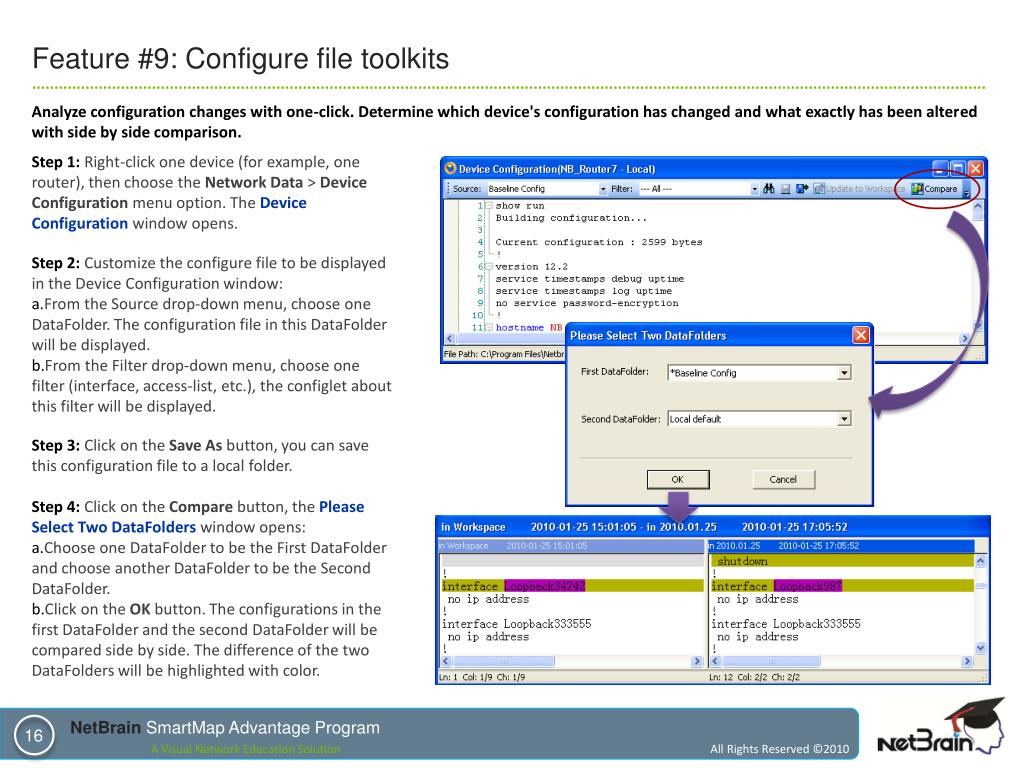

  16. Feature #9: Configure file toolkits

  17. Feature #10: Discover & document the rack network (L2/L3) Drag and drop

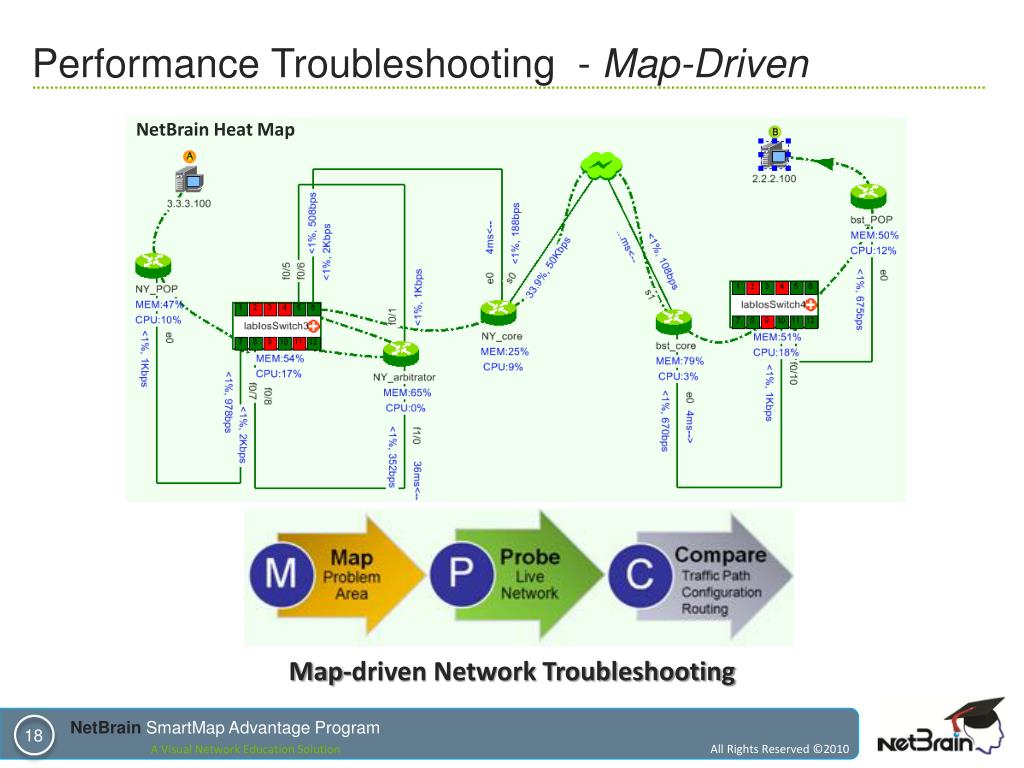

  18. Performance Troubleshooting - Map-Driven NetBrain Heat Map Map-driven Network Troubleshooting

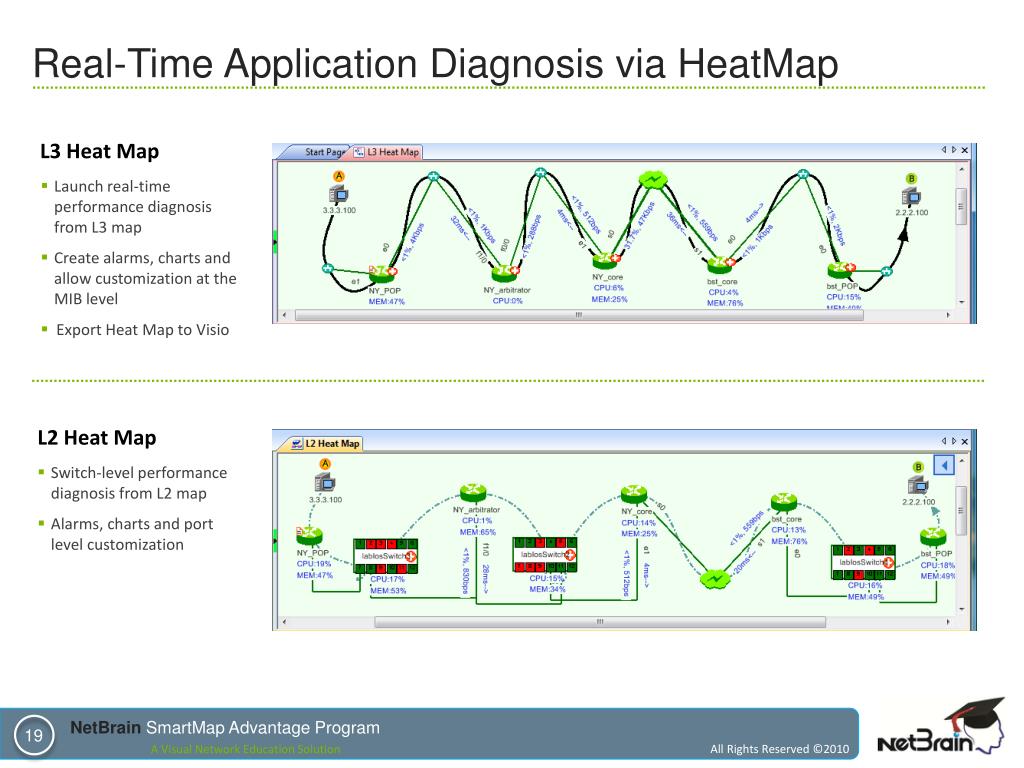

  19. Real-Time Application Diagnosis via HeatMap L3 Heat Map • Launch real-time performance diagnosis from L3 map • Create alarms, charts and allow customization at the MIB level • Export Heat Map to Visio L2 Heat Map • Switch-level performance diagnosis from L2 map • Alarms, charts and port level customization

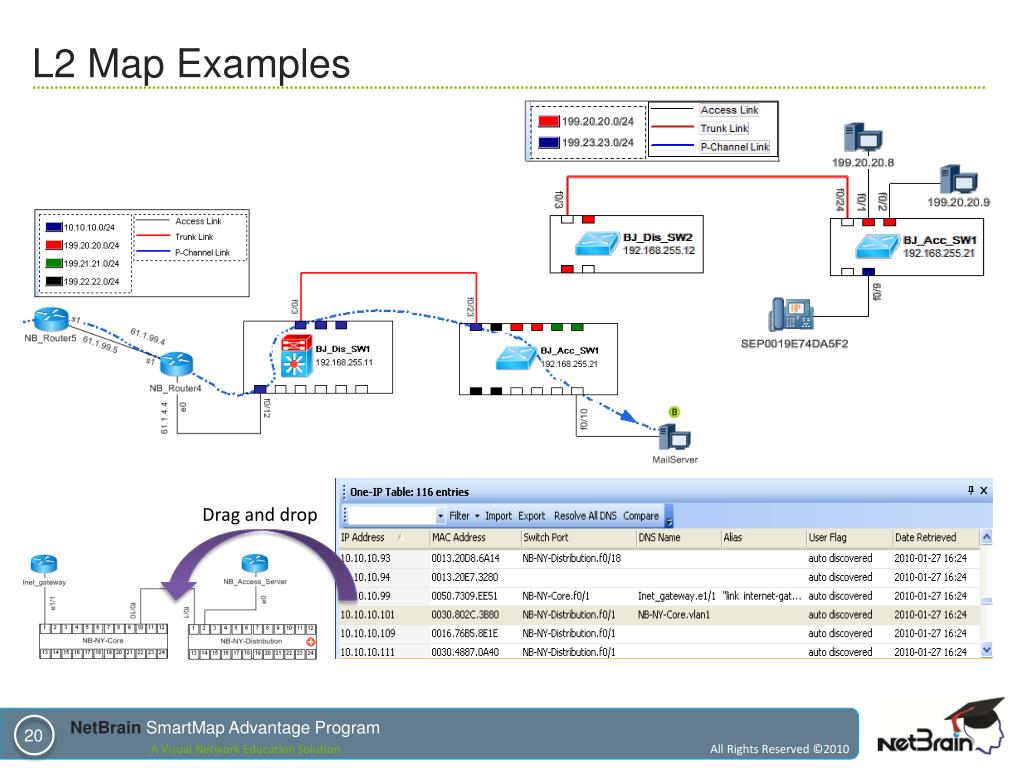

  20. L2 Map Examples Drag and drop

  21. Summary • NetBrain is About Using SmartMap To • Enhance Troubleshooting • Automate Documentation • Successful Demos Go a Long Way - Practice • Invest on Evaluation Process • Keep Everything Else Simple

  22. Key Benefits of NetBrain NetBrain L2/L3 SmartMapTM AccelerateTroubleshooting PreventOutages Know Your Network Discover Simulate Before Changes Map Problem Areas M Visualize Verify During Changes Probe Live Network Document P Play-back After Changes Compare Traffic Path Configuration Routing C

  23. 3 Types of Evaluation End Users Operator Edition Trial by Internet Experience For • Use NetBrain Lab Network and Trial ES • Build a Map of Customer Network Enterprise Server/OE Trial Administrators/ End Users Experience For • Trial With Customer’s Own Network • Setup Once, Used by Many People Architect Edition Trial Experience For Network Consultants • Stand-Alone Trial • Documentation and Assessment
