  1. Improving Read Performance of PCM via Write Cancellation and Write Pausing Moinuddin QureshiMichele Franceschini and Luis Lastras IBM T. J. Watson Research Center, Yorktown Heights, NY HPCA – 2010

  2. Introduction More cores in system  More concurrency  Larger working set DRAM-based memory system hitting: power, cost, scaling wall Phase Change Memory (PCM): Emerging technology, projected to be more scalable, higher density, power-efficient

  3. RESET Large Current Small Current Temperature Memory Element SET SET Low resistance RESET High resistance Access Device PCM Operation Tmelt Switching by heating using electrical pulses RESET state: amorphous (high resistance) SET state: crystalline (low resistance) Tcryst Time Read latency 2x-4x of DRAM. Write latency much higher Photo Courtesy: Bipin Rajendran, IBM

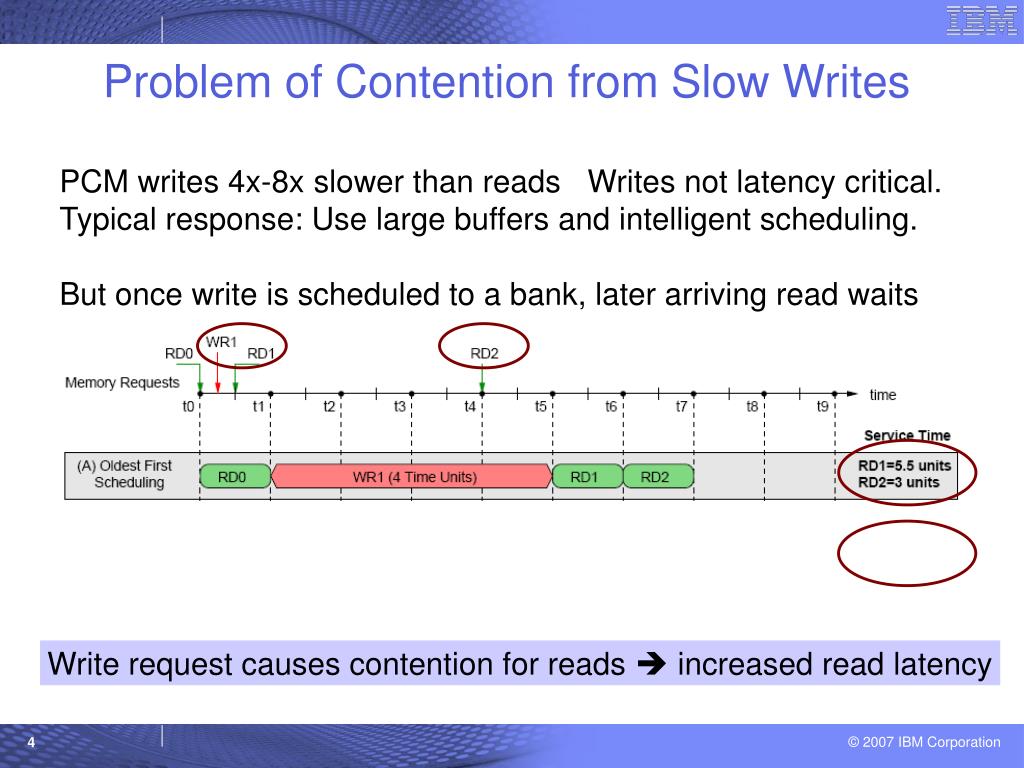

  4. Problem of Contention from Slow Writes PCM writes 4x-8x slower than reads Writes not latency critical. Typical response: Use large buffers and intelligent scheduling. But once write is scheduled to a bank, later arriving read waits Write request causes contention for reads  increased read latency

  5. Outline • Introduction • Quantifying the Problem • Adaptive Write Cancellation • Write Pausing • Combining Cancellation & Pausing • Summary

  6. Configuration: Hybrid Memory Processor Chip DRAM Cache (256MB) PCM-Based Main Memory Each bank has a separate RDQ and WRQ (32-entry) Baseline uses read priority scheduling if WRQ < 80% full. If WRQ>80% full, oldest-first policy  “forced write” (rare <0.1%)

  7. Norm. Execution Time Problem Read Latency=1k cycles Write Latency=8k cycles (sensitivity in paper) 12 workloads: each with 8 benchmarks from SPEC06 Baseline No Read Priority Effective Read Latency (Cycles) Write Latency=1K Write Latency=0 Writes significantly increase read latency (Problem only for asymmetric memories)

  8. Outline • Introduction • Problem: Writes Delaying Reads • Adaptive Write Cancellation • Write Pausing • Combining Cancellation & Pausing • Summary

  9. Write Cancellation Write Cancellation: “abort” on-going write to Improve read latency Line in non-deterministic state: read matching read request from WRQ Perform write cancellation as soon as a read request arrives at a bank (as long as the write is not done in forced-mode)

  10. Write Cancellation with Static Threshold Canceling a write request close to completion is wasteful and causes episodes of forced-writes (low performance) WCST: Cancel write request only if less than K% service done 2365 (NeverCancel) (AlwaysCancel)

  11. High 100% Threshold 50% ForcedWrites Low 0% 30 10 20 Num Entries in WRQ Adaptive Write Cancellation Best threshold depends on num pending entries in WRQ. Fewer entries  Higher threshold (best read latency) More entries  Lower threshold (reduces forced writes) Write Cancellation with Adaptive Threshold (WCAT) Threshold = 100 – (4*NumEntriesInWRQ)

  12. Adaptivity of WCAT We sampled all WRQ every 2M cycles to measure occupancy WCAT uses higher threshold initially with empty WRQ but Lower threshold later reduces the episodes of forced-writes

  13. Results for WCAT Baseline: 2365 cycles Ideal:1K cycles Adaptive threshold reduces latency and incurs half the overhead

  14. Outline • Introduction • Problem: Writes Delaying Reads • Adaptive Write Cancellation • Write Pausing • Combining Cancellation & Pausing • Summary

  15. Iterative Write in PCM devices In Multi-Level Cells (MLC), the programming precision requirement increases linearly with the number of levels PCM cells respond differently to same programming pulse Acknowledged solution to address uncertainty: Iterative writes Each iteration consists of steps of: write-read-verify Not done Verify Write Read Done

  16. Model for Iterative Writes We develop an analytical model to capture number of iterations: In terms of bits/cell, num levels written in one shot, and learning Time required to write a line is worst-case of all cells in line MLC:3 bits/cell Avg number of iterations: 8.3 (consistent with MLC literature)

  17. Rd X Iter 1 Iter 2 Rd X Iter 3 Iter 4 Better read latency with negligible write overhead Concept of Write Pausing Iterative writes can be paused to service pending read requests Potential Pause Points Iter 1 Iter 2 Iter 3 Iter 4 Reads can be performed at the end of each iteration (potential pause point) We extend the iterative write algorithm of Nirschl et al. [IEDM’07] to support Write Pausing

  18. Results for Write Pausing Write Pausing at end of iteration gets 85% of benefit of “Anytime” Pause

  19. Outline • Introduction • Problem: Writes Delaying Reads • Adaptive Write Cancellation • Write Pausing • Combining Cancellation & Pausing • Summary

  20. Write Pausing + WCAT Rd X Iter 1 Iter 2 Rd X Iter 3 Iter 4 Rd X Iter 1 Iter 2 Iter 3 Iter 4 Rd X Iter 1 Rd X Iter 2 Iter 3 Iter 4 Iter2 Cancelled Only one iteration is cancelled  “micro-cancellation” has low overhead

  21. Results Baseline: 2365 cycles Ideal:1K cycles Write Pause + Micro Cancellation very close to Anytime Pause (re-execution overhead of micro cancellation <4% extra iterations)

  22. Impact of Write Queue Size Speedup wrt Baseline (32-entry) We will need large buffers to best exploit the benefit of Pausing

  23. Outline • Introduction • Problem: Writes Delaying Reads • Adaptive Write Cancellation • Write Pausing • Combining Cancellation & Pausing • Summary

  24. Summary • Slow writes increase the effective read latency (2.3x) • Write Cancellation: Cancel ongoing write to service read • Threshold based write cancellation • Adaptive Threshold: better performance, half the overhead • Write Pausing exploits iterative write to service pending reads • Write Pausing + Micro Cancellation close to optimal pause • Effective read latency: from 2365 to 1330 cycles (1.45x speedup) • We will need large write buffers to exploit the benefit of Pausing

  25. Questions

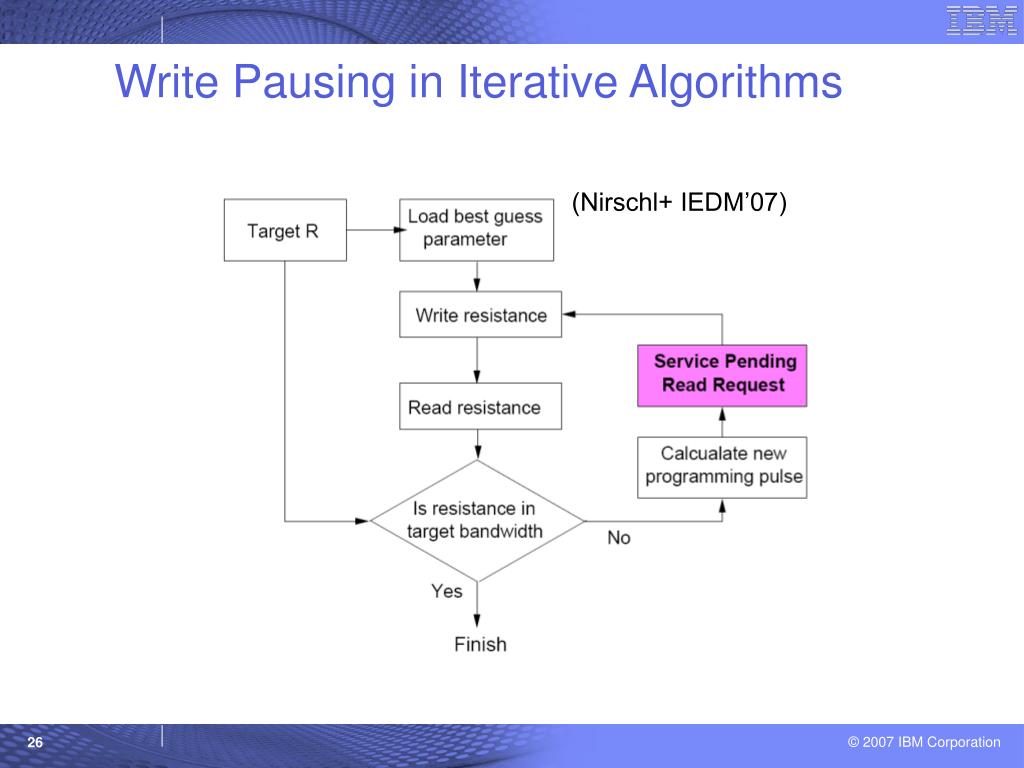

  26. Write Pausing in Iterative Algorithms (Nirschl+ IEDM’07)

  27. Workloads and Figure of Merit • 12 memory-intensive workloads from SPEC 2006: • 6 rate-mode (eight copies of same benchmark) • 6 mix-mode (two copies of four benchmarks) Key metric: Effective Read Latency Tin = Time at which read request enters RDQ Tout = Time at which read request finishes service at memory Effective Read Latency = Tout – Tin (average reported)

  28. Sensitivity to Write Latency At WriteLatency=4K, the speedup is 1.35x instead of 1.45x (at 8K latency)
