  1. Storage considerations Yaniv Weinberg VMware Professional Services March 2009

  2. AGENDA • Storage Considerations with VMware • Virtual Machine Monitor • Storage Volume Considerations (Expansion / Partition Alignment) • SCSI Reservations • Storage I/O Queue • Trouble-Shooting Tips

  3. ESX Architecture: Virtual Machine Monitor • vmxbuslogic SCSI Emulation • SAN friendly BT-958 emulation • vmxlsilogic SCSI Emulation • SAN friendly LSI53C1030 emulation • Shipping with ESX v2.x and ESX v3.x NOTE: check VMware ESX release notes and Server System Guide for details or restrictions on vmxbuslogic versus vmxlsilogic for Guest Operating Systems

  4. ESX Architecture: Virtual Machine Monitor • Modular for DR strategies • More LUNs  more I/Os in flight but harder to manage • Employ multiple RAID levels for application specific demands • All eggs in 1 basket • Less LUNs  easier to manage • Single RAID level

  5. Storage Volume Considerations 10 VMs 10:1 L1.Bandwidth 5 VMs 5 VMs 5:1 L1.Bandwidth + L2.Bandwidth 10 VMs 10:1 L1.Bandwidth 10 VMs to fill up 90 GB >5:1 L1.Bandwidth + L2.Bandwidth

  6. 64KB Track 64 Track N Track 16 Track 32 Track 1 Track 0 Block 1 of VMFS (1 MB) Block 0 of VMFS (1 MB) First VMFS Partition LBA 63 Storage Volume Considerations Starting at LBA 63

  7. Track 64 Track N Track 16 Track 32 Track 1 Track 0 64K Block 1 of VMFS (1 MB) Block 0 of VMFS (1 MB) First VMFS Partition MBR LBA 128 Storage Volume Considerations Starting at LBA 128 VI3 client will automatically align a VMFS-3 volume on LBA 128.

  8. Step to align the partition manually – Linux/ESX Storage Volume Considerations • 1. On service console, execute “fdisk /dev/sd<x>” /dev/sd<x> is the device on which you would like to create the VMFS • Type “n” to create a new partition • Type “p” to create a primary partition • 4. Type “1” to create partition #1 • 5. Select the defaults to use the complete disk • 6. Type “x” to get into expert mode

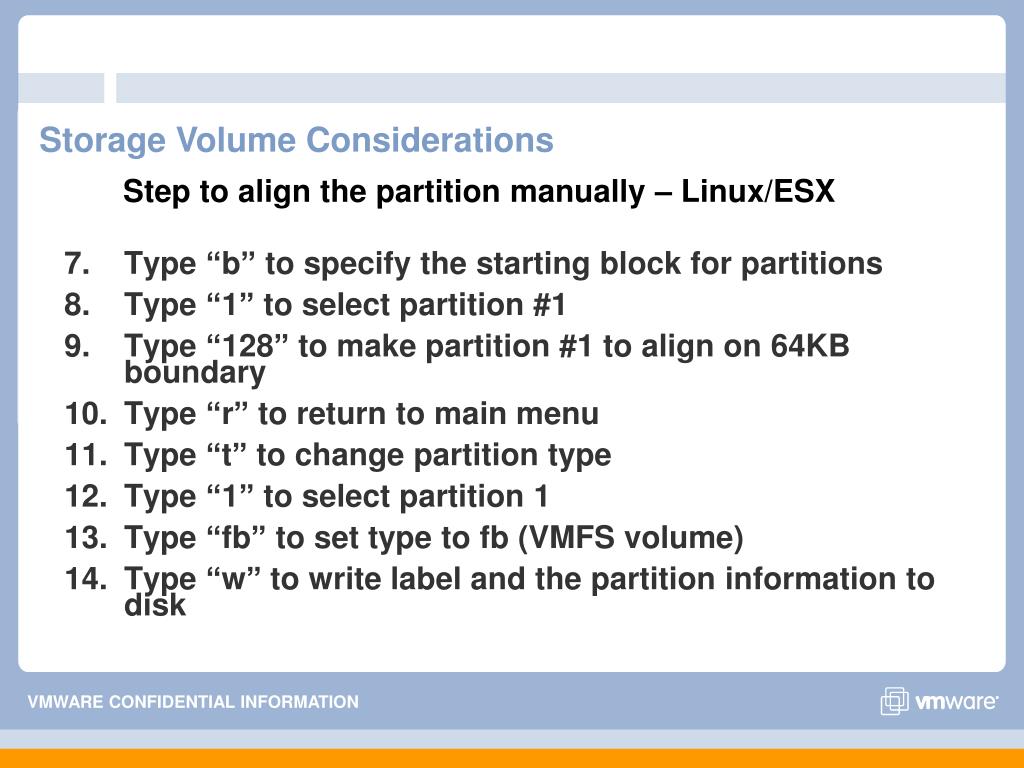

  9. Step to align the partition manually – Linux/ESX Storage Volume Considerations • Type “b” to specify the starting block for partitions • Type “1” to select partition #1 • 9. Type “128” to make partition #1 to align on 64KB boundary • 10. Type “r” to return to main menu • 11. Type “t” to change partition type • 12. Type “1” to select partition 1 • 13. Type “fb” to set type to fb (VMFS volume) • 14. Type “w” to write label and the partition information to disk

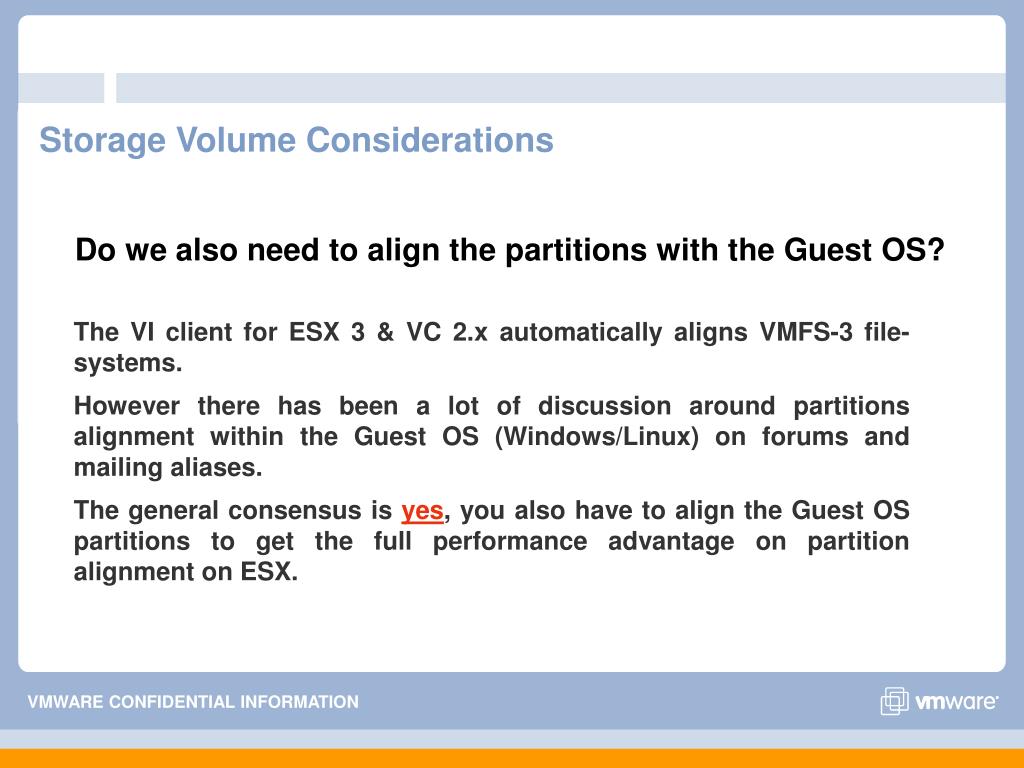

  10. Do we also need to align the partitions with the Guest OS? Storage Volume Considerations • The VI client for ESX 3 & VC 2.x automatically aligns VMFS-3 file-systems. • However there has been a lot of discussion around partitions alignment within the Guest OS (Windows/Linux) on forums and mailing aliases. • The general consensus is yes, you also have to align the Guest OS partitions to get the full performance advantage on partition alignment on ESX.

  11. Storage Volume Considerations • Partition alignment in the Guest OS: • Linux: same procedure as discussed previously. Starting partition is LBA=63, C/H/S of 0/0/63. Move it to LBA=128. • Windows: starting partition by default is also misaligned since the offset is 32256 (LBA=63) & not 32768 bytes. • For this, we might consider using diskpart, a standard Windows tool. • More information on track alignment can be found at http://www.vmware.com/pdf/esx3_partition_align.pdf.

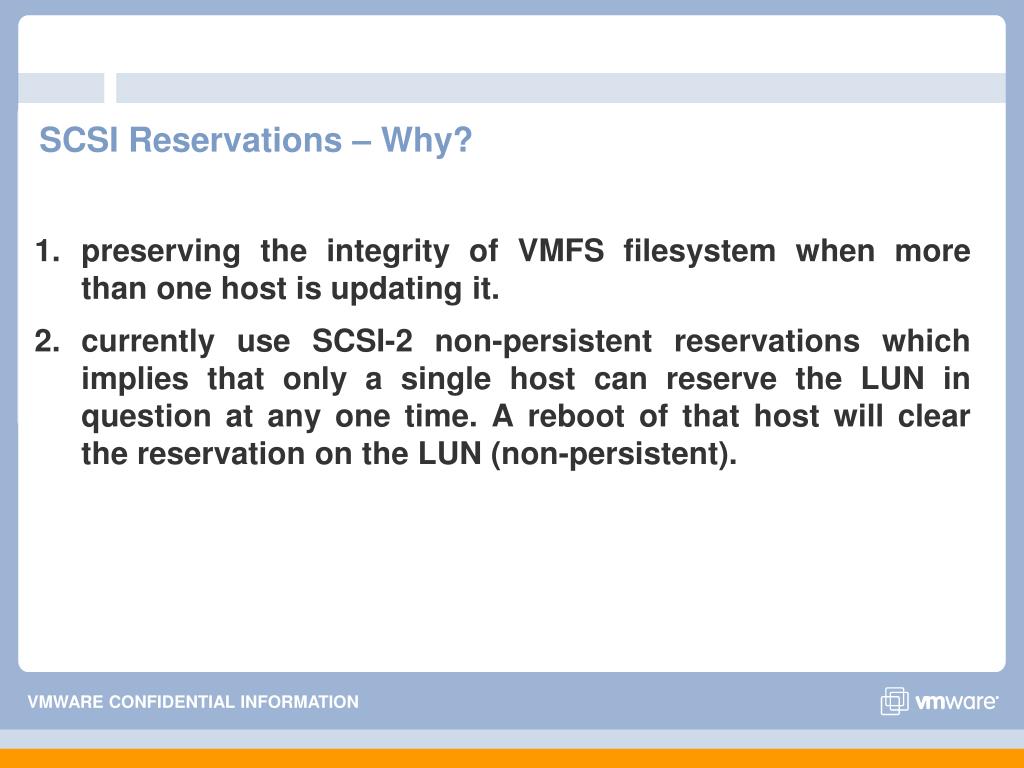

  12. SCSI Reservations – Why? • preserving the integrity of VMFS filesystem when more than one host is updating it. • currently use SCSI-2 non-persistent reservations which implies that only a single host can reserve the LUN in question at any one time. A reboot of that host will clear the reservation on the LUN (non-persistent).

  13. SCSI Reservations – sample log • Nov 15 07:48:05 frasvmhst06 vmkernel: 0:12:44:32.598 cpu4:1046)SCSI: vm 1046: 5509: Sync CR at 64 • Nov 15 07:48:06 frasvmhst06 vmkernel: 0:12:44:33.520 cpu4:1046)SCSI: vm 1046: 5509: Sync CR at 48 • Nov 15 07:48:07 frasvmhst06 vmkernel: 0:12:44:34.512 cpu4:1046)SCSI: vm 1046: 5509: Sync CR at 32 • Nov 15 07:48:08 frasvmhst06 vmkernel: 0:12:44:35.482 cpu4:1046)SCSI: vm 1046: 5509: Sync CR at 16 • Nov 15 07:48:09 frasvmhst06 vmkernel: 0:12:44:36.490 cpu2:1046)SCSI: vm 1046: 5509: Sync CR at 0 • Nov 15 07:48:09 frasvmhst06 vmkernel: 0:12:44:36.490 cpu2:1046)WARNING: SCSI: 5519: Failing I/O due to too many reservation conflicts • Nov 15 07:48:09 frasvmhst06 vmkernel: 0:12:44:36.490 cpu2:1046)WARNING: SCSI: 5615: status SCSI reservation conflict, rstatus 0xc0de01 for vmhba2:0:3. residual R 919, CR 0, ER 3 • Nov 15 07:48:09 frasvmhst06 vmkernel: 0:12:44:36.490 cpu2:1046)FSS: 343: Failed with status 0xbad0022 for f530 28 2 45378334 5f8825b2 17007a7d 1d624ca4 4 1 0 0 0 0 0

  14. SCSI Reservations -- Conditions • Virtual Machine Disk Files • When a VMDK is created, deleted, placed in REDO mode, has a snapshot (delta) file, is migrated (reservations from the source ESX and from the target ESX) or when the VM is suspended (since there is a suspend file written). • If the VMDK is created via a template, then we get SCSI reservations on the source and the target. • If a template is created from a VMDK. • Service Console • When the file system is modified via fdisk or similar, when vm-support is run from the Service Console or when vdf is run from the Service Console after a modification to the file system is made.

  15. SCSI Reservations -- Conditions • When a file on the VMFS has its ownership, permissions, size, access times, or modification times changed • However once a .vmdk is file-locked and owned, these changes can take place without any additional SCSI Reservations. • When a LUN is first attached to ESX. • VMotion operations

  16. SCSI Reservations – Best Practices • Simplify deployments so that a VM does not SPAN more than one LUN. • This will ensure that a SCSI Reservation doesn’t impact more than one LUN. • Determine if any operations are already happening on the LUN you wish to start another operation that may cause a SCSI Reservation. • VCB Backups, VMotion operations, Template deployments, etc, etc. • Choose one ESX Server as your deployment server to avoid conflicts with multiple ESX servers trying to deploy templates.

  17. SCSI Reservations – Best Practices • Inside Virtual Center, limit access to the Administrative operations so that you control who can enact an operation. • Schedule each VM reboot so that there is only one reboot per LUN at any given time. • A power-off and power-on are considered separate operations. • Use care when scheduling backups. • Verify that there is no current backup operation happening. • Scaling (No. for VM and Queue length)

  18. Understanding the Network Storage Stack SCSI Queuing and Throttling SCSI is a connect/disconnect protocol so the array can make certain optimizations Wait queue - I/O’s buffering in the HBA/sd queue Active queue – I/O’s buffered in the storage array Service queue – I/O’s being serviced on the disk (read miss) or cache (read hit, or fast write) IO QUEUING

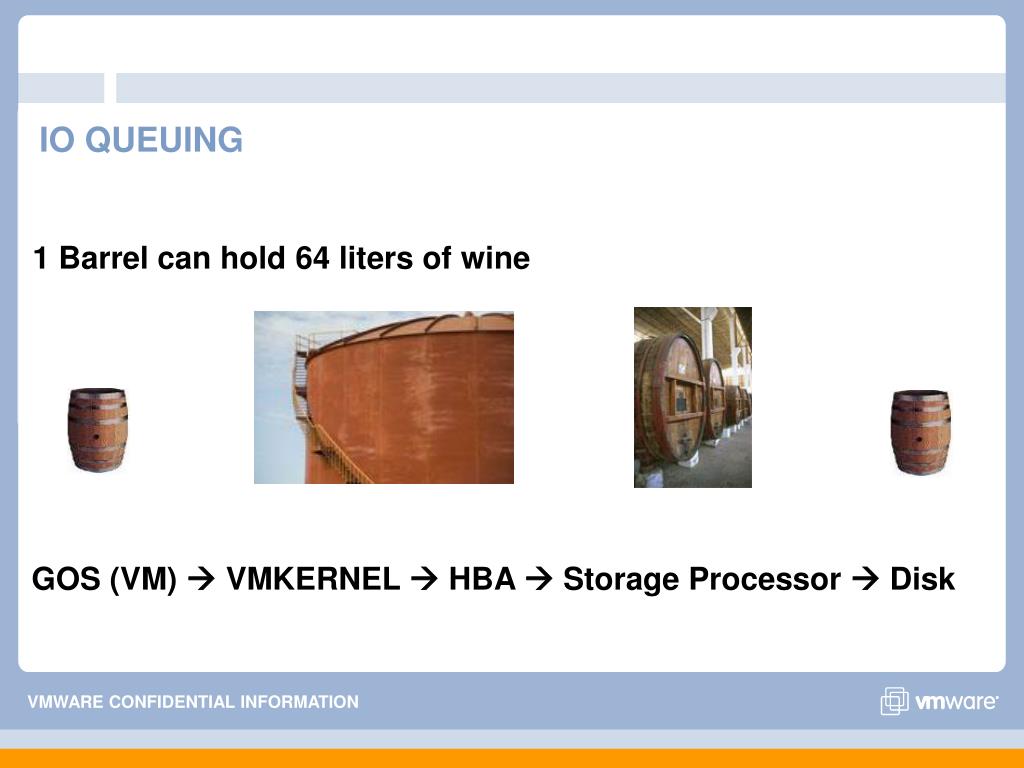

  19. IO QUEUING 1 Barrel can hold 64 liters of wine GOS (VM)  VMKERNEL  HBA  Storage Processor  Disk

  20. IO QUEUING GOS (VM)  VMKERNEL  HBA  Storage Processor  Disk HKLM,SYSTEM\CurrentControlSet\Services\Lsi_fc\Parameters\Device,MaximumTargetQueueDepth,0x00010001,0x40

  21. GOS (VM)  VMM  VMKERNEL  HBA  Storage Processor  Disk GOS (VM)  64 (default) for Windows GOS VMM  512 (4x128 per virtual SCSI bus) VMkernel  thousands HBA  thousands of IOs can be queued per HBA Emulex: 30 default per LUN (max of 128) Qlogic: 32 default per LUN (max of 128) Storage Processor  thousands Disk  64 per disk IO QUEUING

  22. IO QUEUING • Which driver module? # esxcfg-module -l | grep -i ql qla2300_707    fc        true    true • What is the current Q-depth? # cat /proc/scsi/qla2300/? | grep -i "queue depth" Device queue depth = 0x20        Device queue depth = 0x20 #grep -i Queue /var/log/initrdlogs/vmklog.qla2300_707 0:00:00:29.948 cpu3:1033)LinSCSI: 689: Queue depth for device vmhba1:0:0 is 32 0:00:00:29.948 cpu3:1033)LinSCSI: 689: Queue depth for device vmhba1:0:1 is 32

  23. IO QUEUING • Change Queue Depth to 64: (reboot required) # esxcfg-module -s ql2xmaxqdepth=64 qla2300_707 # esxcfg-boot -b # reboot • After reboot: check it ! #cat /proc/scsi/qla2300/* | grep -i "queue depth" Device queue depth = 0x40     Device queue depth = 0x40 #grep -i Queue /var/log/initrdlogs/vmklog.qla2300_707 0:00:00:29.753 cpu1:1033)LinSCSI: 689: Queue depth for device vmhba1:0:0 is 64 0:00:00:29.762 cpu1:1033)LinSCSI: 689: Queue depth for device vmhba2:3:0 is 64 #esxcfg-module -g qla2300_707 qla2300_707 enabled = 1 options = 'ql2xmaxqdepth=64‘

  24. IO QUEUING • Queuing in VMkernel – where to look for numbers • Use esxtop and press d to show disk statistics Commands queued in VMkernel Commands sent to driver World max. queue length Device max. queue length Adapter max. queue length

  25. IO QUEUING • Queuing per VM ... LUN max. queue length - Active and queued I/Os for this VM

  26. IO QUEUING • If using BusLogic with Windows 2000, 2003 or XP, the BusLogic Driver Queue Depth is limited to 1 on these OSs. • This can impact performance of your VM. • http://kb.vmware.com/kb/1614 documents the issue. • The recommendation is to use LSILogic rather than BusLogic drivers.

  27. Troubleshooting -- Basic • Check cabling, zoning, and LUN presentation against drafted configuration diagram • Verify all paths are operational • Check HBA, Switch and Array LEDs • Verify HBA ports are initialized at correct speed • Verify Switch port is initialized at correct speed • Verify correct array state • Verify topology • Collect vm-support

  28. Troubleshooting -- Intermediate • Use Virtual Center and check paths state • Use command line and check paths state • esxcfg-mpath -l • esxcfg-vmhbadevs • Look for clues in logs • /var/log/messages • /var/log/vmkernel • Collect vm-support

  29. Troubleshooting -- Advance • Switch logs • Link or connectivity failures • High level of CRC errors • Array controller logs • I/O errors • High level of CRC errors • Link or connectivity errors • Fibre Channel Trace • Collect vm-support with options

  30. Troubleshooting – advance vm-support options • You can run vm-support on a ESX Server logged in as “root” • For gathering general debugging information • Run vm-support with “-n” or “-a” options • For gathering performance information • Run vm-support with “-s” or “-S” or “-d” or “-i” • For gathering information about a specific virtual machine • Run vm-support with “-x” or “-X” See vm-support man page for more information

  31. Pay attention to footnotes.

  32. THANK YOU ! Yweinberg@vmware.com
