  1. NetHawk Quality of Service products Markus Ahokangas, MSc Product Manager

  2. Quality of Service –mittaukset verkkoanalysaattorilla • Call and Session Analysis • Quality of Service (QoS) • Radio Optimization Measurement

  3. Call and Session Analysis • Call and Session establishment failures in • multi-manufacturer Iu-CS an Iu-PS interfaces • manufacturer specific Iub interface • Calls and Sessions dropping during active phase, why? • Malfunctioning UE • Admisson control in RNC • Handover control in RNC/UE • Power control in RNC/UE

  4. Call and Session trace Dropped CS calls and PS session can be filtered out from huge signalling load to be further analysed

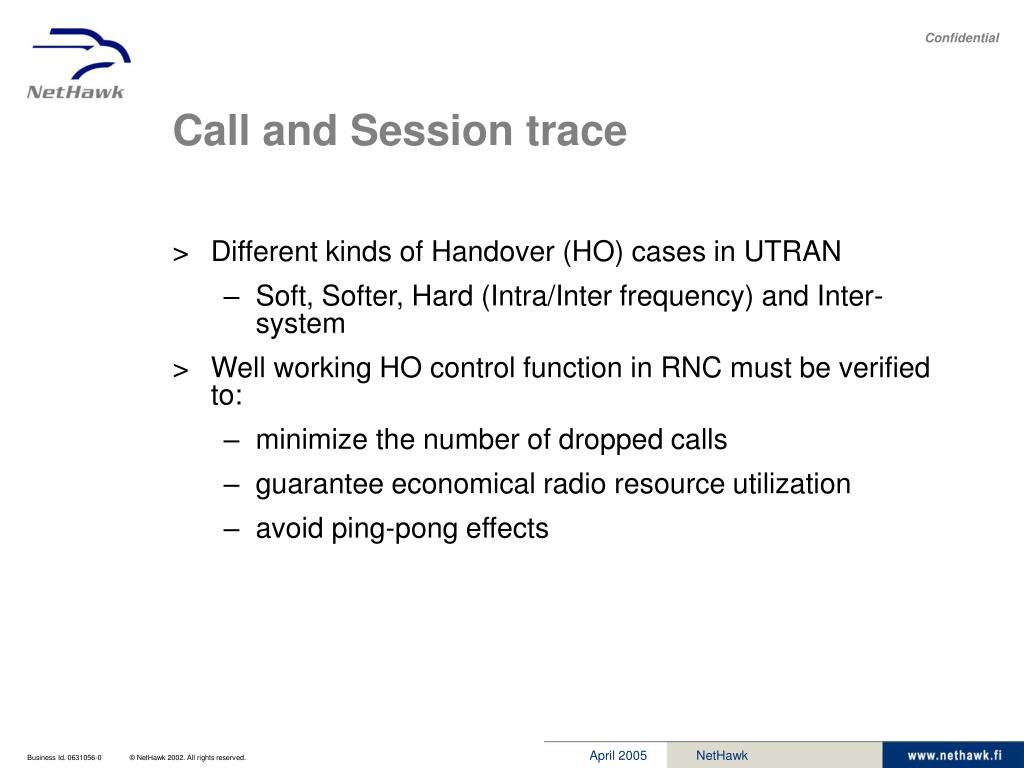

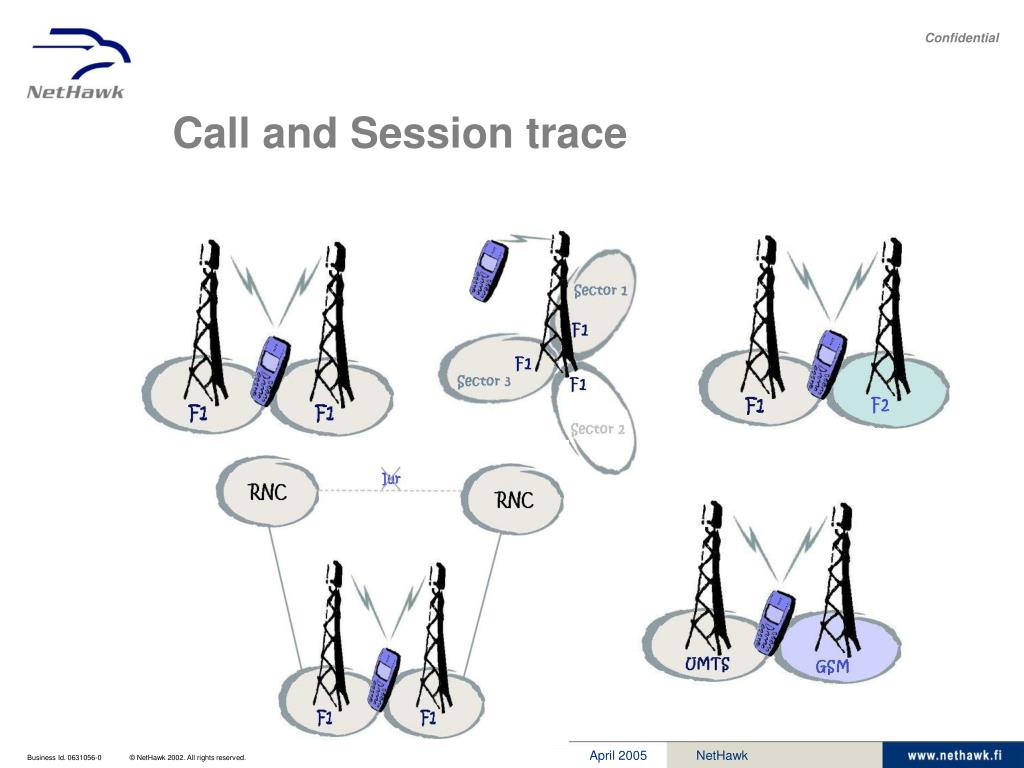

  5. Call and Session trace • Different kinds of Handover (HO) cases in UTRAN • Soft, Softer, Hard (Intra/Inter frequency) and Inter-system • Well working HO control function in RNC must be verified to: • minimize the number of dropped calls • guarantee economical radio resource utilization • avoid ping-pong effects

  6. Call and Session trace

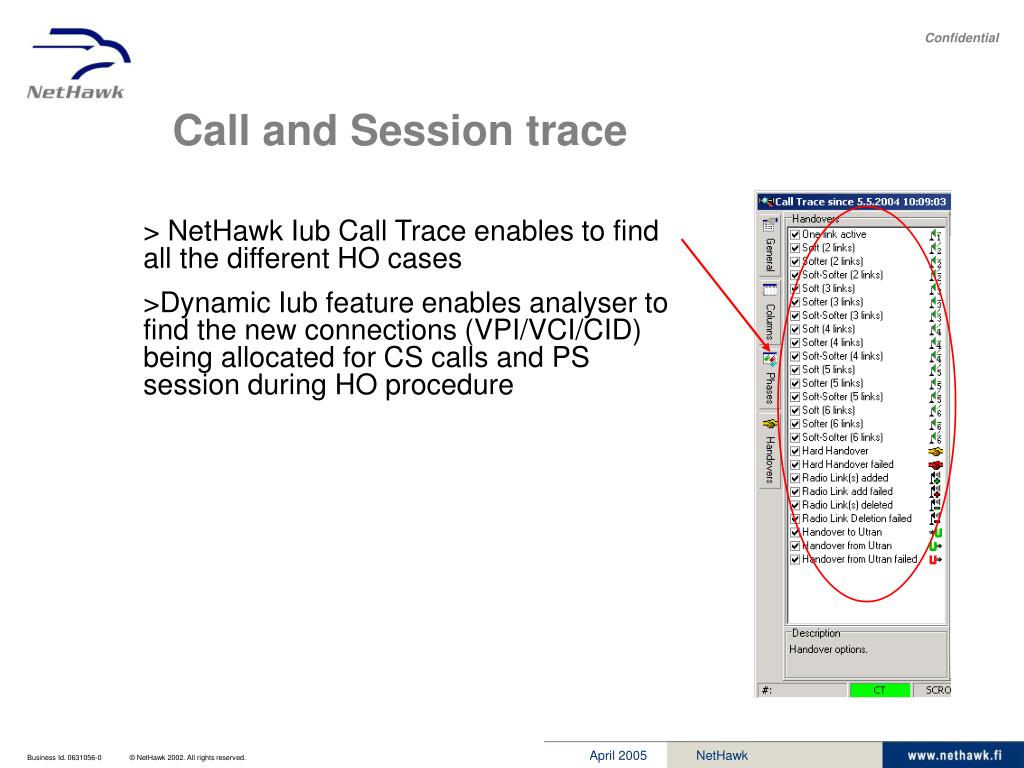

  7. Call and Session trace • NetHawk Iub Call Trace enables to find all the different HO cases • Dynamic Iub feature enables analyser to find the new connections (VPI/VCI/CID) being allocated for CS calls and PS session during HO procedure

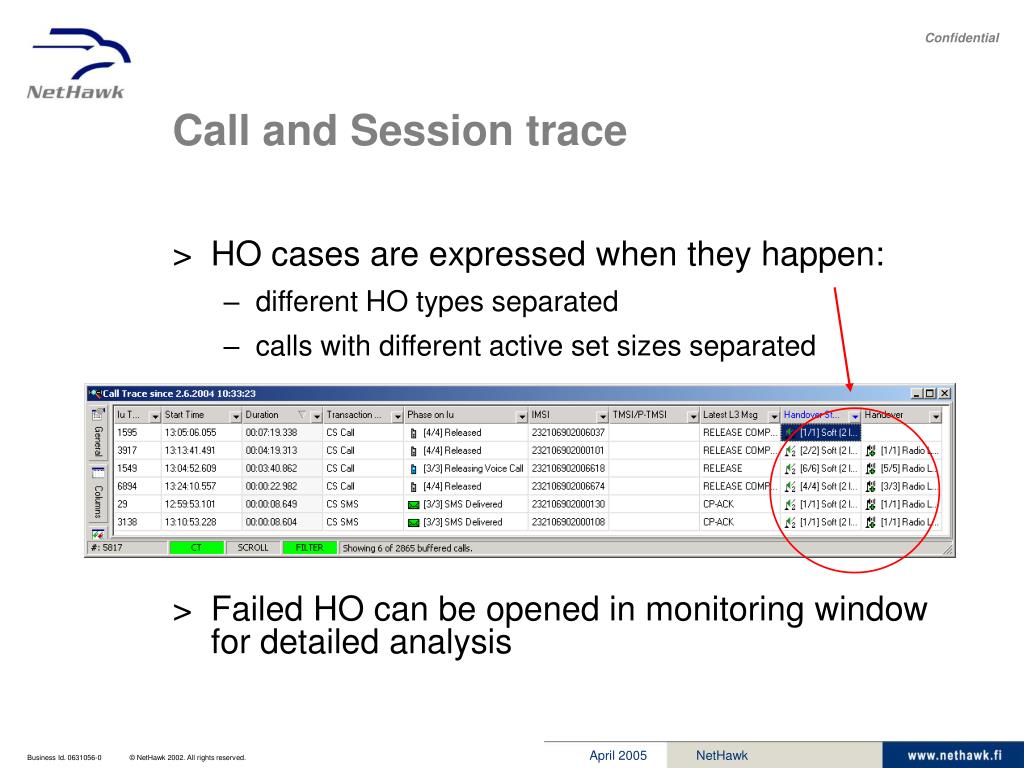

  8. Call and Session trace • HO cases are expressed when they happen: • different HO types separated • calls with different active set sizes separated • Failed HO can be opened in monitoring window for detailed analysis

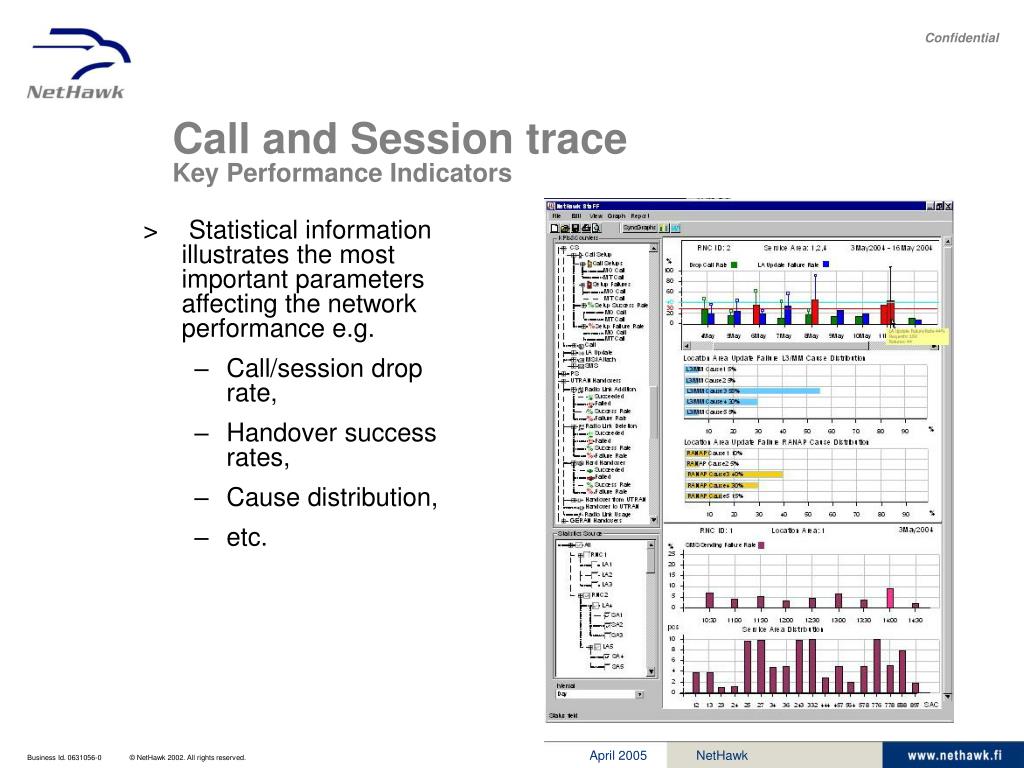

  9. Call and Session traceKey Performance Indicators • Statistical information illustrates the most important parameters affecting the network performance e.g. • Call/session drop rate, • Handover success rates, • Cause distribution, • etc.

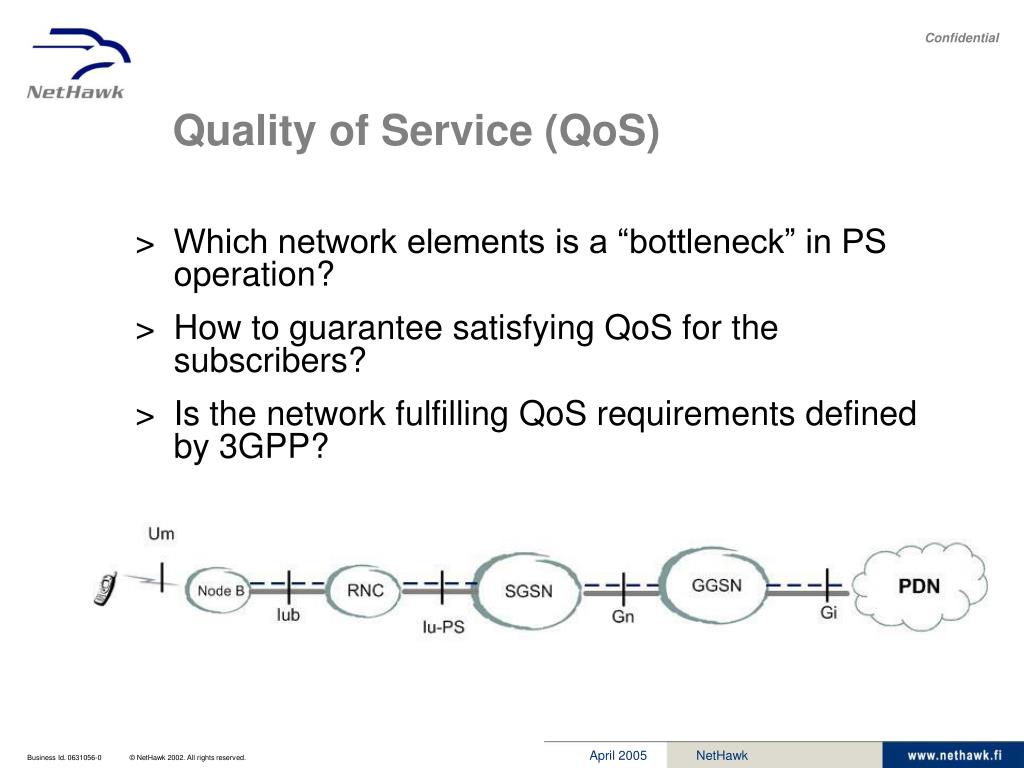

  10. Quality of Service (QoS) • Which network elements is a “bottleneck” in PS operation? • How to guarantee satisfying QoS for the subscribers? • Is the network fulfilling QoS requirements defined by 3GPP?

  11. Quality of Service (QoS)

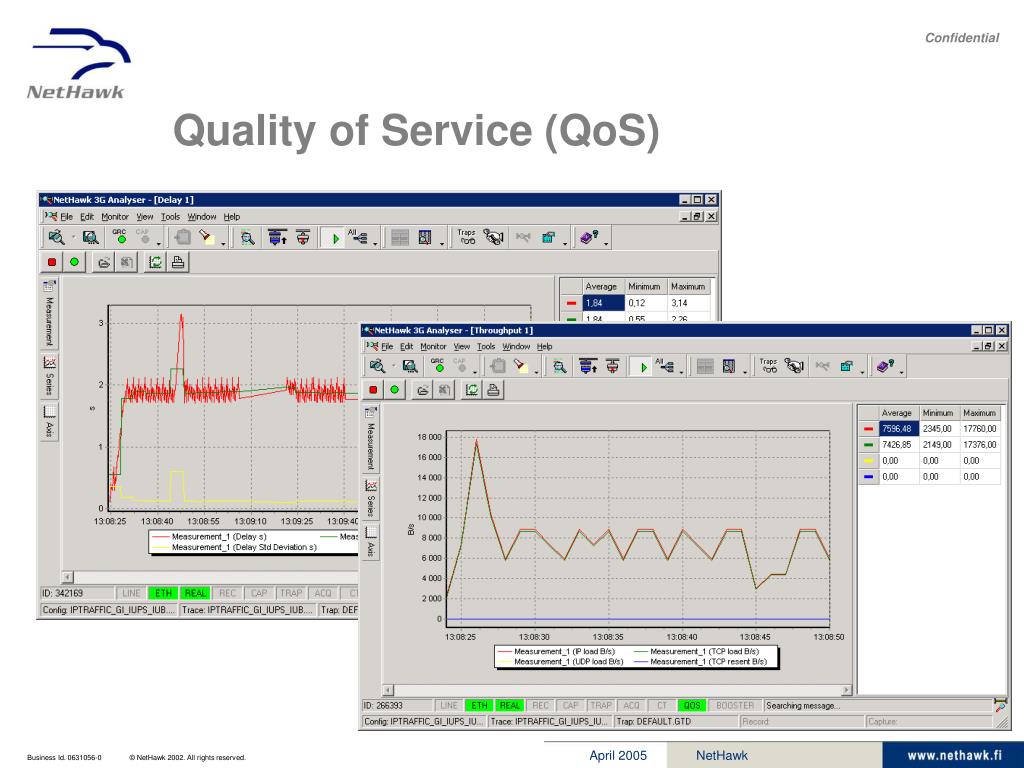

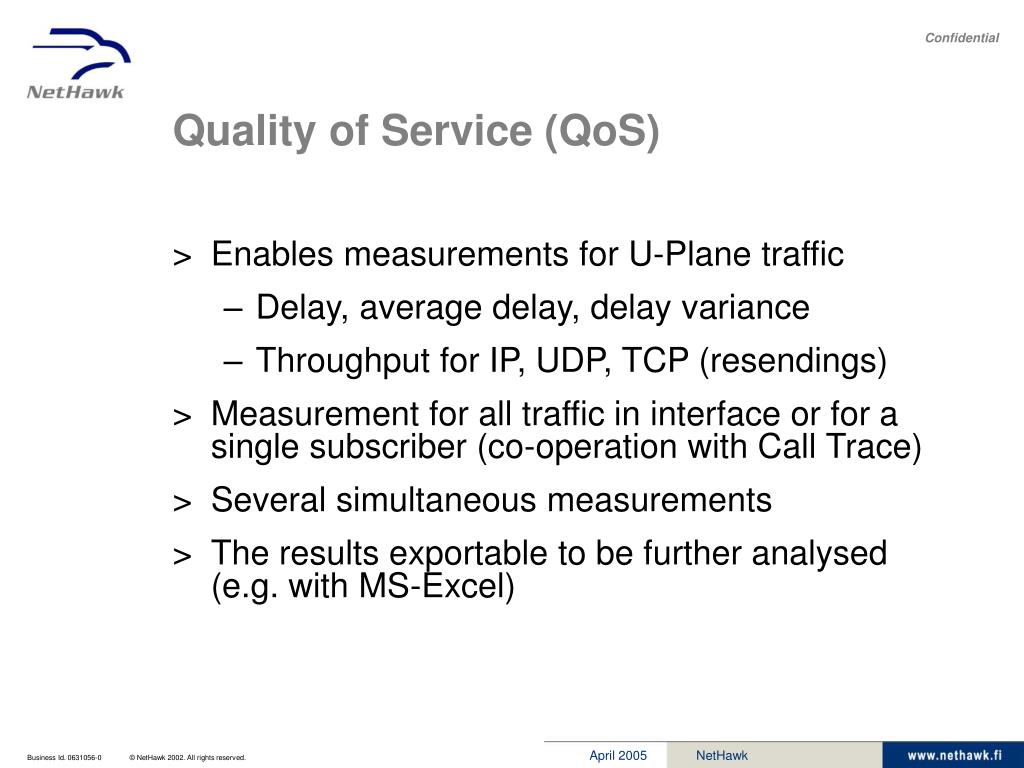

  12. Quality of Service (QoS) • Enables measurements for U-Plane traffic • Delay, average delay, delay variance • Throughput for IP, UDP, TCP (resendings) • Measurement for all traffic in interface or for a single subscriber (co-operation with Call Trace) • Several simultaneous measurements • The results exportable to be further analysed (e.g. with MS-Excel)

  13. Quality of Service (QoS)

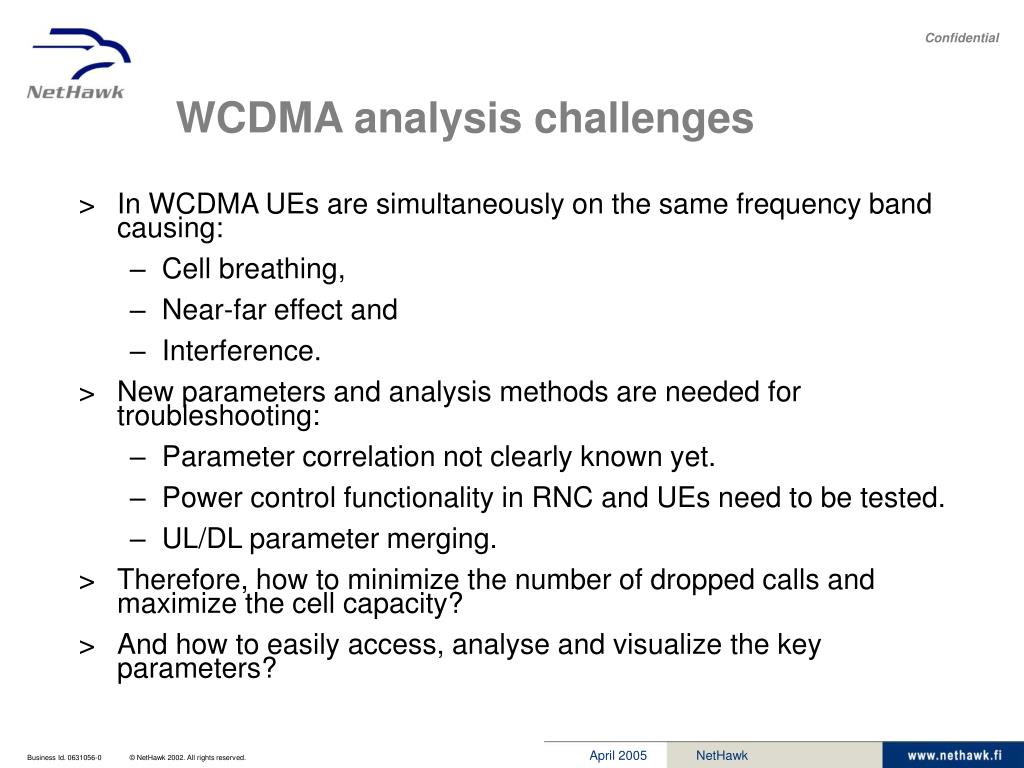

  14. WCDMA analysis challenges • In WCDMA UEs are simultaneously on the same frequency band causing: • Cell breathing, • Near-far effect and • Interference. • New parameters and analysis methods are needed for troubleshooting: • Parameter correlation not clearly known yet. • Power control functionality in RNC and UEs need to be tested. • UL/DL parameter merging. • Therefore, how to minimize the number of dropped calls and maximize the cell capacity? • And how to easily access, analyse and visualize the key parameters?

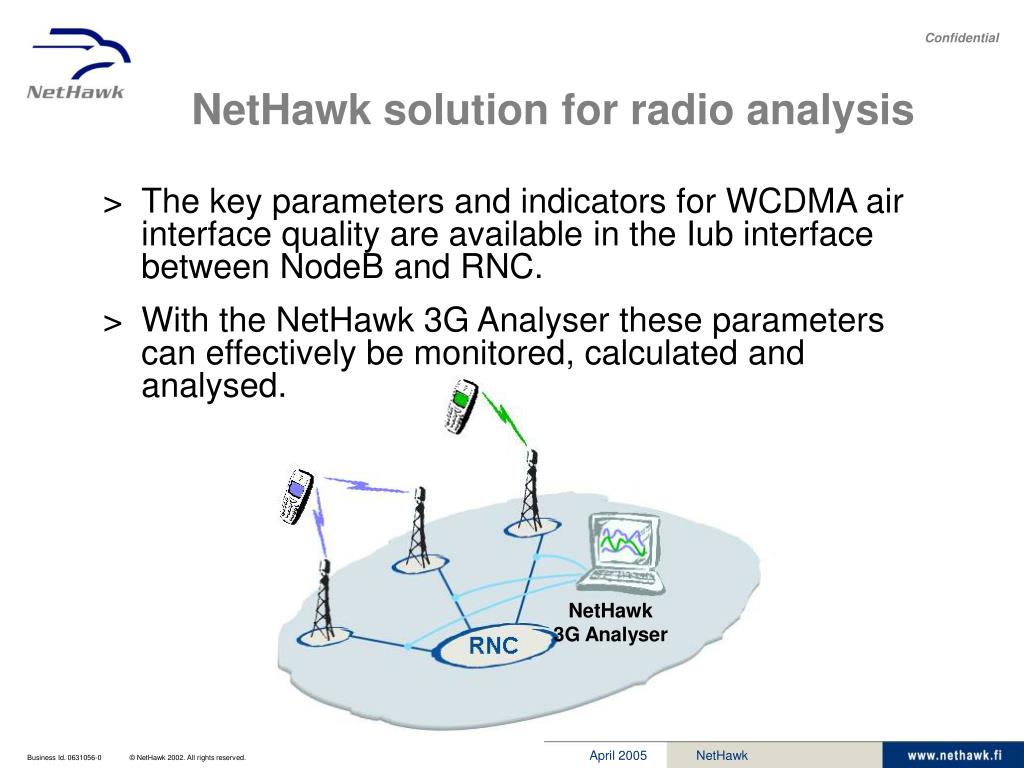

  15. NetHawk solution for radio analysis • The key parameters and indicators for WCDMA air interface quality are available in the Iub interface between NodeB and RNC. • With the NetHawk 3G Analyser these parameters can effectively be monitored, calculated and analysed. NetHawk 3G Analyser

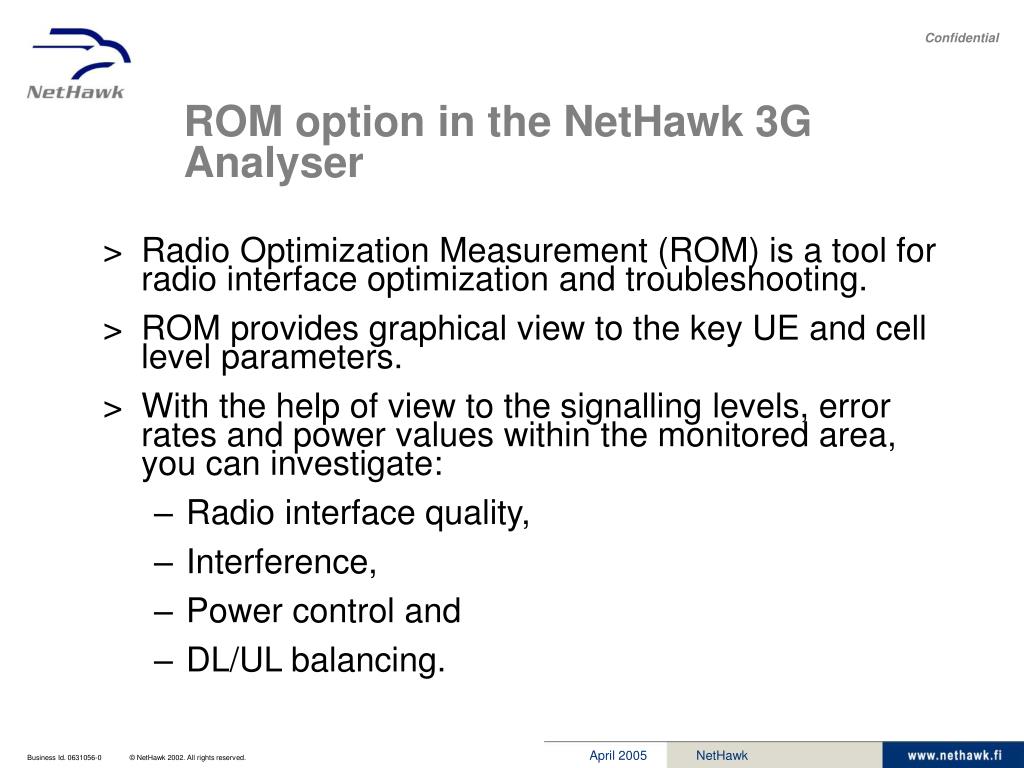

  16. ROM option in the NetHawk 3G Analyser • Radio Optimization Measurement (ROM) is a tool for radio interface optimization and troubleshooting. • ROM provides graphical view to the key UE and cell level parameters. • With the help of view to the signalling levels, error rates and power values within the monitored area, you can investigate: • Radio interface quality, • Interference, • Power control and • DL/UL balancing.

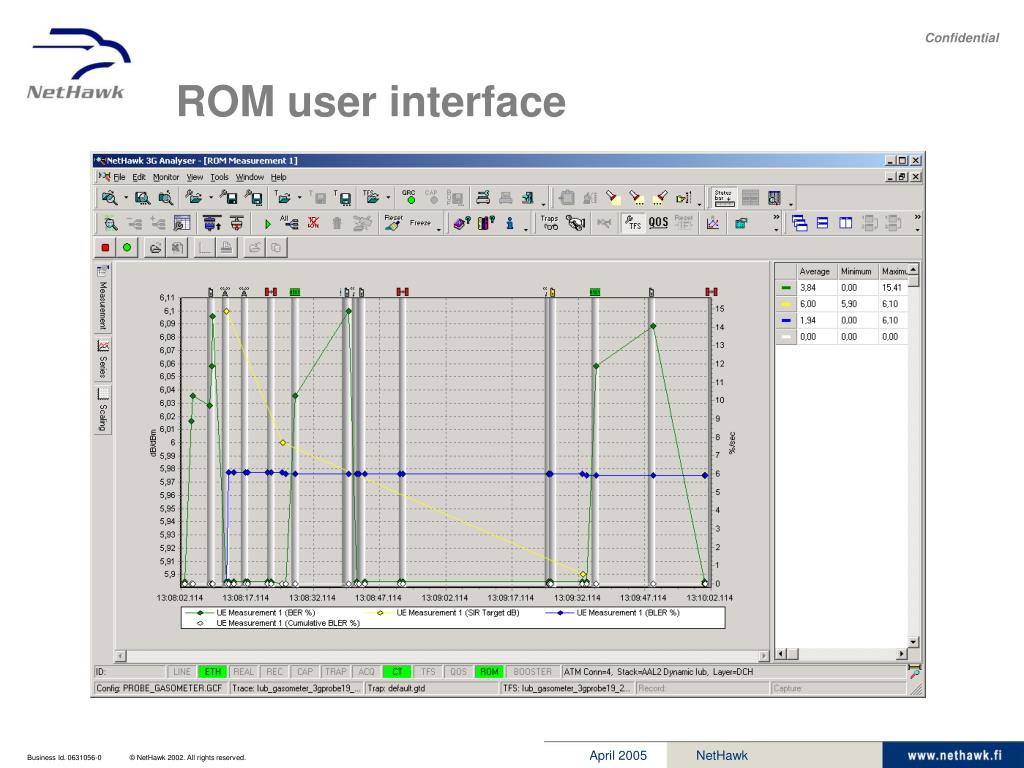

  17. ROM user interface

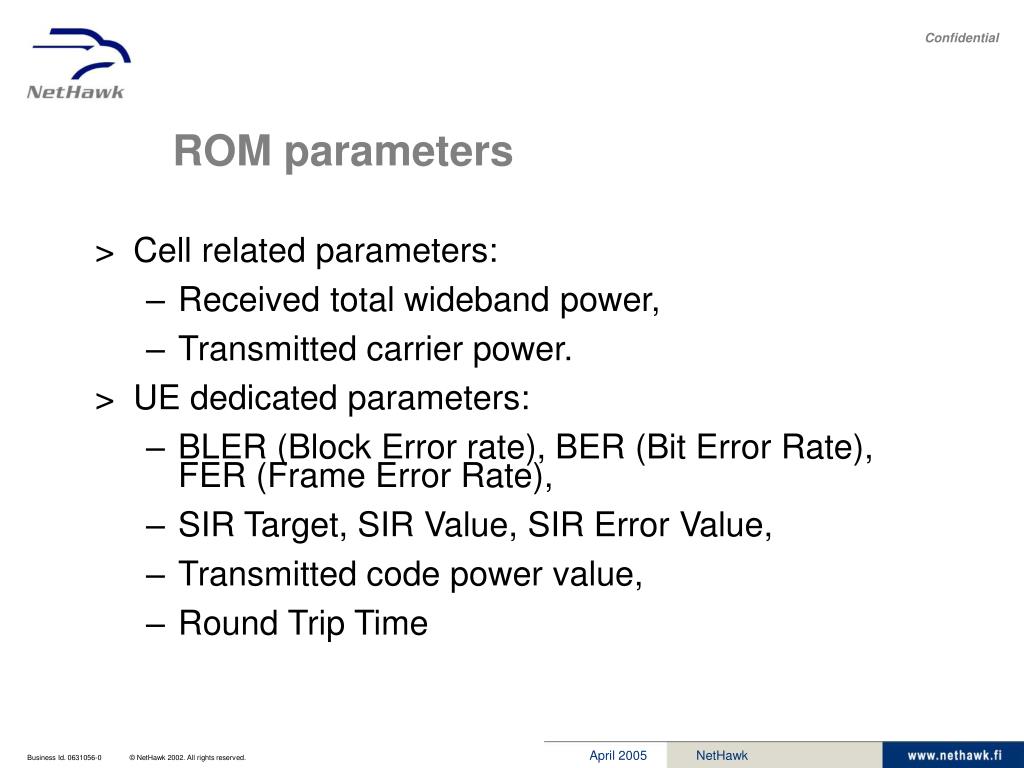

  18. ROM parameters • Cell related parameters: • Received total wideband power, • Transmitted carrier power. • UE dedicated parameters: • BLER (Block Error rate), BER (Bit Error Rate), FER (Frame Error Rate), • SIR Target, SIR Value, SIR Error Value, • Transmitted code power value, • Round Trip Time

  19. Conclusions • Efficient QoS analysis and troubleshooting with the NetHawk 3G Analyser. • Call trace application enables solving subscriber related problems, HO problems and statistical analysis • QoS application provides illustrative view to throughput and point-to-point delay related parameters in your network. • ROM application provides view to the key radio interface parameters collected from Iub interface.

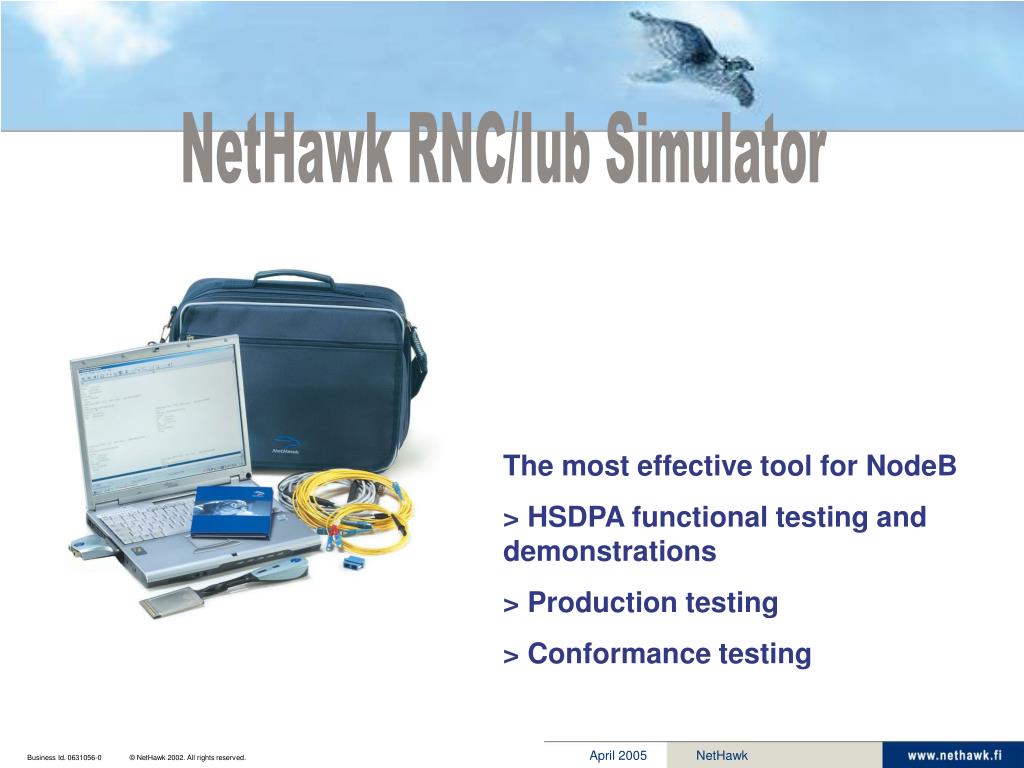

  20. NetHawk RNC/Iub Simulator The most effective tool for NodeB > HSDPA functional testing and demonstrations > Production testing > Conformance testing

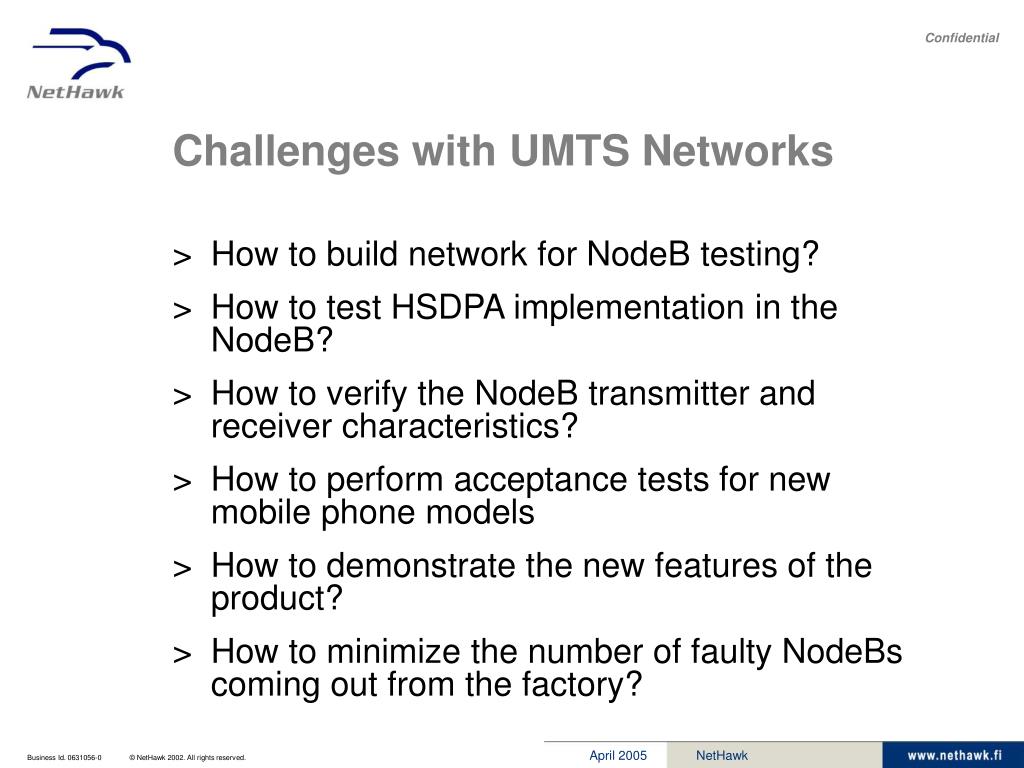

  21. Challenges with UMTS Networks • How to build network for NodeB testing? • How to test HSDPA implementation in the NodeB? • How to verify the NodeB transmitter and receiver characteristics? • How to perform acceptance tests for new mobile phone models • How to demonstrate the new features of the product? • How to minimize the number of faulty NodeBs coming out from the factory?

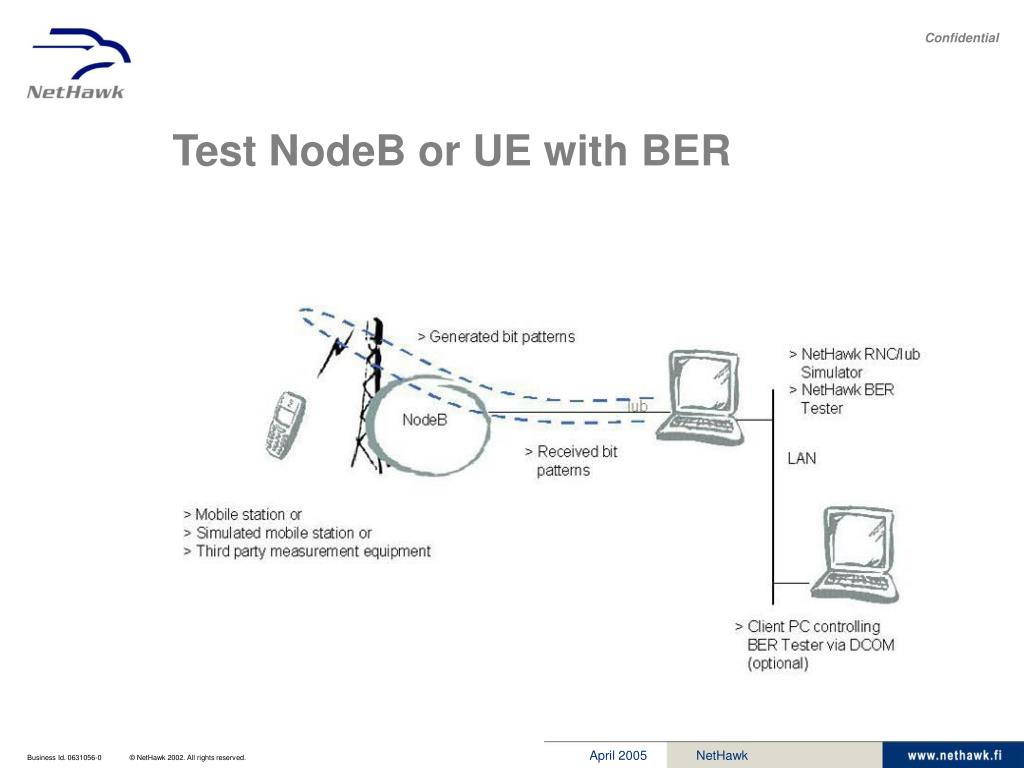

  22. Test NodeB or UE with BER

  23. Test HSDPA Layer 1 RNC/Iub Simulator Test mobile WCDMA NodeB

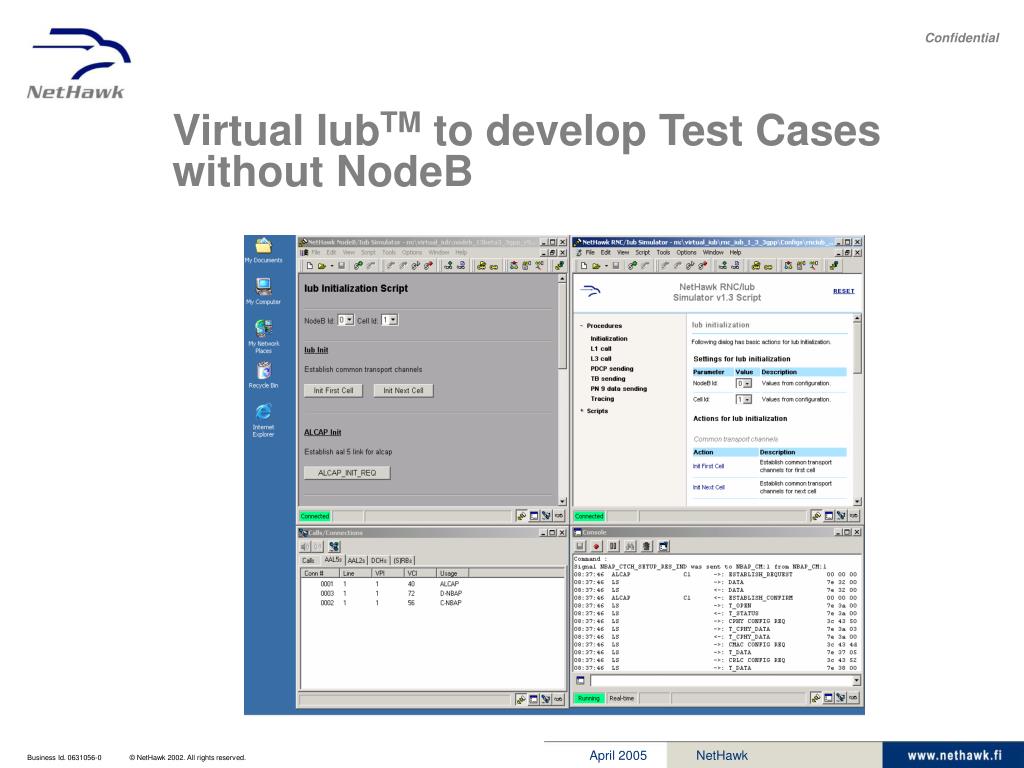

  24. Virtual IubTM to develop Test Cases without NodeB

  25. NodeB Conformance Testing RNC/Iub Simulator 10MHz E1 Iub RF CMU300 WCDMA/FDD NodeB

  26. Conclusions • NetHawk RNC/Iub Simulator extends your PC into a telecommunication tester that simulates protocols in Iub interface and points out user plane problems • The solution for functional NodeB testing to reduce effort and to increase quality: • Unique portable RNC • Solution for HSDPA L1 functional testing • NodeB production test platform
