NetHawk M5 Testing Solutions

NetHawk M5 Testing Solutions. NetHawk M5 Highlights. Provides access to the network data giving an overview of the network quality and enabling easy detailed study of possible problems in multi-technology and vendor environments.

oro
Télécharger la présentation

NetHawk M5 Testing Solutions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. NetHawk M5 Testing Solutions

  2. NetHawk M5 Highlights • Provides access to the network data giving an overview of the network quality and enabling easy detailed study of possible problems in multi-technology and vendor environments. • Unique scalability from ultra-portable stand-alone platforms up to high-performance multi-user lab systems. • Multi-technology support from 2G over 3G to LTE in one box. Correlated call and session analysis over multiple technologies. • High throughput real-time user-plane analysis for LTE • Graphical reporting tool showing the high-level overview of network quality with easy drill-down to the detailed messages and parameters. • New GUI design deploying the latest technology for ease of use, performance and advanced applications.

  3. NEW 3GPP Rel 8 NEW LTE September 2009 baseline Over 100 pre-defined network statistics NEW NEW High performance capture appliance for IP High throughput real-time User Plane analysis for LTE NEW Objective voice quality analysis NEW NEW LTE NAS deciphering in S1 interface Playground

  4. NetHawk M5 solutions • For field: • NetHawk M5 with Laptop PC – The Most Portable! • TravelHawk by NetHawk – Portability and capacity! • For sites and labs: • NetHawk M5 with Desktop or Rack-mounted PC • NetHawk iPro capturing high speed IP traffic • Multi-user multi-core testing system NetHawk M5 Sampo

  5. LAN/Internet/VPN/… NetHawk M5 Sampo multi-user solution NetHawk M5 Sampo Server - Rack-mounted server PC - NetHawk Adapters / iPro - NetHawk M5 Sampo Server SW - NetHawk M5 Sampo Client SWs - Licensing NetHawk M5 Sampo users - Windows Remote Desktop connection over IP to NetHawk M5 Sampo Server - Each user has his own independent NetHawk M5 Analyser session - No NetHawk SW or HW needed - No licensing system needed - Usage from any OS: Windows, Linux, Solaris, HP-UX, ….

  6. NetHawk M5 Sampo benefits • Cost saving benefits • Monitoring hardware effectively shared between the users – same NetHawk Adapters can be used by several users simultaneously. • No special requirements for remote user PCs - no need to upgrade them. • User benefits • Location independent usage. Remote Desktop used to connect to the Server. • Each Client is a complete NetHawk M5 Analyser and can easily access and configure all physical interfaces. • Administrator benefits • Easy to maintain: All HW, SW and cabling in one location. • No extra load for LAN: only Remote Desktop Connection required, traffic is not transferred over LAN. • No NetHawk licensing nor NetHawk software installation needed in user PCs.

  7. Product components • Scalable HW platform: • Laptop PC • TravelHawk PC • Desktop PC • Rack-mounted PC • NetHawk iPro • NetHawk Adapters & cables • NetHawk M5 Analyser SW + options

  8. Core Decoding Package LTE Decoding Package UTRAN Decoding Package GERAN Decoding Package SIP / IMS Decoding Package C&S Analysis C&S Analysis Release 8 Release 8 Release 7 Release 7 UMA Up C&S Analysis IP-RAN Gb deciphering NAS deciphering Iub deciphering C&S Analysis C&S Analysis Proprietary decodings Proprietary decodings Proprietary decodings Proprietary decodings NetHawk M5 Analyser product structure Voice Quality Measurement Speech Playback (VoIP & CS codecs) QoS (IP-KPIs) Network Statistics NetHawk M5 Engine MS Vista upgrade IPSec deciphering IMA RCA Channelised STM-1/OC-3 Hardware Adapters D4 C-Lite D5 N6 N5 N3 Test UE D4 G-Pro D6 N2

  9. NetHawk D6 Adapter (PCI-Express) Two full-duplex STM-1/OC-3 (concatenated/channelised) links / one STM-4/OC-12 link NetHawk D5 Adapter (PCI/PCI-X) 8 bi-directional E1/T1/J1 links (PCM, ATM or IMA) NetHawk Adapters for desktop/rack-mounted PCs NetHawk D4 G-Pro Adapter (PCI-X) Two optical/electrical Gigabit Ethernet NetHawk D4 C-Lite Adapter (PCI/PCI-X) Two 10/100 Mbit and Gigabit Ethernet

  10. NetHawk N5 Adapter (CardBus/ExpressCard) 8 bi-directional E1/T1/J1 links (PCM, ATM or IMA) NetHawk N3(i) Adapter (PCMCIA) One full-duplex STM-1/OC-3 NetHawk Adapters for laptop PCs NetHawk N6 Adapter (ExpressCard) Two full-duplex STM-1/OC-3 (concatenated/channelised) links / one STM-4/OC-12 link NetHawk N2 Adapter (PCMCIA) One bi-directional E1/T1/J1

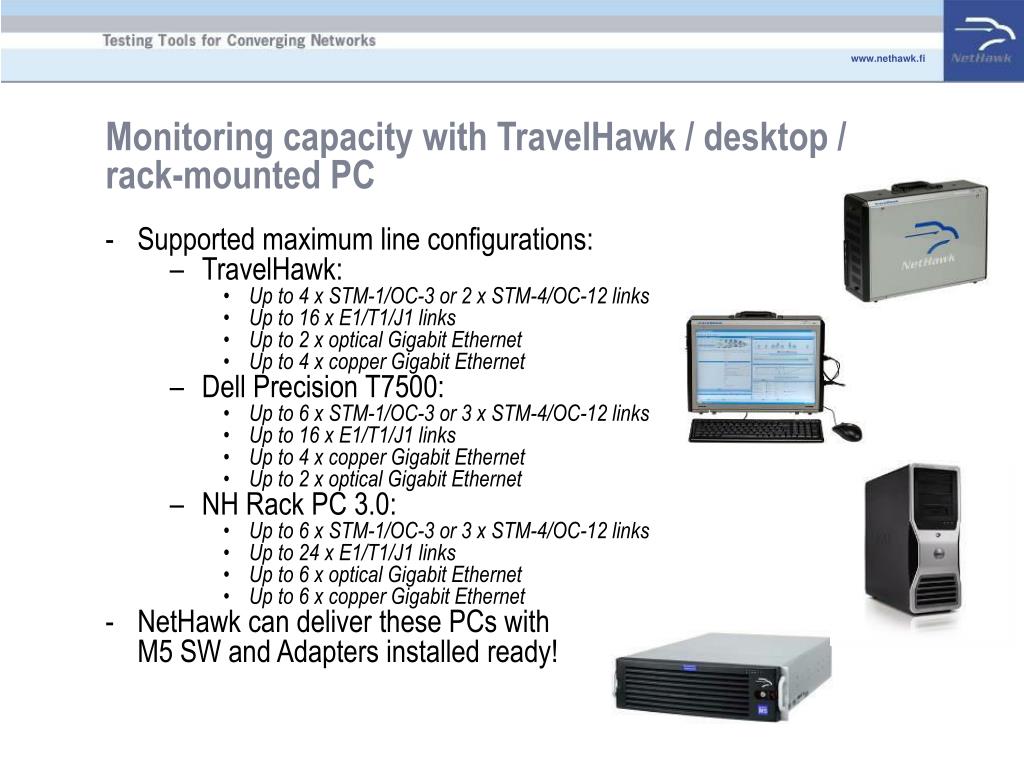

  11. Monitoring capacity with TravelHawk / desktop / rack-mounted PC • Supported maximum line configurations: • TravelHawk: • Up to 4 x STM-1/OC-3 or 2 x STM-4/OC-12 links • Up to 16 x E1/T1/J1 links • Up to 2 x optical Gigabit Ethernet • Up to 4 x copper Gigabit Ethernet • Dell Precision T7500: • Up to 6 x STM-1/OC-3 or 3 x STM-4/OC-12 links • Up to 16 x E1/T1/J1 links • Up to 4 x copper Gigabit Ethernet • Up to 2 x optical Gigabit Ethernet • NH Rack PC 3.0: • Up to 6 x STM-1/OC-3 or 3 x STM-4/OC-12 links • Up to 24 x E1/T1/J1 links • Up to 6 x optical Gigabit Ethernet • Up to 6 x copper Gigabit Ethernet • NetHawk can deliver these PCs with M5 SW and Adapters installed ready!

  12. Monitoring capacity with laptop • Supported maximum line configurations: • FujitsuSiemens Lifebook E8420: • Up to 2 x STM-1/OC-3 or 1 x STM-4/OC-12 links • Up to 16 x E1/T1/J1 links • Additionally built-in Ethernet adapter can be used for Ethernet based interfaces • NetHawk can deliver this PC with M5 SW and Adapters installed ready!

  13. NetHawk iPro – high capture appliance for IP • Full capture of traffic from 2 x Gigabit Ethernet interfaces to 4 Terabyte storage: • 1U rack-mounted server • Physical interface: • 2 x SFP ports or 2 x RJ-45 ports • Packet capture: • 10 ns time stamp resolution, NTP time synchronisation, .PCAP-format • BPF packet filtering: • Ethertype, MAC address, IP address, Port, Protocol, Packet stripping, Payload • Configuration: • Web based GUI, User authentication, HTTPS, SSH terminal connection

  14. NetHawk iPro with M5 • 1. iPro as a remote adapter • Connect iPro directly to M5 for realtime analysis • iPro processes packets and delivers those to M5 using LAN or internet connection • Works as any M5 adapter - All M5 applications can be used • Complete solution for signalling analysis • 2. iPro as a capturing unit • Full line rate capture for IP based networks • Data stored and captured in iPro • Capture conversion is done via iPro Web UI • Possible to extract flows as own files for M5 • M5 can be used to open the iPro capture files • Re-recording with the Recorder application first! • 3. iPro for User plane analysis • User Plane Analyser application – real time QoS measurements for LTE, PS Core, VoIP • Results are stored to MySQL database • Drill Down from session level to detailed decoding • For pure IP connections or tunneled IP connections

  15. Patent-pending solution for user-plane analysis NetHawk iPro with M5 – User plane analysis

  16. NW Element NW Element Test UE USB Air interface monitoring on site • NetHawk Air Interface Test UE is used as an adapter for capturing air interface signaling and user data. • NetHawk M5 can combine and synchronise in real time the air interface signaling with the signaling from other interfaces (Iub, Iu…) in Protocol Monitor application.

  17. Test UE NW Element NW Element Trace file Air interface monitoring in the field • Air interface test UE stores trace file to its internal memory with the help of NetHawkM5 RF Probe application: • Trace file can be analysed as such with NetHawkM5 and also merged with trace files from other network interfaces.

  18. Network monitoring with the NetHawk M5 • Analysis of the captured data with the help of intelligent applications in real-time/offline: • Detailed root-cause analysis with Protocol Monitor • Troubleshooting with Call & Session Analysis • Speech playback and recording of CS calls • Objective voice quality measurements • Delay, throughput, jitter, packet count and packet loss measurements with QoS • Over 100 pre-defined KPIs with Network Statistics • Data-mining: Storing of xDRs, KPIs and QoS counters to database and doing graphical analysis with Diagnostics reporting tool

  19. Protocol Monitor • Release 8, 7, 6, 5, 4 or 99 as protocol analysis baseline • Comprehensive support for proprietary decodings • LTE, UTRAN, GERAN, Core and IMS decoding packages • Wide support for IP application protocols • LTE NAS, IPSec, Iub, Gb deciphering options • Several simultaneous on-line analysis sessions • Customised layer detail settings

  20. Protocol Monitor GUI Application Manager Message Sequence Chart view, also Single Line Decoding view available Detailed Decoding view Connections selected for analysis Layer detail settings

  21. Adjustable views in M5 -Docking panels allows user to define the analyser views the most efficient way! E.g. in PM, Detailed Decoding view can be moved from bottom to side. -Floating applications let user to move any application out of M5 working area, even to different screen!

  22. Call & Session Analysis • Real-time tracing of CS calls, PS sessions, handovers with phase information: • LTE: S1, EPC (control plane) • UTRAN: Iub, Iu-CS, Iu-PS • Correlation: Iub with Iu • GERAN: Abis, A, Gb, A+, Ater, UMA Up • Correlation: Abis with A, A+, Ater, and Gb with Gn, Gi • Core: MAP, ISUP, INAP, CAP, Mc/Nc/Nb, Gn, Gi, Gs • Correlation: MAP with Iu, Iub, or MAP with Abis, A, Mc with Nc, Nb • IMS: SIP with user plane, Diameter • Setup time measurements between user-defined messages.

  23. Call & Session Analysis GUI Calls/sessions correlated over the monitored interfaces Available columns, e.g. over 200 LTE specific columns Detailed decoding with a mouse click

  24. Speech Playback for Iub, Iu-CS, Abis, A, Ater and SIP interfaces • Listening to speech of selected voice calls through PC’s loudspeakers. • Recording speech to .wav-format e.g. for PESQ analysis. • Abis Scanner for easy configuration of Abis voice listening • Supported speech codecs: • G.711 (A-law/µ-law) • GSM HR, GSM FR, GSM EFR • AMR-NB, AMR-WB • G.723.1 • G.726 • G.729, G.729A, G.729B, G.729AB • iLBC PESQ = Perceptual Evaluation of Speech Quality

  25. Voice Quality Measurement (NINA+) • No-reference approach for evaluation listening quality of speech files. • NetHawk solution is based on SwissQual’s NiNA+ algorithm: • In comparison to ITU-T P.563 – where SwissQual is also owner partially – NiNA+ has much less complexity. • Restricted to narrow-band speech: • AMR-WB signal can be analysed but only the narrow-band spectral parts are taken into account allowing to predict transmission errors of the AMR-WB against error-free AMR-WB transmissions. • Minimum period of the sample speech must be of five seconds. Speech period can be more than 20 seconds but the only first twenty second is analysed: • NiNA+ makes use of a sophisticated pre-processing step that checks for silence and sufficient speech activity in the signals.

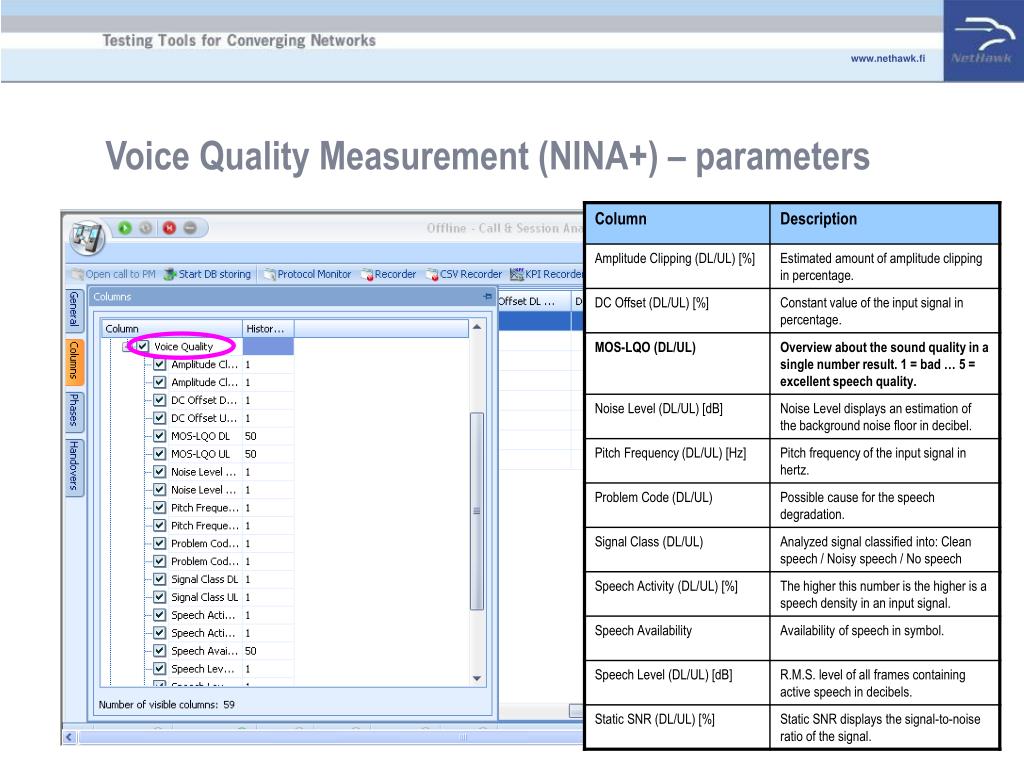

  26. Voice Quality Measurement (NINA+) – parameters

  27. Network Statistics • Based on the traced CS and PS transactions at Iub, Iu-CS, Iu-PS, Abis, A, Gb, MAP and ISUP interfaces: • Call setups, dropped calls, SMS, PDP context activations, routing area updates… • Stored to database • Illustrated in graphics with Diagnostics reporting tool: • Count of occurrences • Success/failure rates (Key Performance Indicators) • Distribution of failure causes to LAC and Cell level • Own KPIs with protocol counters

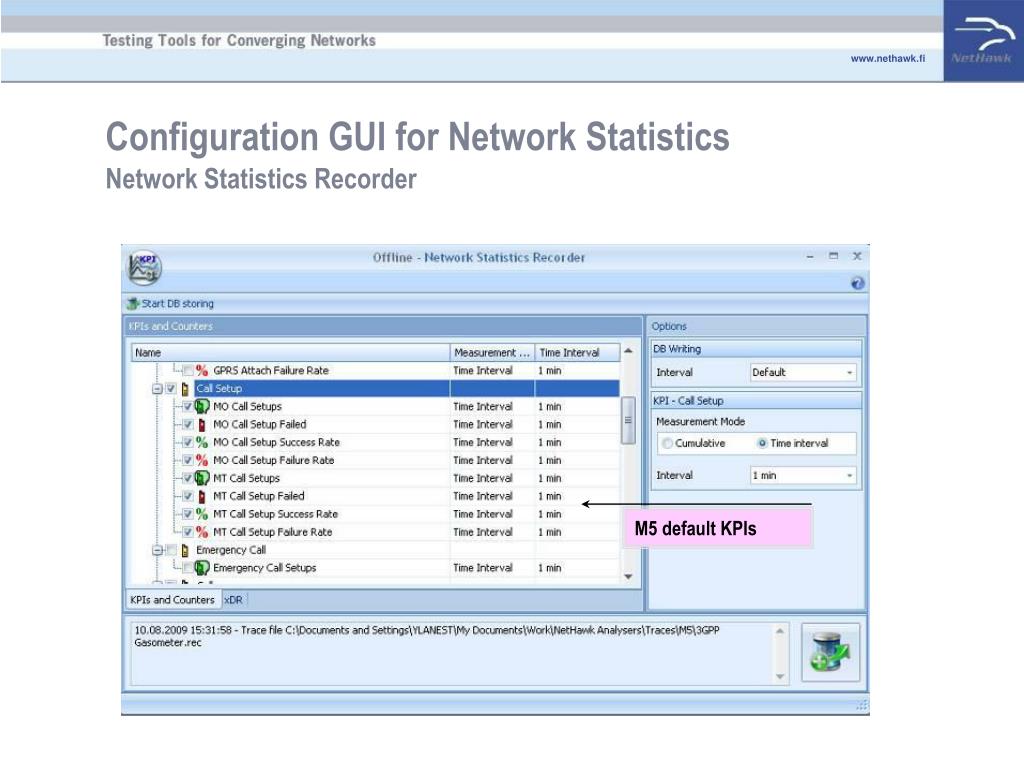

  28. Configuration GUI for Network StatisticsNetwork Statistics Recorder M5 default KPIs

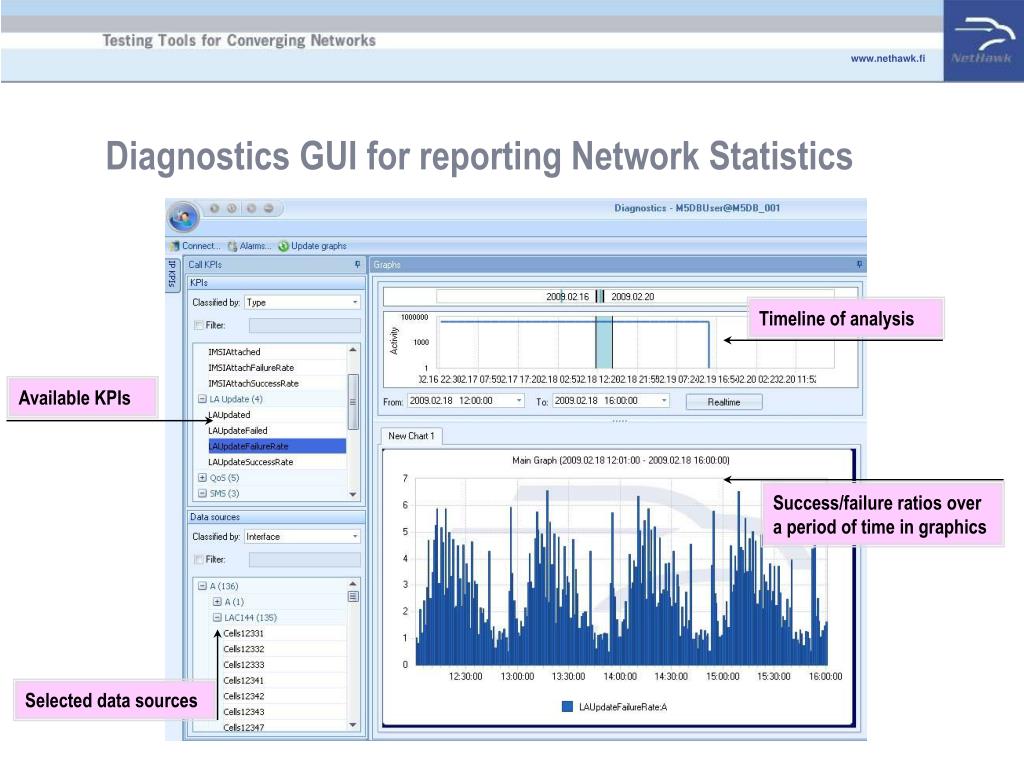

  29. Diagnostics GUI for reporting Network Statistics Timeline of analysis Available KPIs Success/failure ratios over a period of time in graphics Selected data sources

  30. Quality of Service measurements • Measurements for user plane traffic at IP-based interfaces: • Delay, average delay and delay variance (jitter) • Throughput • Packet count and packet loss • Possibility for several simultaneous measurements, e.g. • Delay over RNC and SGSN for finding bottlenecks • Throughput values for several UEs for comparison • Delay and throughput correlation analysis • Stored to database • Analysis with Diagnostics • Diagnostics can illustrate QoS KPIs in real-time: • Calculations with iPro QoS settings or with M5 QoS Recorder

  31. Configuration GUI for QoSQoS Recorder Available KPIs shown per connection

  32. Diagnostics GUI for reporting QoS Automatic update of KPIs for real-time view. Network nodes available for analysis Illustration of QoS counters with colorful graphs

  33. Use case: Troubleshooting with NetHawk M5 • Drill Down from statistics into XDRs and deeper into signaling analysis: 1. Open XDR view for the selected call. 2. Drill-down to Protocol Monitor. 2. 1.

  34. NetHawk Care service • Software maintenance, extended hardware warranty and support services • Annual fee based on the system configuration • New functionality with software updates: • No need to update the hardware, e.g. LTE monitoring capability only with a SW update • SW can be downloaded directly from the web www.nethawk.fi

  35. Conclusions • Combined LTE, UTRAN (with HSPA), GERAN, Core and IMS analysis tool for multi-vendor environments with support for latest specifications • Full line rate capture for IP based networks • High throughput real-time user plane analysis for LTE • Advanced applications for refining signalling data to support decision-making • Scalable HW platform and flexible product structure for close fit of different user groups • New functionalities with software-only updates downloadable at web
